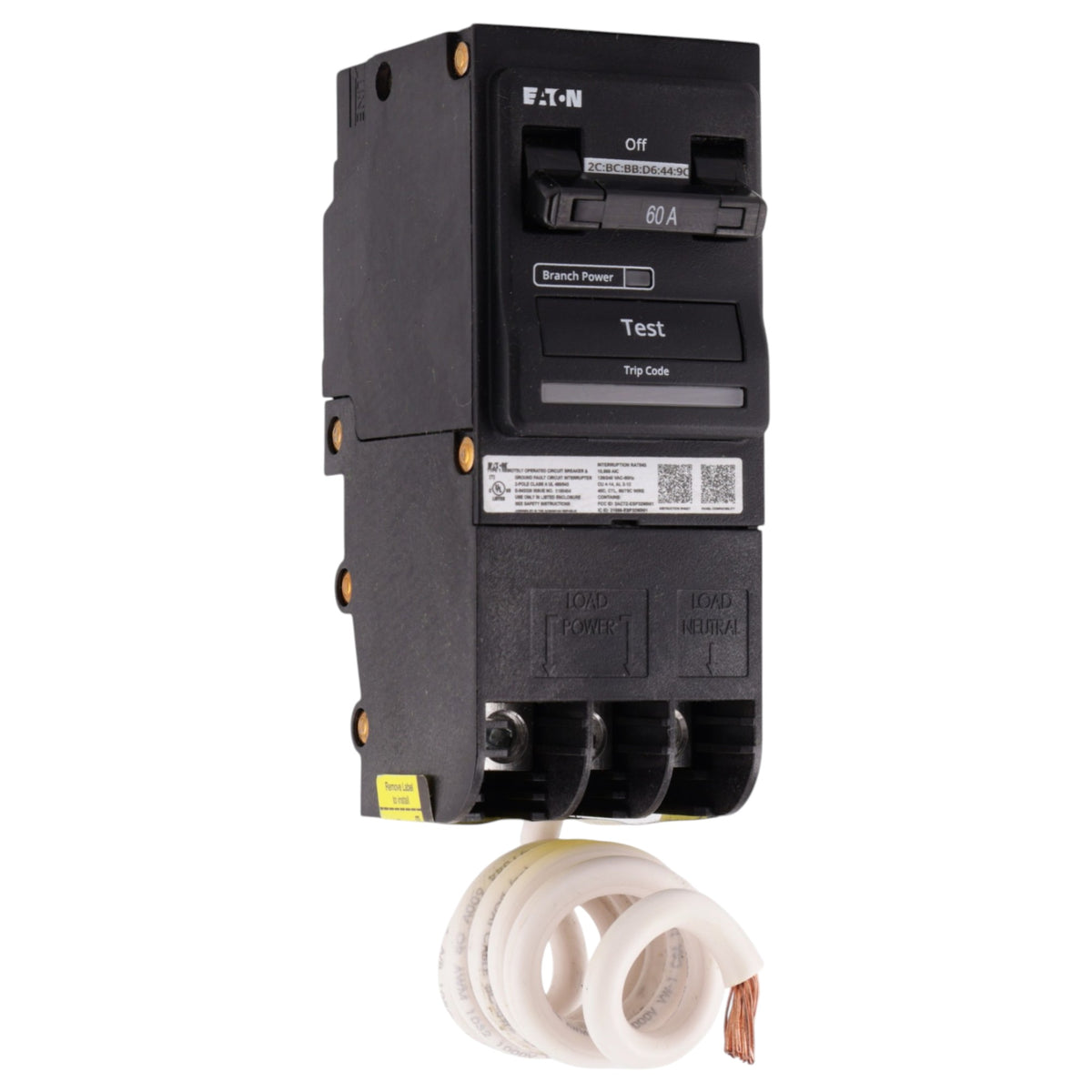

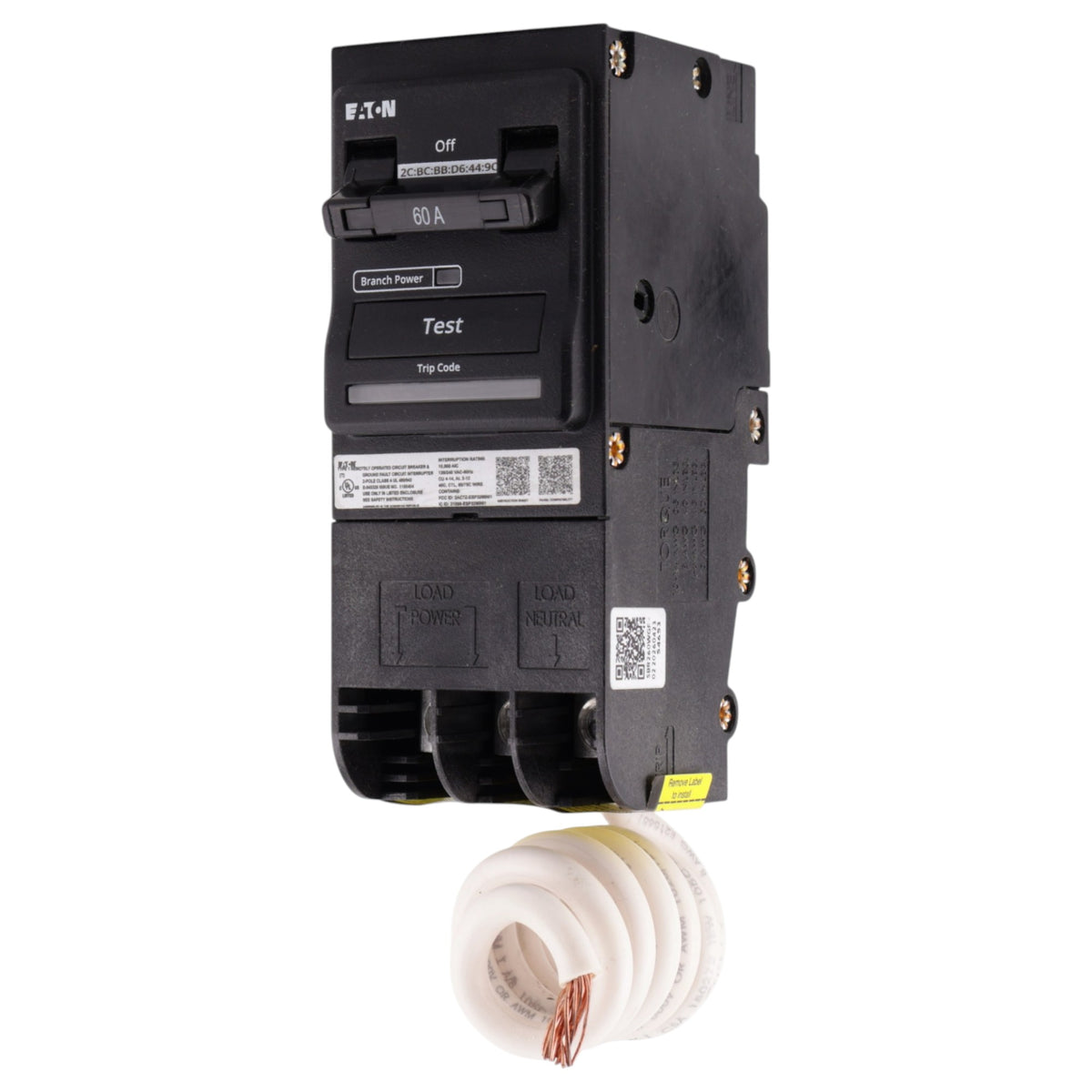

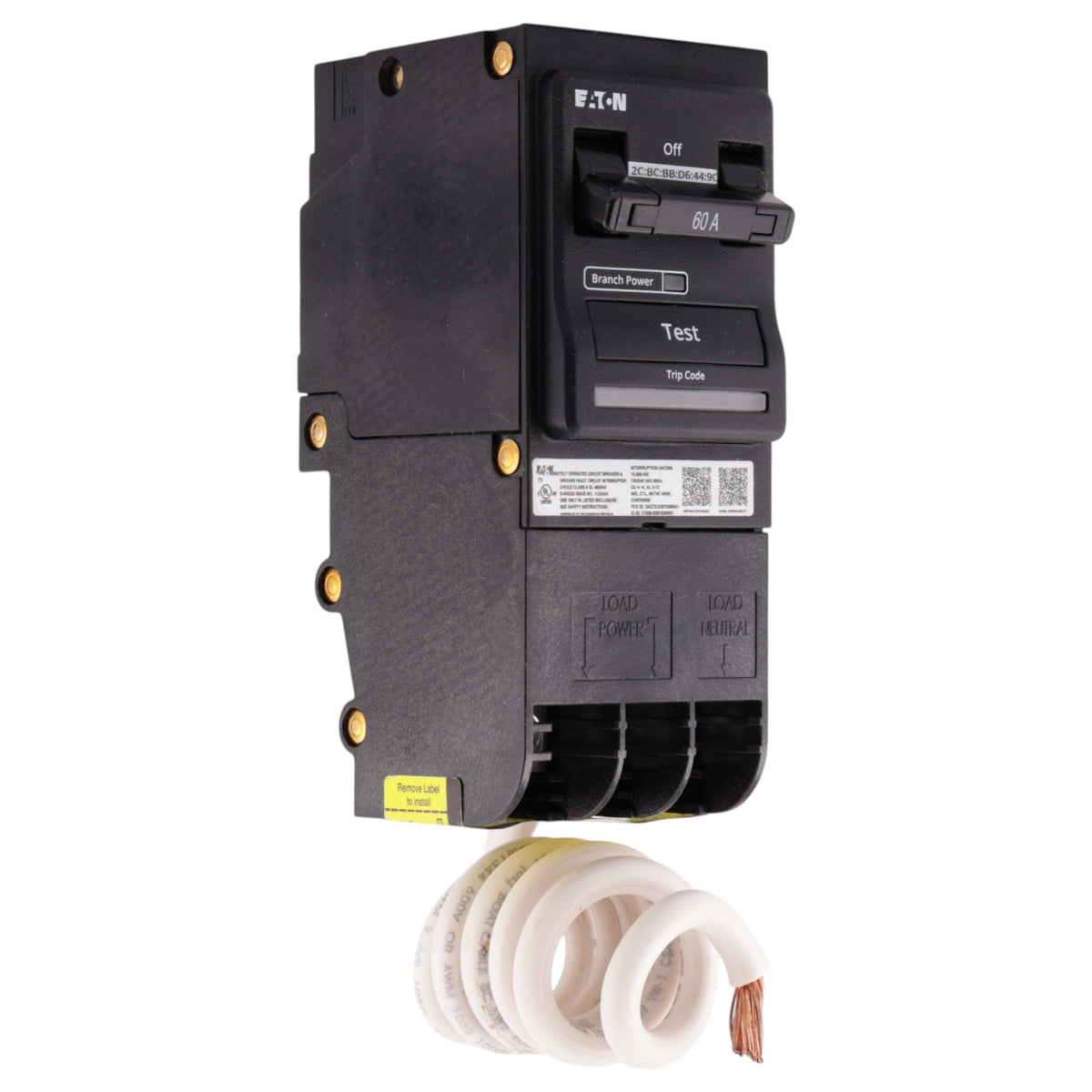

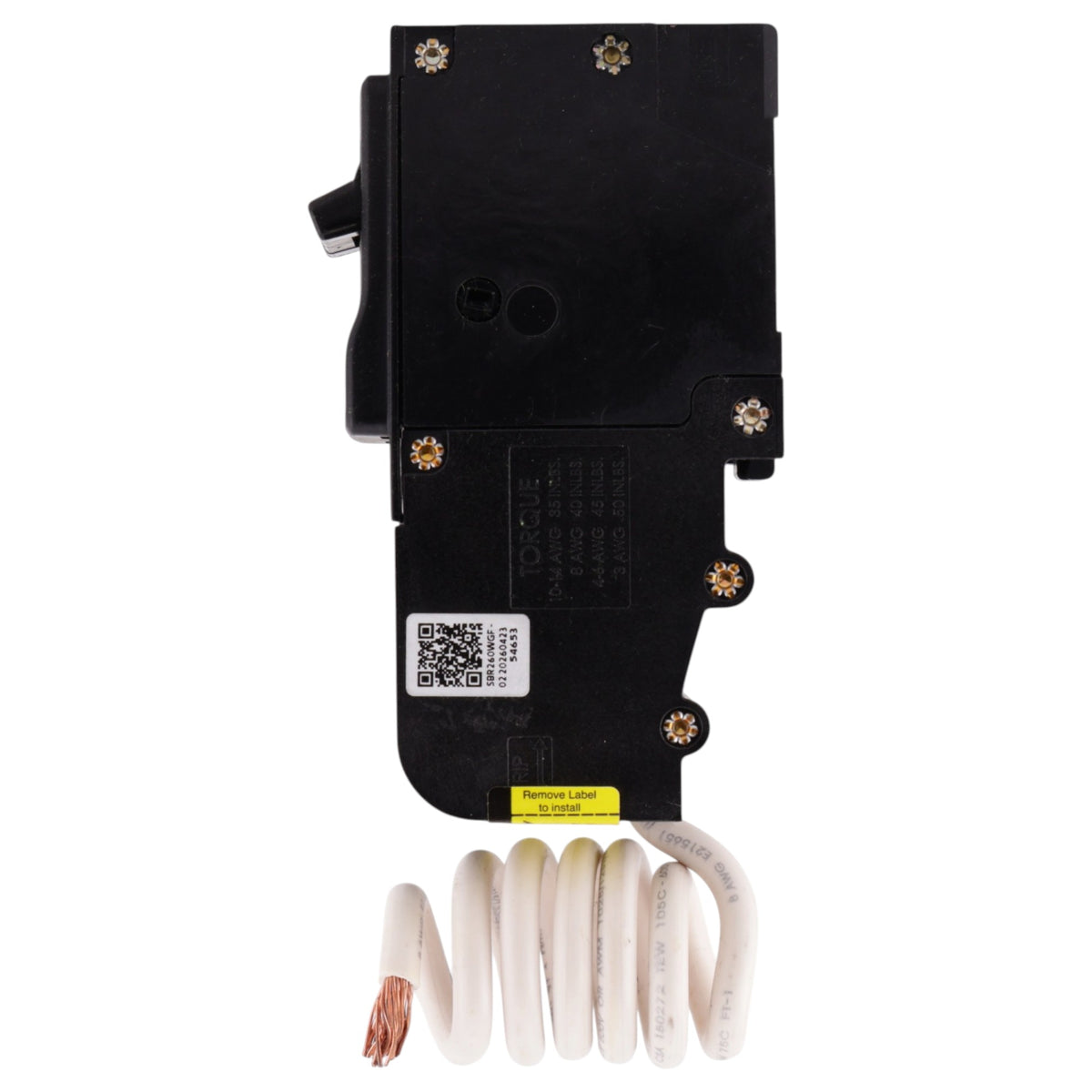

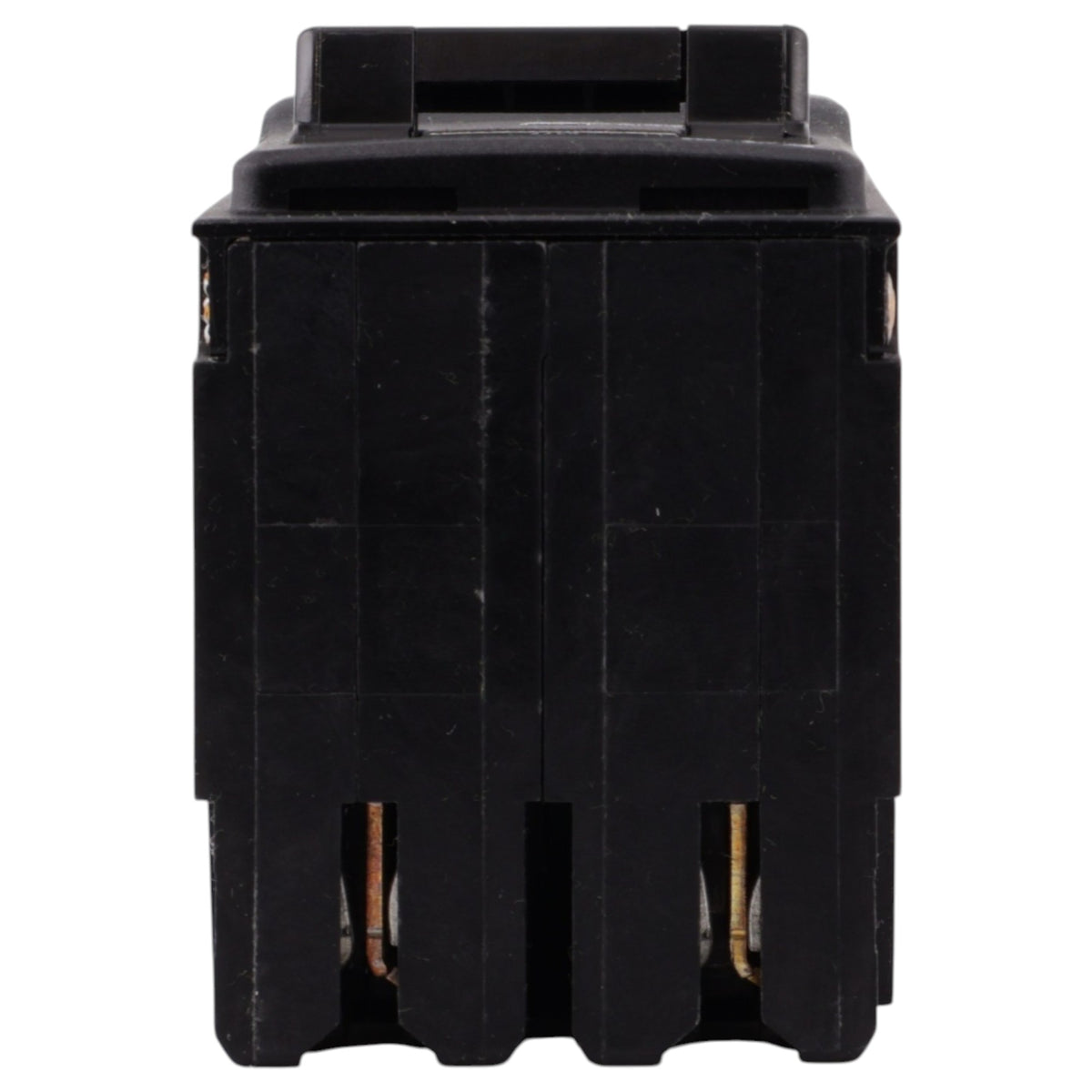

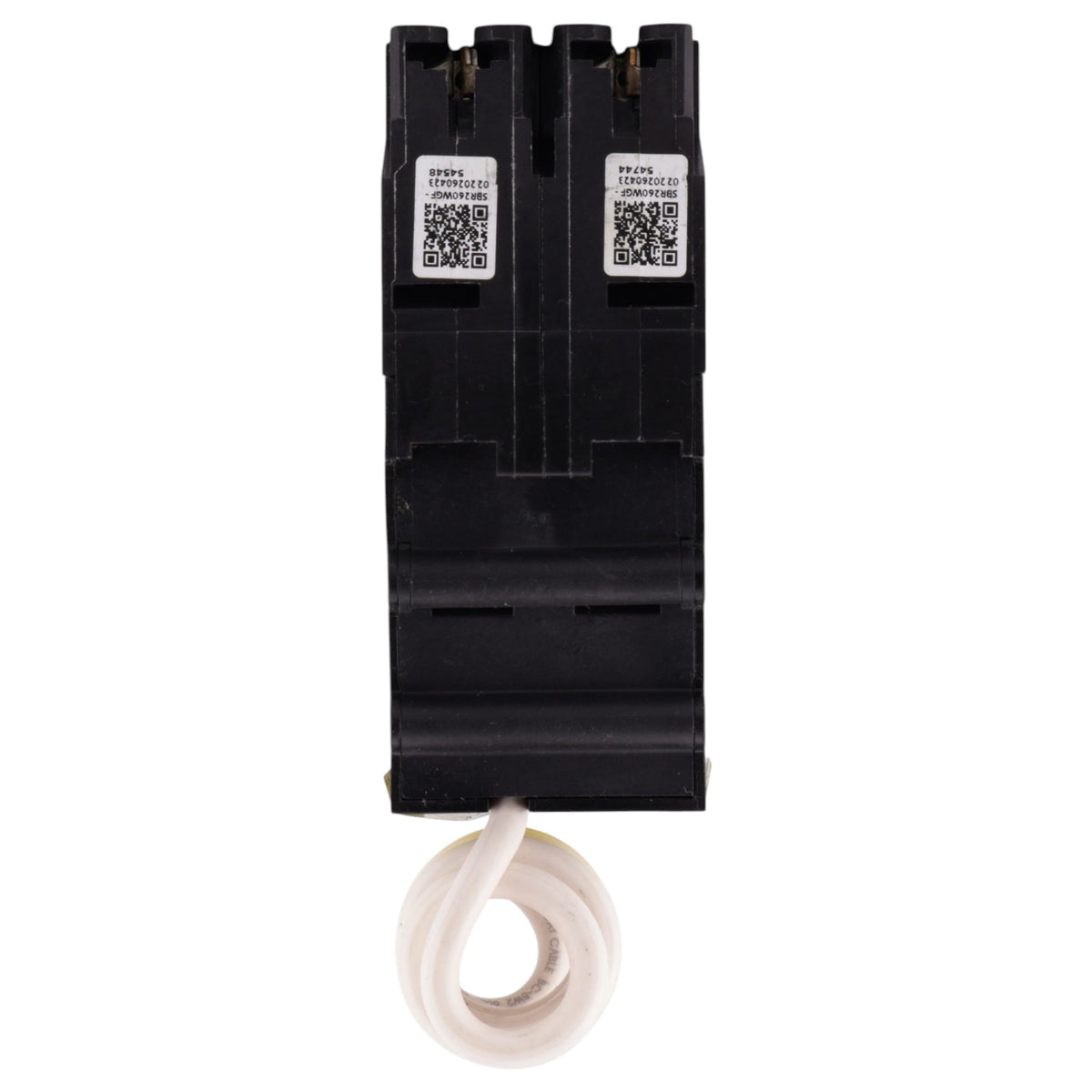

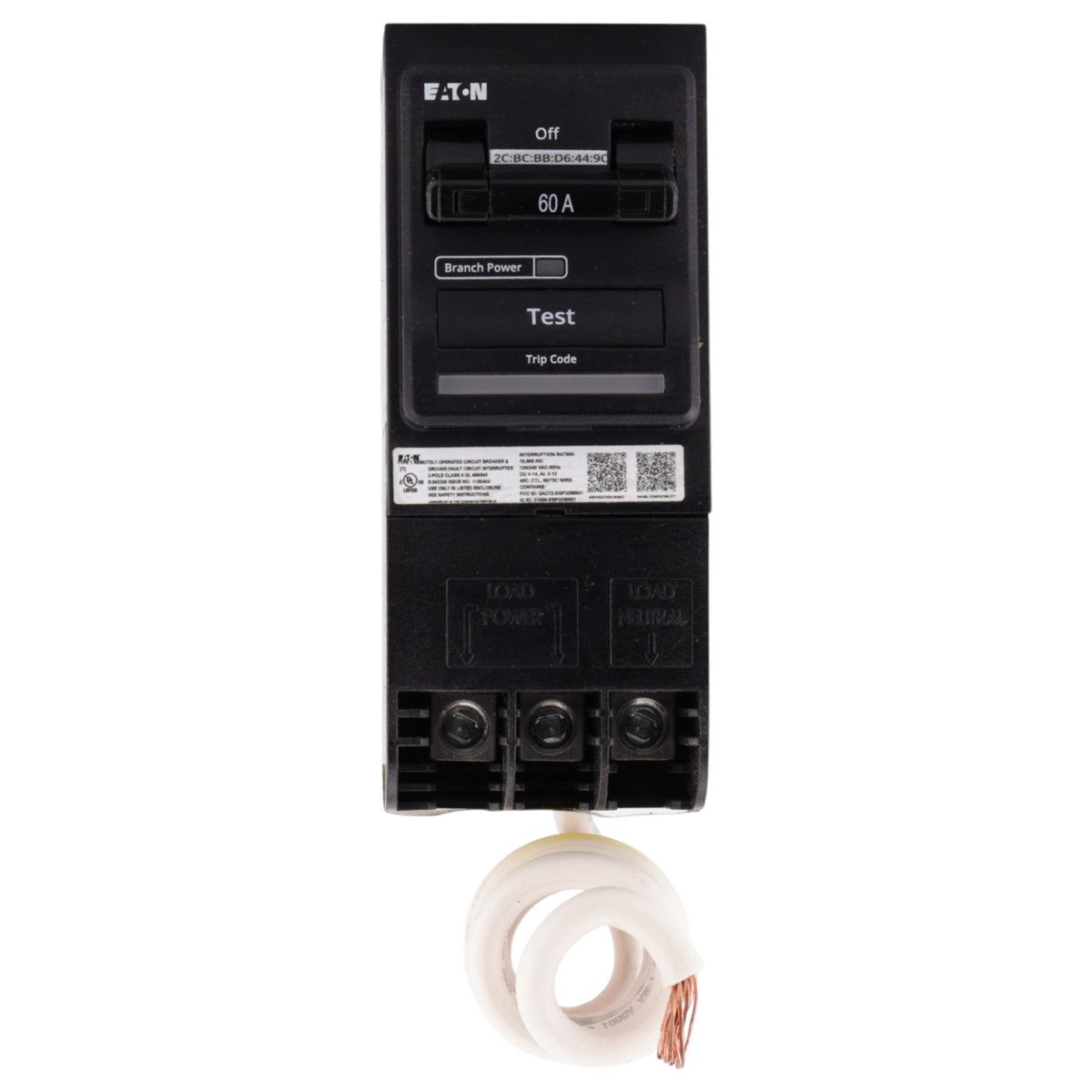

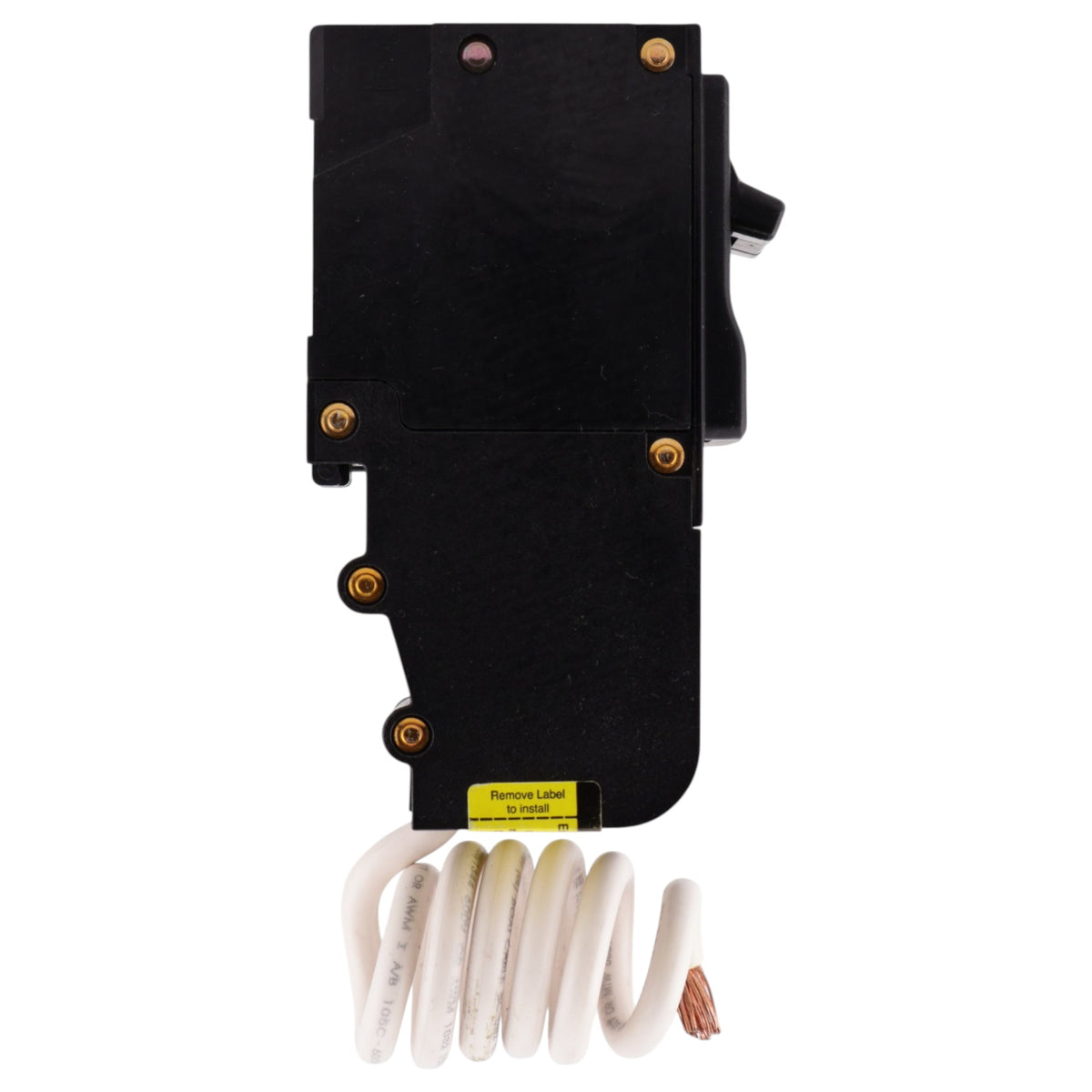

Eaton SBR260WGF: 60 Amp, 2-Pole, AbleEdge Type BR Wi-Fi Smart Breaker with Class A GFCI Protection, 120/240V, 10kA, Pigtail Neutral, Remote ON/OFF, Revenue-Grade Metering, UL Listed.
-
Manufacturer: Eaton (Cutler-Hammer)
-
Brand: Eaton
-
Product Range: AbleEdge Smart Breakers (BR Series, for Eaton Type BR Loadcenters)
-
UPC: 786689862534
-
Model Number: SBR260WGF
-
Breaker Type: Smart Breaker with Ground-Fault Circuit Interrupter (GFCI), Class A (UL 943), Two-Pole, Wi-Fi Connected
-
Amperage: 60 Amps
-
Poles: 2-Pole (occupies 2 spaces)
-
Voltage: 120/240V AC; 120/208V AC
-
Frequency: 60 Hz
-
Interrupt Rating: 10 kAIC
-

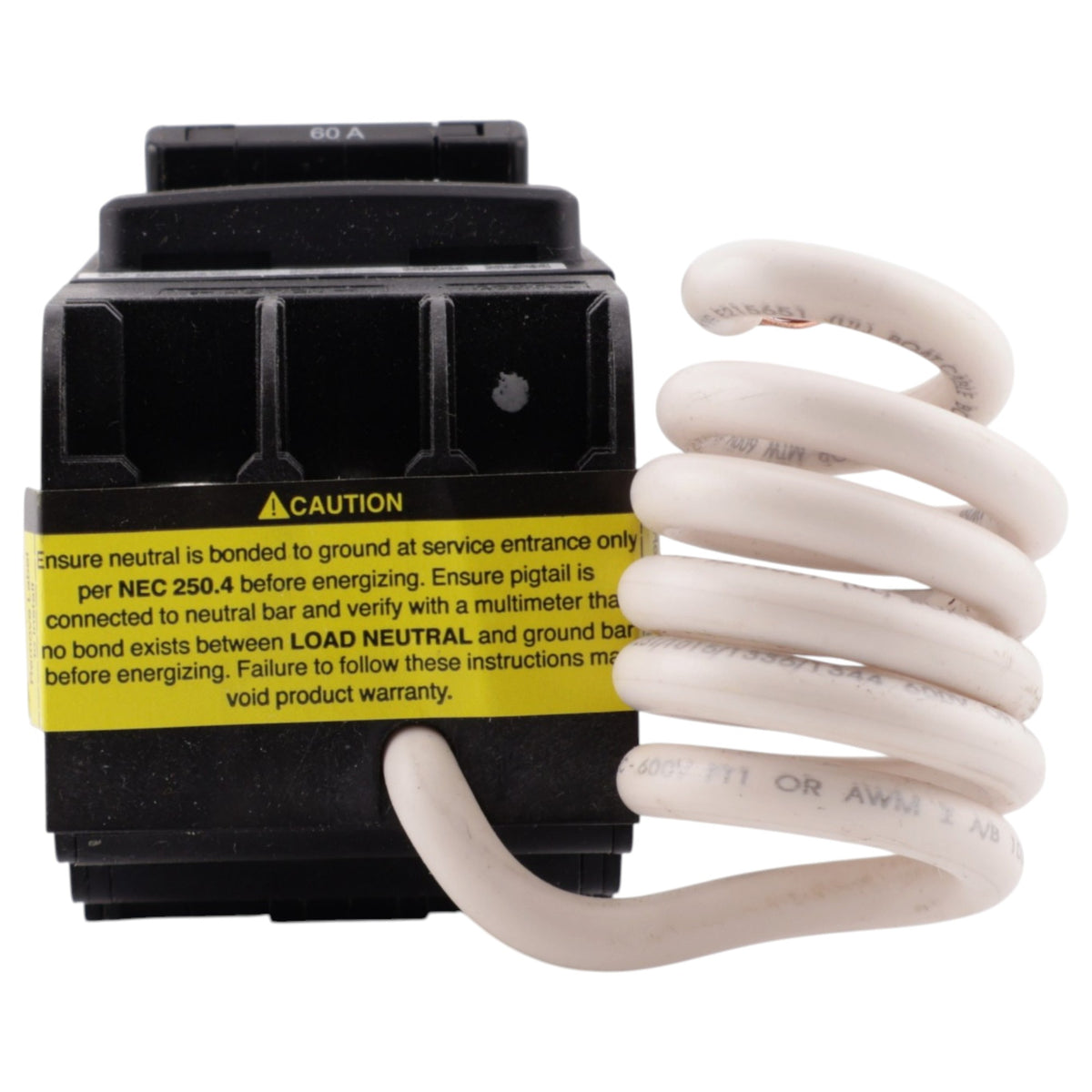

Connections Terminals: Pigtail Neutral
-
Special Features: Wi-Fi connectivity, remote ON/OFF control (independent of the trip mechanism), revenue-grade metering (±0.5%) of voltage, current, frequency, power and energy, real-time Open/Closed/Tripped status, intelligent auto load shed, AbleEdge installer app (iOS/Android) for Wi-Fi setup and third-party system integration
-
Operating Temperature: -30°C to +40°C
-
Humidity: 0%–90%, non-condensing
-
Dimensions: Height: 2.00 in; Width: 4.90 in; Depth: 2.70 in
-
Weight: 1.24 lb
-
Certifications: UL 489, UL 943, UL 1998, UL 60730-1 (Annex H), UL 486A-486B, FCC Part 15 Subpart B & C, ICES-003, CSA C22.2 No. 5, CSA C22.2 No. 144.1, CSA C22.2 No. 65, CSA C22.2 No. 0.8
-
Warranty: 10 years mechanical, 3 years electronics
The Eaton SBR260WGF AbleEdge smart breaker combines 60 Amp, 2-Pole Class A GFCI circuit protection with Wi-Fi connectivity and revenue-grade energy metering in a standard BR plug-on form factor. It installs directly in existing Eaton BR loadcenters. It supports remote ON/OFF control, real-time energy monitoring, and intelligent automatic load shedding to help prevent overloads during power outages.
