Eaton DPU222R 60A 120/240V Non-Fused Pullout Air Conditioning Disconnect

Eaton DPU222R: 60 Amp 2-Pole Non-Fused Pullout Air Conditioning Disconnect, 120/240V, 10kA, NEMA 3R Galvanized Steel Enclosure, 10 hp at 240V, UL Listed.

• Manufacturer: Eaton
• Brand: Eaton
• Product Range: Air Conditioning Disconnects
• UPC: 782113926858
• Model Number: DPU222R
• Product Type: Air Conditioning Disconnect
• Type: Non-fused pullout
• Amperage: 60 Amps
• Poles: 2-Pole
• Voltage: 120/240 Volts AC
• Interrupt Rating: 10 kAIC
• Horsepower: 10 hp at 240V
• Mounting Mode: Surface
• Connections Terminals: #14-3 AWG Cu/Al
• Operating Temperature: 60°C to 75°C
• Dimensions: Height: 2.0 in; Width: 5.5 in; Depth: 9.0 in
• Weight: 3.0 lbs
• Enclosure Rating: NEMA 3R
• Enclosure Material: Galvanized Steel
• Color: ANSI 61 Gray
• Certifications: UL Listed, CSA Certified

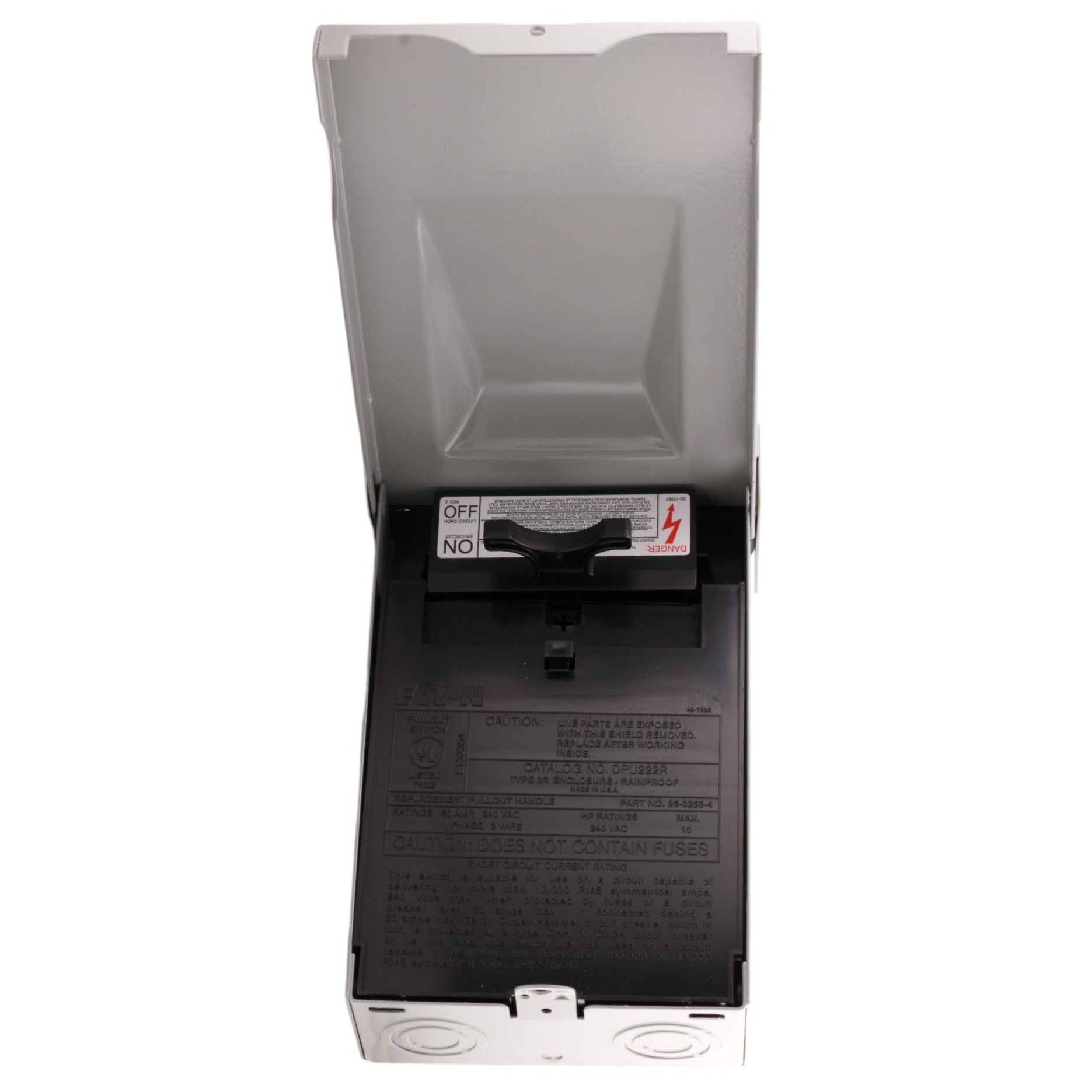

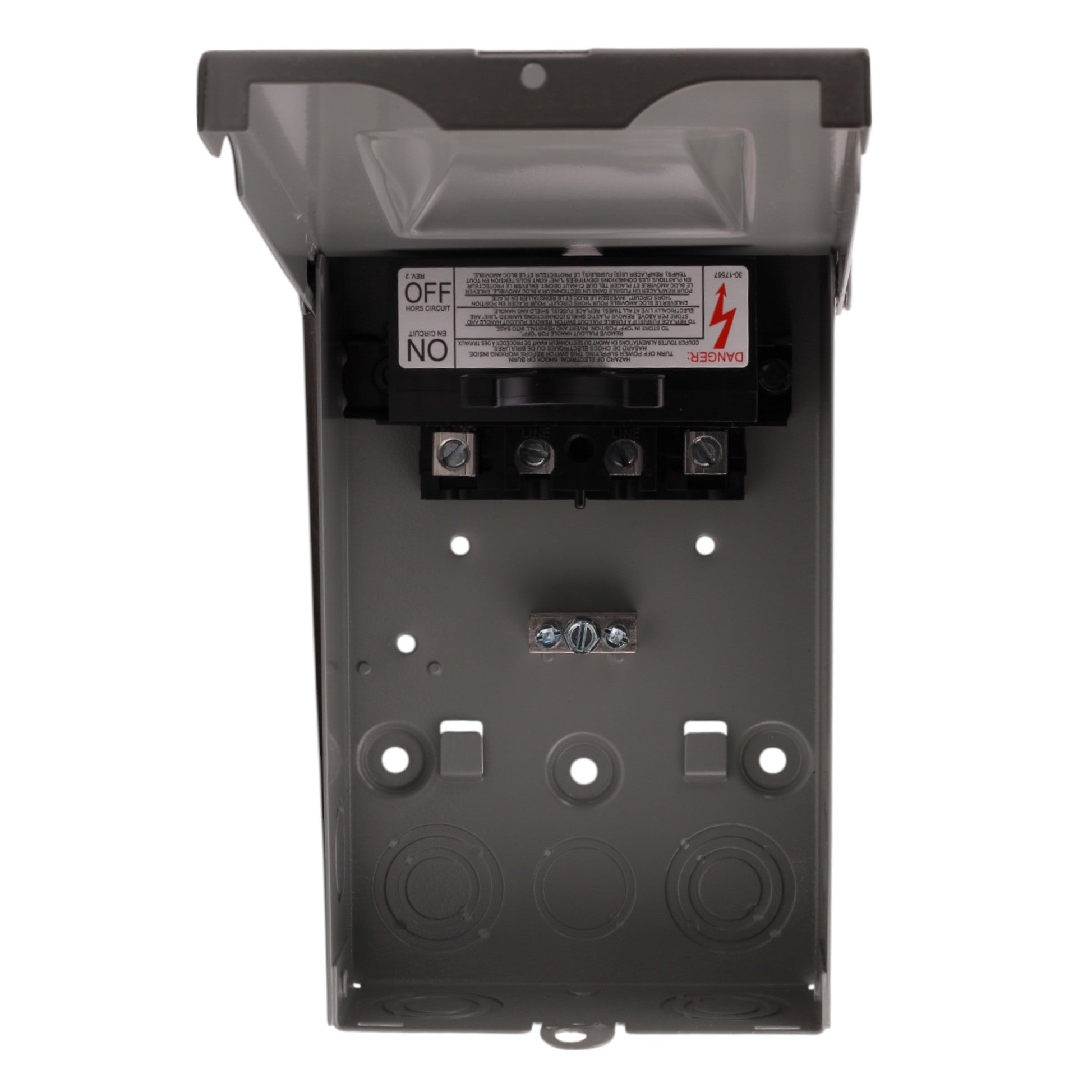

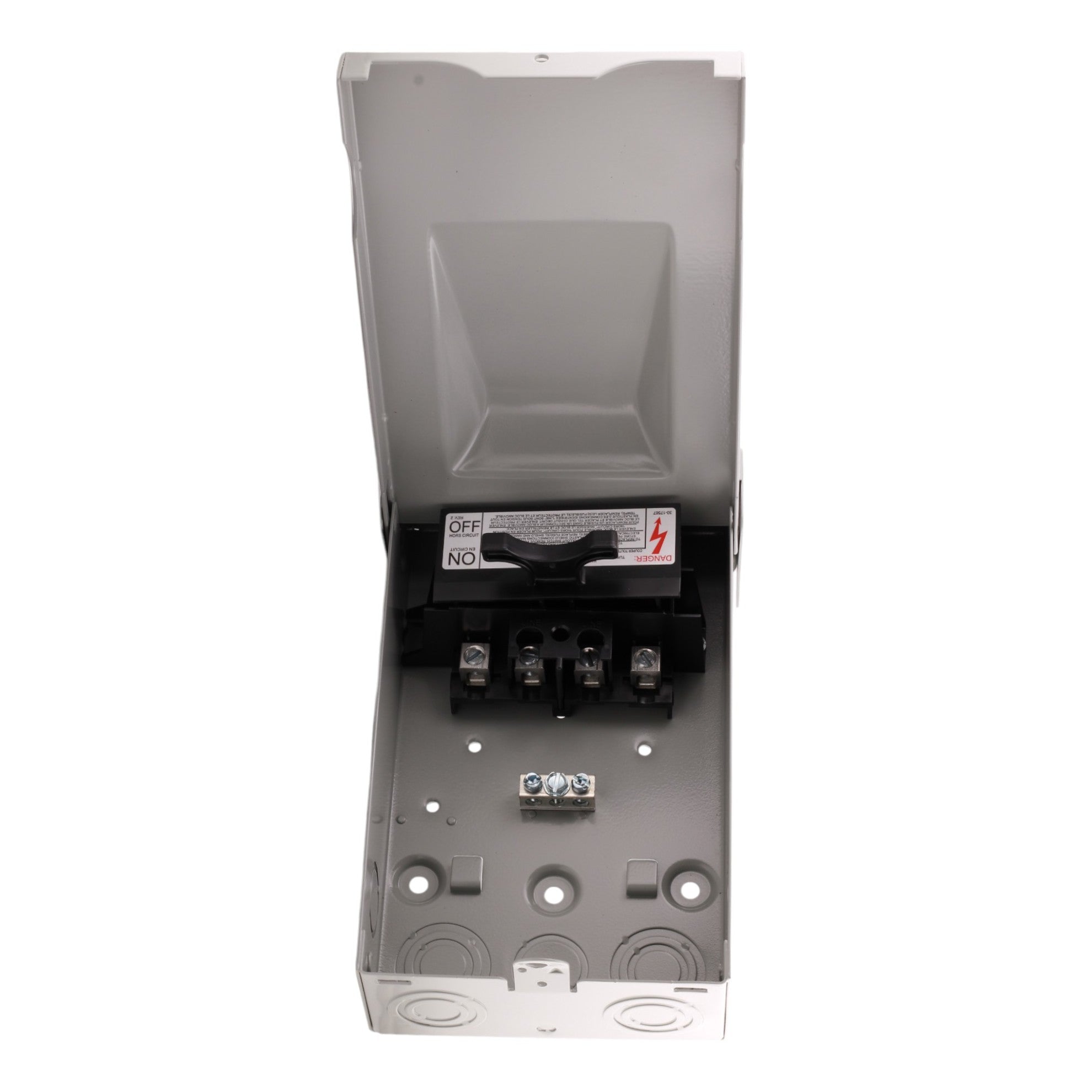

This Eaton DPU222R non-fused pullout air conditioning disconnect provides reliable 60A, 2-pole disconnection for 120/240V air conditioning units, heat pumps, and other residential or light commercial applications. Housed in a durable NEMA 3R galvanized steel enclosure, it ensures weather-resistant performance and easy access for maintenance with a removable pullout handle. Ideal for safe and efficient power management in outdoor installations.
