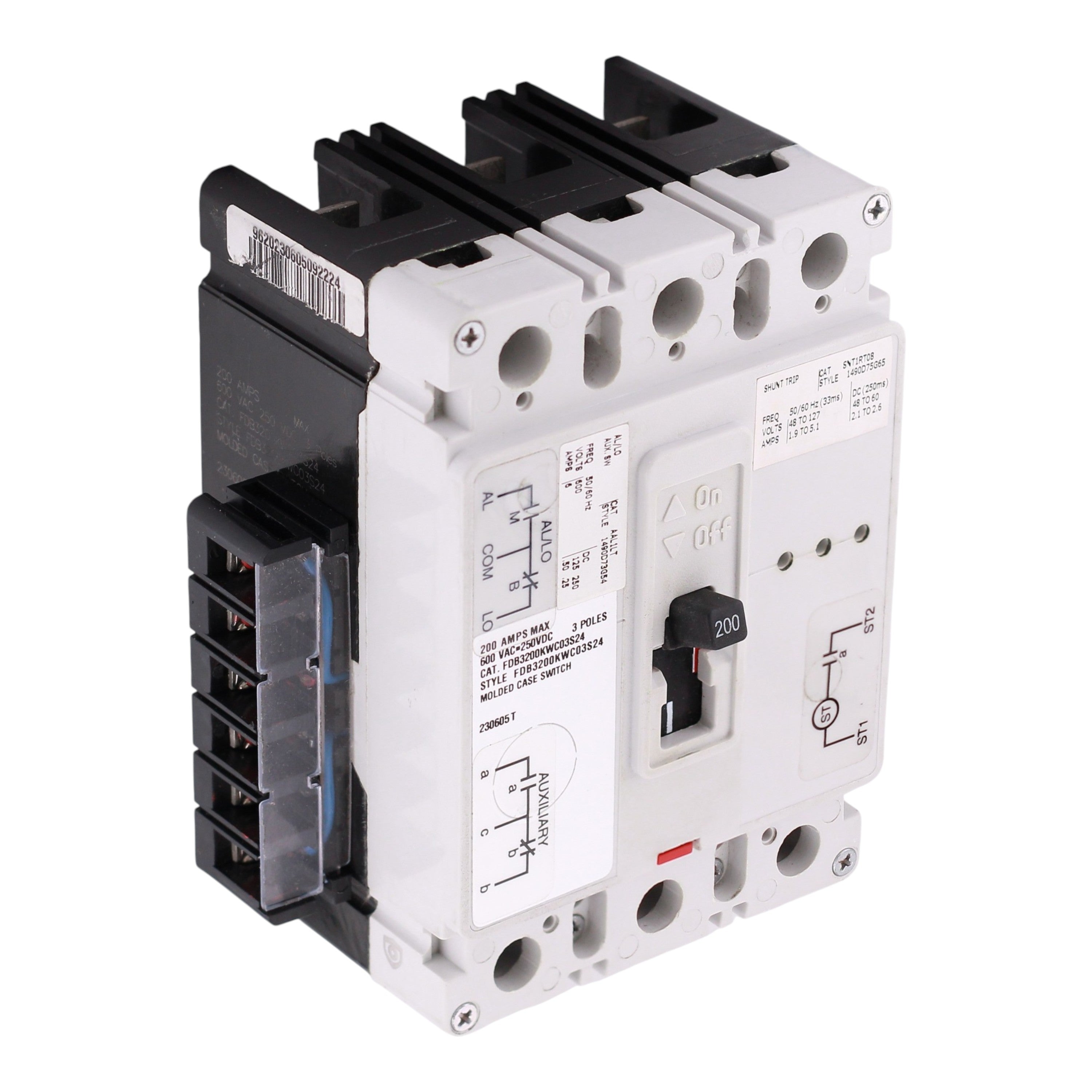

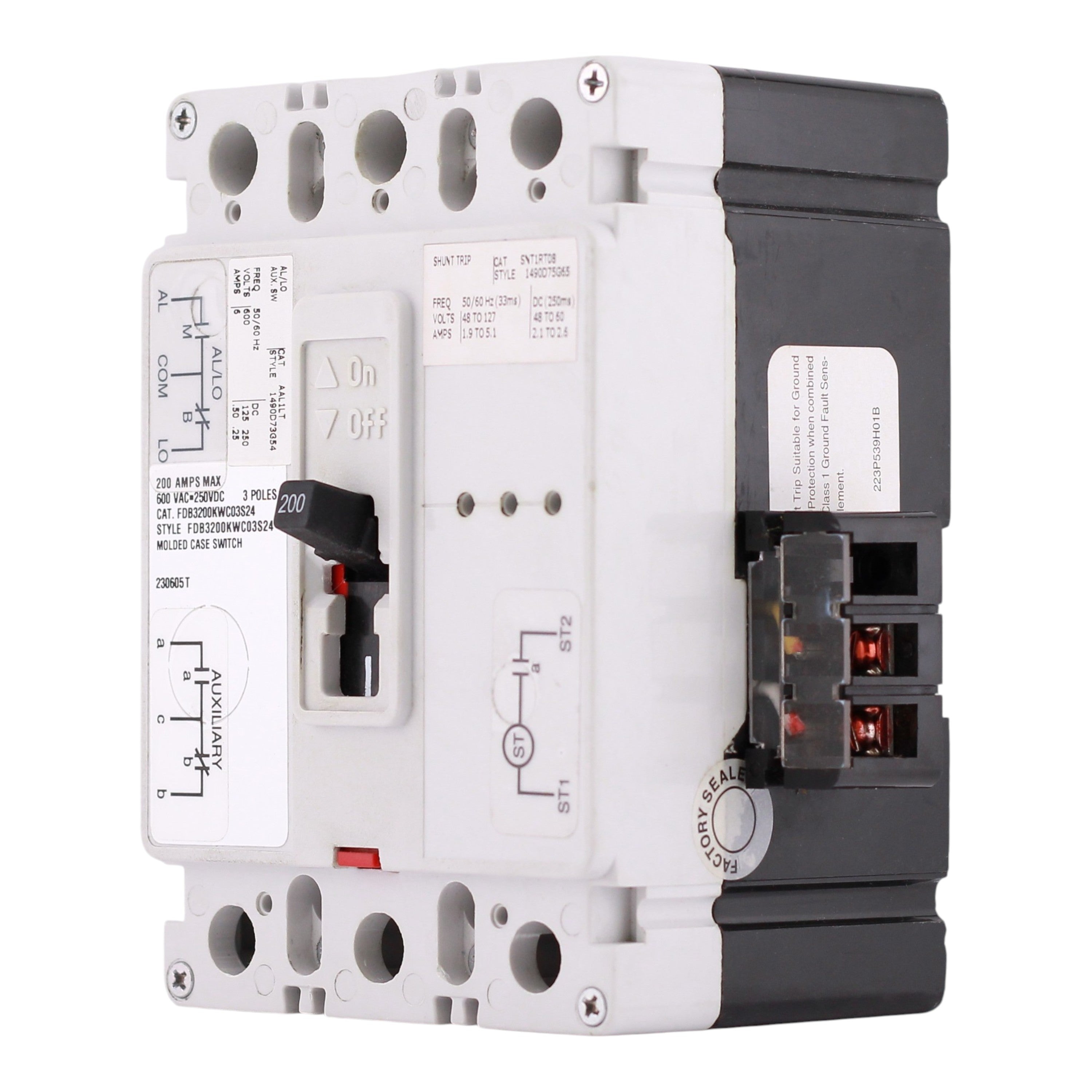

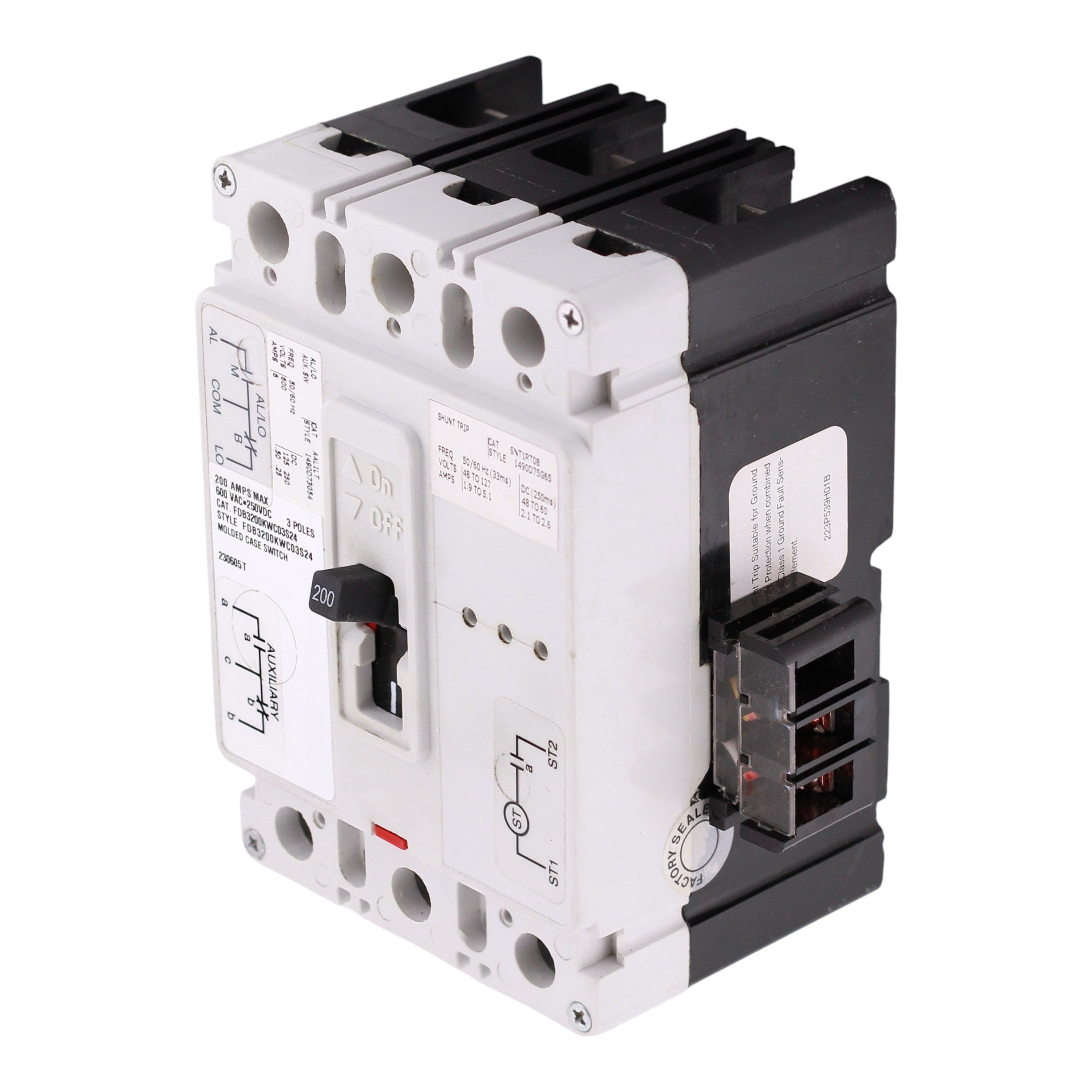

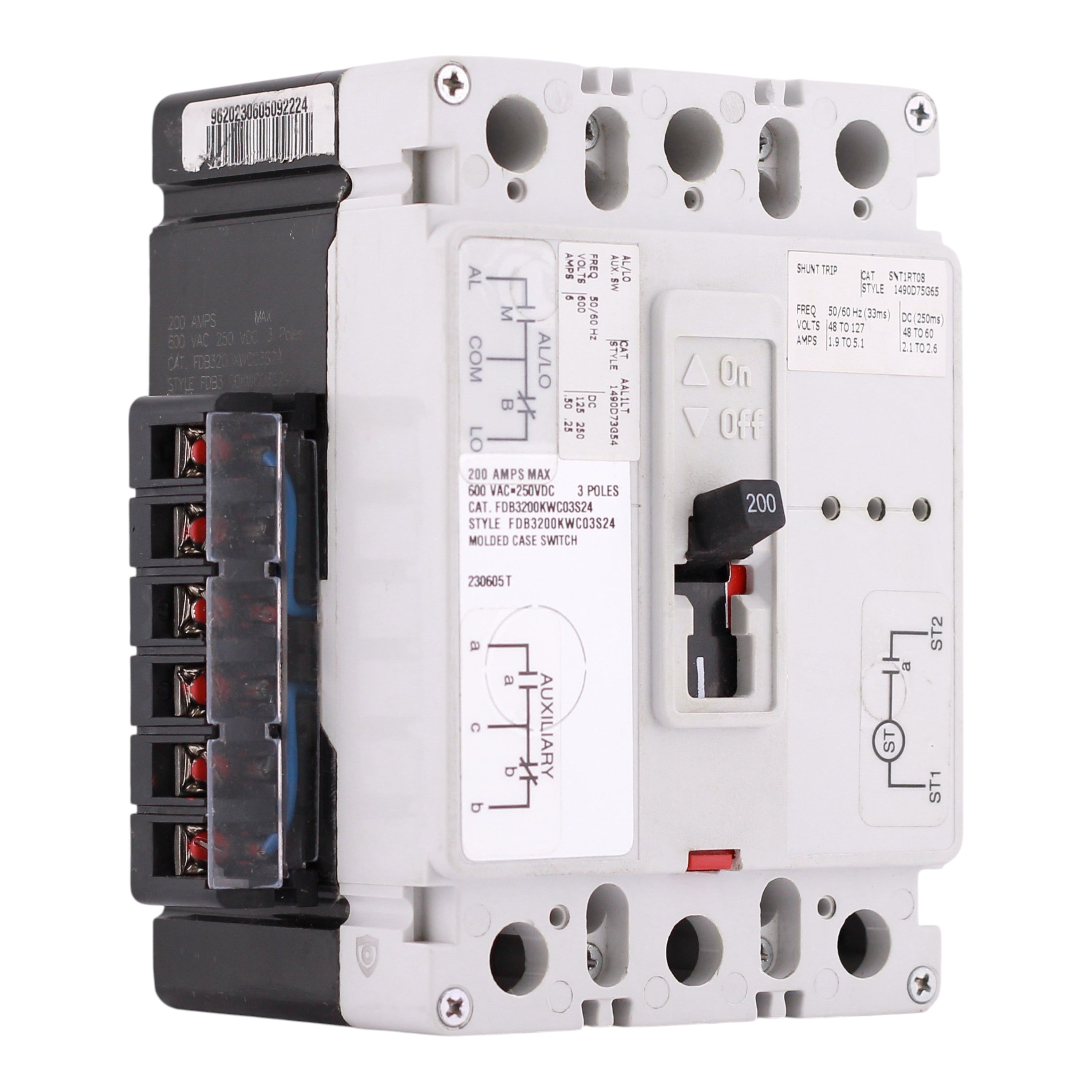

Eaton FDB3200KWC03S24: 200 Amp Max, 3-Pole, F-Frame Series C Molded Case Switch, 600VAC/250VDC, with Auxiliary Switch (AAL1LT) and Shunt Trip (SNT1RT08).
-
Manufacturer: Eaton
-
Brand: Eaton Series C
-
Product Range: FDB (F-Frame — Molded Case Switch / Non-Automatic Disconnect)
-
Catalog/Style Number: FDB3200KWC03S24
-
Product Type: Molded Case Switch (Non-Automatic, No Overcurrent Protection) — Factory Configured with Accessories
-
Amperage: 200 Amps Max
-
Poles: 3-Pole
-
Phase: 3-Phase
-
Voltage: 600 VAC / 250 VDC
-
Interrupt Rating: 35,000 AIC (35 kAIC) @ 480VAC
-
Frequency: 50/60 Hz
-
Frame: F-Frame
-

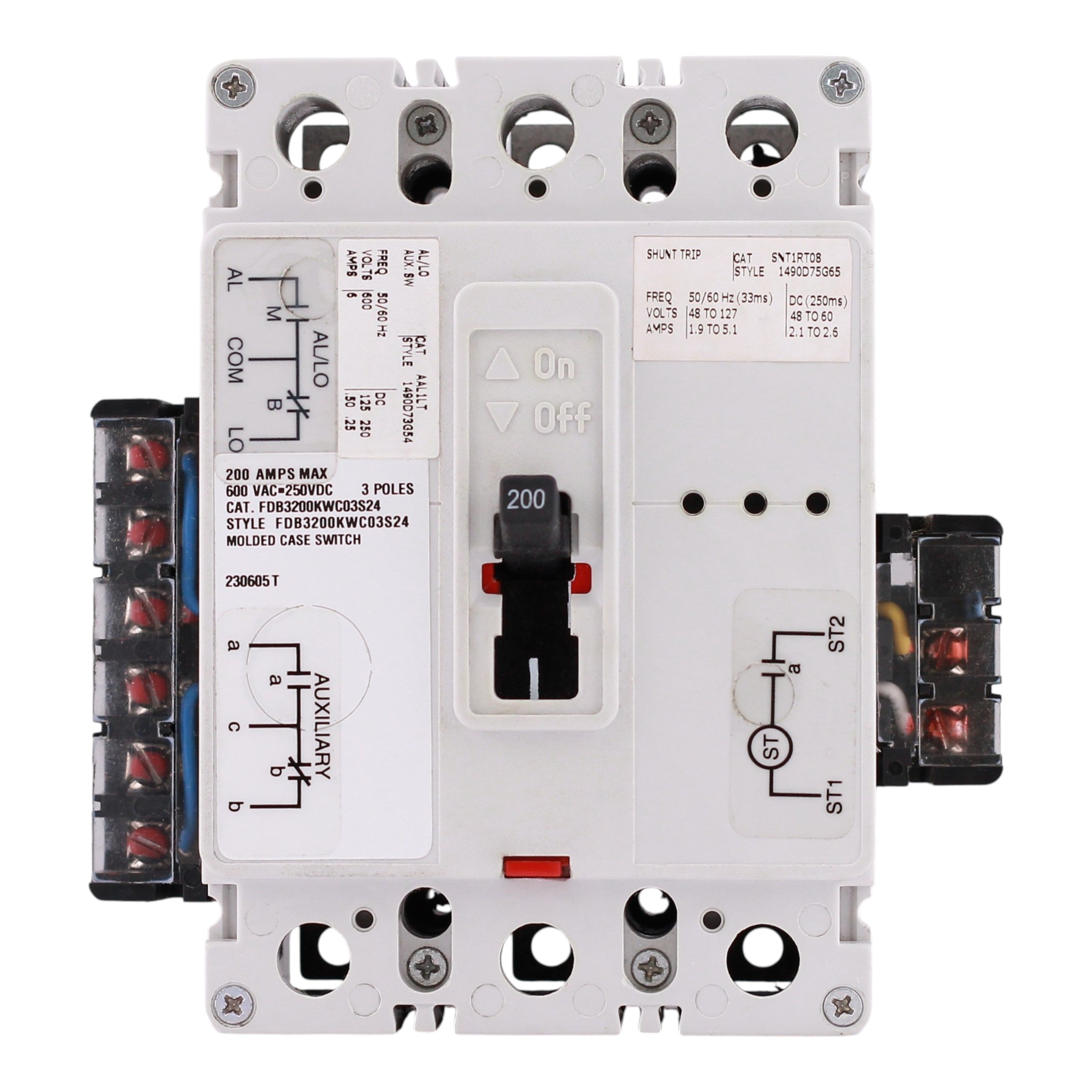

Mounting Mode: Panel mount (line and load lugs both sides, blue/red conductors visible)
-
Connections / Terminals: Lug terminals not included (sold separately)
Auxiliary Switch (AL/LO + Auxiliary), Cat. AAL1LT, Style 1490D73G54:
- AL/LO contact (M/B): 600V AC, 50/60Hz, 6A; DC ratings 125V/0.50A, 250V/0.25A
- Auxiliary contacts (a/b): additional 1-NO/1-NC switching for remote position indication
Shunt Trip, Cat. SNT1RT08, Style 1490D75G65:
- Frequency: 50/60 Hz (33ms) or DC (250ms)
- Voltage: 48–127V AC or 48–60V DC
- Current: 1.9–5.1A AC or 2.1–2.6A DC
This Eaton FDB3200KWC03S24 Series C F-Frame molded case switch provides a 200 Amp max, 3-Pole disconnect rated 600VAC/250VDC, factory-equipped with an auxiliary/AL-LO position indicating switch and a 48–127VAC shunt trip for remote tripping. The auxiliary switch provides both a dedicated AL/LO contact and separate "a"/"b" auxiliary contacts for status monitoring in industrial power distribution and control applications.
