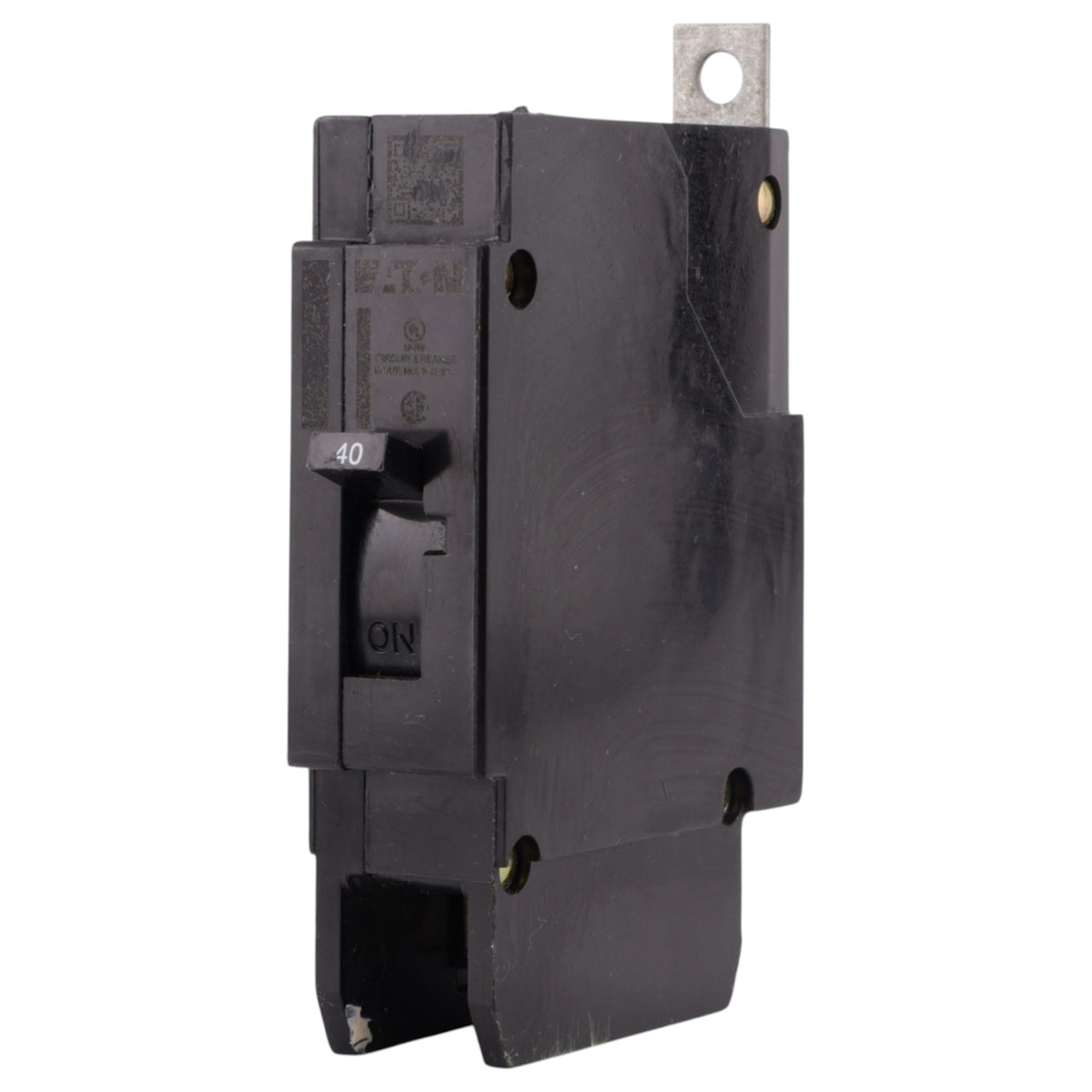

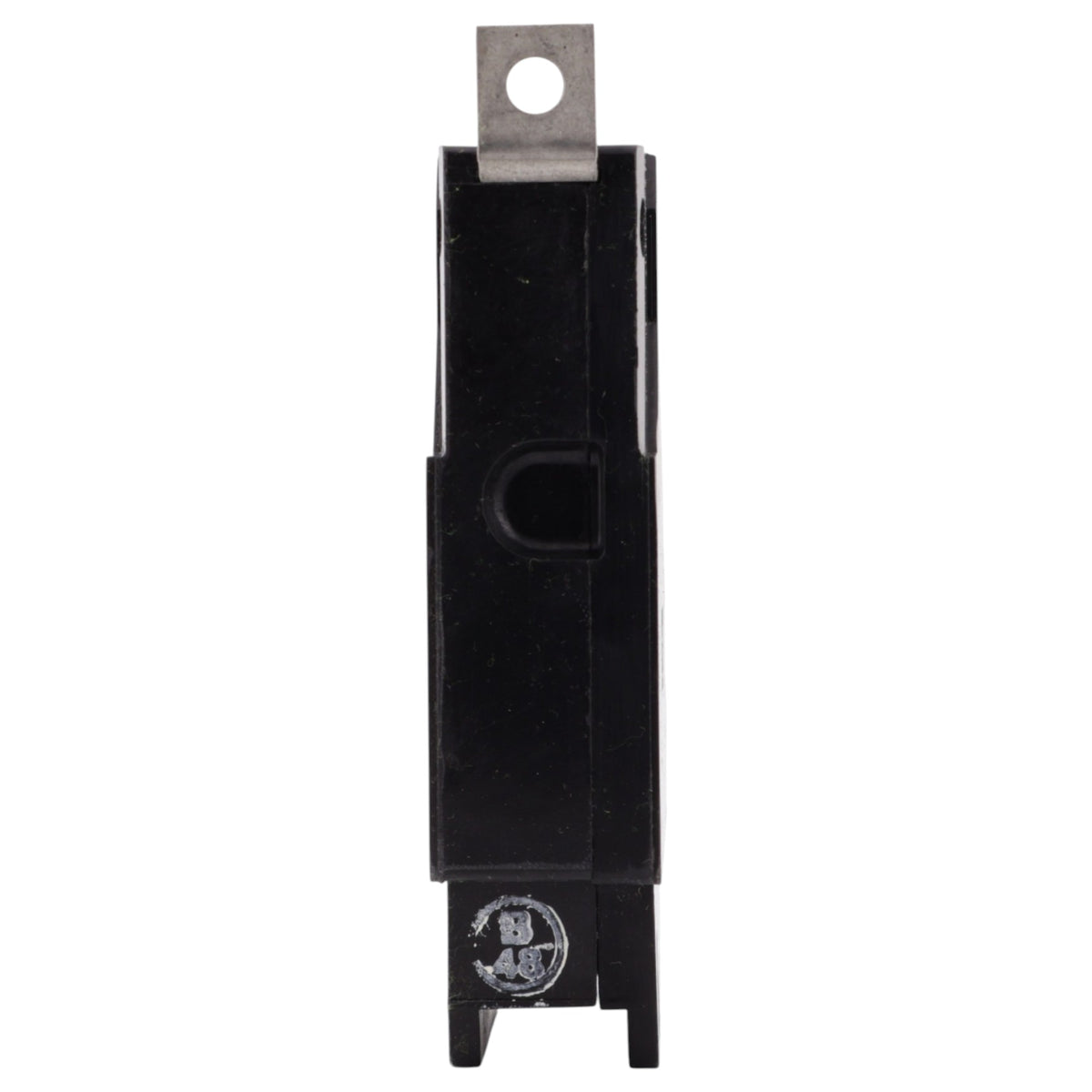

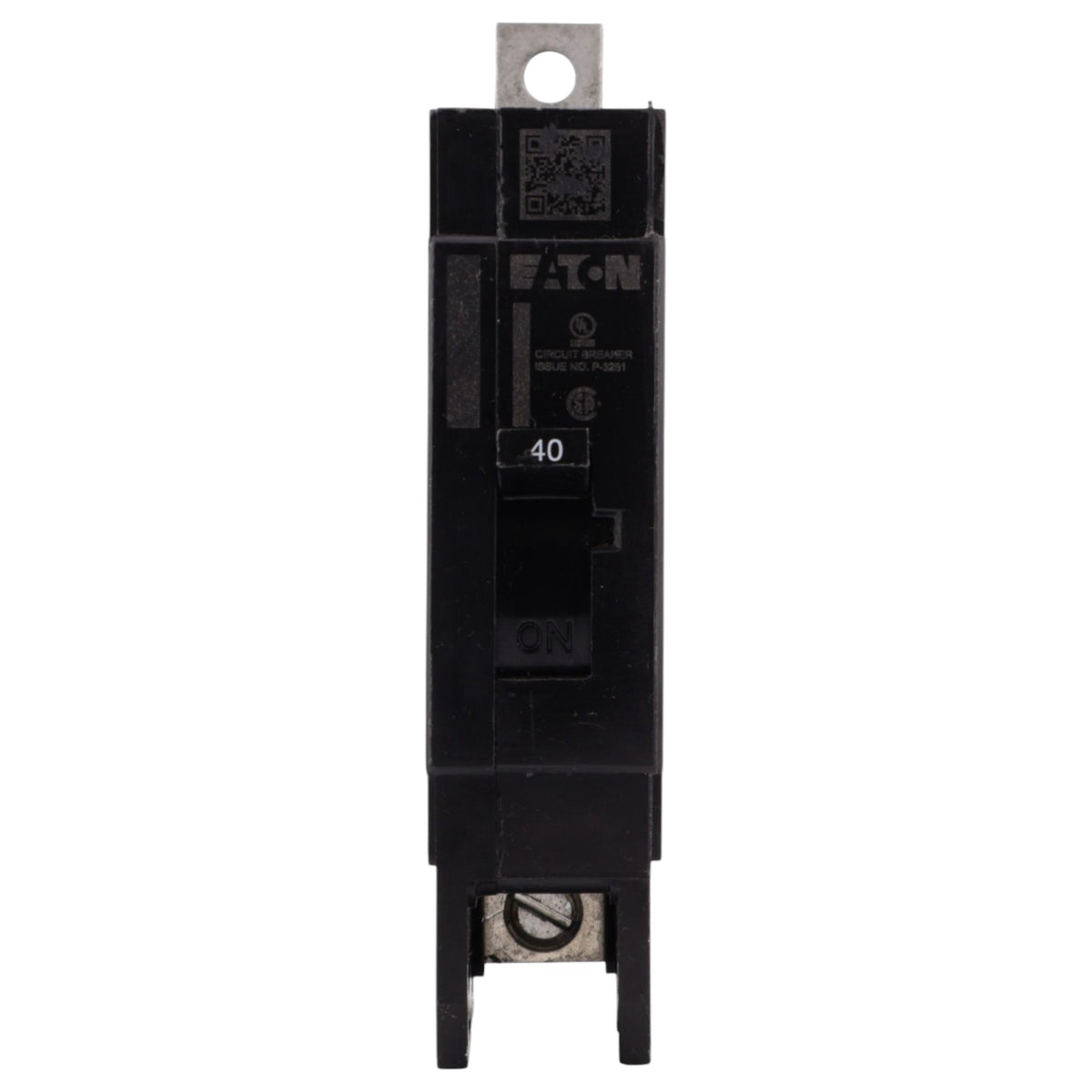

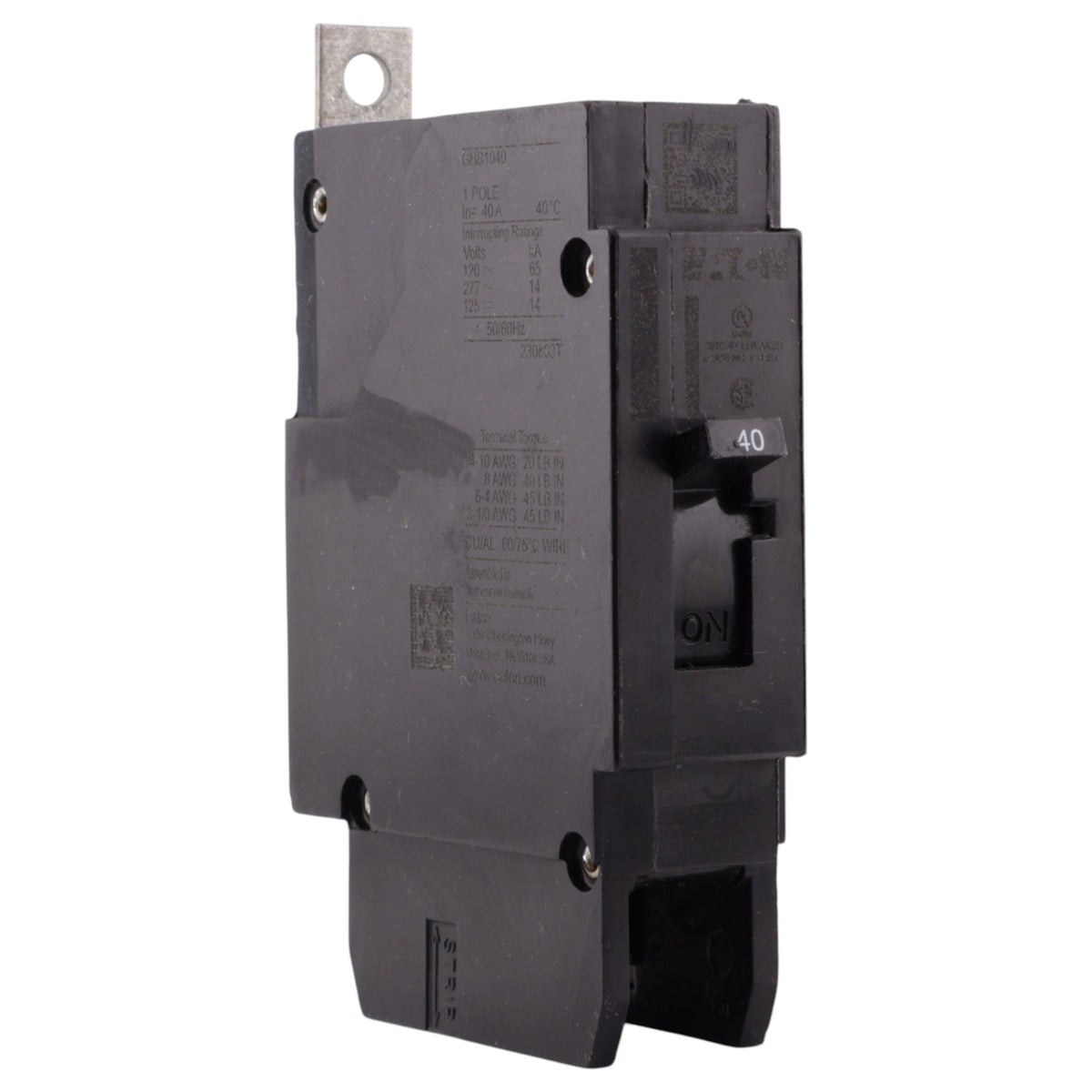

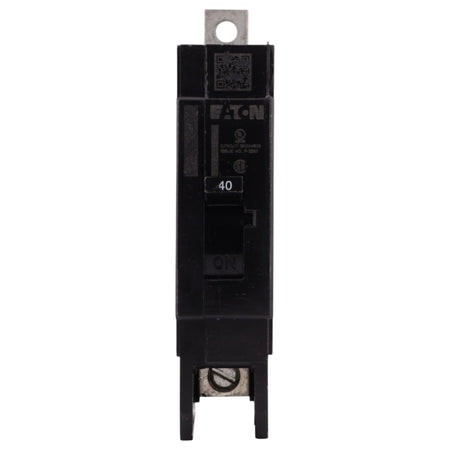

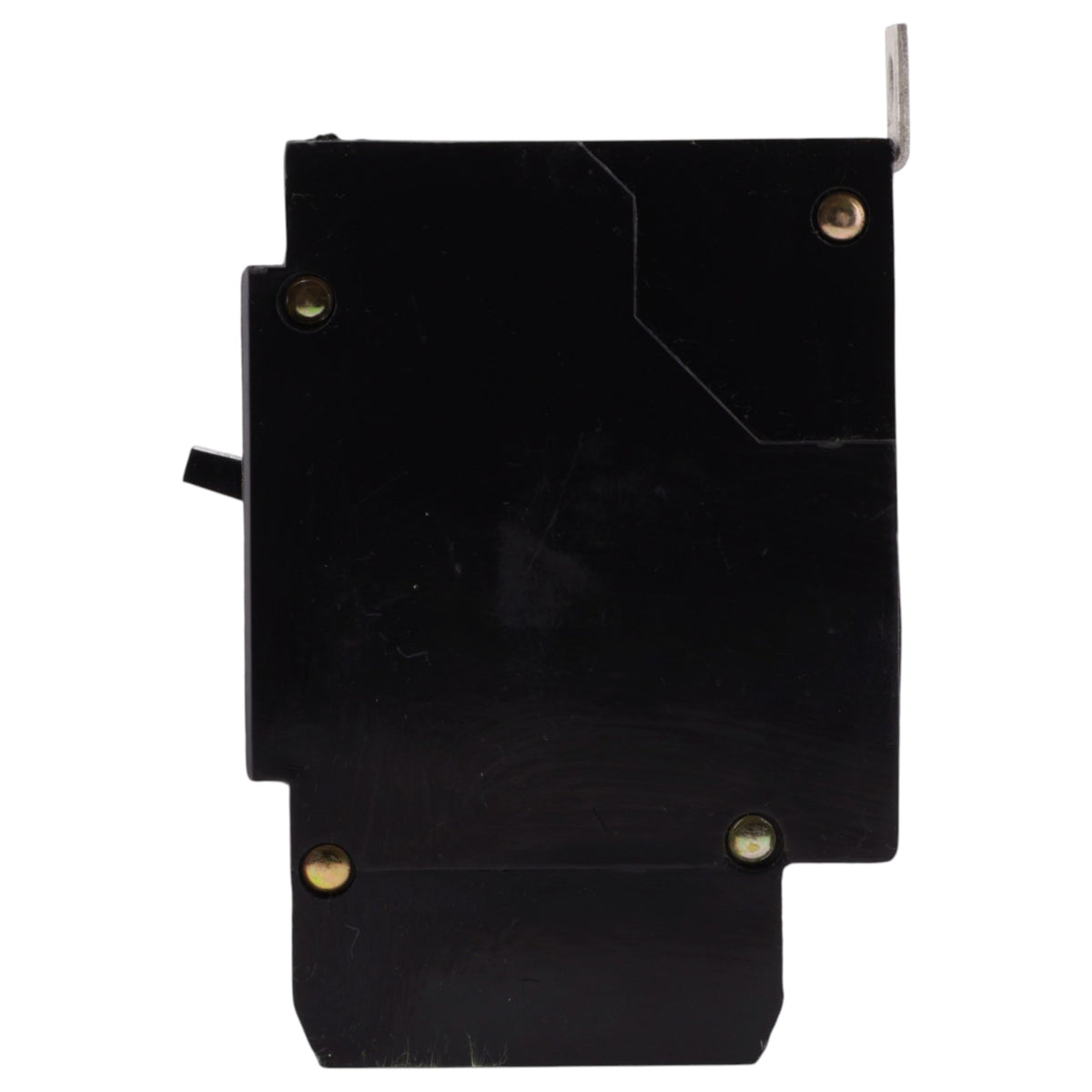

Eaton GHB1040: 40 Amp, 1-Pole, Series C G-Frame Type GHB Molded Case Circuit Breaker, 277V AC / 125V DC, 14kA at 277V AC, Fixed Thermal-Magnetic Trip, Bolt-On, UL Listed.
-
Manufacturer: Eaton (Cutler-Hammer)
-
Brand: Eaton
-
Product Range: Series C Molded Case Circuit Breakers (G-Frame, Type GHB)
-

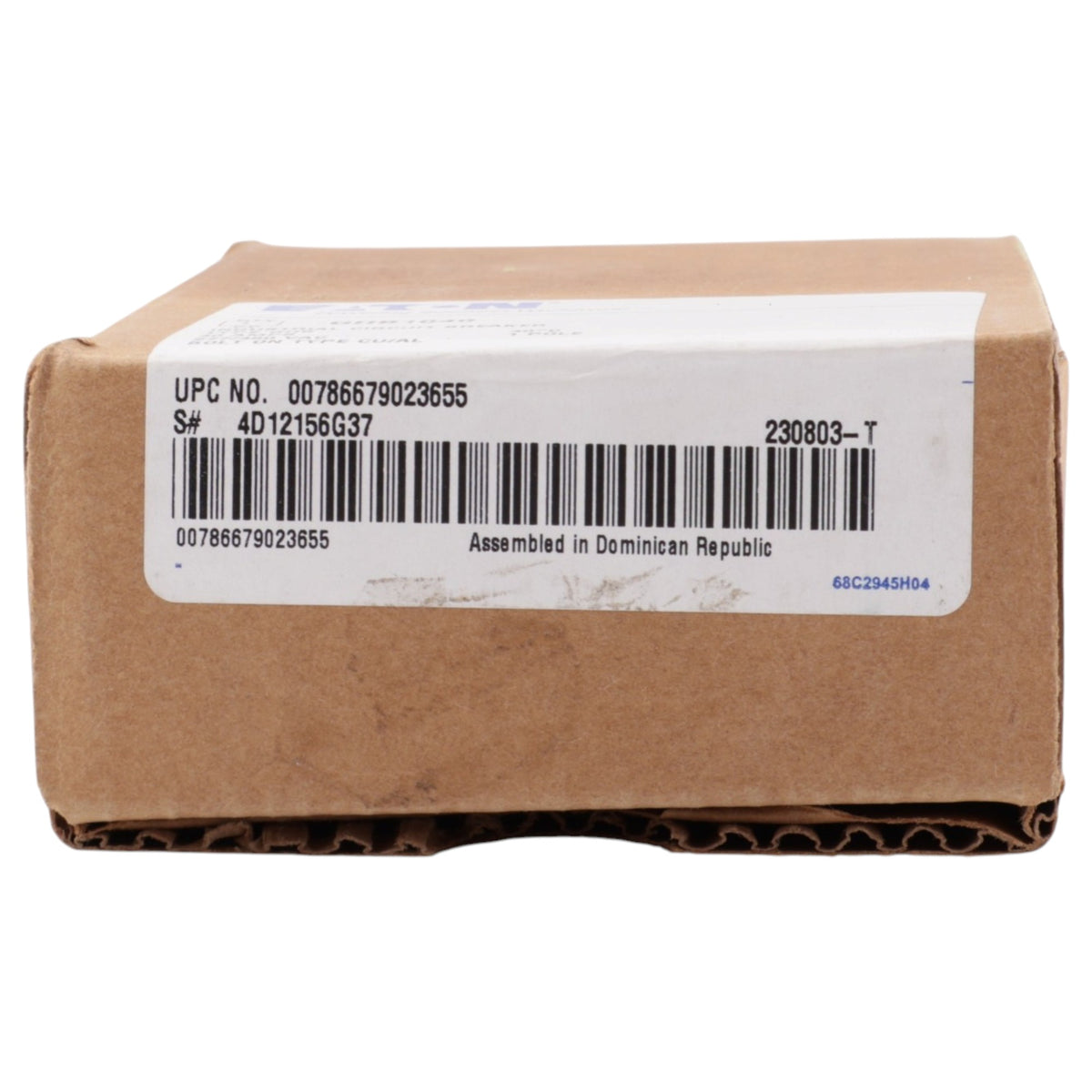

UPC: 786679023655
-
Model Number: GHB1040
-
Breaker Type: Molded Case Circuit Breaker, Complete Breaker, Fixed Thermal / Fixed Magnetic Trip
-
Amperage: 40 Amps
-
Poles: 1-Pole
-
Voltage: 277V AC; 125V DC
-
Frequency: 50/60 Hz
-
Interrupt Rating: 14 kAIC @ 277V AC
-
Frame: G-Frame
-
Mounting Mode: Bolt-On
-

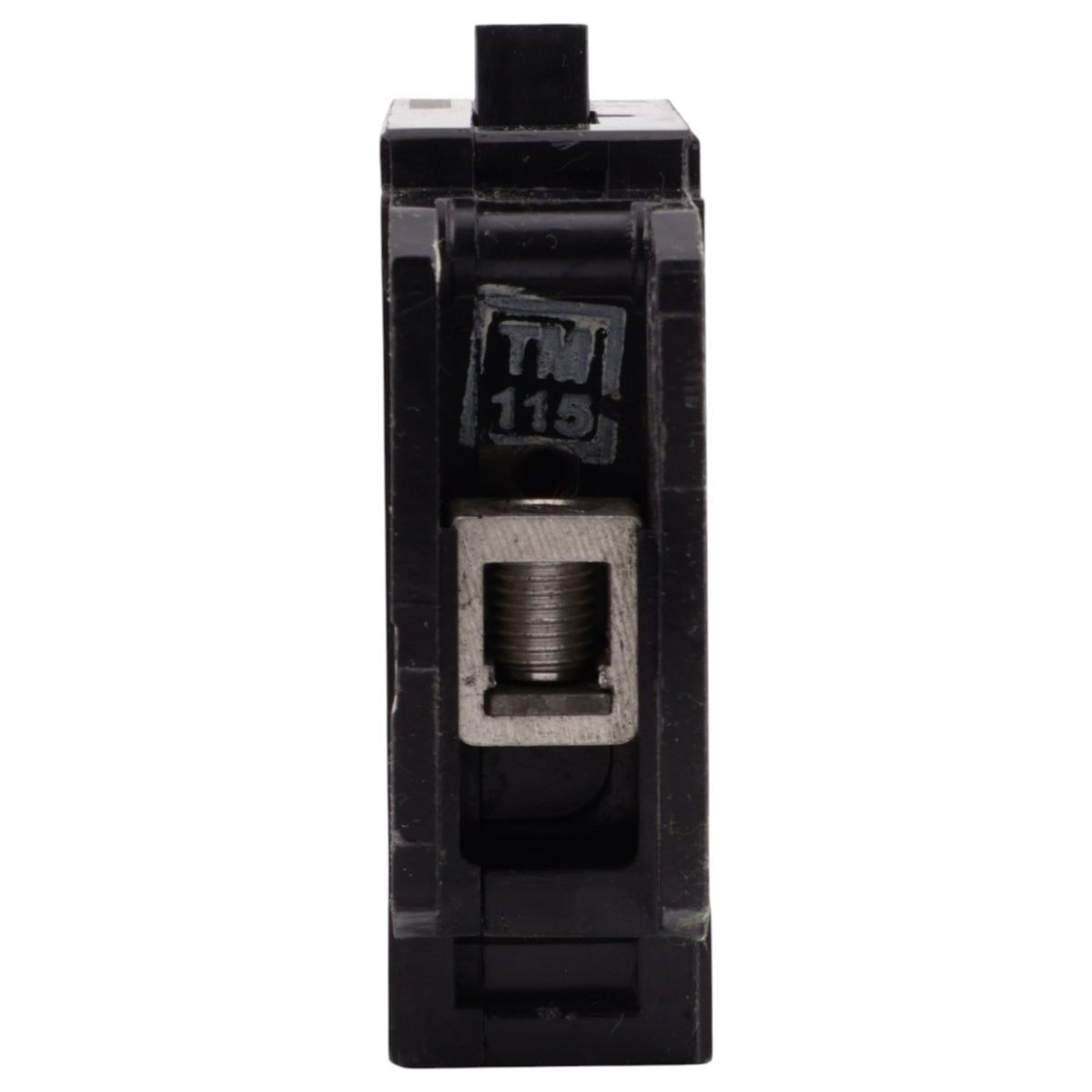

Wire Size: #10–1/0 AWG
-
Dimensions: Height: 4.00 in; Width: 1.00 in; Depth: 2.63 in
-
Weight: 0.64 lb
-
Certifications: UL Listed
-
Compliances: Federal Specification W-C375B

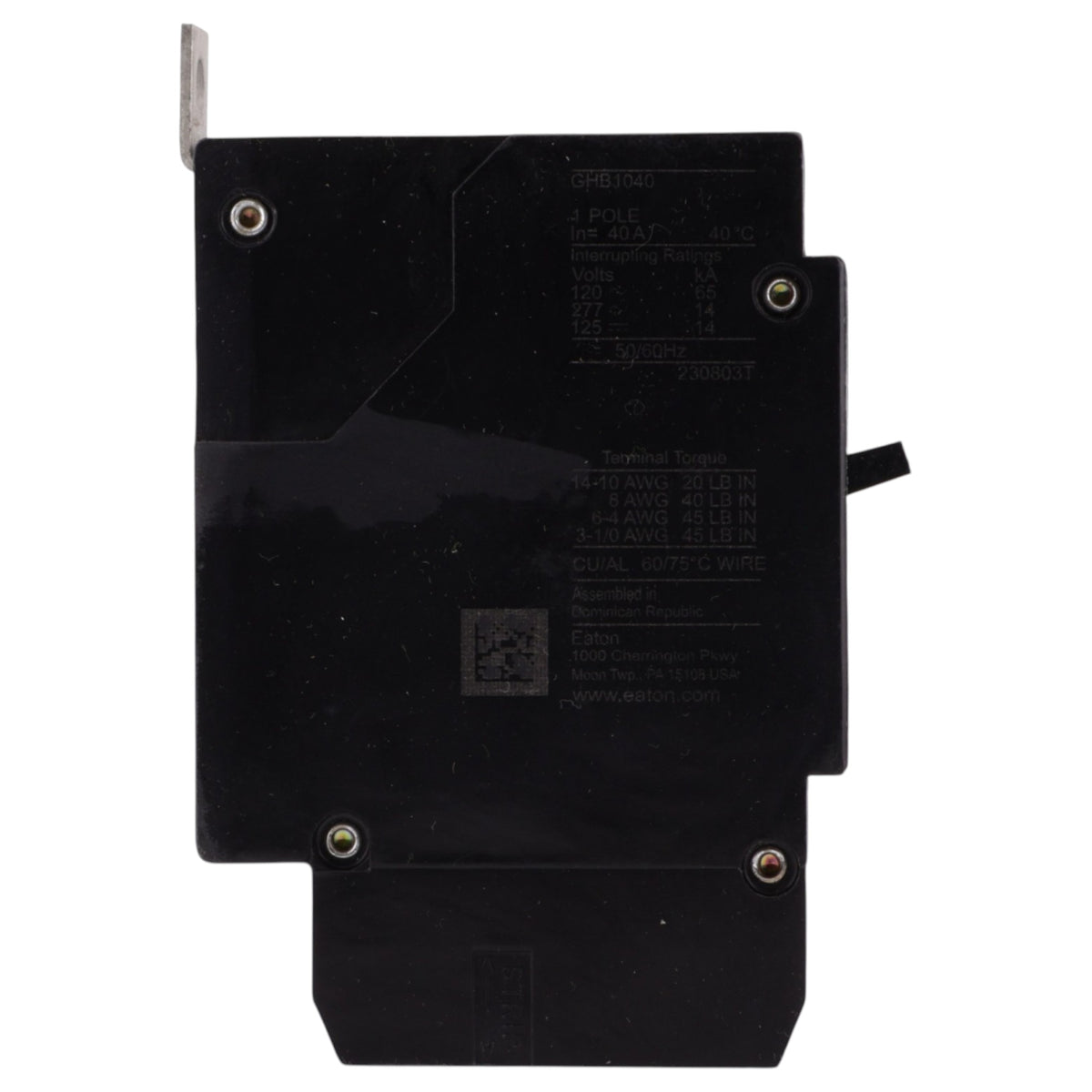

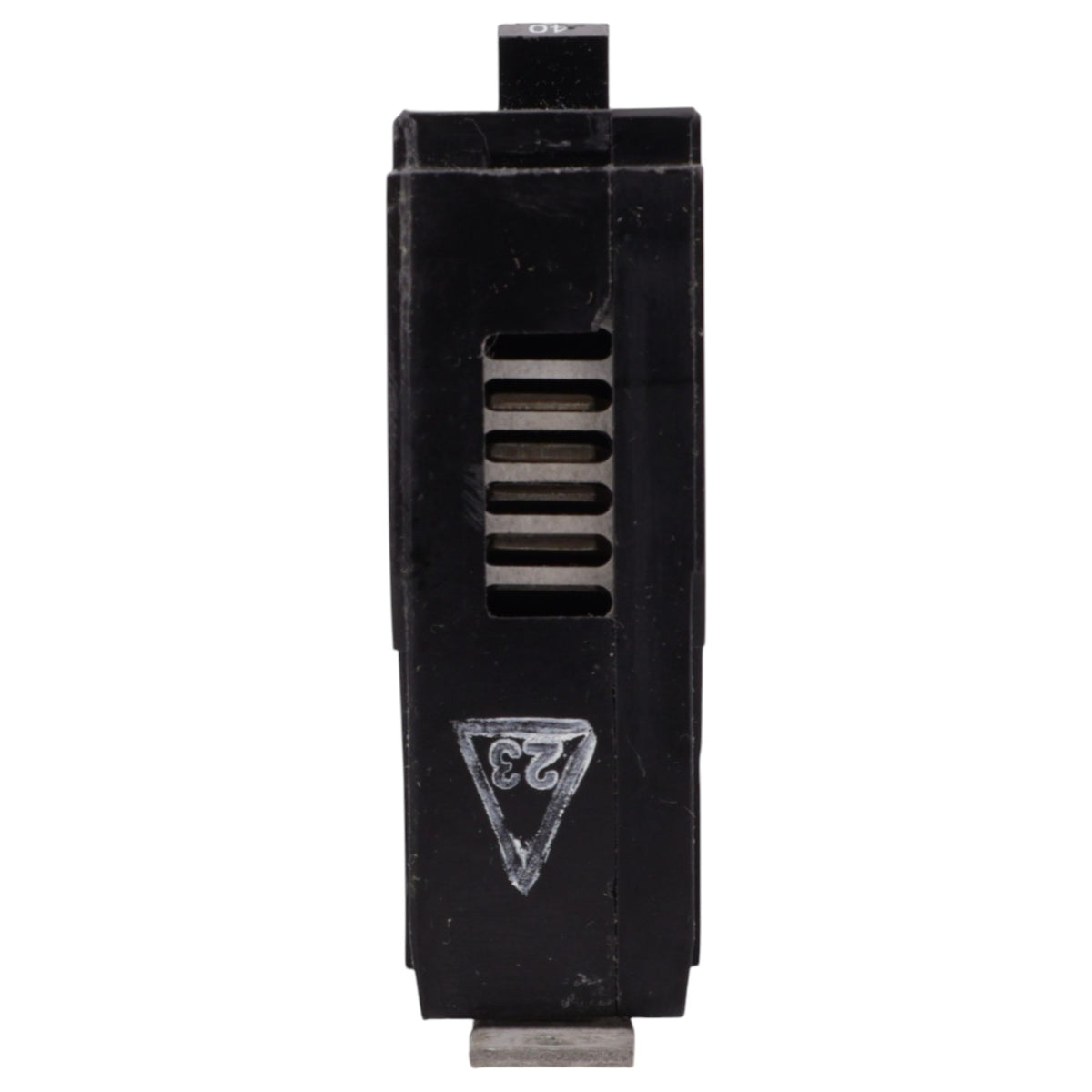

The Eaton GHB1040 is a 40 Amp, single-pole Series C G-Frame molded case circuit breaker. It’s rated 277V AC and 125V DC, with a 14 kAIC interrupt rating at 277V AC. Its fixed thermal-magnetic trip protects against overloads and short circuits. The compact 1-inch-wide bolt-on design suits commercial and industrial panelboards, including Eaton Pow-R-Line panels, on 480Y/277V and 125V DC systems.
