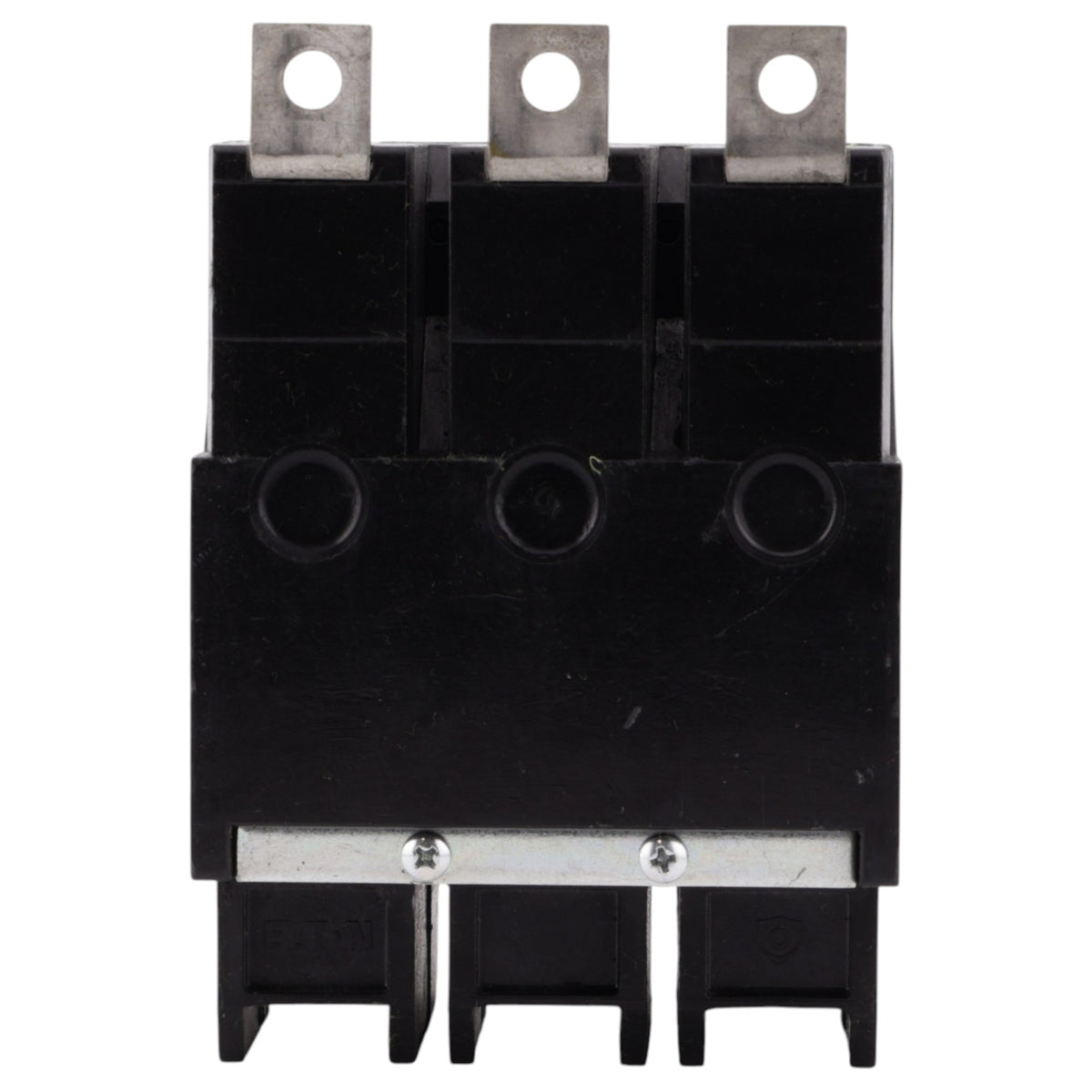

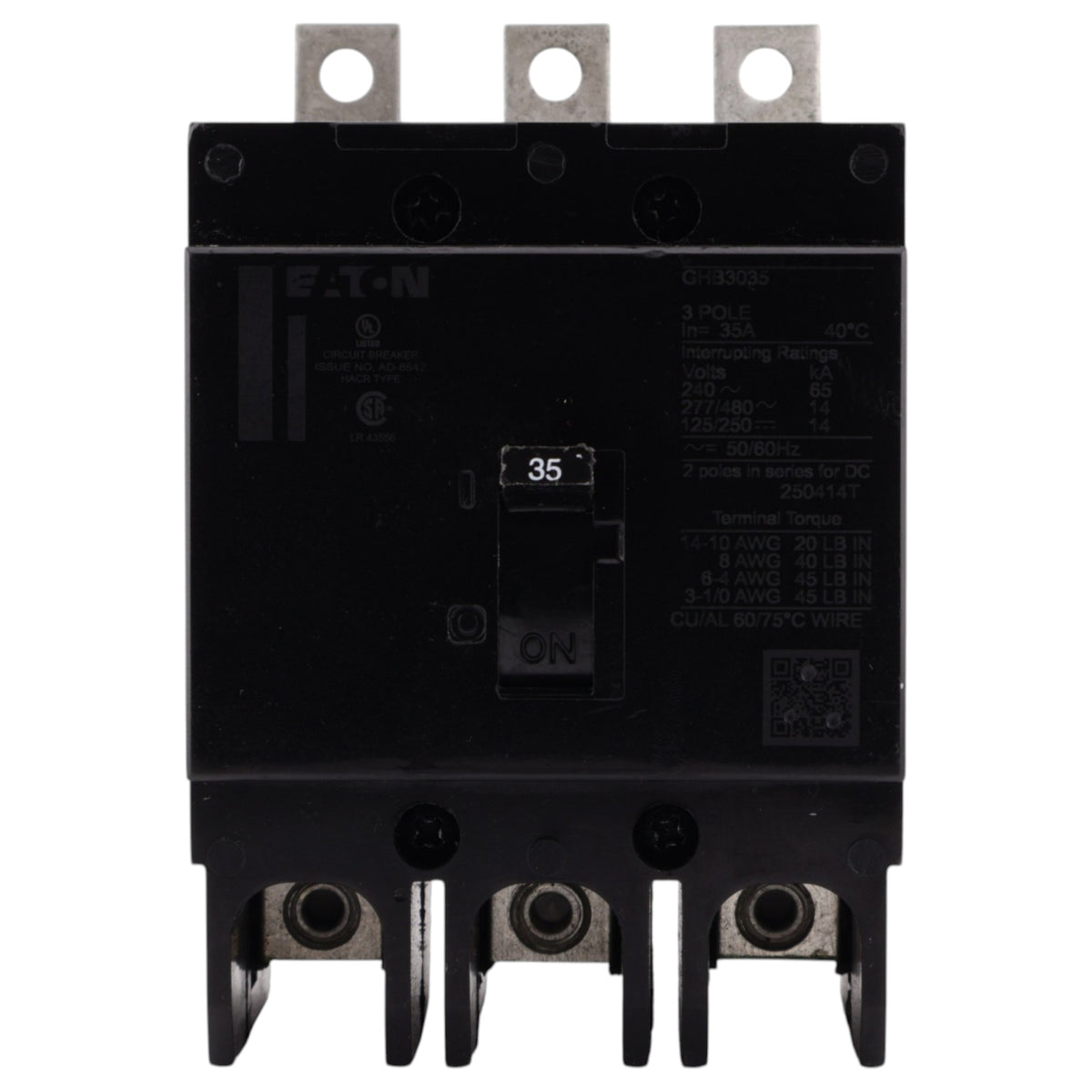

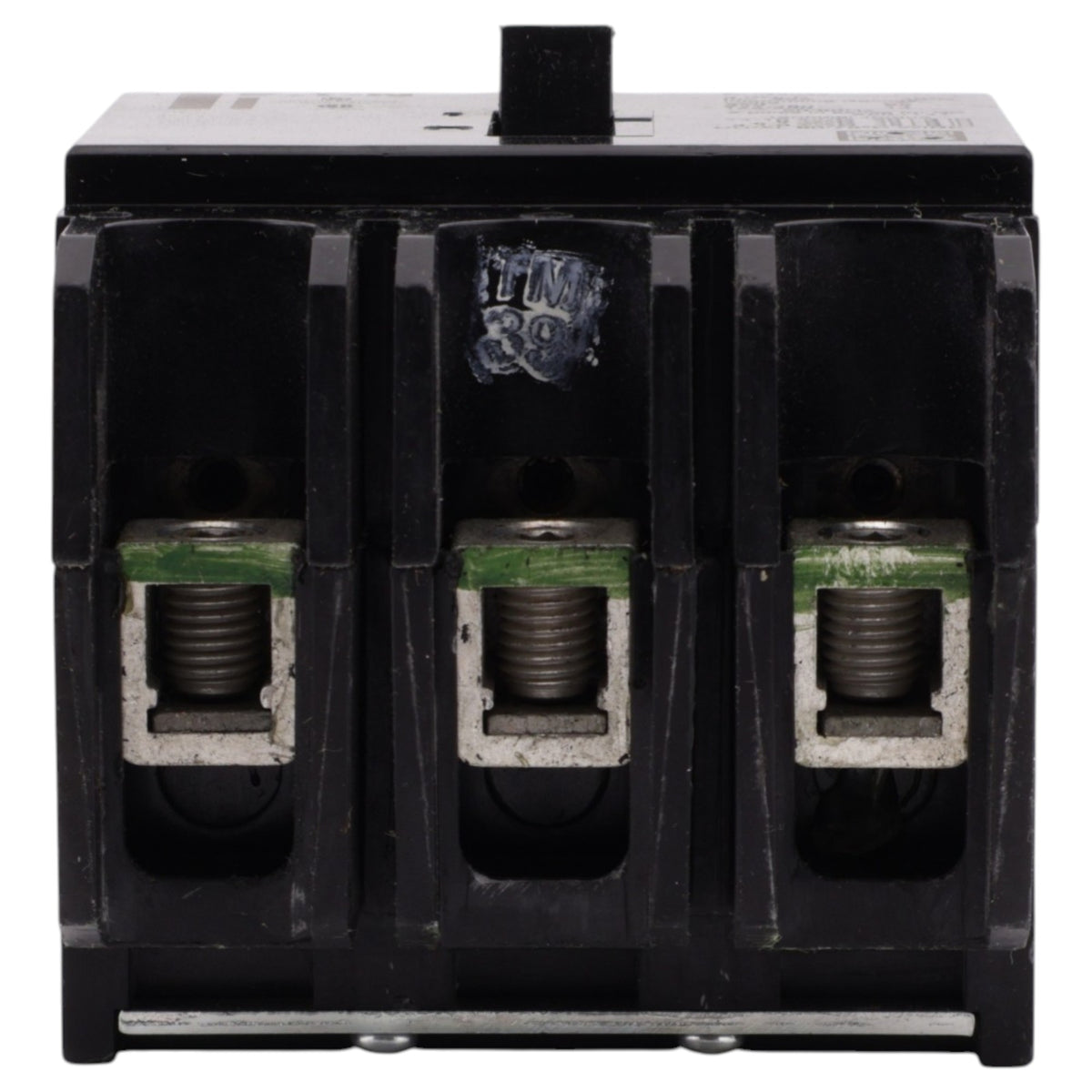

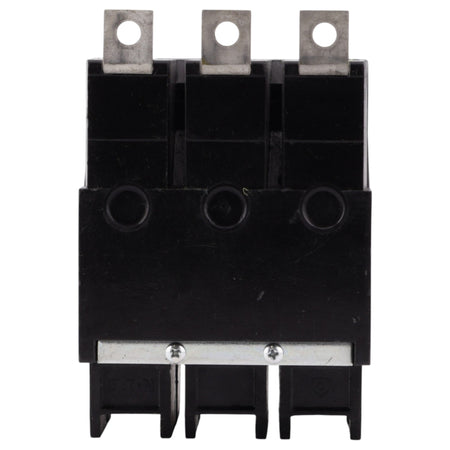

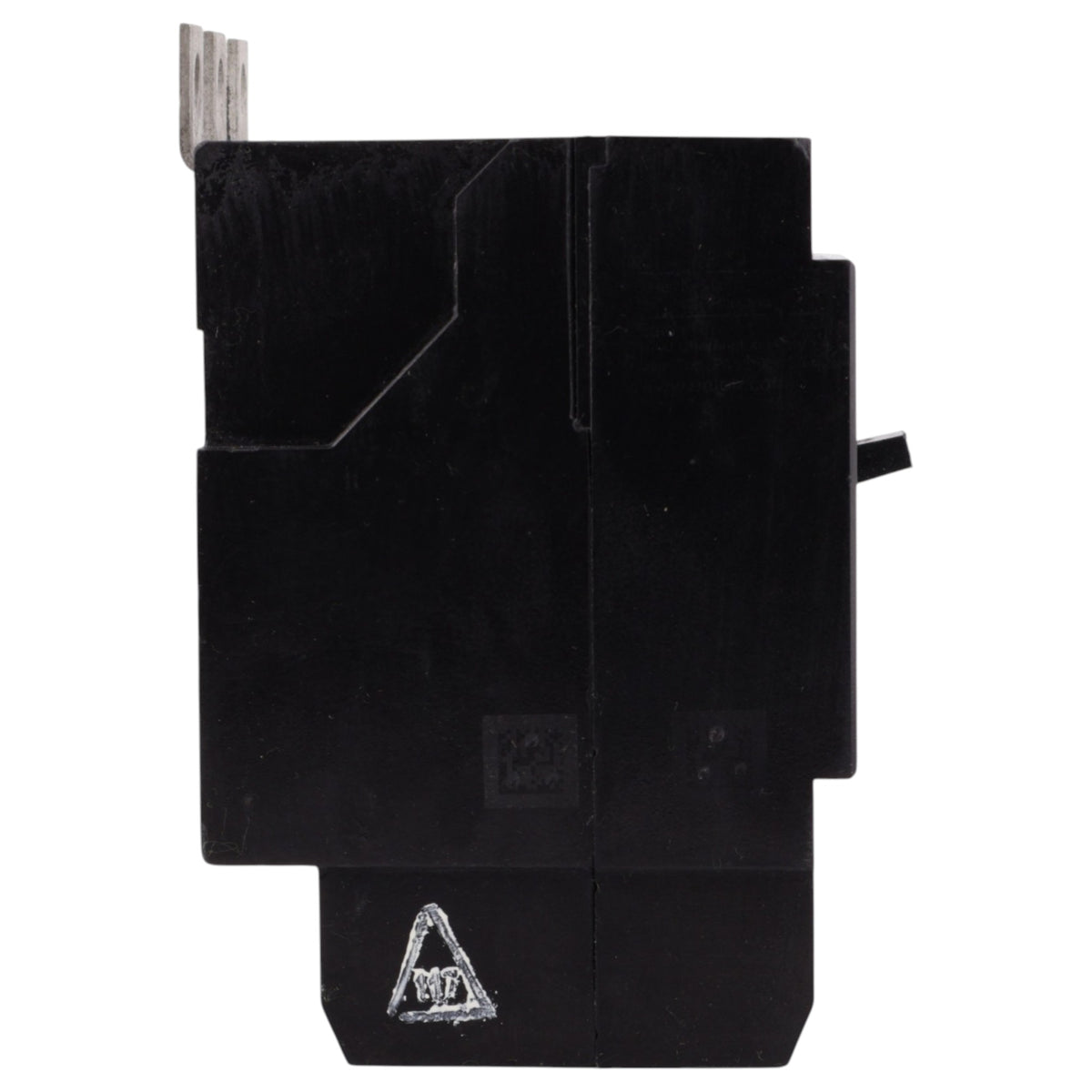

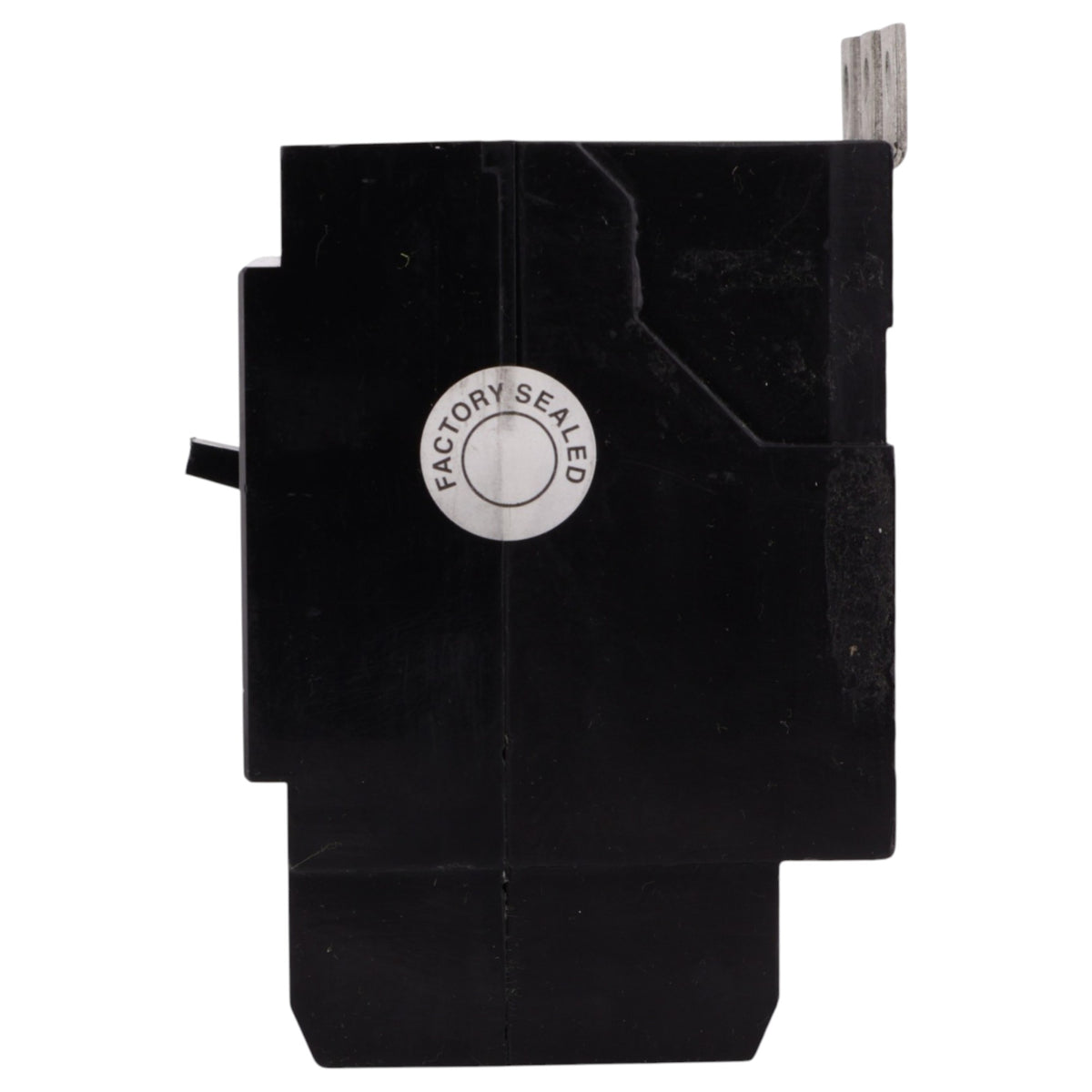

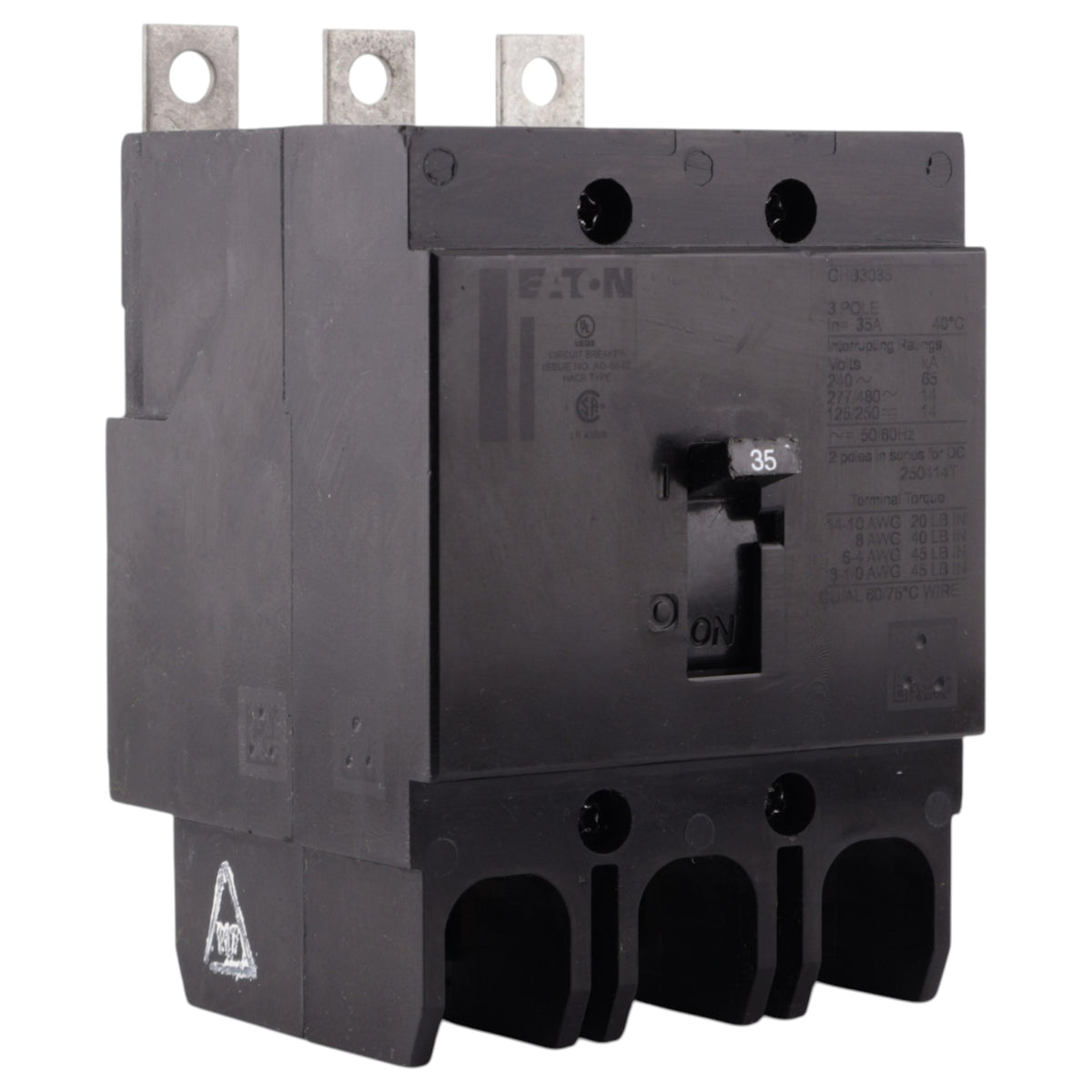

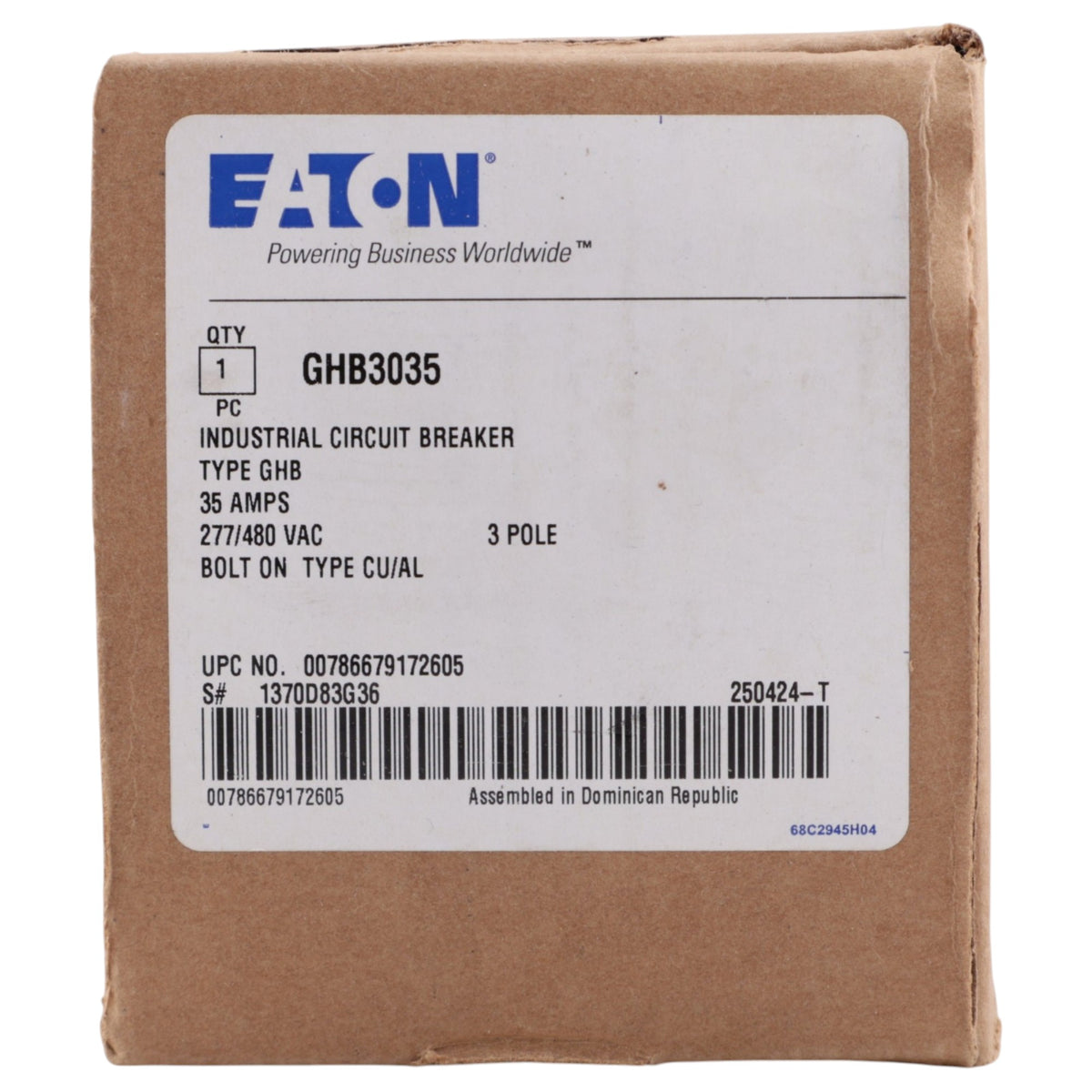

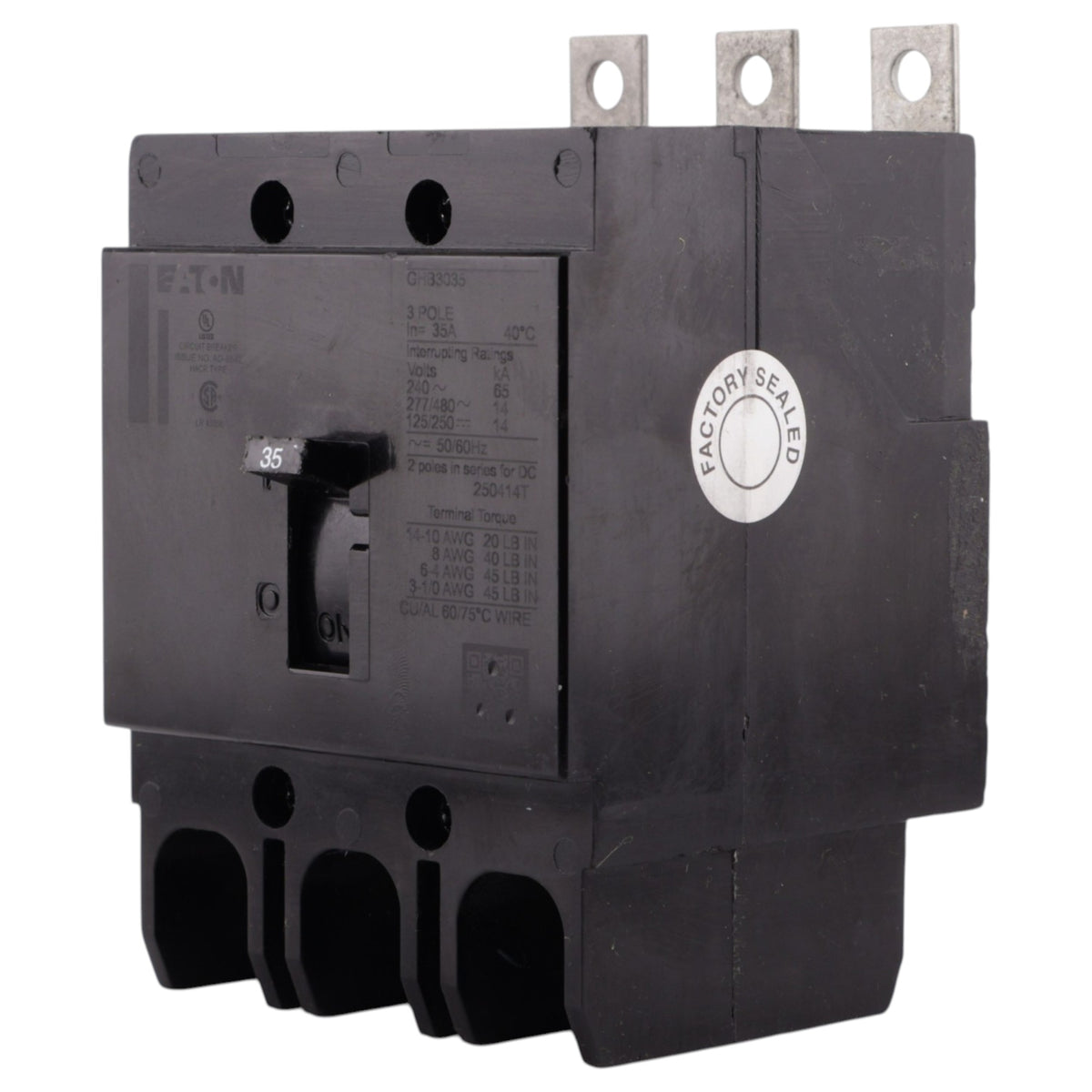

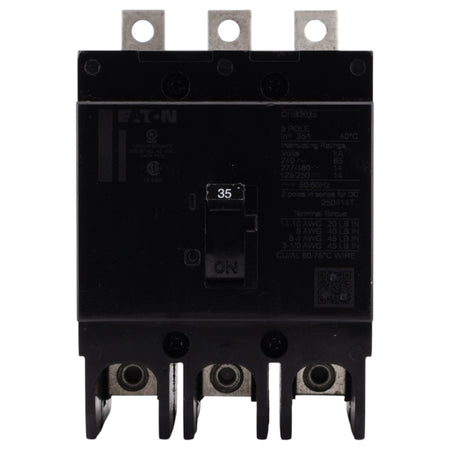

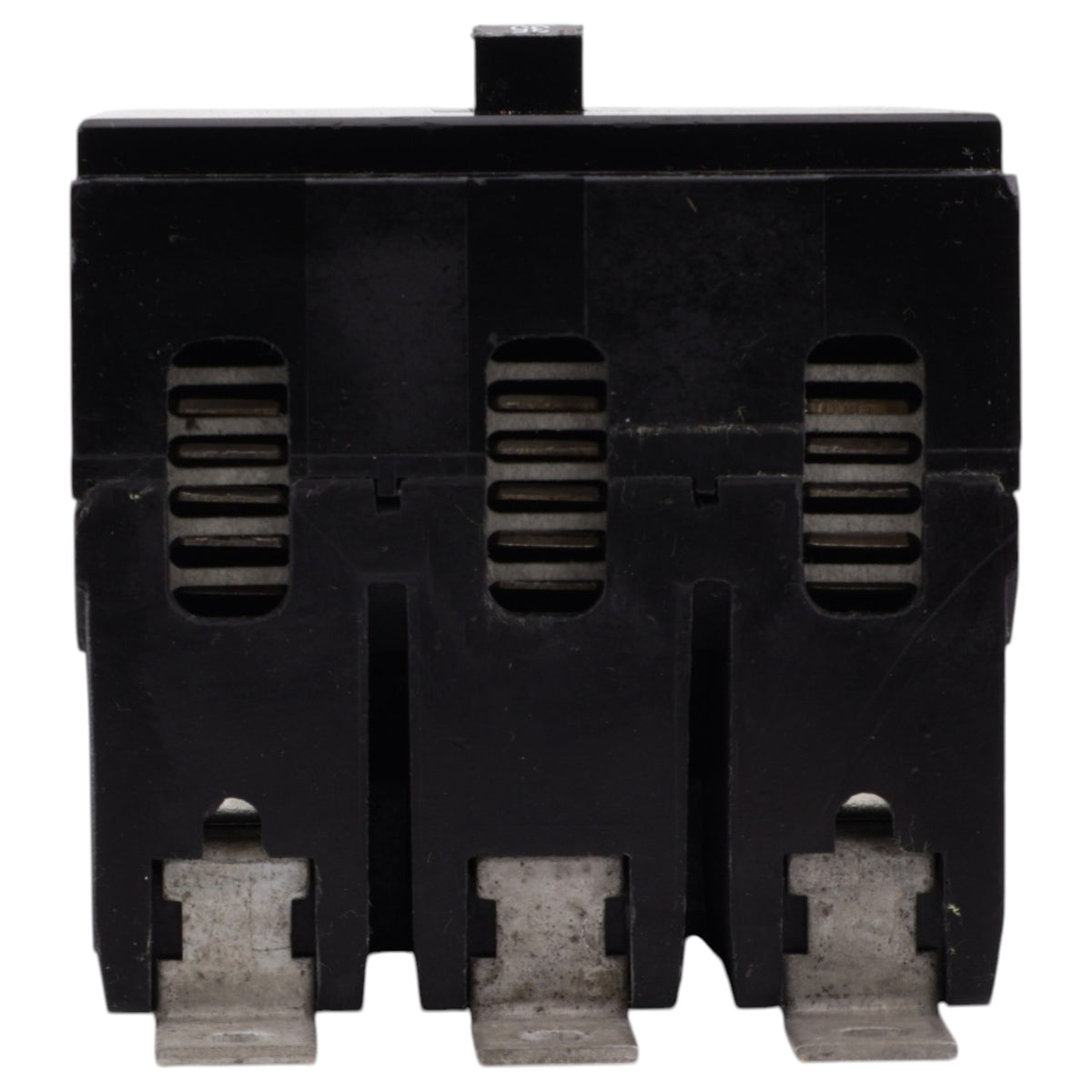

Eaton GHB3035: 35 Amp, 3-Pole, Series C G-Frame Type GHB Molded Case Circuit Breaker, 480Y/277V AC / 125/250V DC, 14kA at 480Y/277V AC, 65kA at 240V AC, Fixed Thermal-Magnetic Trip, Bolt-On, UL Listed.
-
Manufacturer: Eaton (Cutler-Hammer)
-
Brand: Eaton
-
Product Range: Series C Molded Case Circuit Breakers (G-Frame, Type GHB)
-
UPC: 786679172605
-
Model Number: GHB3035
-
Breaker Type: Molded Case Circuit Breaker, Complete Breaker, Fixed Thermal / Fixed Magnetic Trip
-
Amperage: 35 Amps
-
Poles: 3-Pole
-
Voltage: 480Y/277V AC; 125/250V DC
-
Frequency: 50/60 Hz
-
Interrupt Rating: 14 kAIC @ 480Y/277V AC; 65 kAIC @ 240V AC
-
Frame: G-Frame
-
Mounting Mode: Bolt-On
-
Wire Size: #10–1/0 AWG
-
Dimensions: Height: 4.00 in; Width: 3.00 in; Depth: 2.63 in
-
Weight: 1.75 lb
-
Certifications: UL Listed
-
Compliances: Federal Specification W-C375B
The Eaton GHB3035 is a 35 Amp, three-pole Series C G-Frame molded case circuit breaker. It’s rated for 480Y/277V AC and 125/250V DC, with interrupt ratings of 14 kAIC at 480Y/277V and 65 kAIC at 240V. Its fixed thermal-magnetic trip protects against overloads and short circuits. The compact 1-inch-per-pole bolt-on design suits commercial and industrial panelboards.
