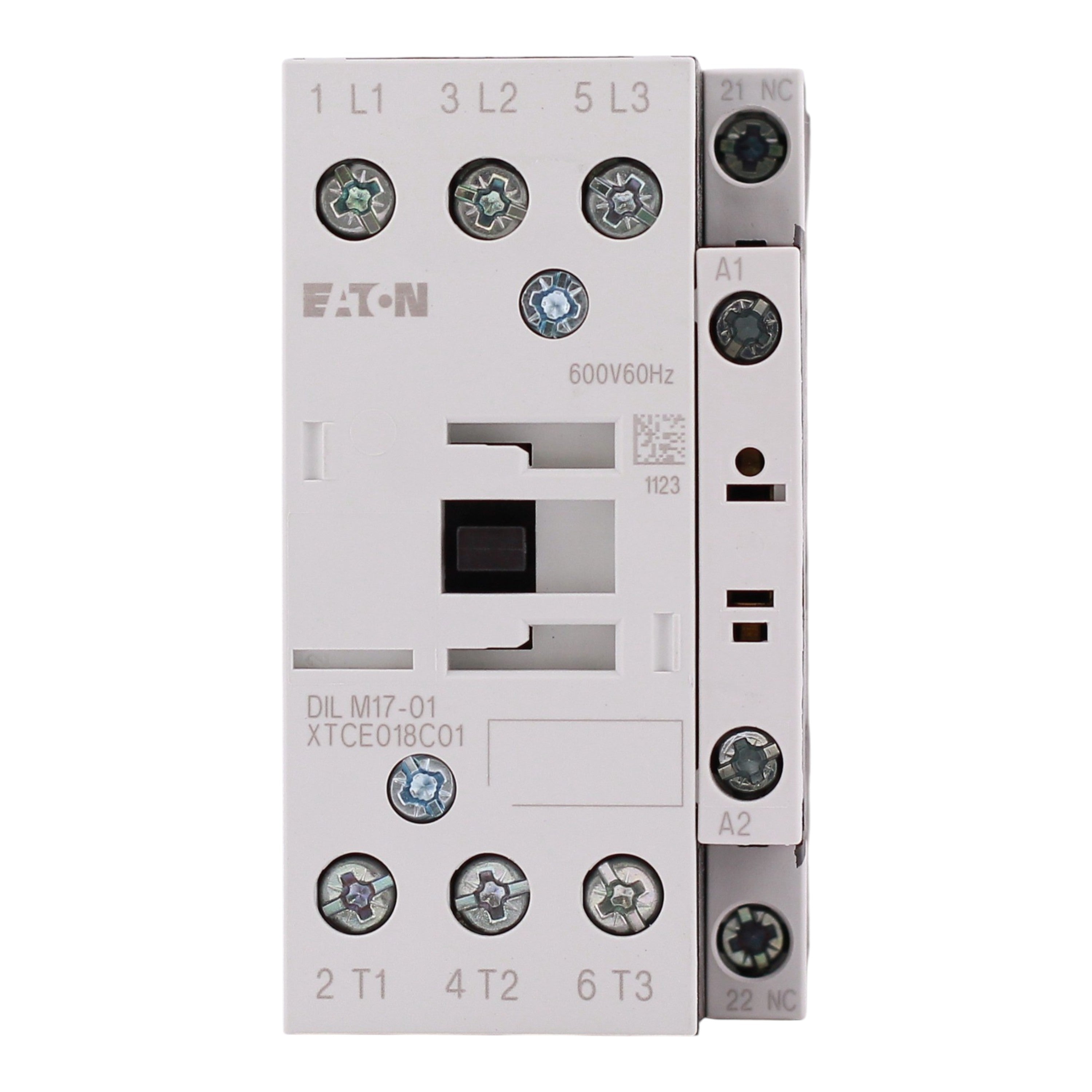

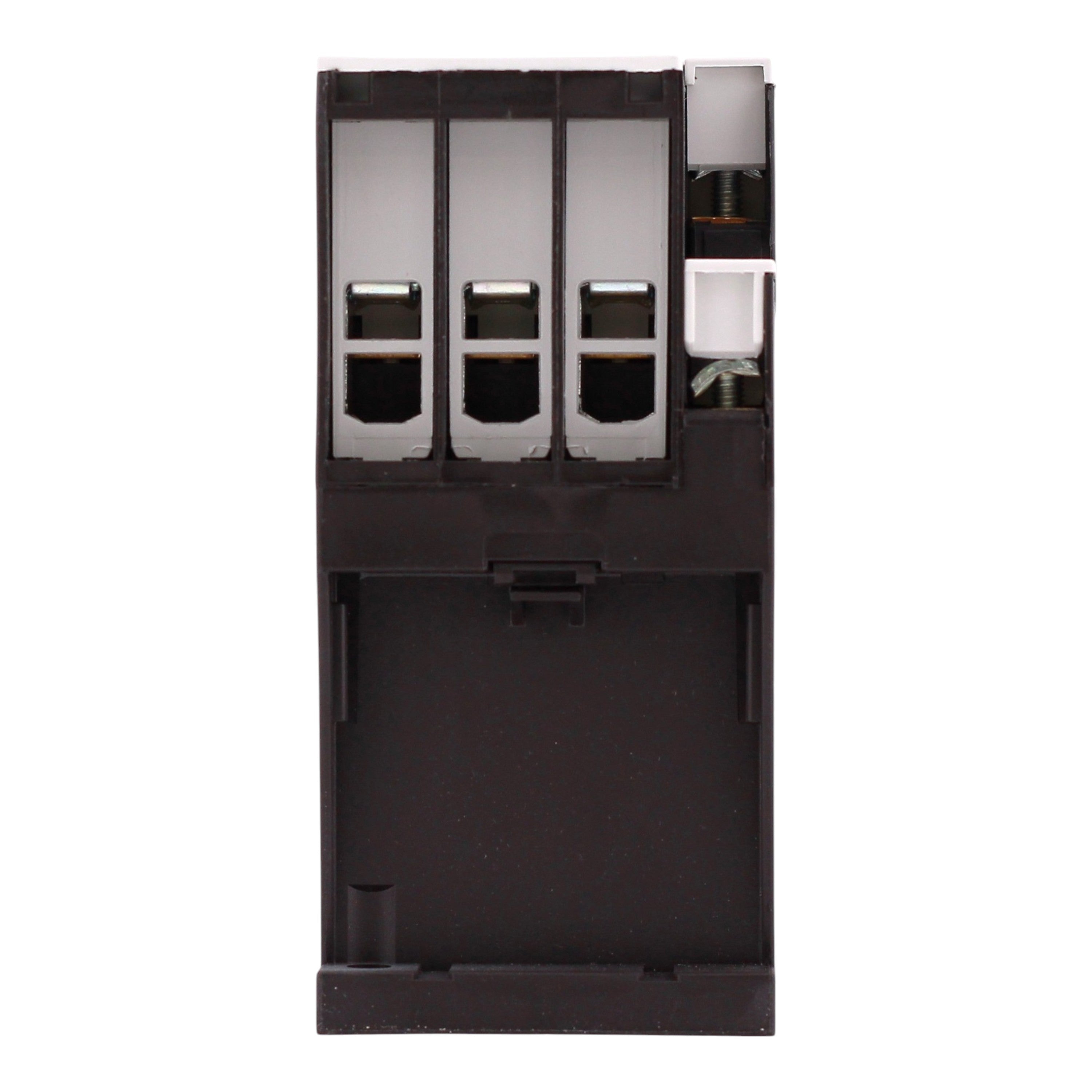

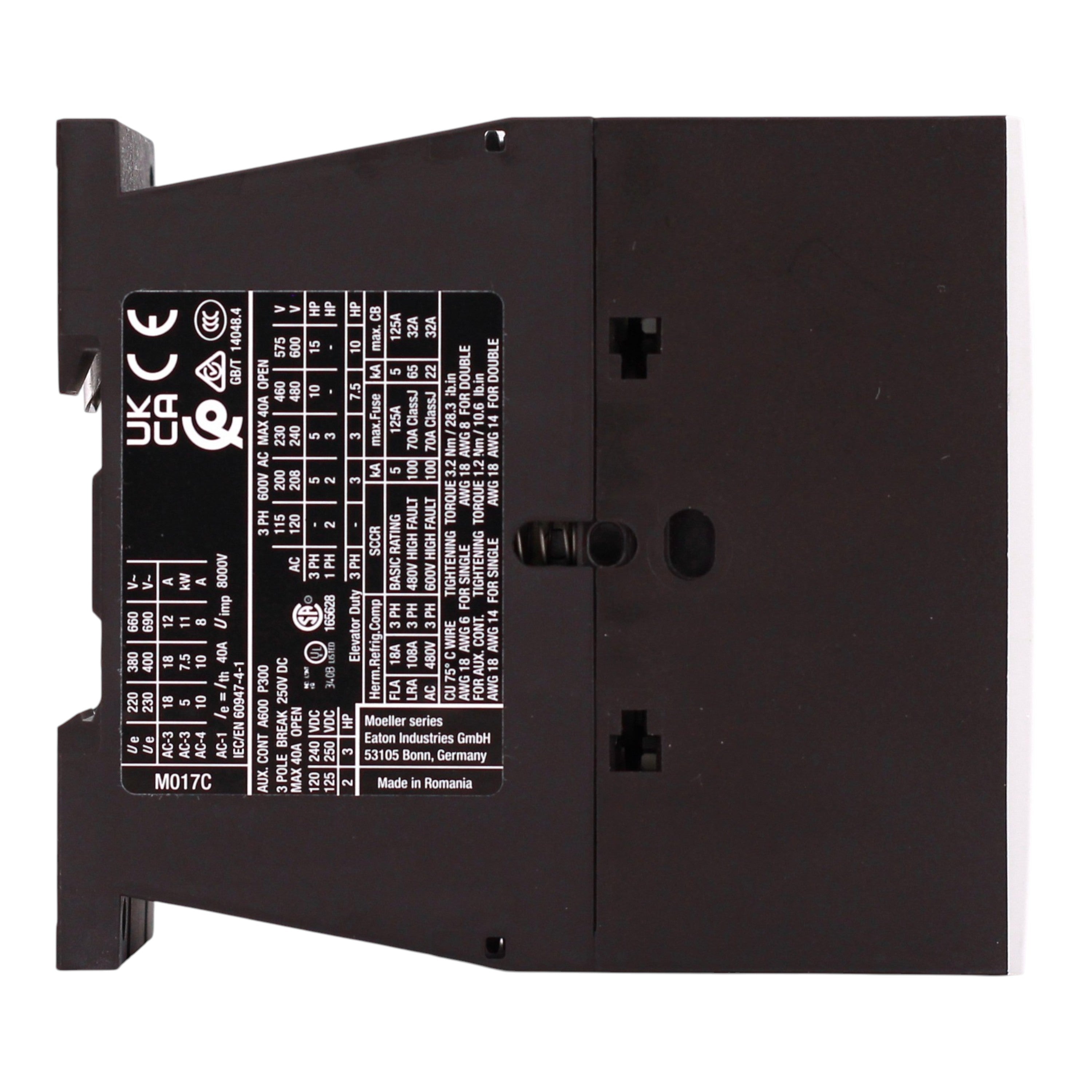

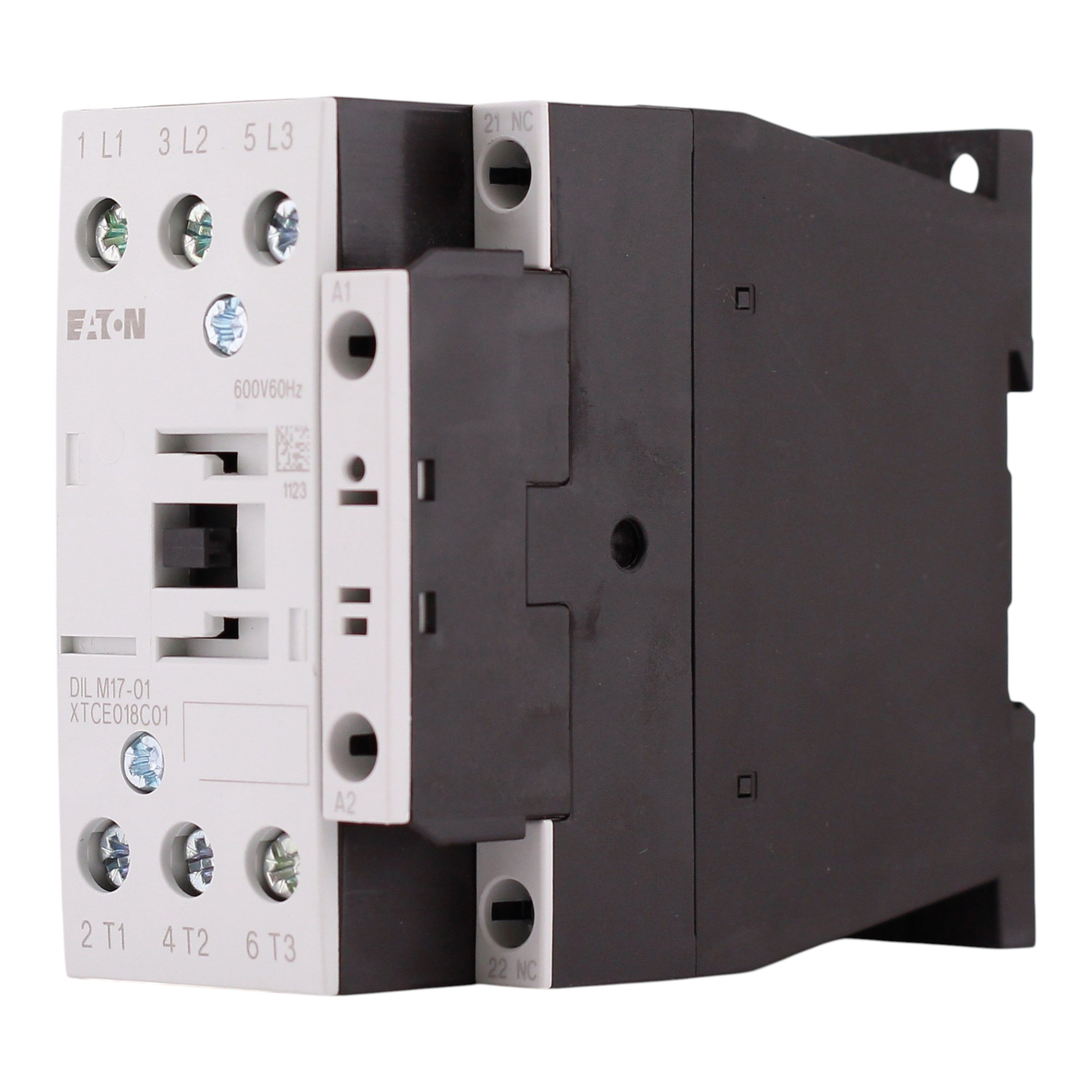

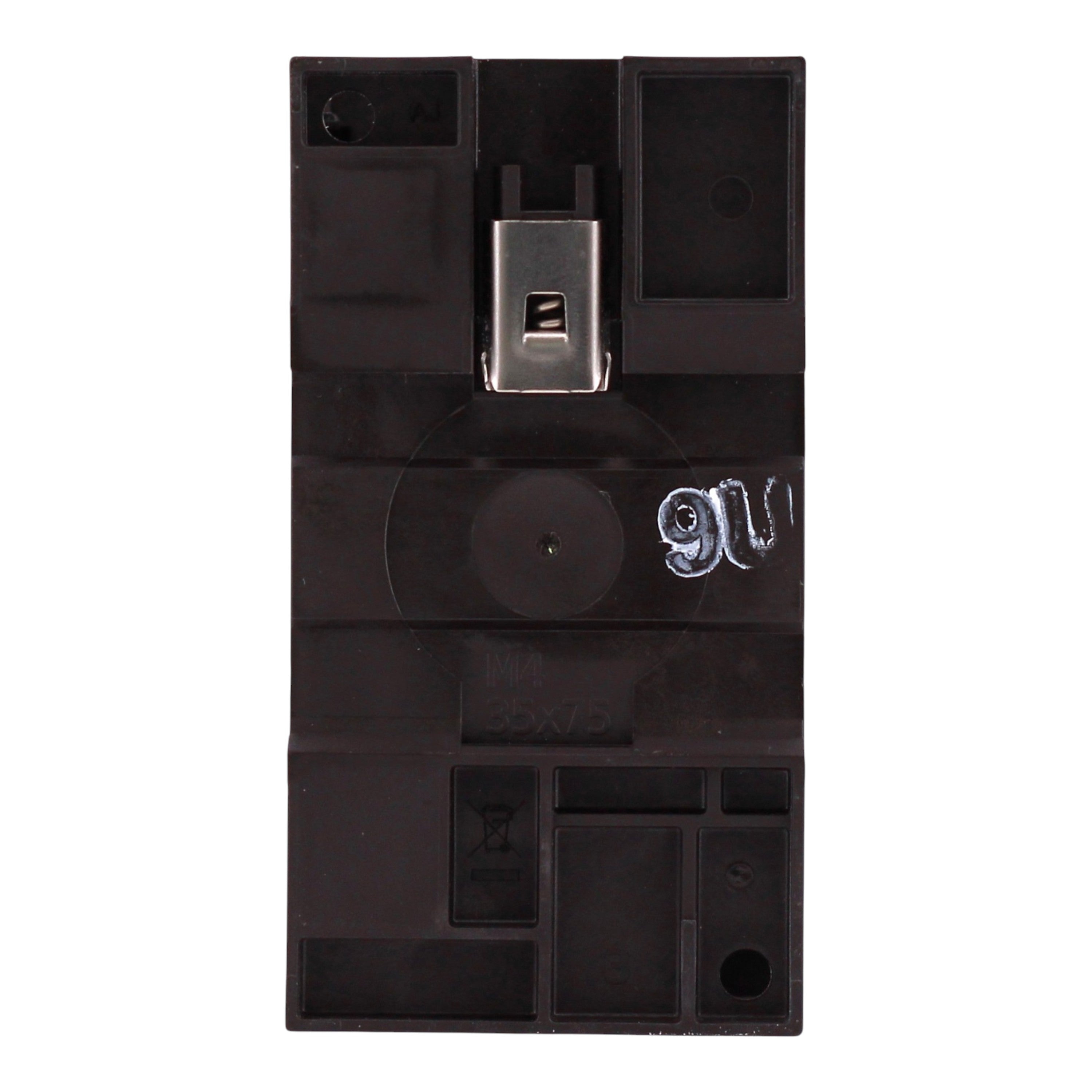

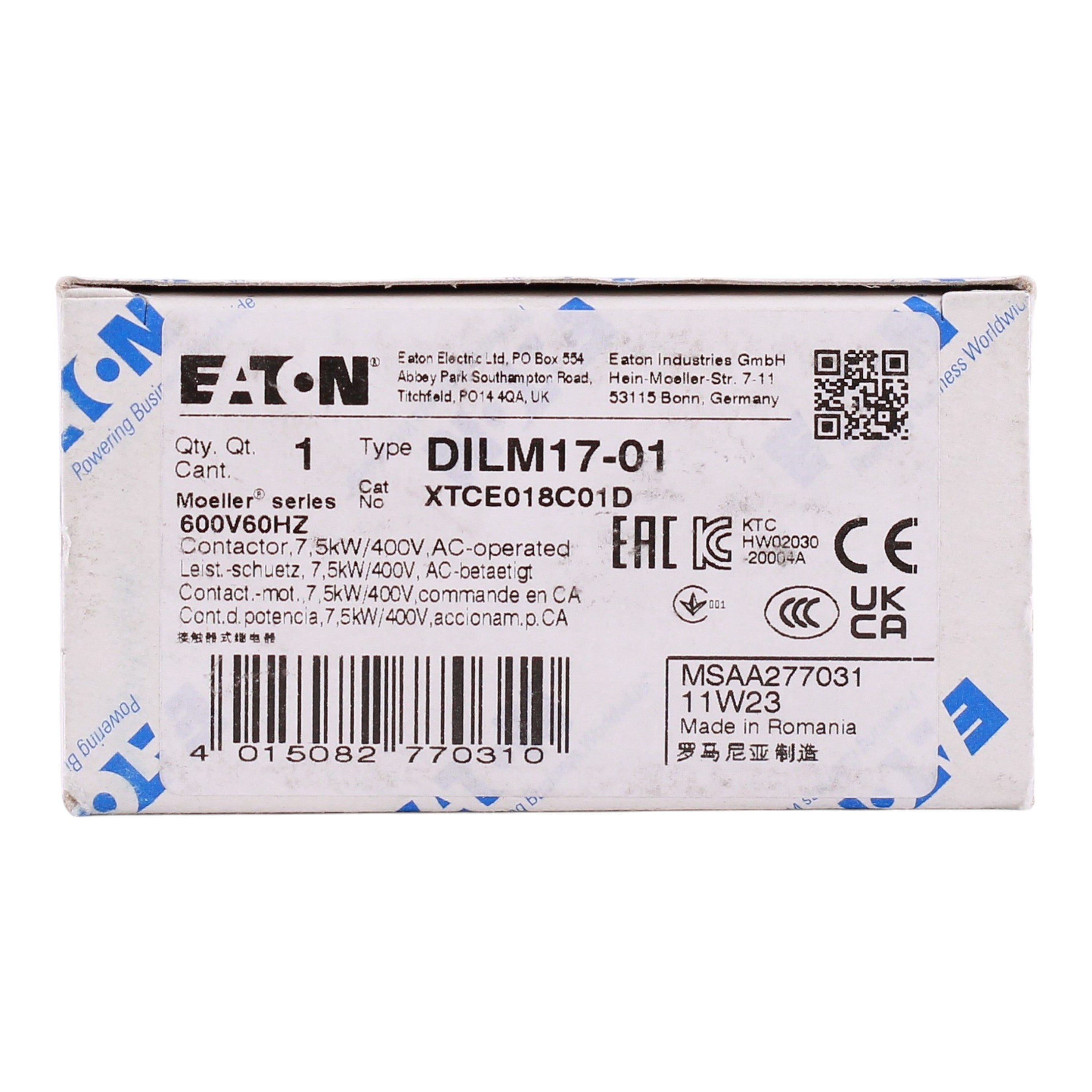

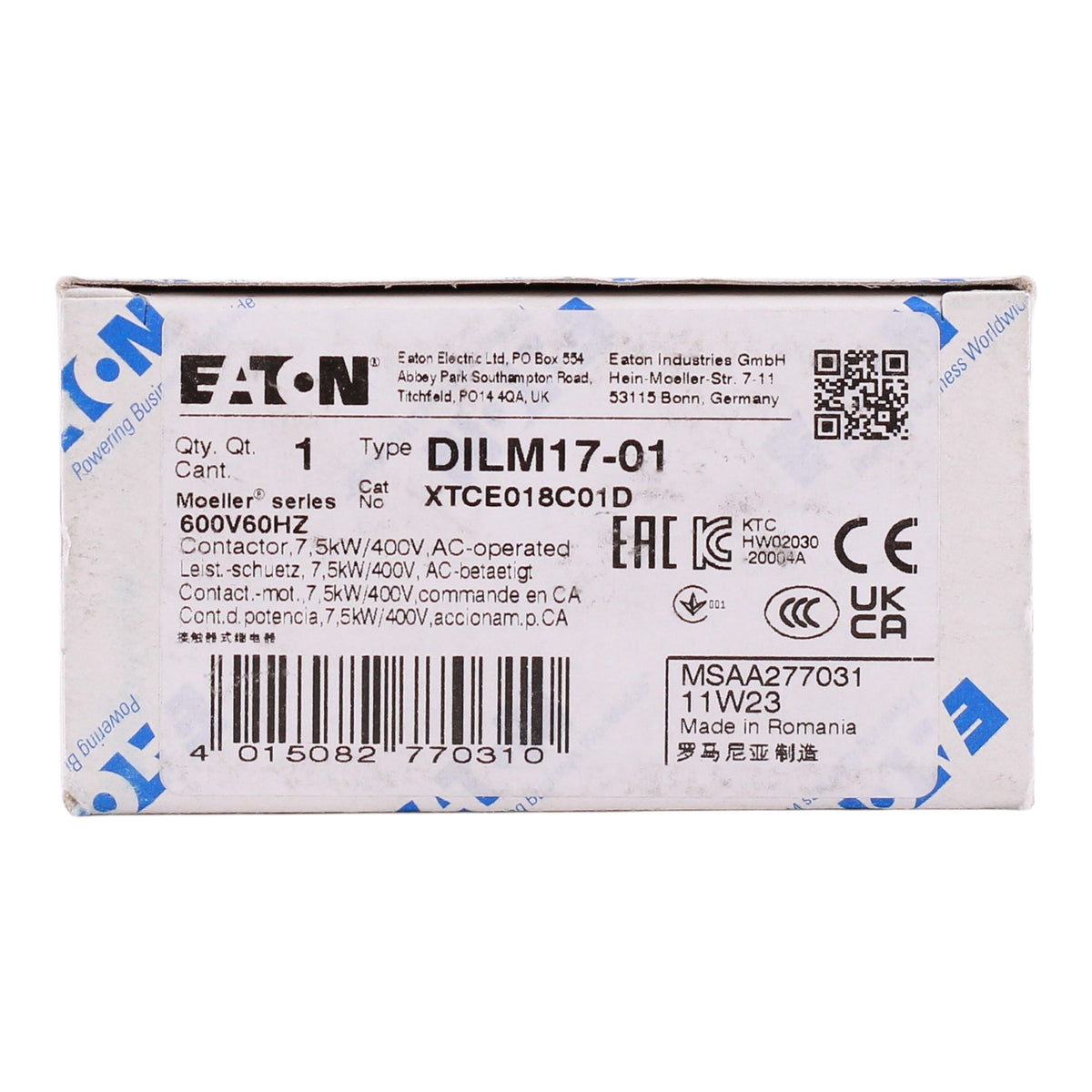

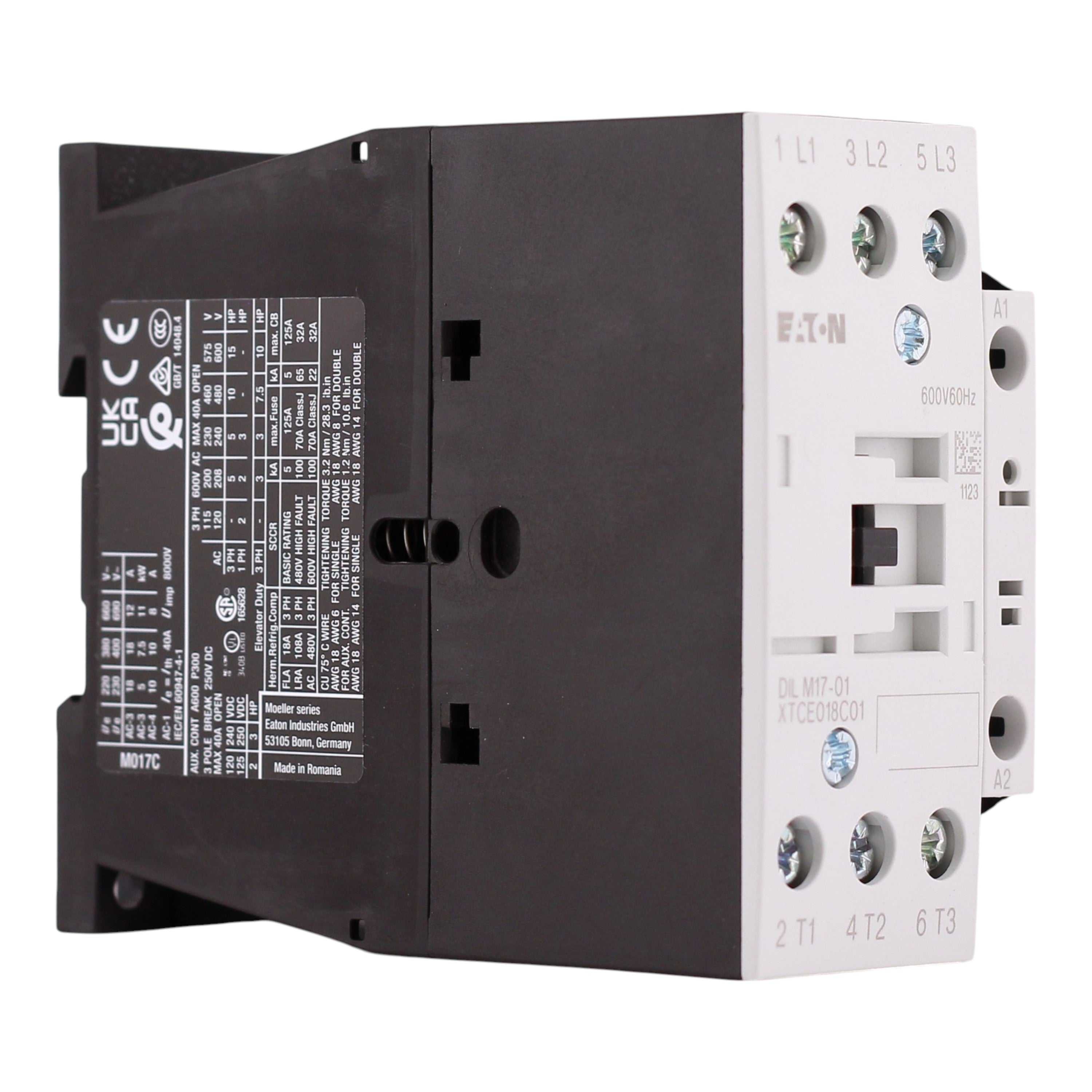

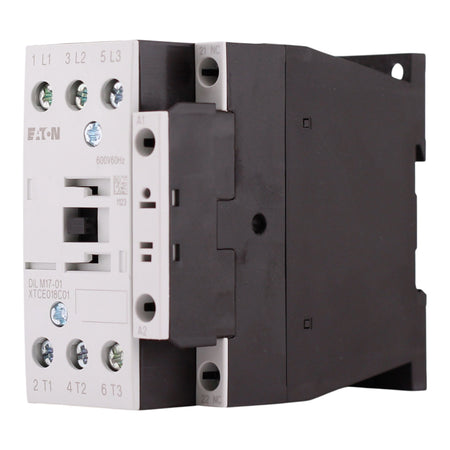

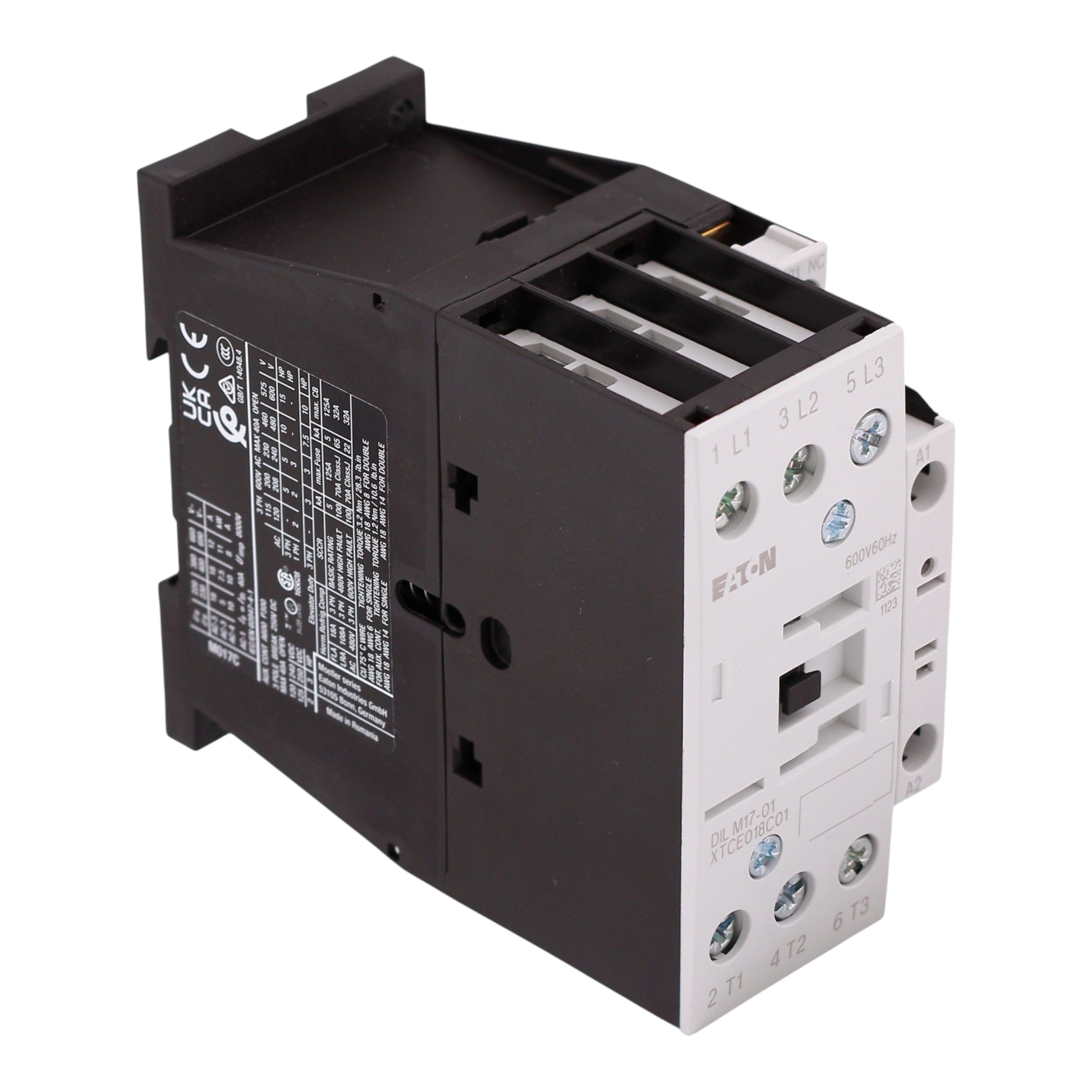

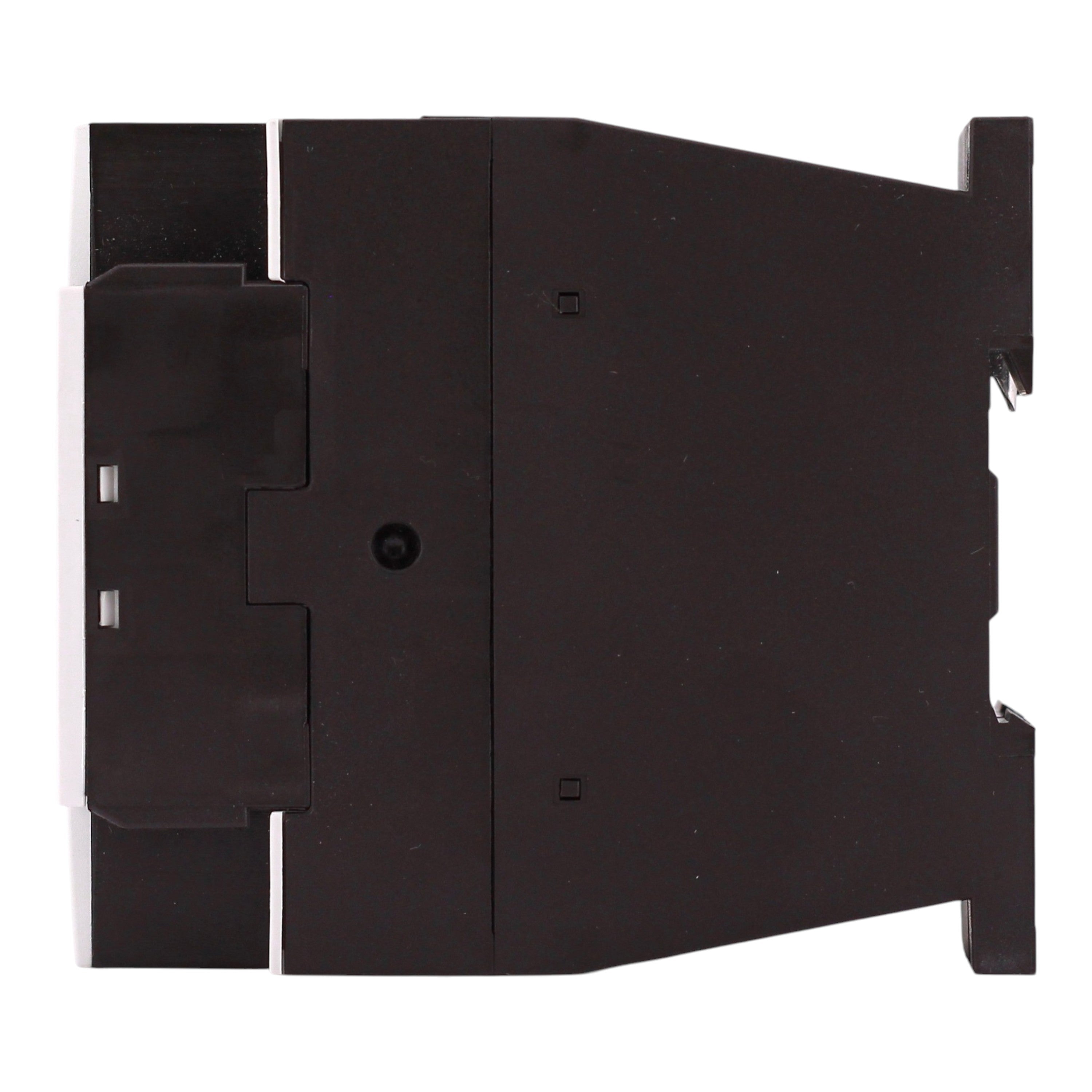

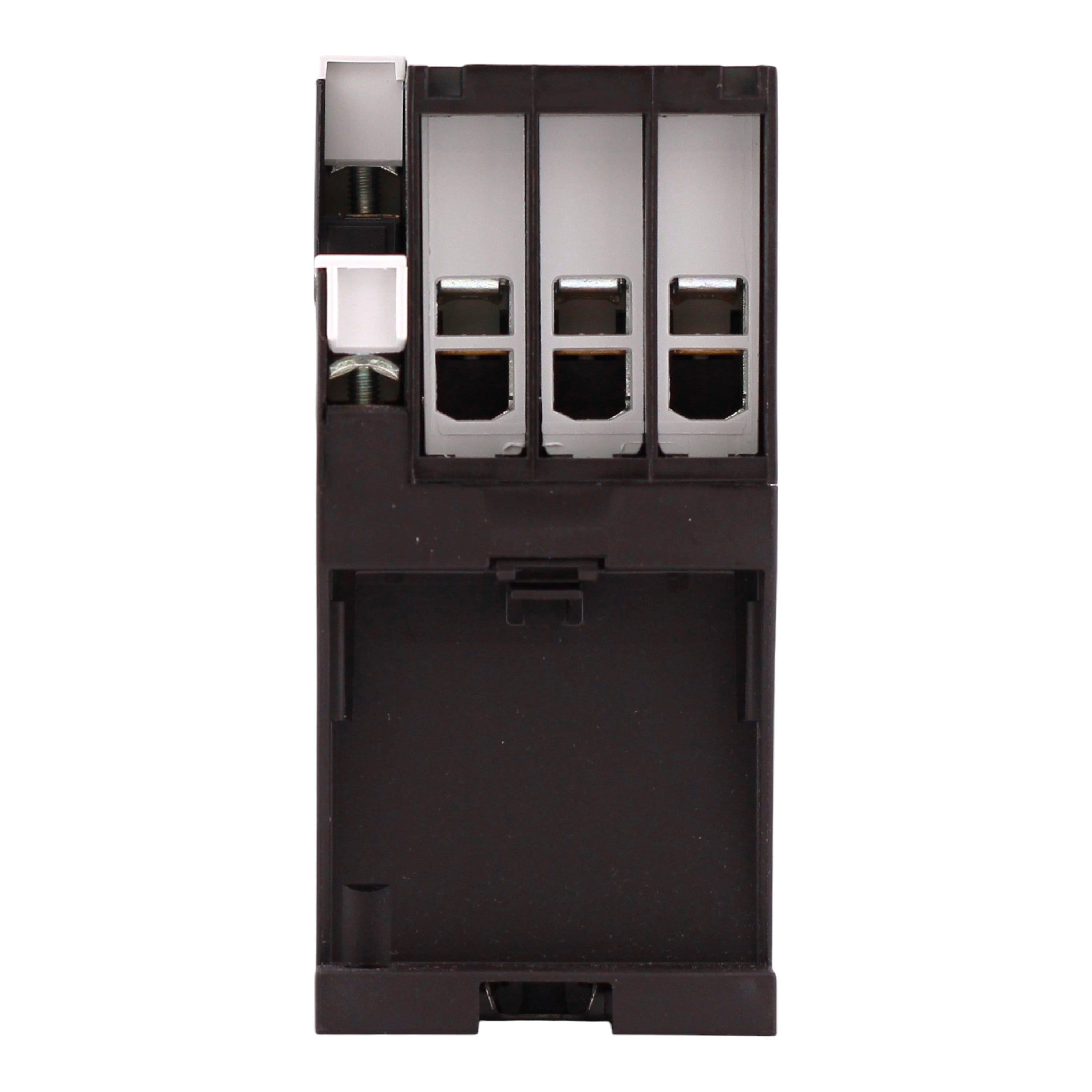

Eaton XT IEC, XTCE018C01D, 18A, 3-Pole, 690VAC, 550/600VAC Coil, Full Voltage Non-Reversing Contactor

In stock - 15 items available
SKU: XTCE018C01D UPC: 4015082770310

BULK ORDER Quote.

How Bulk Order Discounts Work

We partner with Cart Whisper to make bulk ordering fast and simple. You can build your cart normally, then submit the entire cart to our team so we can apply bulk pricing and send you a custom quote.

1) Add everything you need to your cart

Shop the site and add all the products and quantities you want — just like a normal order.

2) Open your cart drawer and submit your cart

When you open the cart drawer, you’ll see a Cart Whisper section that looks like this:

Need Help? Cart ID: ####
Submit Cart to Support

Click “Submit Cart to Support” to send your cart to our team.

3) Fill out the quick form

After clicking the submit button, a form will pop up. Please enter:

  • Name

  • Email

  • Short message (what you want / any special notes)

Important: Include your shipping address in the message.
That helps us quote your order accurately, including shipping and taxes (if applicable).

4) We review and send your custom quote

Once we receive your cart submission, we’ll:

  • Review your cart items and quantities

  • Apply any eligible bulk discounts

  • Send you a custom quote with final pricing (and shipping/tax if applicable)


What to include in your message (recommended)

To speed things up, copy/paste this format into the message box:

  • Shipping Address:

  • Notes / Special requests:

SELECT ITEM CONDITION
Regular price $78.00 USD
Regular price Sale $139.99 USD Sale price $78.00 USD
Payment methods
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Eaton XTCE018C01D: 18 Amp, 3-Pole, XT IEC Full Voltage Non-Reversing Contactor, 690V AC Load, 550/600V AC Coil, 1NC Auxiliary, Screw Terminals, UL Listed, CSA Certified, IEC 60947.

  • Manufacturer: Eaton
  • Brand: Eaton
  • Product Range: XT IEC Series (Frame C, 45mm — for DIN rail and panel mount applications)
  • EAN: 4015082770310
  • Model Number: XTCE018C01D
  • Product Type: Full Voltage Non-Reversing IEC Contactor
  • Amperage Rating: 18 Amps AC-3; 40 Amps AC-1
  • Poles: 3-Pole
  • Maximum Load Voltage: 690 Volts AC
  • Coil Voltage: 550 Volts AC 50Hz / 600 Volts AC 60Hz
  • Frequency: 50/60 Hz
  • Auxiliary Contacts: 1NC (base mounted)
  • Frame Size: C (45 mm)
  • Operation: Non-Reversing
  • Terminals: Screw terminals (#28–10 AWG)
  • Mounting Mode: DIN rail or panel mount
  • IP Rating: IP20
  • Horsepower Rating: 2 HP @ 115V (1PH); 2 HP @ 200V (1PH); 3 HP @ 230V (1PH); 5 HP @ 200V (3PH); 5 HP @ 230V (3PH); 10 HP @ 460V (3PH); 15 HP @ 575V (3PH)
  • Operating Temperature: -13°F to 122°F (-25°C to 50°C)
  • Dimensions: Height: 3.898 in; Width: 1.85 in; Depth: 3.425 in
  • Weight: 0.90 lbs
  • Certifications: UL Listed, CSA Certified, IEC 60947, EN 60947, CE Marked, RoHS Compliant

This Eaton XT IEC XTCE018C01D full voltage non-reversing contactor delivers reliable 18 Amp, 3-Pole switching for 690V AC motor and control loads with a 550/600V AC coil, 1NC base-mounted auxiliary contact, and screw terminals in a compact 45mm Frame C package. Designed for DIN rail or panel mounting, it supports industrial motor control applications worldwide in compliance with UL, CSA, and IEC standards.
