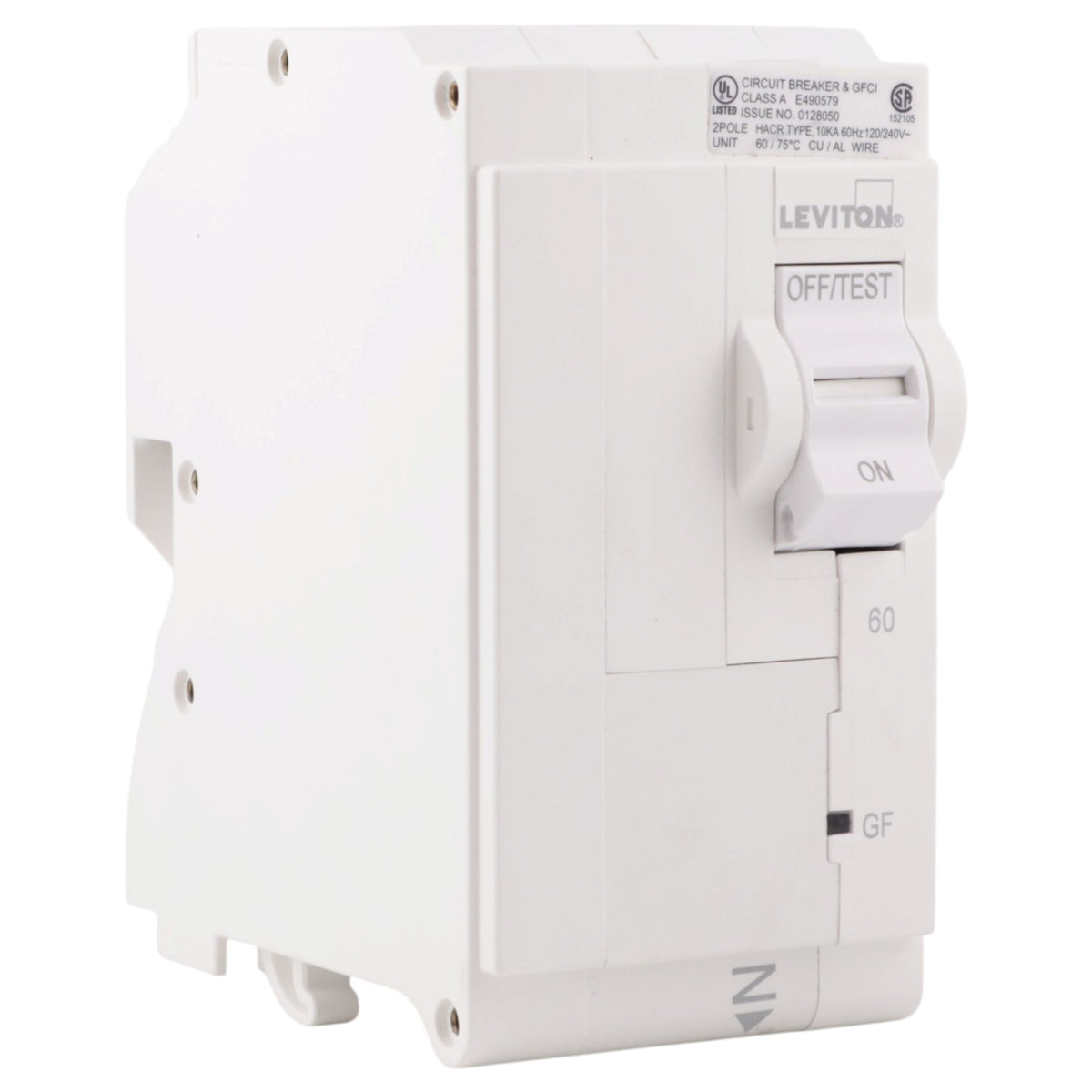

Leviton LB260-G: 60 Amp, 2-Pole, GFCI Ground-Fault Circuit Interrupter Branch Circuit Breaker, 120/240V & 120/208V, 10kA, Hydraulic Magnetic Trip, All Plug-On, 5mA Personnel Protection, UL Listed.
-
Manufacturer: Leviton
-
Brand: Leviton
-
Product Range: Leviton Load Center Branch Circuit Breakers (for Leviton Load Centers only)
-
UPC: 078477468647
-
Model Number: LB260-G
-
Breaker Type: Ground-Fault Circuit Interrupter (GFCI), 5 mA Personnel Protection, Two-Pole, Hydraulic Magnetic Trip
-
Amperage: 60 Amps
-
Poles: 2-Pole
-
Voltage: 120/240V AC; 120/208V AC
-
Interrupt Rating: 10 kA (series rated 22 kA with a Leviton main breaker)
-
Mounting Mode: Plug-On
-

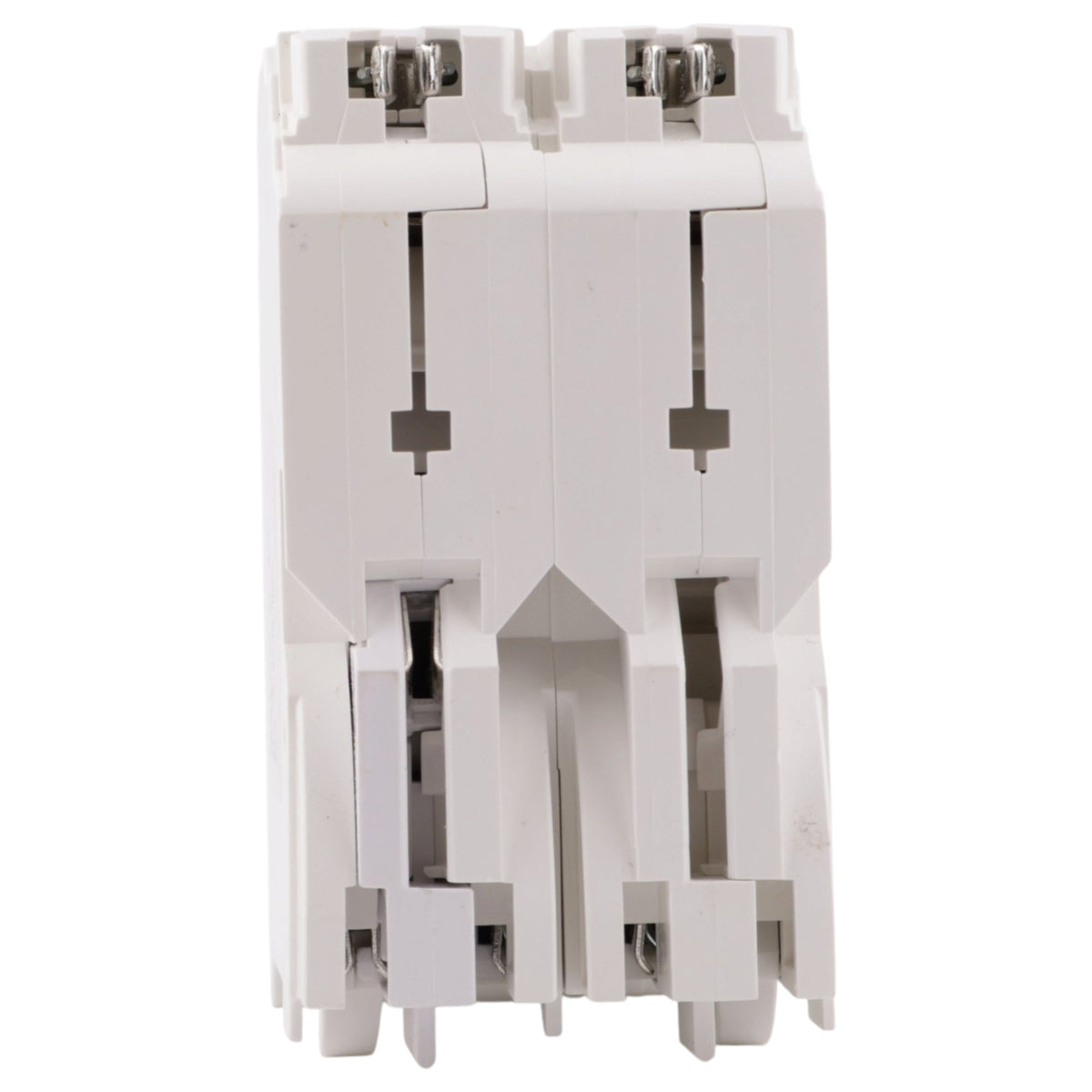

Connections Terminals: All plug-on (no wiring to the breaker; conductors land on lugs in the load center)
-
Operating Temperature: -40°C to 85°C (-40°F to 185°F), no re-rating
-
Dimensions: Height: 3.90 in; Width: 2.00 in; Depth: 3.10 in
-
Weight: 0.85 lb
-
Certifications: UL 489, HACR rated, CSA C22.2 No. 5-02, FCC, RoHS, EMC compatible
-
Special Features: Reset lockout (will not reset if ground-fault protection is compromised); LED trip and fault-type indicator that stays lit when tripped

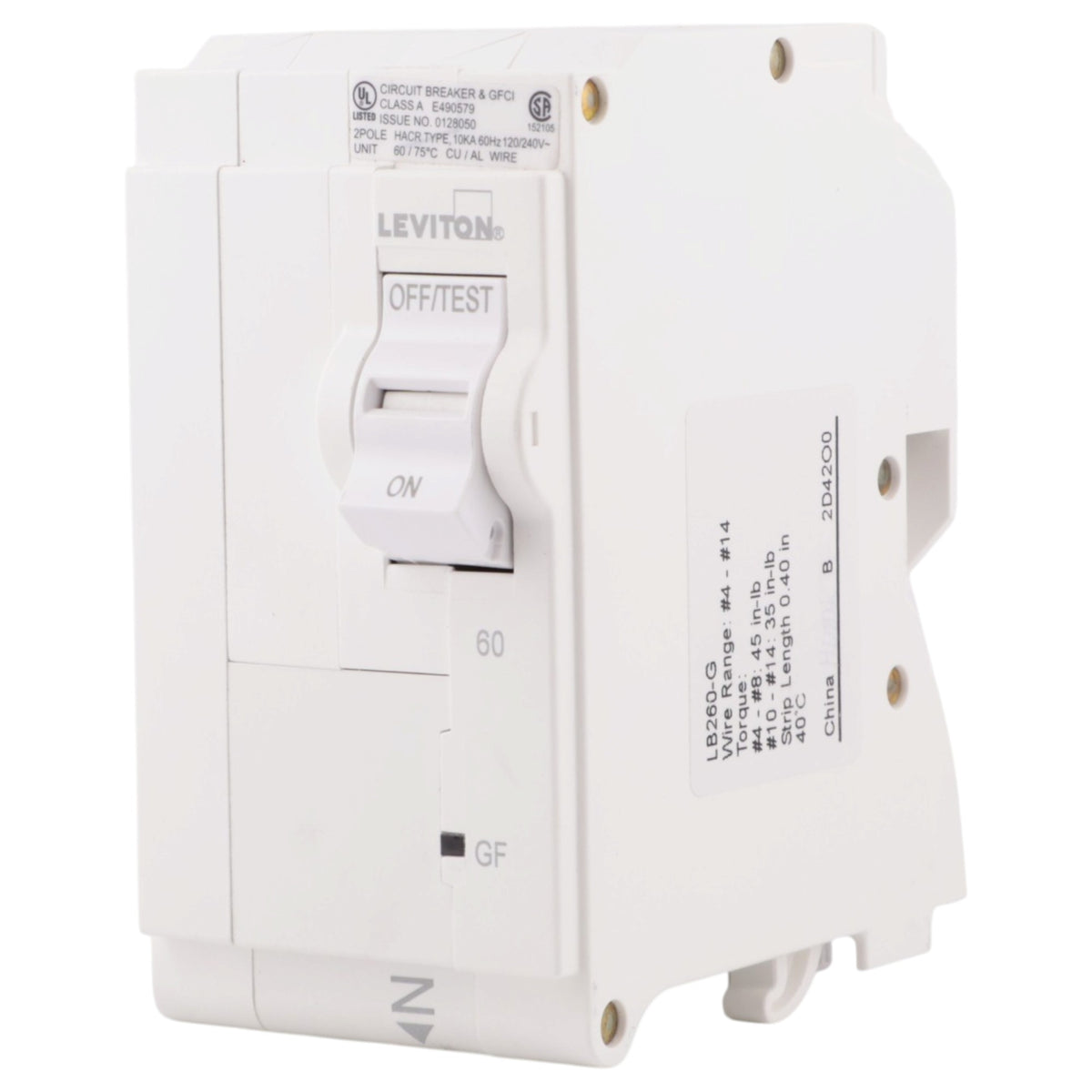

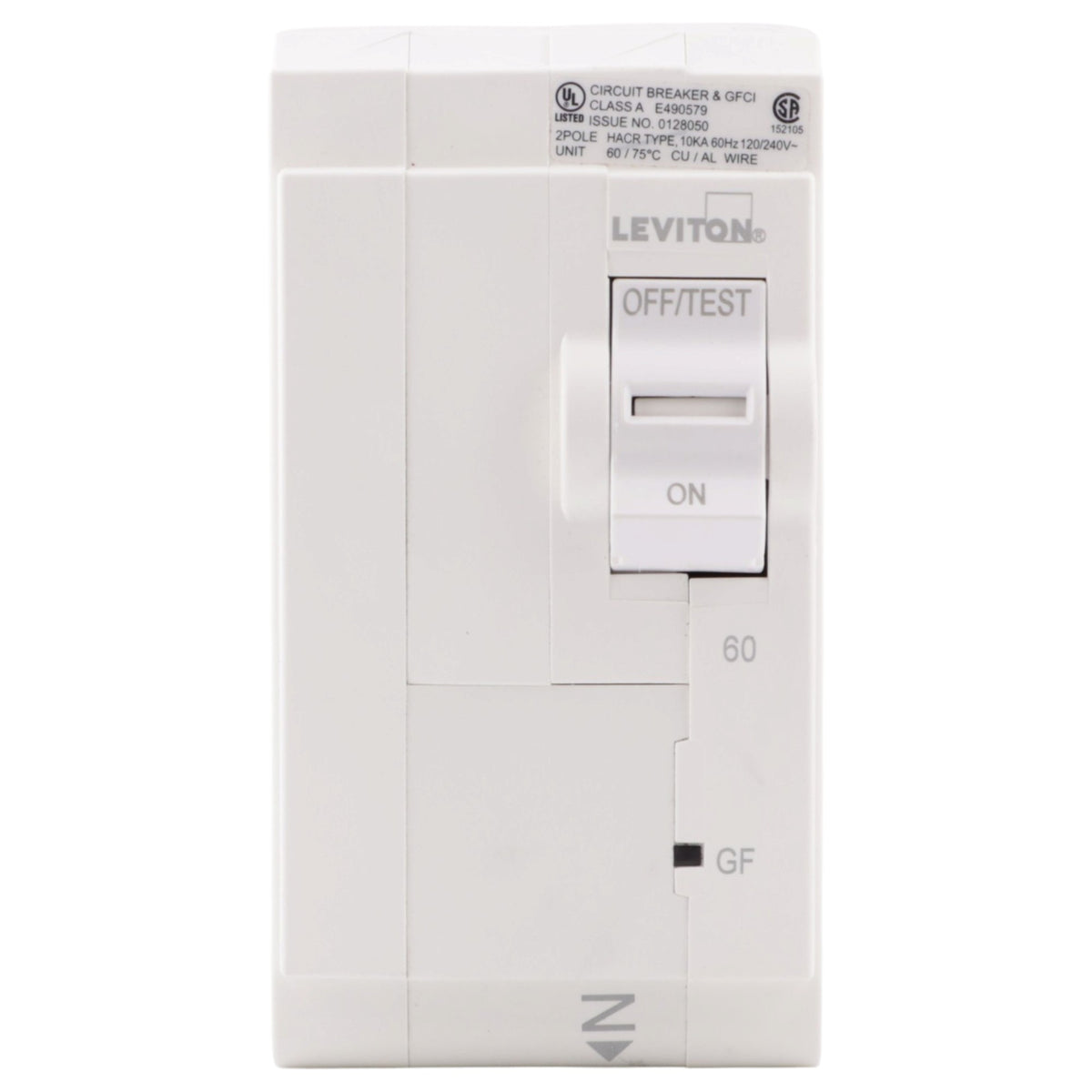

The Leviton LB260-G is a 60 Amp, 2-Pole GFCI branch circuit breaker with 5 mA personnel ground-fault protection for 120/240V and 120/208V circuits in Leviton Load Centers. Its all plug-on design lets the panel be fully wired at rough-in, before any breakers are installed. Hydraulic magnetic trip technology holds its rating from -40°C to 85°C. The LED indicator shows trip condition and fault type, and patented reset lockout prevents resetting if ground-fault protection has failed.
