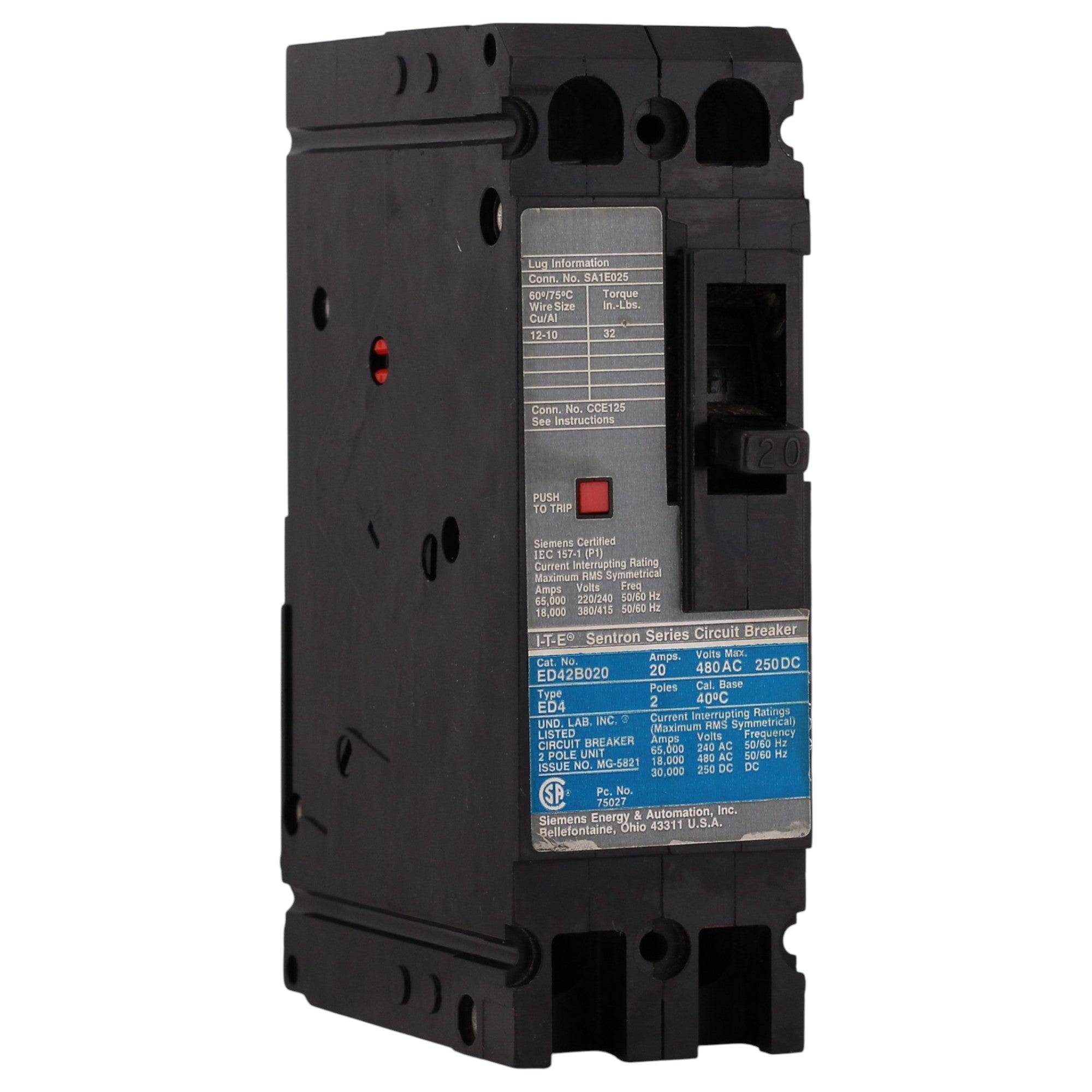

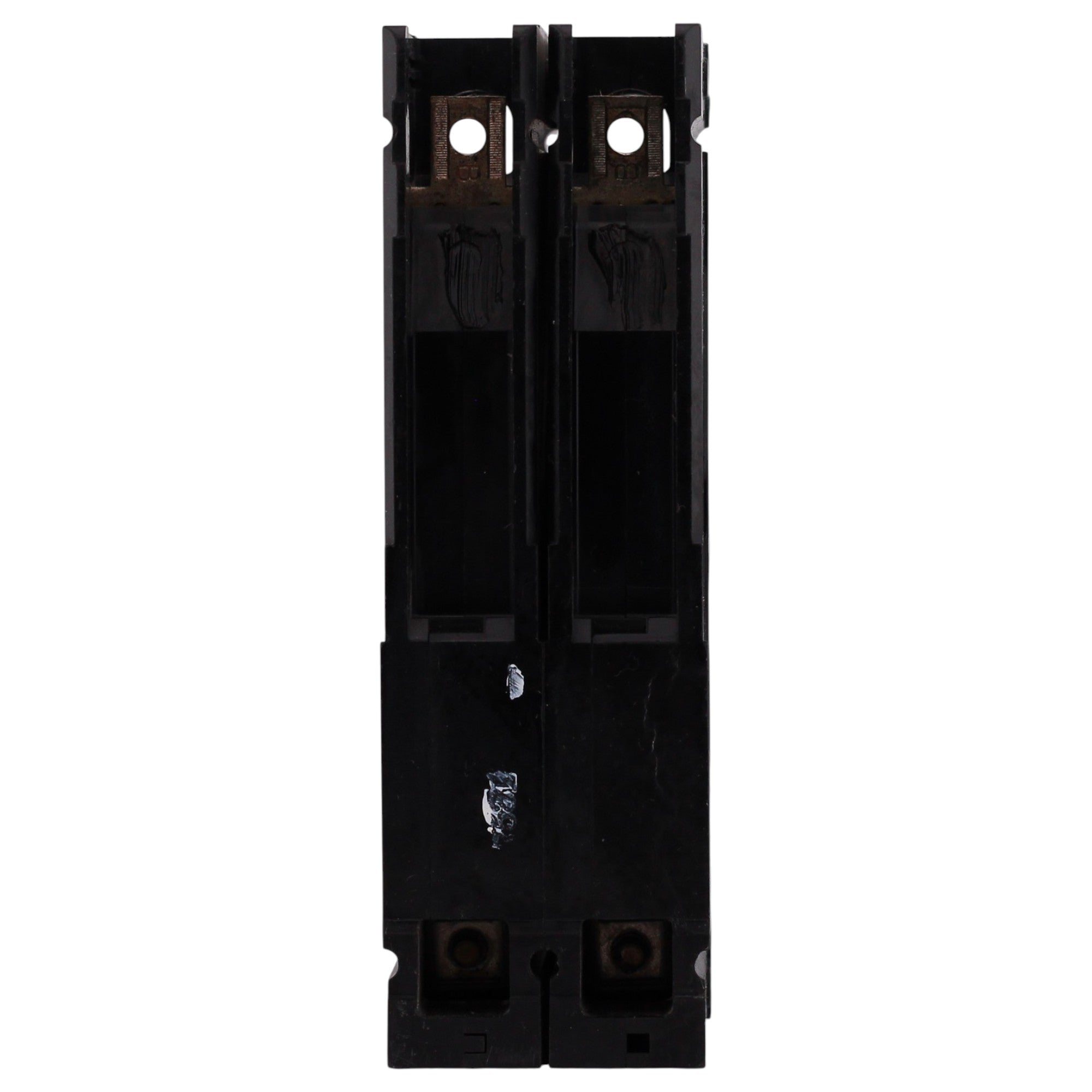

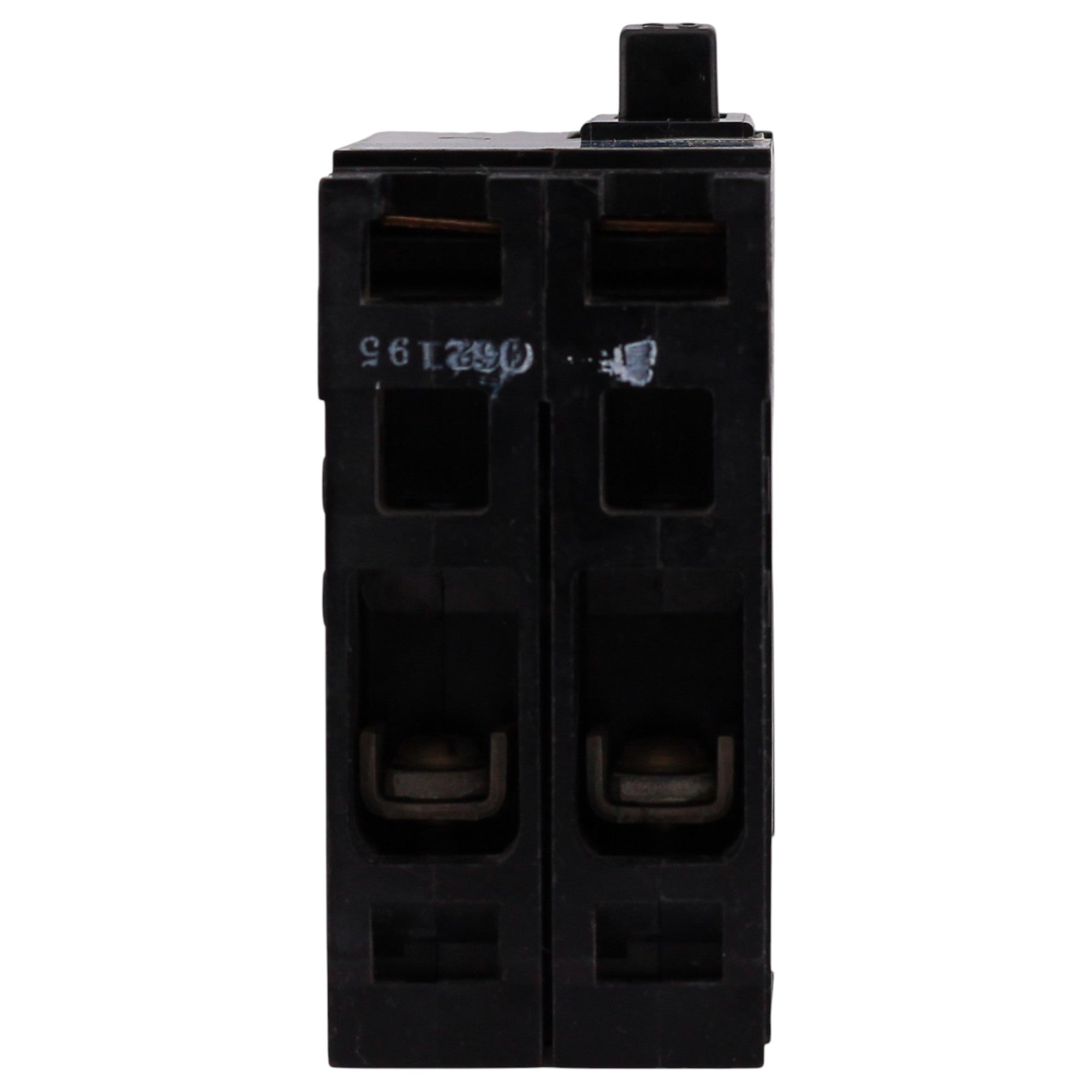

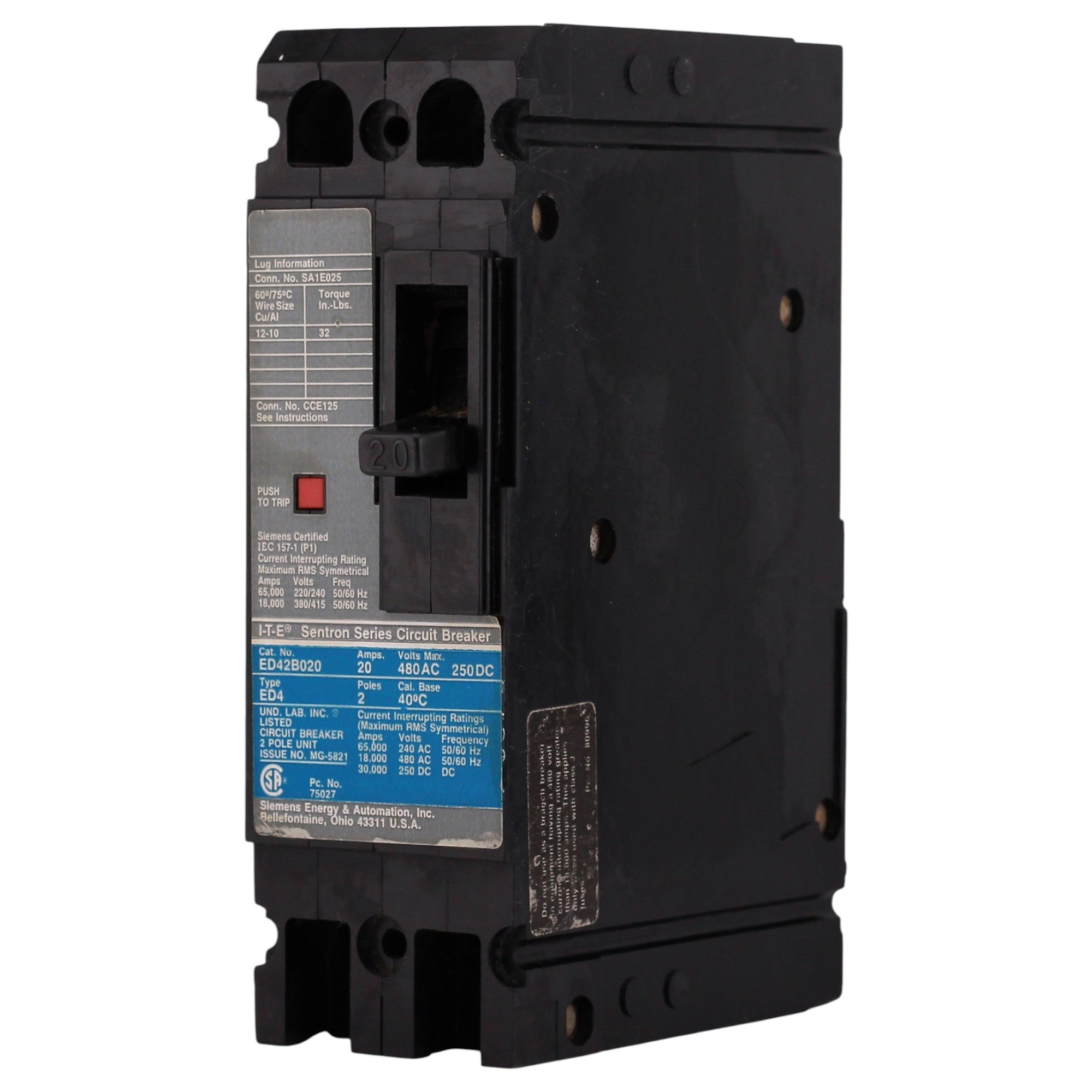

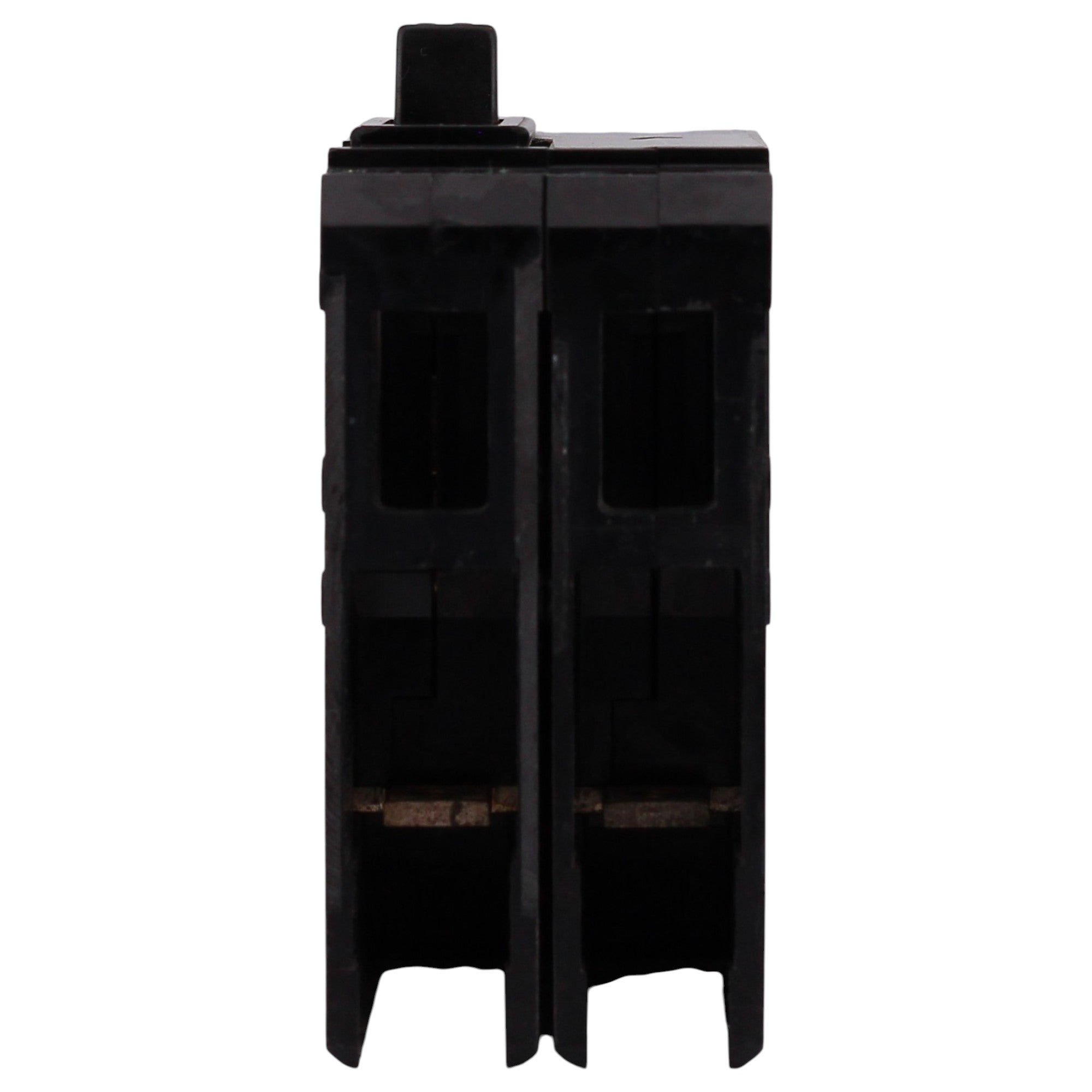

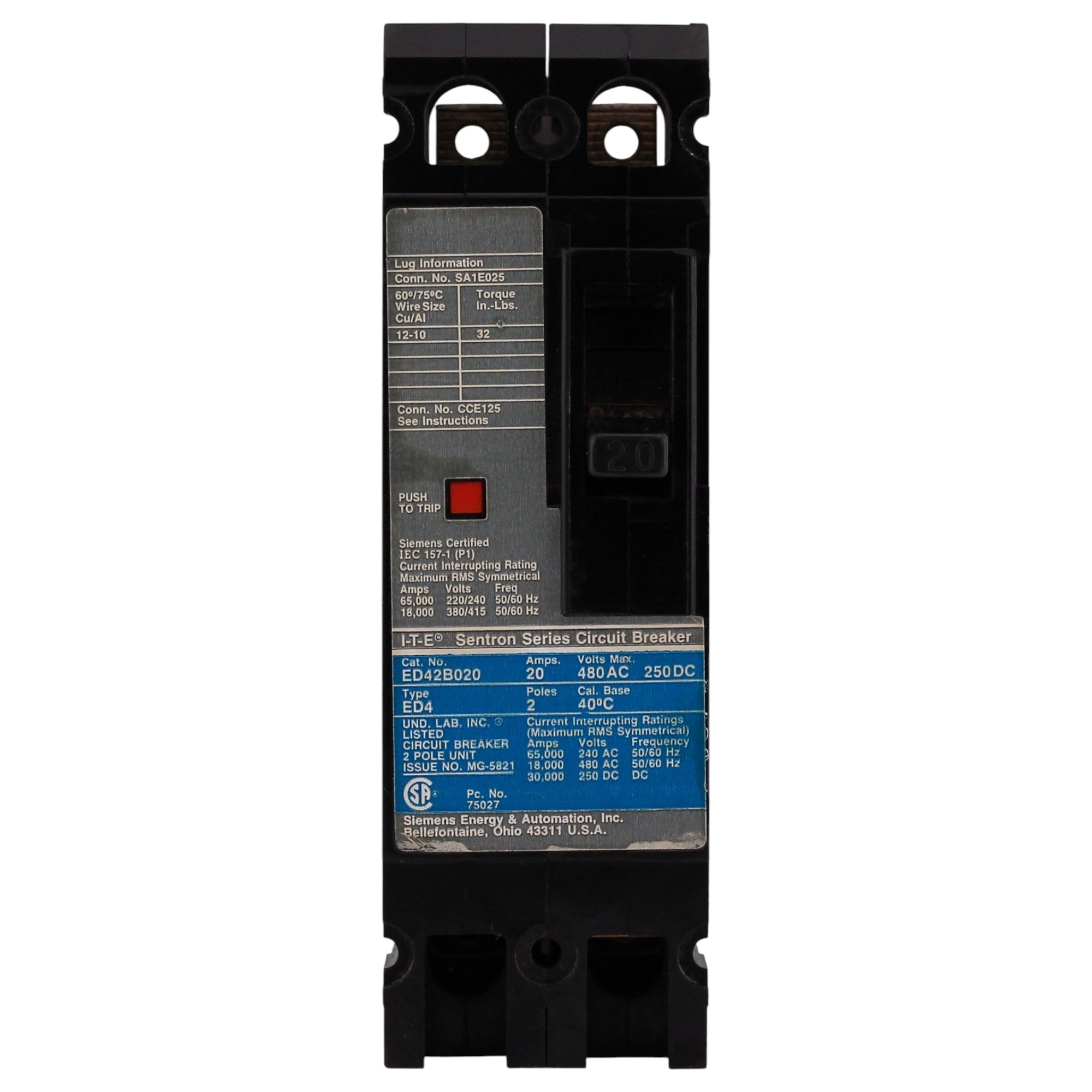

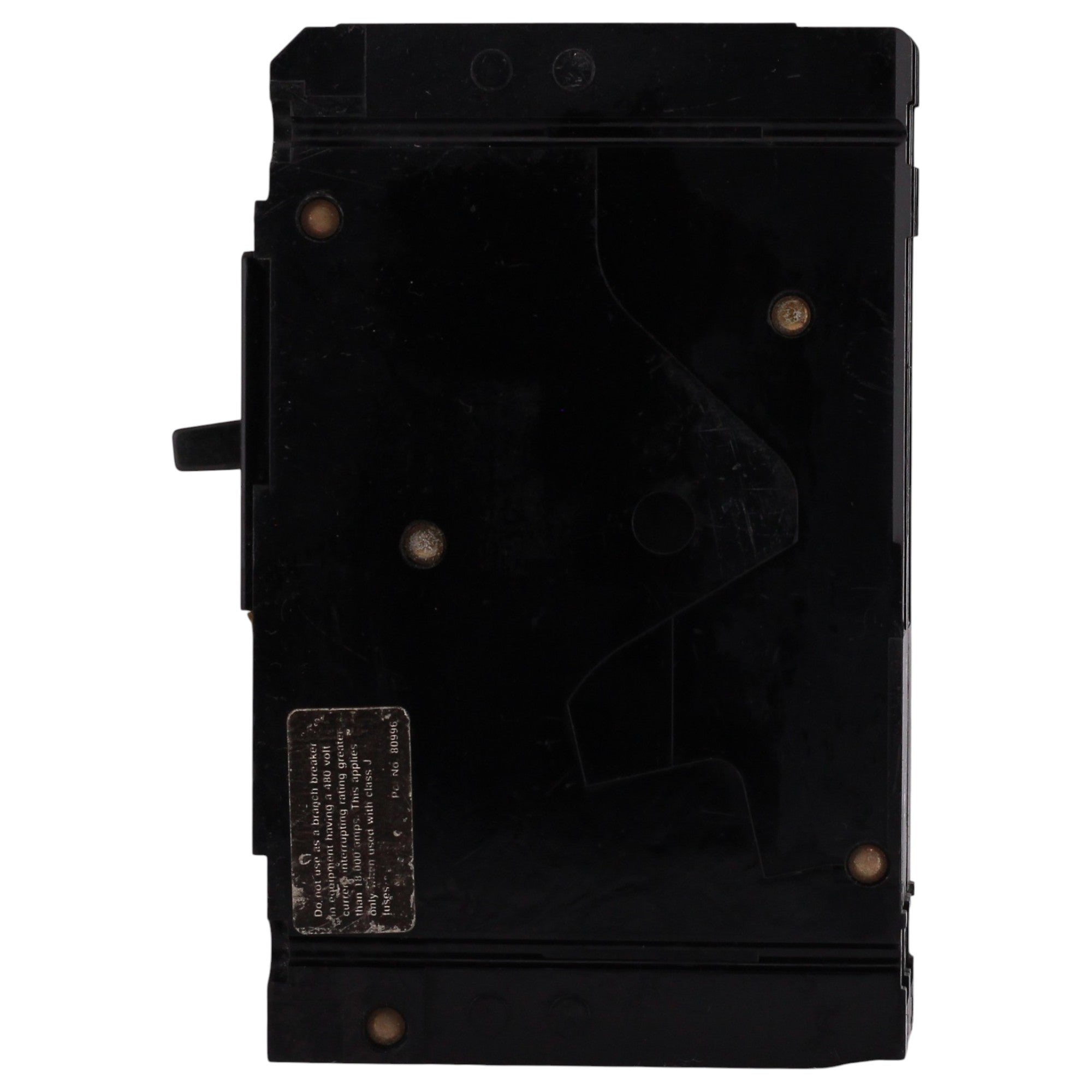

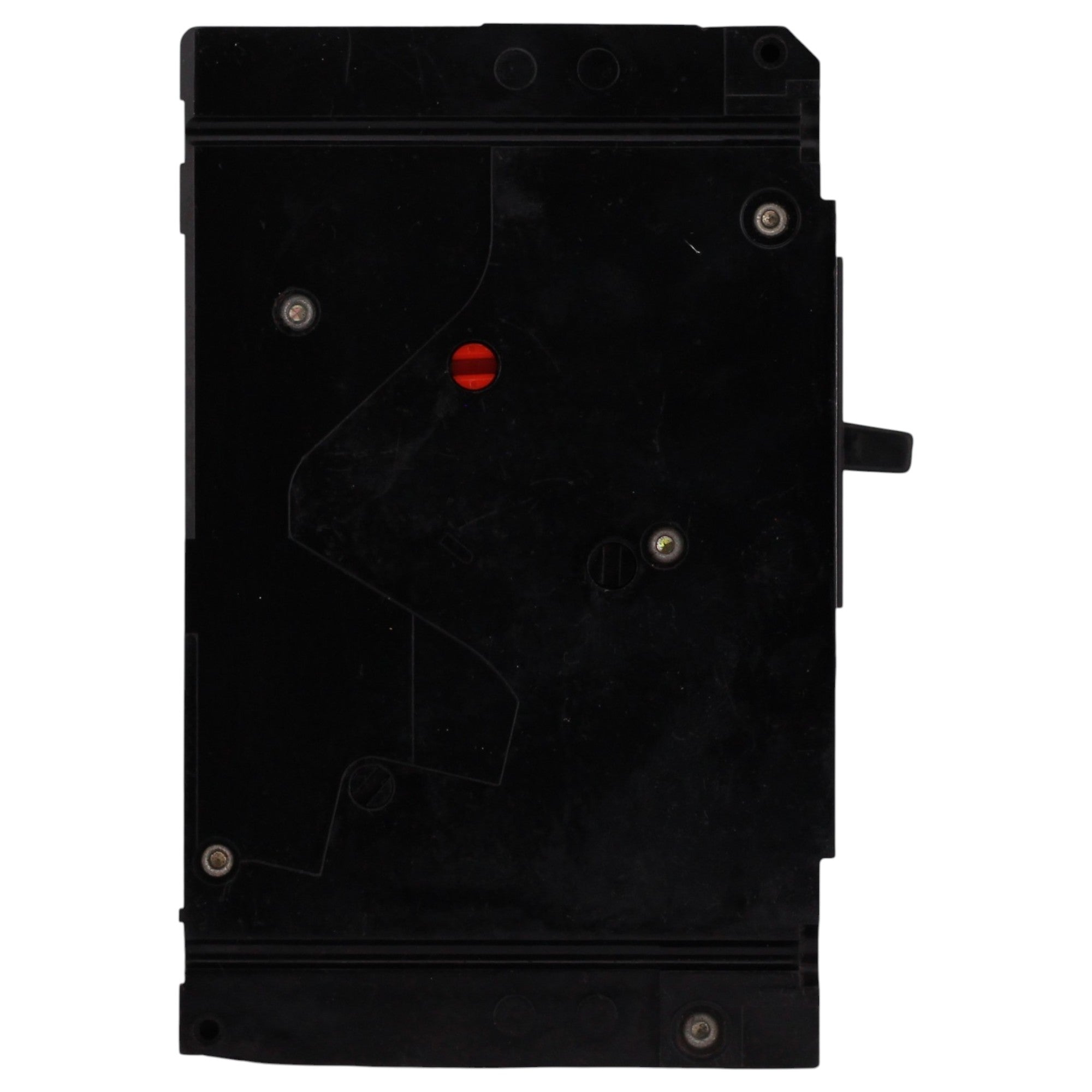

Siemens Sentron, ED42B020, 20A, 2P, 480VAC/250VDC, 18kA, Thermal Magnetic, MCCB

In stock - 12 items available
SKU: ED42B020-RECON UPC: 783643209220

BULK ORDER Quote.

How Bulk Order Discounts Work

We partner with Cart Whisper to make bulk ordering fast and simple. You can build your cart normally, then submit the entire cart to our team so we can apply bulk pricing and send you a custom quote.

1) Add everything you need to your cart

Shop the site and add all the products and quantities you want — just like a normal order.

2) Open your cart drawer and submit your cart

When you open the cart drawer, you’ll see a Cart Whisper section that looks like this:

Need Help? Cart ID: ####
Submit Cart to Support

Click “Submit Cart to Support” to send your cart to our team.

3) Fill out the quick form

After clicking the submit button, a form will pop up. Please enter:

  • Name

  • Email

  • Short message (what you want / any special notes)

Important: Include your shipping address in the message.
That helps us quote your order accurately, including shipping and taxes (if applicable).

4) We review and send your custom quote

Once we receive your cart submission, we’ll:

  • Review your cart items and quantities

  • Apply any eligible bulk discounts

  • Send you a custom quote with final pricing (and shipping/tax if applicable)


What to include in your message (recommended)

To speed things up, copy/paste this format into the message box:

  • Shipping Address:

  • Notes / Special requests:

SELECT ITEM CONDITION
Regular price $33.00 USD
Regular price Sale $80.00 USD Sale price $33.00 USD
Payment methods
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • Shop Pay
  • Visa

Siemens ED42B020: 20 Amp, 2-Pole, Type ED4 Sentron Molded Case Circuit Breaker, 480VAC/250VDC, 18kA, Thermal Magnetic, Load Lug, Non-Interchangeable, UL Listed.

  • Manufacturer: Siemens (ITE)
  • Brand: Siemens Sentron
  • Product Range: Sentron ED Frame (Type ED4 — for Siemens Sentron panelboards and switchboards)
  • UPC: 783643209220
  • Model Number: ED42B020
  • Breaker Type: Thermal Magnetic Molded Case Circuit Breaker, Non-Interchangeable Trip
  • Trip Functions: LI — Long-Time and Instantaneous
  • Amperage: 20 Amps
  • Poles: 2-Pole
  • Phase: 1-Phase
  • Voltage: 480 Volts AC; 250 Volts DC
  • Frequency: 50/60 Hz
  • Interrupt Rating: 18 kAIC @ 480VAC
  • Frame: ED Frame, 125A
  • Mounting Mode: Panel mount
  • Connections / Terminals: Load lug only (SA1E025 accessory)
  • Wire Size: #14–10 AWG Cu, #12–10 AWG Al
  • Reverse Feed: Yes (all ED frame breakers may be reverse connected)
  • Operating Temperature: -13°F to 158°F (-25°C to 70°C); Standard 40°C
  • Dimensions: Height: 7.00 in; Width: 6.00 in; Depth: 3.00 in
  • Weight: 2.50 lbs
  • Certifications: UL 489, CSA Certified, HACR Rated

This Siemens Sentron ED42B020 Type ED4 thermal magnetic molded case circuit breaker delivers dependable 20 Amp, 2-Pole protection for 480VAC/250VDC circuits in Siemens Sentron panelboards and switchboards. With 18kAIC interrupt capacity, load lug termination, non-interchangeable LI trip, reverse feed capability, and a proven Sentron Series pedigree for commercial and industrial applications, it supports demanding power distribution requirements.
