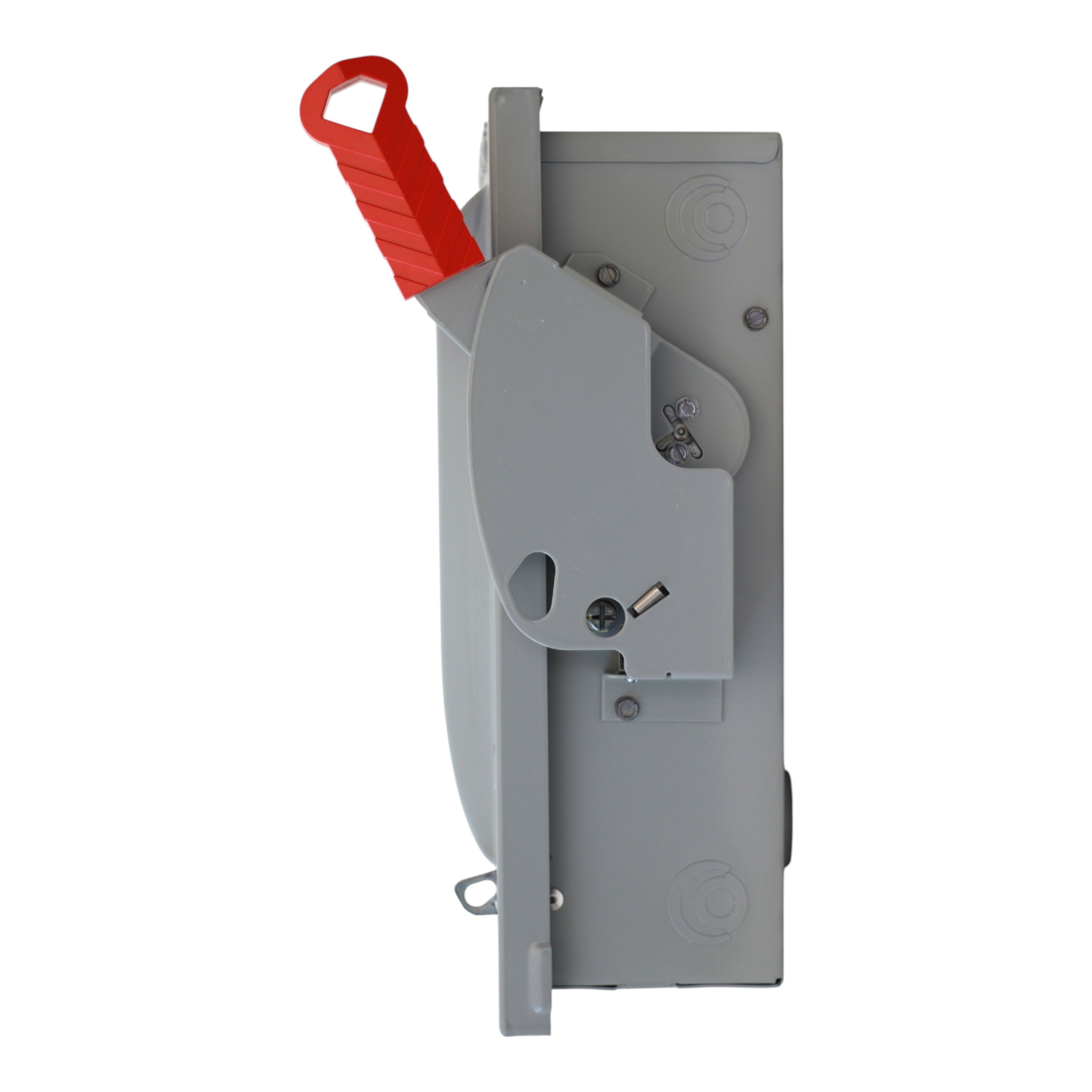

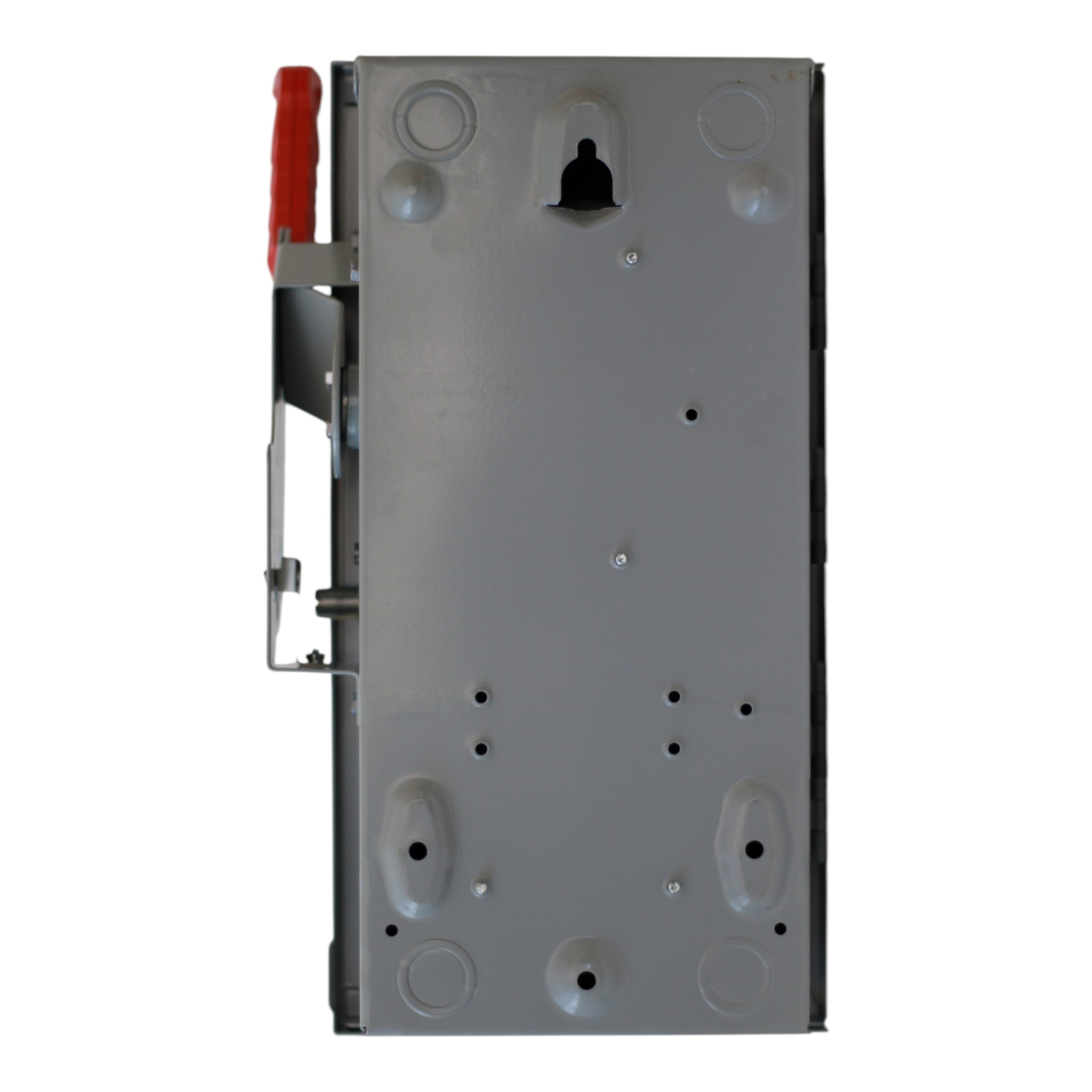

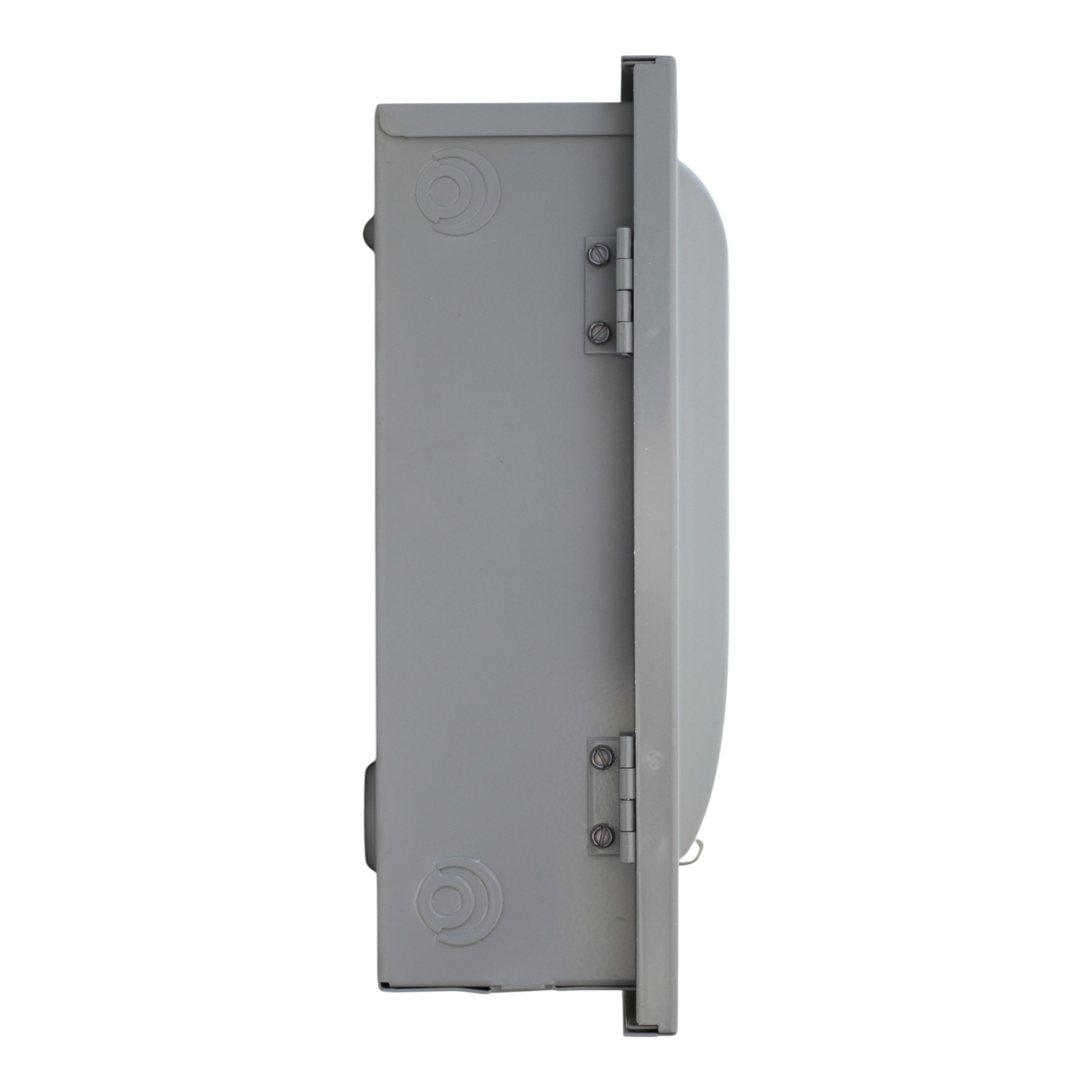

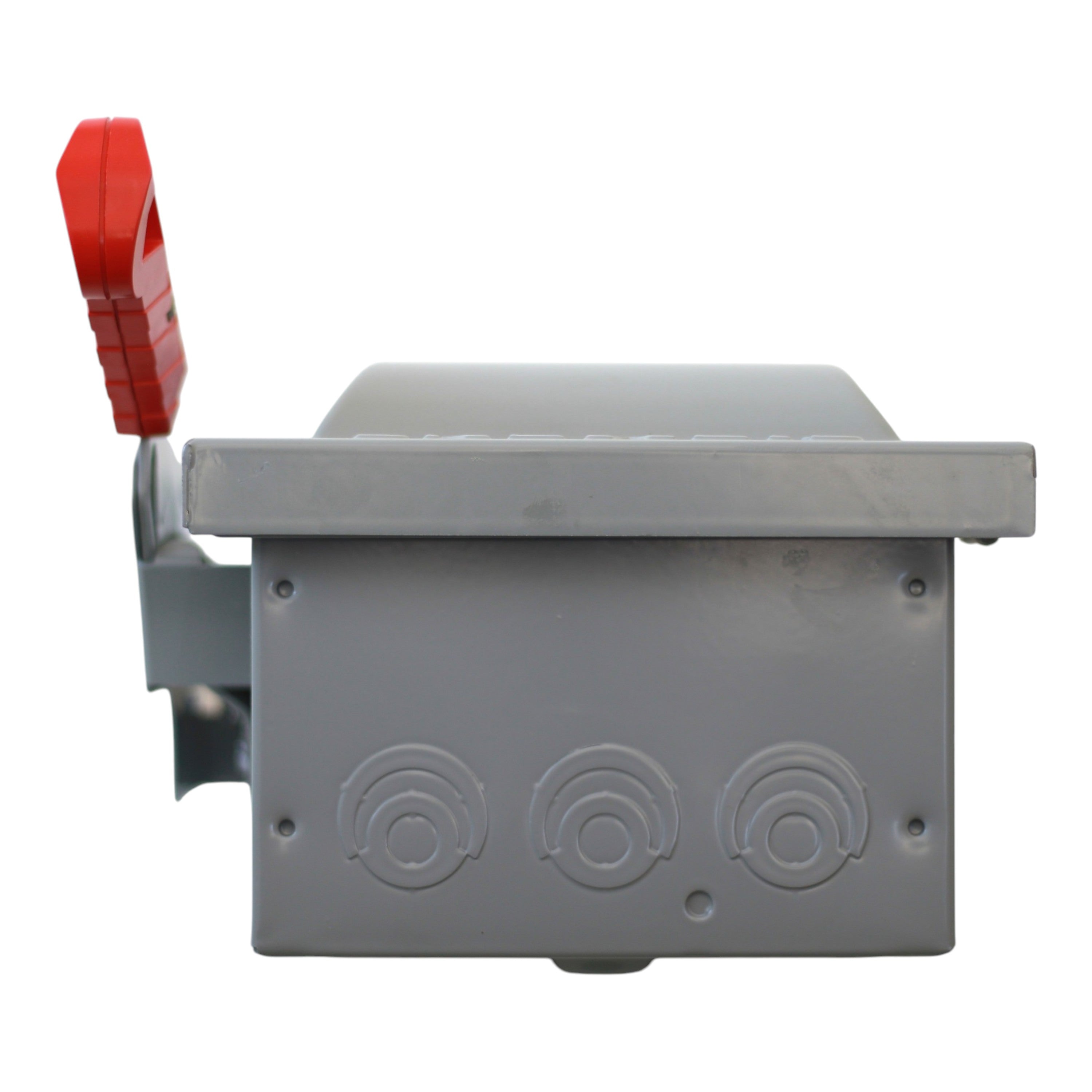

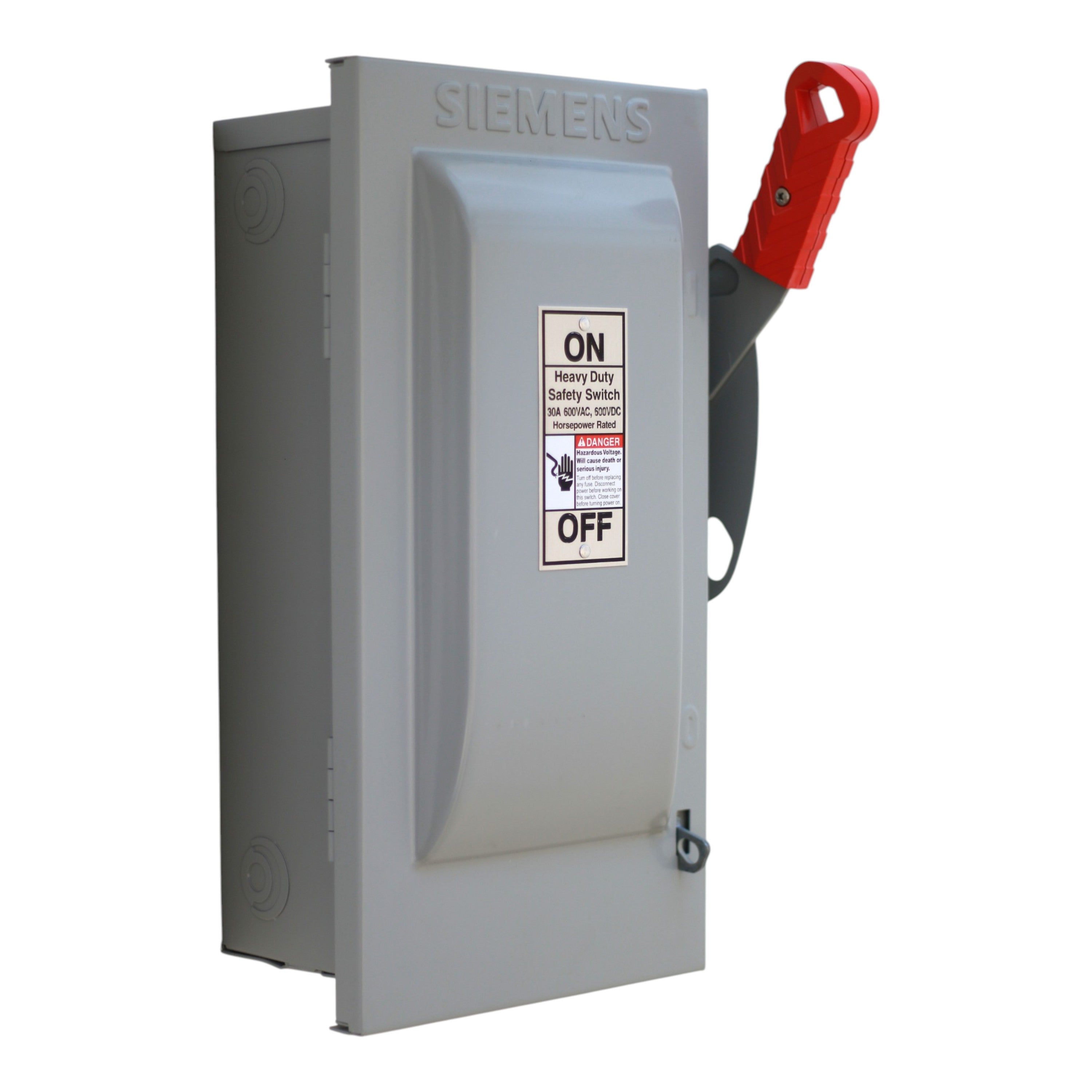

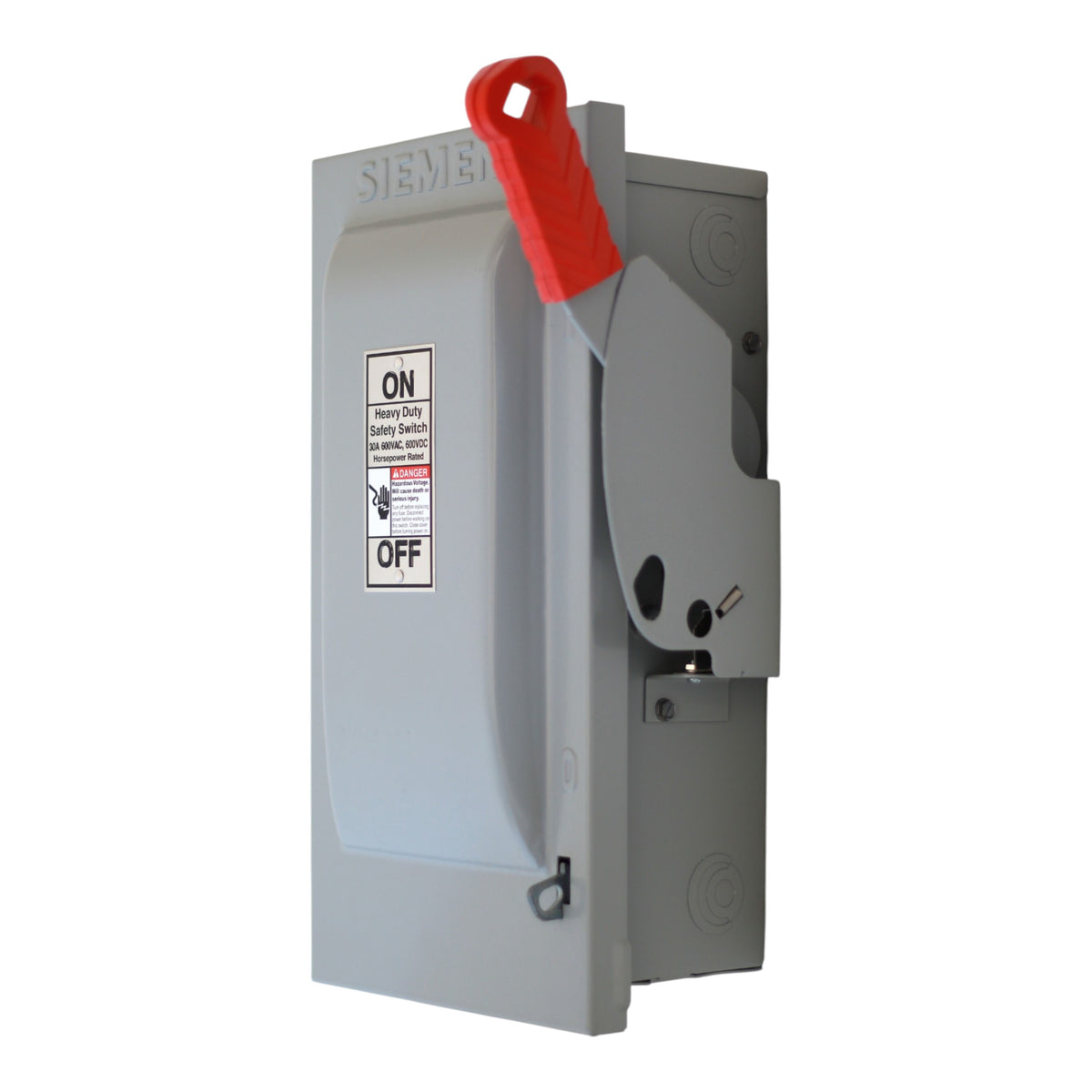

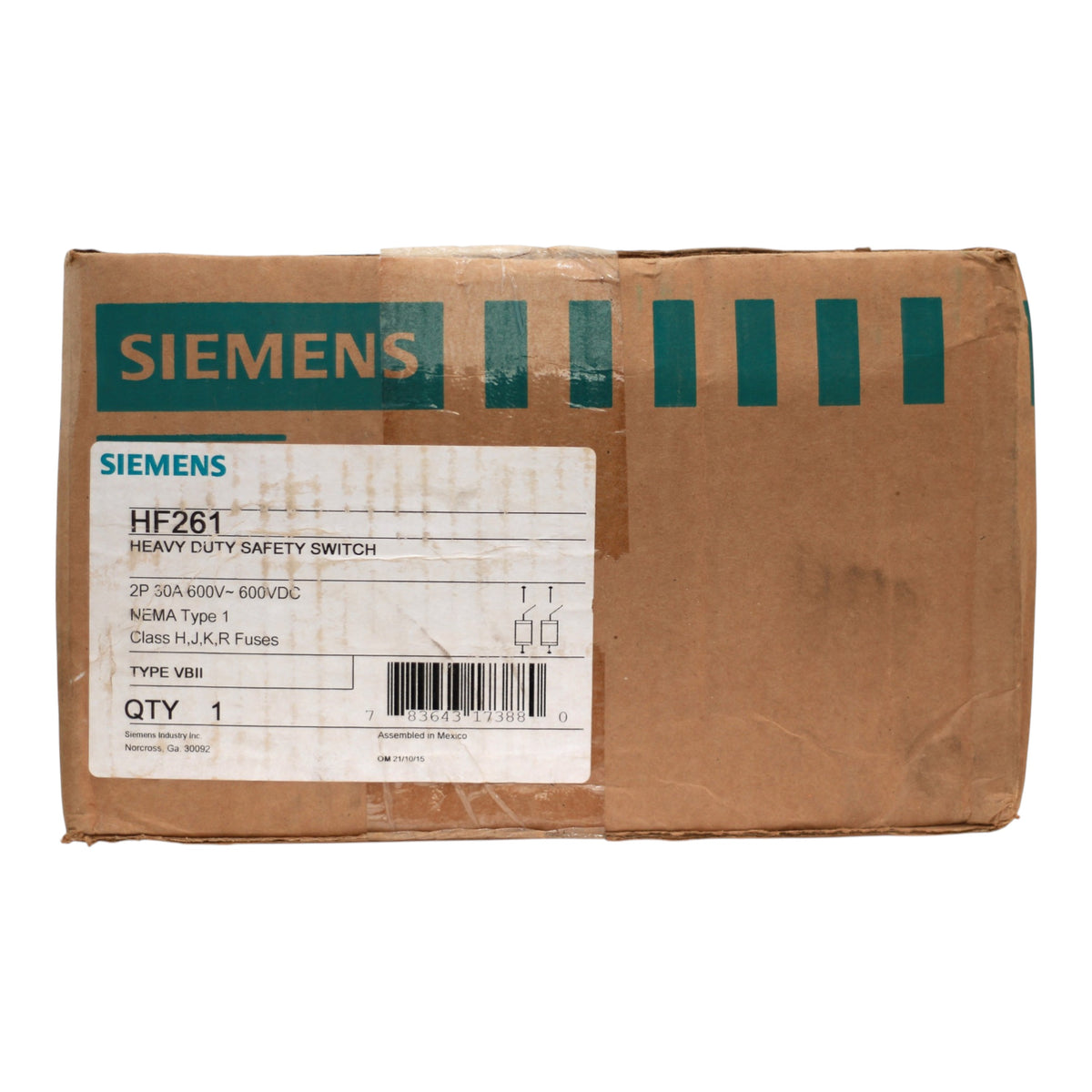

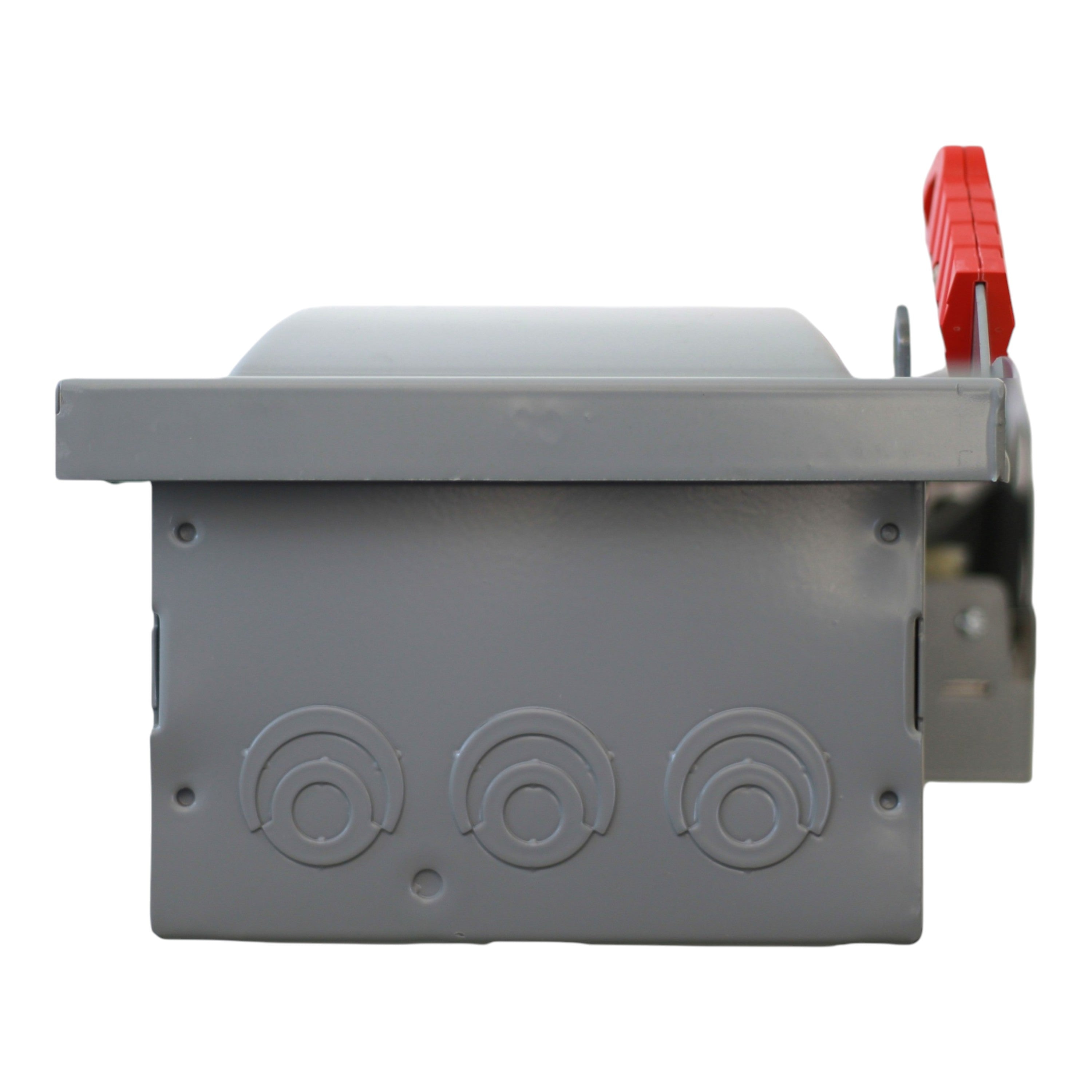

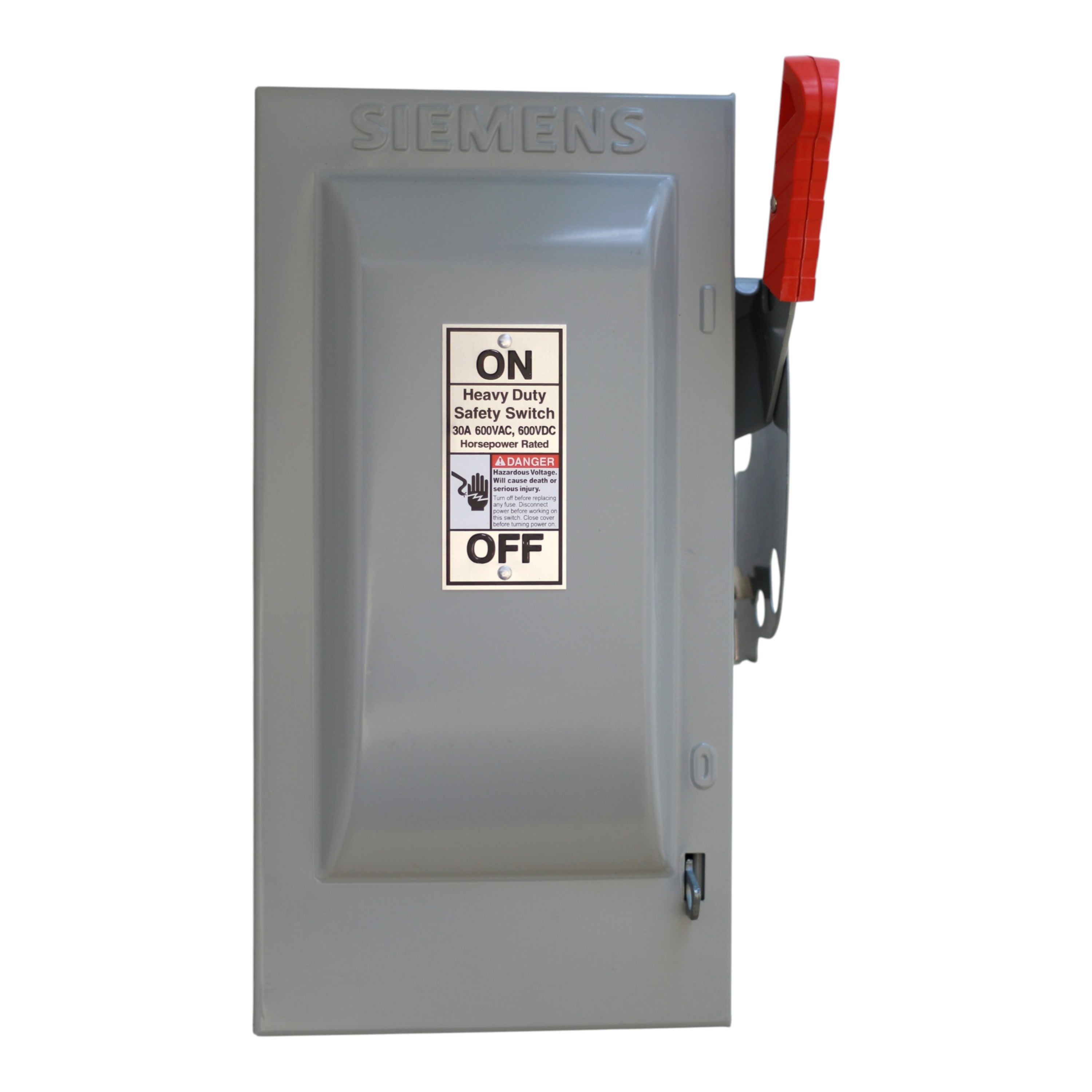

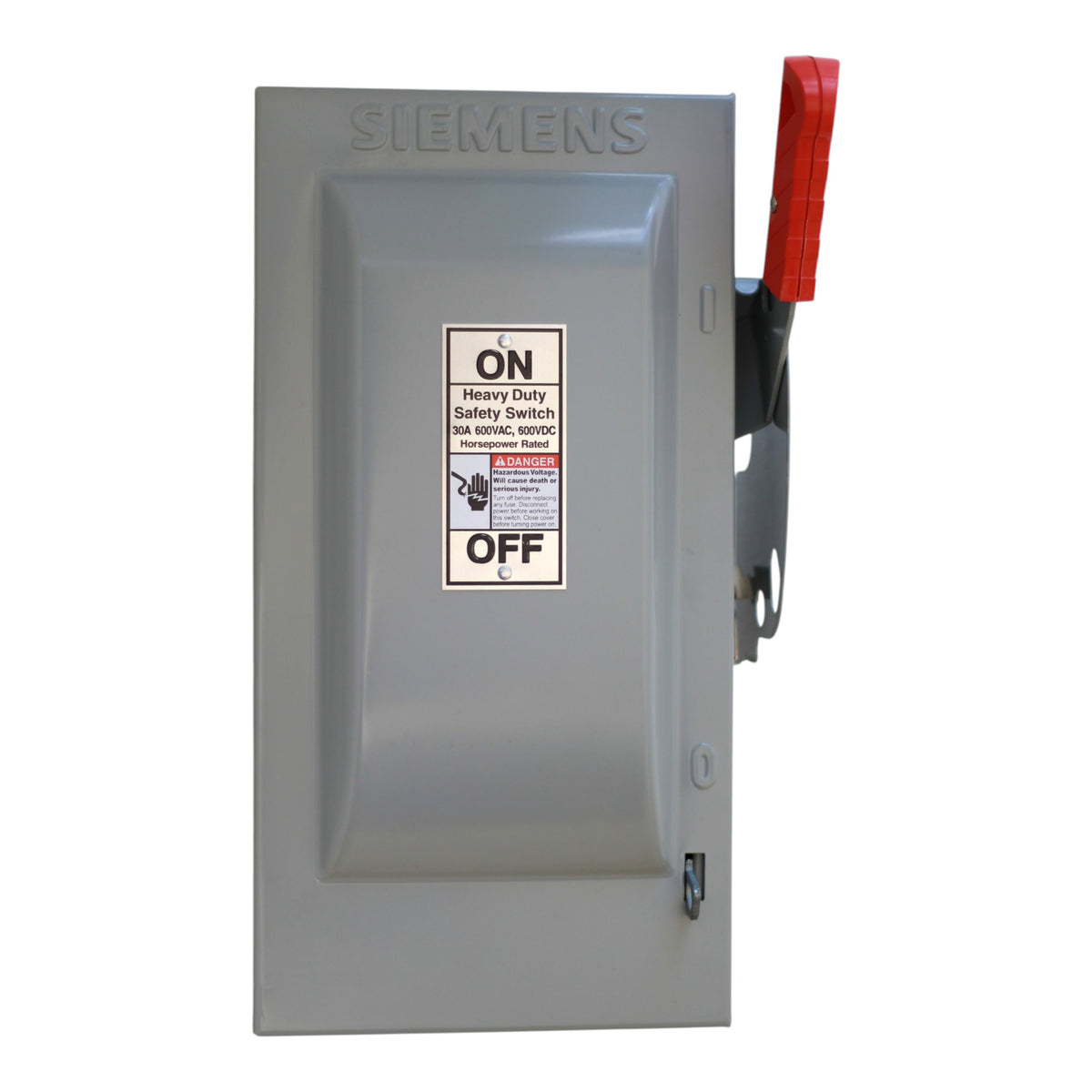

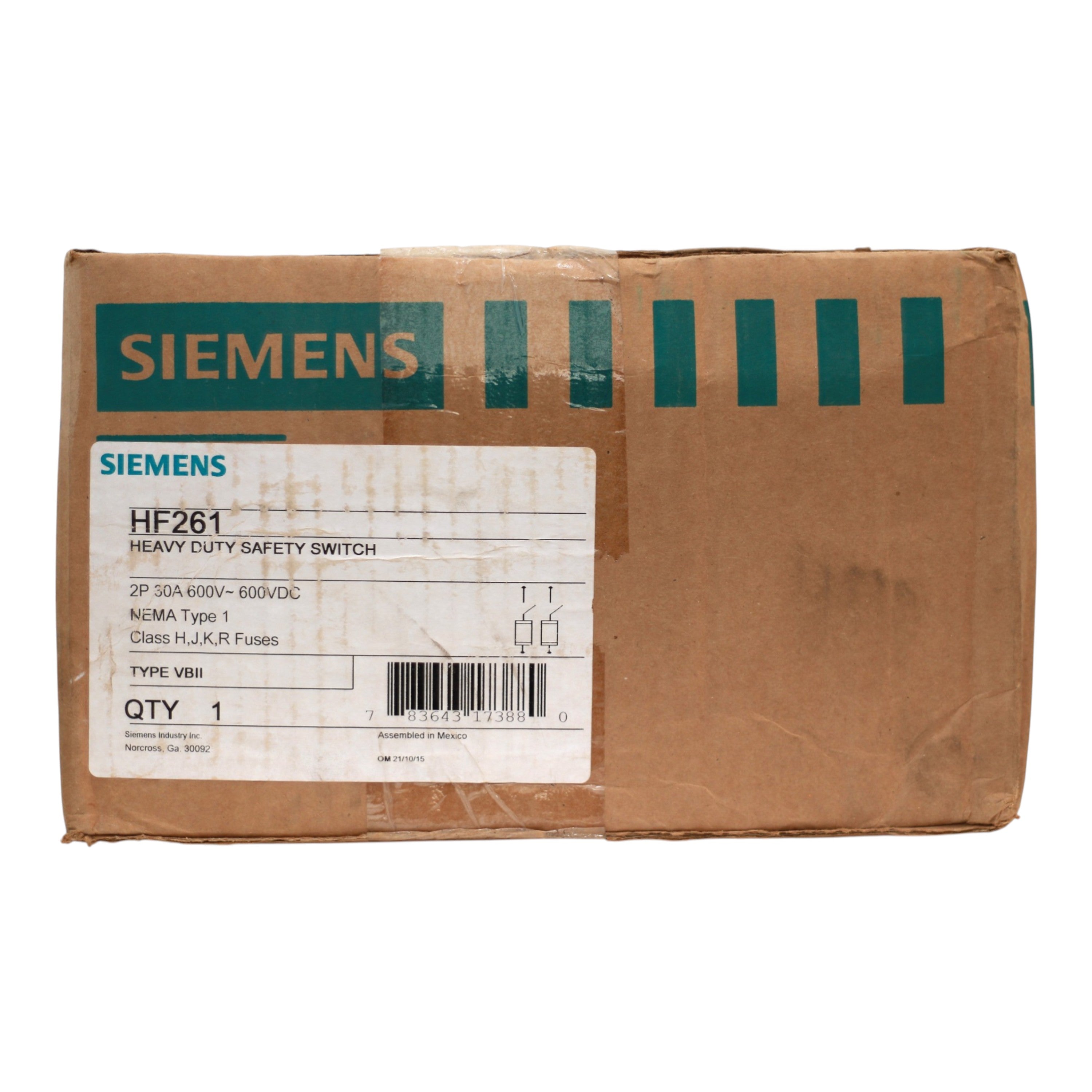

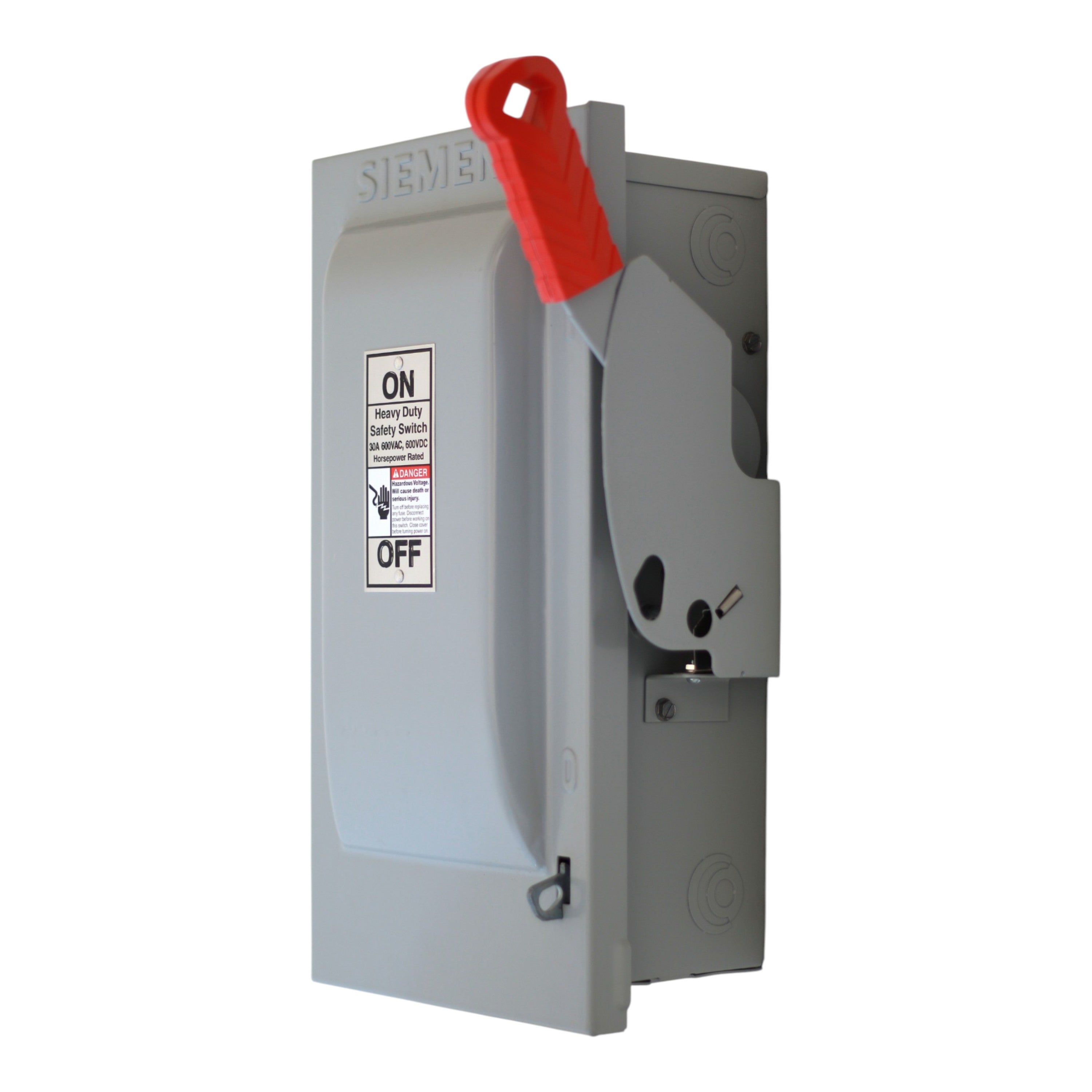

Siemens VBII, HF261, 30A, 2P, 600V, Fusible, NEMA 1, Heavy Duty Safety Switch

In stock - 11 items available
SKU: HF261 UPC: 783643173880

BULK ORDER Quote.

How Bulk Order Discounts Work

We partner with Cart Whisper to make bulk ordering fast and simple. You can build your cart normally, then submit the entire cart to our team so we can apply bulk pricing and send you a custom quote.

1) Add everything you need to your cart

Shop the site and add all the products and quantities you want — just like a normal order.

2) Open your cart drawer and submit your cart

When you open the cart drawer, you’ll see a Cart Whisper section that looks like this:

Need Help? Cart ID: ####
Submit Cart to Support

Click “Submit Cart to Support” to send your cart to our team.

3) Fill out the quick form

After clicking the submit button, a form will pop up. Please enter:

  • Name

  • Email

  • Short message (what you want / any special notes)

Important: Include your shipping address in the message.
That helps us quote your order accurately, including shipping and taxes (if applicable).

4) We review and send your custom quote

Once we receive your cart submission, we’ll:

  • Review your cart items and quantities

  • Apply any eligible bulk discounts

  • Send you a custom quote with final pricing (and shipping/tax if applicable)


What to include in your message (recommended)

To speed things up, copy/paste this format into the message box:

  • Shipping Address:

  • Notes / Special requests:

SELECT ITEM CONDITION
Regular price $72.00 USD
Regular price Sale $271.00 USD Sale price $72.00 USD
Payment methods
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Siemens HF261: 30 Amp, 2-Pole, 2-Wire, Heavy Duty Fusible Safety Switch, 600V AC, 200kA SCCR, NEMA 1, painted steel, UL listed.

  • Manufacturer: Siemens
  • Brand: Siemens
  • Product Range: VBII Heavy Duty Safety Switches (for commercial and industrial single-throw fusible disconnect applications)
  • UPC: 783643173880
  • Model Number: HF261
  • Switch Type: Fusible Heavy Duty Safety Switch (Single-Throw)
  • Amperage: 30 Amps
  • Poles: 2-Pole
  • Number of Wires: 2-Wire
  • Voltage: 600 Volts AC / 600 Volts DC
  • Fuse Class Provision: Class H, R, T, or J fuses (not included)
  • Short Circuit Current Rating (SCCR): 200 kA (with Class R, T, or J fuses); 10 kAIC (with Class H fuses)
  • HP Rating: 3 HP @ 240V AC (1Ph); 7.5 HP @ 480V AC (1Ph); 10 HP @ 600V AC (1Ph)
  • Wire Size: #14–6 AWG Cu; #12–6 AWG Al (60/75°C, line and load)
  • Mounting Mode: Surface mount
  • Enclosure: NEMA 1 (Type 1), Painted Steel

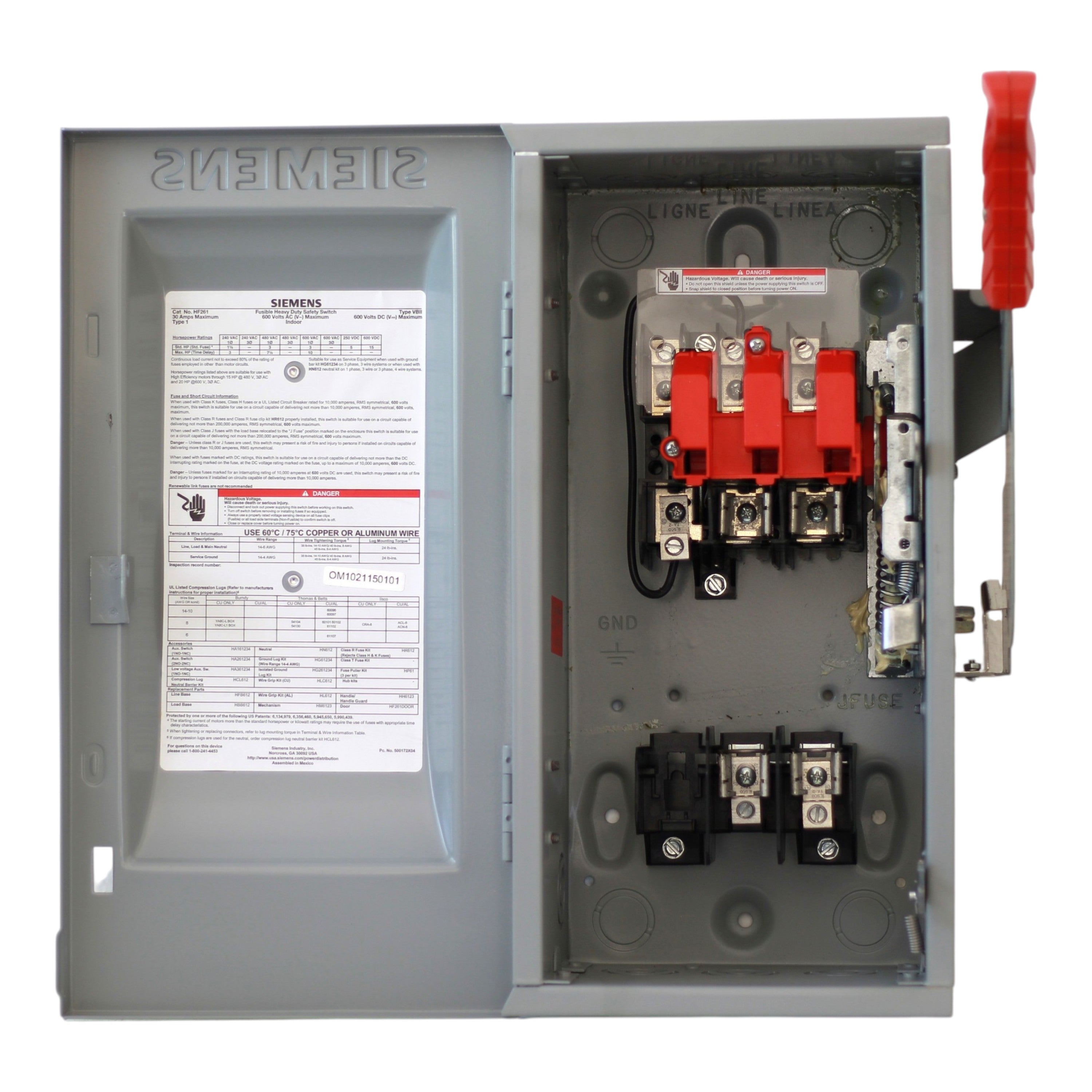

  • Features: Spring-reinforced fuse clips; hinged clear line terminal shield; front-removable mechanical lugs; door padlocking provision; embossed aluminum ON/OFF nameplate
  • Dimensions: Height: 14.26 in; Width: 7.67 in; Depth: 10.17 in
  • Weight: 13.0 lbs
  • Country of Origin: Mexico
  • Certifications: UL Listed, CSA Certified, NEMA KS-1

This Siemens VBII HF261 heavy duty fusible safety switch delivers dependable 30 Amp, 2-Pole manual disconnection and overcurrent protection for 600V AC commercial and industrial applications. With 200 kA SCCR when used with Class R, T, or J fuses, spring-reinforced fuse clips, and a NEMA 1 painted steel enclosure, it ensures safe and reliable power isolation in demanding environments.
