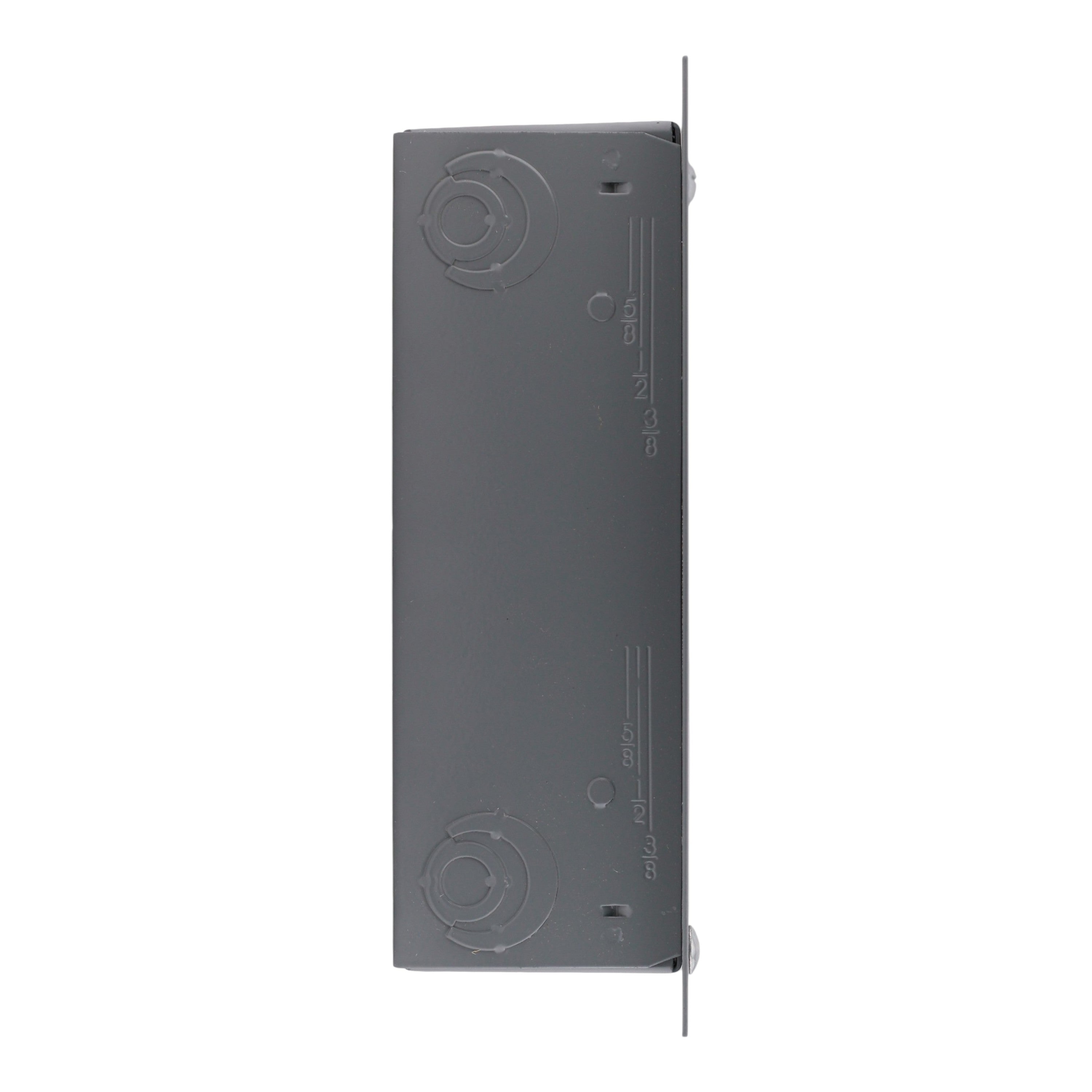

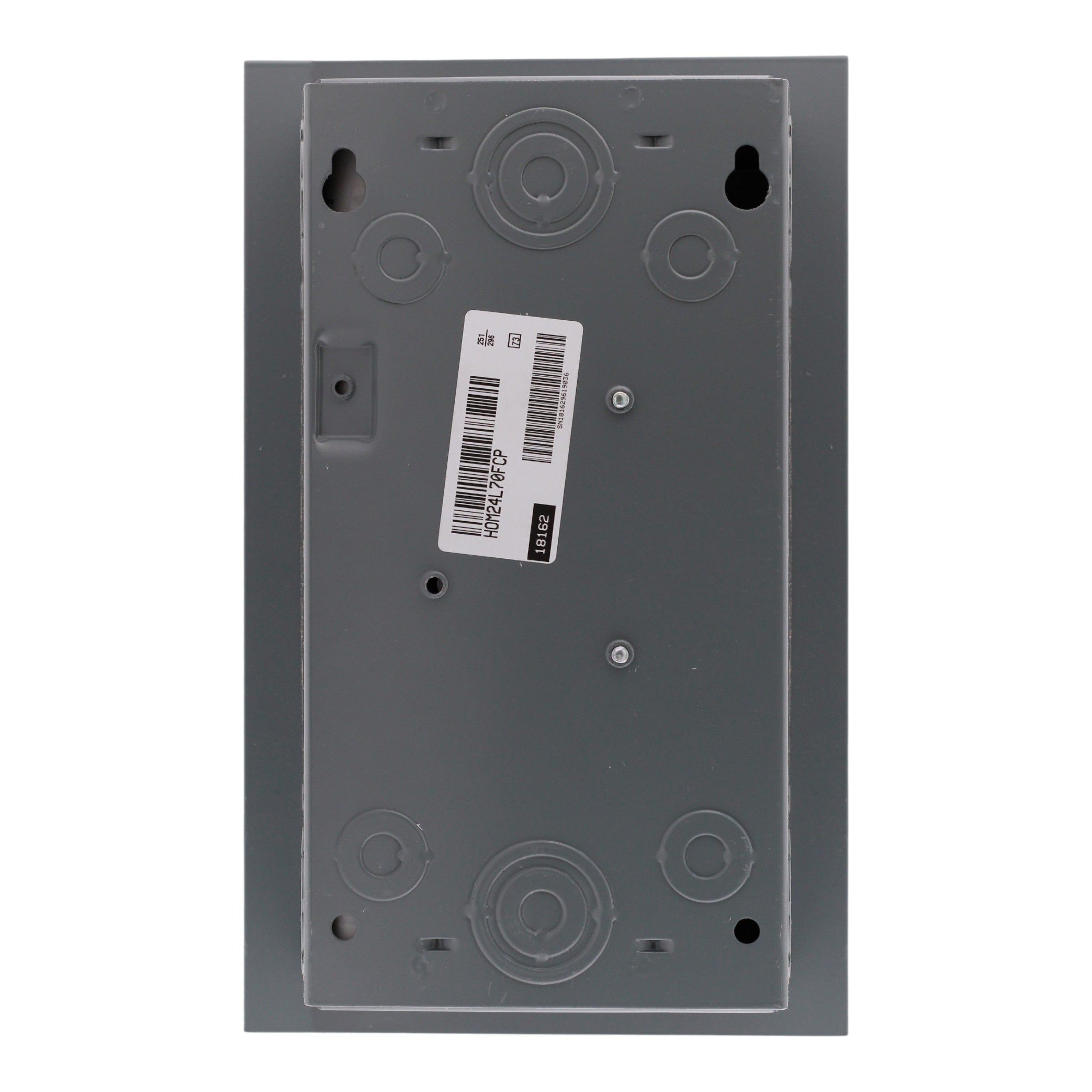

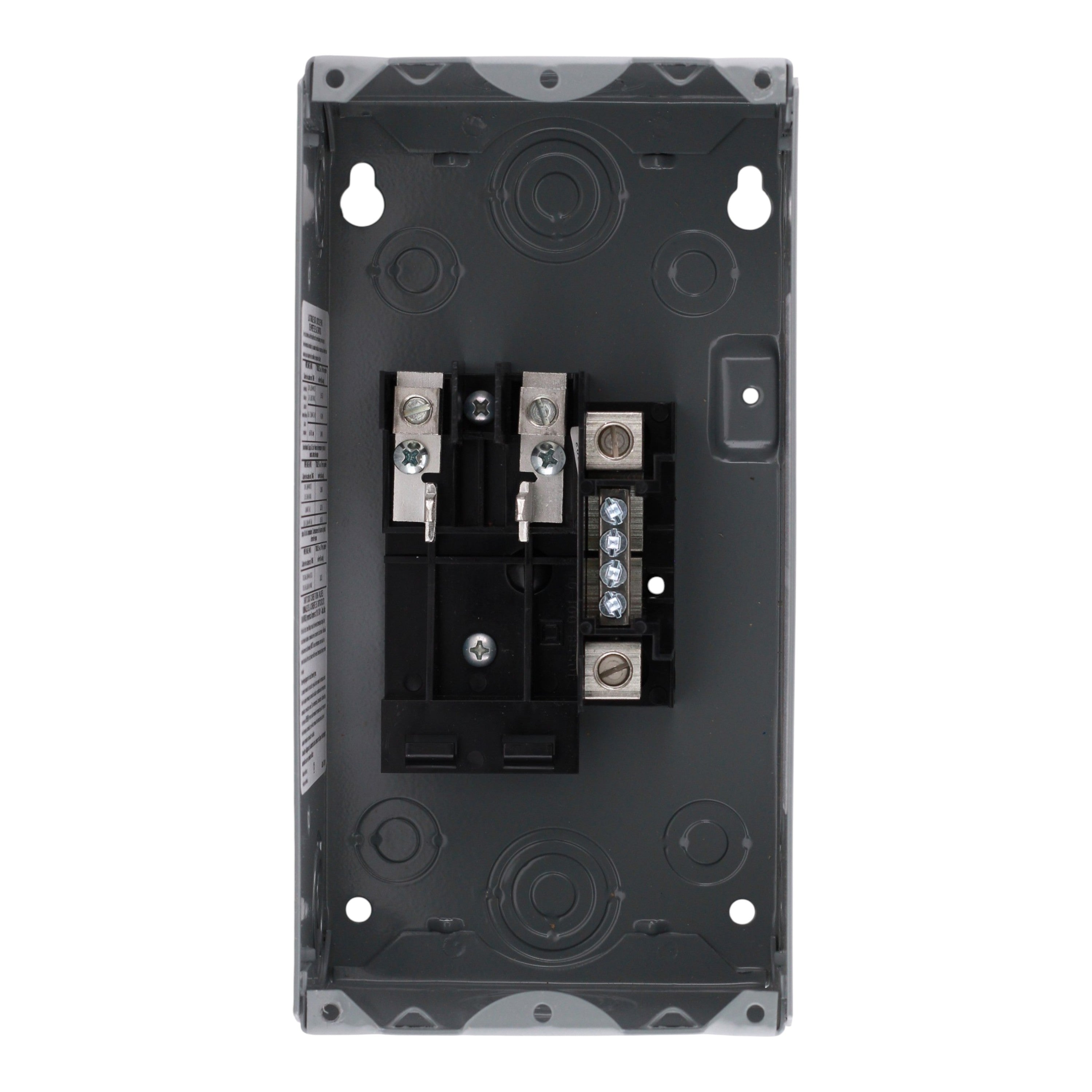

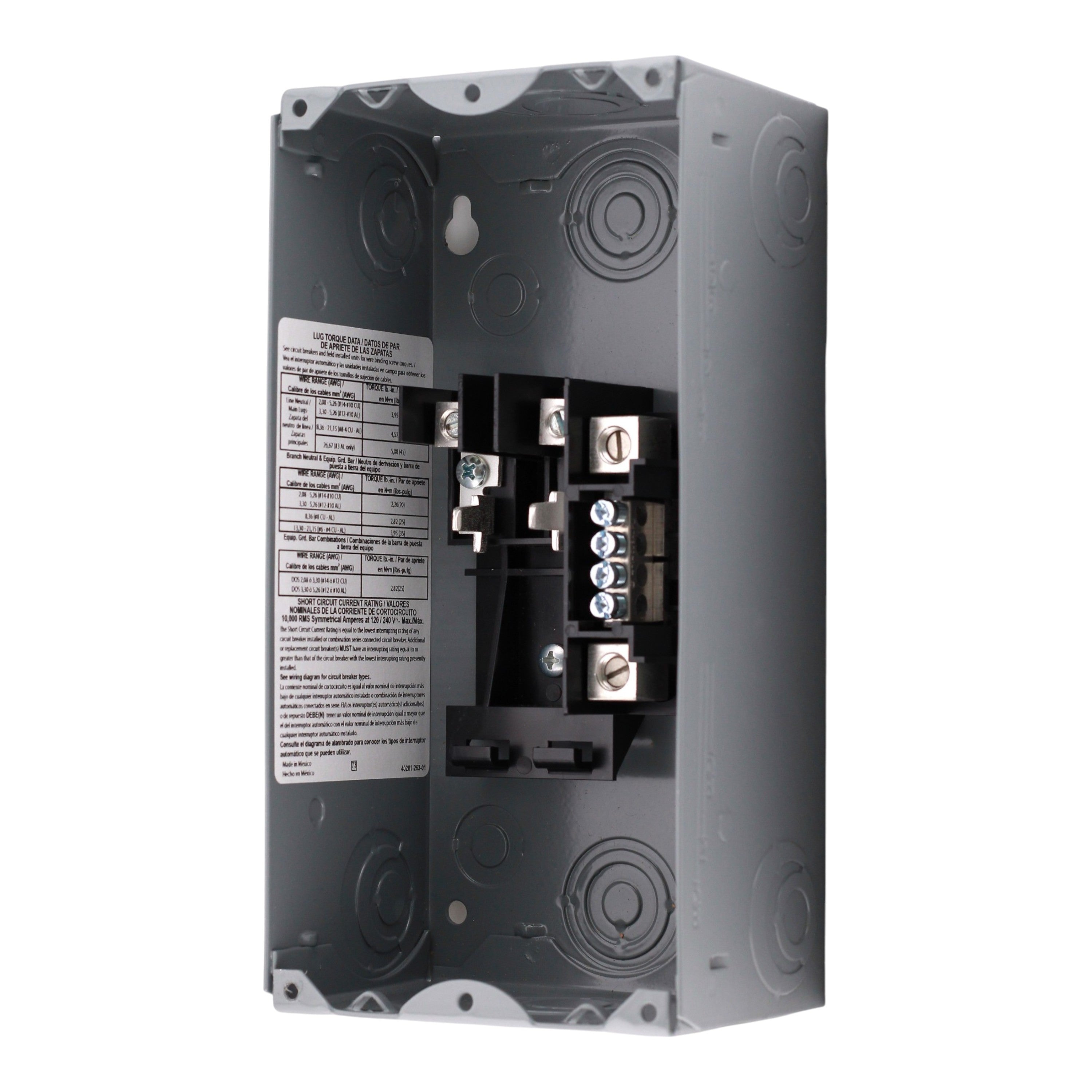

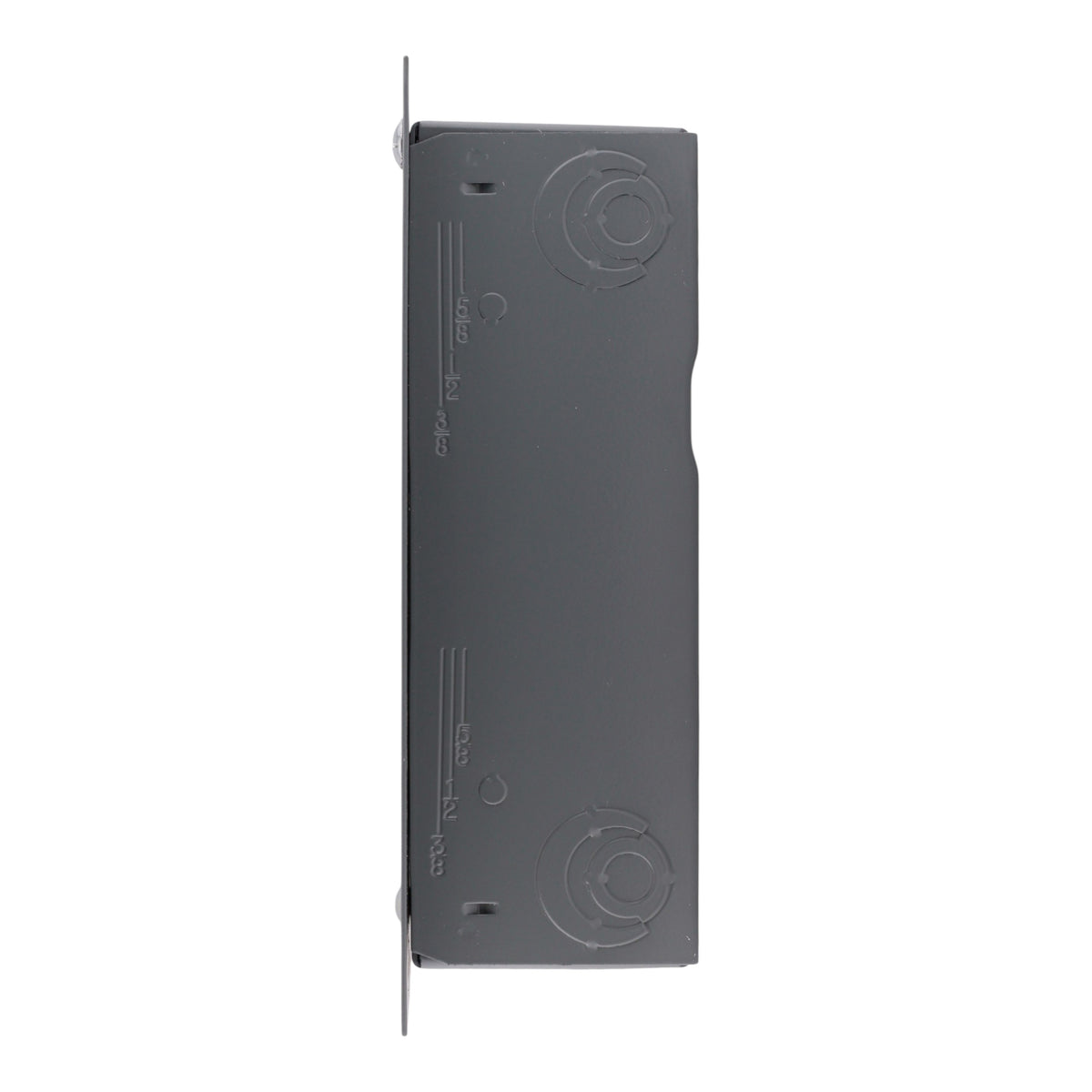

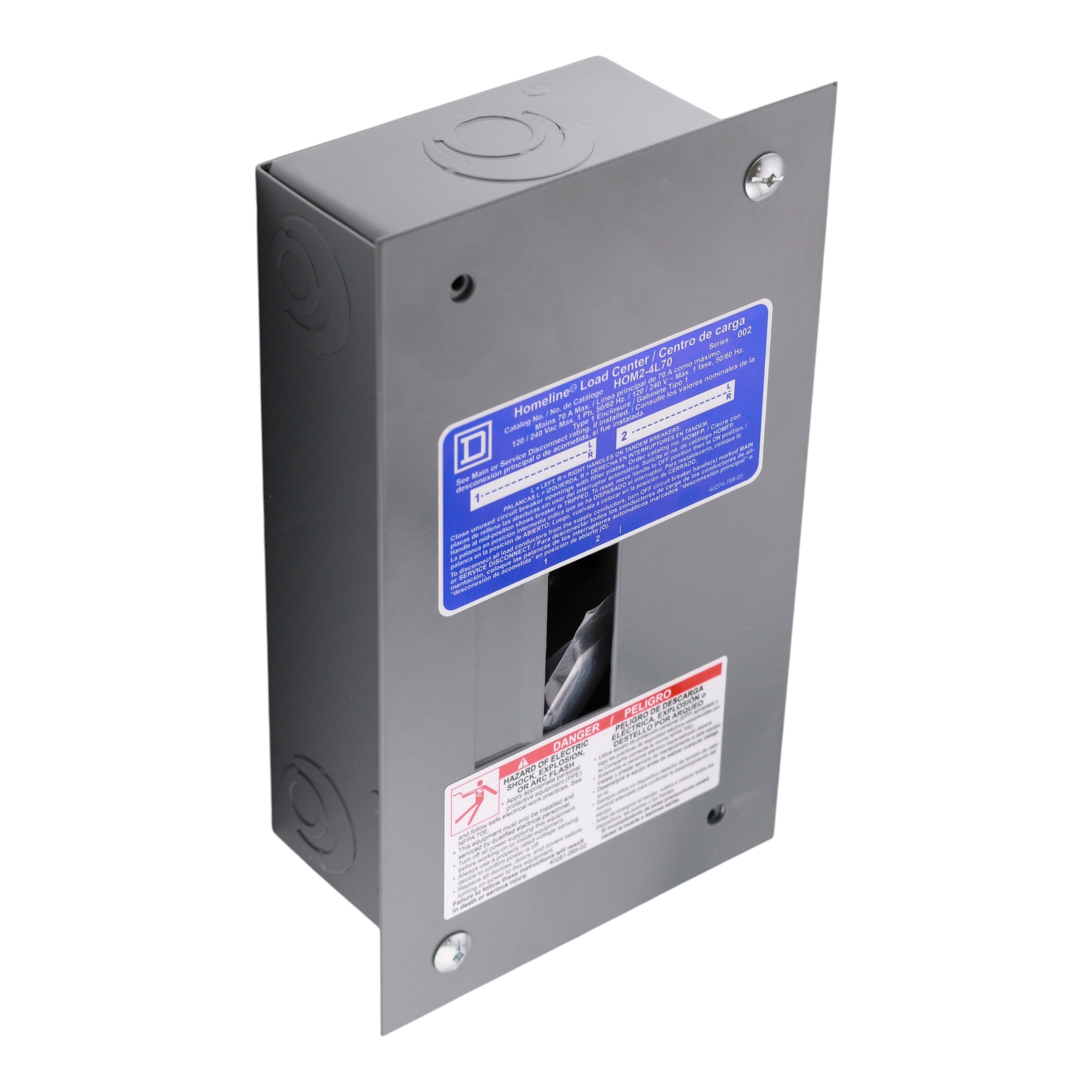

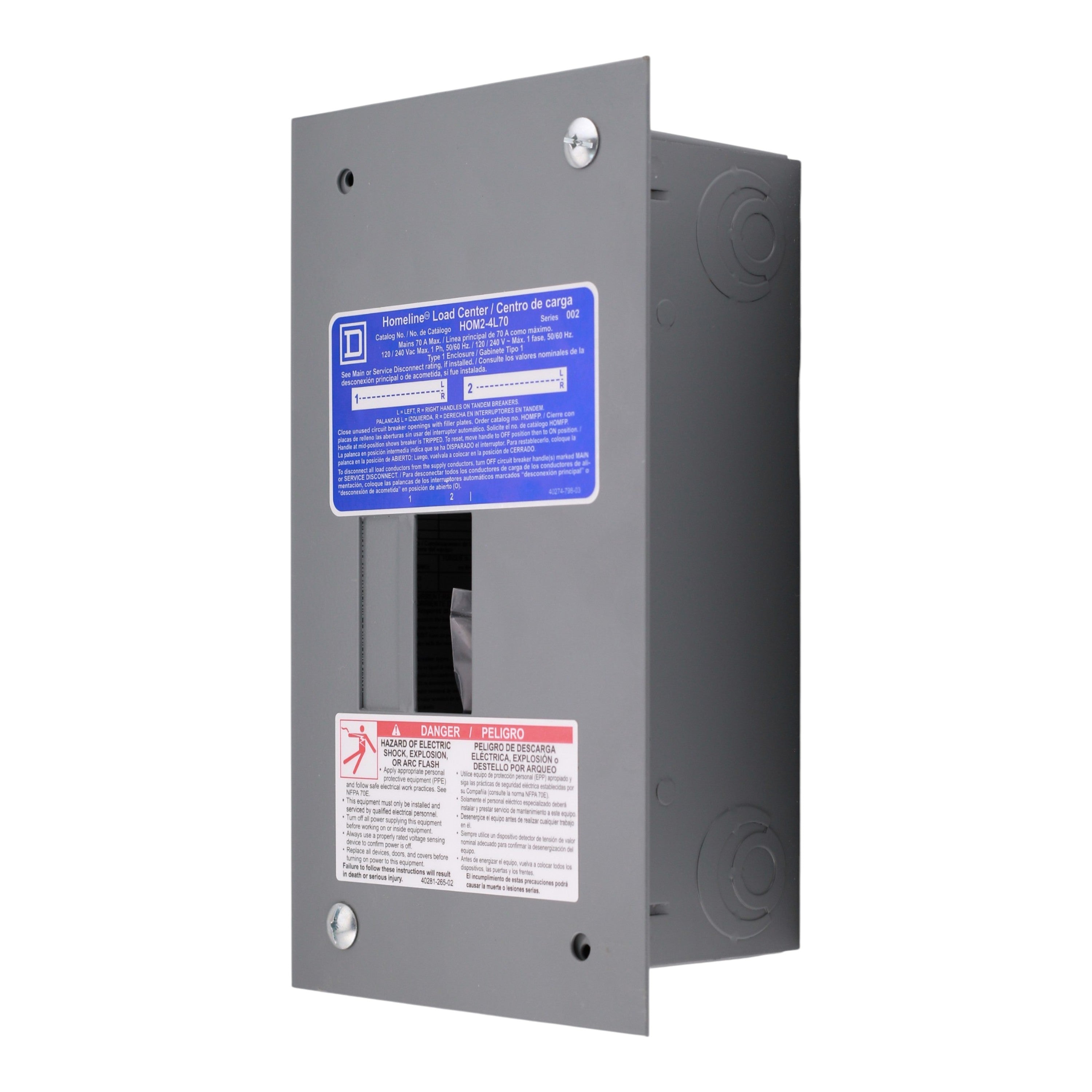

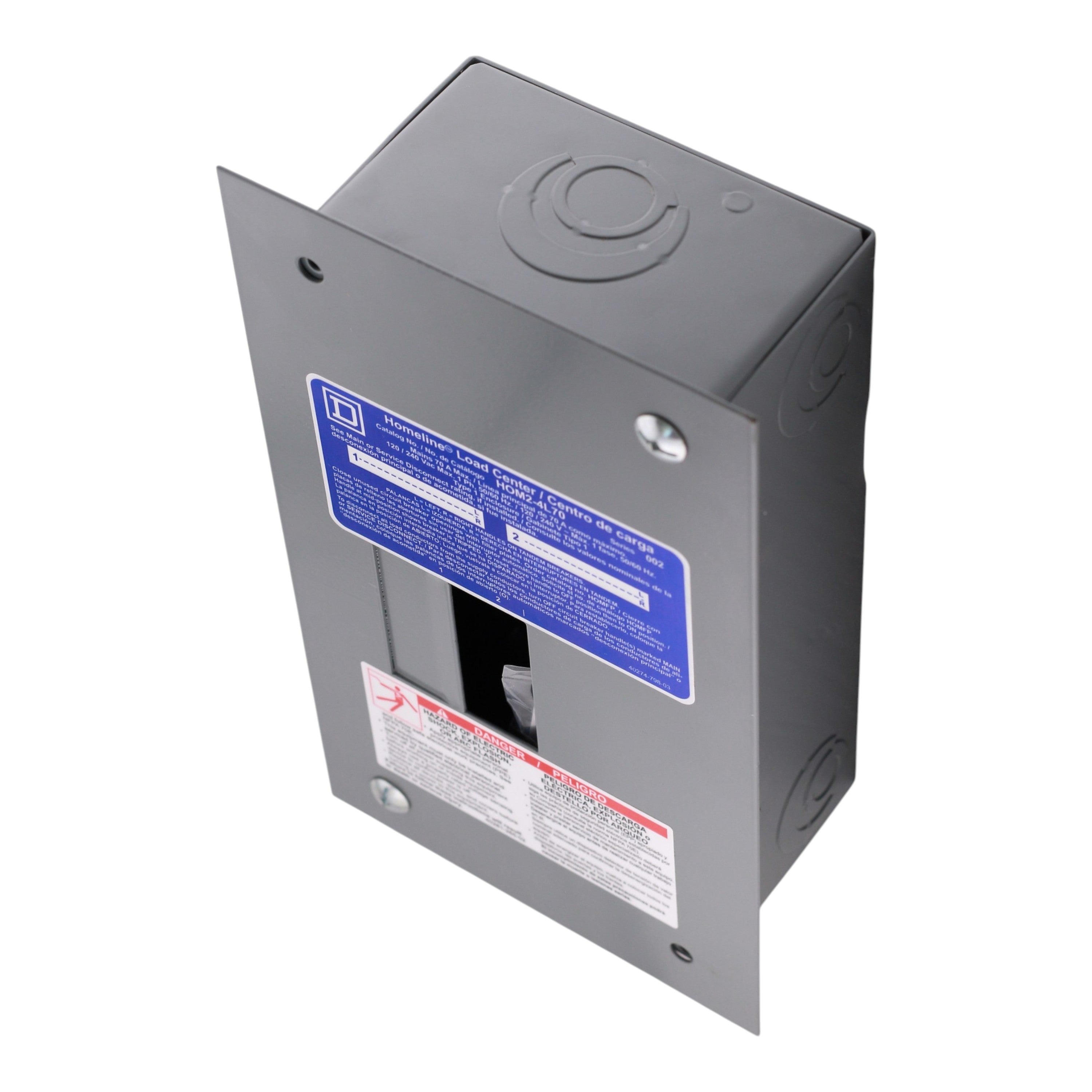

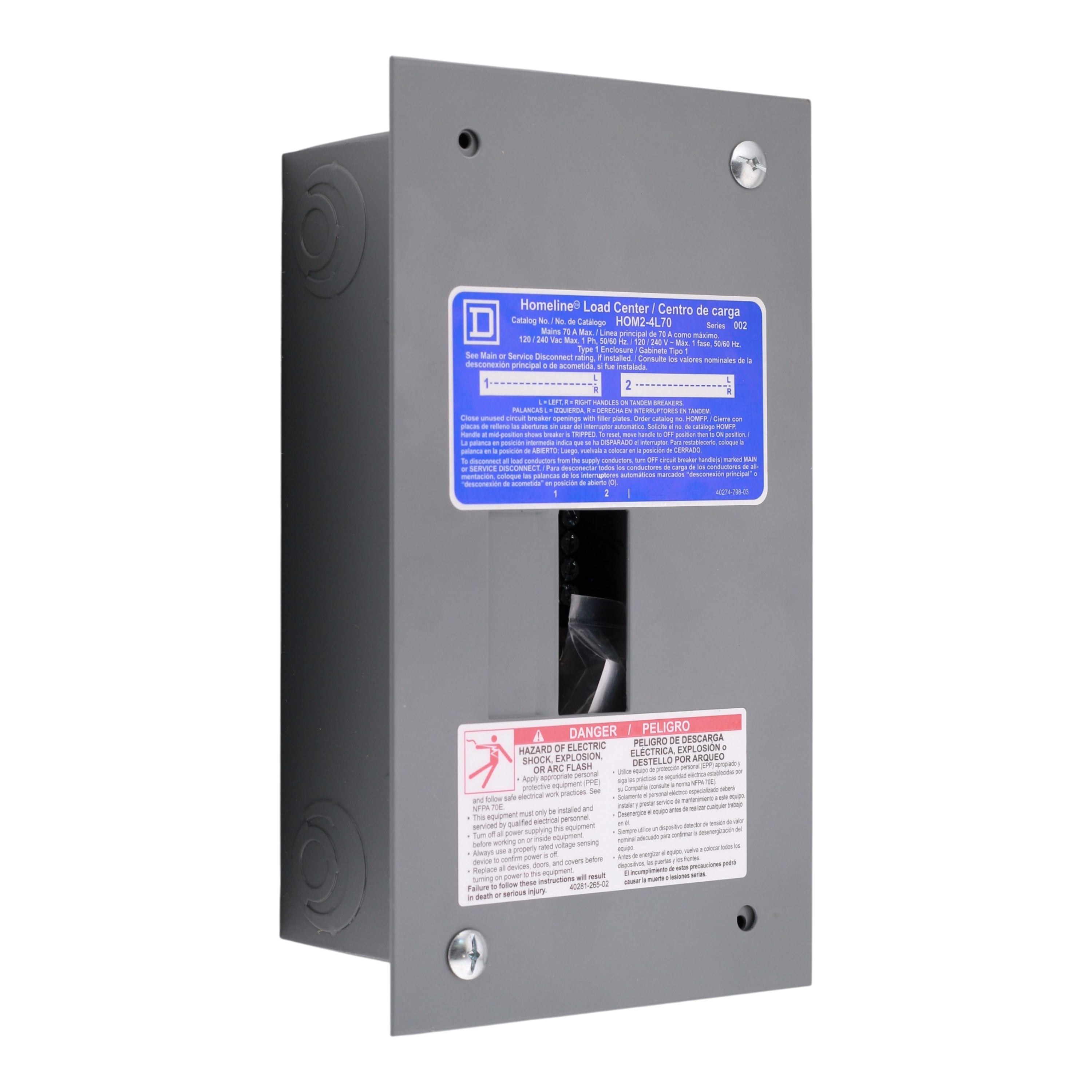

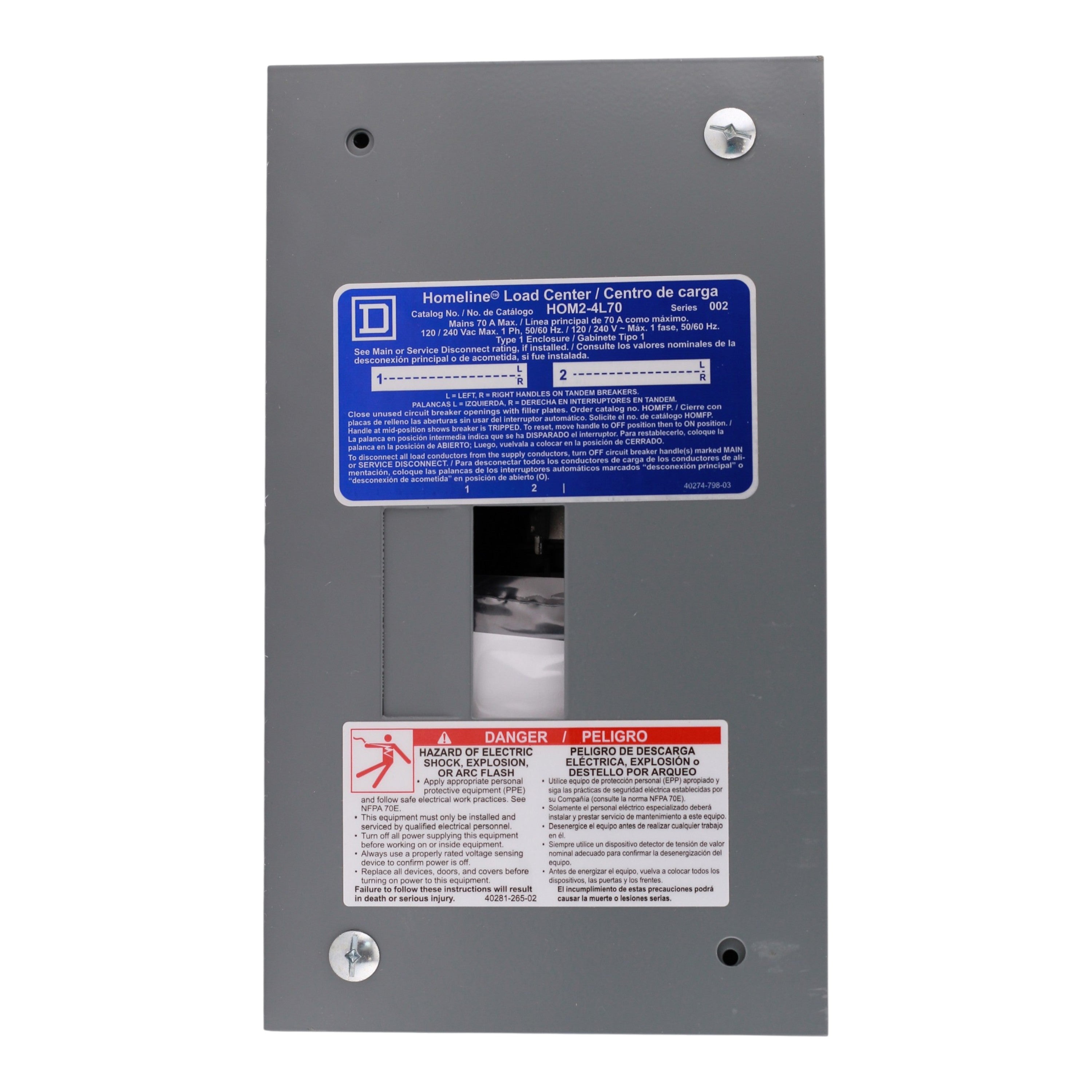

Square D Homeline, HOM24L70FCP, 70A, 2-Space, 4-Circuit, 120/240V, Fixed Main Lugs, NEMA 1, Load Center

In stock - 16 items available
SKU: HOM24L70FCP UPC: 047569071218

BULK ORDER Quote.

How Bulk Order Discounts Work

We partner with Cart Whisper to make bulk ordering fast and simple. You can build your cart normally, then submit the entire cart to our team so we can apply bulk pricing and send you a custom quote.

1) Add everything you need to your cart

Shop the site and add all the products and quantities you want — just like a normal order.

2) Open your cart drawer and submit your cart

When you open the cart drawer, you’ll see a Cart Whisper section that looks like this:

Need Help? Cart ID: ####
Submit Cart to Support

Click “Submit Cart to Support” to send your cart to our team.

3) Fill out the quick form

After clicking the submit button, a form will pop up. Please enter:

  • Name

  • Email

  • Short message (what you want / any special notes)

Important: Include your shipping address in the message.
That helps us quote your order accurately, including shipping and taxes (if applicable).

4) We review and send your custom quote

Once we receive your cart submission, we’ll:

  • Review your cart items and quantities

  • Apply any eligible bulk discounts

  • Send you a custom quote with final pricing (and shipping/tax if applicable)


What to include in your message (recommended)

To speed things up, copy/paste this format into the message box:

  • Shipping Address:

  • Notes / Special requests:

SELECT ITEM CONDITION
Regular price $23.50 USD
Regular price Sale $59.00 USD Sale price $23.50 USD
Payment methods
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Square D HOM24L70FCP: 70 Amp, 2-Space, 4-Circuit, Homeline Fixed Main Lug Load Center, 120/240V, 10kA, 1-Phase, 3-Wire, NEMA 1, Flush Cover, Consumer Pack, UL Listed.

  • Manufacturer: Schneider Electric
  • Brand: Square D
  • Product Range: Homeline (for Square D Homeline circuit breakers)
  • UPC: 047569071218
  • Model Number: HOM24L70FCP

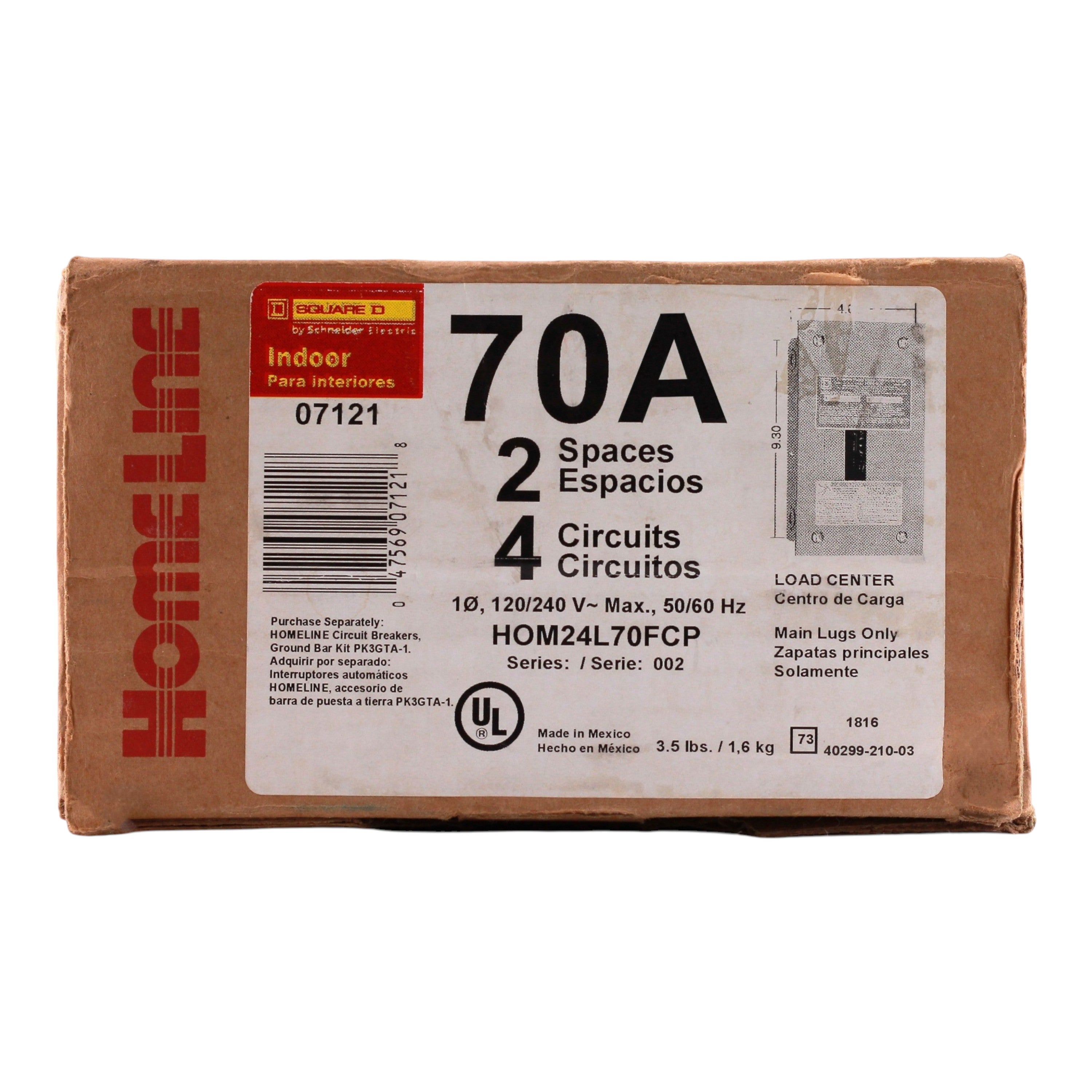

  • Product Type: Fixed Main Lug Load Center — Consumer Pack (flush cover included)
  • Load Center Type: Fixed Mains (lugs)
  • Amperage Rating: 70 Amps
  • Number of Spaces: 2
  • Number of Circuits: 4 (maximum)
  • Maximum Tandem Breakers: 2
  • Phase: 1-Phase, 3-Wire
  • Voltage: 120/240 Volts AC
  • Interrupt Rating: 10 kA
  • Bus Material: Tin plated aluminum
  • Enclosure Material: Welded sheet steel
  • Enclosure Rating: NEMA 1 (Indoor)
  • Cover Type: Flush cover (included)
  • Surface Finish: Baked enamel gray
  • Wire Size (Main Lugs): #14–4 AWG Cu, #12–3 AWG Al
  • Dimensions: Height: 9.3 in; Width: 4.8 in; Depth: 3.2 in
  • Certifications: UL Listed (File E-6294), CSA, IEC

This Square D HOM24L70FCP Homeline fixed main lug load center provides reliable 70 Amp, 1-Phase power distribution across 2 spaces and up to 4 circuits for 120/240V residential applications. Packaged as a consumer pack with flush cover included, it features a tin plated aluminum bus, 10kA interrupt rating, and NEMA 1 indoor welded steel enclosure. Compatible with PKSB1FM install kit for use as a service entrance device.
