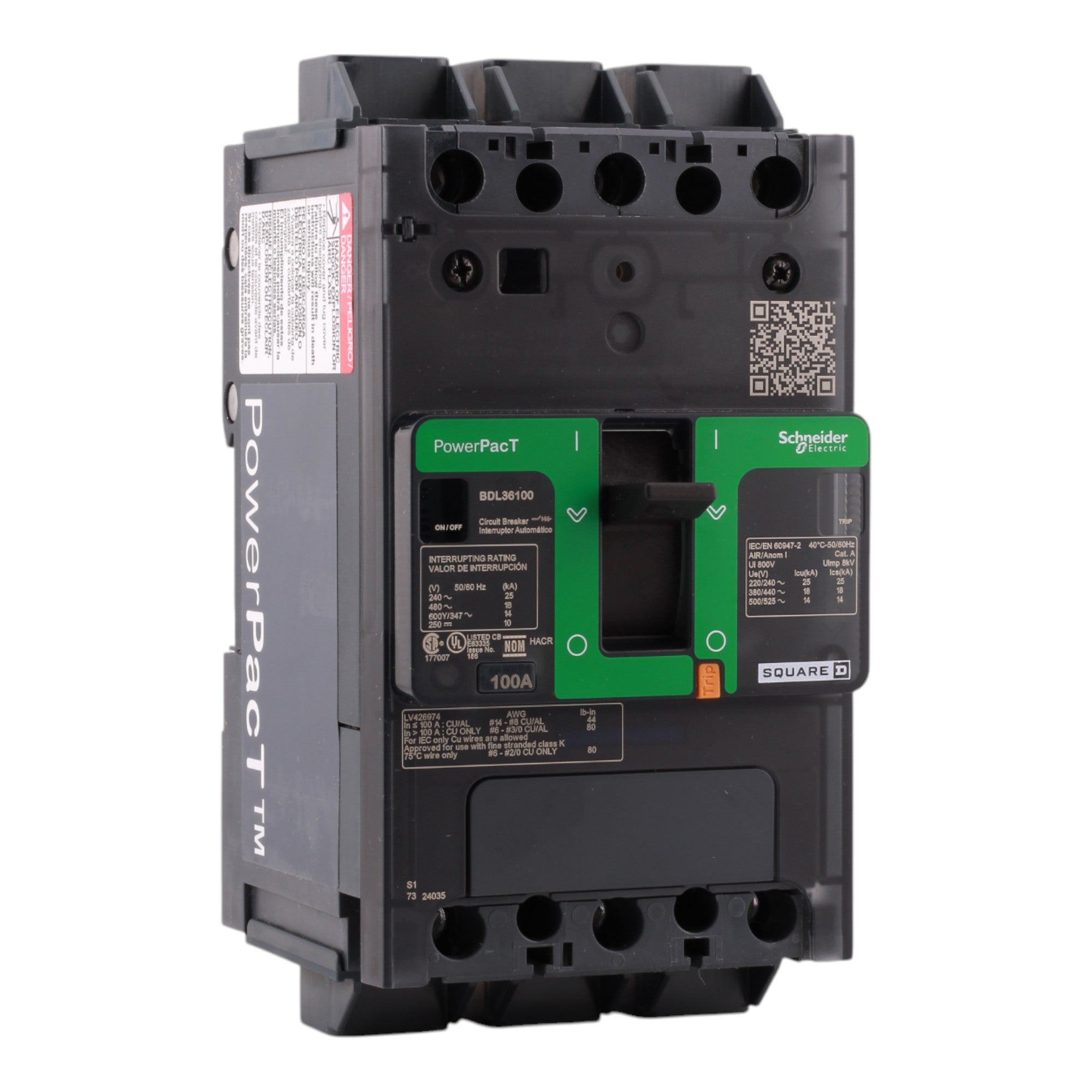

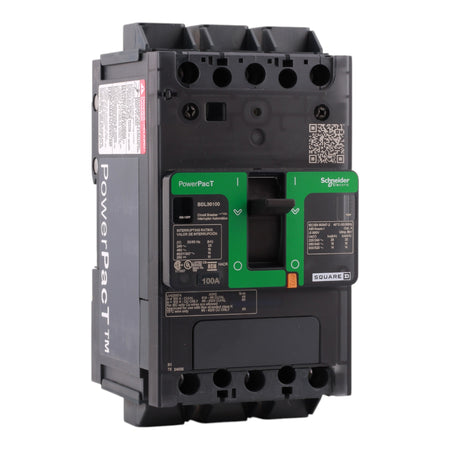

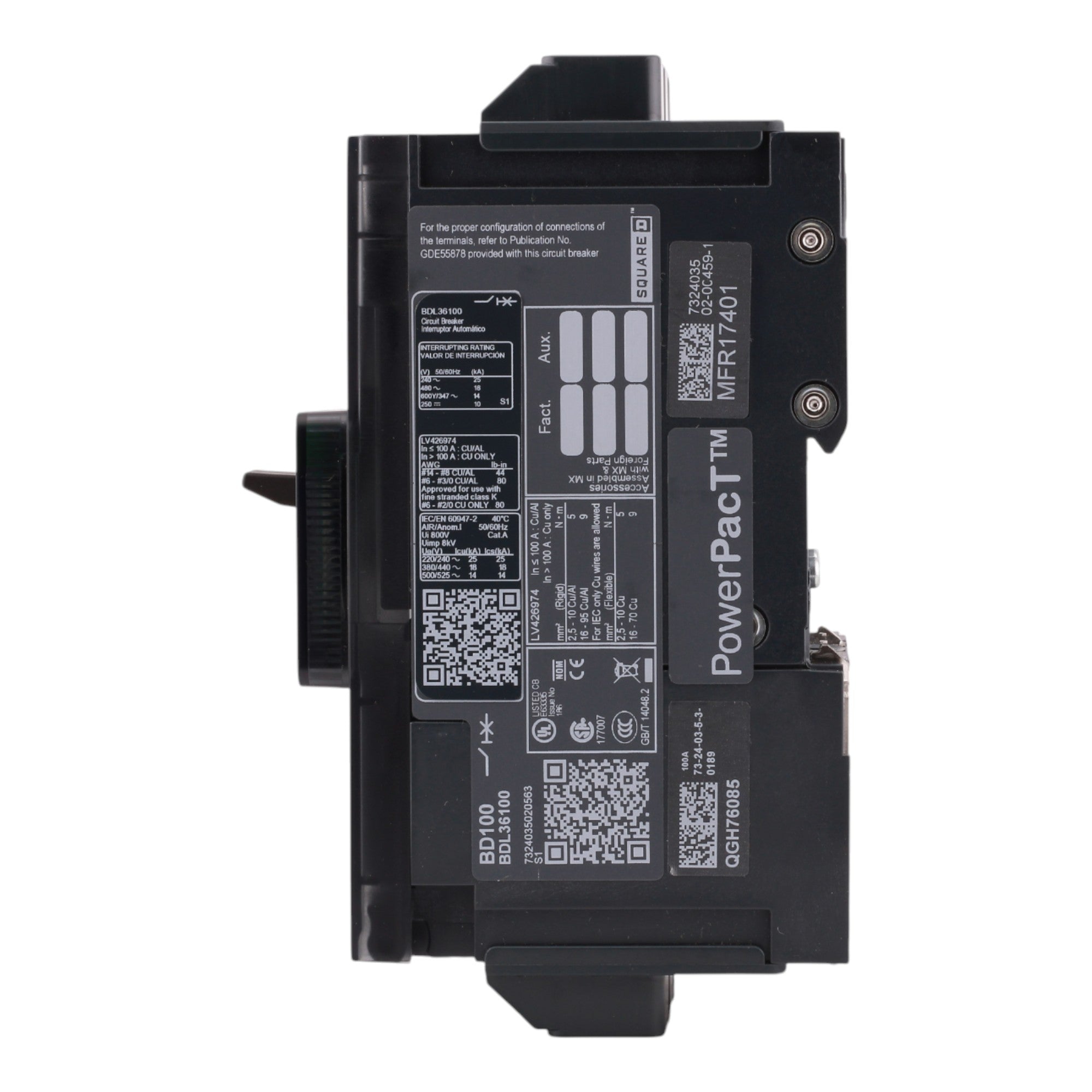

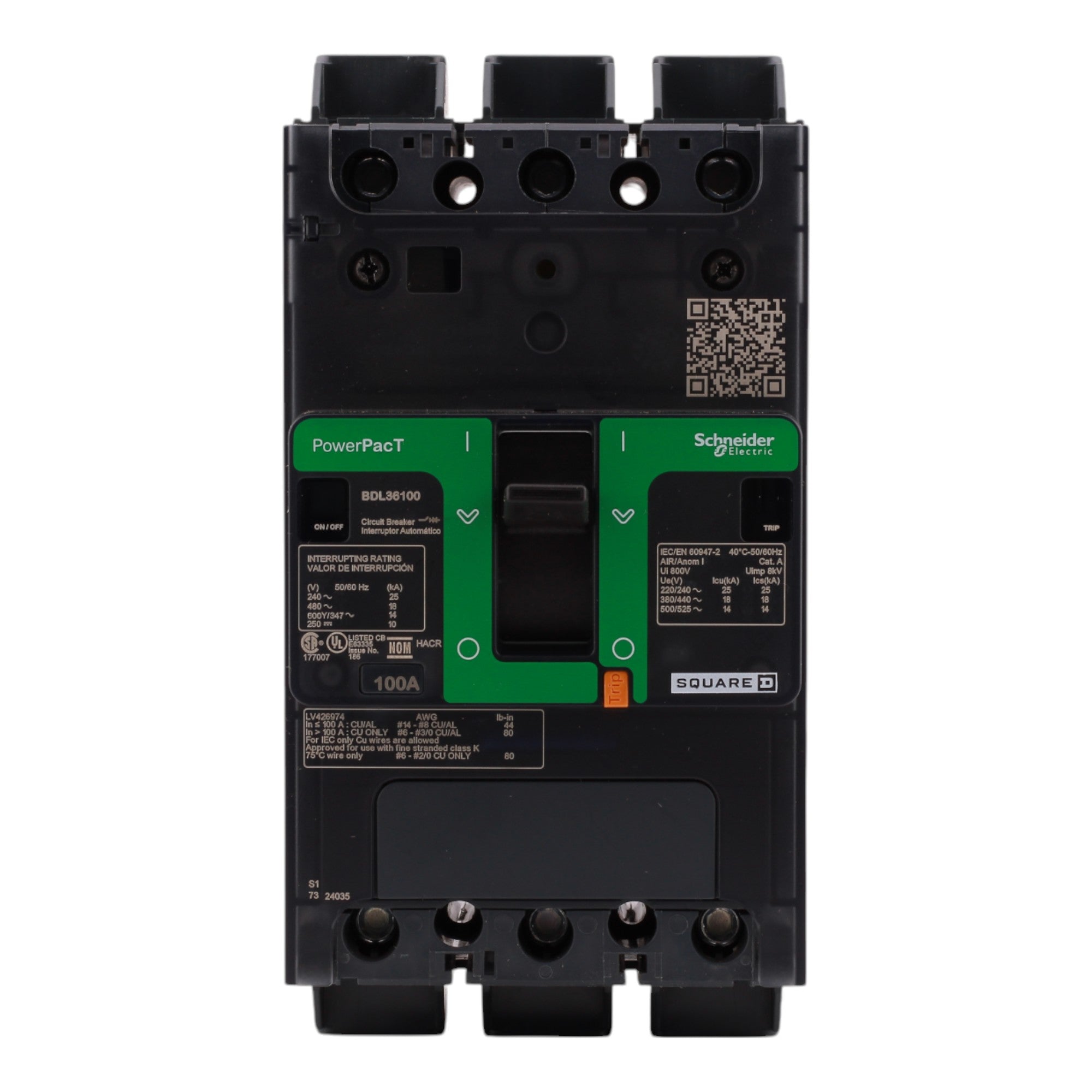

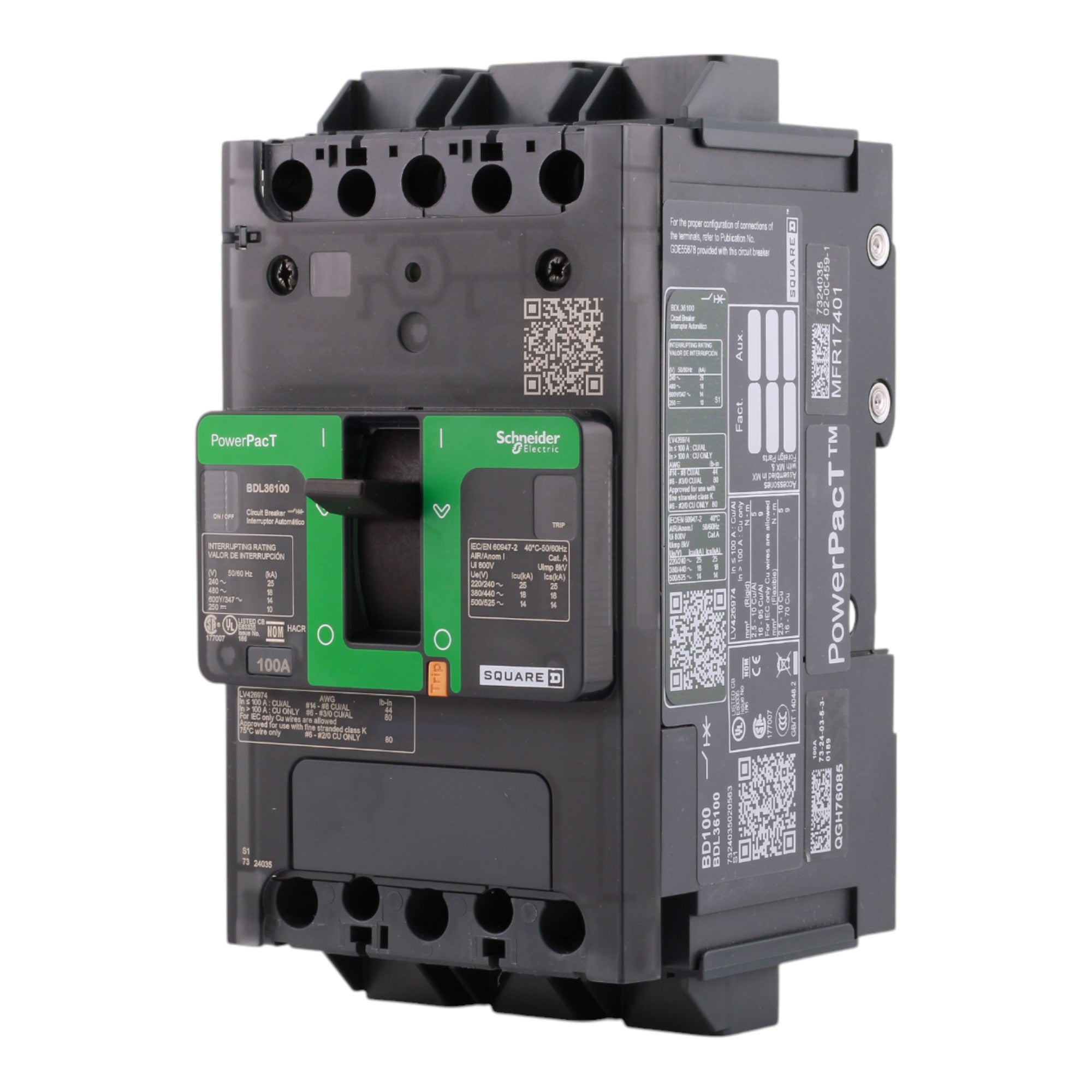

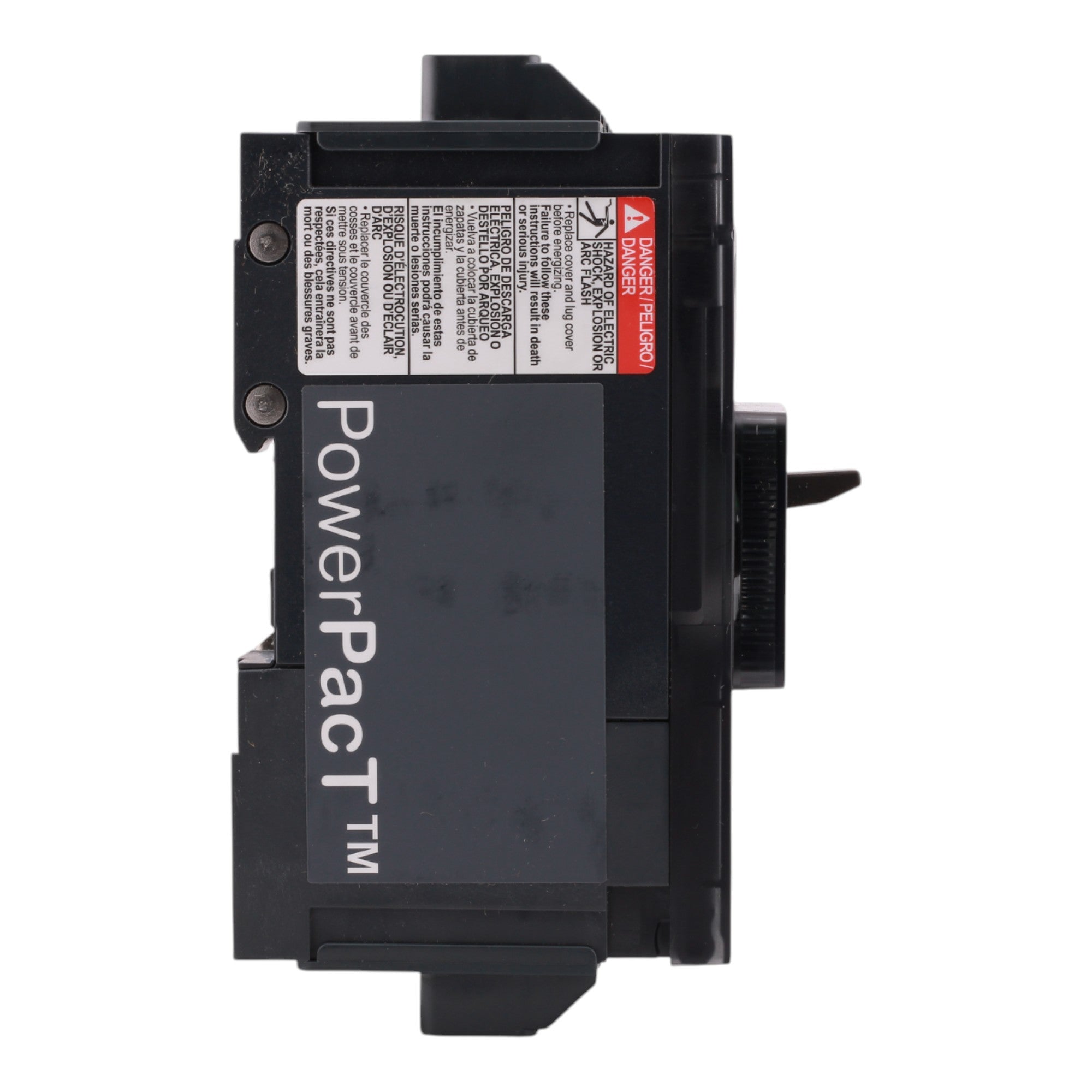

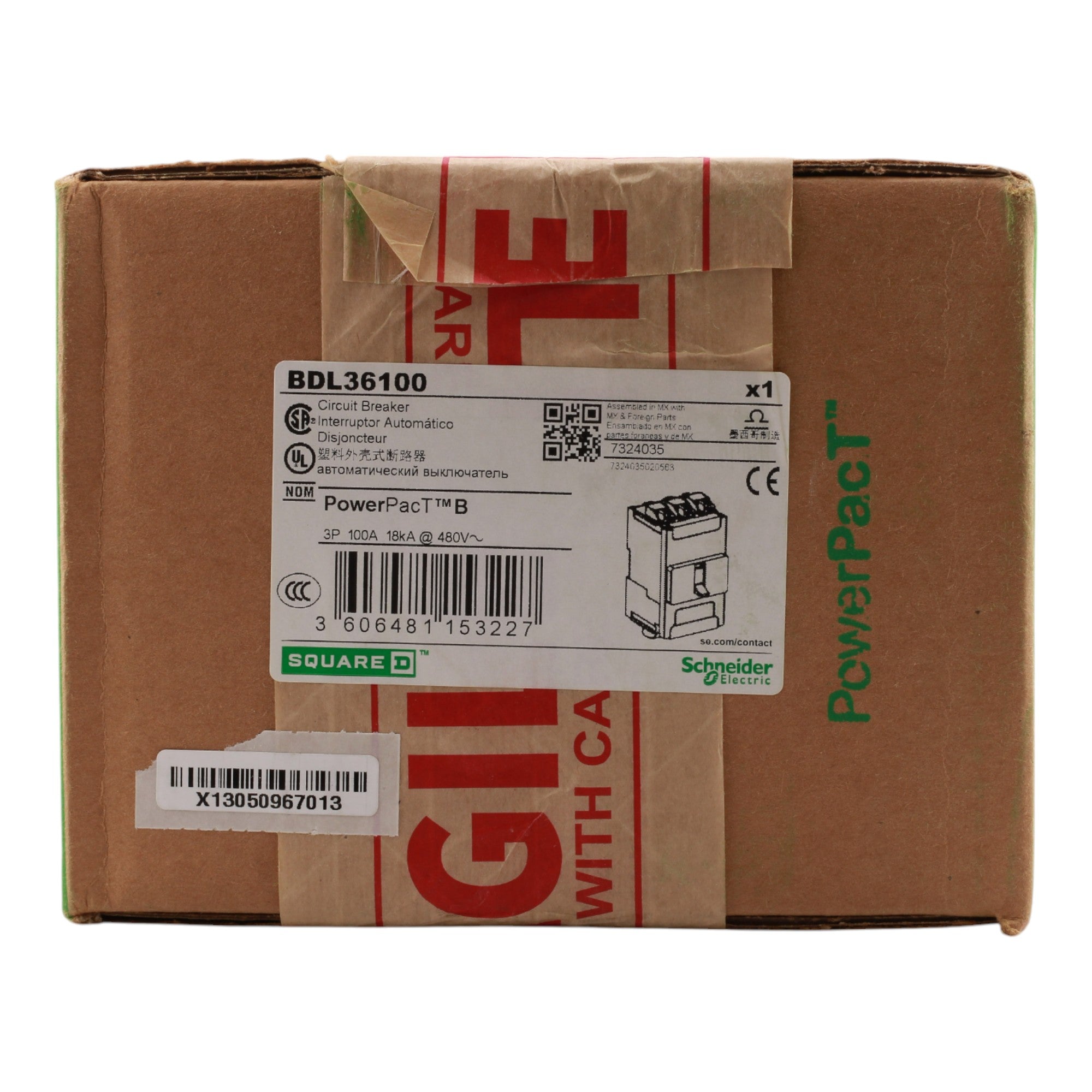

Square D PowerPacT B BDL36100 100A 3P 600Y/347V Circuit Breaker

Schneider Electric BDL36100: 100 Amp 3-Pole thermal-magnetic circuit breaker, 600Y/347V, 14kA interrupt rating, EverLink lugs, 80% rated, DIN rail or screw mount, UL listed.

Product Specifications

• Manufacturer: Schneider Electric
• Brand: PowerPacT
• Range: PowerPacT B Series
• UPC: 3606481153227
• Model Number: BDL36100
• Breaker Type: Thermal-Magnetic Molded Case Circuit Breaker
• Amperage: 100 Amps
• Poles: 3-Pole
• Voltage: 600Y/347 Volts AC
• Interrupt Rating: 14kA at 600Y/347V AC

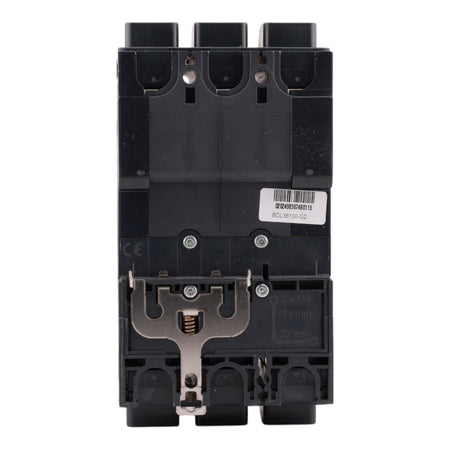

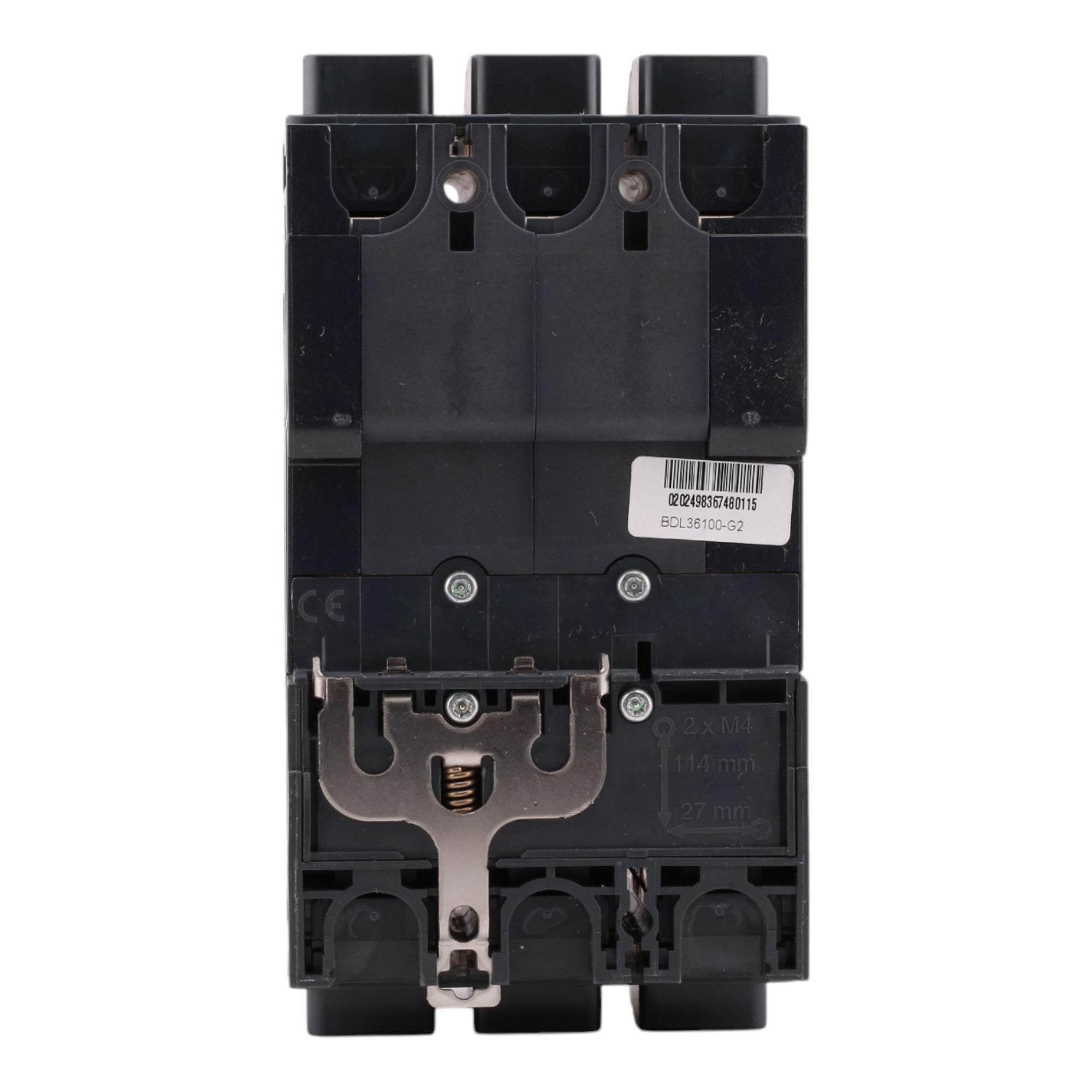

• Mounting Mode: Clip-on 35 x 15 mm symmetrical DIN rail or by screws

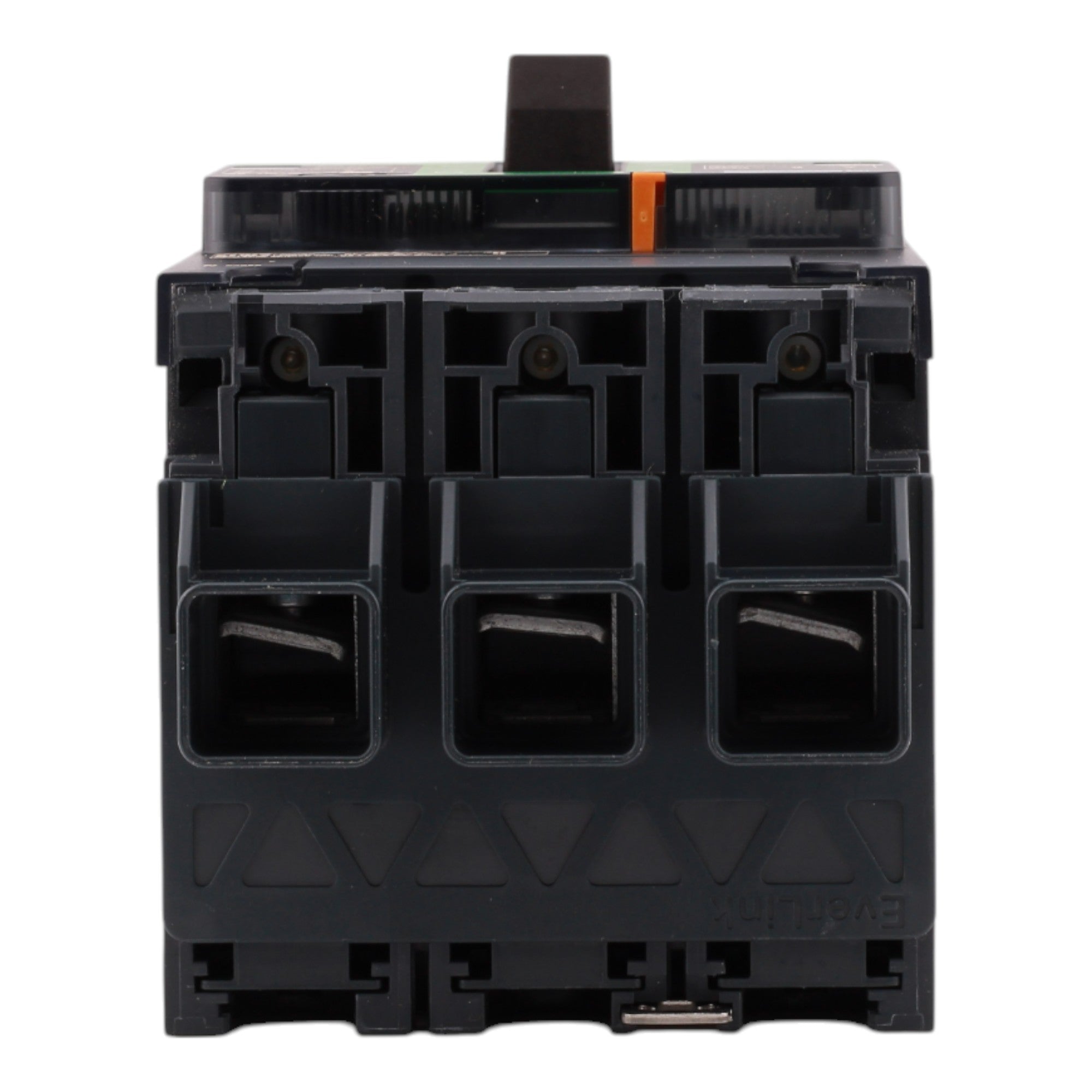

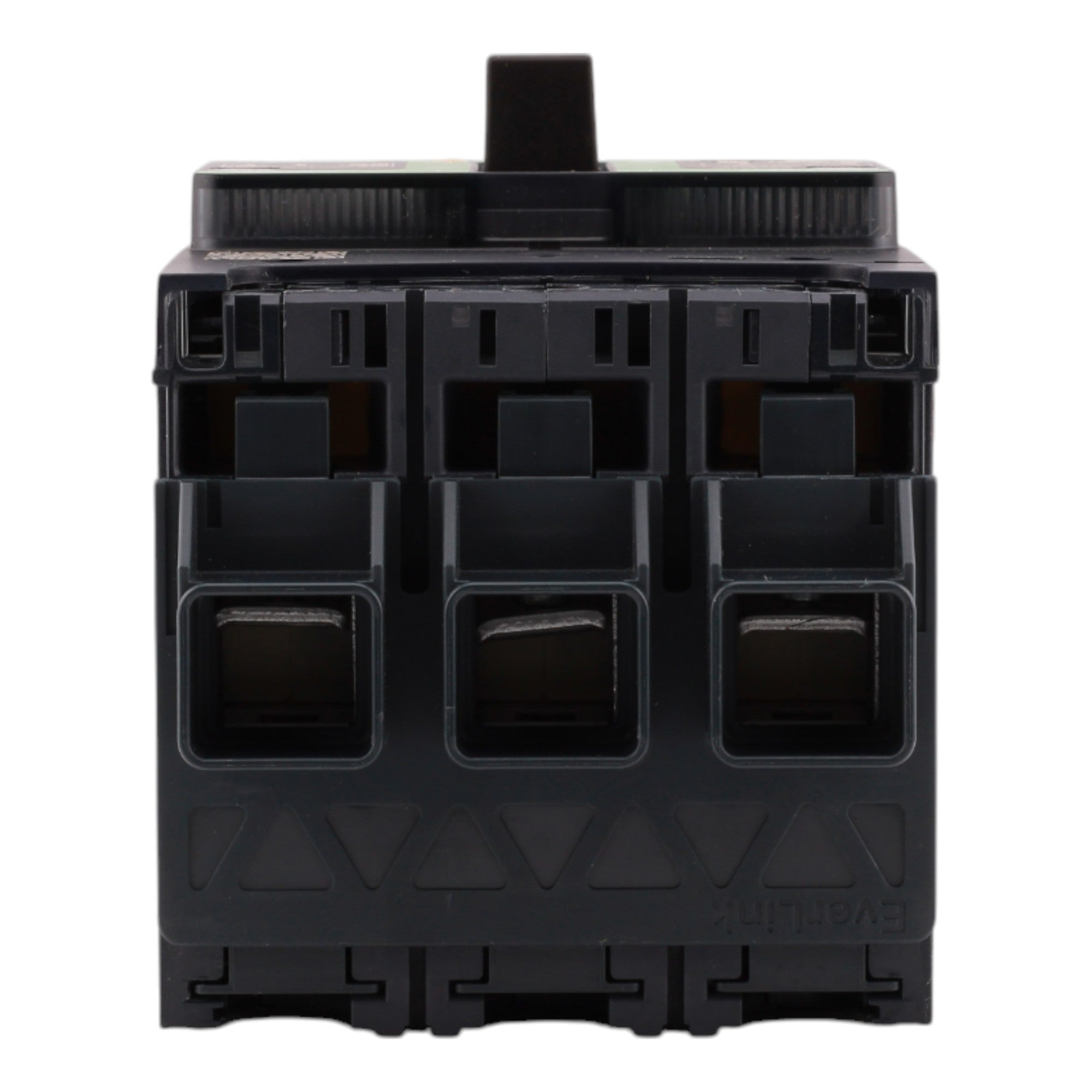

• Connection Terminals: EverLink lugs (line and load)
• Wire Size: AWG 14 to AWG 3/0 (rigid or stranded aluminum/copper), AWG 6 to AWG 2/0 (fine stranded aluminum/copper)
• Tightening Torque: 44.3 lbf.in (5 N.m) for AWG 14-4, 79.7 lbf.in (9 N.m) for AWG 3-3/0
• Dimensions: Height: 5.4 in; Width: 3.2 in; Depth: 3.1 in
• Weight: 2.368 lbs
• Certifications: UL, CSA, IEC, CCC, EAC, NOM, CE marked
