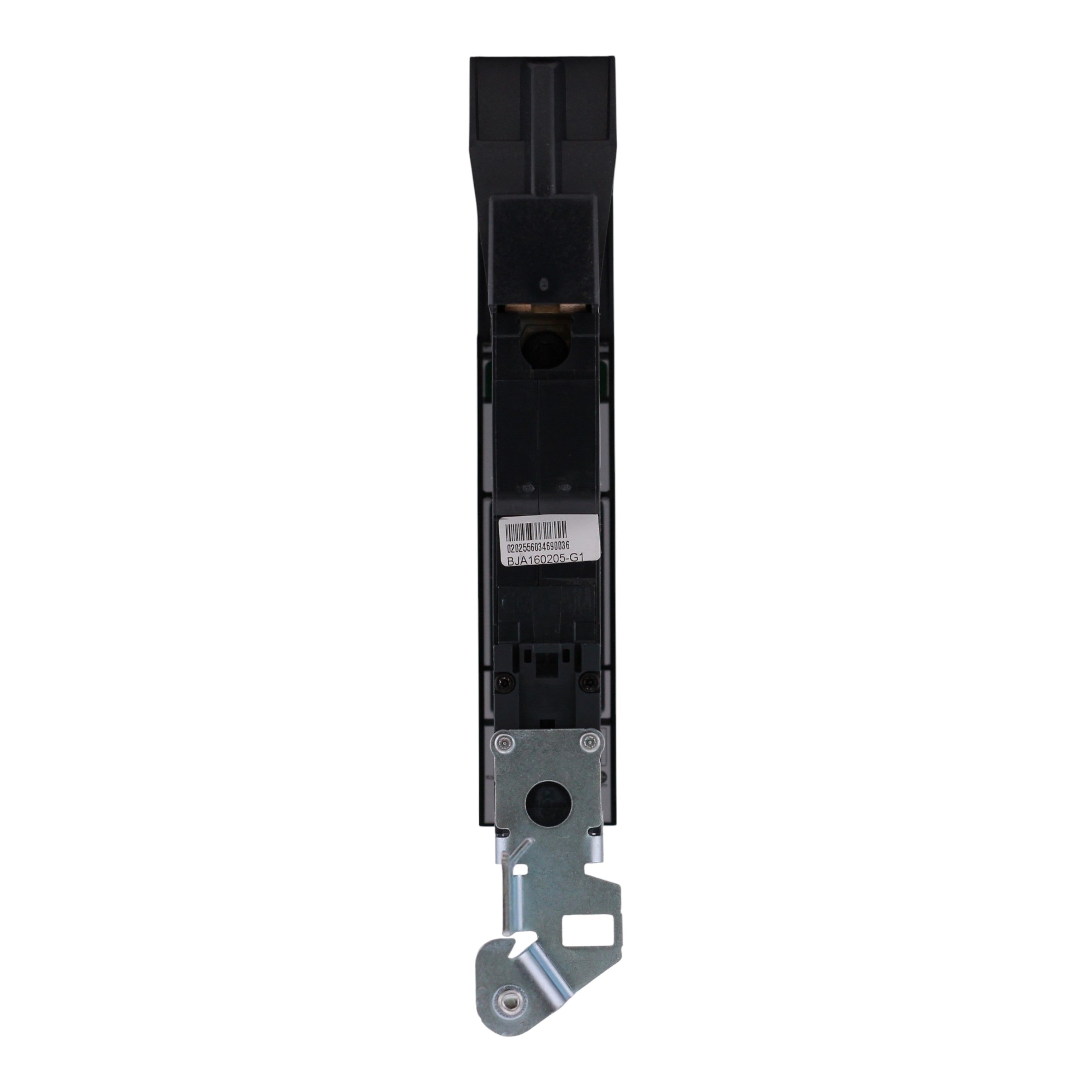

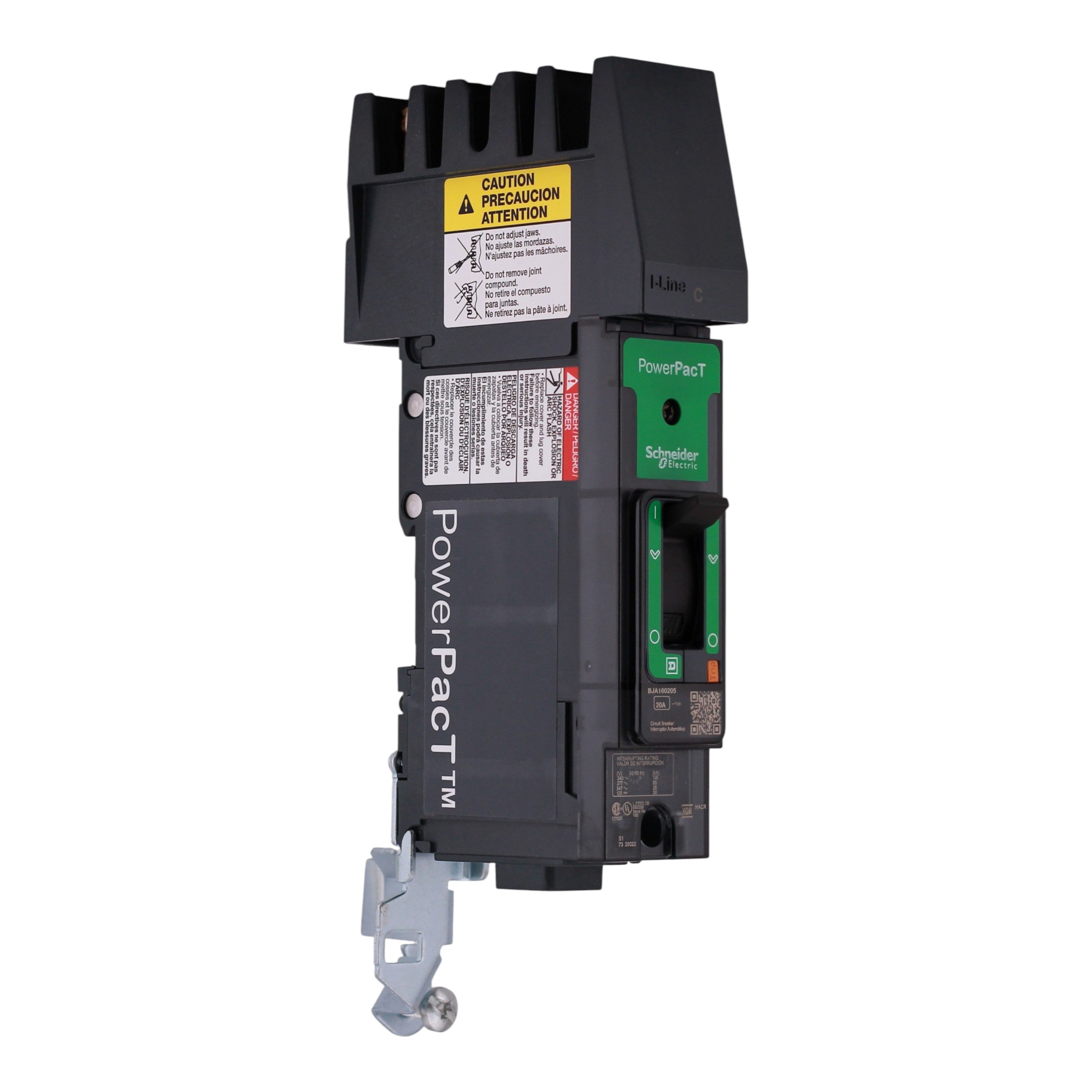

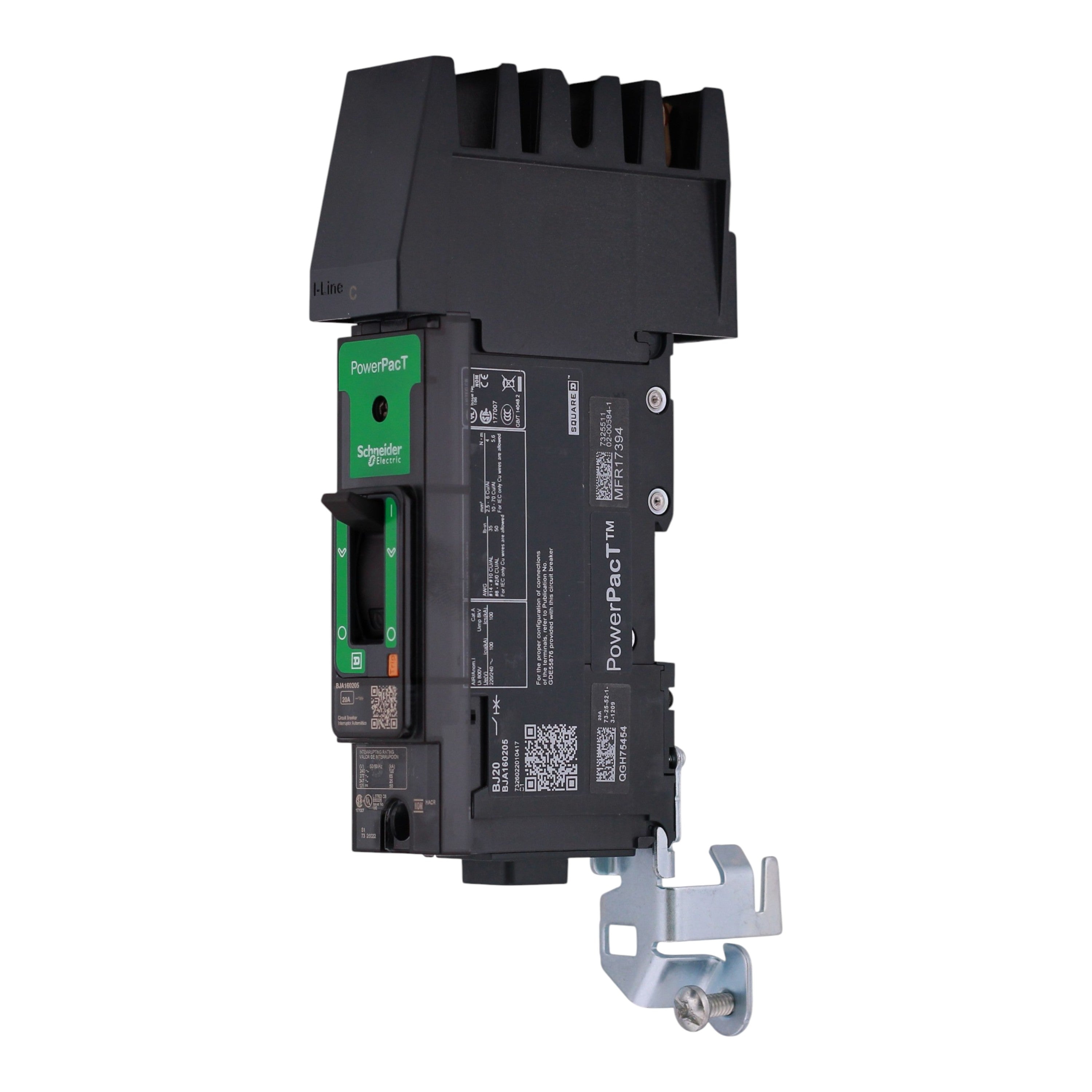

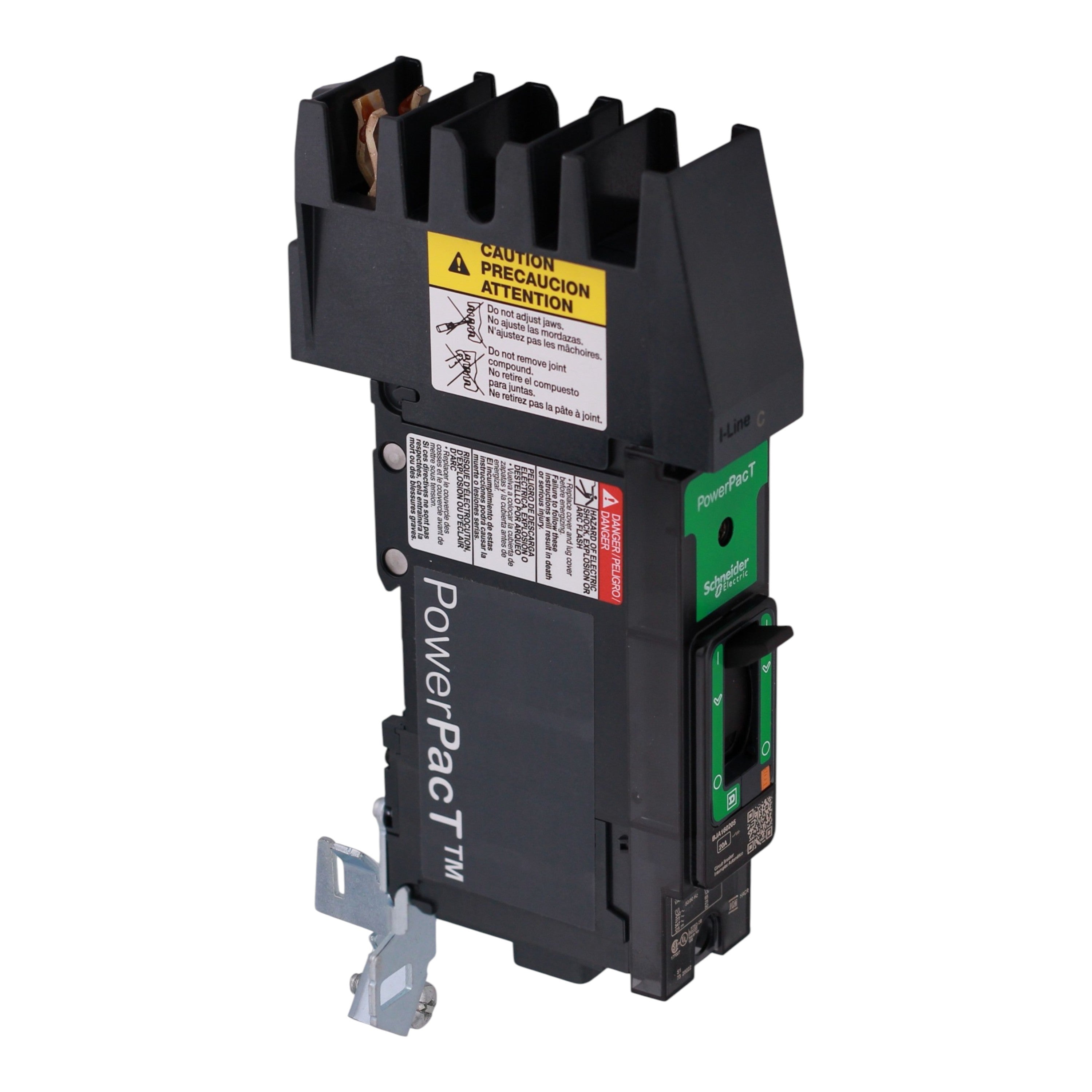

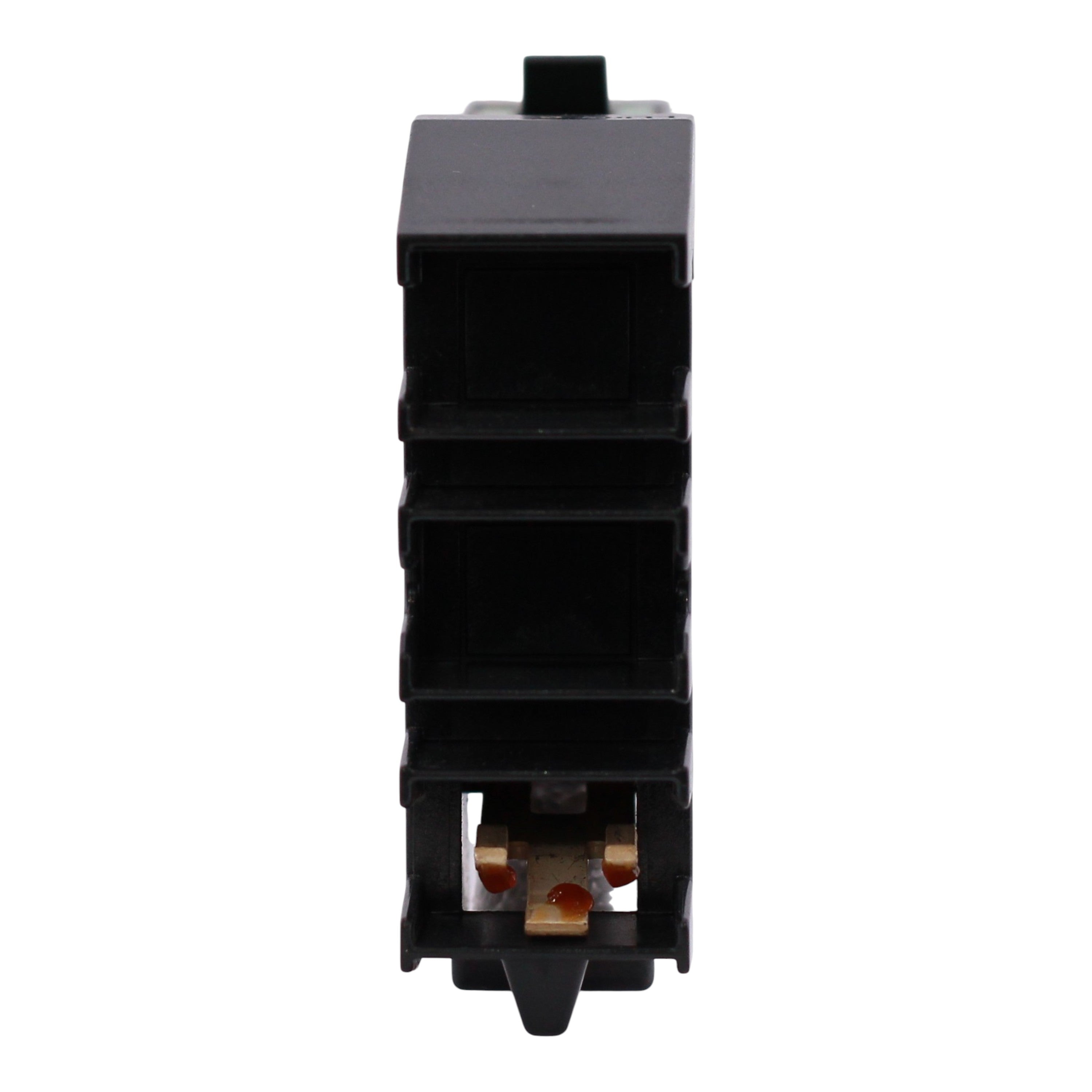

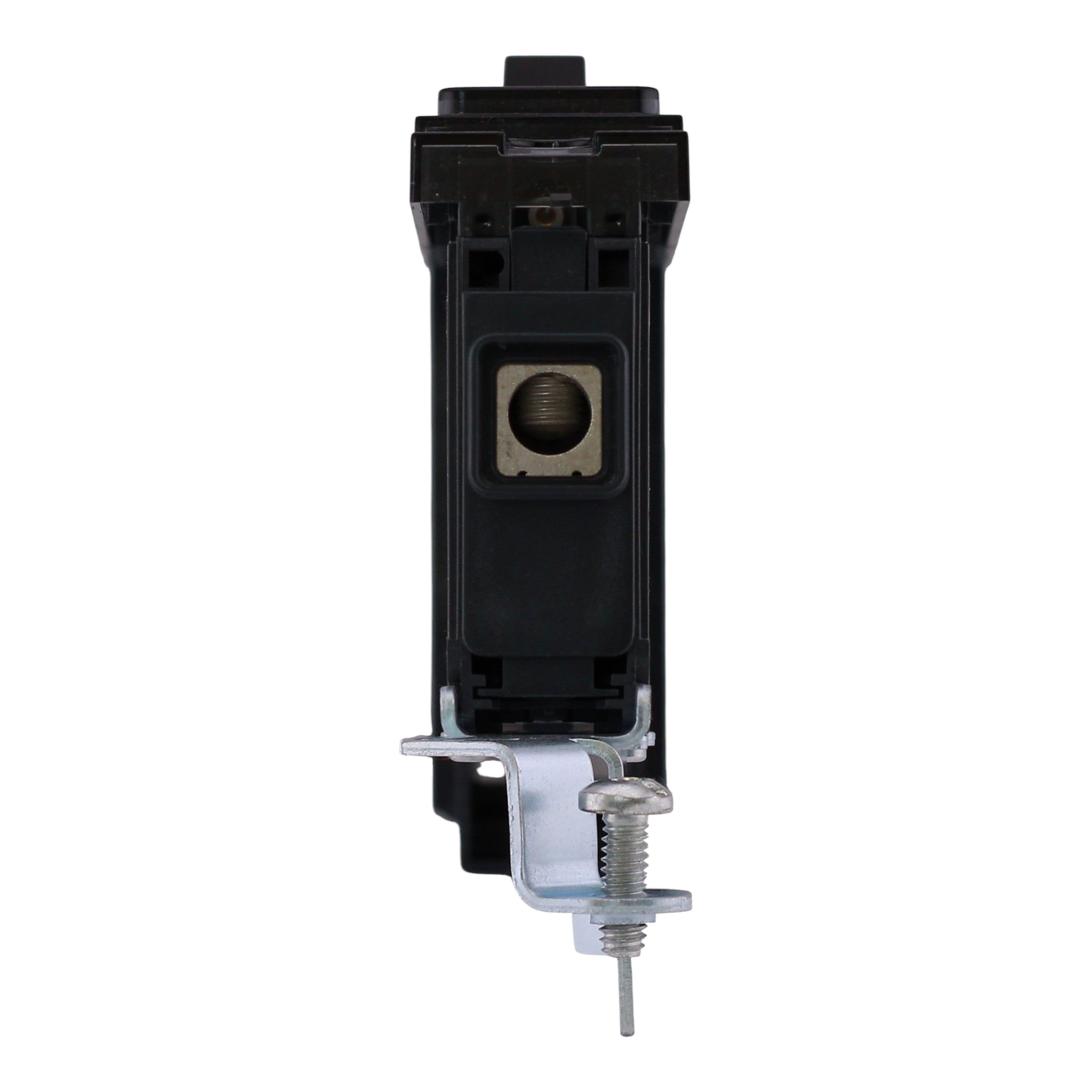

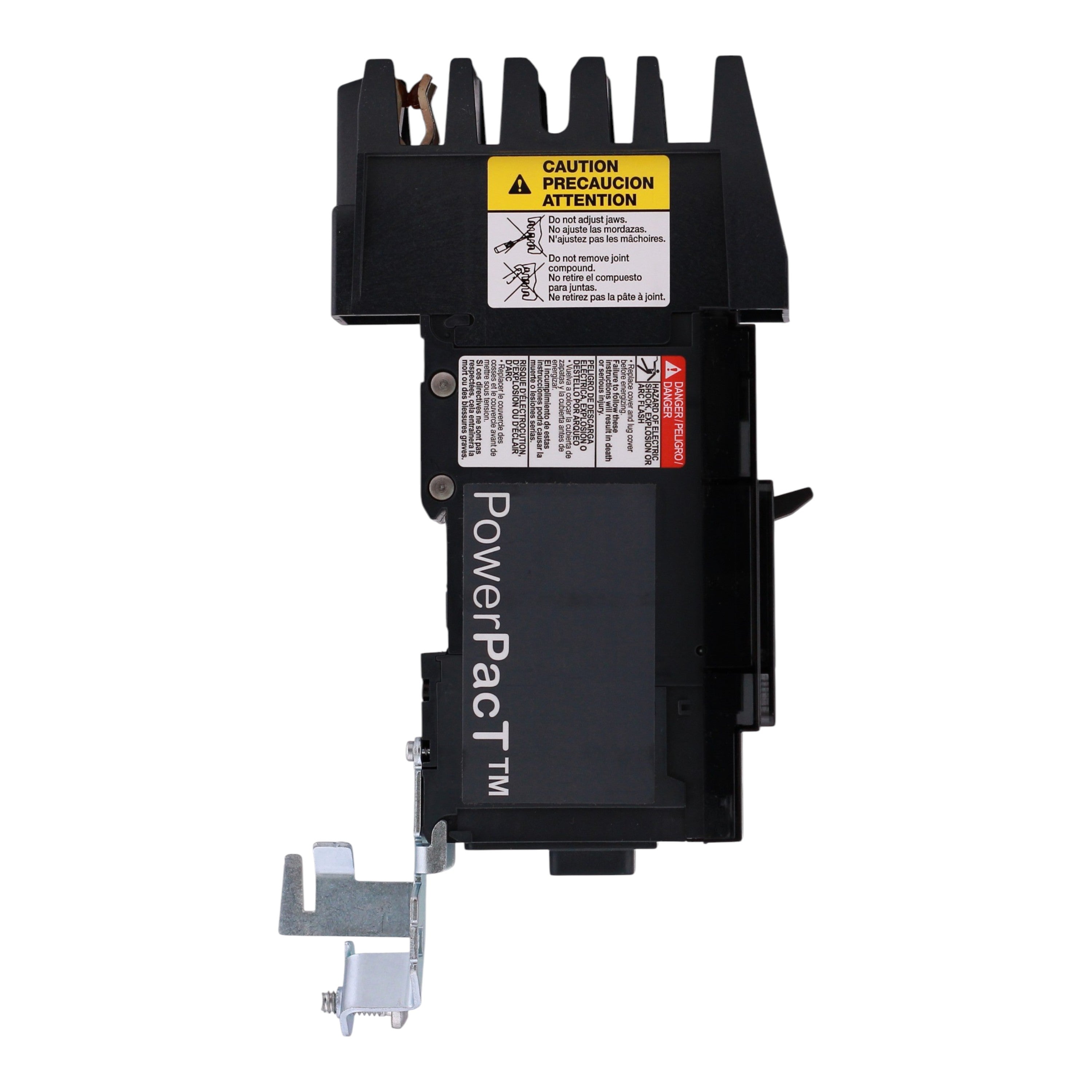

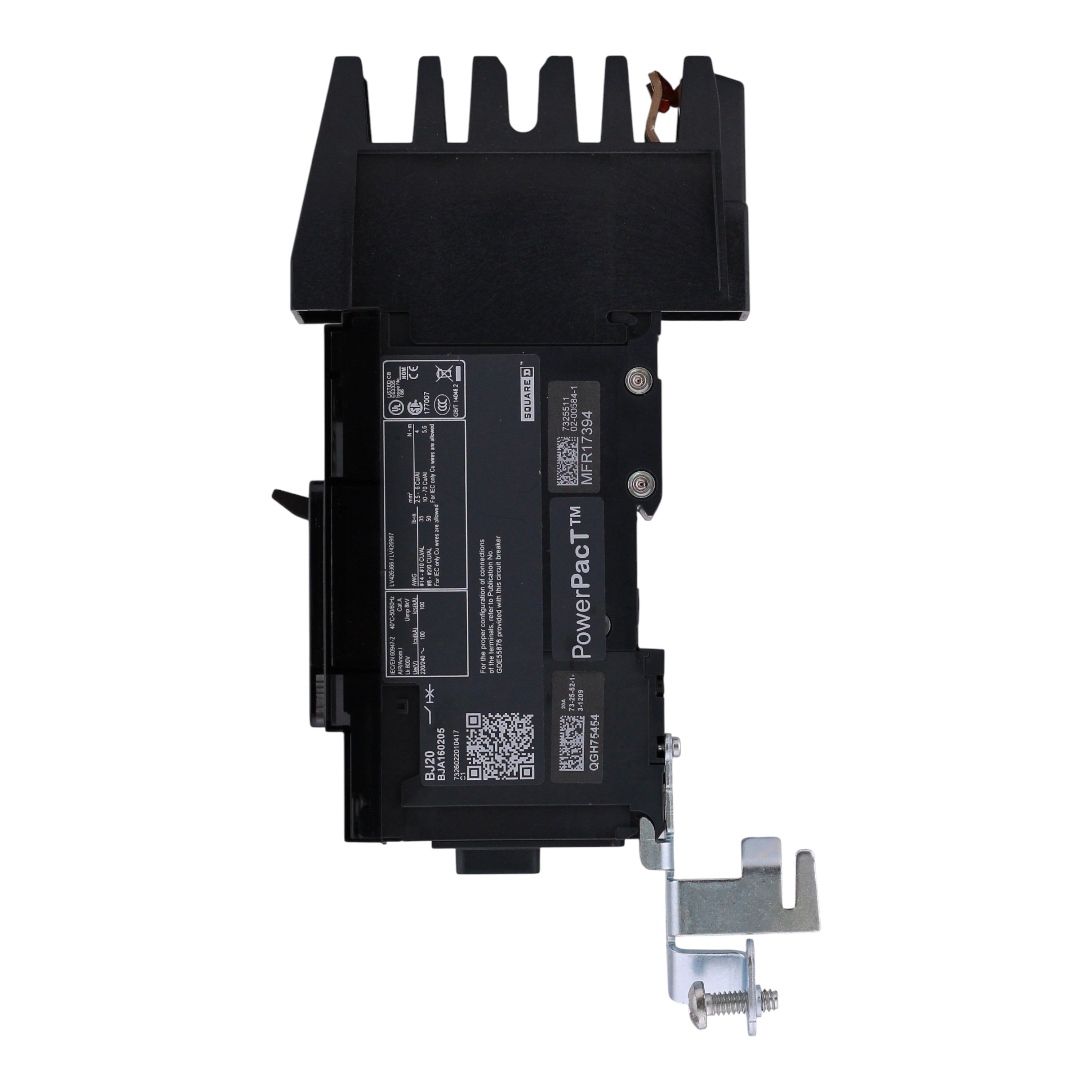

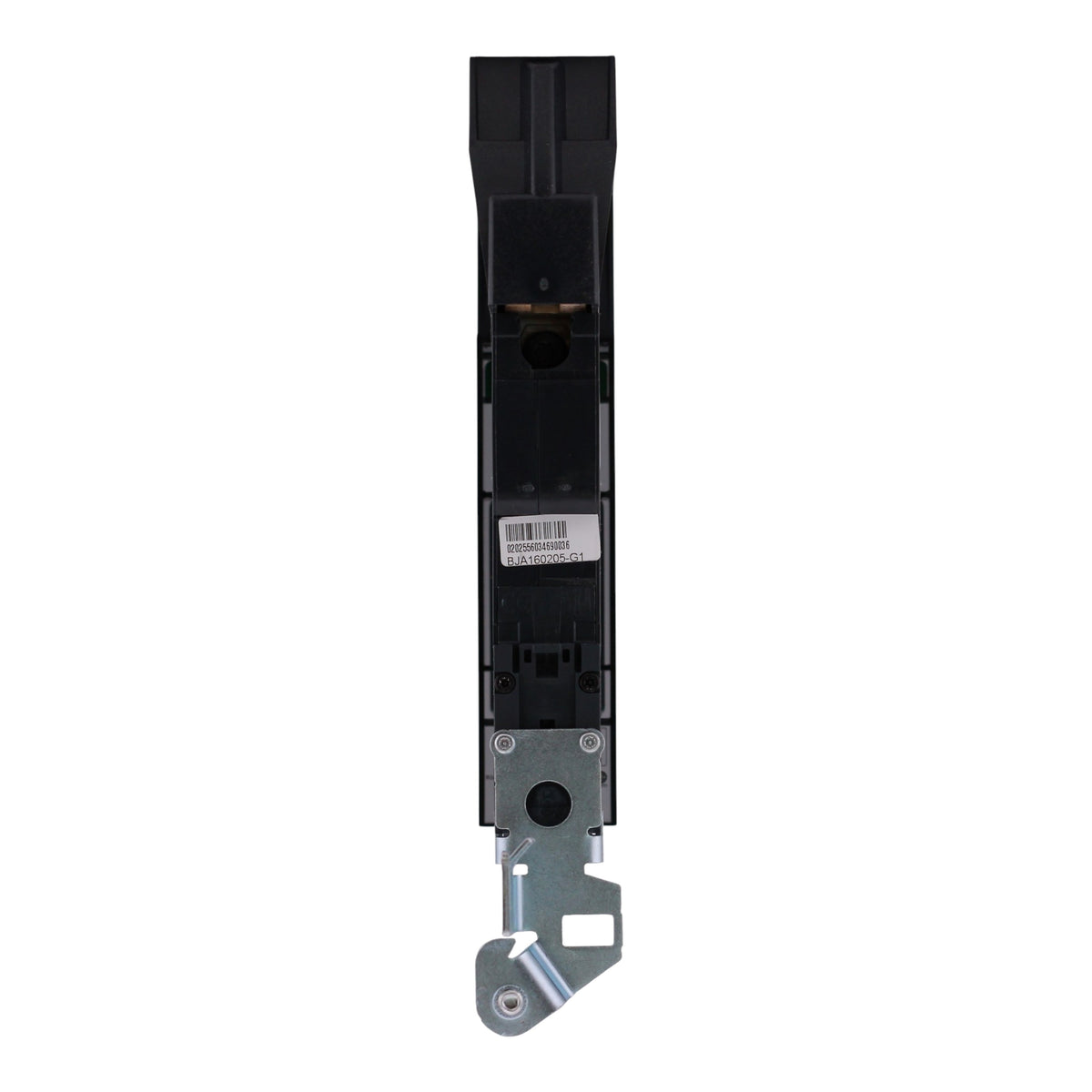

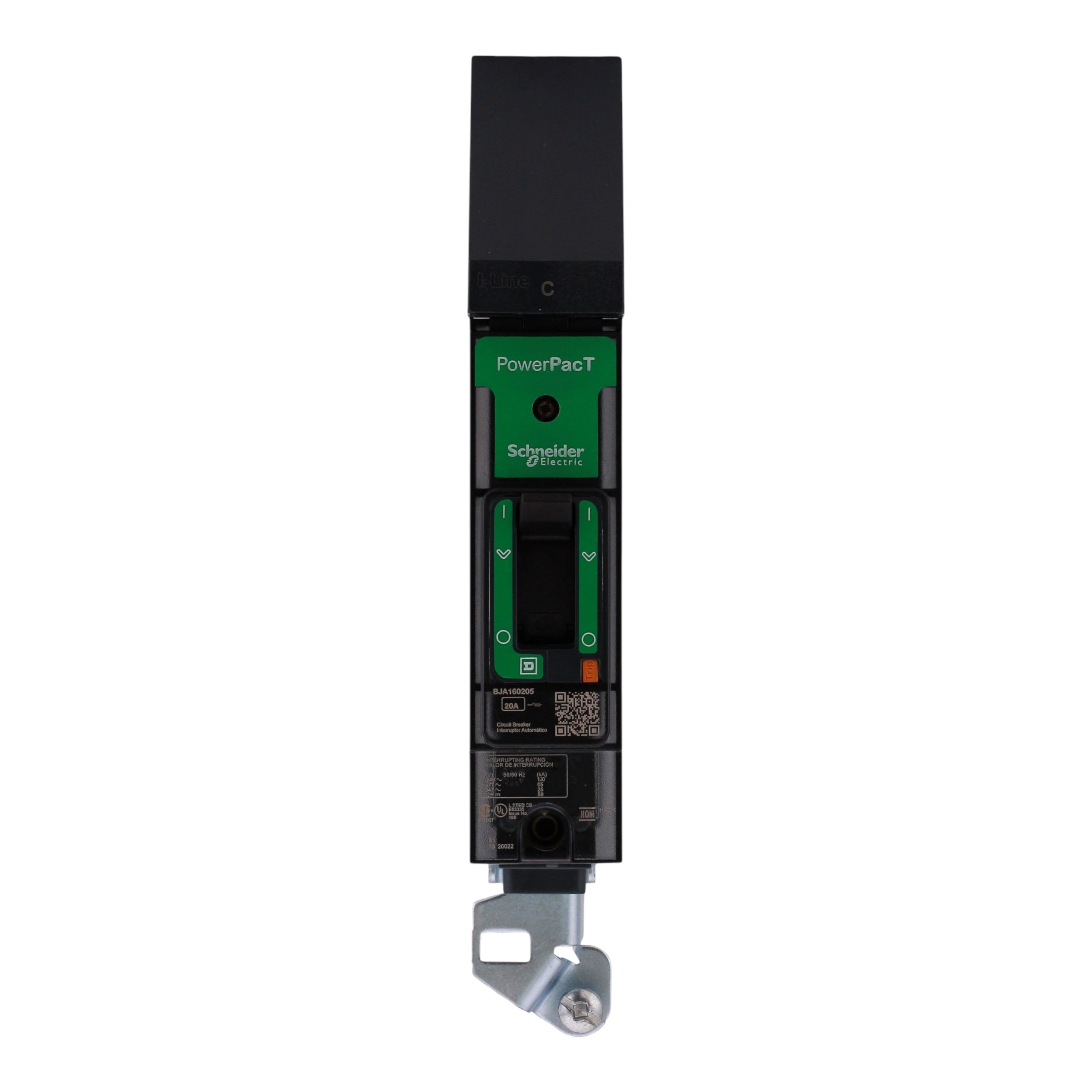

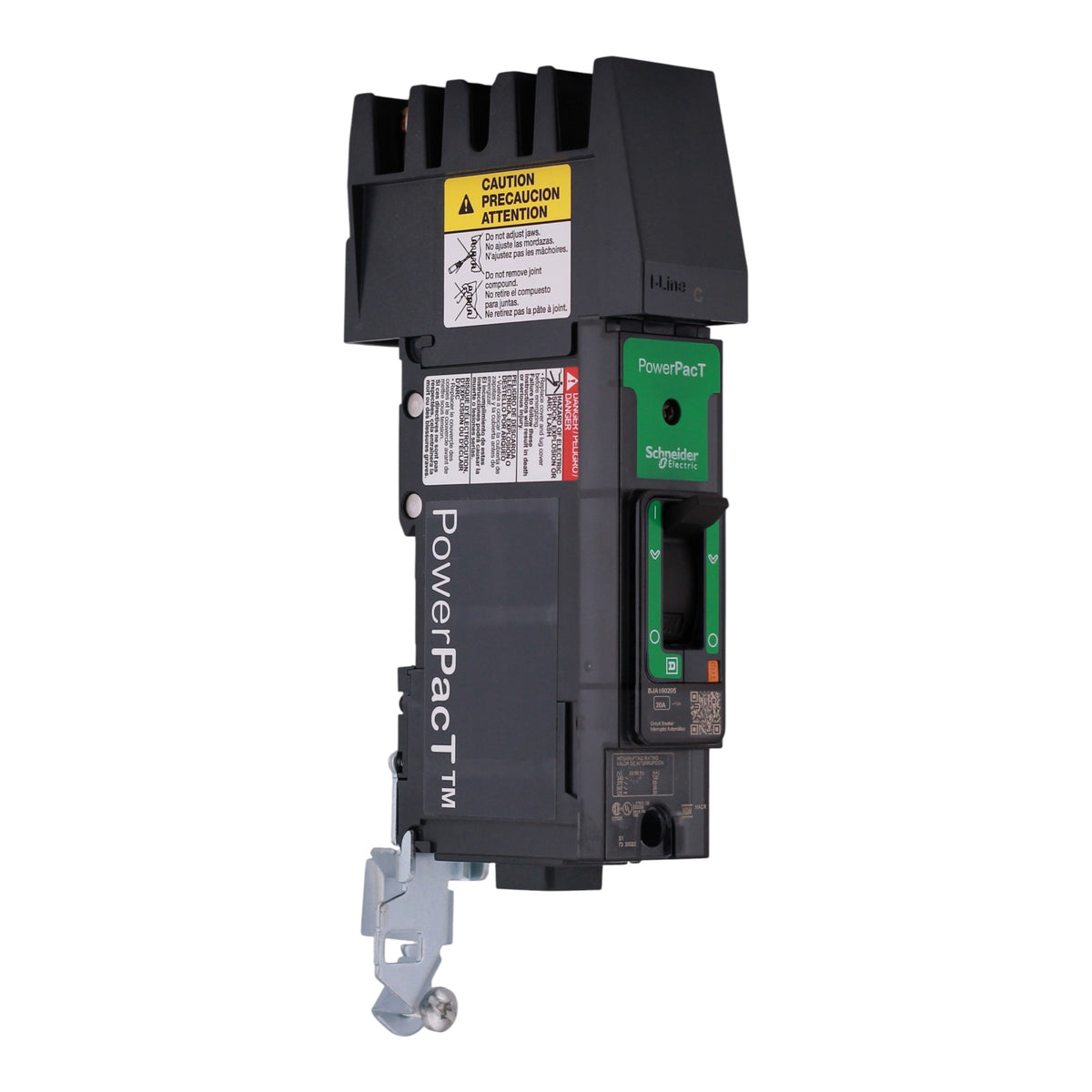

Square D PowerPacT B, BJA160205, 20A, 1P, 600Y/347V, 25kA, I-Line, Thermal-Magnetic, Phase C, MCCB

In stock - 2 items available
SKU: BJA160205 UPC: 3606481154187

BULK ORDER Quote.

How Bulk Order Discounts Work

We partner with Cart Whisper to make bulk ordering fast and simple. You can build your cart normally, then submit the entire cart to our team so we can apply bulk pricing and send you a custom quote.

1) Add everything you need to your cart

Shop the site and add all the products and quantities you want — just like a normal order.

2) Open your cart drawer and submit your cart

When you open the cart drawer, you’ll see a Cart Whisper section that looks like this:

Need Help? Cart ID: ####
Submit Cart to Support

Click “Submit Cart to Support” to send your cart to our team.

3) Fill out the quick form

After clicking the submit button, a form will pop up. Please enter:

  • Name

  • Email

  • Short message (what you want / any special notes)

Important: Include your shipping address in the message.
That helps us quote your order accurately, including shipping and taxes (if applicable).

4) We review and send your custom quote

Once we receive your cart submission, we’ll:

  • Review your cart items and quantities

  • Apply any eligible bulk discounts

  • Send you a custom quote with final pricing (and shipping/tax if applicable)


What to include in your message (recommended)

To speed things up, copy/paste this format into the message box:

  • Shipping Address:

  • Notes / Special requests:

SELECT ITEM CONDITION
Regular price $99.00 USD
Regular price Sale $199.99 USD Sale price $99.00 USD
Payment methods
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Square D BJA160205: 20 Amp, 1-Pole, PowerPacT B-Frame Thermal-Magnetic Molded Case Circuit Breaker, 600Y/347V, 25kA, I-Line, Phase C, 80%, UL 489.

  • Manufacturer: Schneider Electric (Square D)
  • Brand: Square D
  • Product Range: PowerPacT B-Frame (B-Frame, J Interrupt Rating)
  • GTIN: 3606481154187
  • Model Number: BJA160205
  • Breaker Type: Molded Case Circuit Breaker (MCCB), Thermal-Magnetic Trip
  • Amperage: 20 Amps (80% continuous current rating)
  • Poles: 1-Pole
  • Phase Connection: Phase C
  • Voltage: 600Y/347 Volts AC / 125 Volts DC
  • Interrupt Rating: 100 kAIC @ 240V; 65 kAIC @ 480Y/277V; 25 kAIC @ 600Y/347V; 50 kAIC @ 125V DC (UL 489)
  • Frame: B-Frame (J Interrupt Rating)
  • Trip Unit: Thermal-Magnetic, LI — Long-Time and Instantaneous Functions
  • Mounting Mode: I-Line (plug-on jaw, line side); Mechanical Lugs (load side)
  • Wire Size: #14–2/0 AWG Al/Cu
  • Tightening Torque: 31.9–38.9 lb-in (#14–10 AWG); 44.3–54.9 lb-in (#8–2/0 AWG)
  • Dimensions: Height: 5.40 in; Width: 1.06 in; Depth: 3.50 in
  • Weight: 1.405 lbs
  • IP Rating: IP40 (front cover)
  • Certifications: UL 489, CSA (C22.2 No. 5), NOM (NMX J-266), IEC/EN 60947-2, CCC, EAC, CE Marked, HACR Rated

This Square D BJA160205 PowerPacT B-Frame thermal-magnetic MCCB delivers 20 Amp, 1-Pole protection at 600Y/347V with 25kA interrupt capacity and dual-break rotating contacts. Phase C I-Line plug-on mounting and load-side mechanical lugs enable direct installation in Square D I-Line panelboards without additional hardware. Global multi-standard certification supports commercial and industrial distribution applications.
