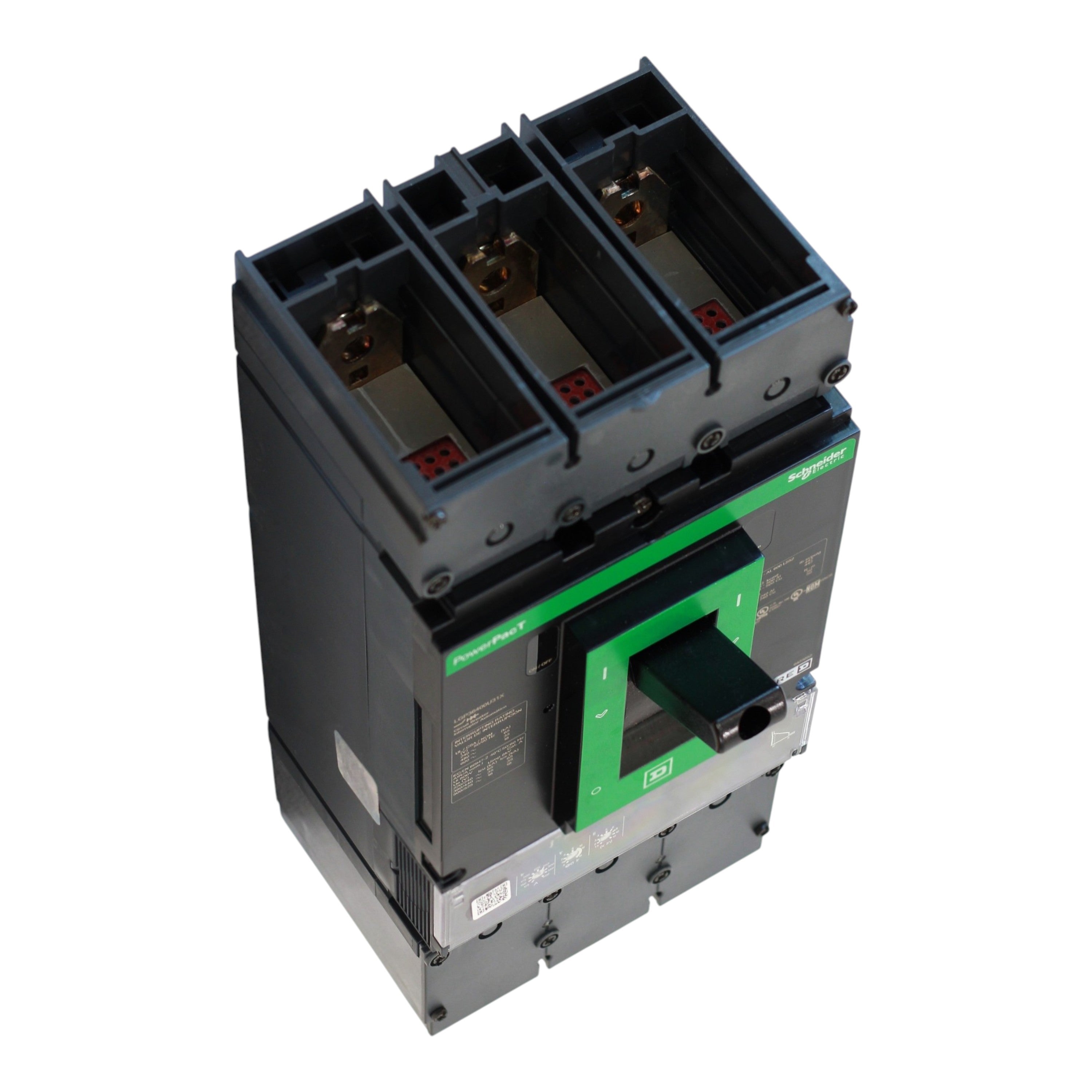

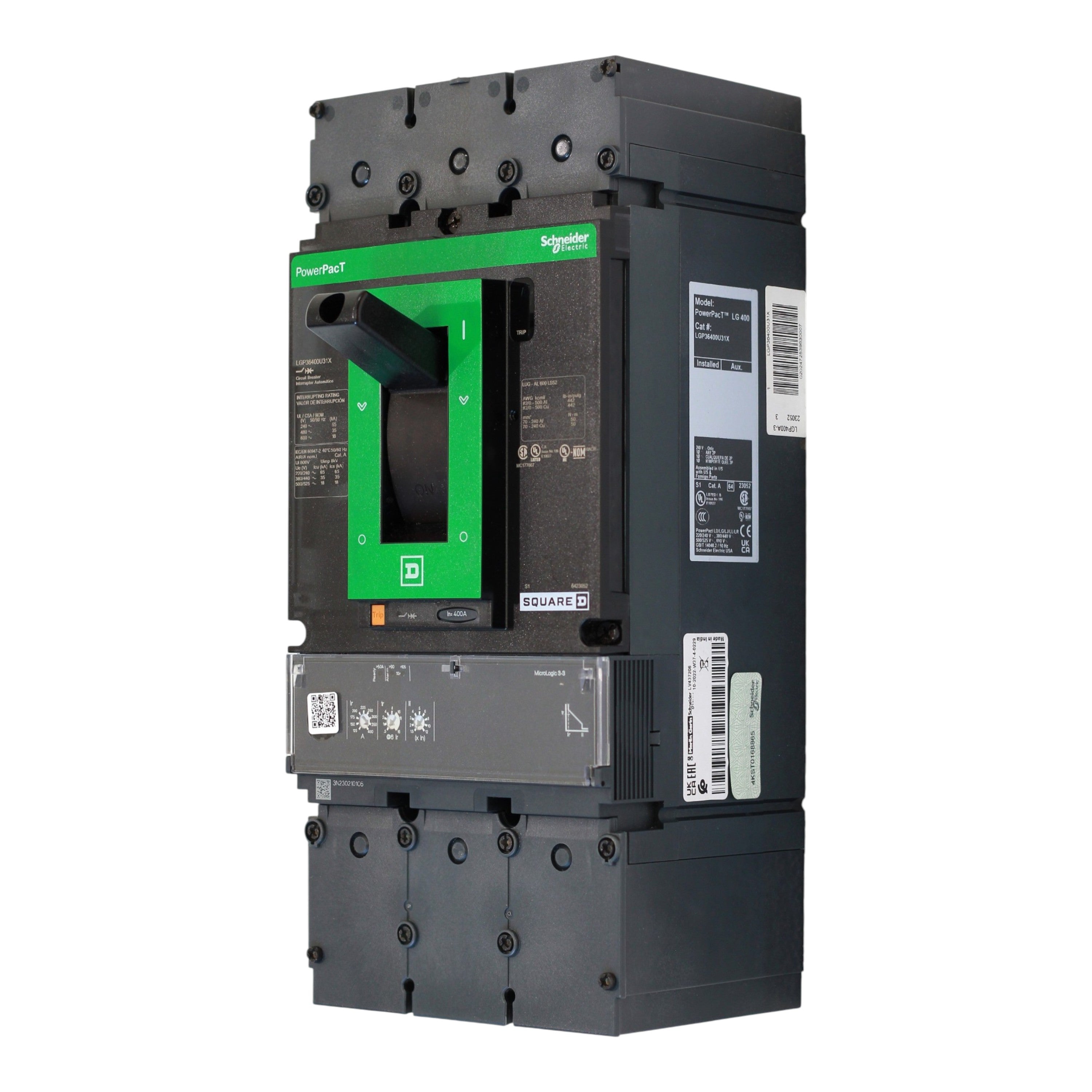

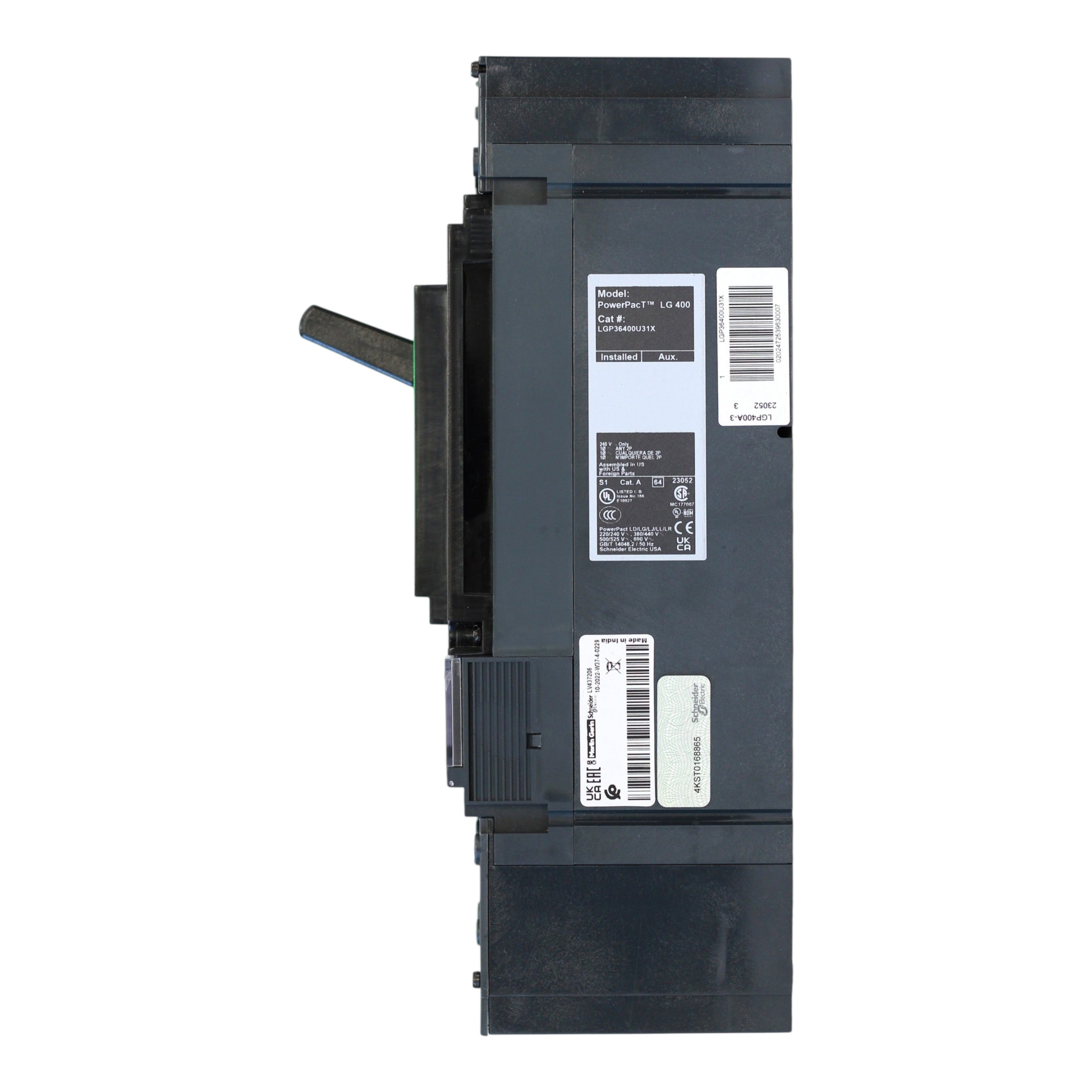

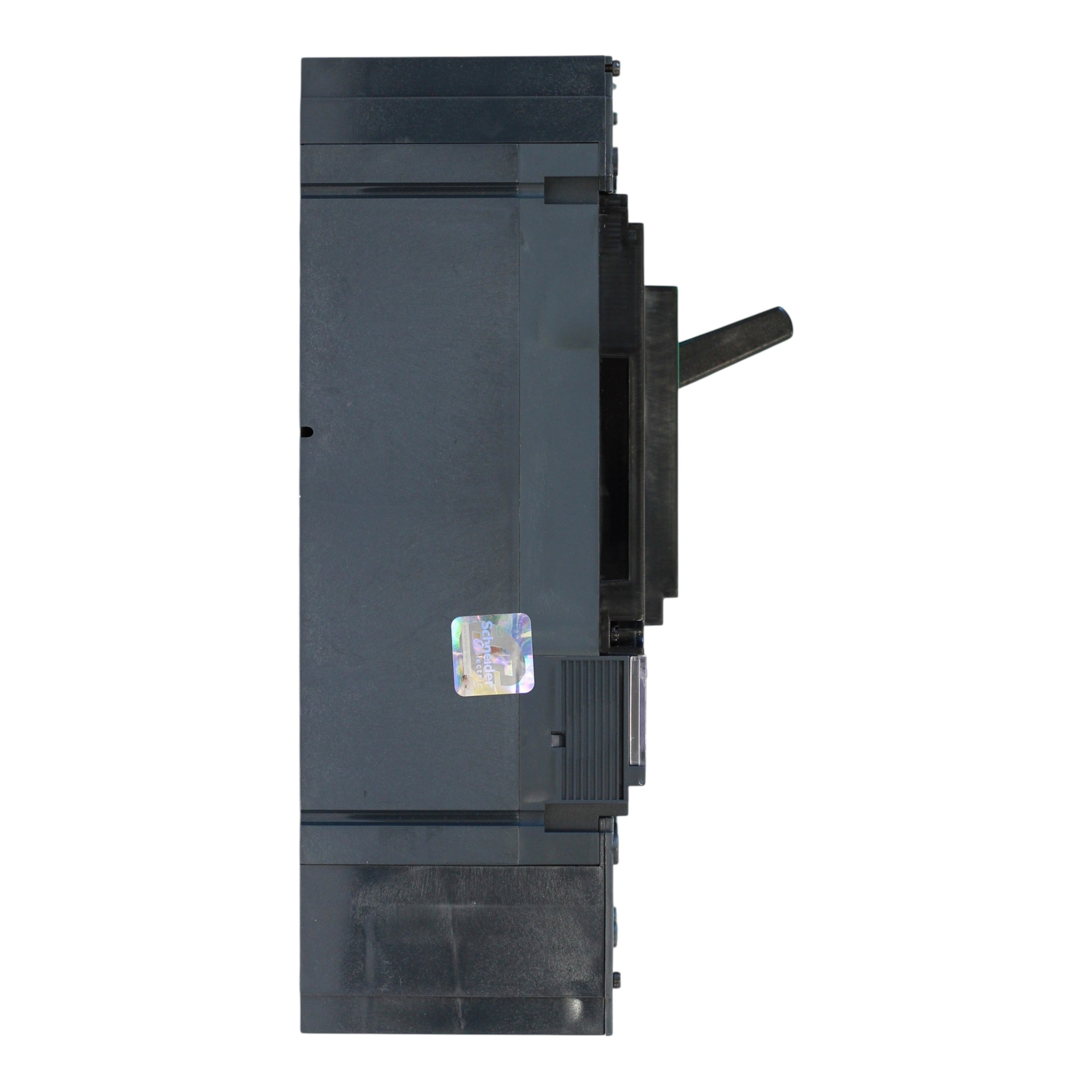

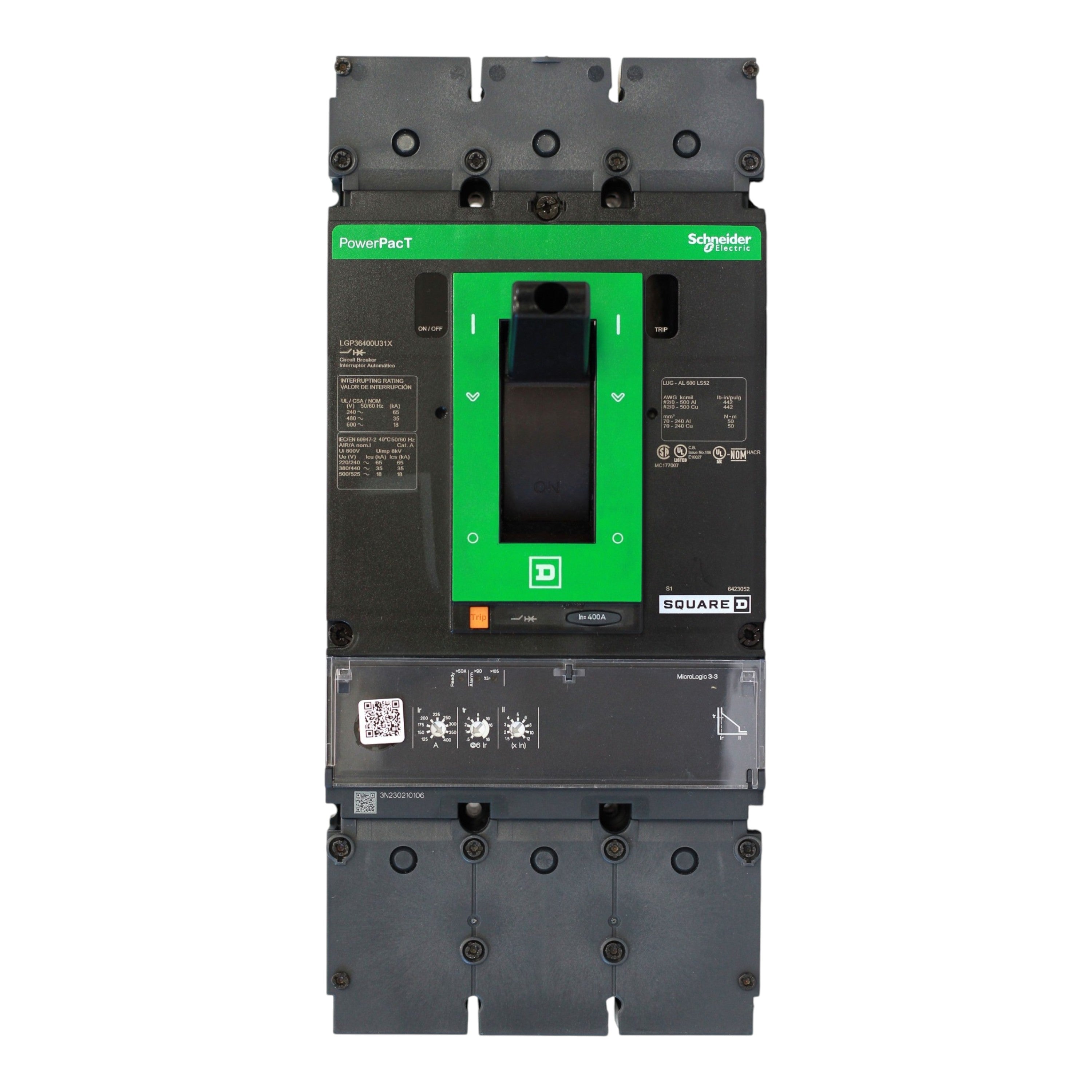

Square D PowerPacT L, LGP36400U31X, 400A, 3P, 600VAC, 18kA, Unit Mount, MicroLogic 3.3, Circuit Breaker

In stock - 4 items available
SKU: LGP36400U31X UPC: 785901639824

BULK ORDER Quote.

How Bulk Order Discounts Work

We partner with Cart Whisper to make bulk ordering fast and simple. You can build your cart normally, then submit the entire cart to our team so we can apply bulk pricing and send you a custom quote.

1) Add everything you need to your cart

Shop the site and add all the products and quantities you want — just like a normal order.

2) Open your cart drawer and submit your cart

When you open the cart drawer, you’ll see a Cart Whisper section that looks like this:

Need Help? Cart ID: ####
Submit Cart to Support

Click “Submit Cart to Support” to send your cart to our team.

3) Fill out the quick form

After clicking the submit button, a form will pop up. Please enter:

  • Name

  • Email

  • Short message (what you want / any special notes)

Important: Include your shipping address in the message.
That helps us quote your order accurately, including shipping and taxes (if applicable).

4) We review and send your custom quote

Once we receive your cart submission, we’ll:

  • Review your cart items and quantities

  • Apply any eligible bulk discounts

  • Send you a custom quote with final pricing (and shipping/tax if applicable)


What to include in your message (recommended)

To speed things up, copy/paste this format into the message box:

  • Shipping Address:

  • Notes / Special requests:

SELECT ITEM CONDITION
Regular price $1,175.00 USD
Regular price Sale $3,999.99 USD Sale price $1,175.00 USD
Payment methods
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

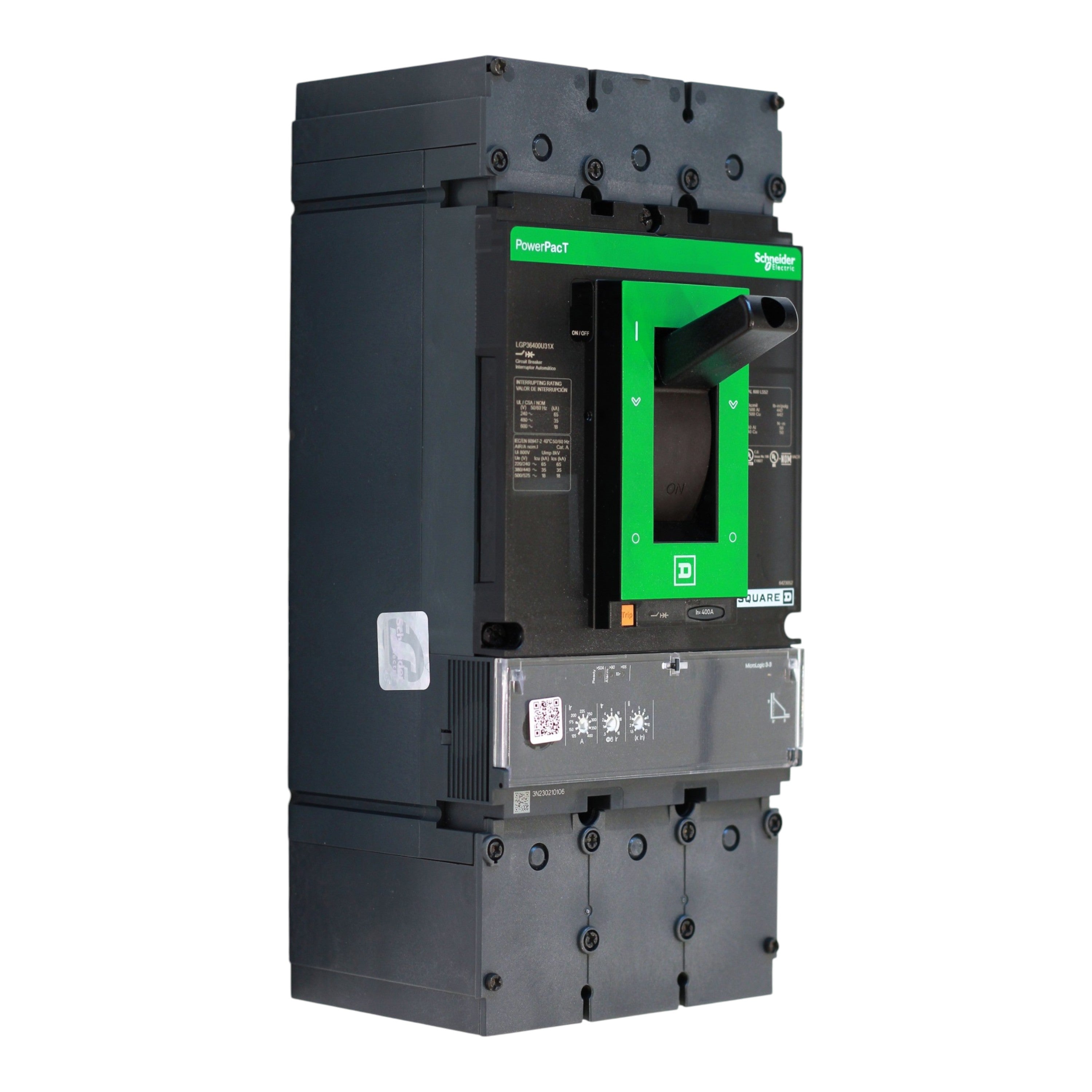

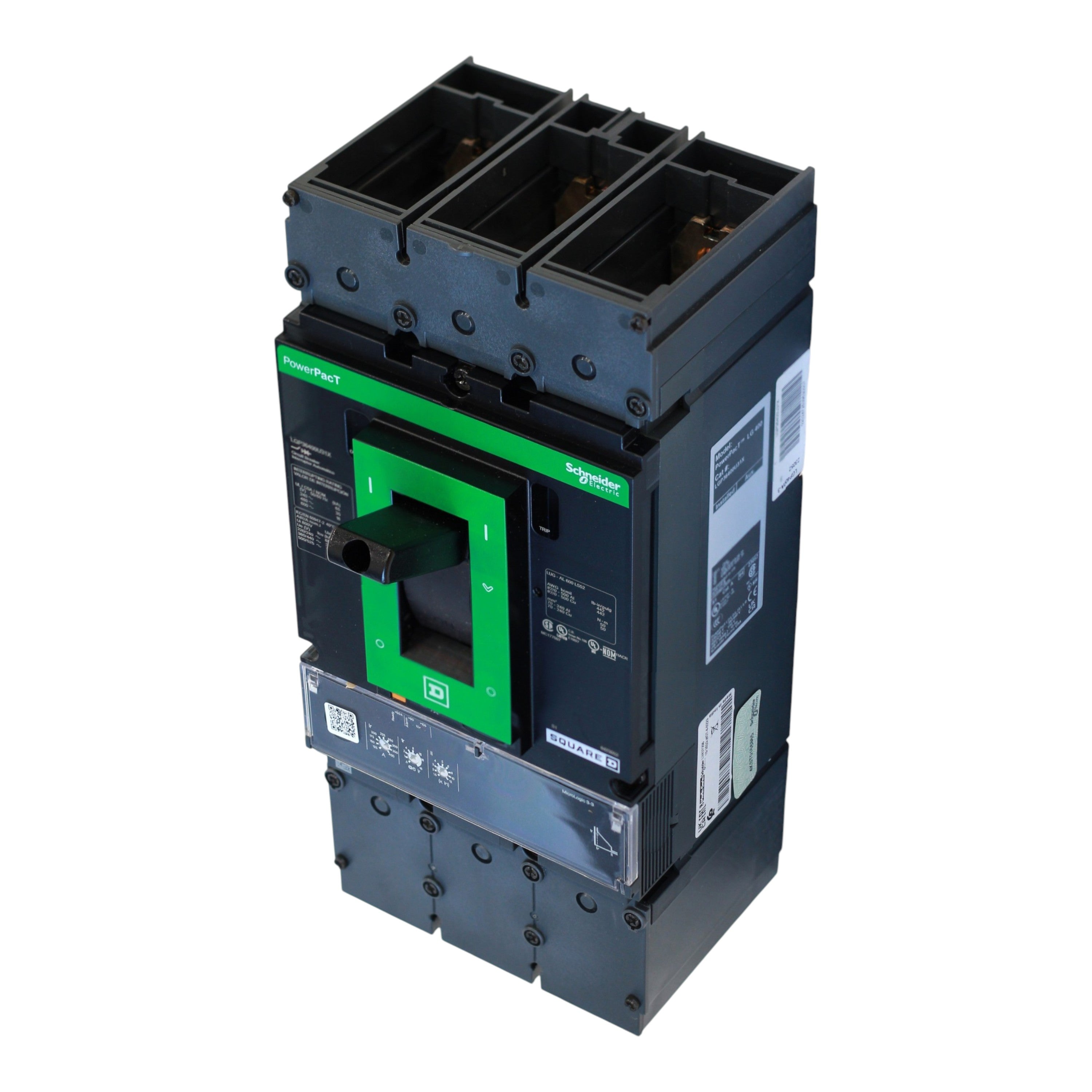

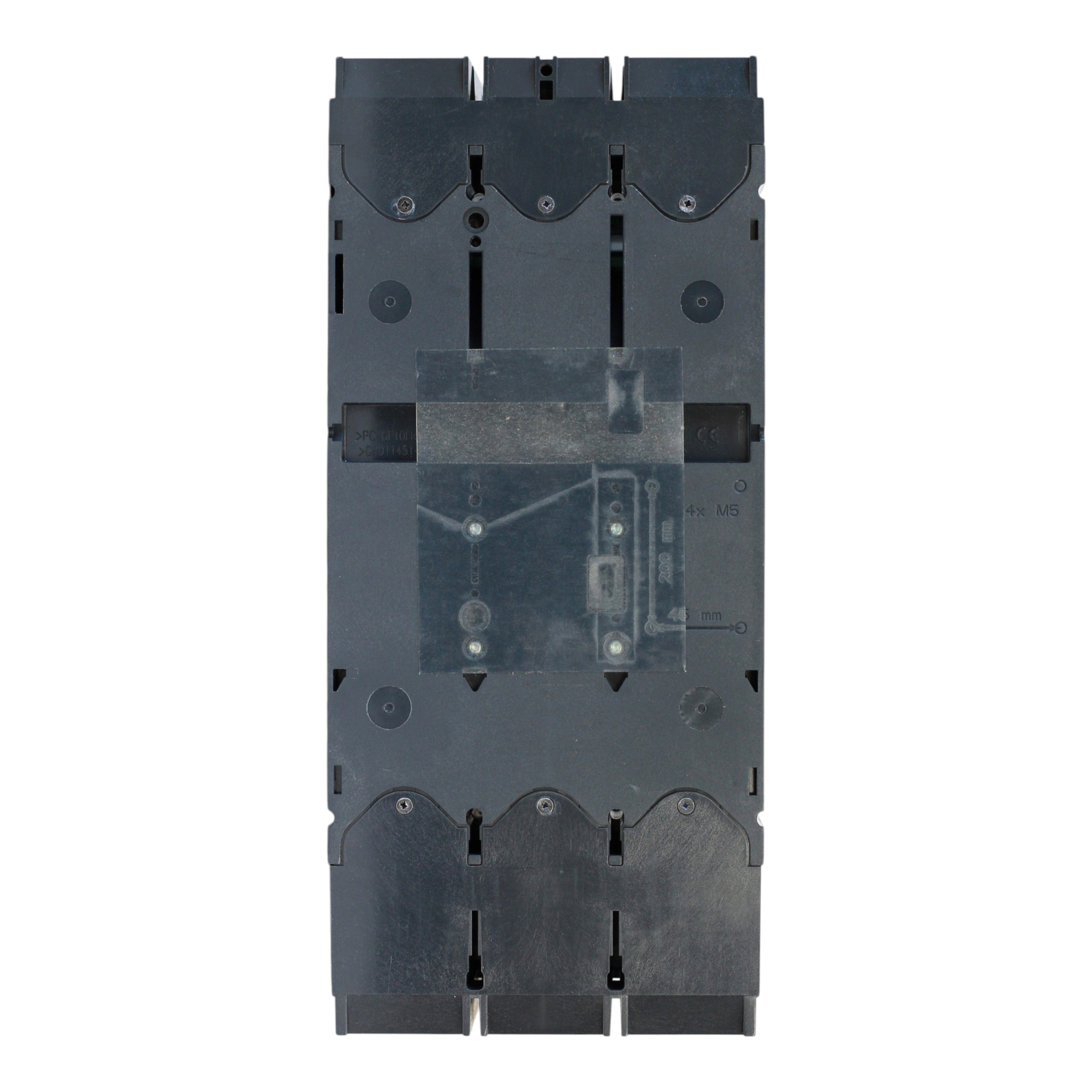

Square D LGP36400U31X: 400 Amp, 3-Pole, PowerPacT L-Frame Molded Case Circuit Breaker, 600VAC, 18kA, Unit Mount, MicroLogic 3.3 Electronic Trip, 80%, UL Listed.

  • Manufacturer: Schneider Electric
  • Brand: Square D
  • Product Range: PowerPacT L-Frame (for unit mount switchboards and motor control centers)
  • UPC: 785901639824
  • Model Number: LGP36400U31X
  • Breaker Type: Electronic Trip Molded Case Circuit Breaker (MCCB)
  • Trip Unit: MicroLogic 3.3 Standard — LI (Long-Time and Instantaneous)
  • Long-Time Pick-Up Adjustment: 0.25–1× In (adjustable)
  • Amperage: 400 Amps
  • Continuous Current Rating: 80%
  • Poles: 3-Pole
  • Voltage: 600 Volts AC
  • Interrupt Rating: 18 kAIC @ 600VAC; 35 kAIC @ 480VAC; 65 kAIC @ 240VAC; 18 kAIC @ 250V DC; 20 kAIC @ 500V DC
  • Breaking Capacity Code: G
  • Frame Size: L-Frame
  • Mounting Mode: Unit mount (lug)

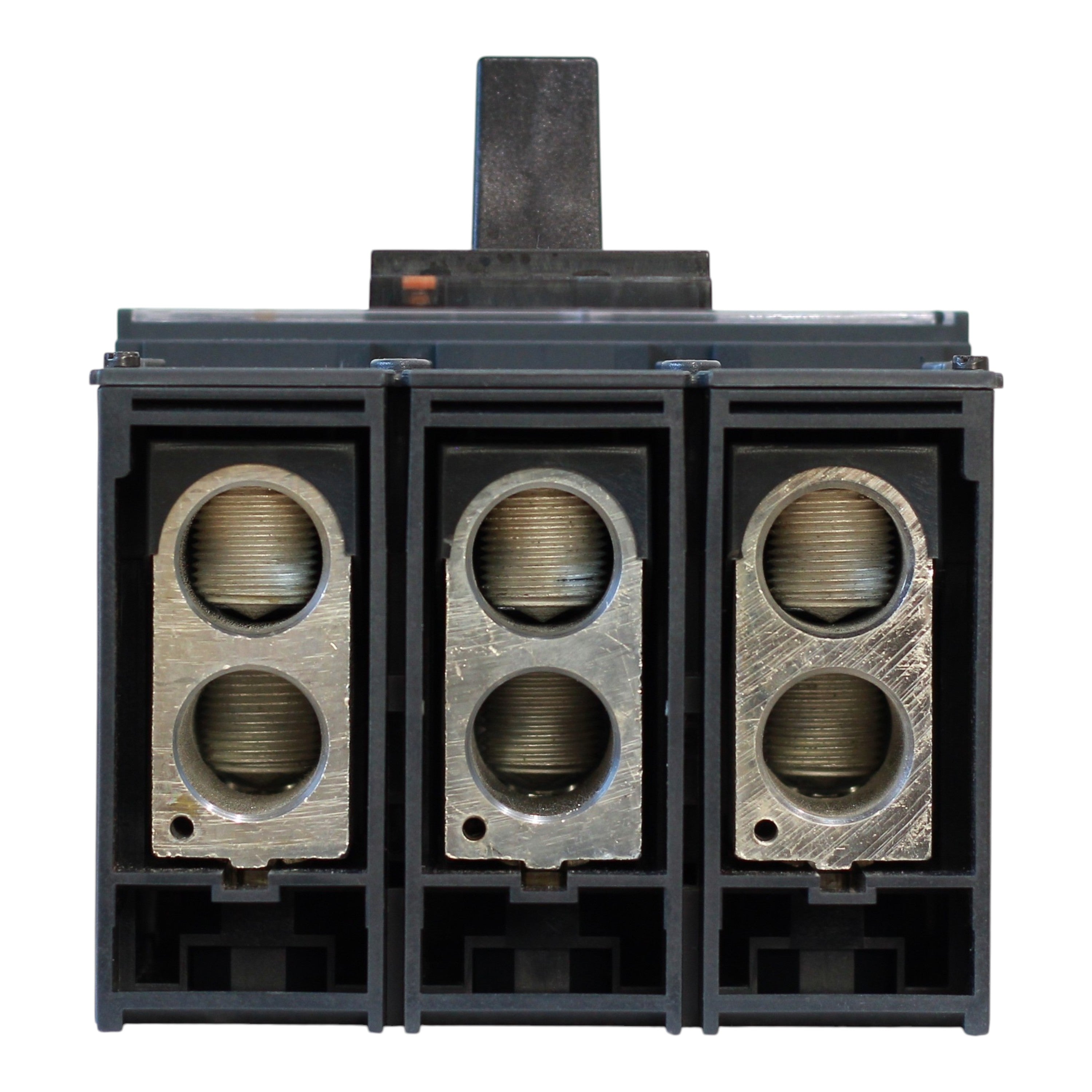

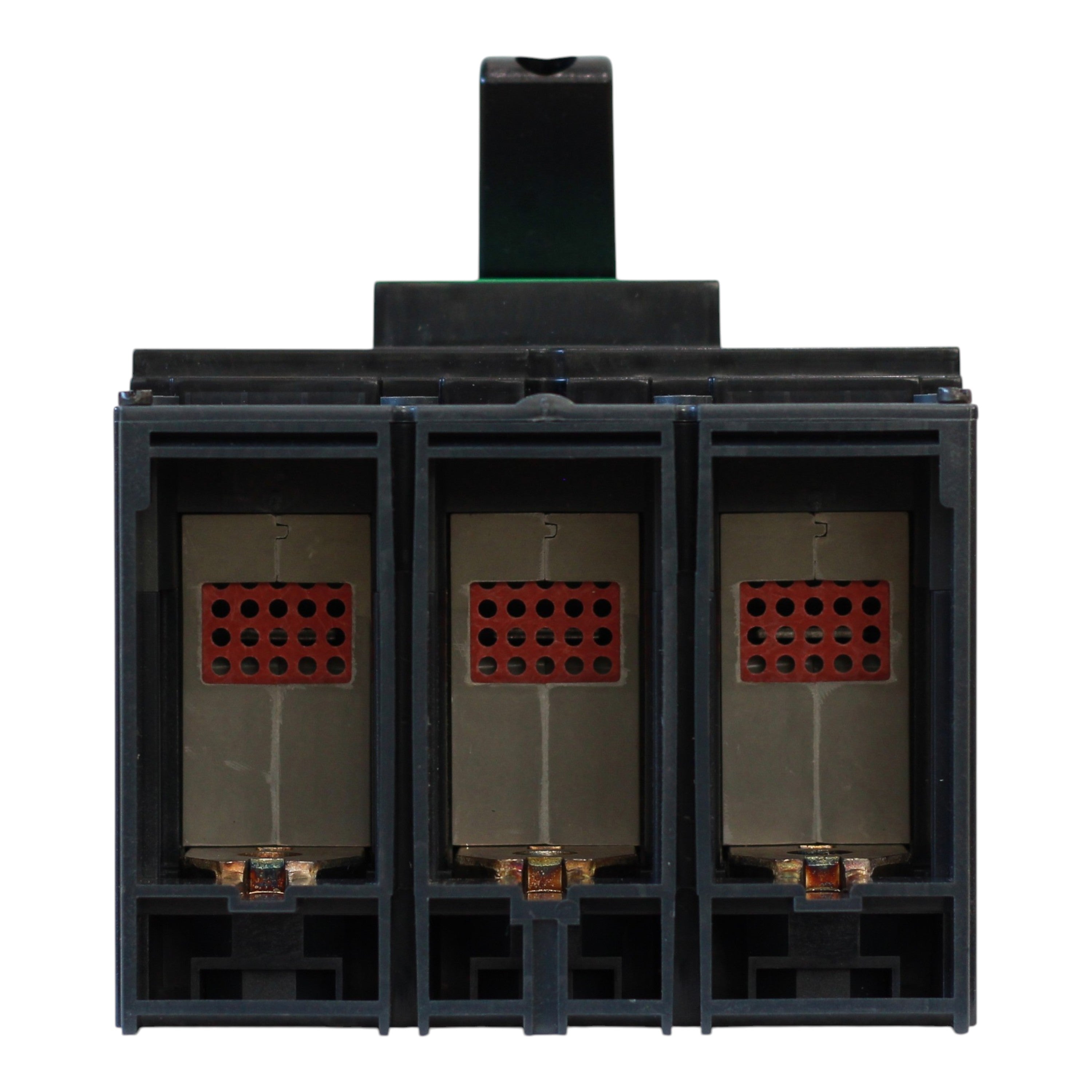

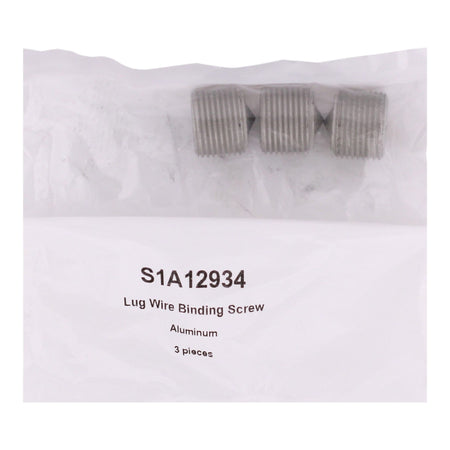

  • Connections / Terminals: Terminal nuts (line side); Lugs (load side) — Terminal ID: AL600LS52K3
  • Wire Size: 2× #2/0–500 kcmil Cu/Al
  • Tightening Torque: 442.5 lb-in (#2/0–500 kcmil)
  • Communication Interface: Modbus, Ethernet
  • LED Indicators: Ready (green); Alarm 90% Ir (orange); Alarm 105% Ir (red); Trip indicator (green)
  • Dimensions: Height: 13.4 in; Width: 5.5 in; Depth: 4.3 in
  • Weight: 13.7 lbs
  • Certifications: UL 489, CSA, NEMA, NOM, IEC 60947-2, CCC, CE Marked, HACR Rated

This Square D LGP36400U31X PowerPacT L-Frame electronic trip molded case circuit breaker delivers dependable 400 Amp, 3-Pole protection for 600VAC, 3-phase circuits in unit mount switchboards and motor control centers. With MicroLogic 3.3 adjustable LI trip unit, 18kAIC interrupt capacity at 600VAC, dual-break rotating contacts, Modbus/Ethernet communication, and an 80% continuous current rating, it supports large commercial and industrial power distribution applications.
