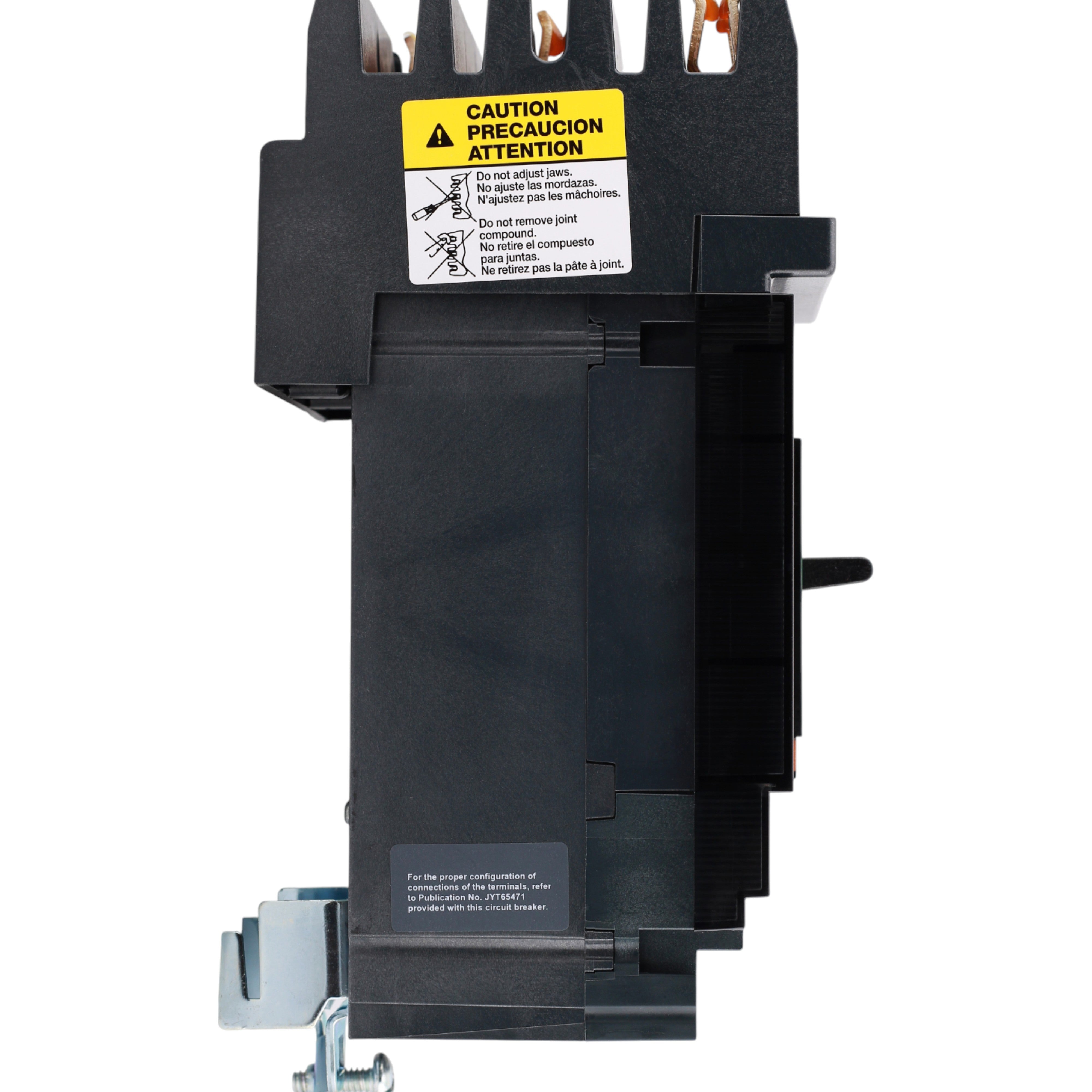

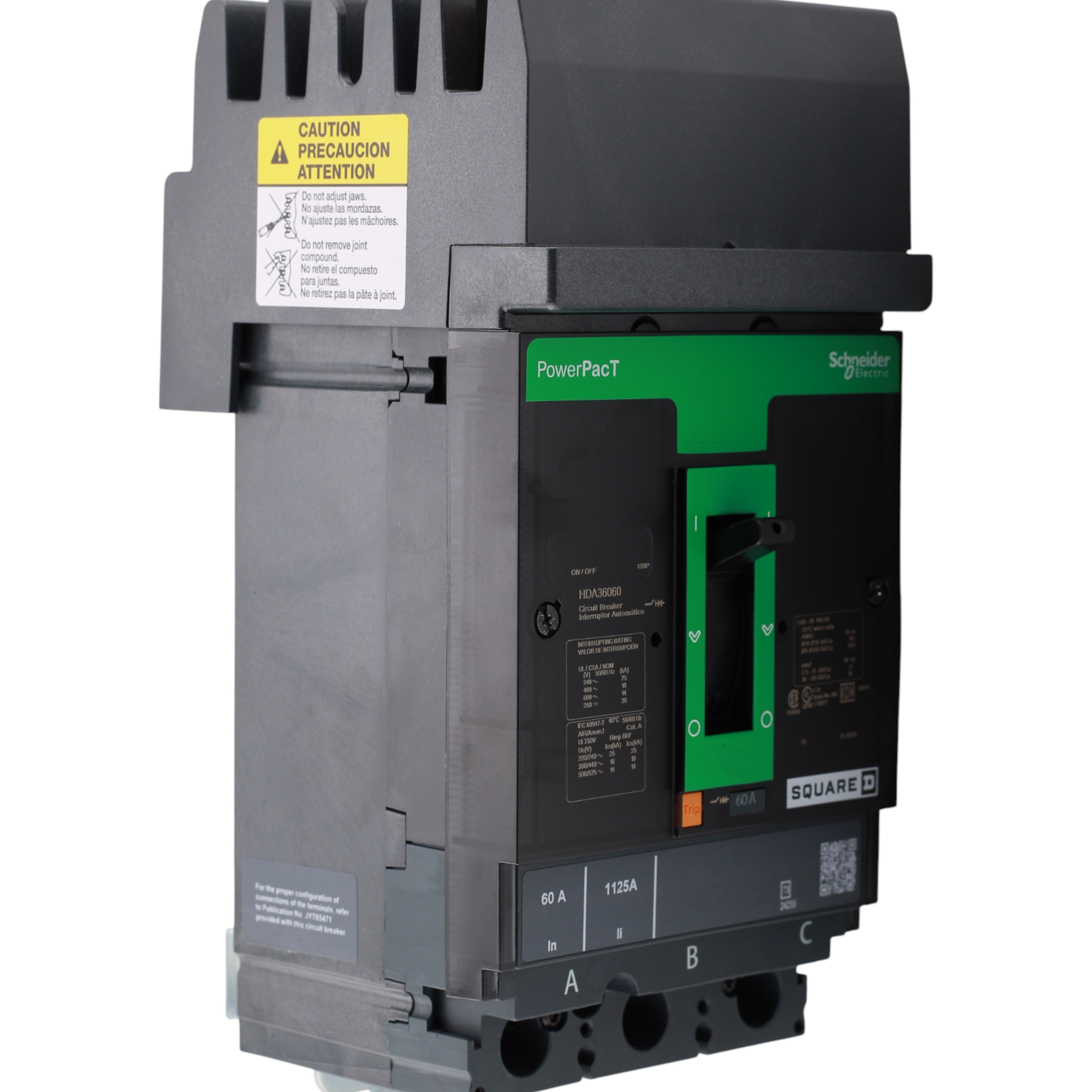

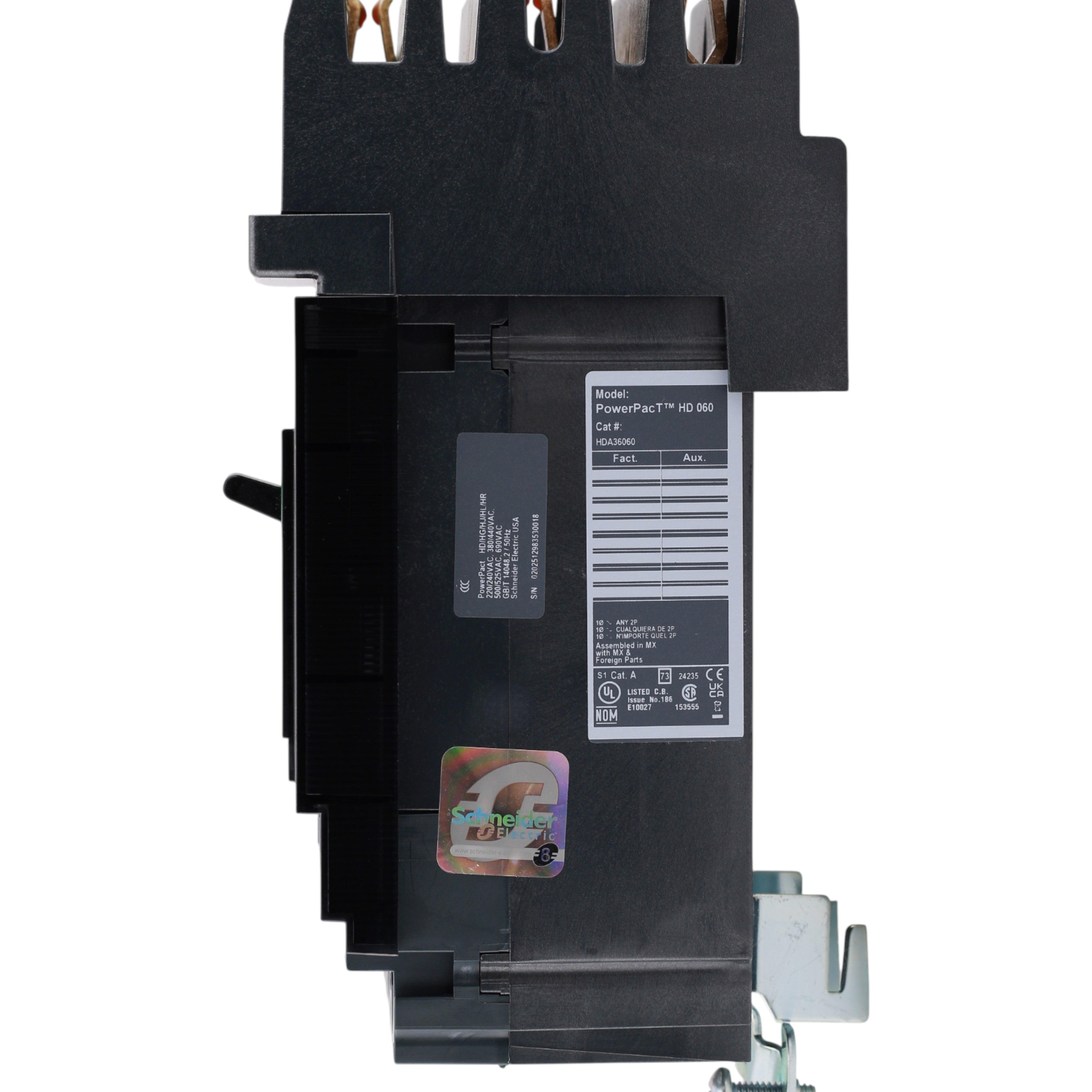

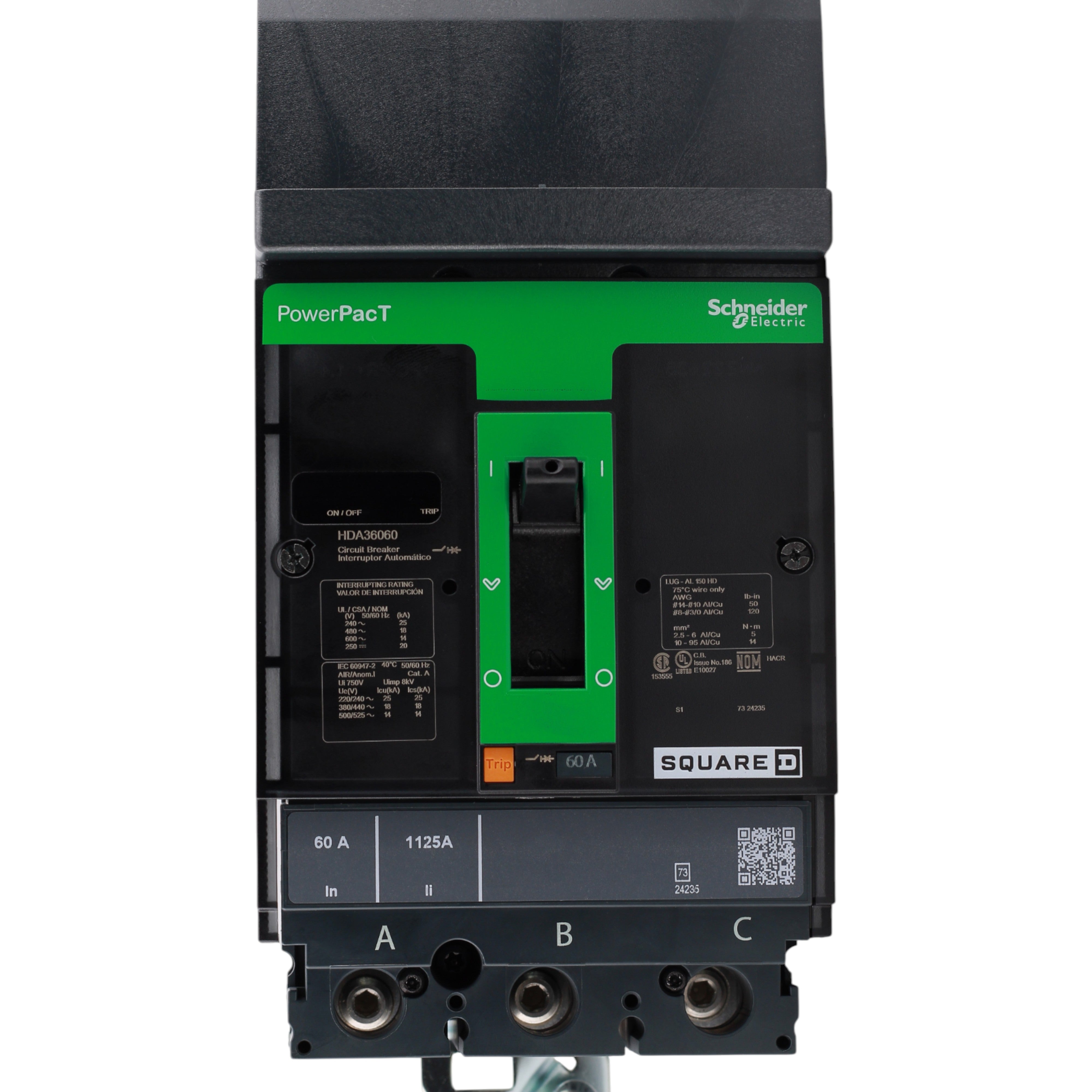

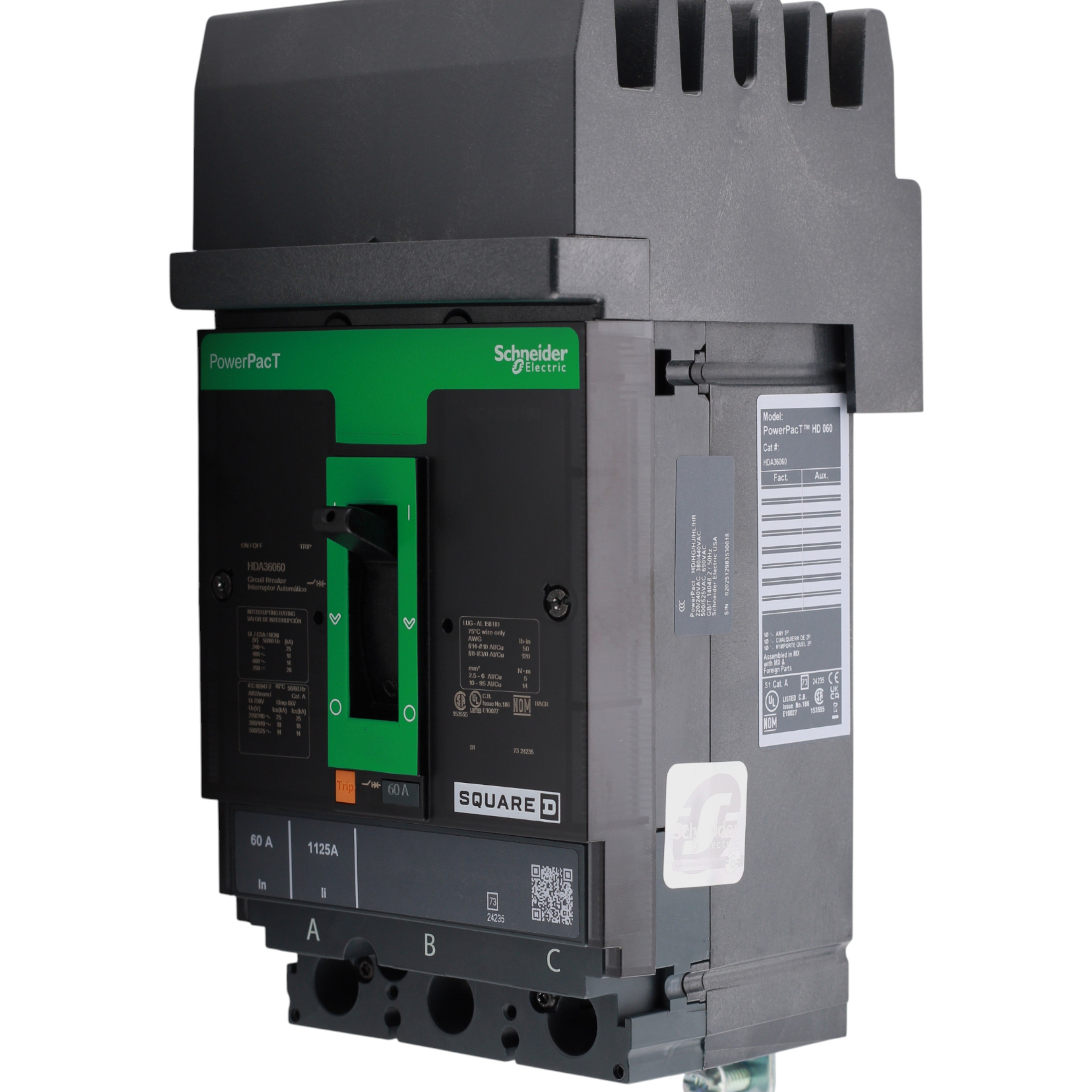

Square D HDA36060 Circuit breaker, PowerPacT H, 60A, 3 pole, 600VAC, 14kA, I-Line, ABC
Regular price
$420.00 USD
Shipping options appear at checkout.
Circuit breaker, PowerPacT H: 60 Amp 3-Pole Thermal-Magnetic Circuit Breaker, 600VAC, 14kA, I-Line, 80% rated, UL, CSA, IEC certified.
- Manufacturer: Schneider Electric
- Brand: Square D
- Product Range: PowerPacT H (for PowerPacT H loadcenters and equipment)
- UPC: 785901419969
- Model Number: HDA36060
- Breaker Type: Thermal-Magnetic
- Amperage: 60 Amps
- Poles: 3-Pole
- Voltage: 600 Volts AC
- Interrupt Rating: 14 kAIC

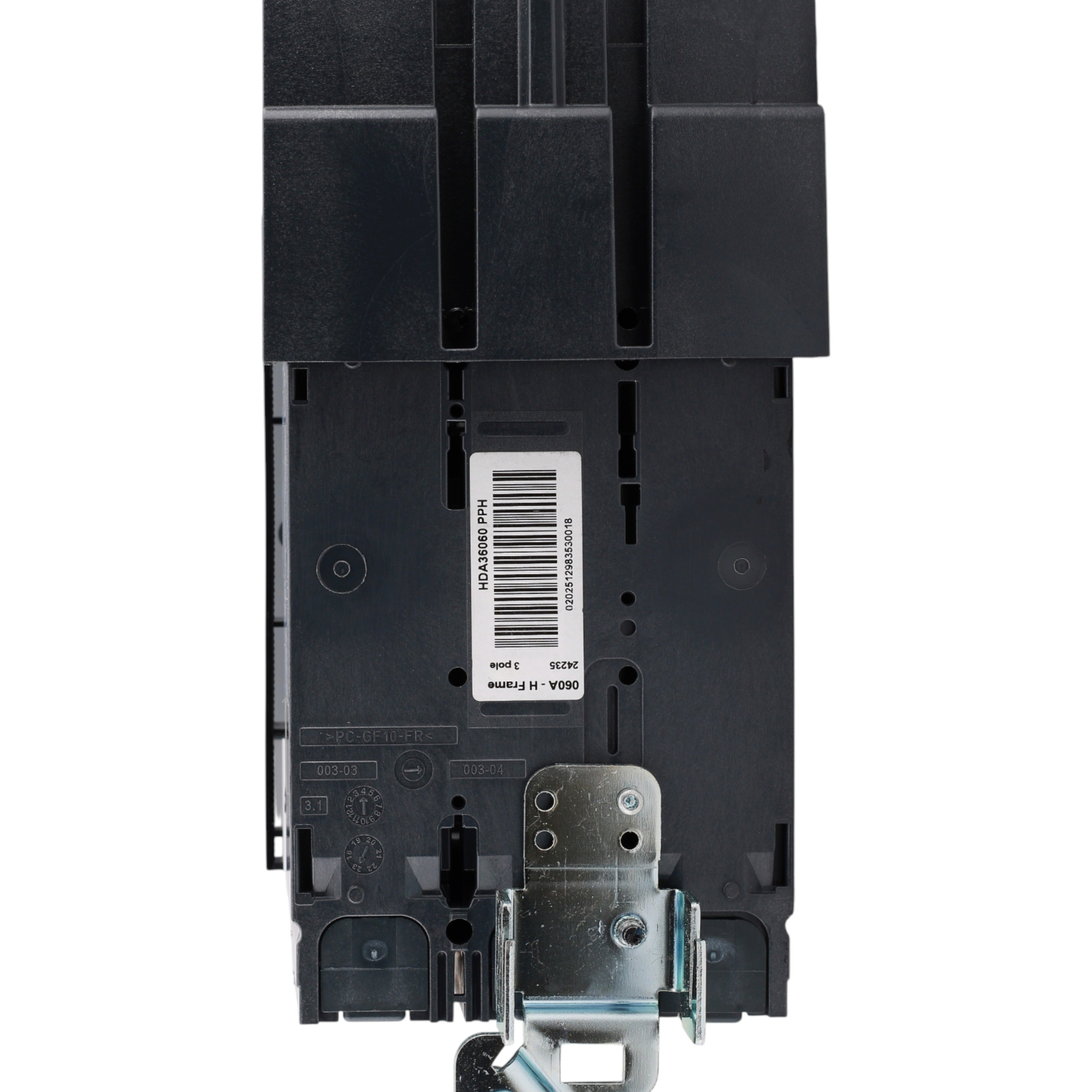

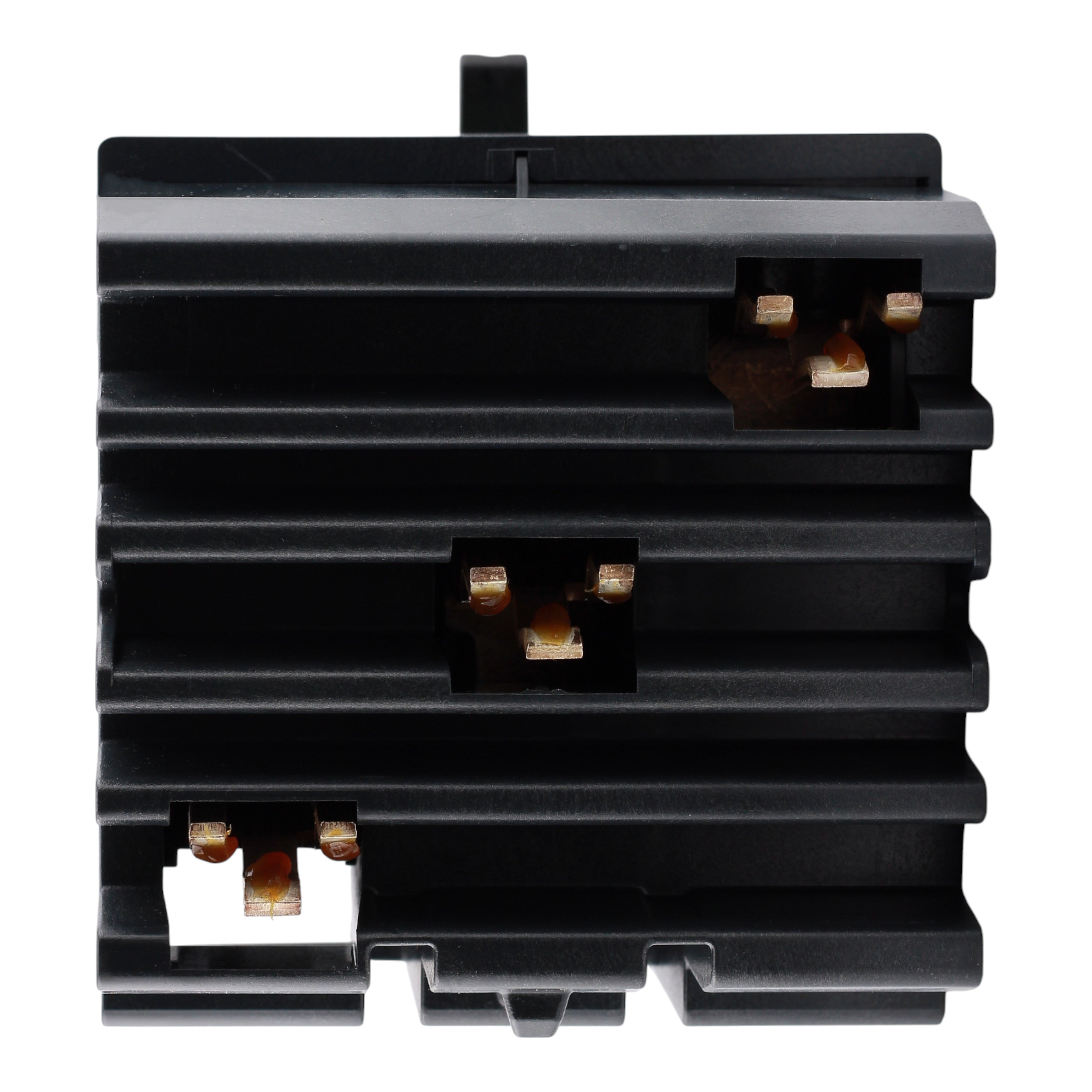

- Mounting Mode: I-Line

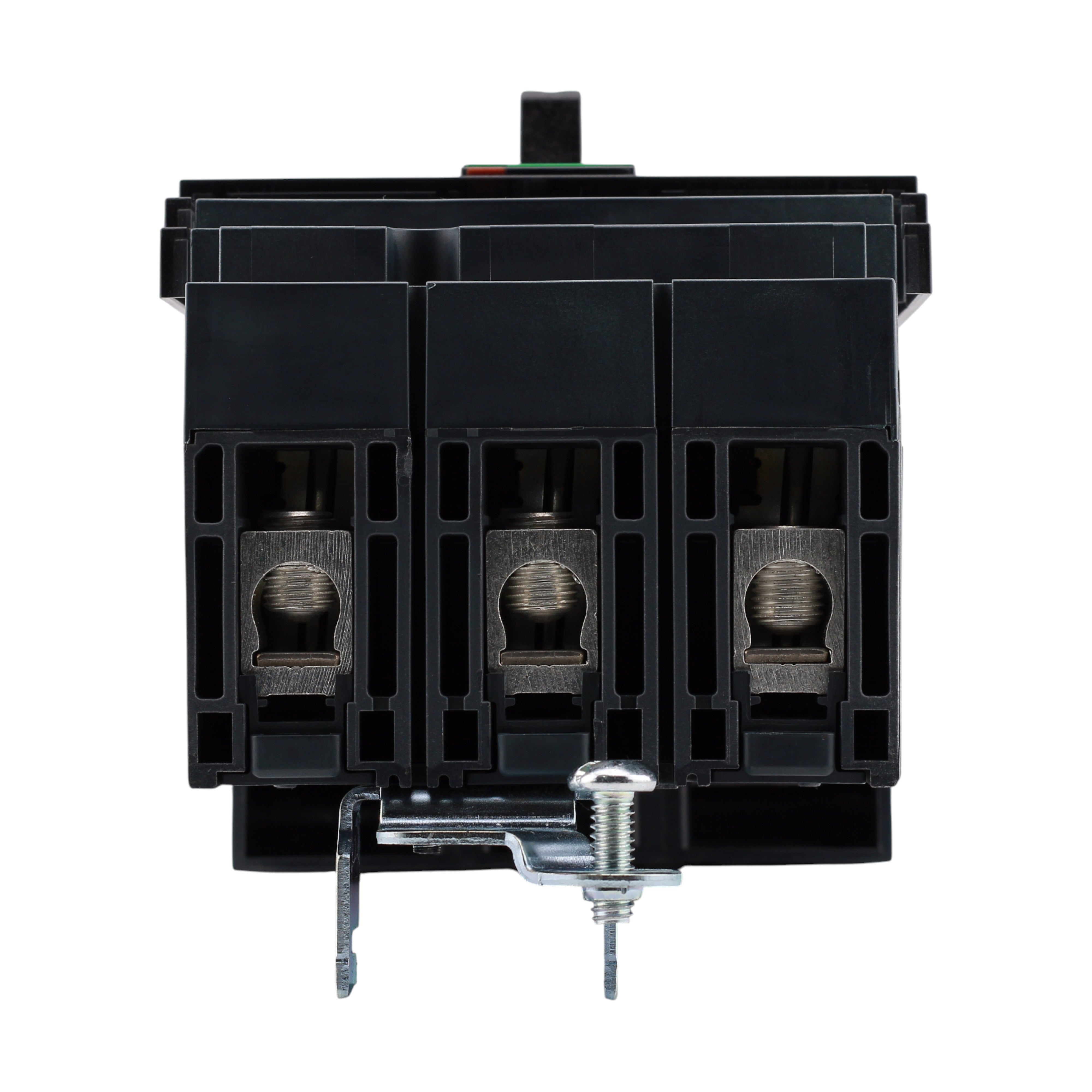

- Connections Terminals: I-Line connection (line), Lugs (load)
- Wire Size: AWG 14...AWG 3/0 Cu/Al
- Tightening Torque: 44.3 lb-in (AWG 14...AWG 10), 123.9 lb-in (AWG 8...AWG 3/0)
- Dimensions: Height: 6.4 in; Width: 4.09 in; Depth: 3.4 in
- Weight: 4.9 lbs
- Certifications: UL Listed, CSA, NOM, IEC 60947-2, HACR Rated
This Square D PowerPacT H HDA36060 circuit breaker provides reliable 60A, 3-pole thermal-magnetic protection for 600VAC circuits in PowerPacT H loadcenters. With a 14kA interrupting capacity and I-Line mounting, it ensures robust performance and easy installation for commercial and industrial applications.
New Condition
- Products in new condition are unused and in their original state.
- Backed by our 24-month warranty, ensuring reliability and peace of mind.
Reconditioned Condition
- Products in reconditioned condition are previously owned but have been professionally tested and inspected to ensure full functionality.
- May include minor repairs, such as replacing damaged screws, but are not fully refurbished.
- Covered by our 12-month warranty, guaranteeing performance.
