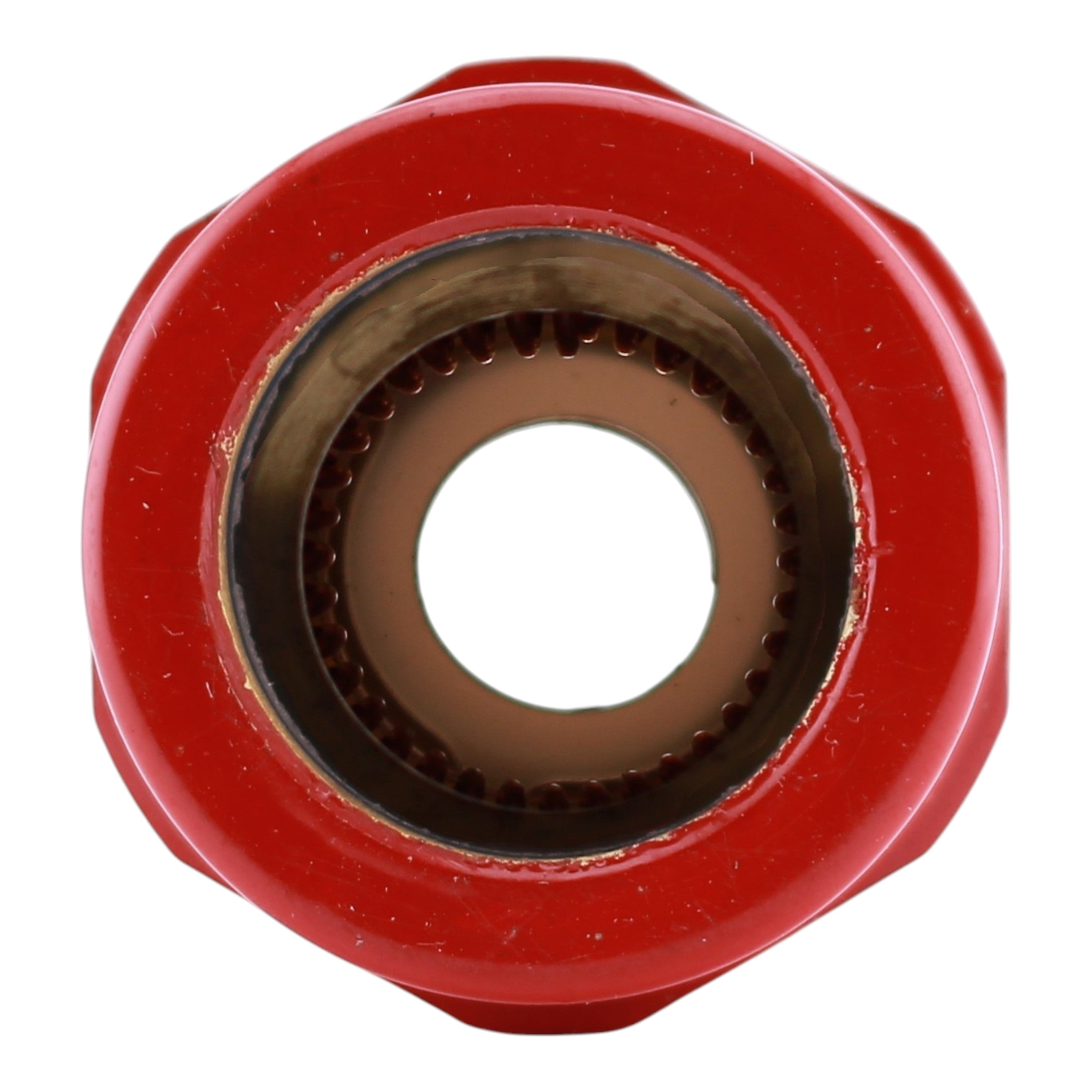

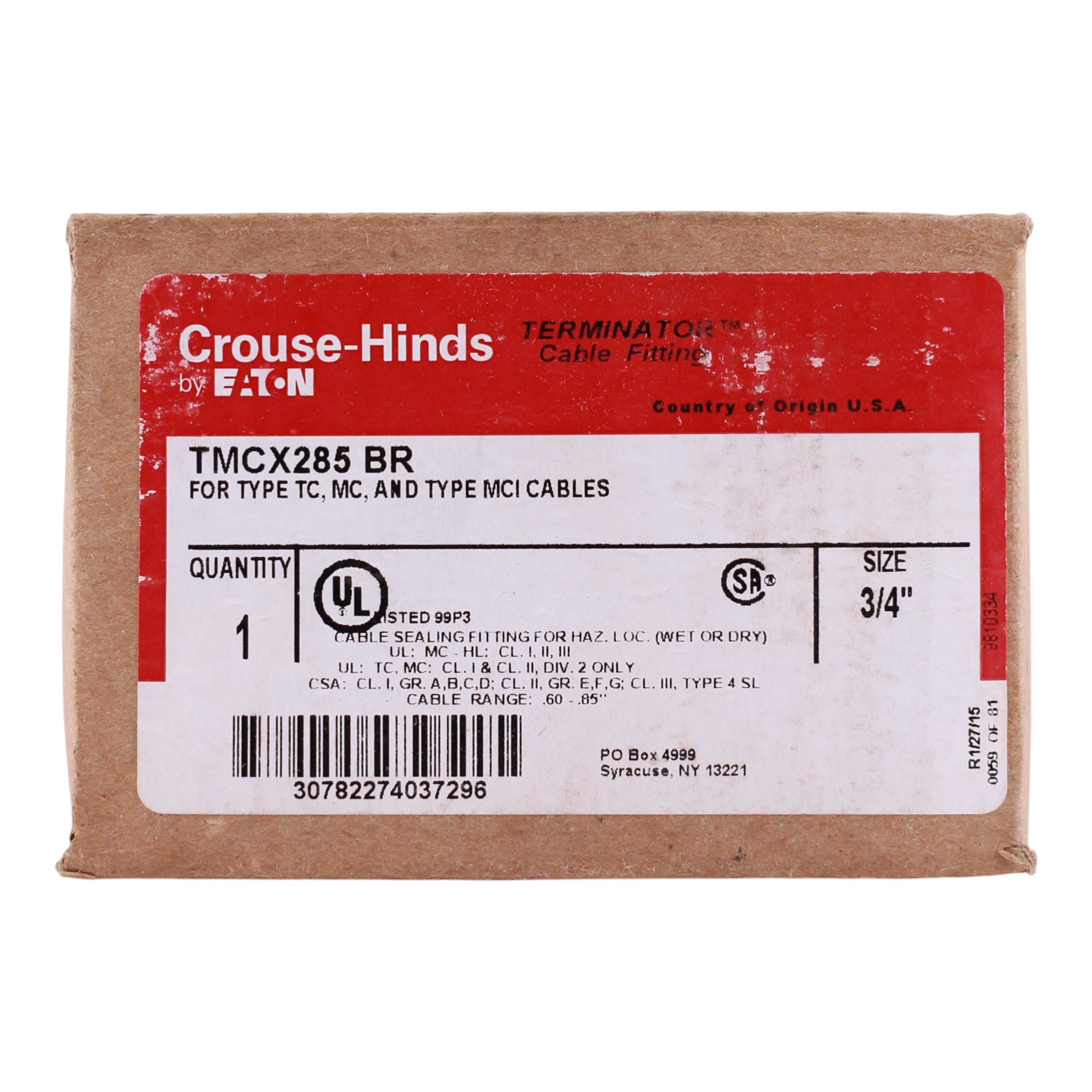

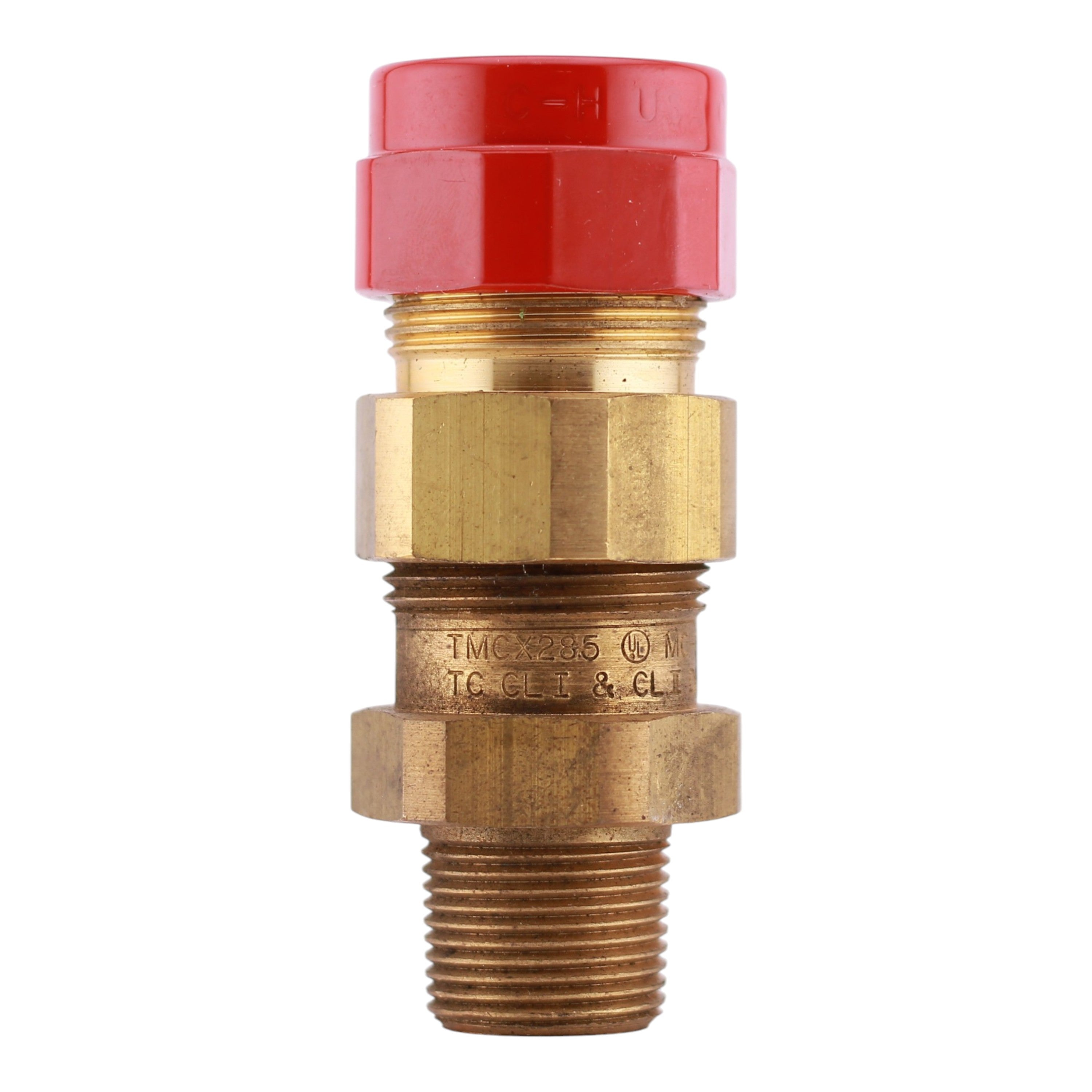

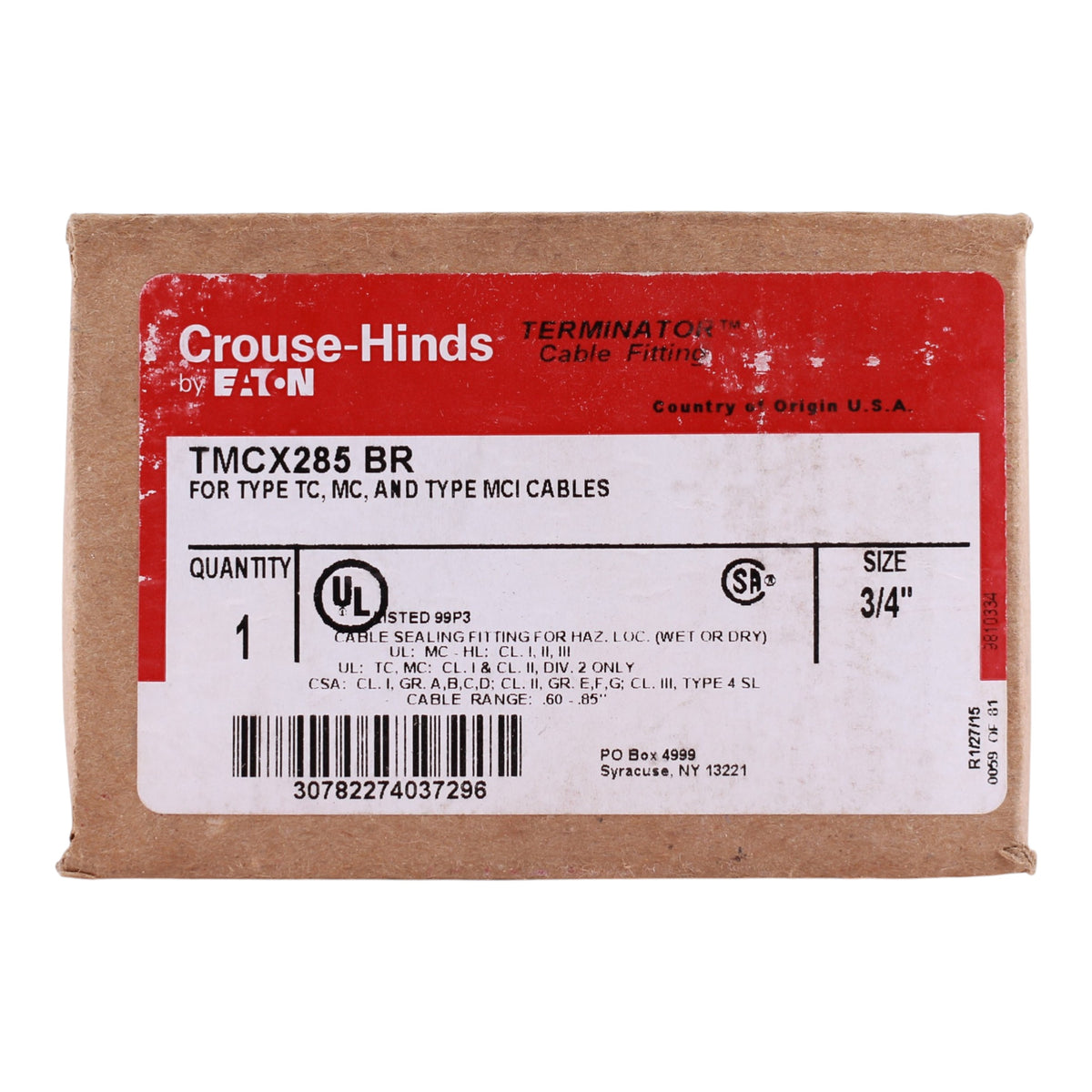

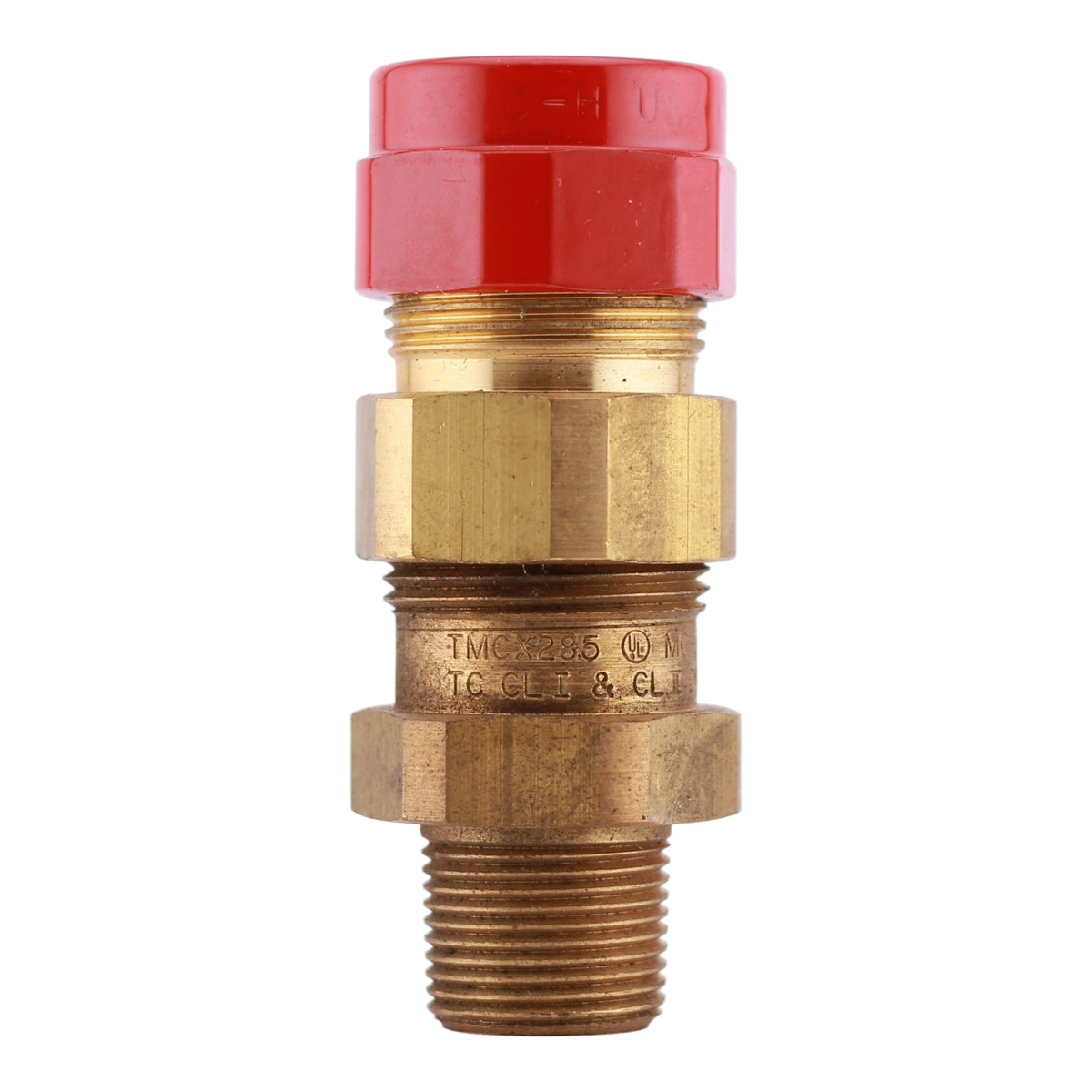

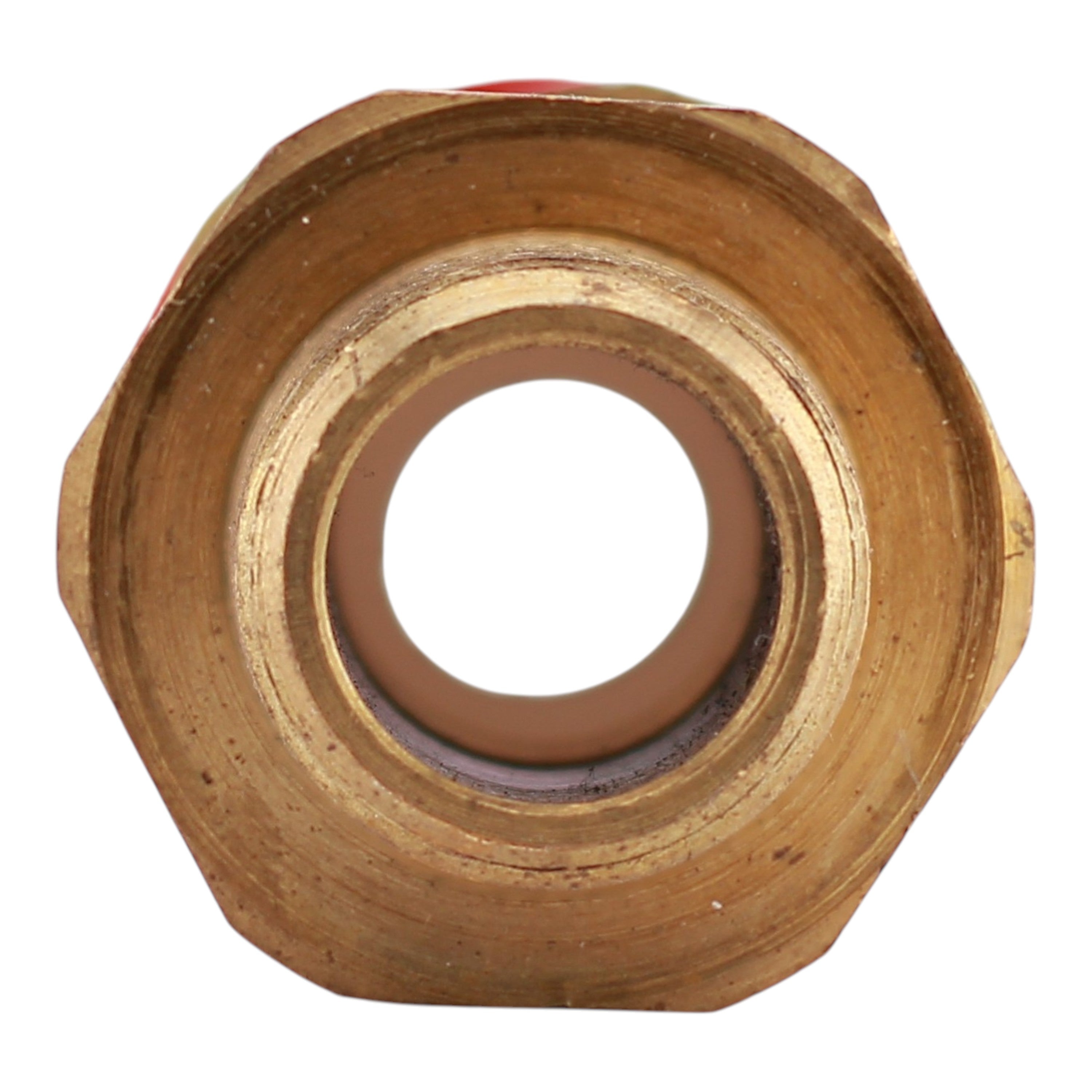

Eaton Crouse-Hinds TMCX, TMCX285 BR, 3/4" NPT, Brass, Explosionproof Armored Barrier Cable Gland

In stock - 5 items available
SKU: TMCX285 BR UPC: 30782274037296

BULK ORDER Quote.

How Bulk Order Discounts Work

We partner with Cart Whisper to make bulk ordering fast and simple. You can build your cart normally, then submit the entire cart to our team so we can apply bulk pricing and send you a custom quote.

1) Add everything you need to your cart

Shop the site and add all the products and quantities you want — just like a normal order.

2) Open your cart drawer and submit your cart

When you open the cart drawer, you’ll see a Cart Whisper section that looks like this:

Need Help? Cart ID: ####
Submit Cart to Support

Click “Submit Cart to Support” to send your cart to our team.

3) Fill out the quick form

After clicking the submit button, a form will pop up. Please enter:

  • Name

  • Email

  • Short message (what you want / any special notes)

Important: Include your shipping address in the message.
That helps us quote your order accurately, including shipping and taxes (if applicable).

4) We review and send your custom quote

Once we receive your cart submission, we’ll:

  • Review your cart items and quantities

  • Apply any eligible bulk discounts

  • Send you a custom quote with final pricing (and shipping/tax if applicable)


What to include in your message (recommended)

To speed things up, copy/paste this format into the message box:

  • Shipping Address:

  • Notes / Special requests:

SELECT ITEM CONDITION
Regular price $150.00 USD
Regular price Sale $281.00 USD Sale price $150.00 USD
Payment methods
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Eaton TMCX285 BR: 3/4" NPT, Brass, TMCX Explosionproof Armored & Non-Armored Barrier Cable Gland, Class I/II/III Div. 1, NEMA 4, NEC/CEC.

  • Manufacturer: Eaton
  • Brand: Eaton Crouse-Hinds
  • Product Range: TMCX Series – Explosionproof Armored Barrier Cable Glands
  • UPC: 30782274037296
  • Model Number: TMCX285 BR
  • Device Type: Cable Gland
  • Gland Type: Armored Barrier and Non-Armored Barrier
  • Protection Type: Explosion-proof
  • Material: Brass
  • Thread Size: 3/4"
  • Thread Type: NPT
  • Cable Type: Metal-clad with interlocked or continuously welded corrugated armor; TECK armored; tray cable
  • Armor Range (min/max): 0.60–0.85 in
  • Outer Sheath Range (min/max): 0.65–1.00 in
  • Area Classification: Hazardous/Classified Locations
  • NEC Hazardous Rating: Class I Division 1; Class II Division 1; Class III
  • Standards: NEC/CEC
  • NEMA Rating: NEMA 4
  • Dimensions: Height: 1.63 in; Width: 1.63 in; Depth: 3.66 in
  • Weight: 1.13 lbs

This Eaton Crouse-Hinds TMCX285 BR brass explosionproof cable gland provides reliable armored and non-armored barrier sealing for metal-clad, TECK armored, and tray cables in Class I, II, and III Division 1 hazardous locations. With a 3/4" NPT thread, NEMA 4 rating, and NEC/CEC compliance, it supports safe cable termination in industrial and classified-location installations.
