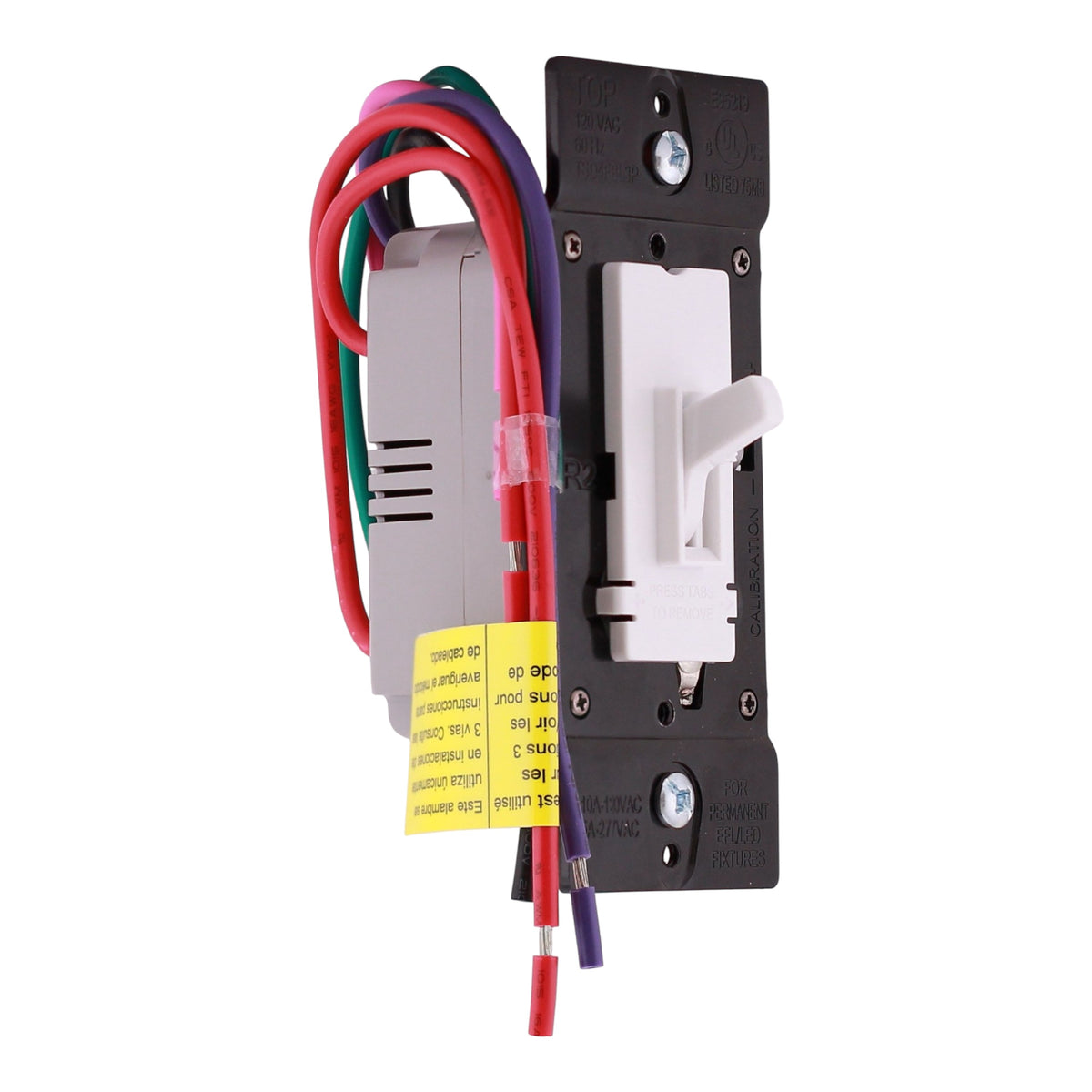

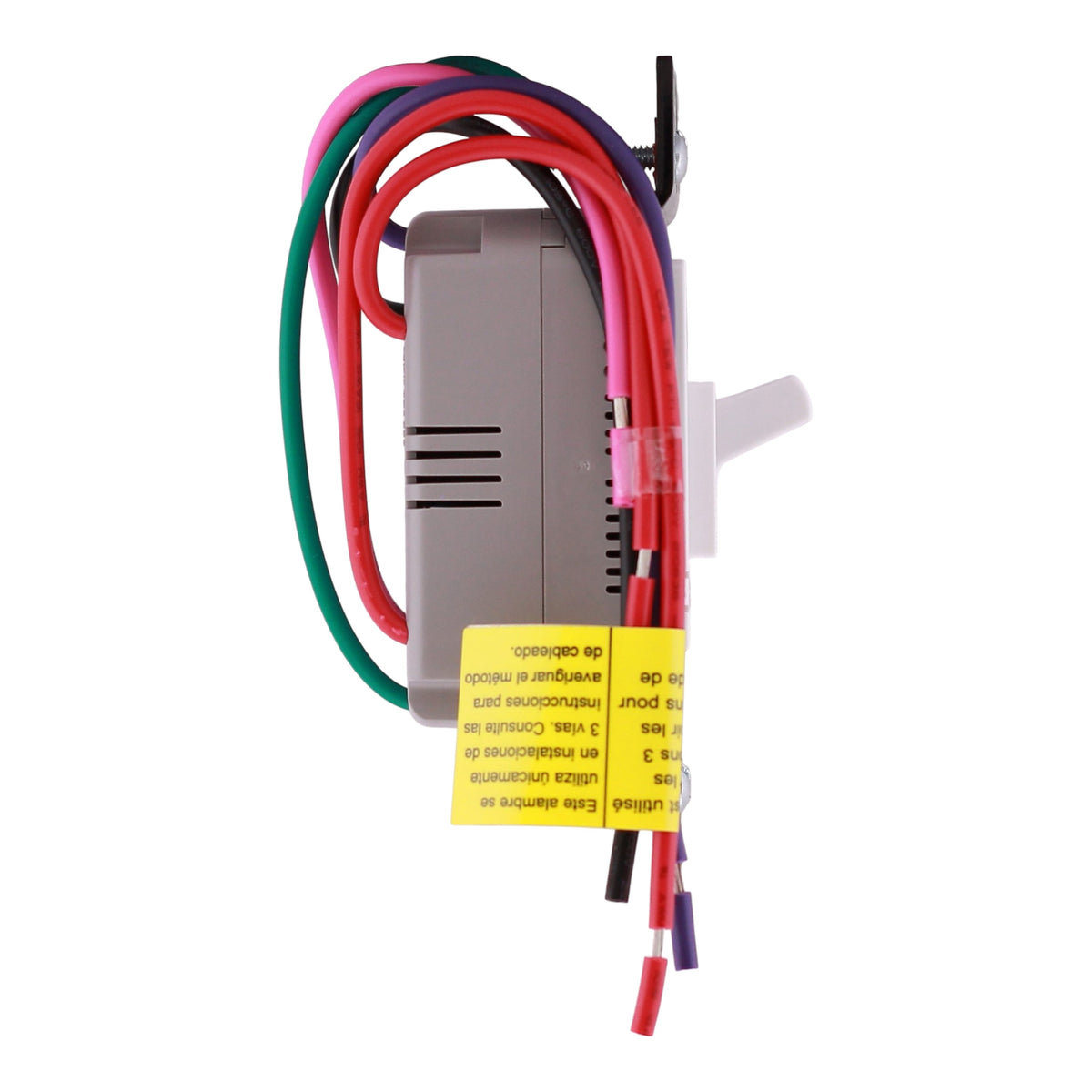

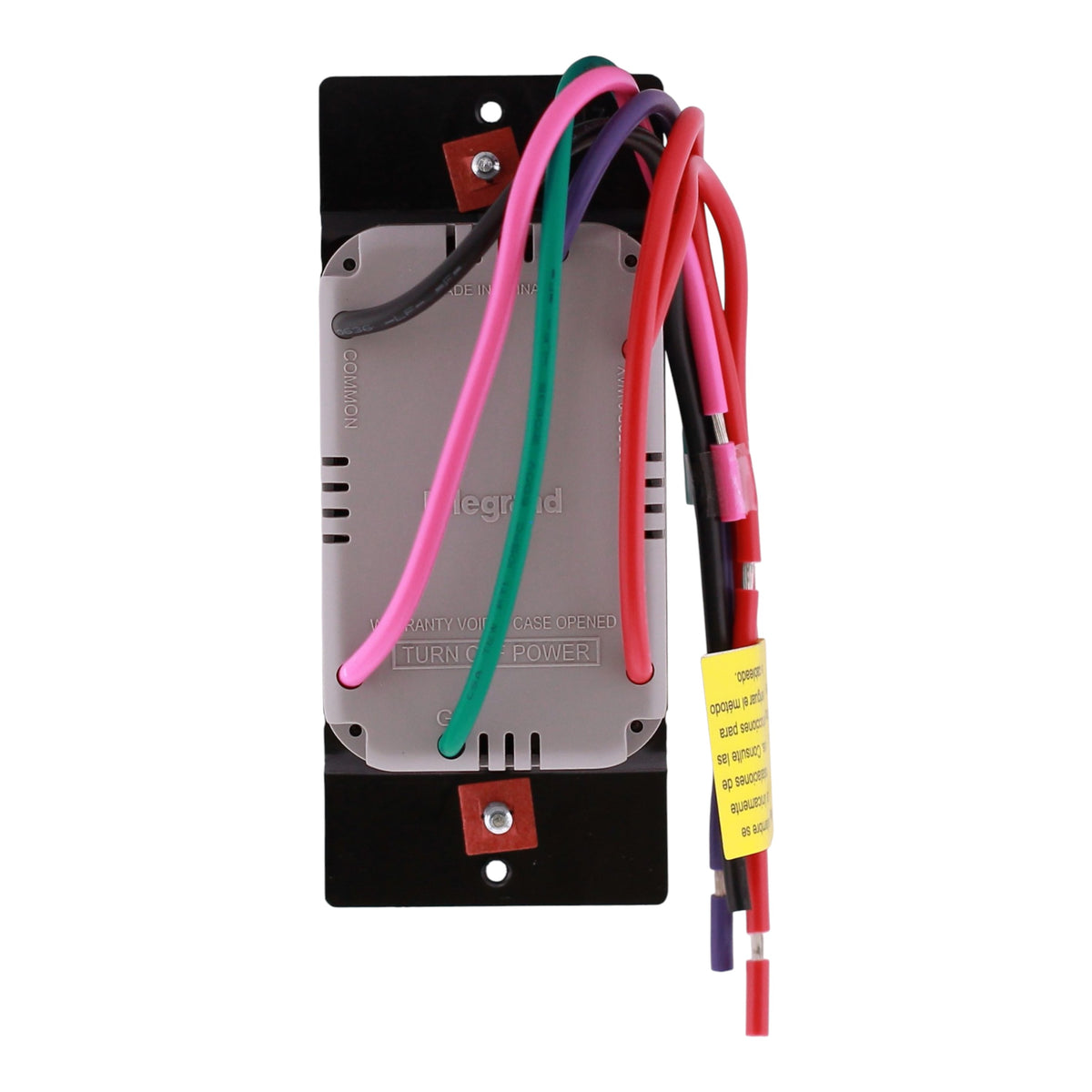

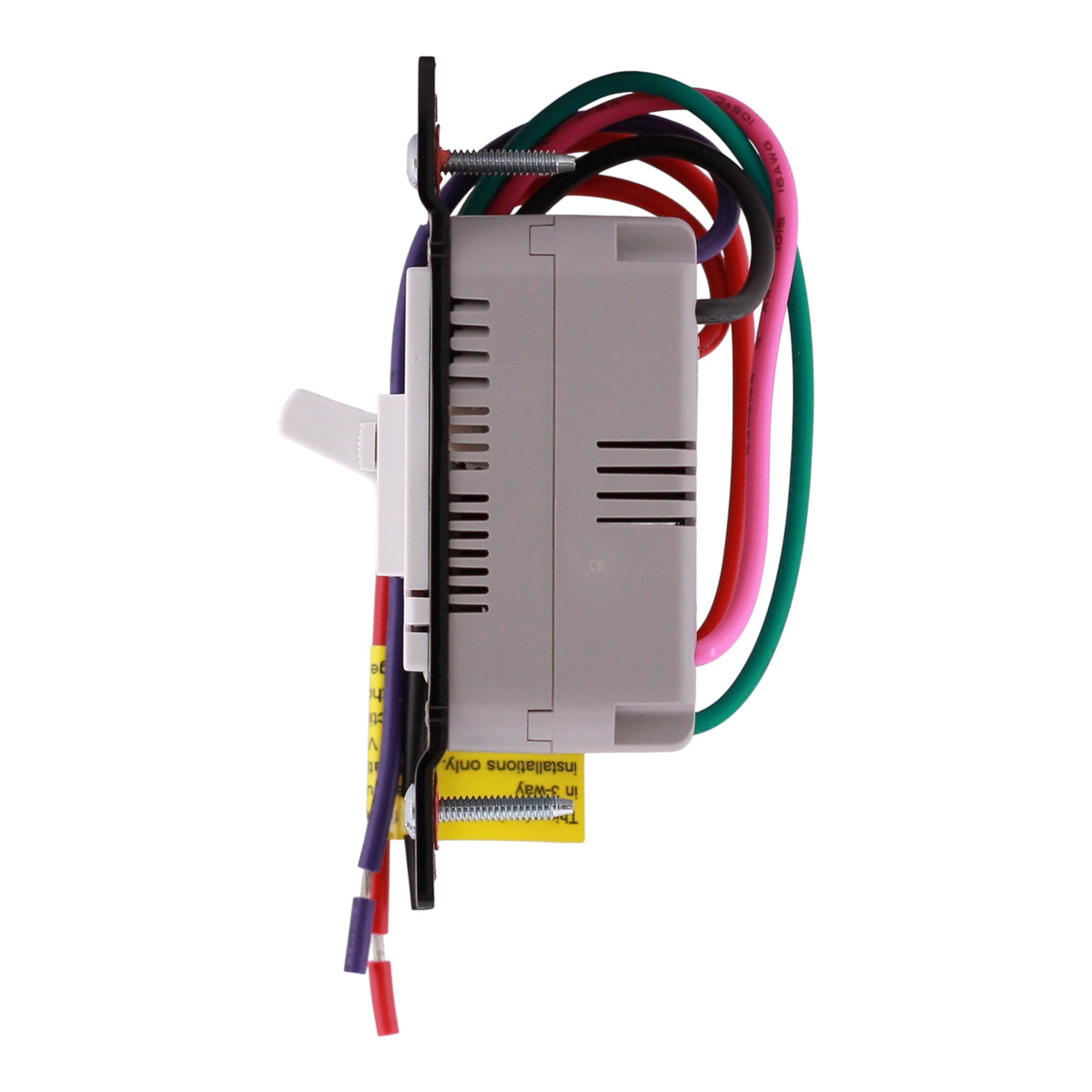

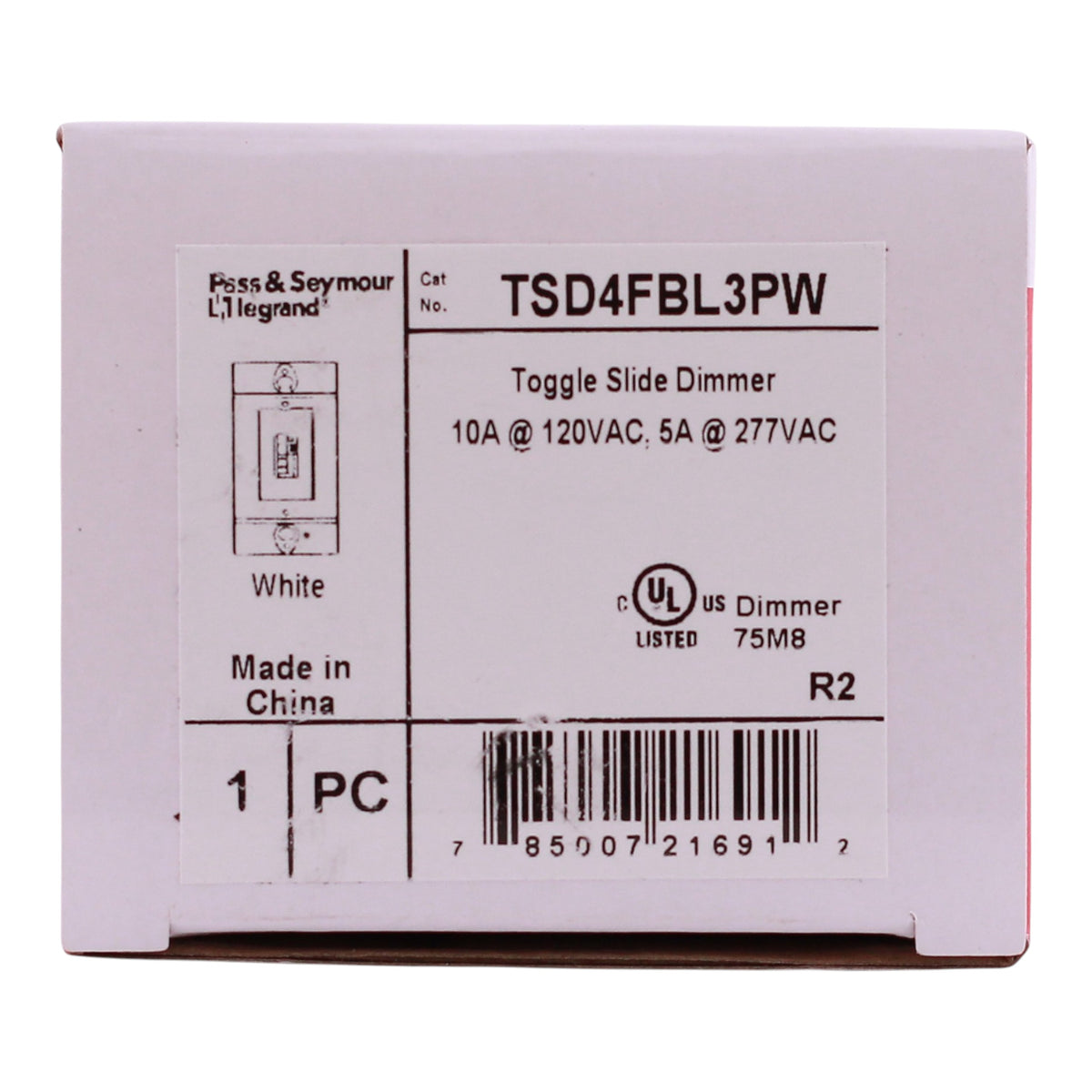

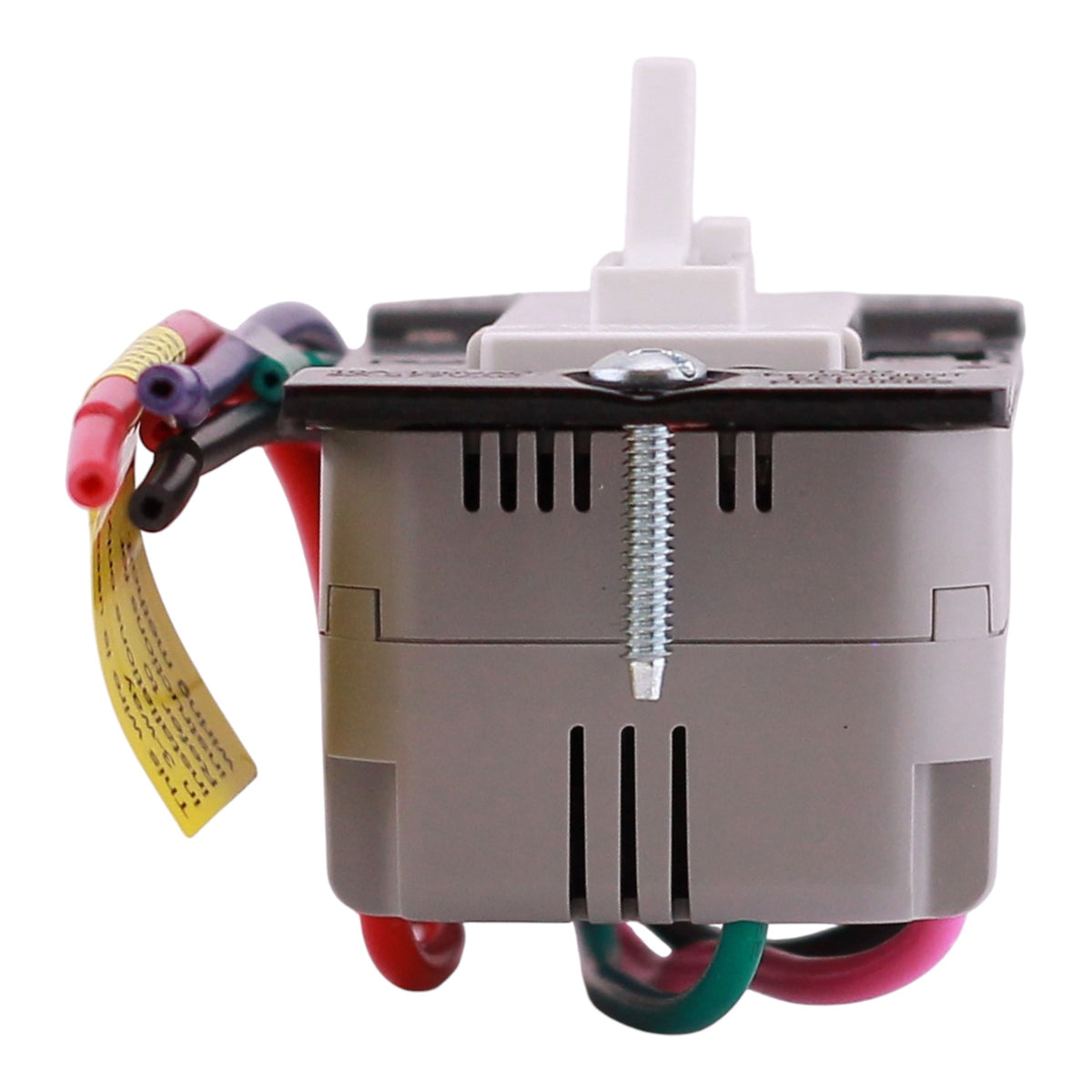

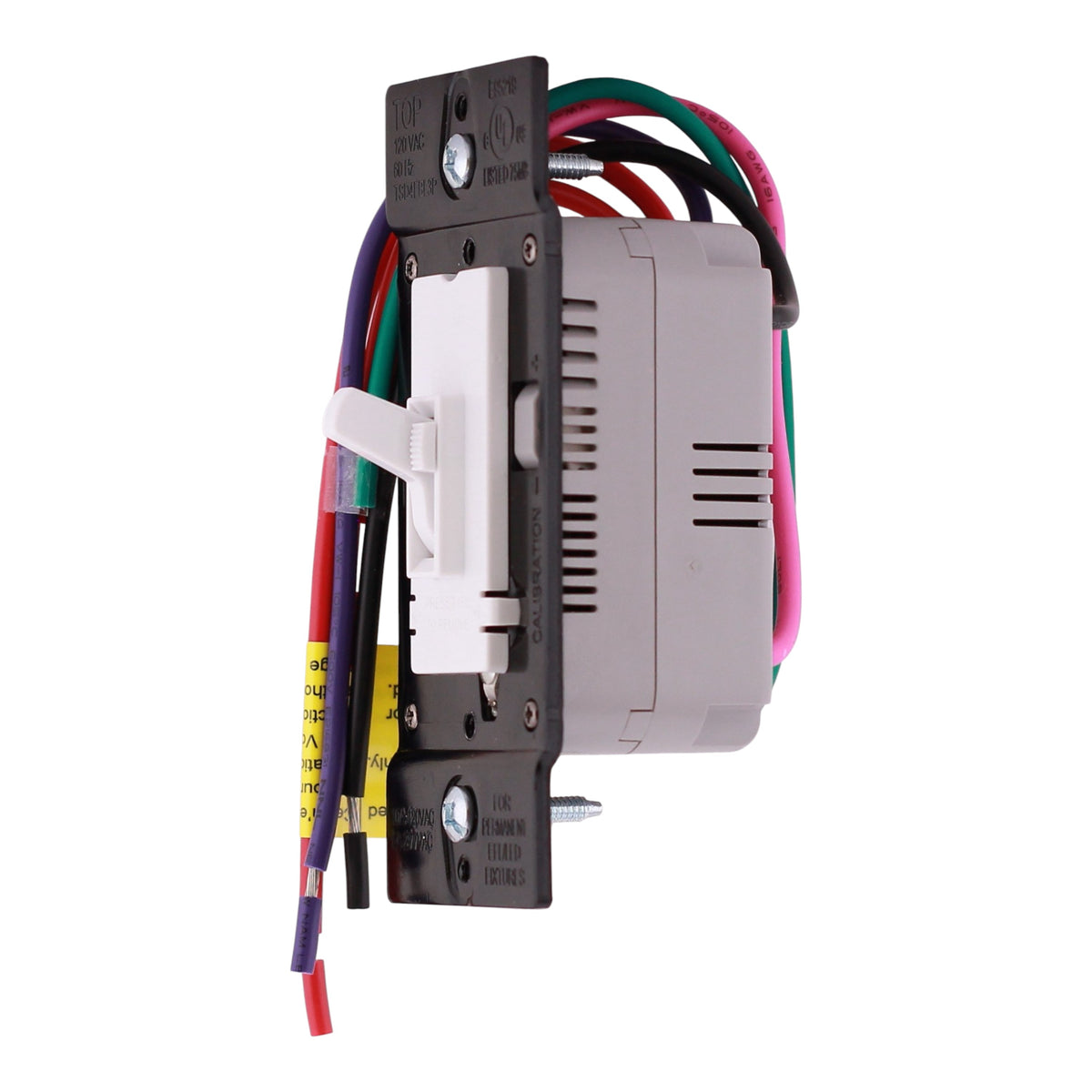

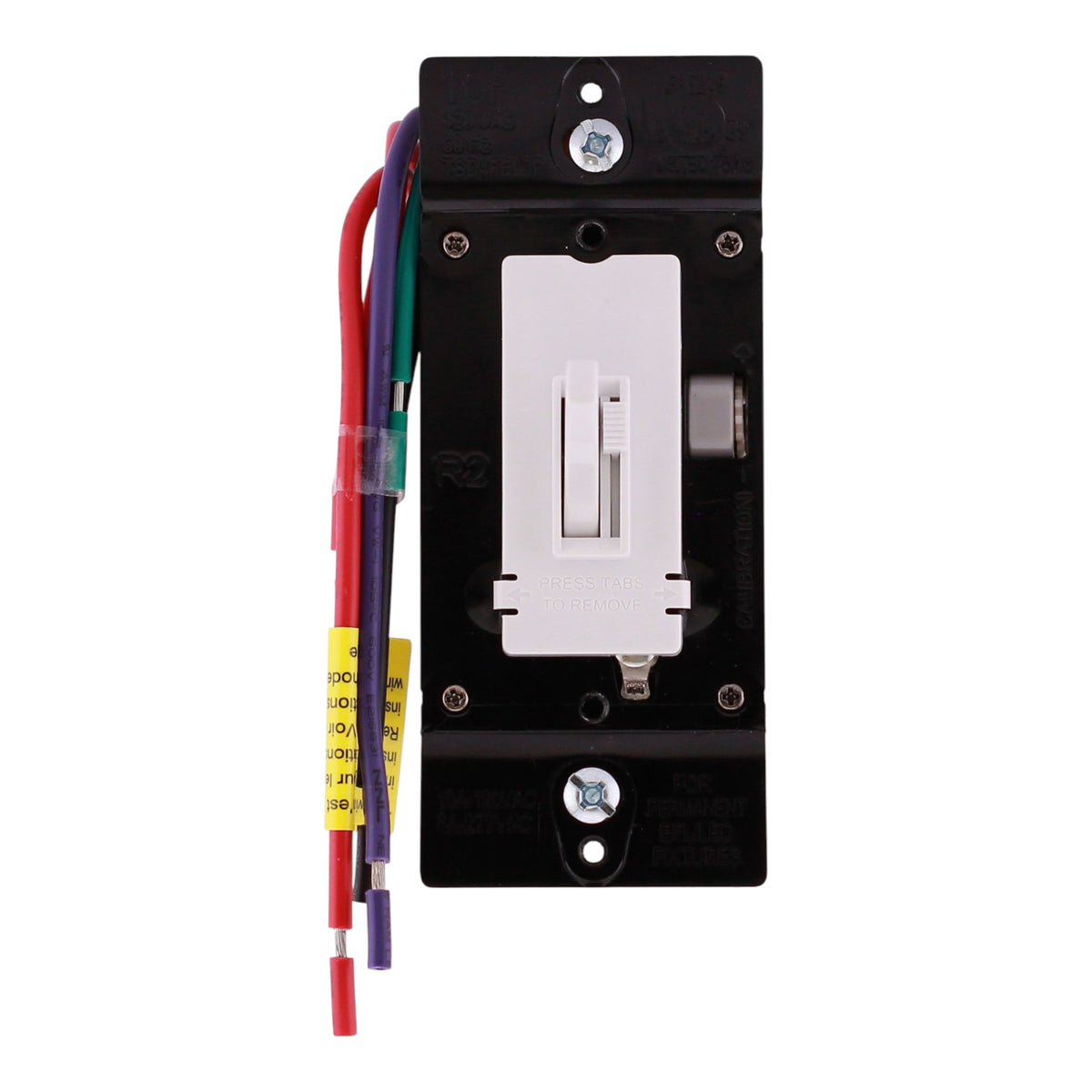

Pass & Seymour TradeMaster, TSD4FBL3PW, 0-10V, 10A/120V, 5A/277V, SP/3-Way, Toggle Slide Dimmer, Fluorescent/LED, White

Out of stock
SKU: TSD4FBL3PW UPC: 785007216912

BULK ORDER Quote.

How Bulk Order Discounts Work

We partner with Cart Whisper to make bulk ordering fast and simple. You can build your cart normally, then submit the entire cart to our team so we can apply bulk pricing and send you a custom quote.

1) Add everything you need to your cart

Shop the site and add all the products and quantities you want — just like a normal order.

2) Open your cart drawer and submit your cart

When you open the cart drawer, you’ll see a Cart Whisper section that looks like this:

Need Help? Cart ID: ####
Submit Cart to Support

Click “Submit Cart to Support” to send your cart to our team.

3) Fill out the quick form

After clicking the submit button, a form will pop up. Please enter:

  • Name

  • Email

  • Short message (what you want / any special notes)

✅ Important: Include your shipping address in the message.
That helps us quote your order accurately, including shipping and taxes (if applicable).

4) We review and send your custom quote

Once we receive your cart submission, we’ll:

  • Review your cart items and quantities

  • Apply any eligible bulk discounts

  • Send you a custom quote with final pricing (and shipping/tax if applicable)


What to include in your message (recommended)

To speed things up, copy/paste this format into the message box:

  • Shipping Address:

  • Notes / Special requests:

SELECT ITEM CONDITION
Regular price $22.00 USD
Regular price Sale $68.50 USD Sale price $22.00 USD
Payment methods
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

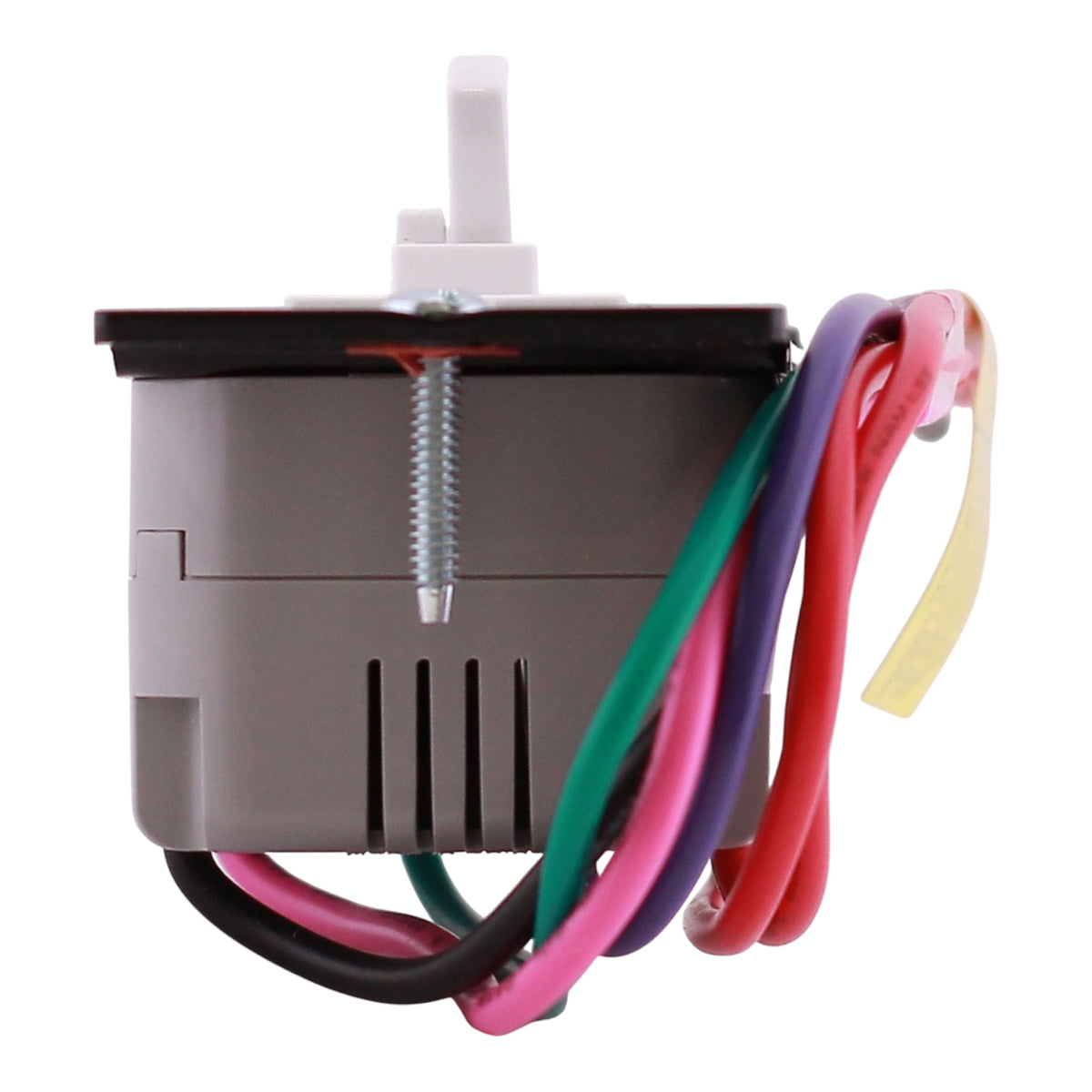

Pass & Seymour TSD4FBL3PW: 0-10V Fluorescent/LED Toggle Slide Dimmer, Single Pole/3-Way, 10A @ 120V / 5A @ 277V, Preset, 6-Wire, White, Lifetime Warranty.

  • Manufacturer: Legrand North America
  • Brand: Pass & Seymour (Legrand)
  • Product Range: TradeMaster® Series (WattStopper)
  • UPC: 785007216912
  • Model Number: TSD4FBL3PW
  • Device Type: 0-10V Toggle Slide Dimmer Switch, Preset, Single Pole/3-Way
  • Dimming Protocol: 0-10V (Sink Dimmer; minimum output voltage ≤0.7V)
  • Load Rating: 10A @ 120V AC (Fluorescent/LED); 5A @ 277V AC (Fluorescent/LED)
  • Voltage: 120/277 Volts AC
  • Frequency: 60 Hz
  • Poles: Single Pole / 3-Way (two-location capable)
  • Wires: 6-Wire
  • Load Types: Fluorescent, LED (0-10V dimmable fixtures)
  • Max Ballasts/Drivers: 30 per dimmer control
  • Switch Type: Toggle (On/Off) with Slide (Dimming Control)
  • Preset: Yes — slide sets preferred level; toggle maintains setting
  • Wire Connection: Flying Leads (Screw Terminal, Pressure Plate)
  • Wire Size: #14–10 AWG
  • Requires Neutral Wire: No
  • Color/Finish: White, Gloss
  • Material: Steel, Thermoplastic (Polycarbonate)
  • Mounting: Wall Box, Single-Gang
  • Indoor/Outdoor: Indoor, Dry
  • Dimensions: Height: 4.19 in; Width: 1.73 in; Depth: 1.40 in
  • Weight: 0.26 lbs
  • Warranty: Limited Lifetime

This Pass & Seymour TSD4FBL3PW 0-10V toggle slide dimmer provides smooth, precise fluorescent and LED dimming for single-pole and 3-way (two-location) configurations at 120V or 277V. With preset memory, no de-rating in multi-gang applications, and interchangeable color faceplates in seven finishes, it suits residential, commercial, and hospitality lighting control applications.
