| Brand |
Square D |
| Manufacturer |
Schneider Electric |
| Model Number |
QOU2100 |
| UPC Number |
785901060284 |
| Type |
Miniature Circuit Breaker |
| Circuit Breaker Type |
Standard |
| Amperage Rating |
100 Amps |
| Voltage Rating |
120/240 Volts |
| Number of Poles |
Double Pole |
| Connection Type |
Slotted Box Lugs |
| Mounting Type |
Unit Mount |
| Compatibility |
Residential, Commercial, OEM Applications |
| Dimensions |
4.45 in × 1.5 in × 2.95 in |
| Weight |
0.94 lbs |
| Tightening Torque |
45 lbf.in (5.08 N.m) |
| Certifications |
UL Listed, CSA Certified |
Description:

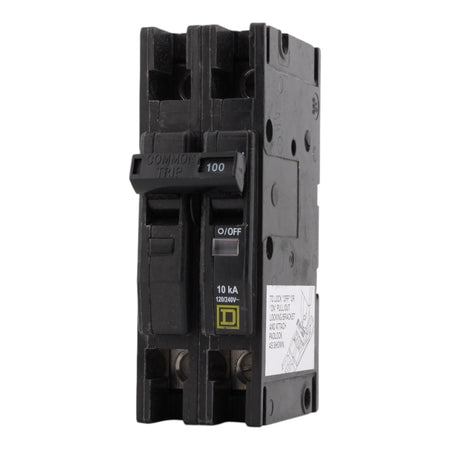

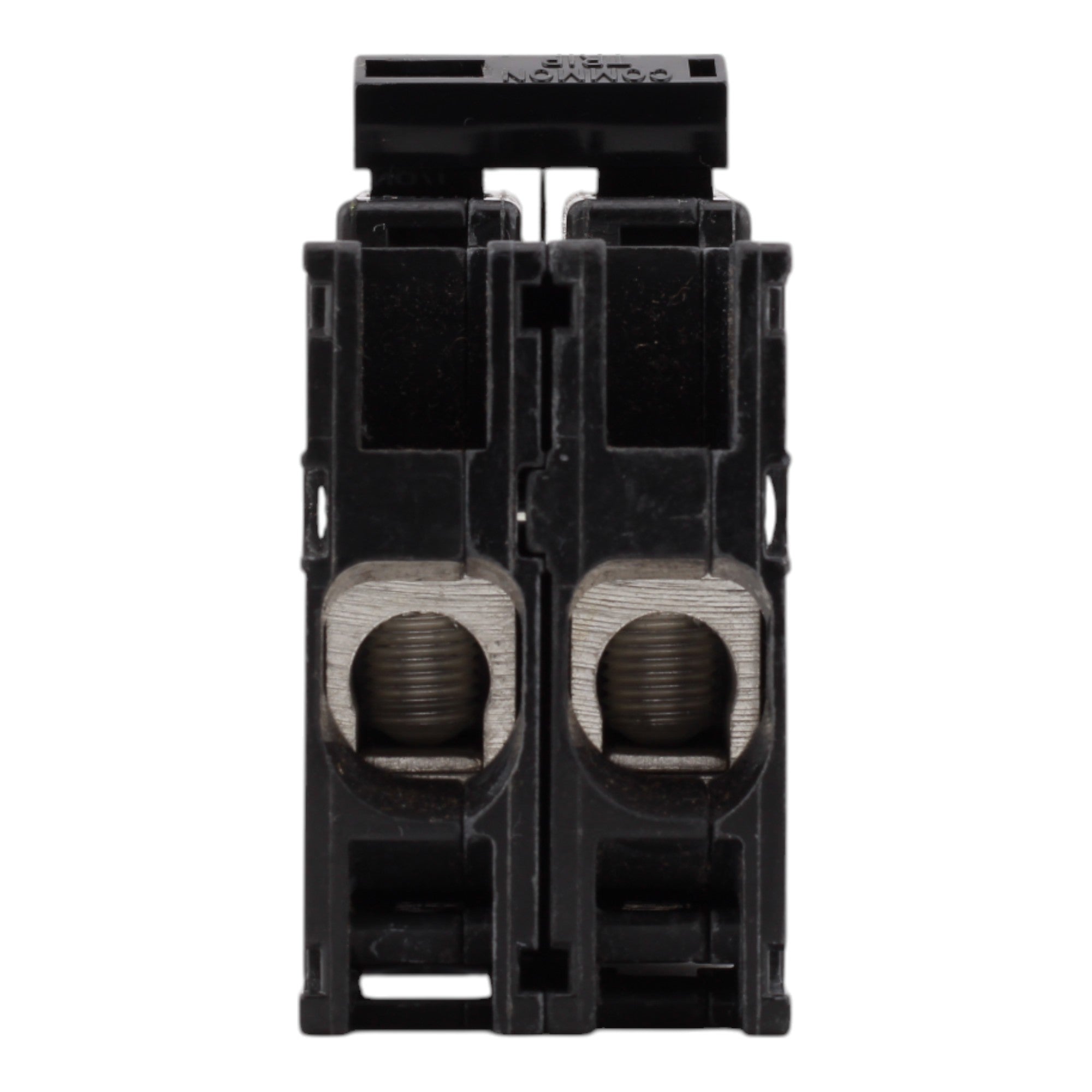

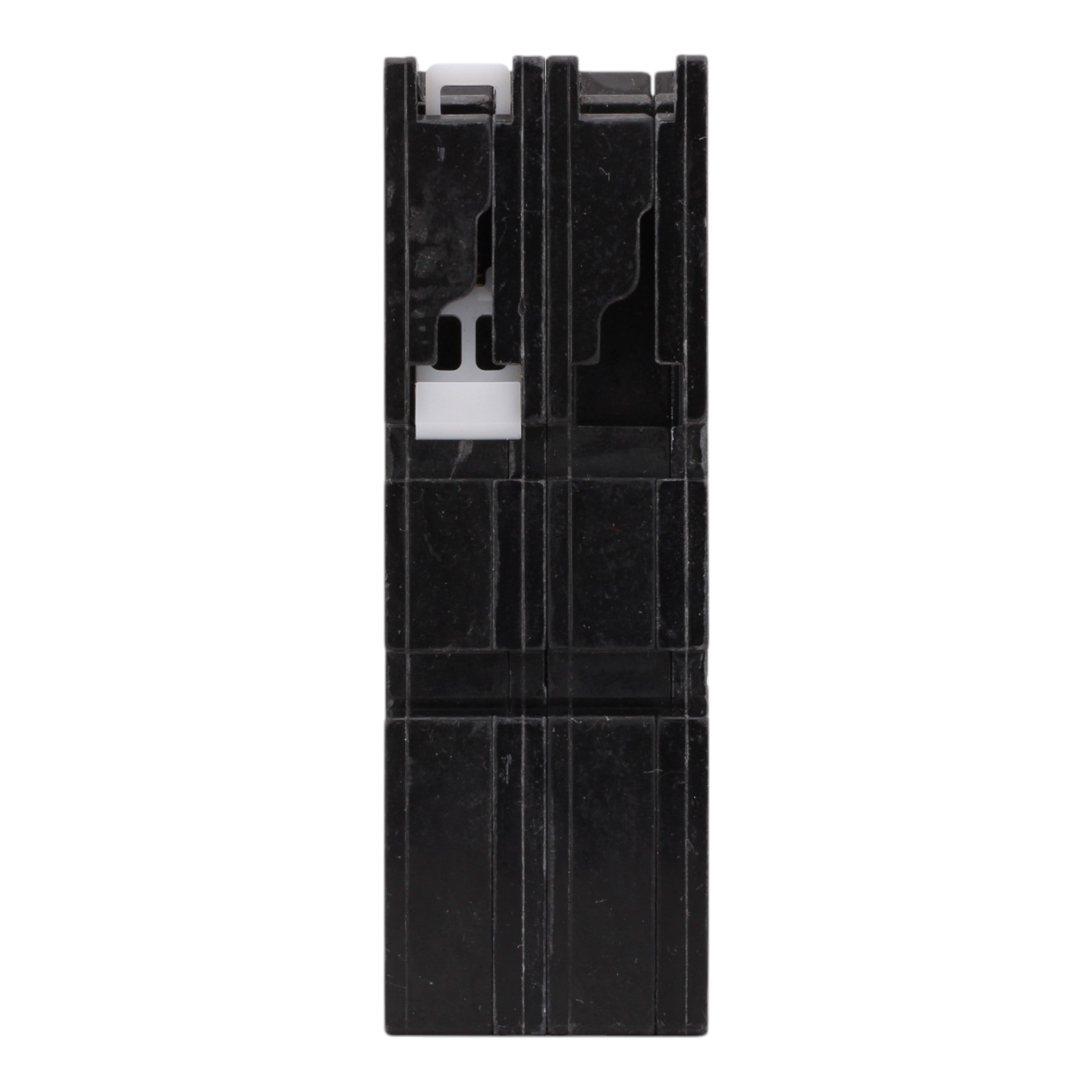

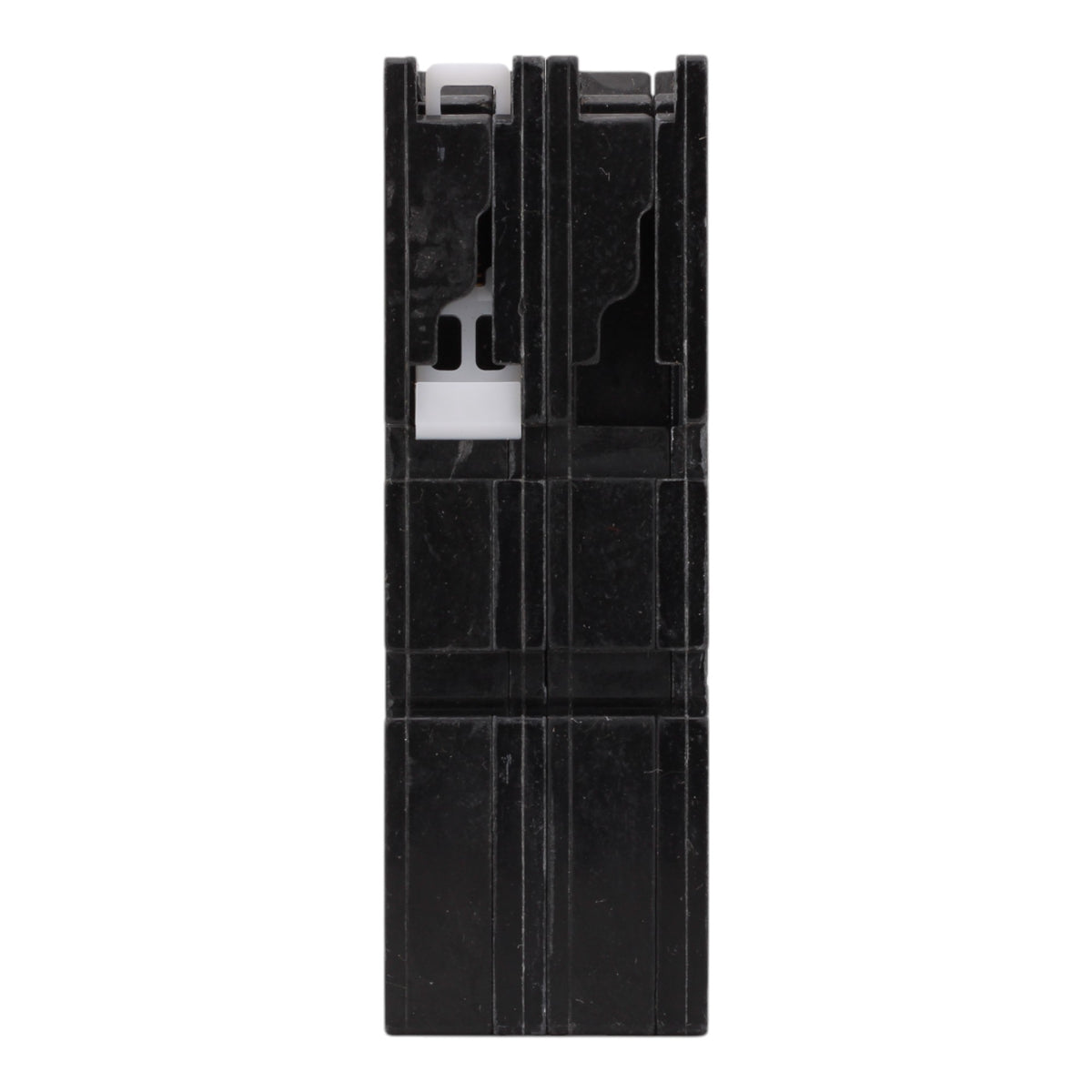

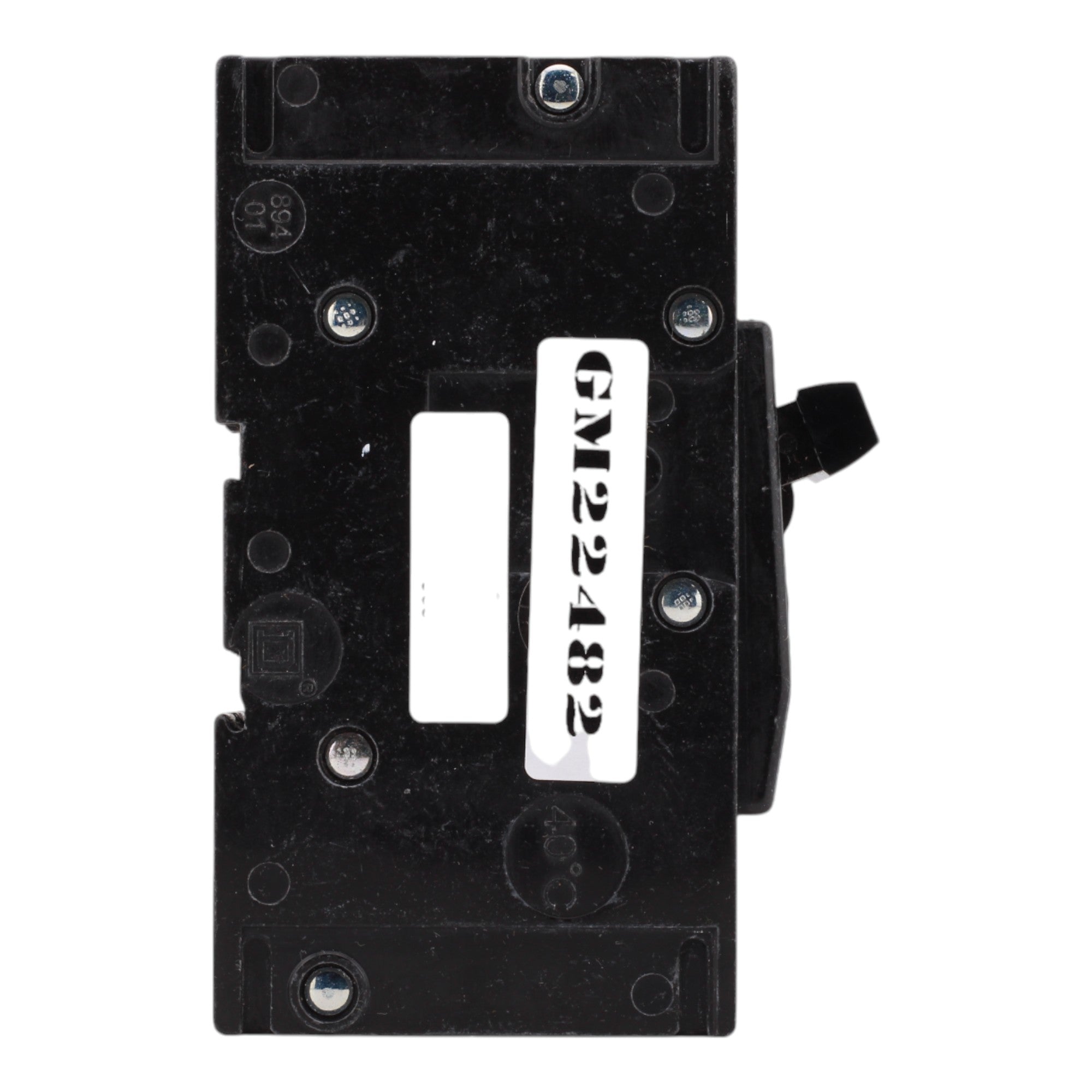

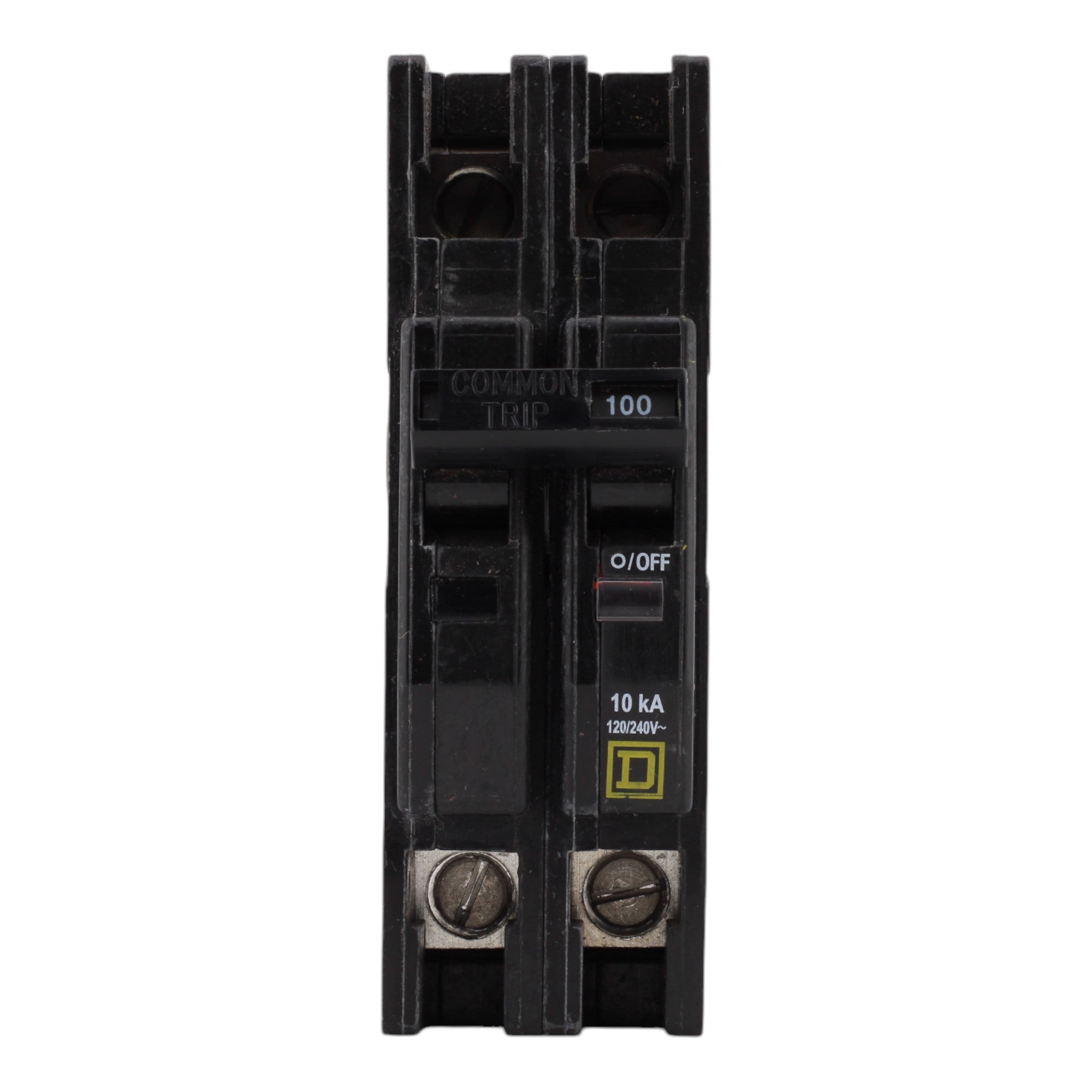

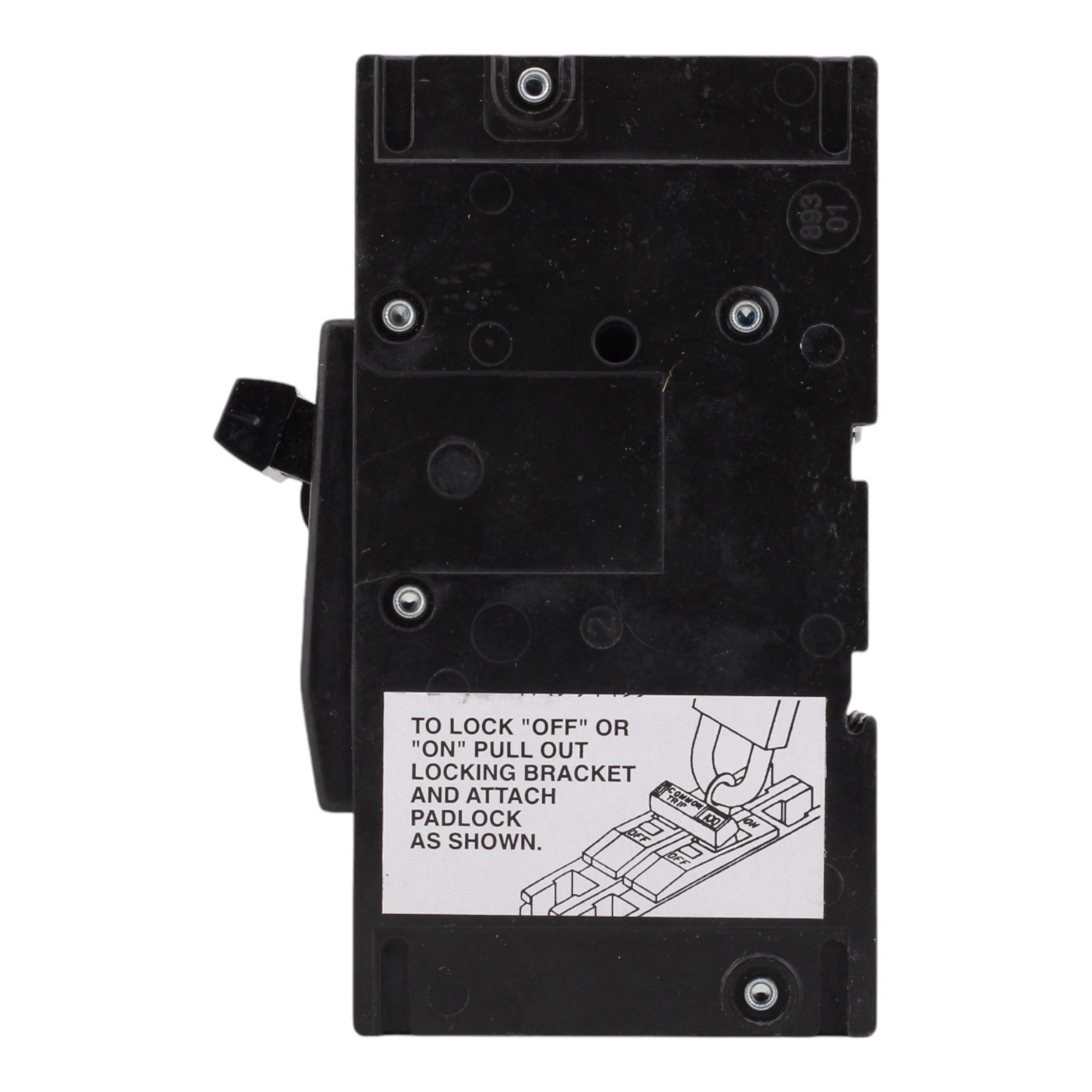

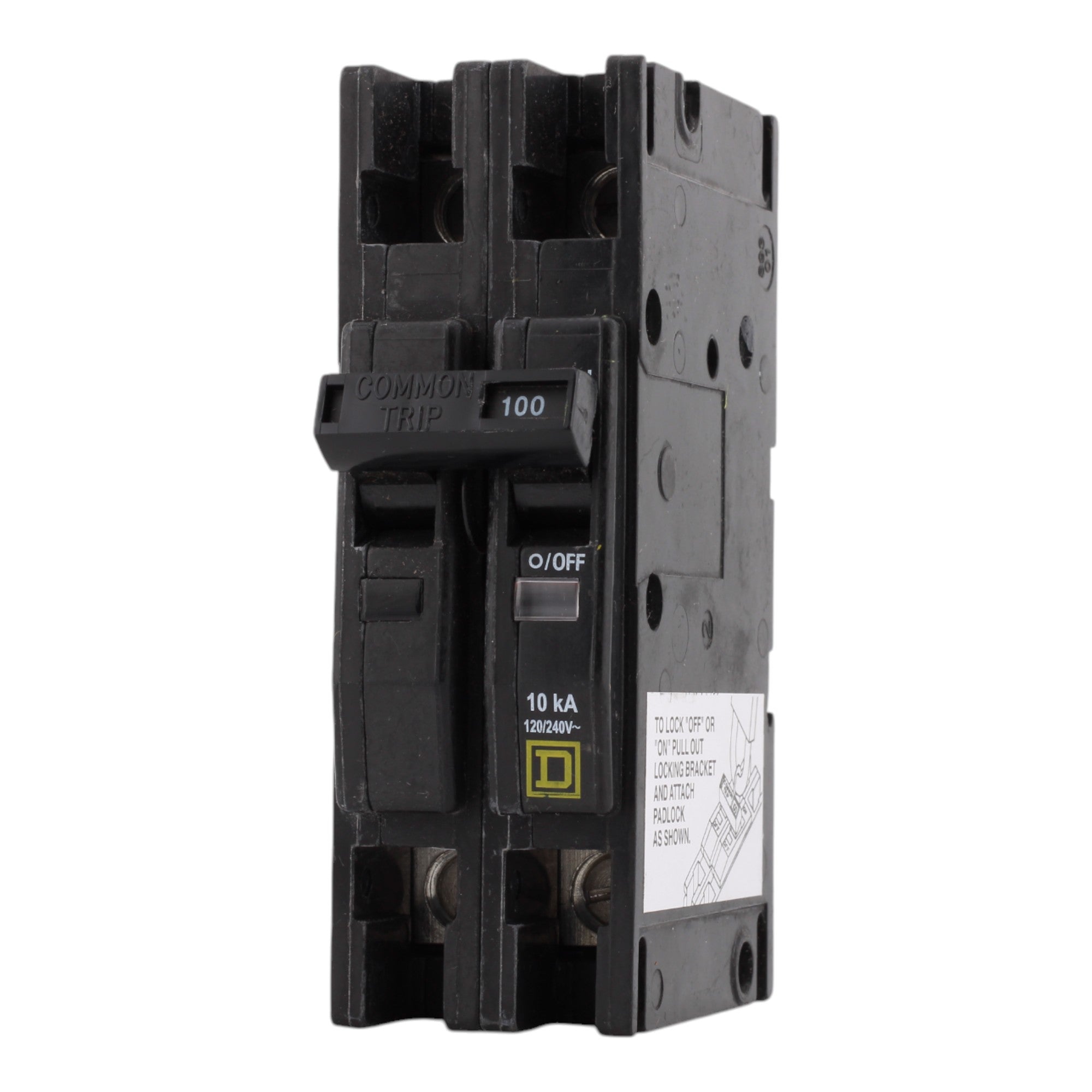

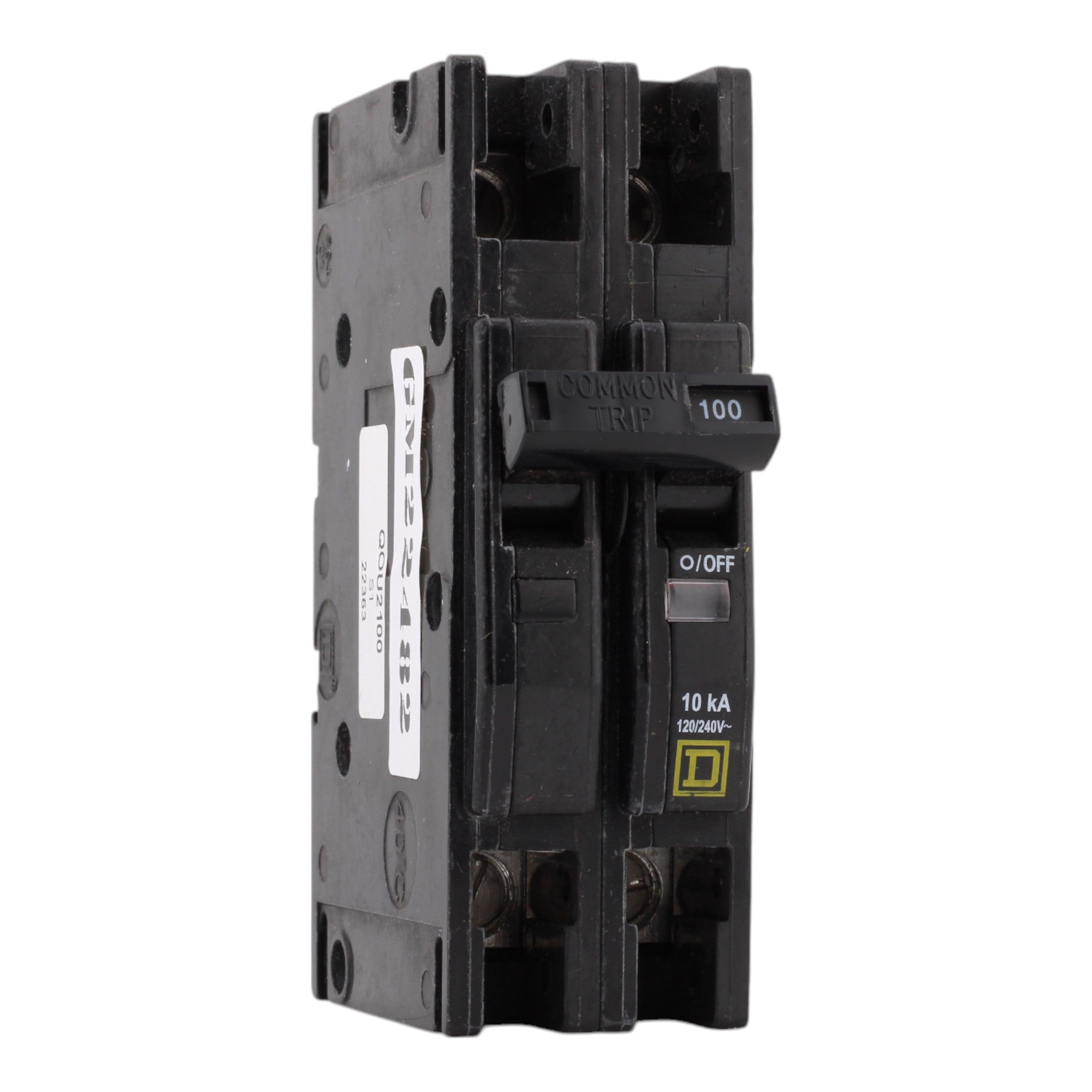

The Square D QOU2100 is a durable, 100 Amp, 120/240 Volt, double-pole miniature circuit breaker designed for reliable overcurrent protection in residential, commercial, and OEM applications. Engineered by Schneider Electric, this standard-trip breaker features a compact unit-mount design, supporting versatile installation methods such as DIN rail, surface, or flush mounting. The breaker offers instantaneous and time-delayed overcurrent protection, ensuring optimal performance and safety. Its slotted box lugs accommodate 12 AWG to 2/0 AWG copper or aluminum wiring, providing secure and efficient connections. UL Listed and CSA Certified, the QOU2100 is a trusted solution for robust circuit protection.
