| Brand |
Square D |
| Manufacturer |
Schneider Electric |
| Model Number |
QOU220 |
| UPC Number |
785901418689 |
| Type |
Miniature Circuit Breaker |
| Circuit Breaker Type |
Standard |
| Amperage Rating |
20 Amps |
| Voltage Rating |
120/240 Volts |
| Number of Poles |
Double Pole |
| Connection Type |
Slotted Box Lugs |
| Mounting Type |
Unit Mount |
| Compatibility |
Residential, Commercial, OEM Applications |
| Dimensions |
4.05 in × 1.5 in × 2.95 in |
| Weight |
0.76 lbs |
| Tightening Torque |
45 lbf.in (5.08 N.m) |
| Certifications |
UL Listed, CSA Certified |
Description:

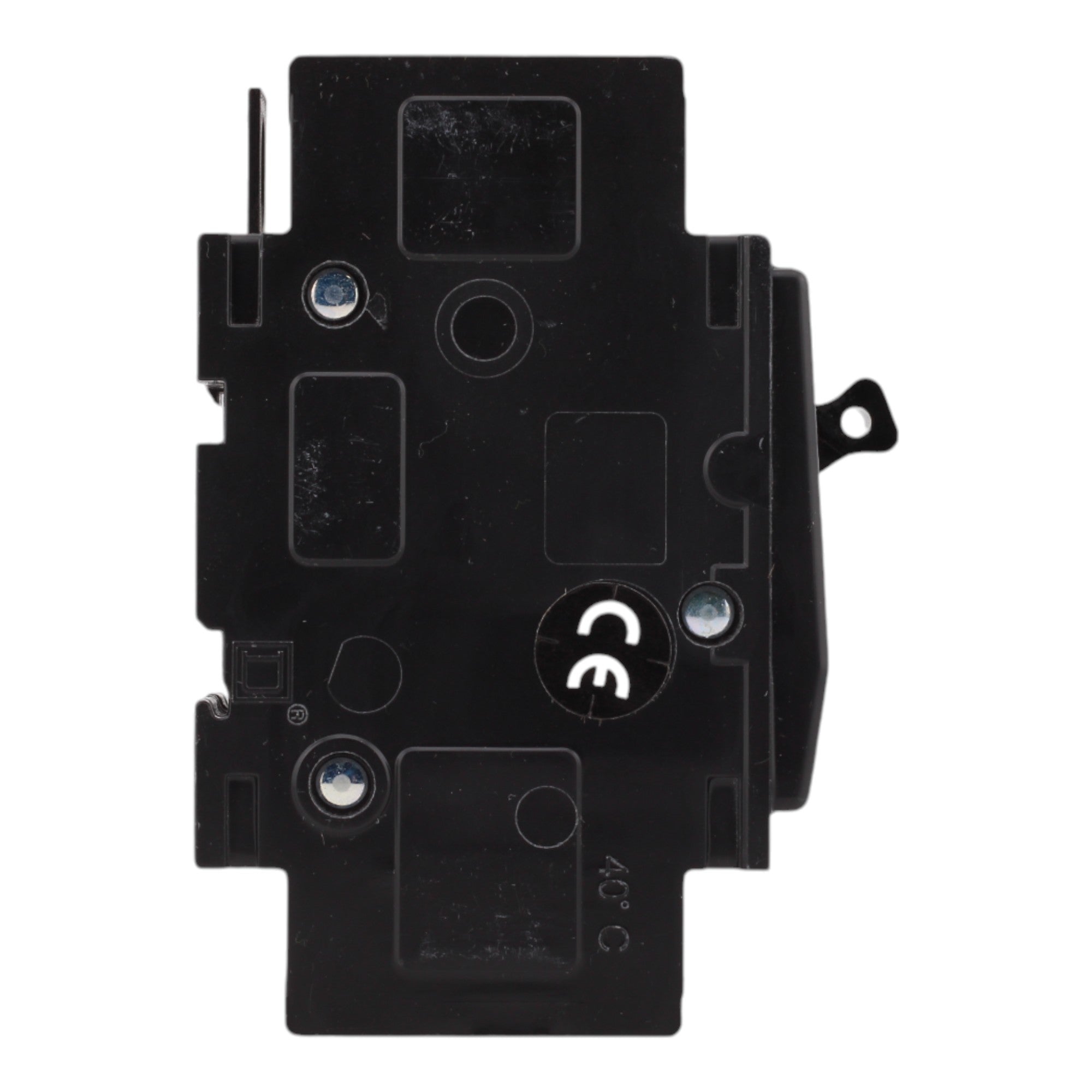

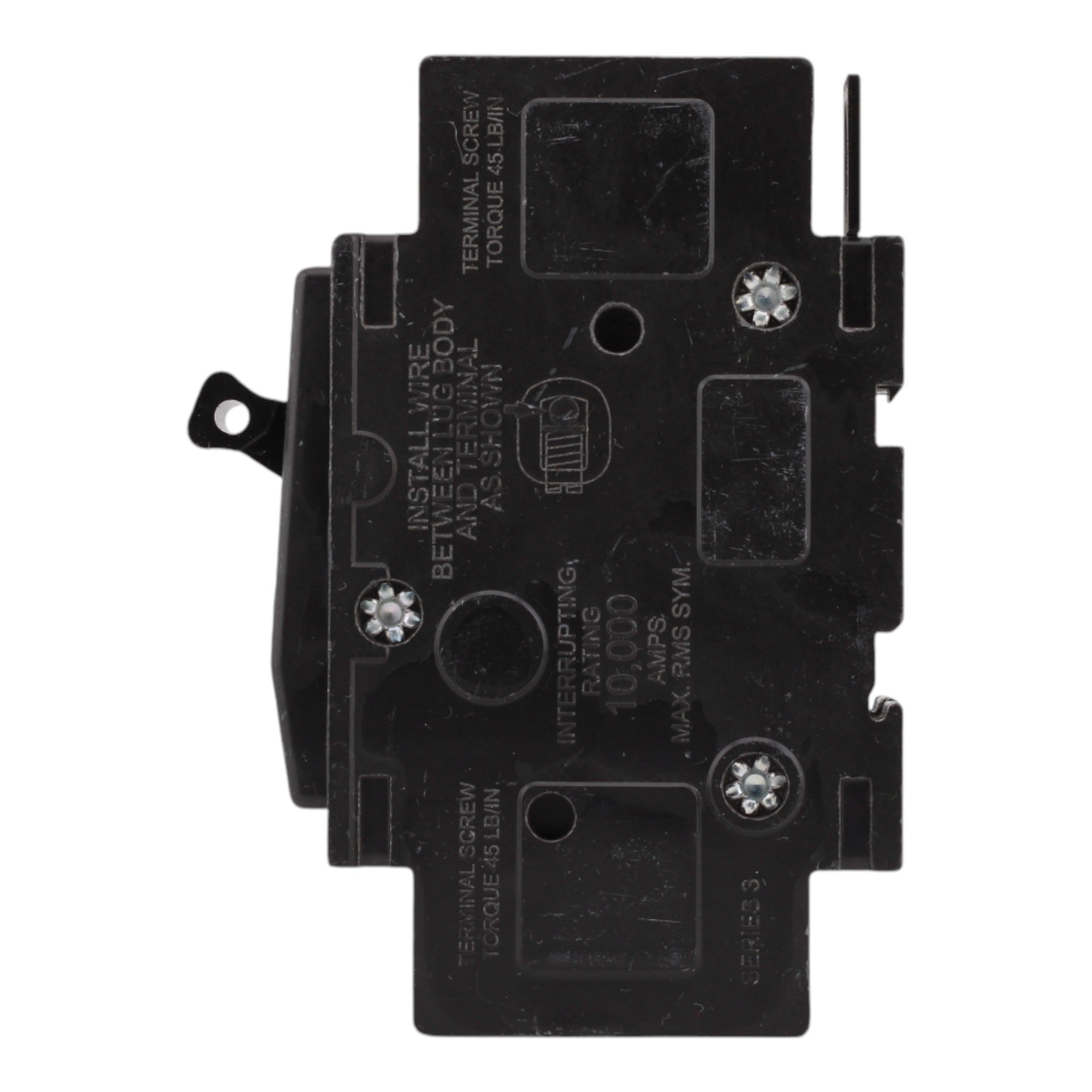

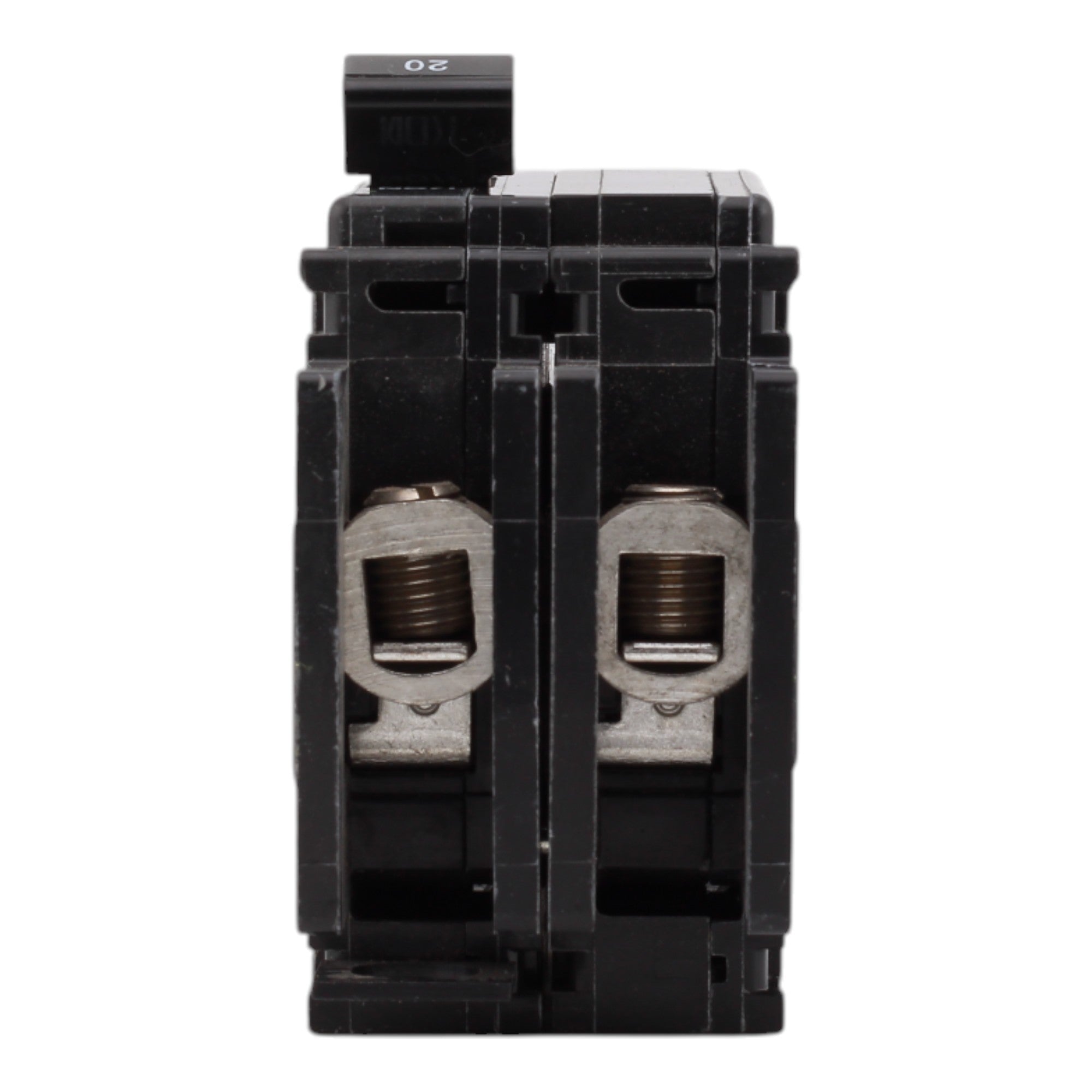

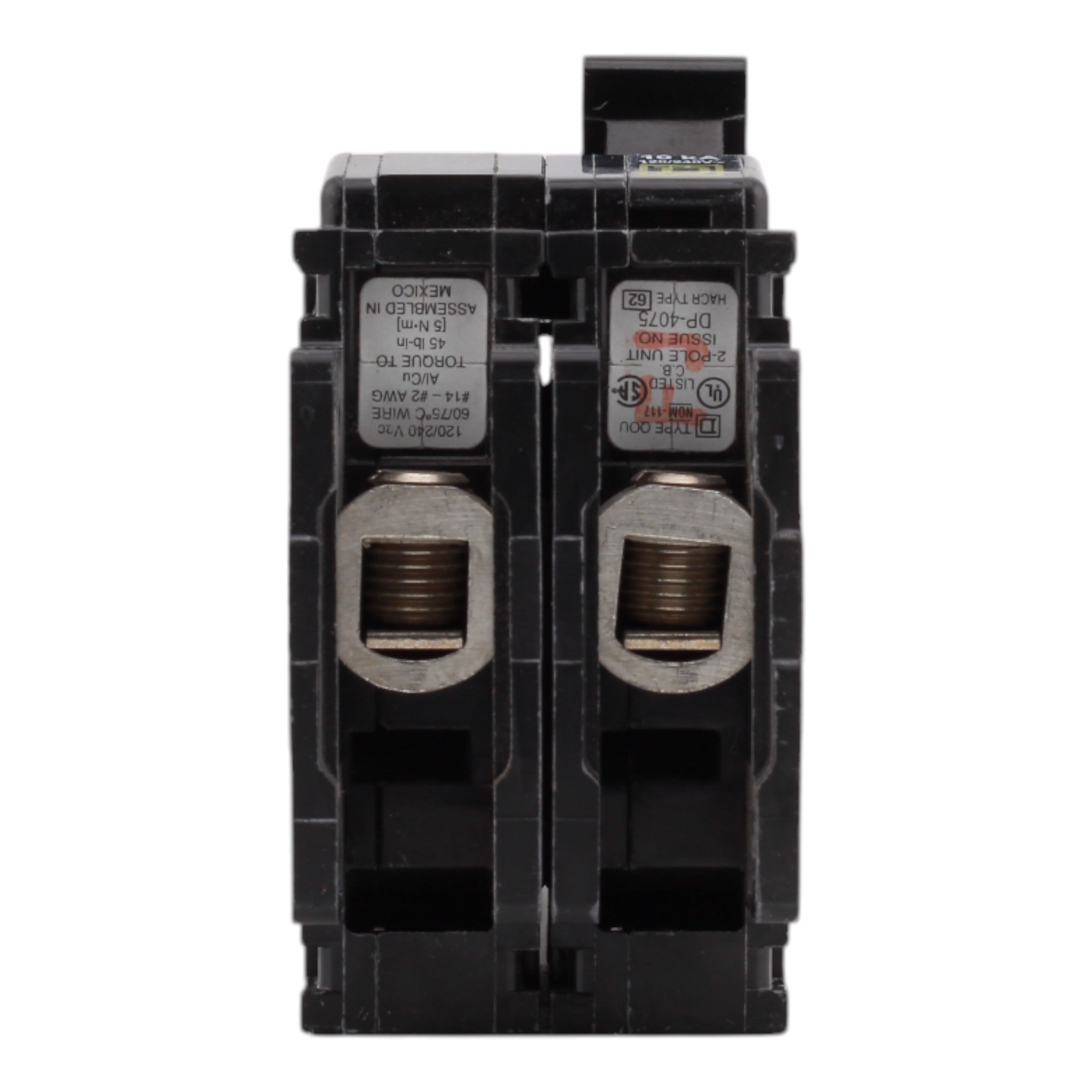

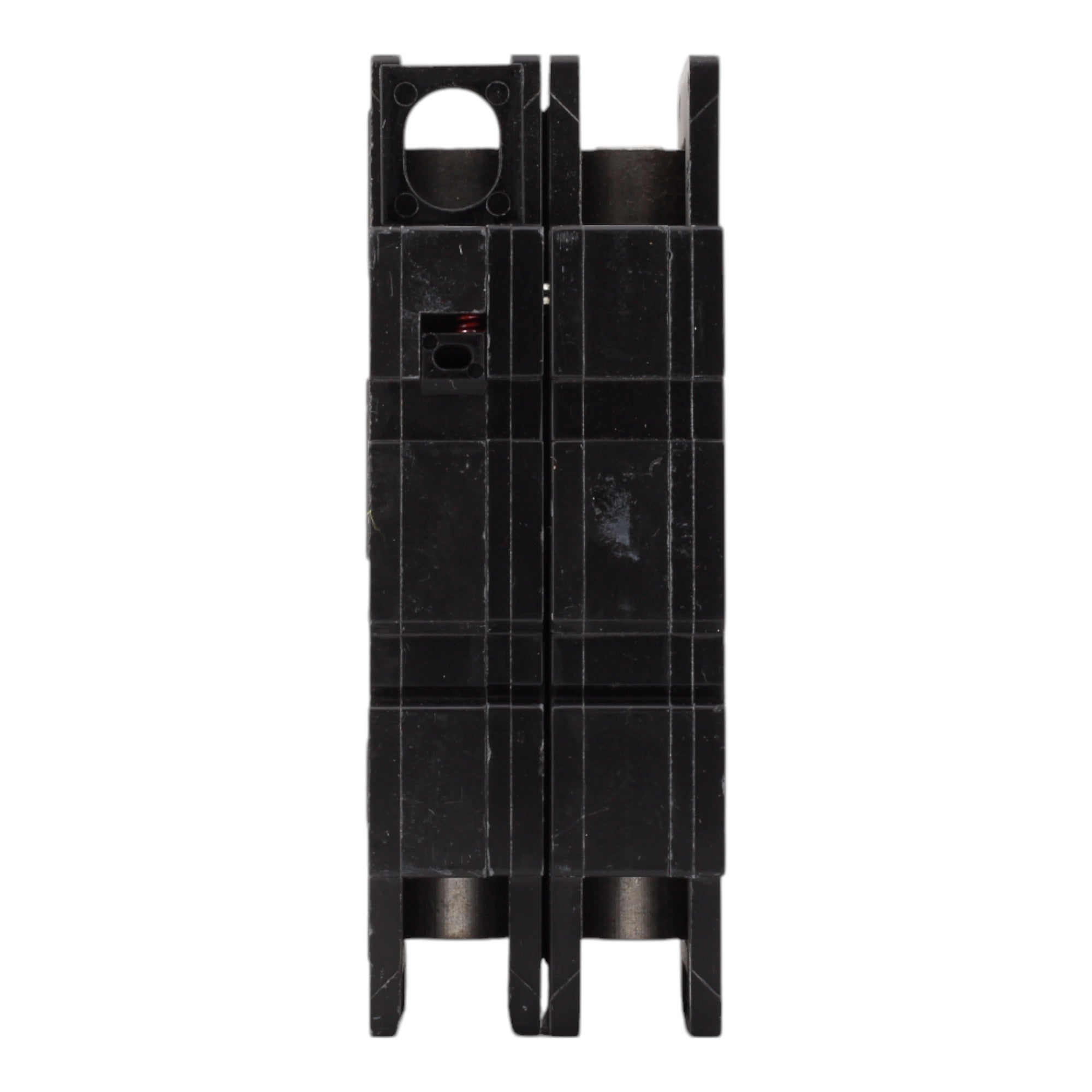

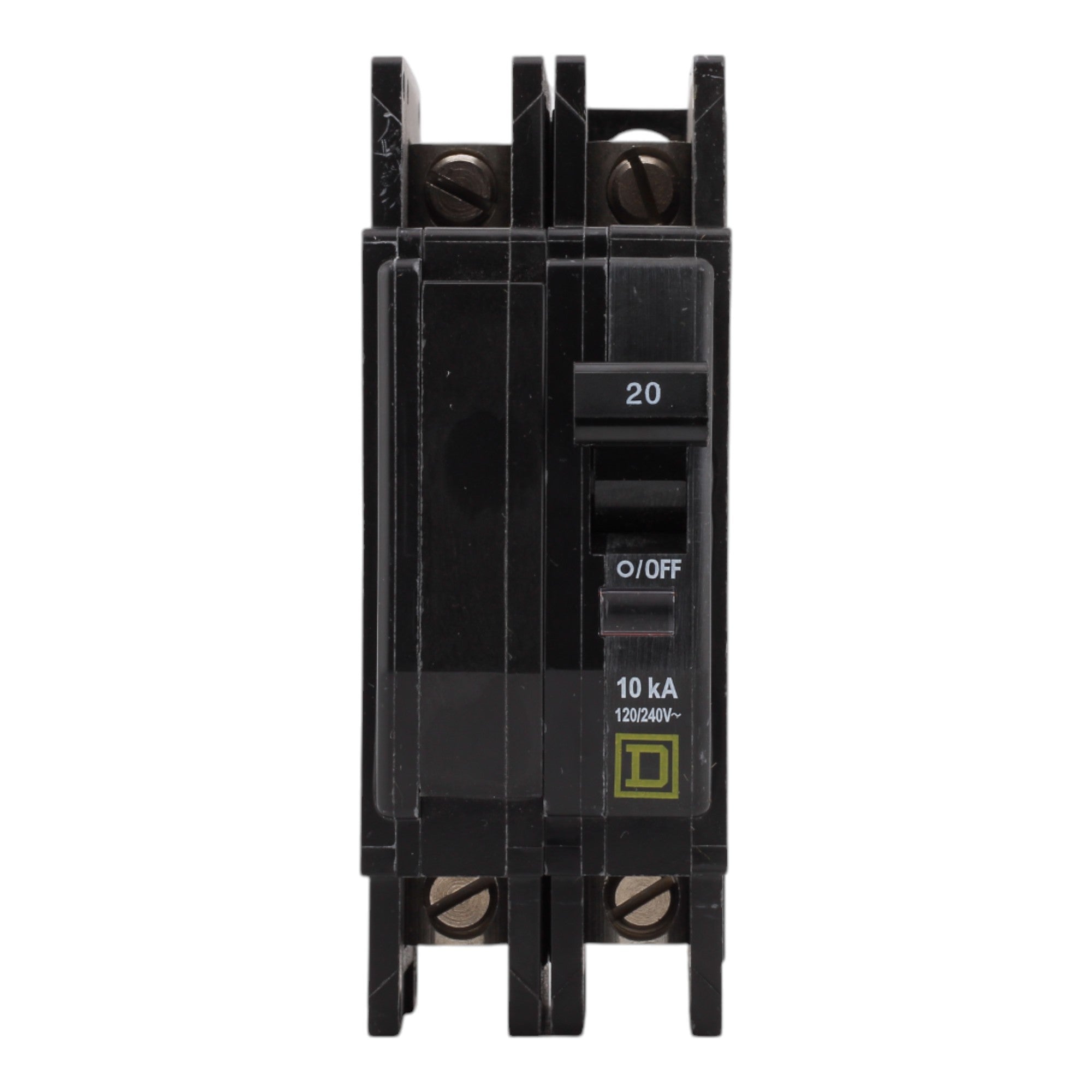

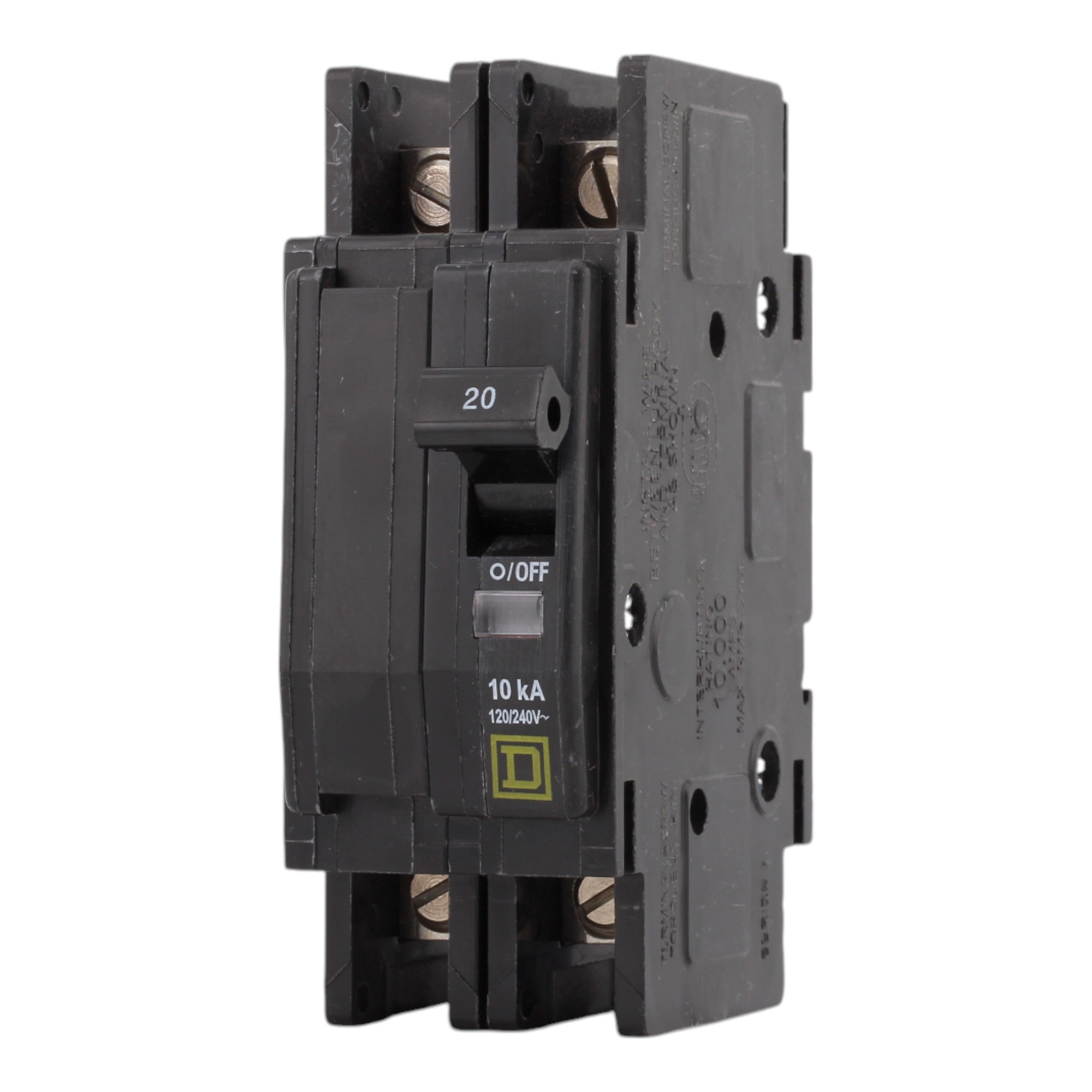

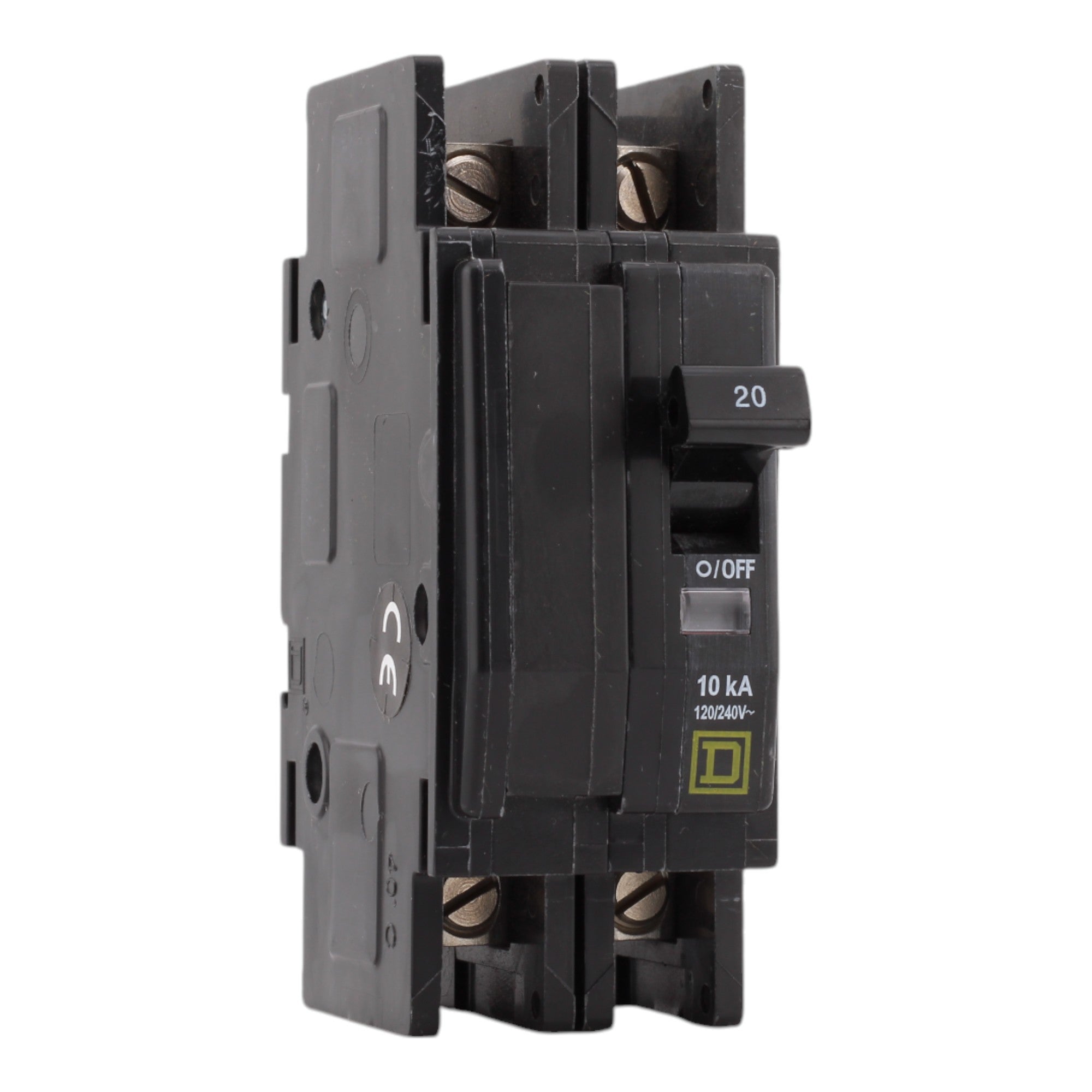

The Square D QOU220 is a high-quality, 20 Amp, 120/240 Volt, double-pole miniature circuit breaker, designed for dependable overcurrent protection in residential, commercial, and OEM applications. This standard-trip breaker features a quick-make, quick-break toggle mechanism and positive handle indication, ensuring reliable performance. Its VisiTrip indicator provides a visual confirmation of circuit interruption, enhancing safety and troubleshooting. With a compact design, it supports unit mounting and offers versatile installation options, including DIN rail, surface, or flush mounting. UL Listed and CSA Certified, the QOU220 supports 14 AWG to 2 AWG copper or aluminum wiring with slotted box lugs for secure connections.
