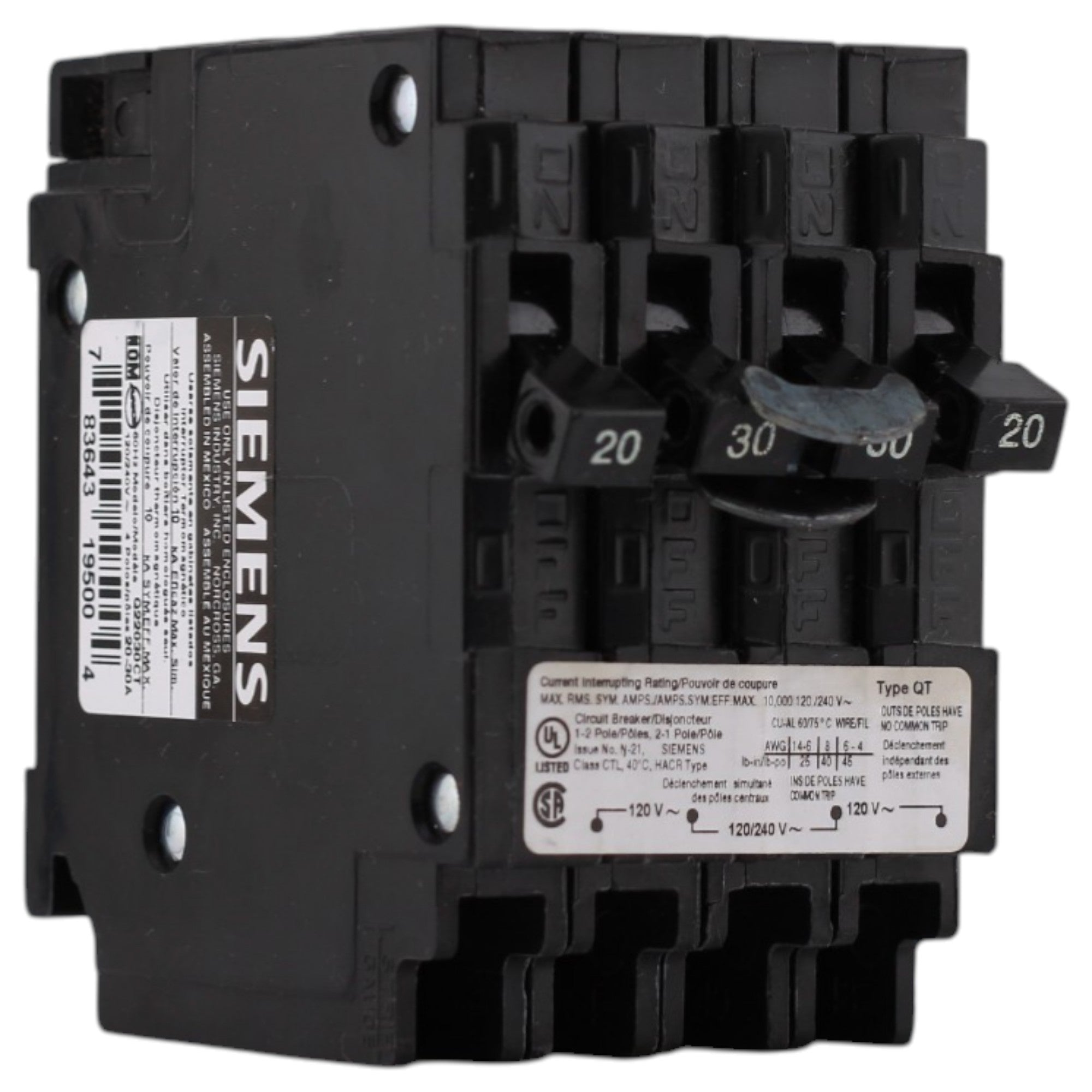

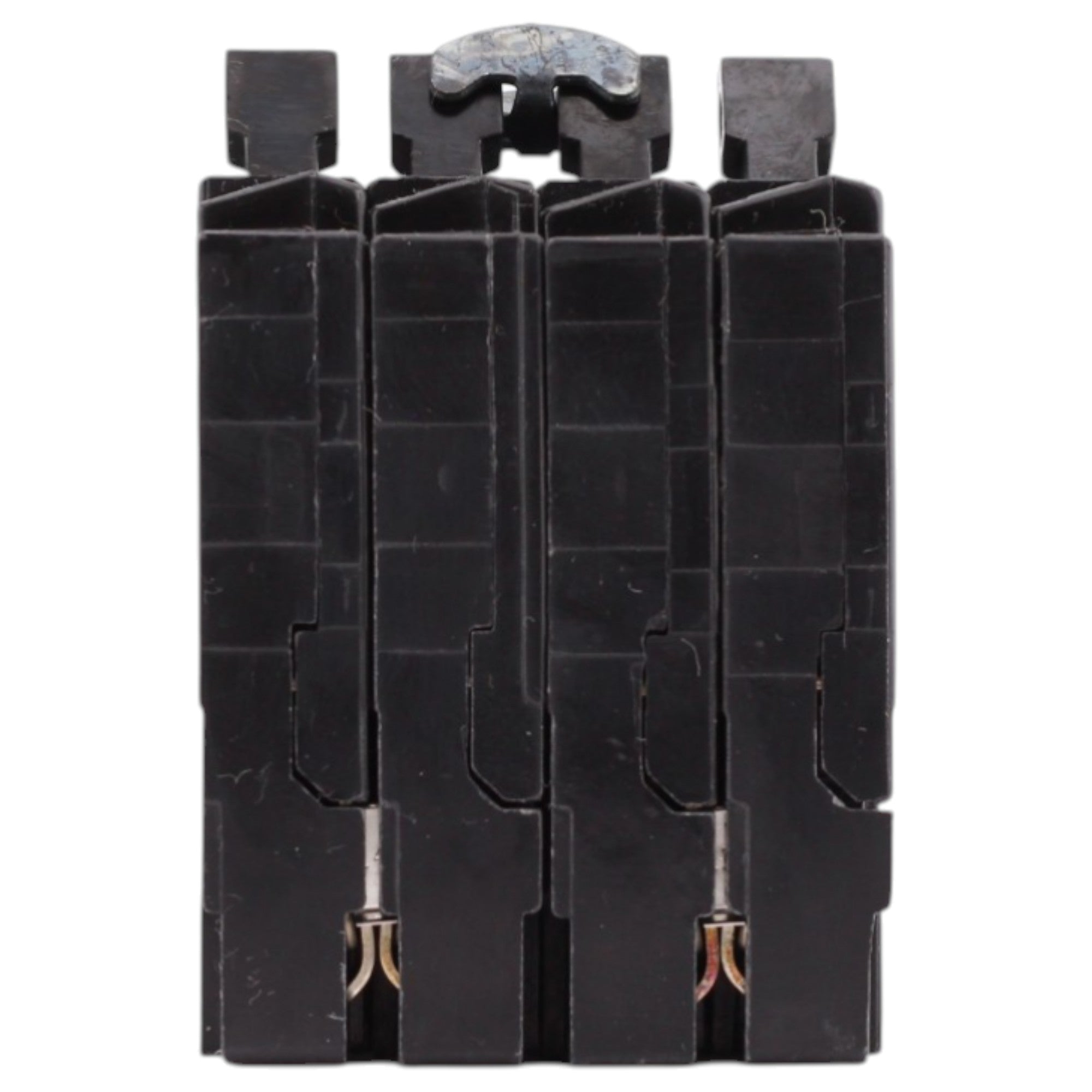

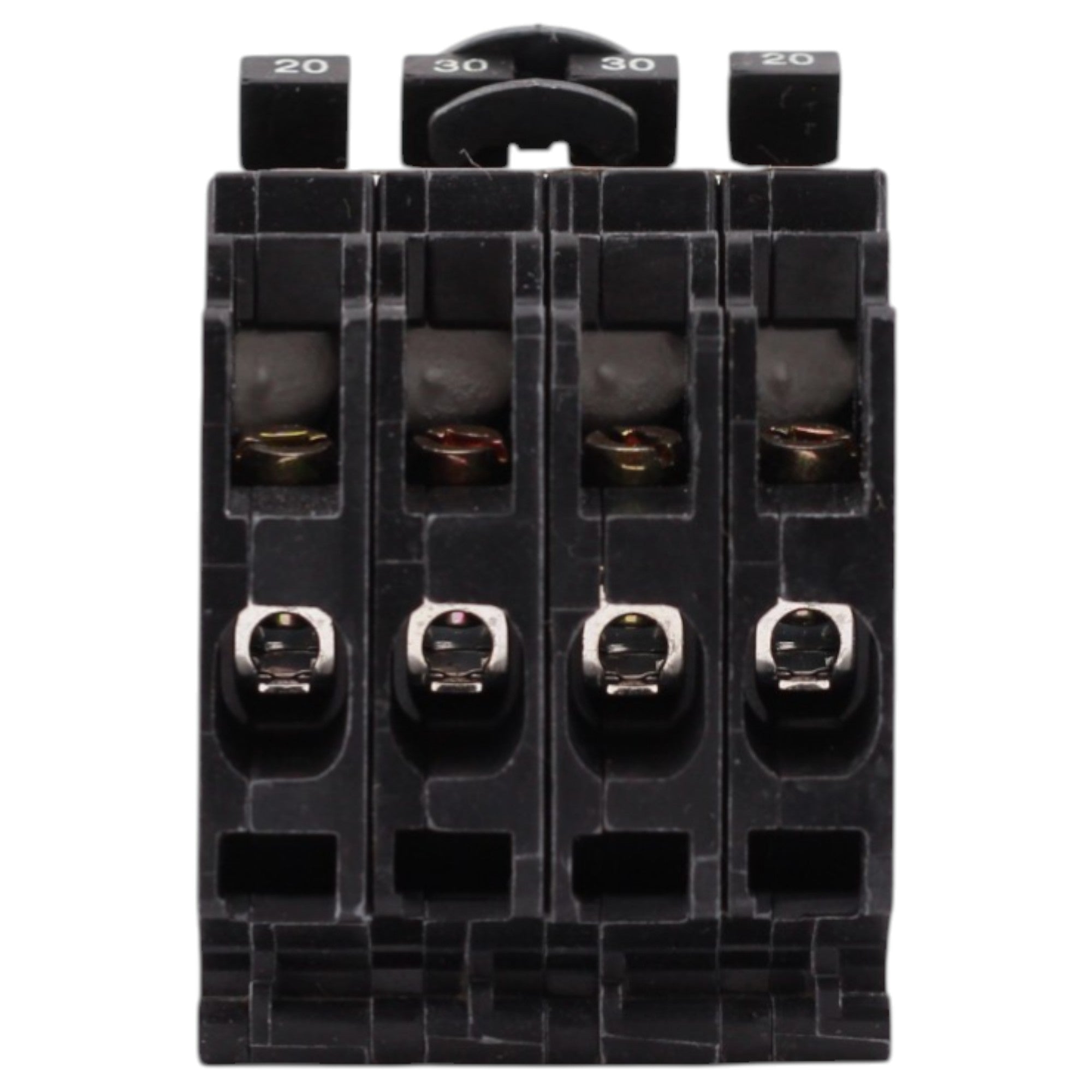

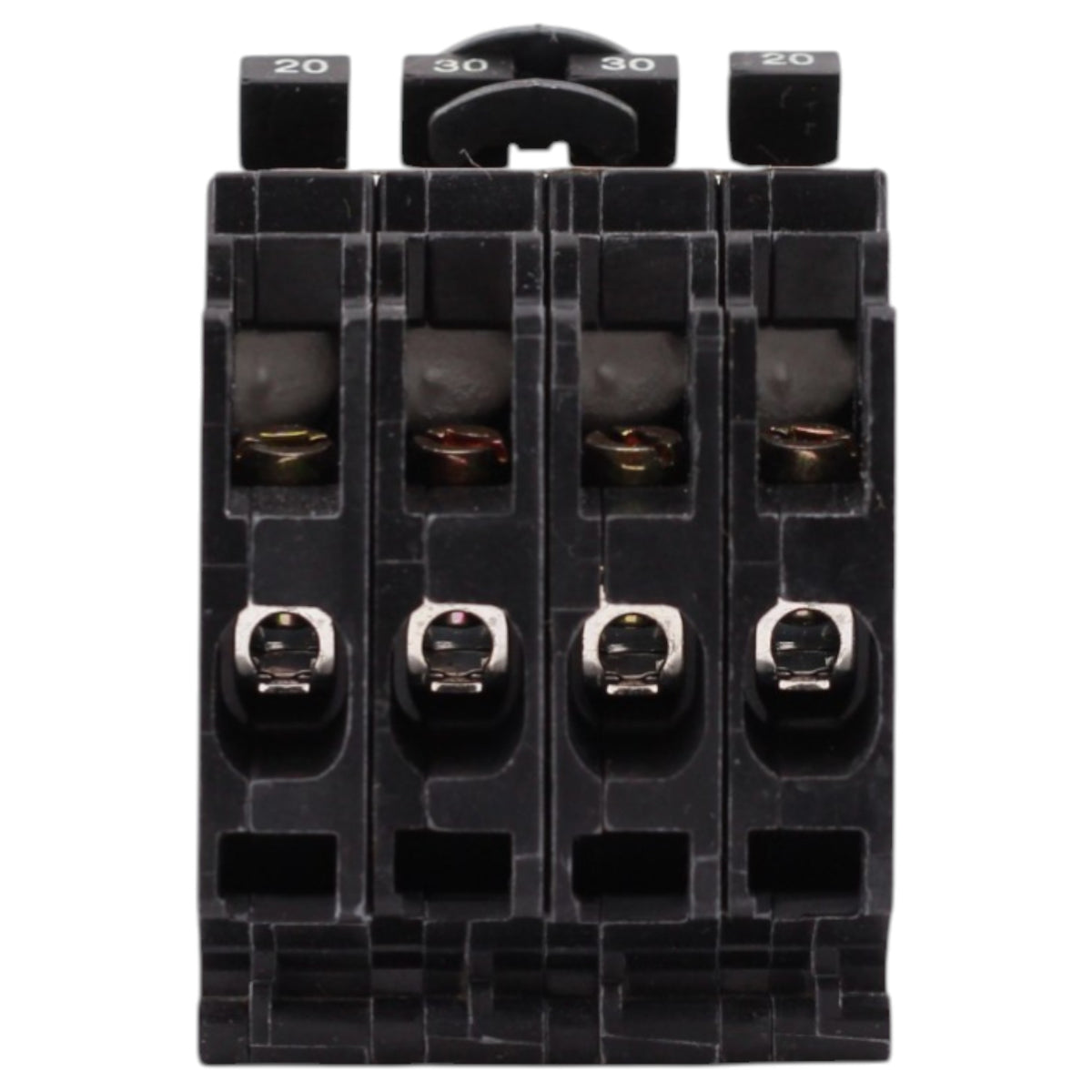

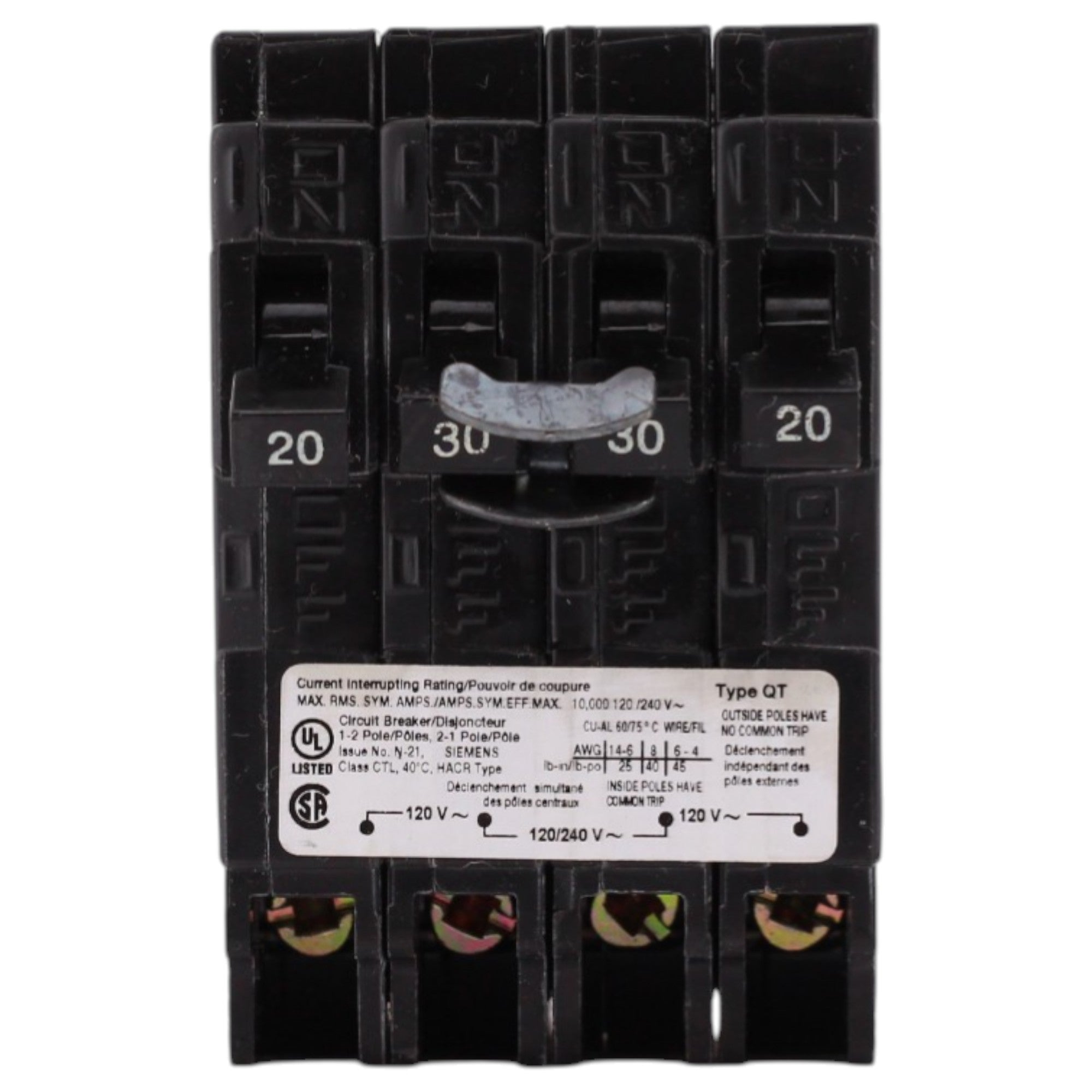

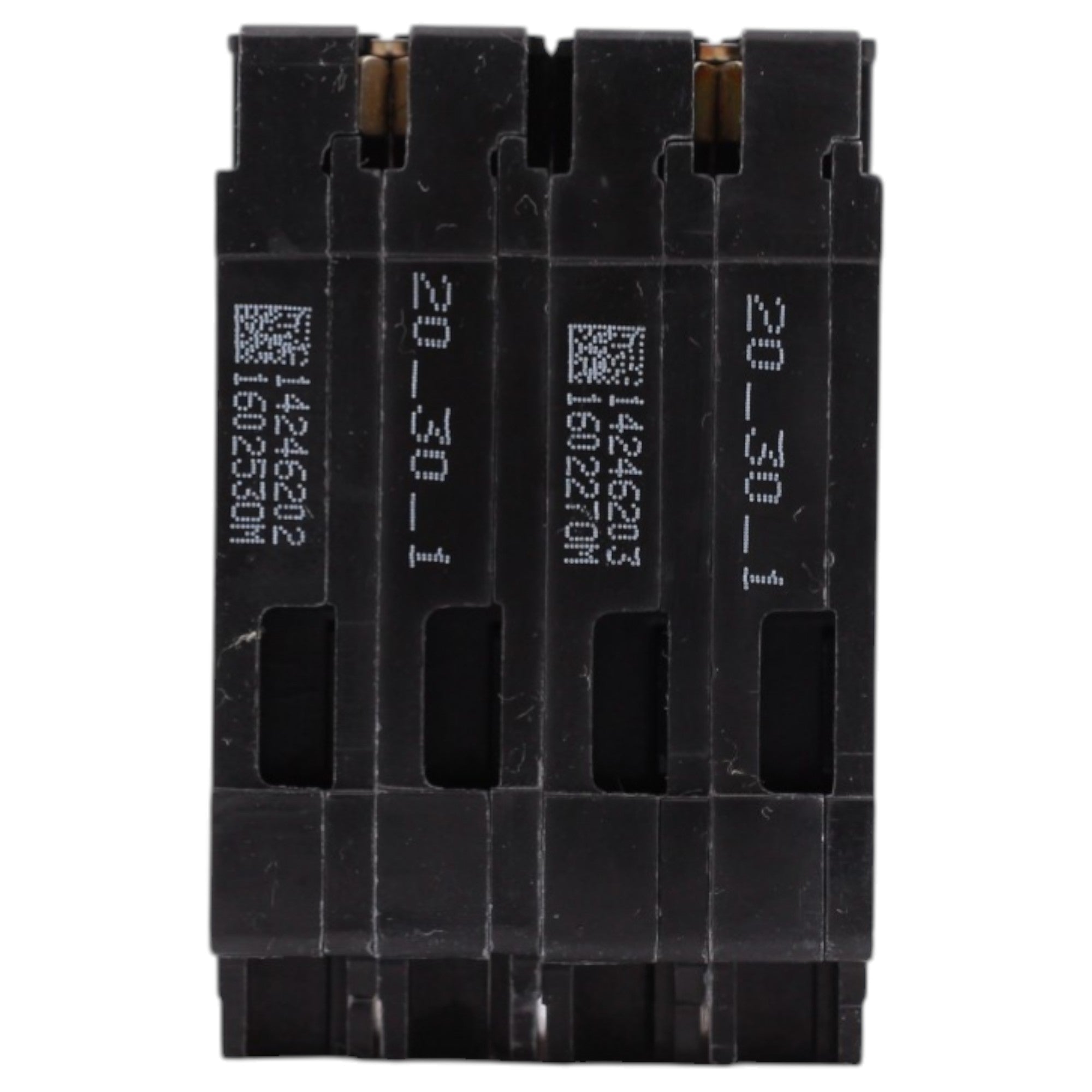

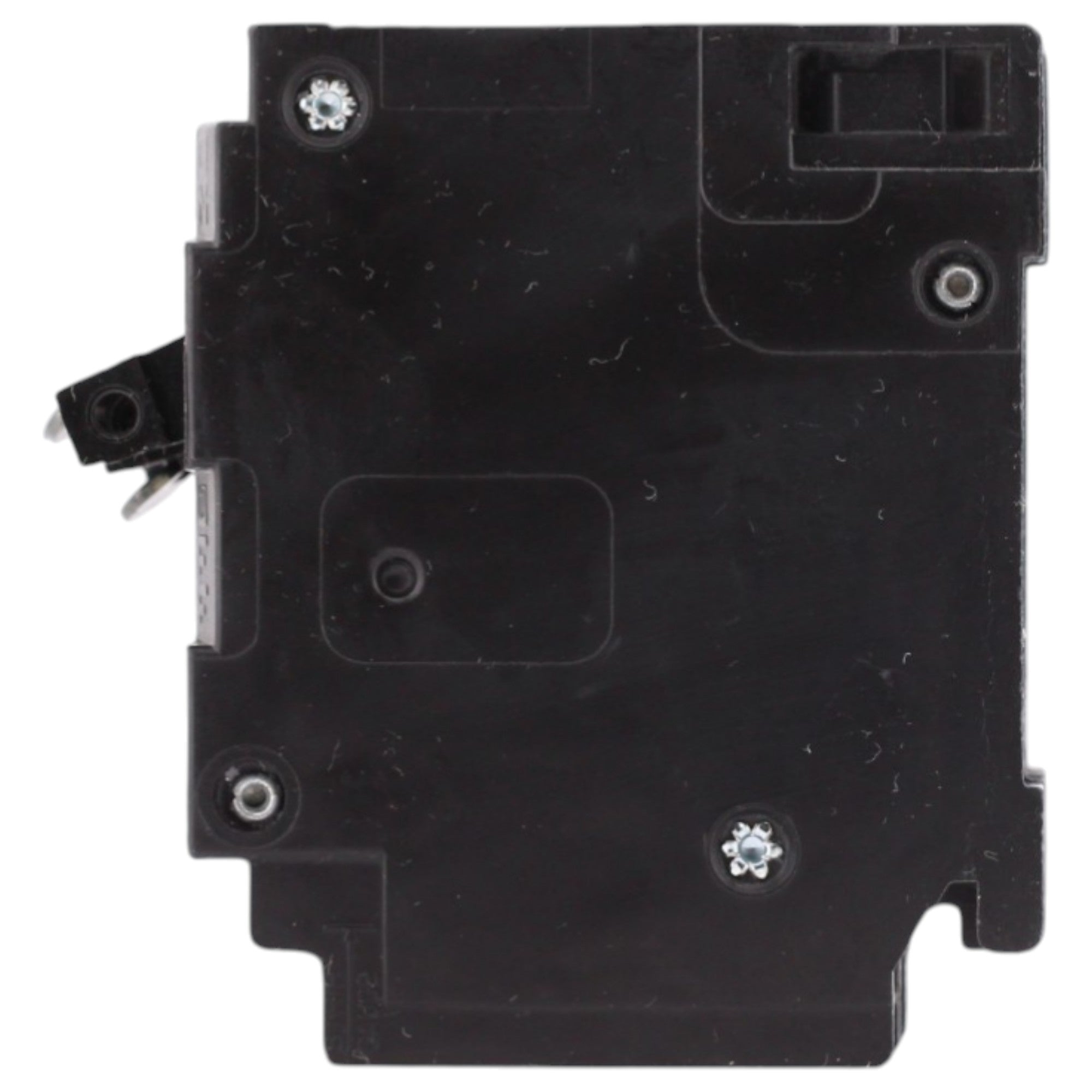

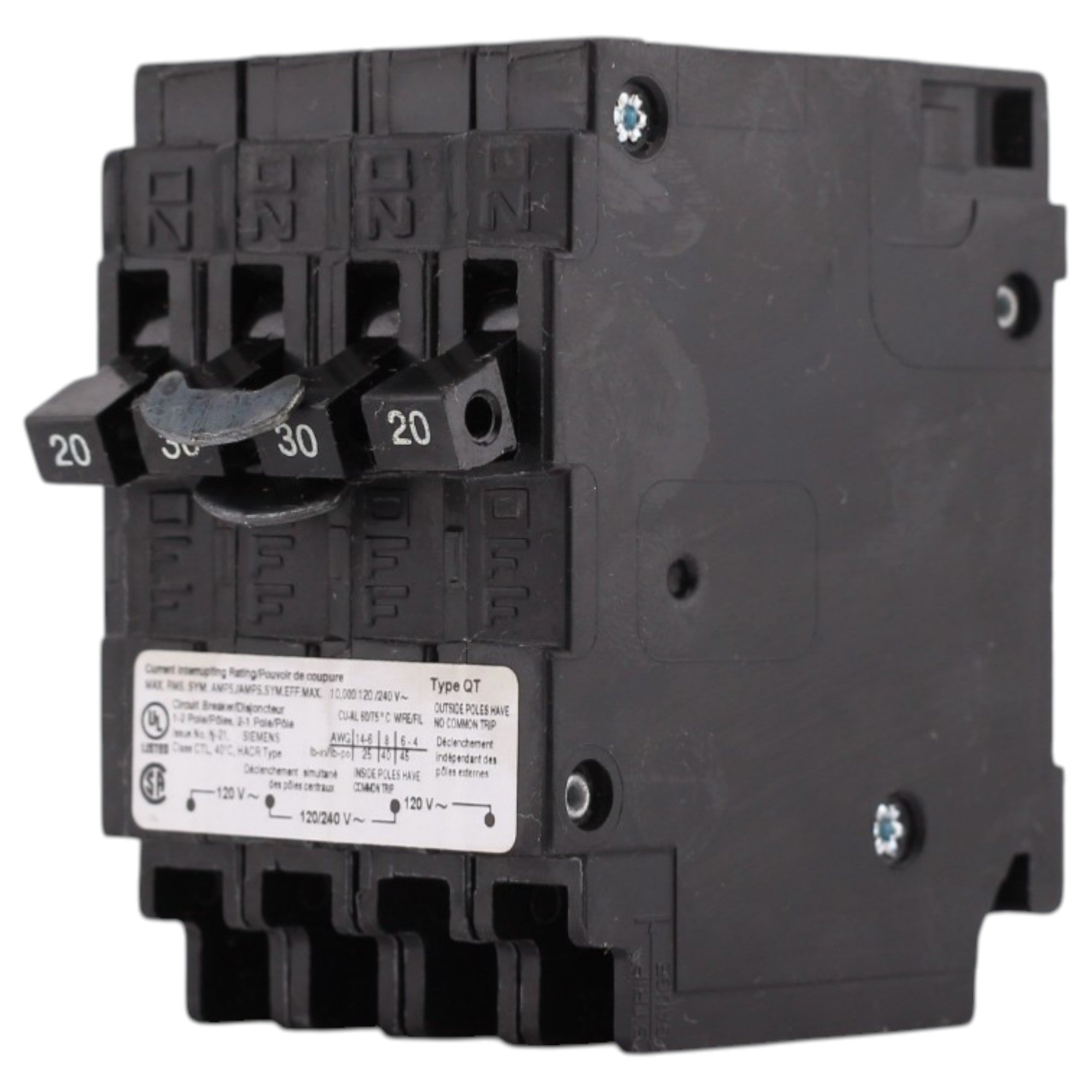

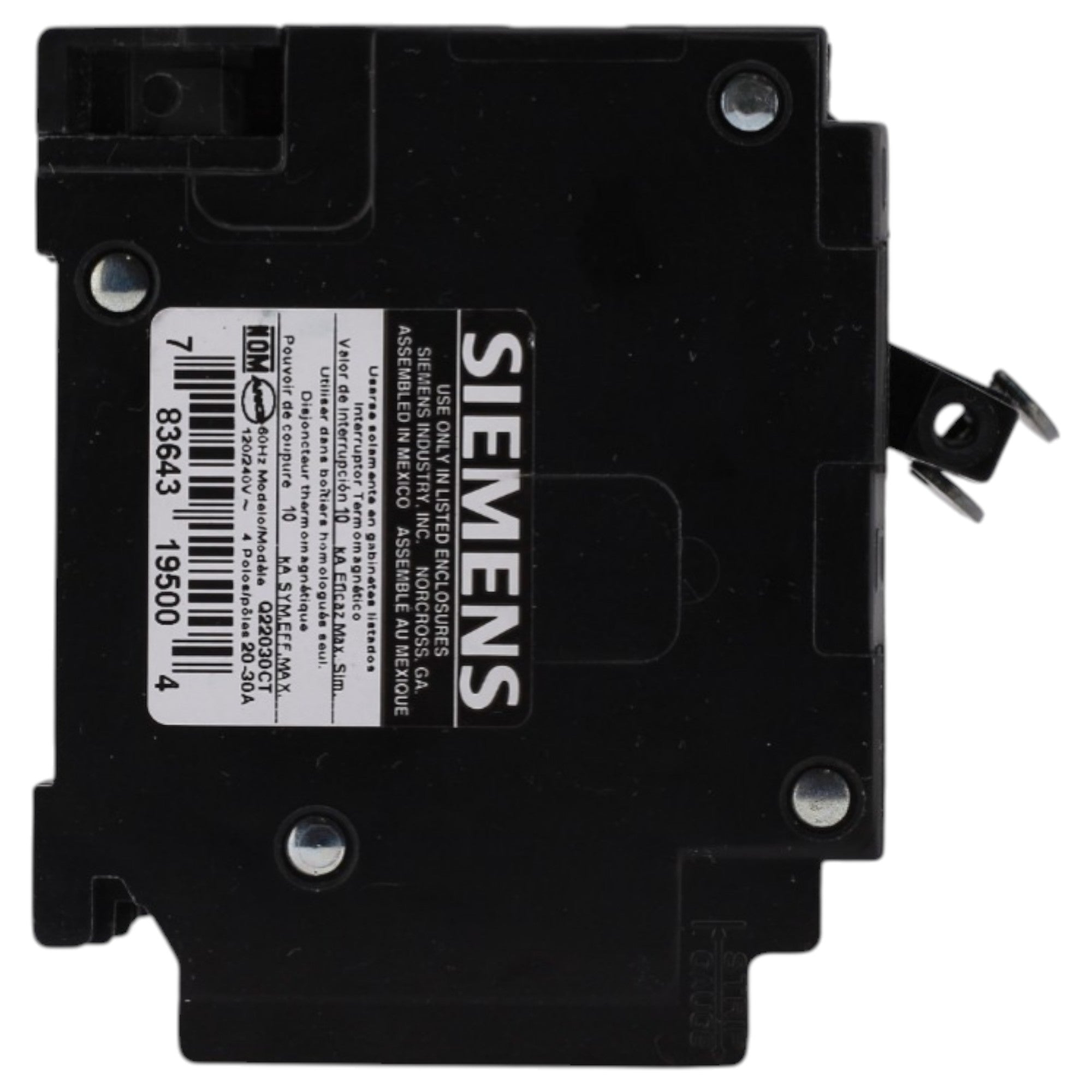

Siemens Q22030CT: (2) 20 Amp 1-Pole, (1) 30 Amp 2-Pole, Triplex Thermal Magnetic Circuit Breaker, 120/240V, 10kA, CTL Plug-In, Common Trip, UL Listed, HACR Rated, CSA, for Type QT Loadcenters.
-
Manufacturer: Siemens Industry, Inc.
-
Brand: Siemens
-
Product Range: QT (for Siemens EQ, Ultimate, ITE, and Gould loadcenters)
-
UPC: 783643195004
-
Model Number: Q22030CT
-
Breaker Type: Triplex Thermal Magnetic Circuit Breaker
-
Amperage: (2) Single-Pole 20 Amps (outer, independent trip) / (1) Two-Pole 30 Amps (inner, common trip)
-
Poles: 3-Pole (two 1-pole + one 2-pole)
-
Voltage: 120/240 Volts AC
-
Frequency: 60 Hz
-
Interrupt Rating: 10 kAIC
-
Mounting Mode: Plug-In (CTL)
-
Wire Size: #14-6 AWG Cu/Al
-
Dimensions: Height: 2.0 in; Width: 3.0 in; Depth: 3.0 in
-
Weight: 0.8 lbs
-
Certifications: UL Listed (UL 489), HACR Rated, CSA
This Siemens Q22030CT triplex circuit breaker combines two 1-pole 20A independent trip breakers and one 2-pole 30A common trip breaker in a compact CTL plug-in design for 120/240V circuits in Siemens QT loadcenters. With 10kA interrupt rating and thermal magnetic protection, it delivers space-saving, reliable performance for residential panels.
