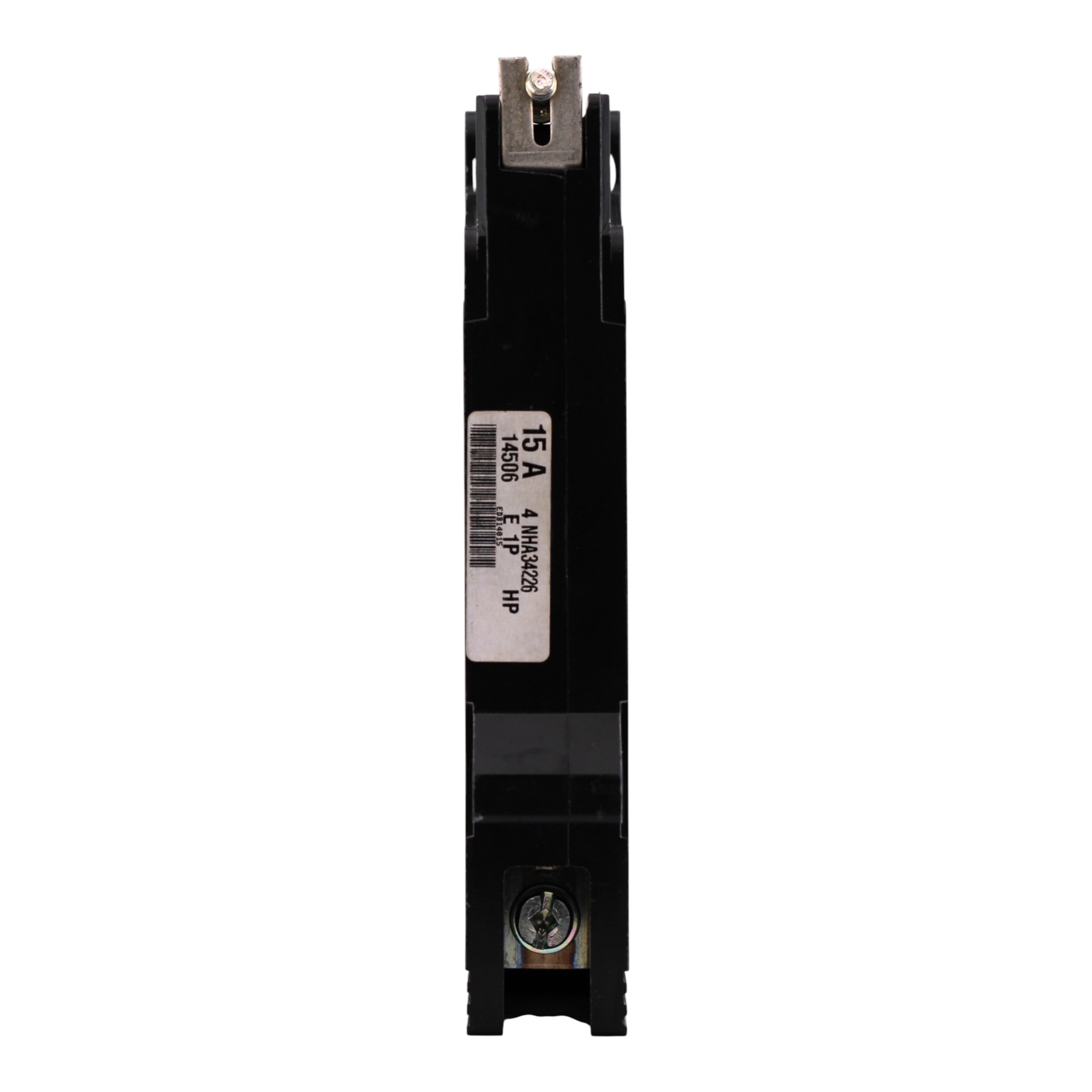

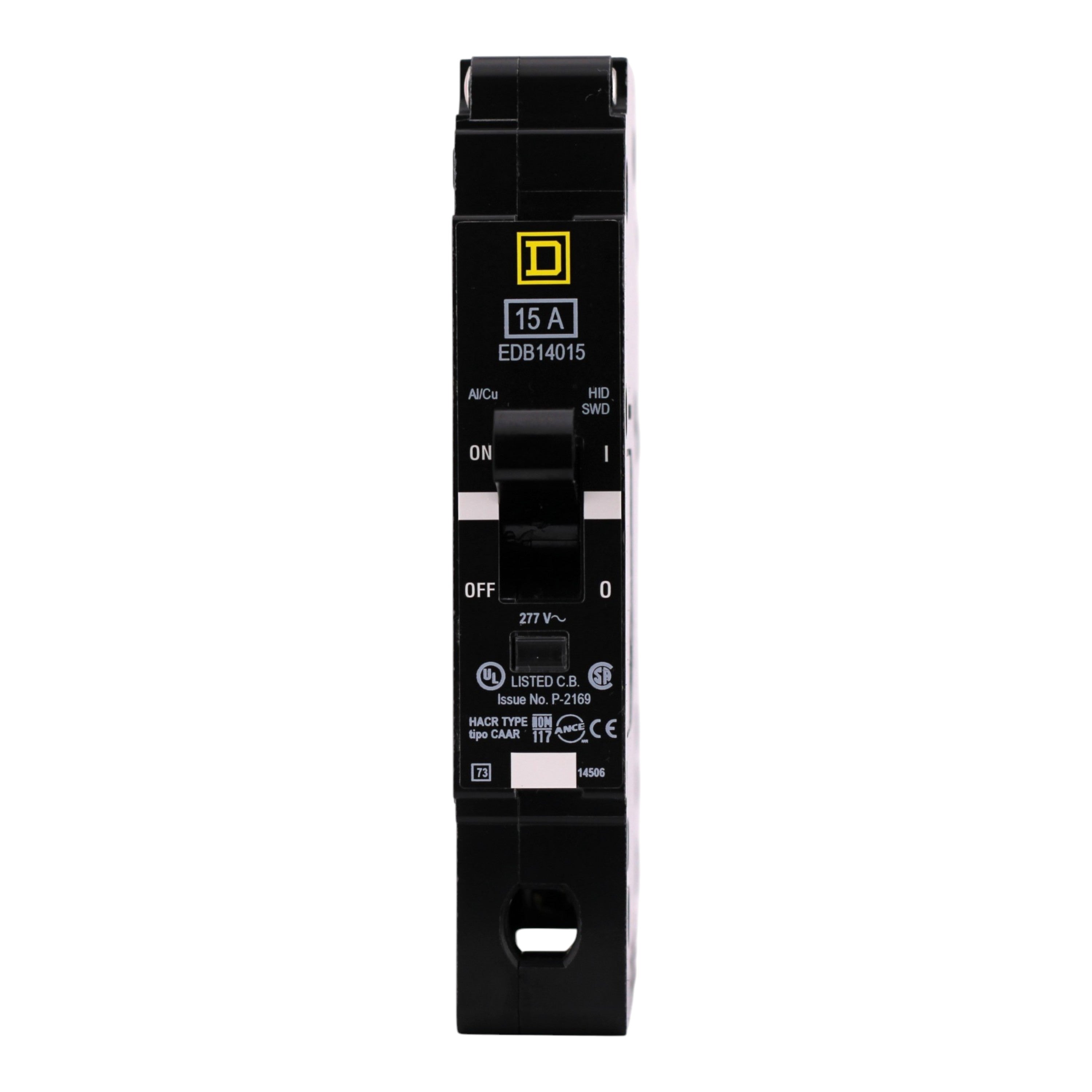

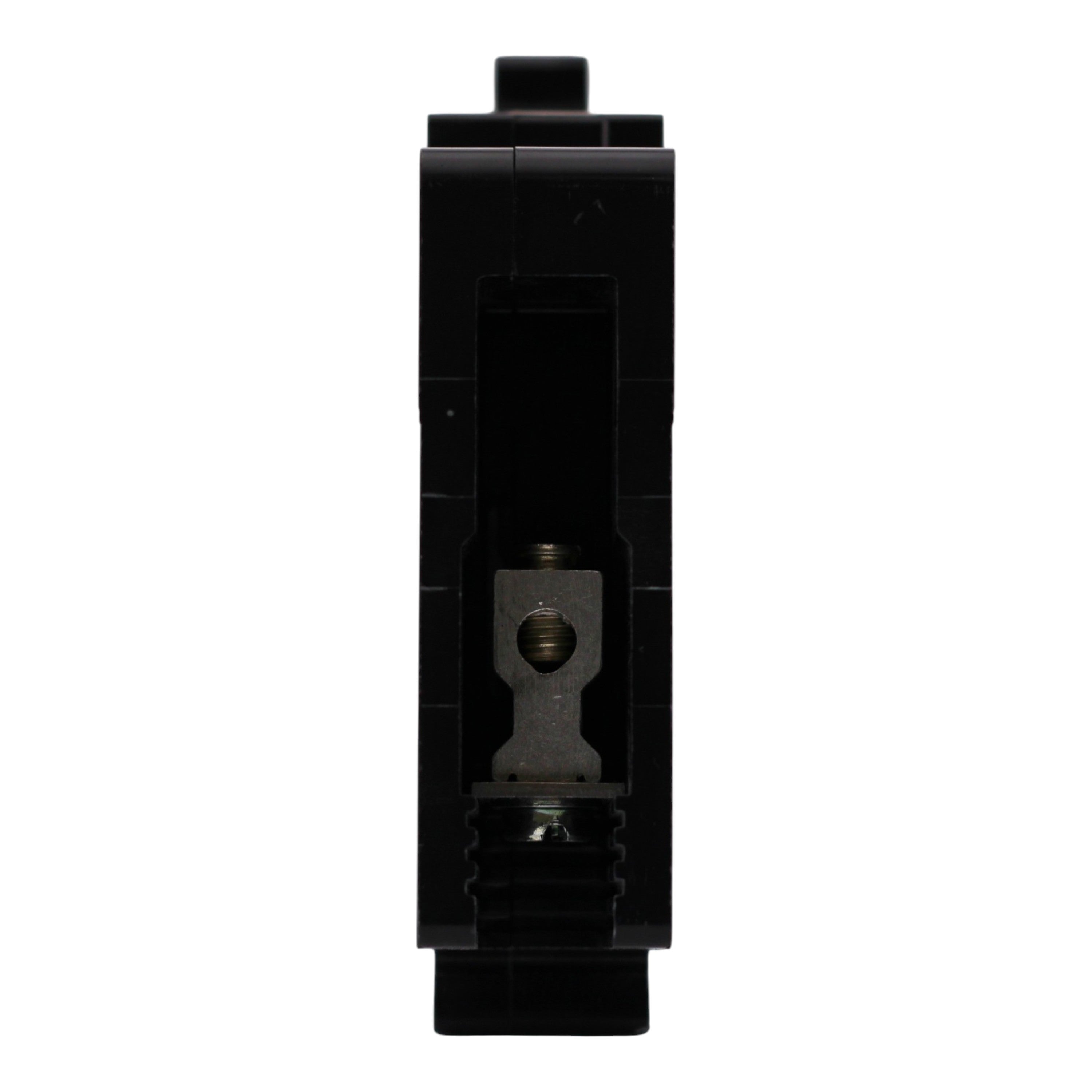

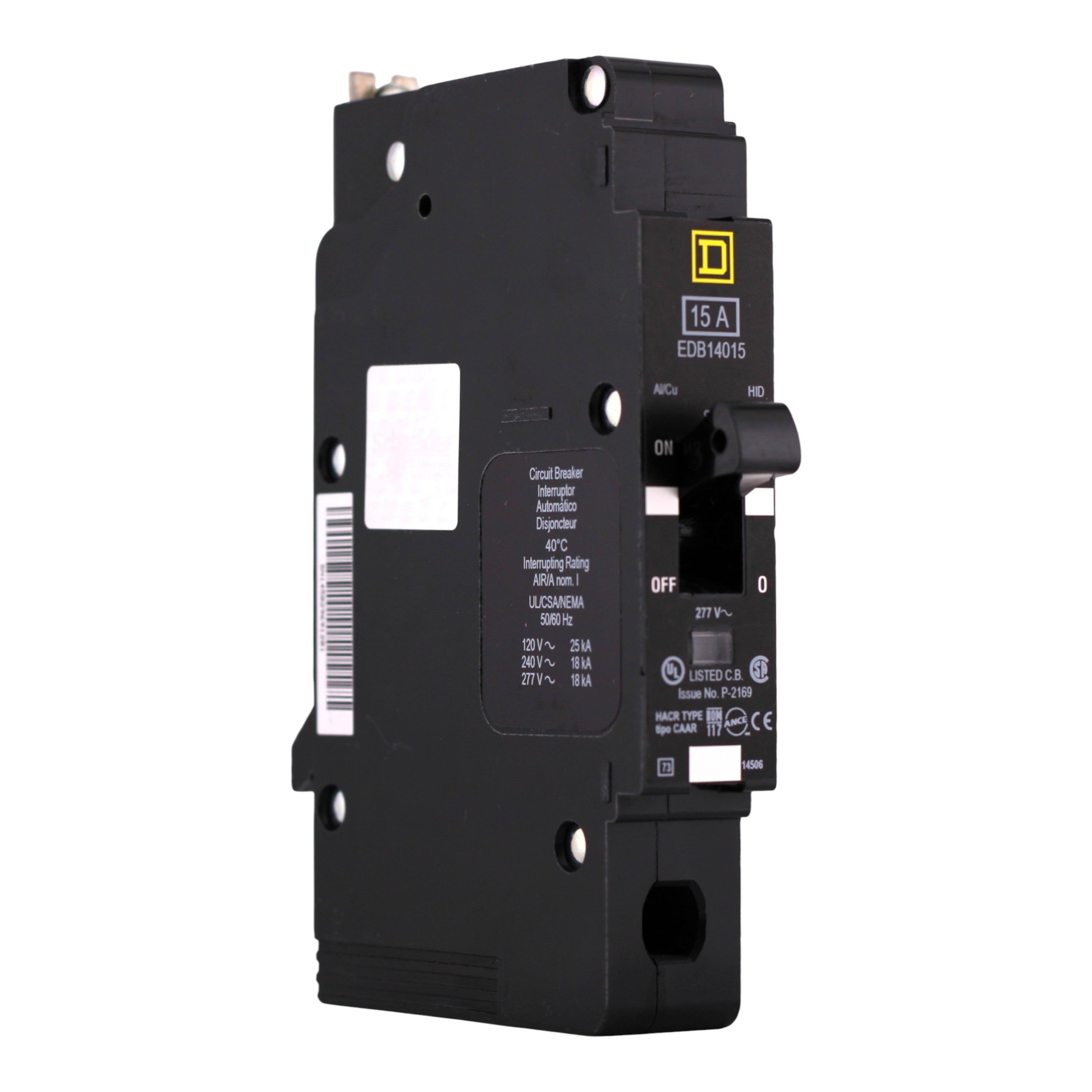

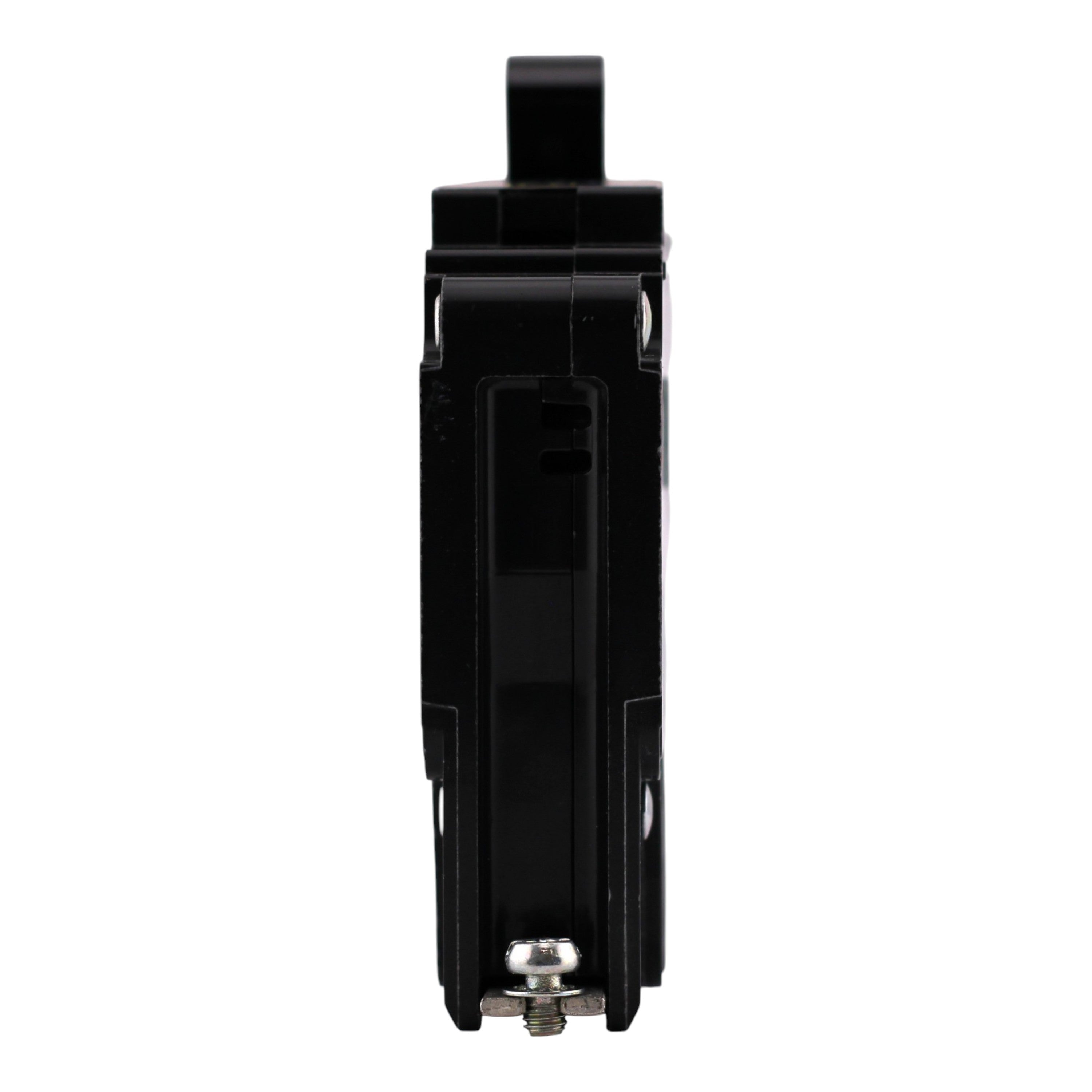

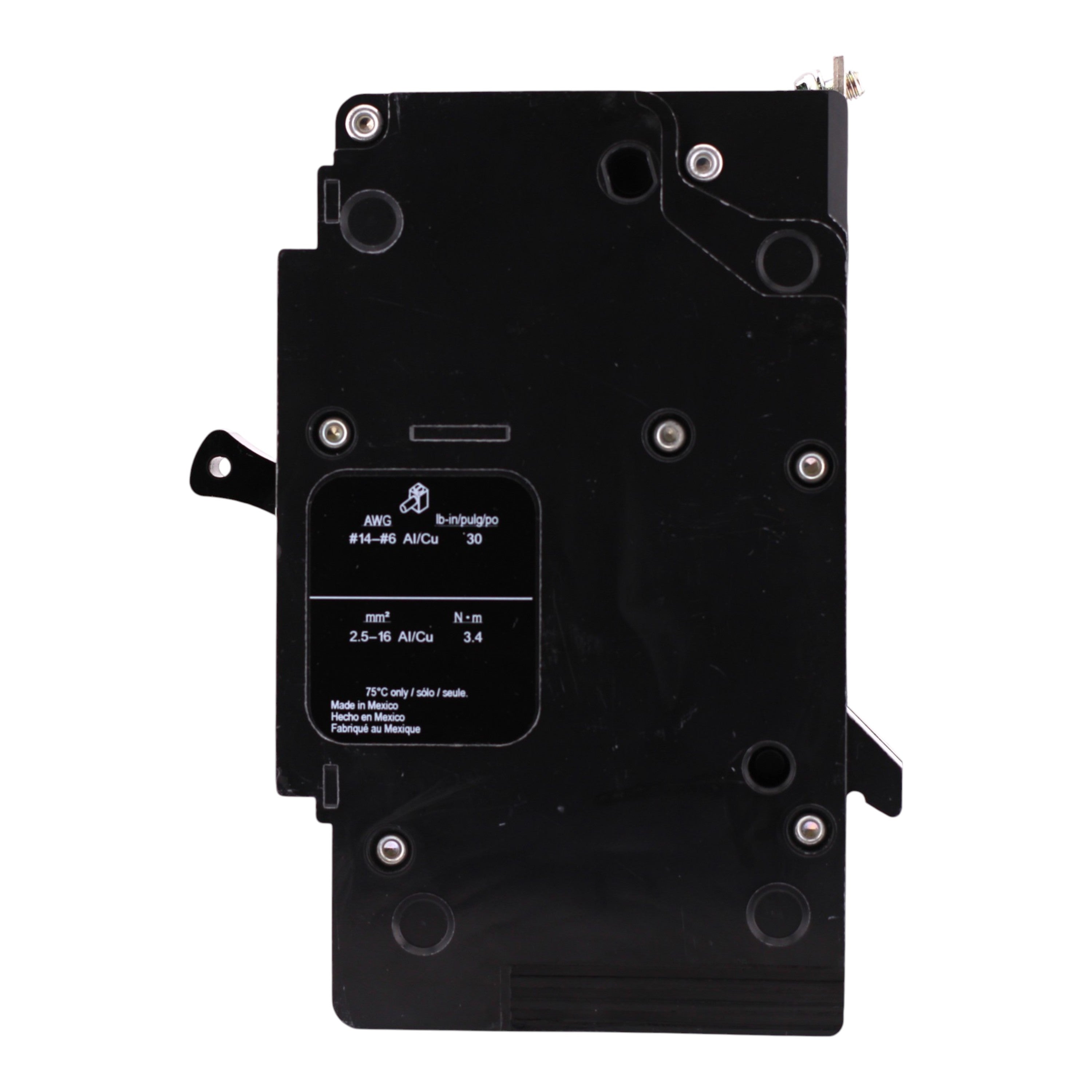

Square D E-Frame, EDB14015, 15A, 1P, 277V, 25kA, Bolt-On, Circuit Breaker

Square D EDB14015: 15 Amp, 1-Pole, E-Frame Thermal Magnetic Circuit Breaker, 277V, 25kA, bolt-on, HACR/HID/Switching Duty, cULus listed. [TAA]

• Manufacturer: Schneider Electric
• Brand: Square D (Schneider Electric)
• Product Range: E-Frame EDB (for Square D NF lighting panelboards)
• UPC: 785901878896
• Model Number: EDB14015
• Breaker Type: Thermal Magnetic Miniature Circuit Breaker
• Amperage: 15 Amps
• Poles: 1-Pole
• Voltage: 277 Volts AC (max operating)

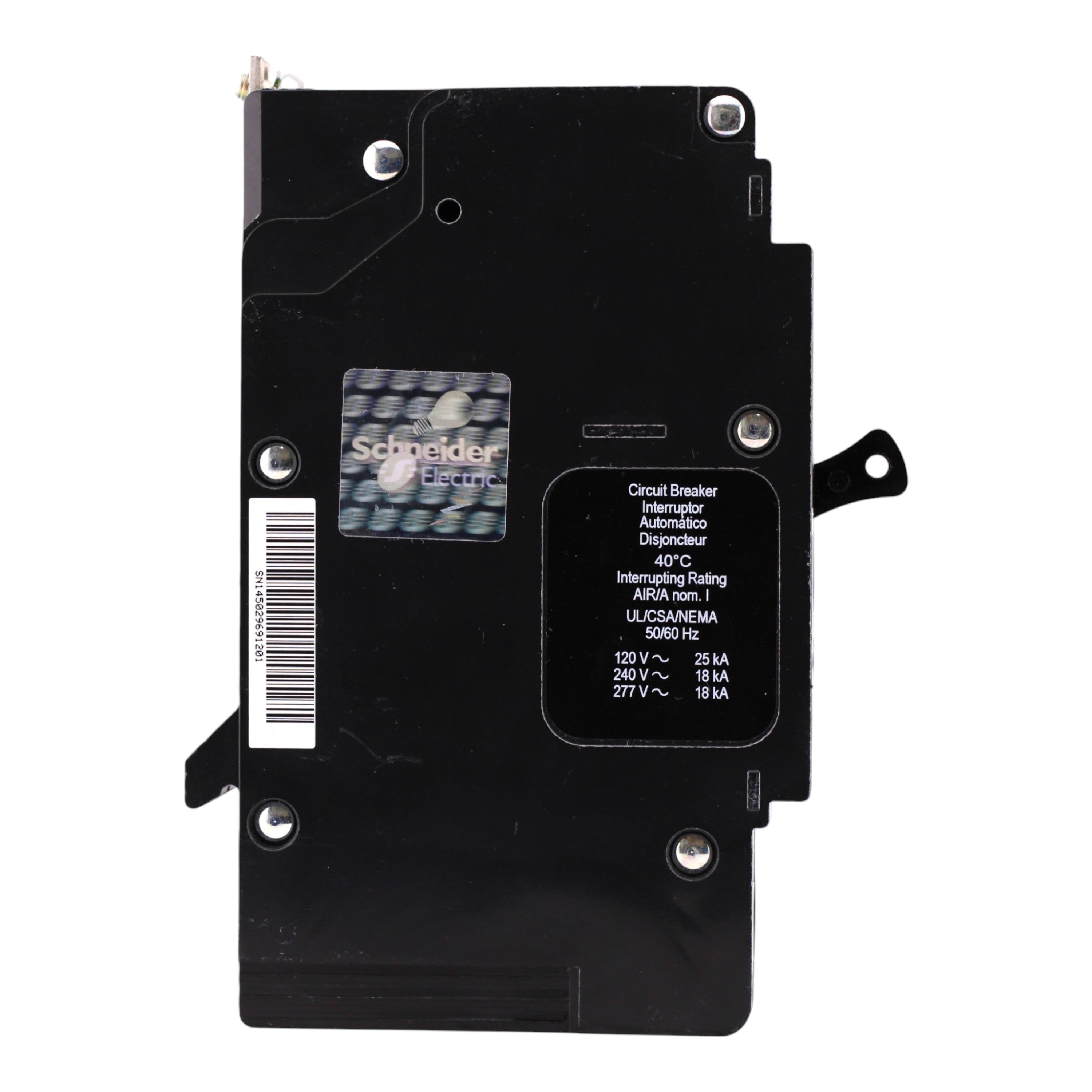

• Interrupt Rating: 25 kAIC @ 120V AC; 18 kAIC @ 277V AC, 240V AC, 120/240V AC
• Mounting Mode: Bolt-on
• Trip Type: Thermal-Magnetic (Visi-Trip™ indicator)
• Hold Current: 270 Amps
• Trip Current: 875 Amps

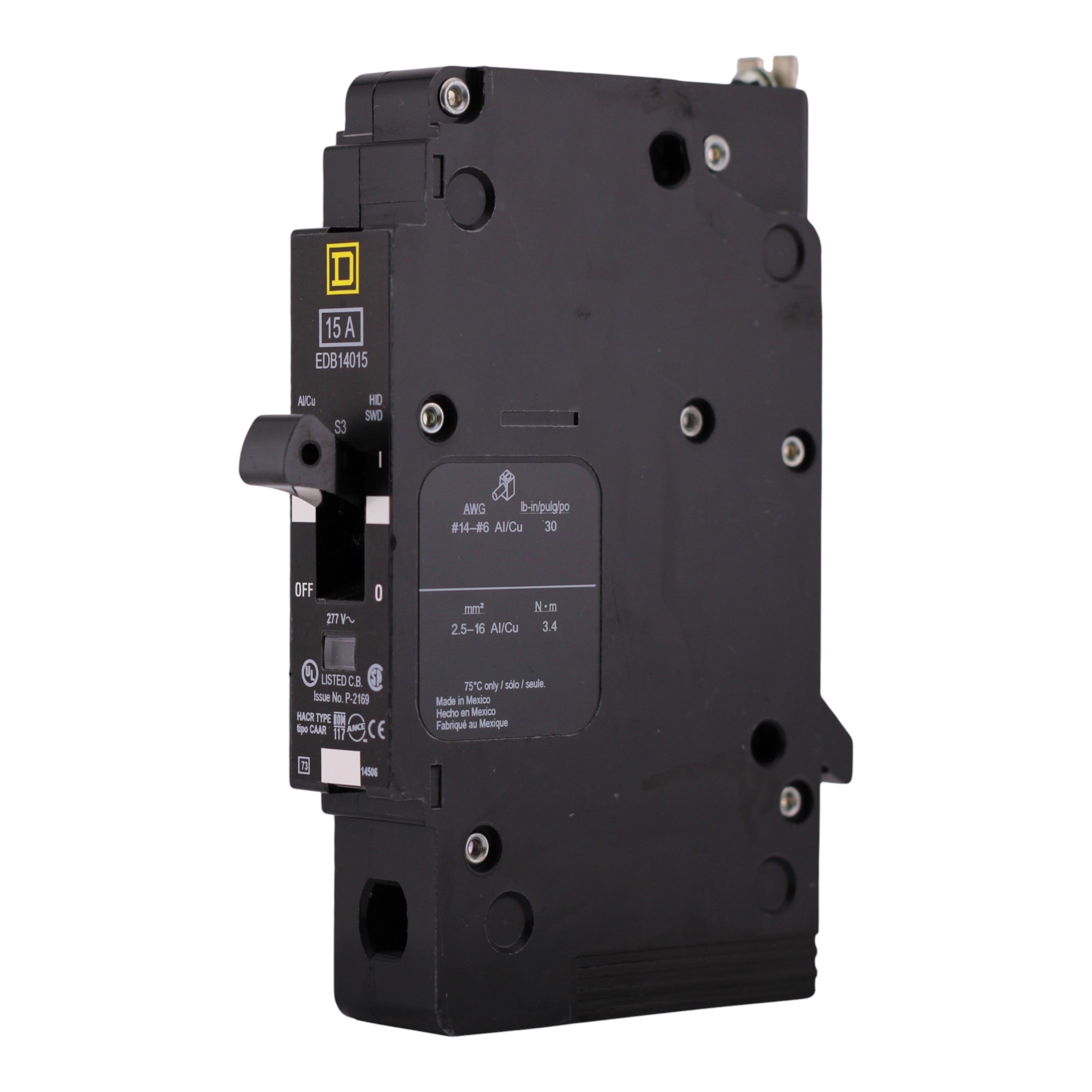

• Wire Size: #14–6 AWG Cu; #12–6 AWG Al
• Tightening Torque: 30.09 lb-in (#14–6 AWG)
• Number of Spaces Required: 1
• Calibration Temperature: 40°C
• Dimensions: Height: 5.66 in; Width: 0.98 in; Depth: 4.05 in
• Weight: 2 lbs
• Compliance: TAA Compliant
• Certifications: cULus Listed, IEC, CSA Certified, HACR Rated, HID Rated, Switching Duty Rated

This Square D EDB14015 bolt-on E-Frame circuit breaker delivers dependable 15 Amp, 1-Pole thermal magnetic protection for 277V circuits in Square D NF lighting panelboards. With 25 kAIC interrupt rating at 120V, Visi-Trip™ indication, and HACR/HID/Switching Duty ratings, it supports commercial lighting distribution applications.
