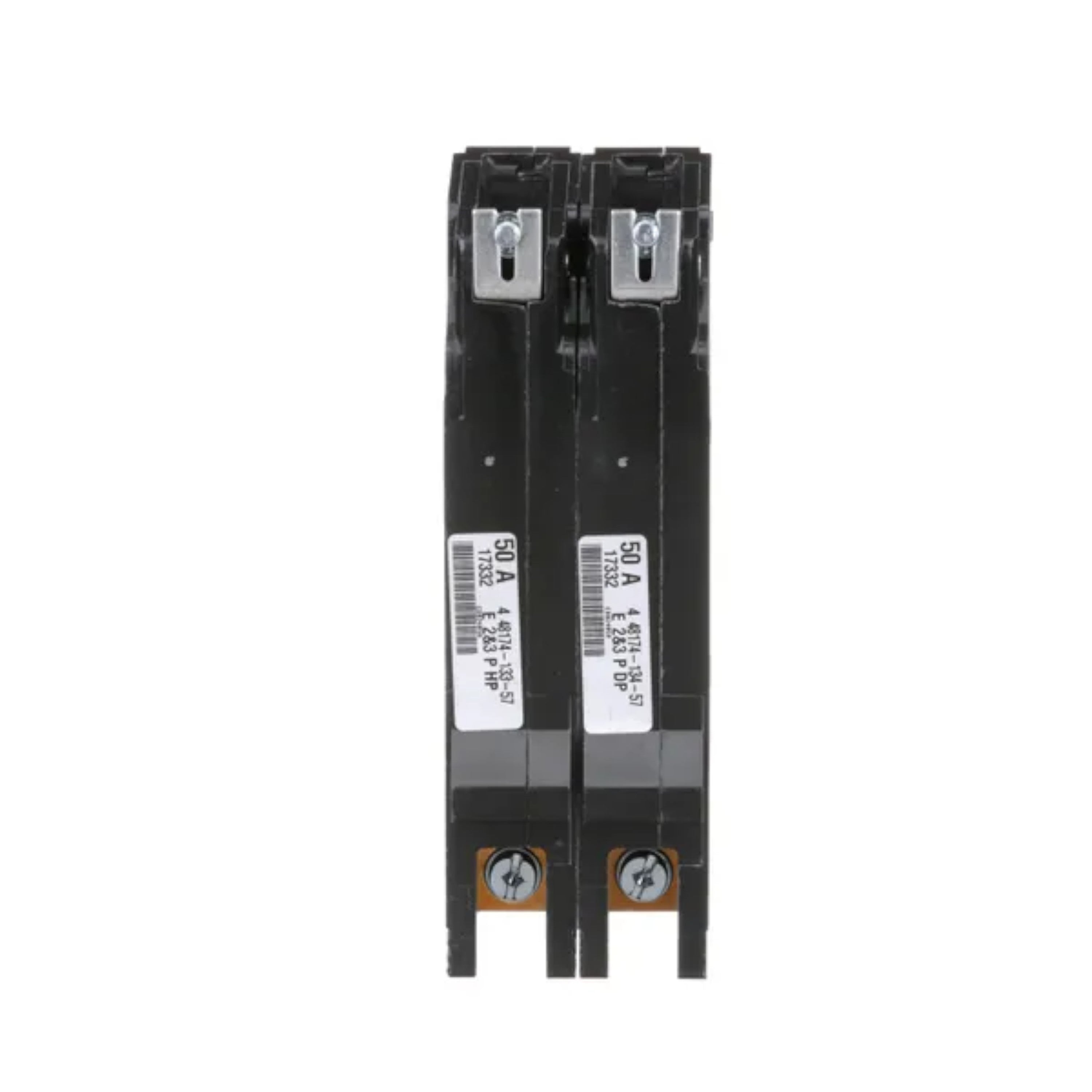

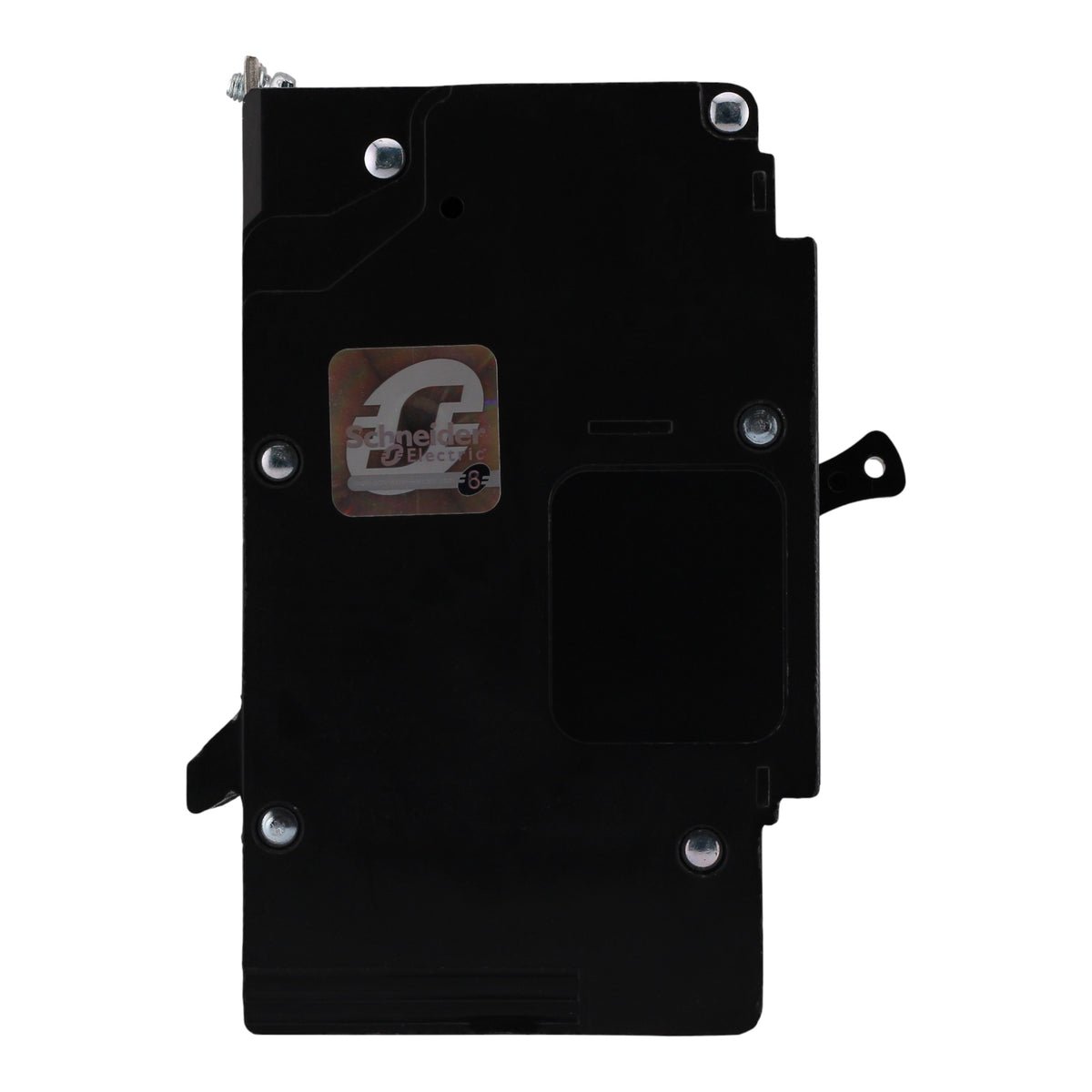

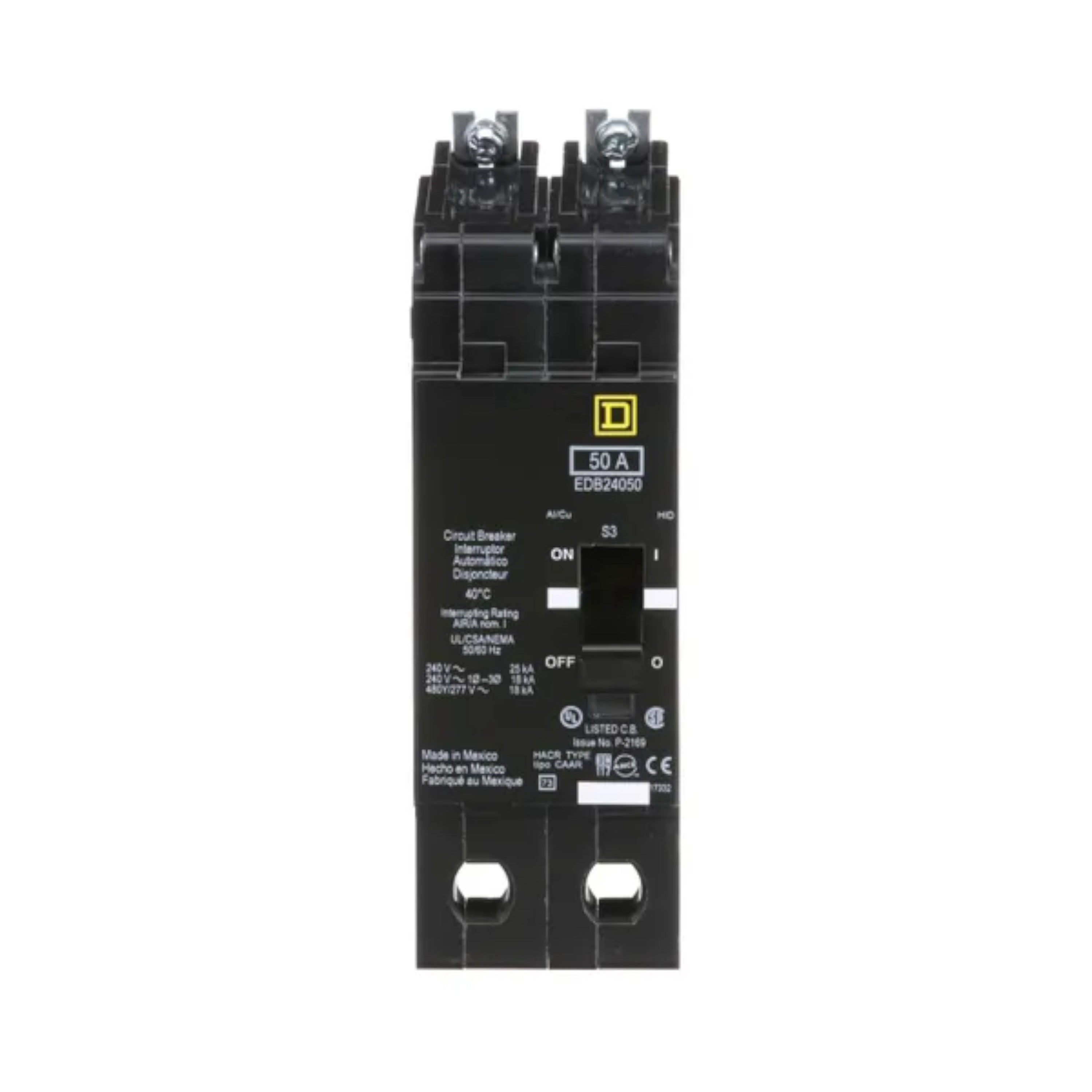

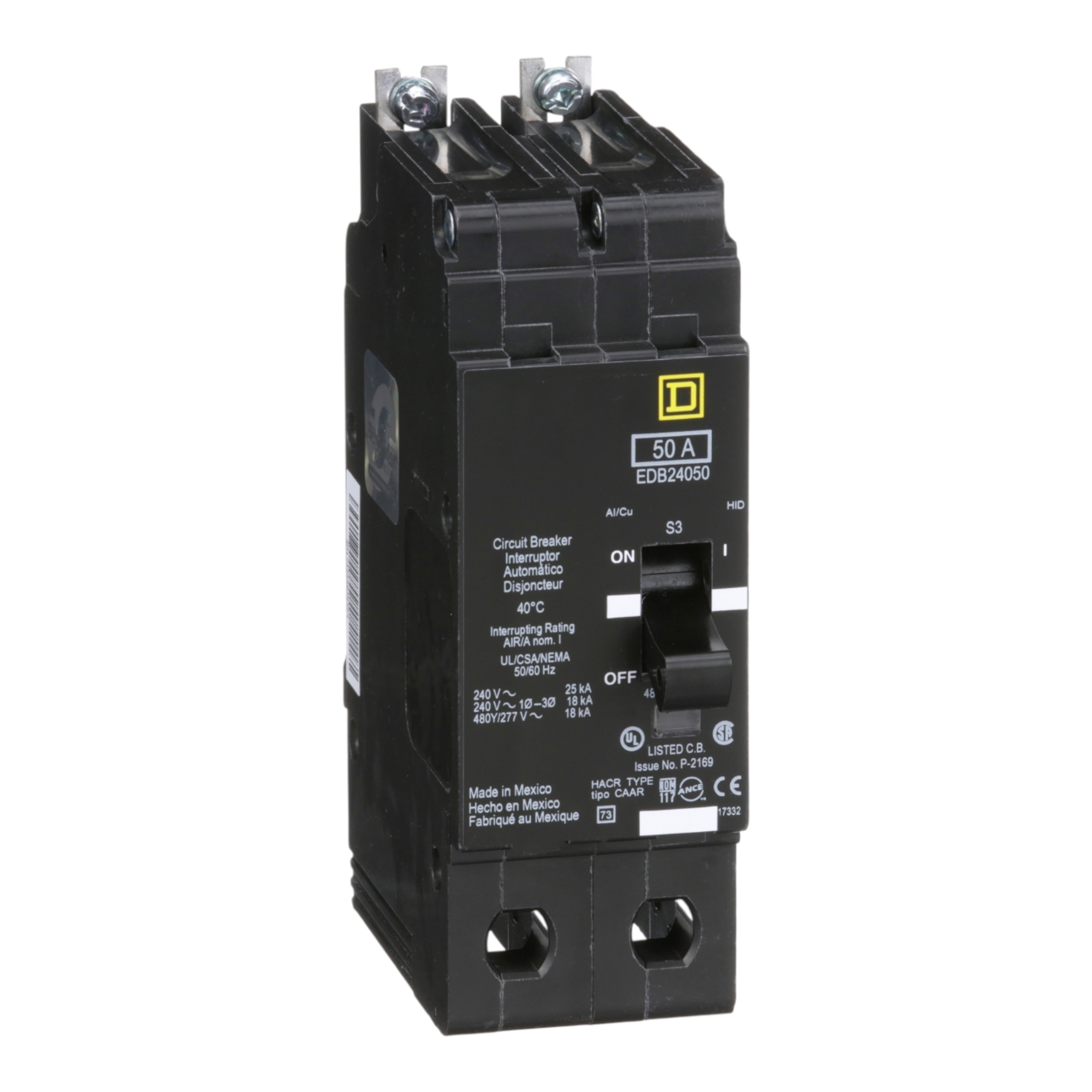

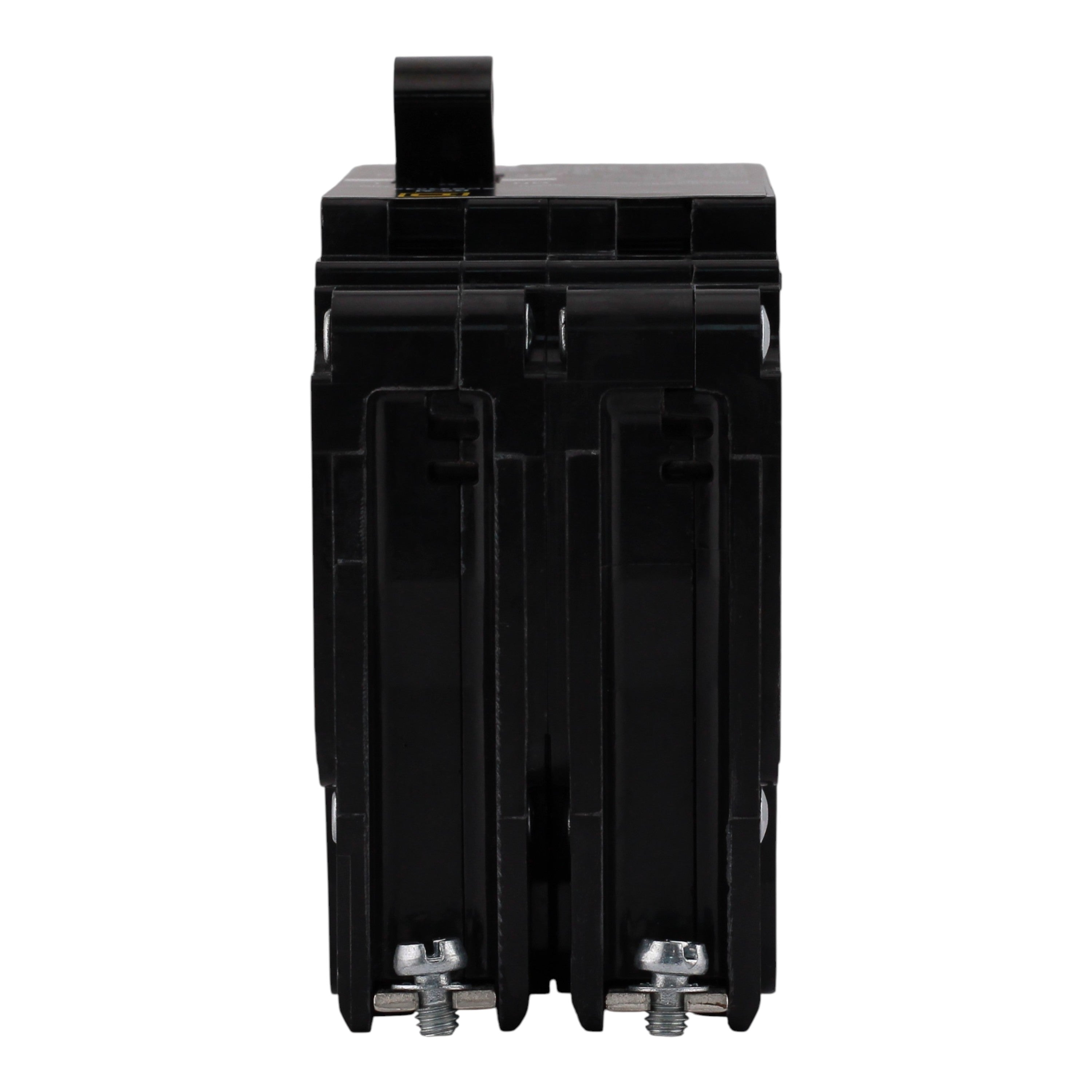

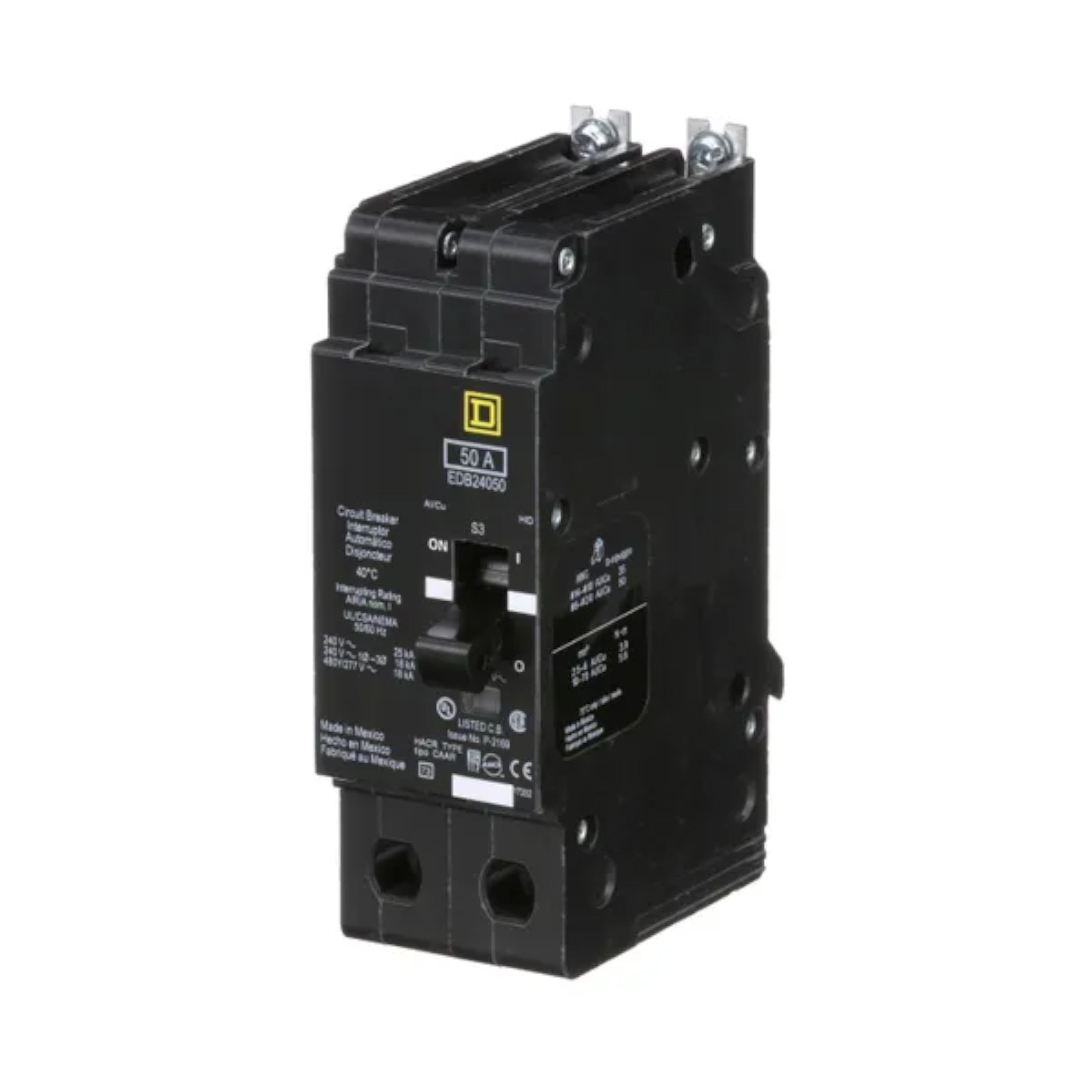

Square D E-Frame EDB24050 50A 2P 480Y/277V 25kA Bolt-On Circuit Breaker
Regular price
$112.00 USD
Square D EDB24050: 50 Amp 2-Pole Thermal-Magnetic Circuit Breaker, 480Y/277 VAC, 25kA Interrupt Rating at 240V/480Y/277V, Bolt-On, Visi-Trip Indicator, UL Listed, HACR & HID Rated, for NF Panelboards
- Manufacturer: Schneider Electric
- Brand: Square D
- Product Range: E-Frame (for Square D NF and NFM Panelboards)
- UPC: 785901879084
- Model Number: EDB24050
- Breaker Type: Thermal-Magnetic Circuit Breaker
- Amperage: 50 Amps
- Poles: 2-Pole
- Voltage: 480Y/277 Volts AC
- Interrupt Rating: 25 kAIC at 240 VAC, 18 kAIC at 480Y/277 VAC
- Mounting Mode: Bolt-on

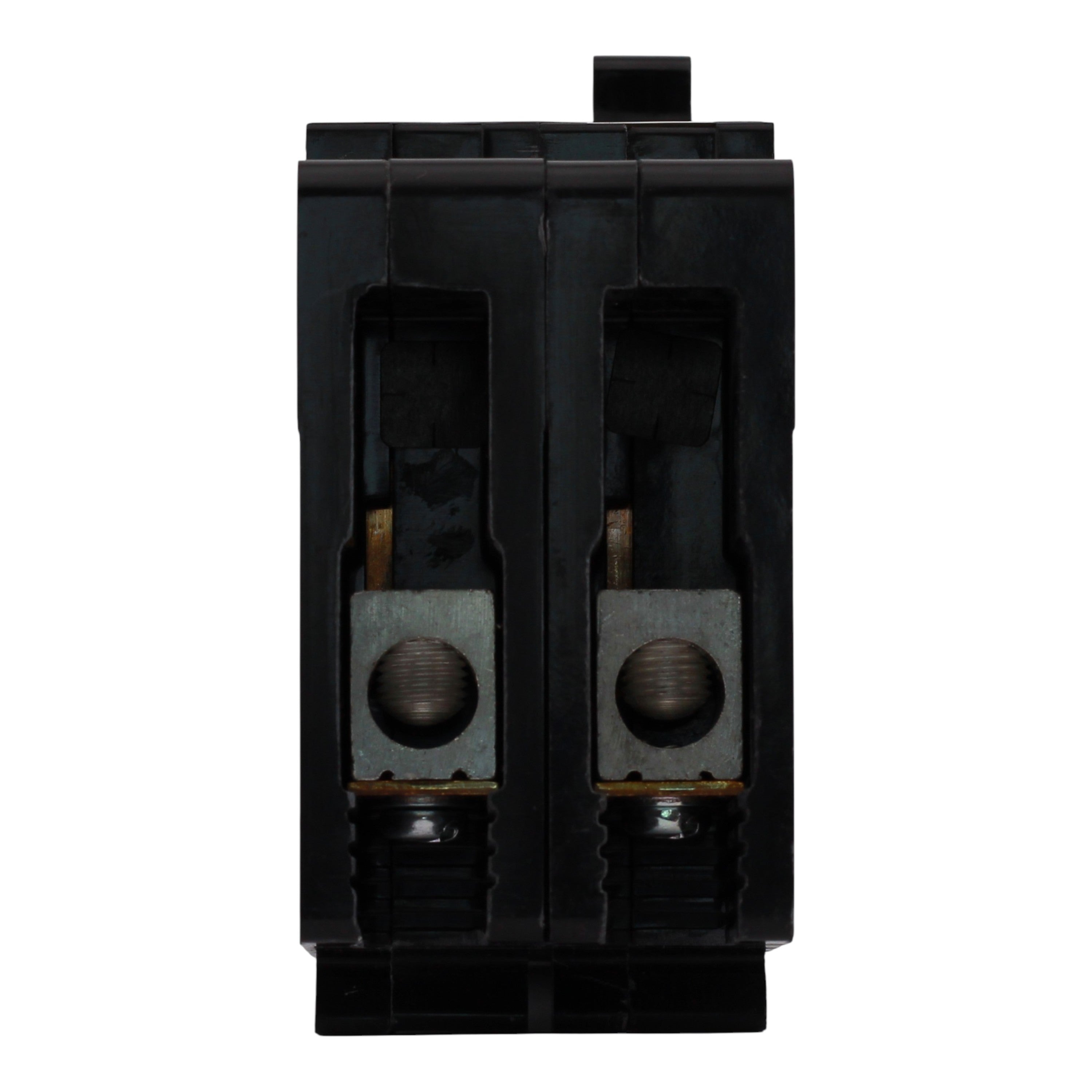

- Connections Terminals: Lugs (line and load side)
- Wire Size: AWG 14...AWG 2/0 Copper or AWG 12...AWG 2/0 Aluminum

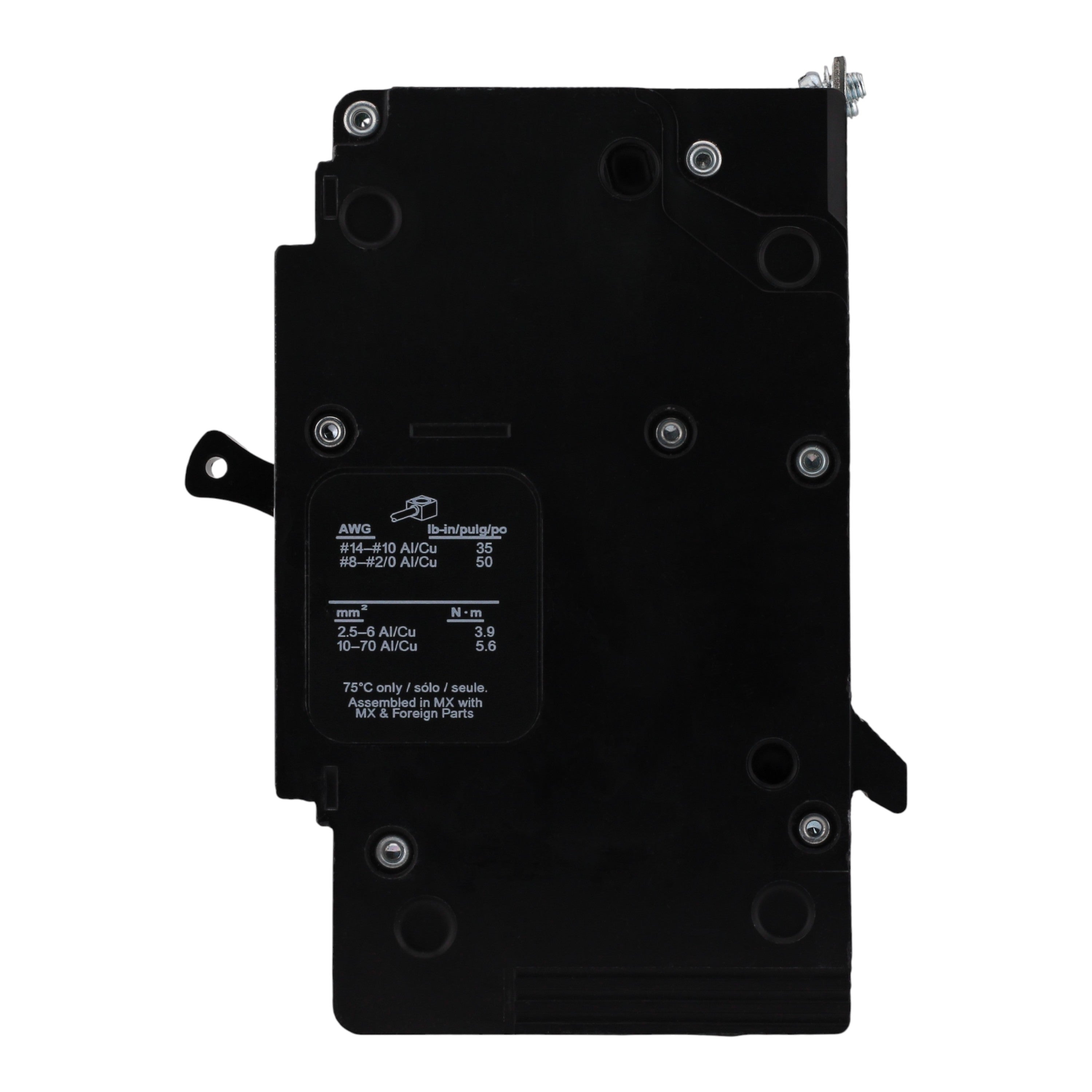

- Tightening Torque: 34.5 lbf.in (AWG 14-10), 49.6 lbf.in (AWG 8-2/0)
- Dimensions: Height: 5.66 in; Width: 1.96 in; Depth: 4.05 in
- Weight: 3.0 lbs
- Certifications: UL Listed, cULus, HACR Rated, HID Rated
- Additional Features: Visi-Trip indicator, calibrated for 40°C ambient
This Square D E-Frame EDB24050 bolt-on circuit breaker delivers reliable 50A, 2-pole thermal-magnetic protection for 480Y/277V and 240V systems in NF panelboards. With 25kA interrupt capacity at 240V, Visi-Trip indicator for faster troubleshooting, and bolt-on mounting, it provides superior overload and short-circuit protection for commercial lighting panelboards and high-intensity discharge (HID) applications. TAA compliant and HACR rated.
