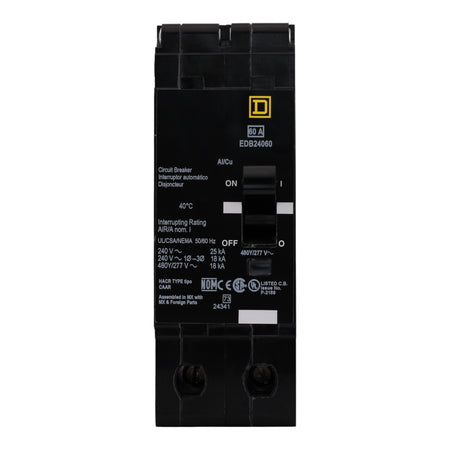

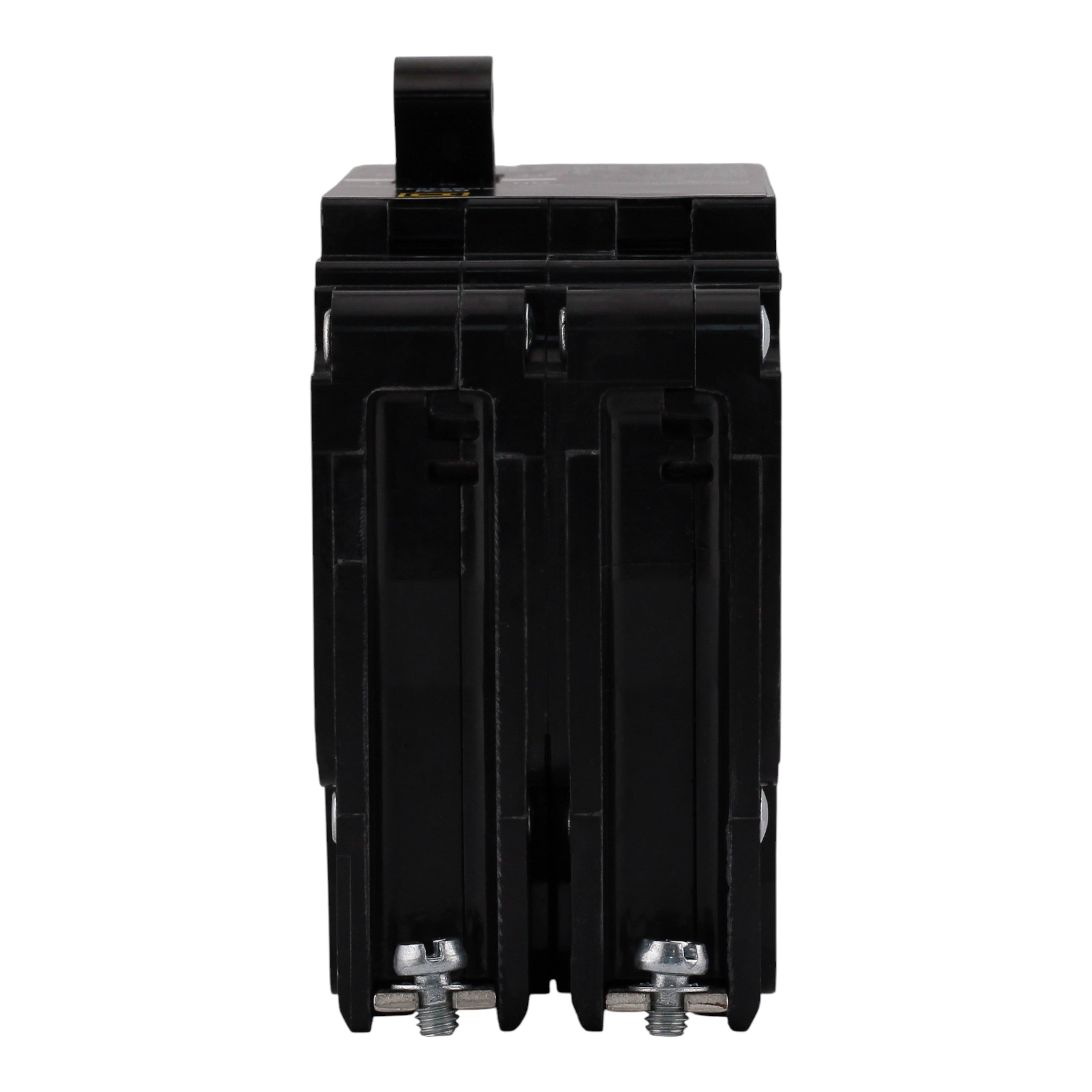

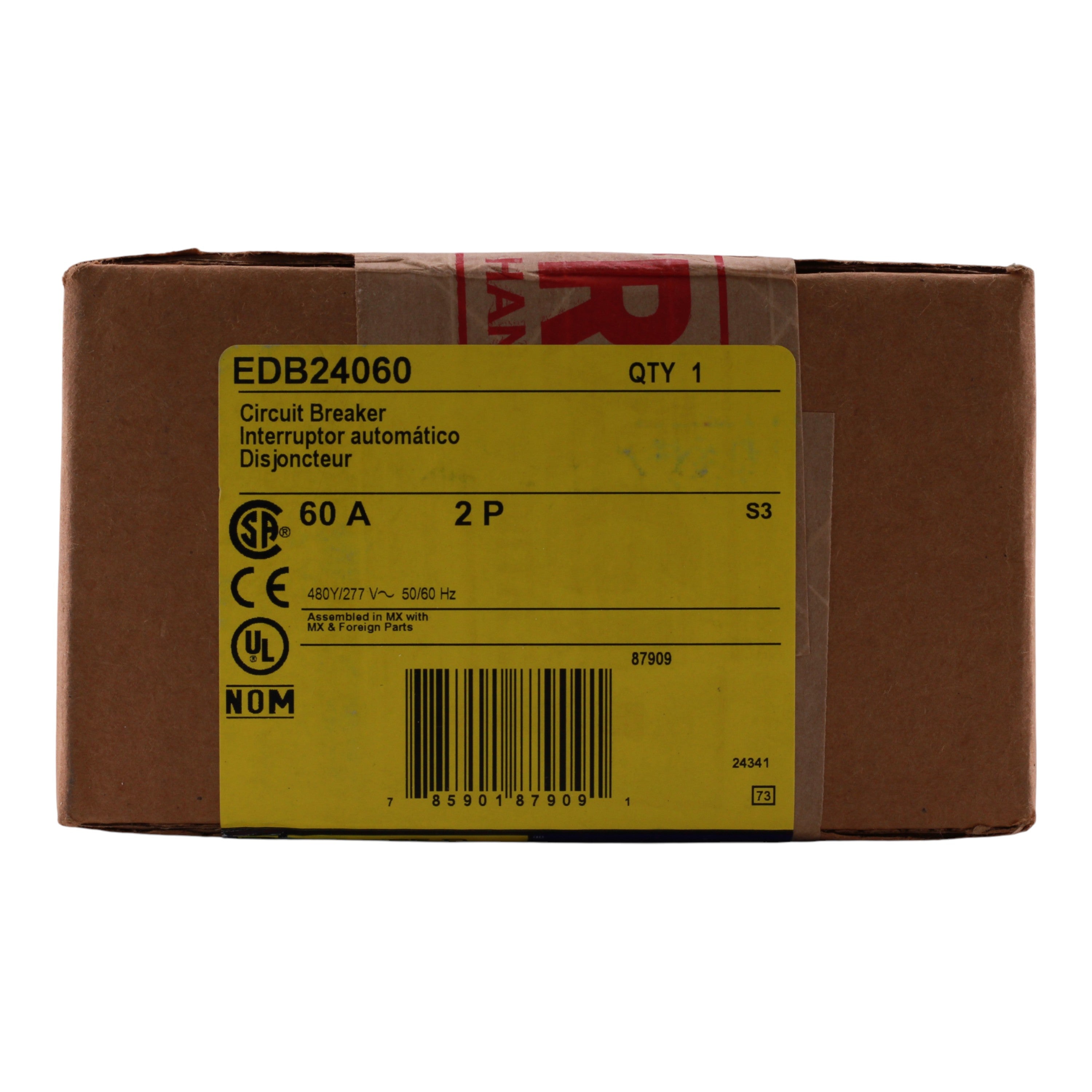

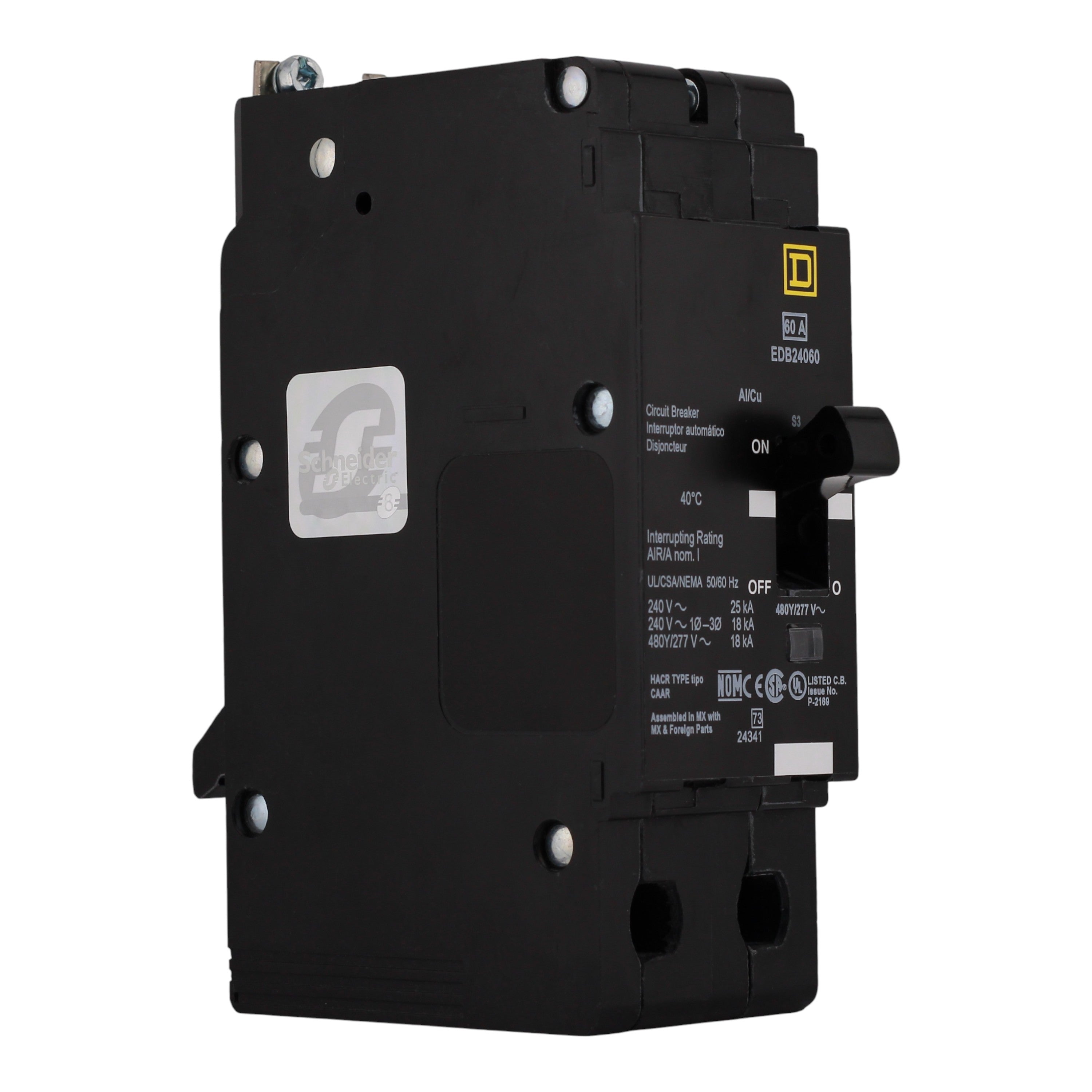

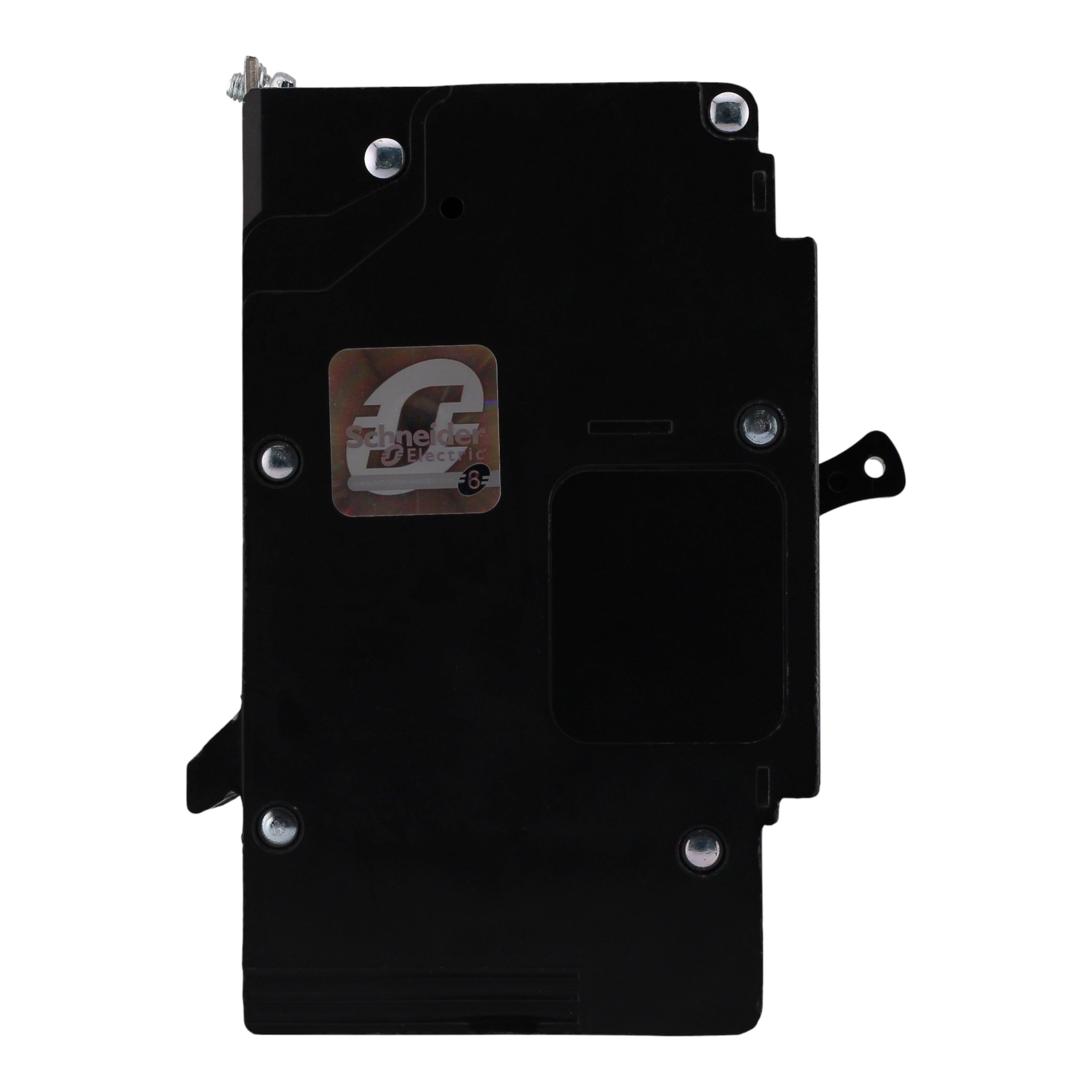

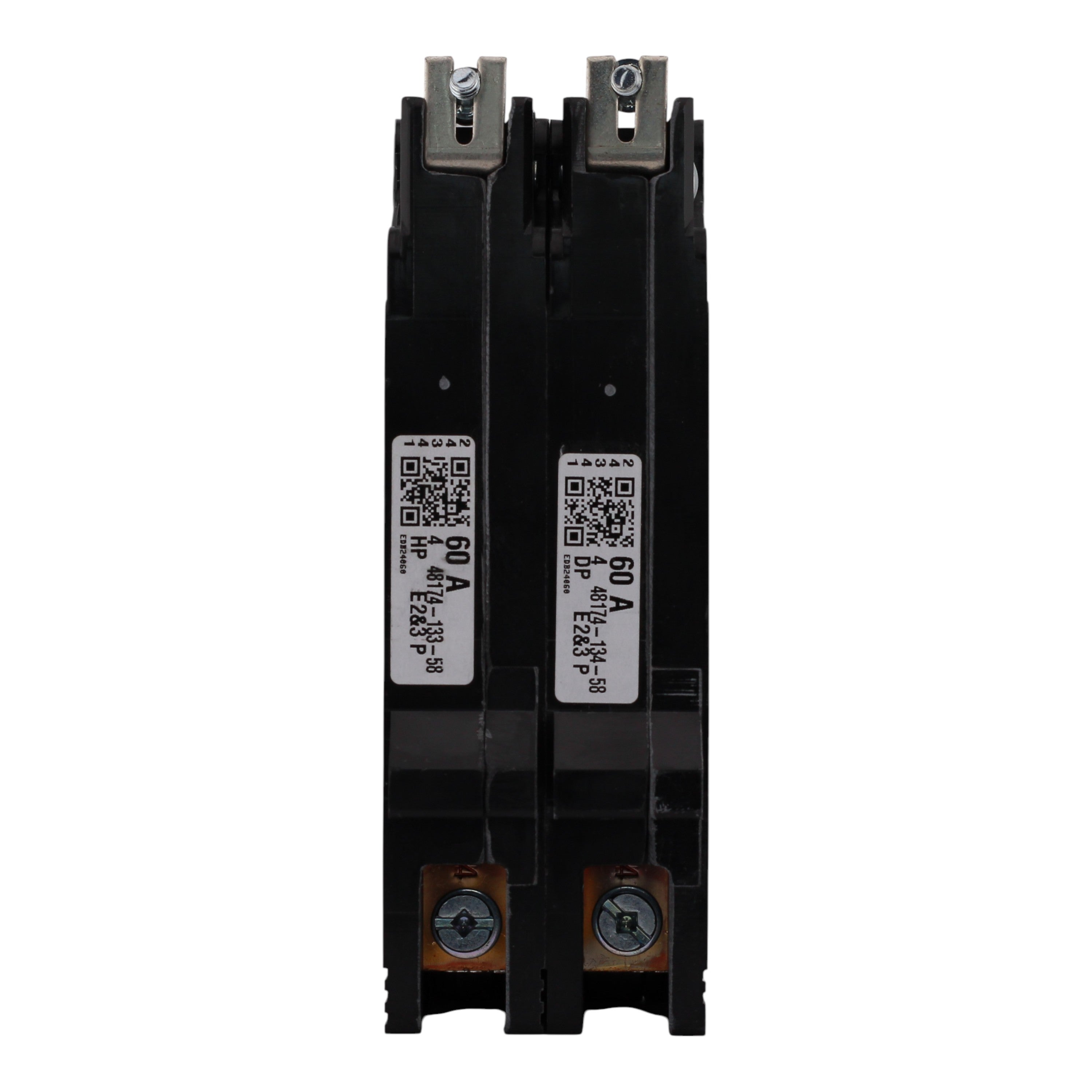

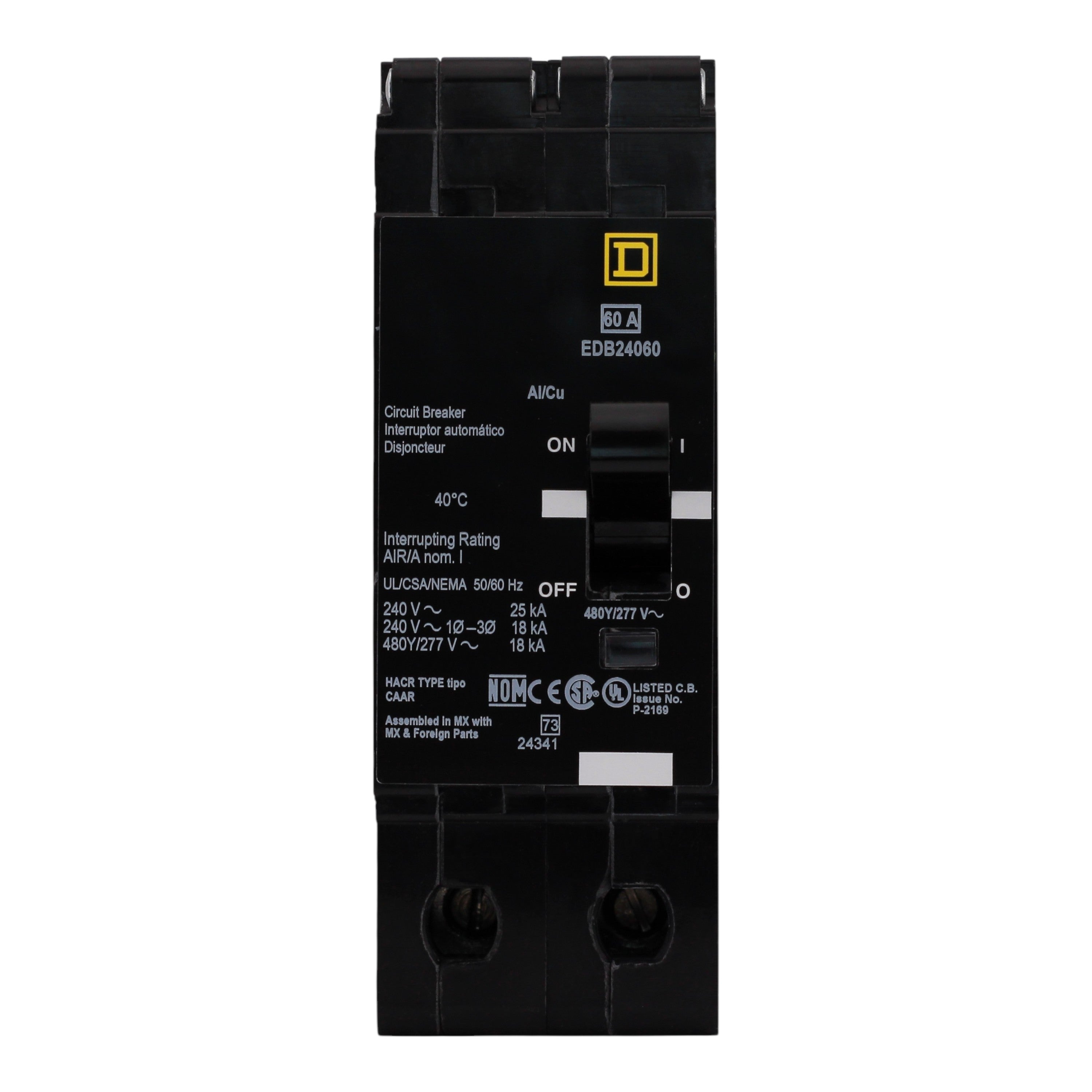

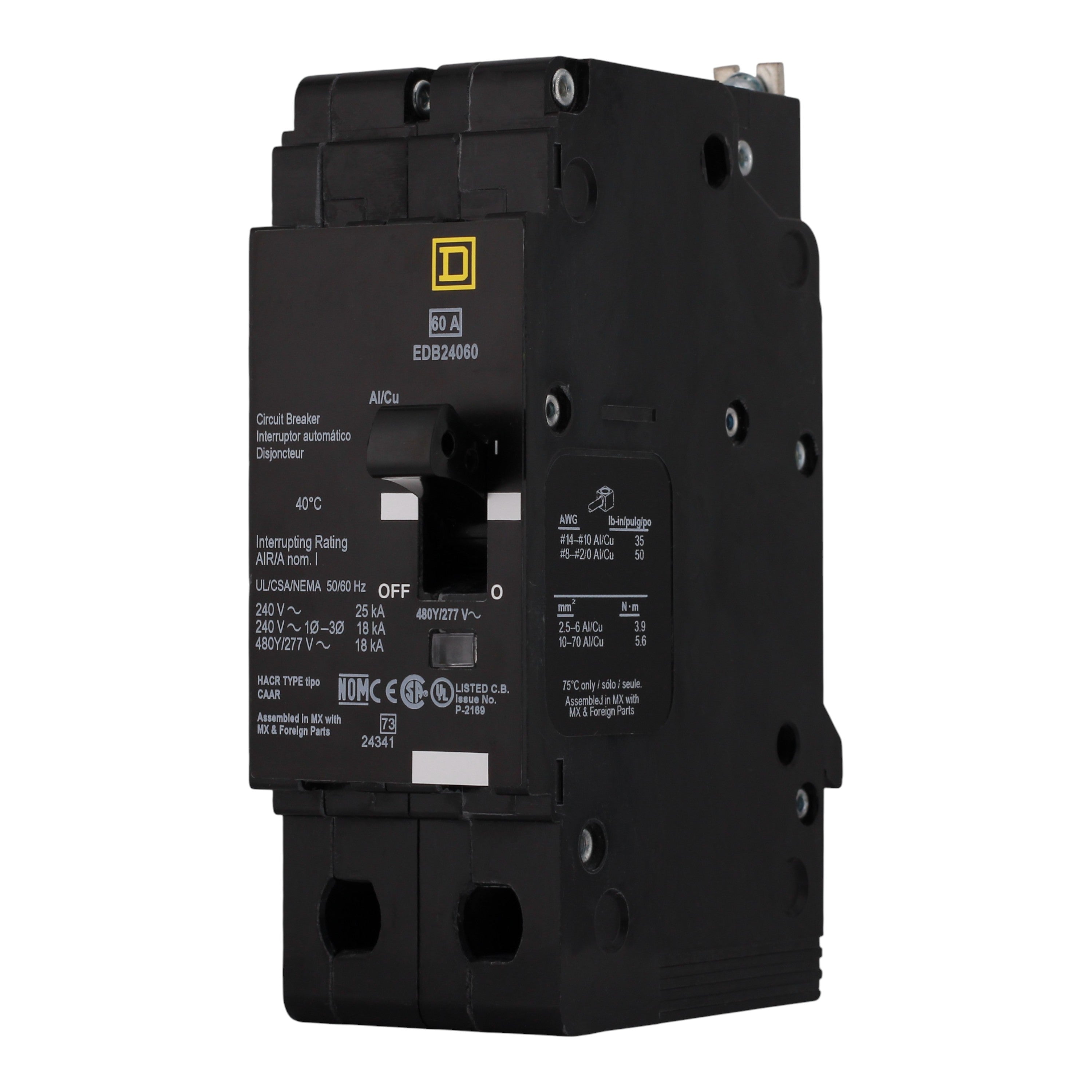

Square D E-Frame EDB24060 60A 2P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker
Regular price
$119.00 USD
Square D EDB24060: 60 Amp 2-Pole Thermal-Magnetic Circuit Breaker, 480Y/277 VAC, 25kA at 240V/18kA at 480Y/277V Interrupt Rating, Bolt-On, Visi-Trip Indicator, HACR Rated, UL Listed
- Manufacturer: Schneider Electric
- Brand: Square D
- Product Range: E-Frame (for Square D NF and NFM panelboards)
- UPC: 785901879091
- Model Number: EDB24060
- Breaker Type: Thermal-Magnetic
- Amperage: 60 Amps
- Poles: 2-Pole
- Voltage: 480Y/277 Volts AC
- Interrupt Rating: 25 kA at 240 VAC, 18 kA at 480Y/277 VAC
- Mounting Mode: Bolt-on

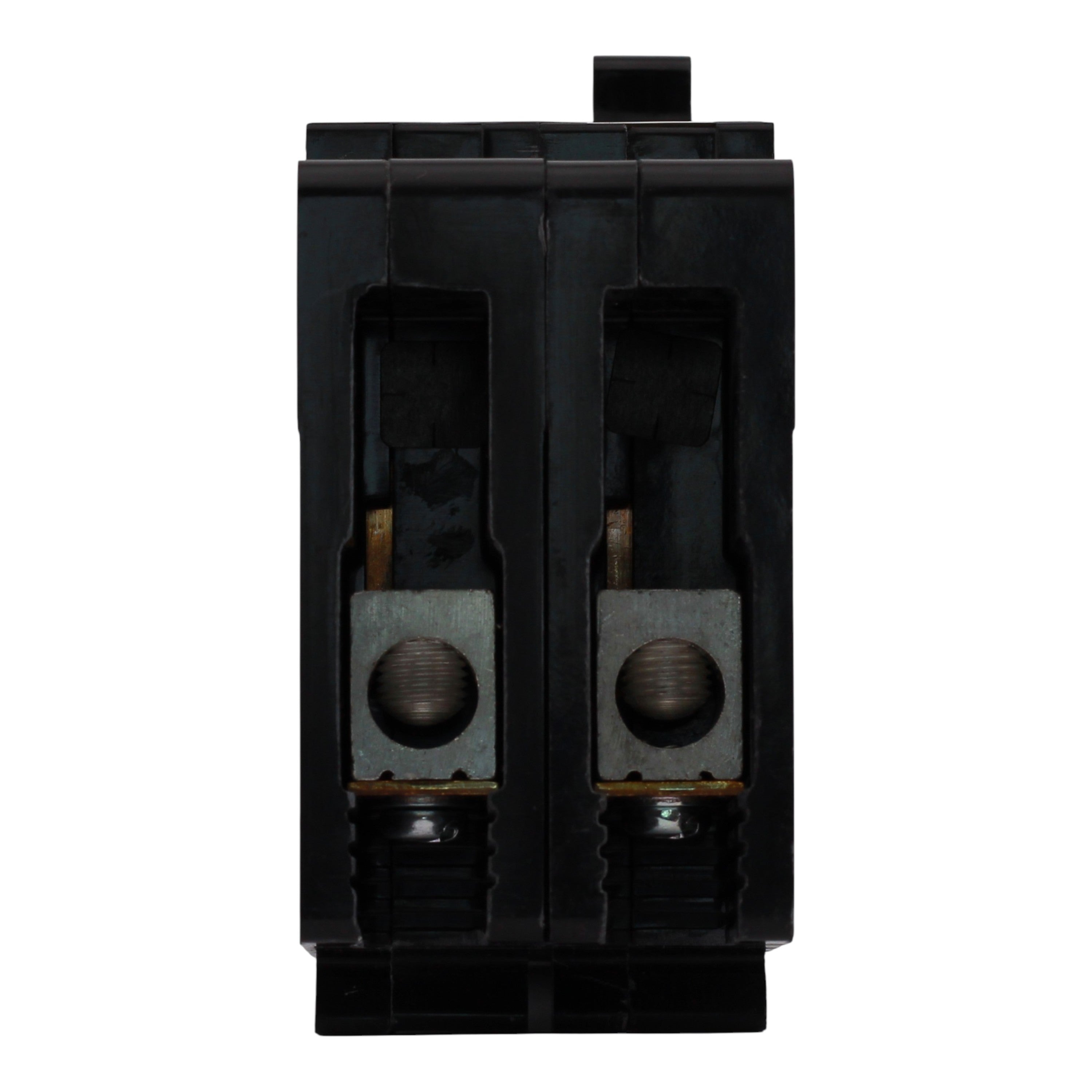

- Connections Terminals: Lugs (aluminum/copper)
- Wire Size: AWG 14...AWG 2/0 Cu / AWG 12...AWG 2/0 Al

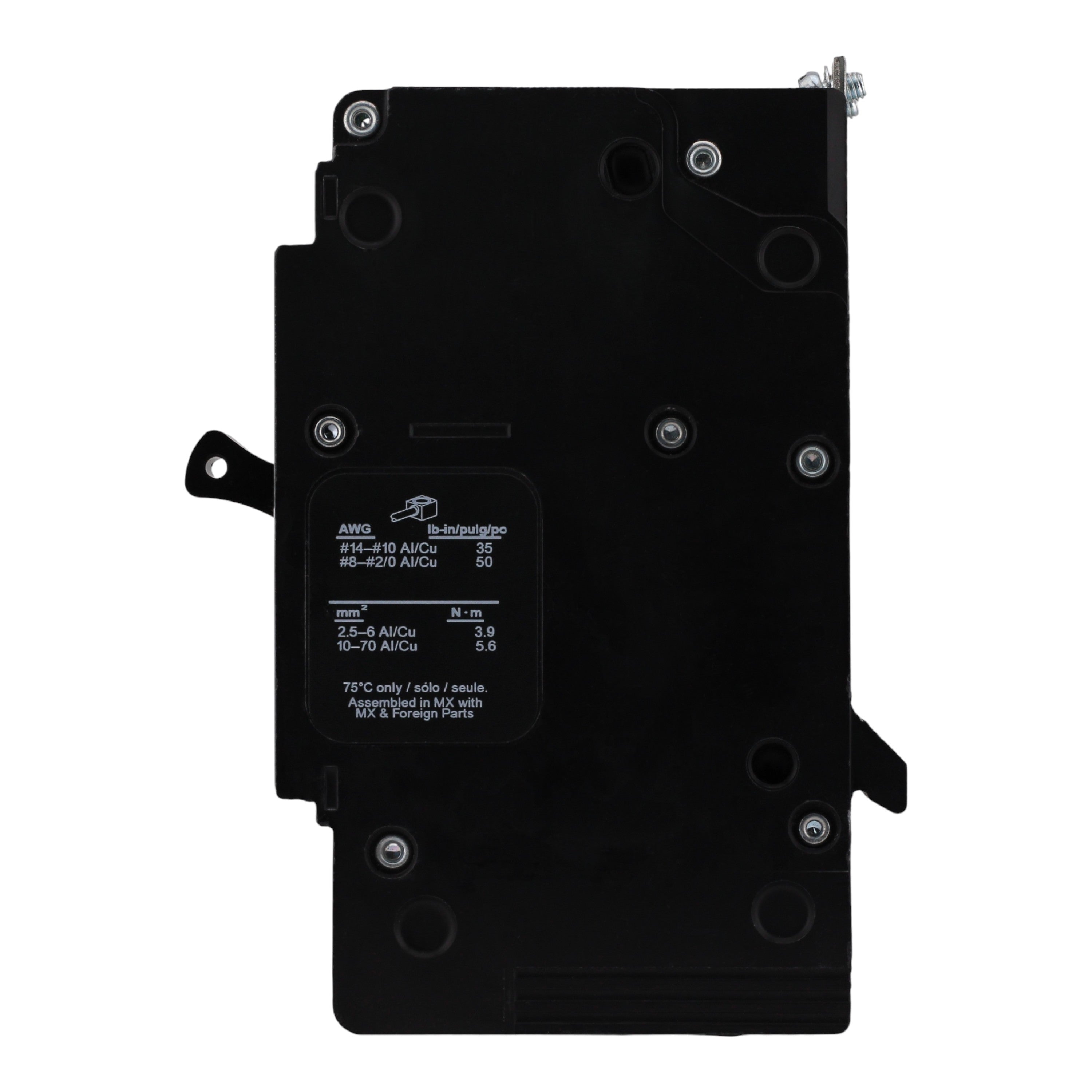

- Tightening Torque: 34.5 lbf.in (AWG 14-10), 49.6 lbf.in (AWG 8-2/0)
- Dimensions: Height: 5.66 in; Width: 3.92 in; Depth: 4.05 in
- Weight: 4.0 lbs
- Certifications: UL Listed, cULus, HACR Rated
- Additional Features: Visi-Trip indicator, calibrated for 40°C ambient
This Square D EDB24060 60A 2-pole thermal-magnetic bolt-on circuit breaker delivers reliable overload and short-circuit protection in Square D NF panelboards at 480Y/277 VAC systems. Featuring a 25kA interrupt rating at 240V (18kA at 480Y/277V), Visi-Trip indication for faster troubleshooting, and bolt-on mounting, it is ideal for commercial lighting panelboard applications requiring HACR-rated performance and robust 60 Amp protection.
