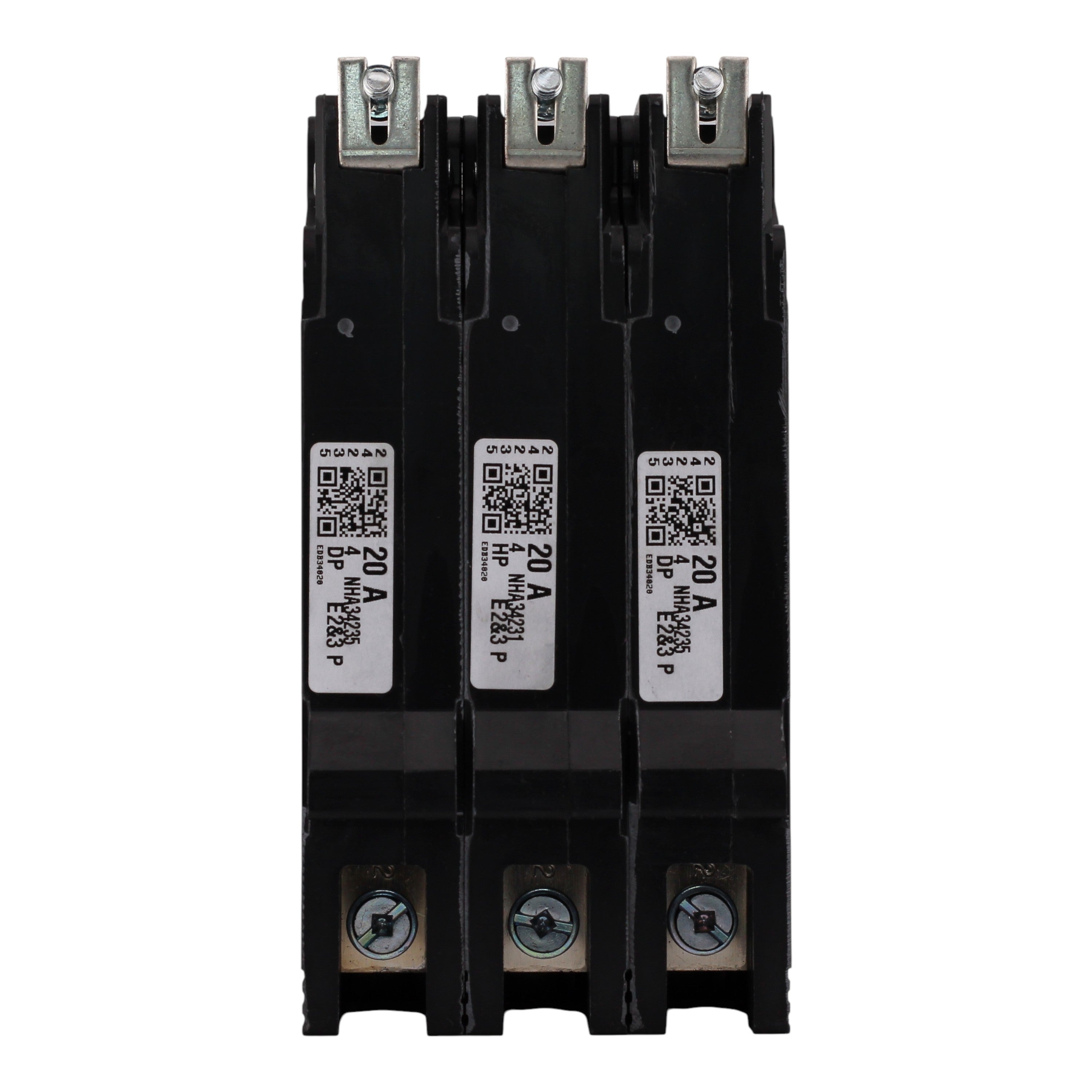

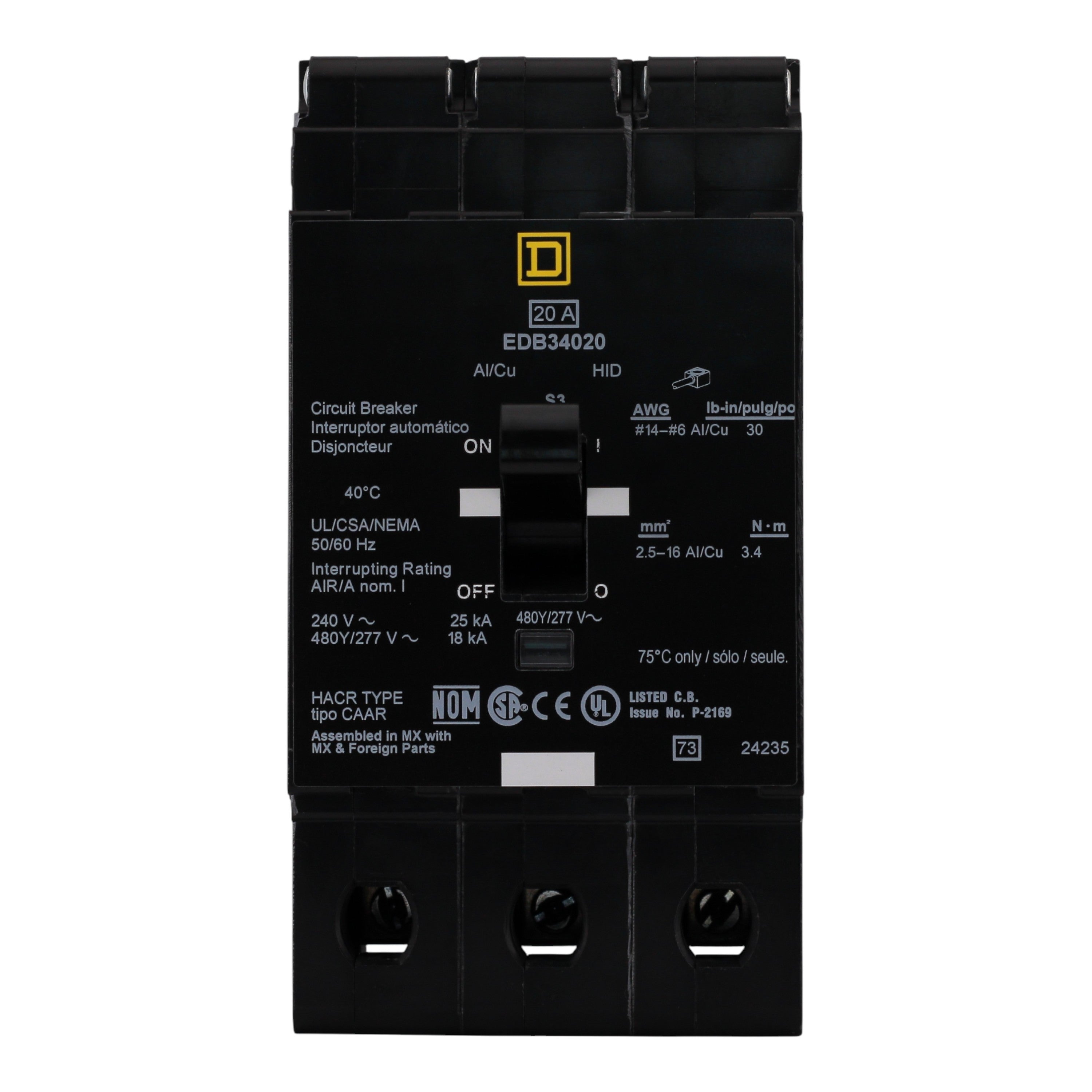

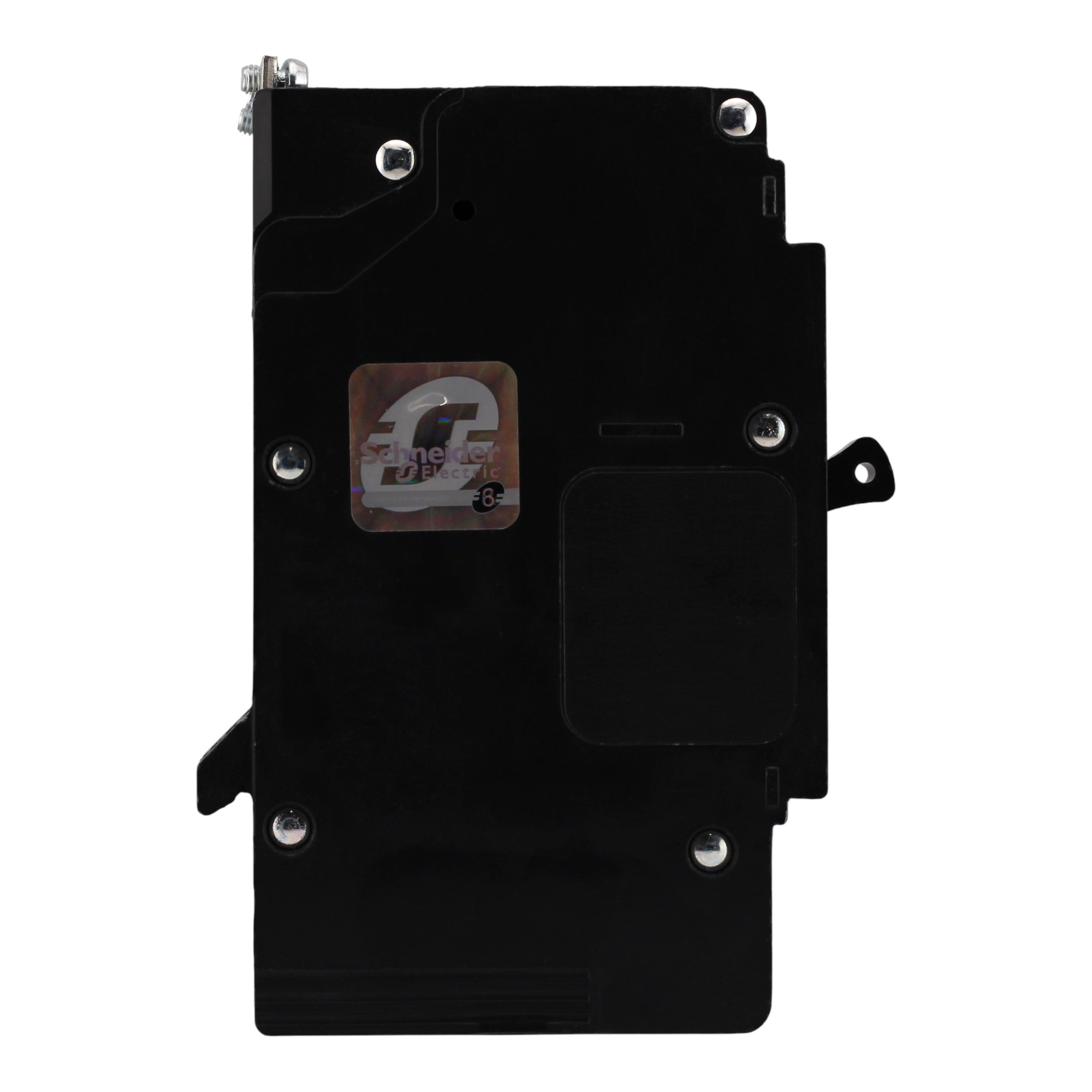

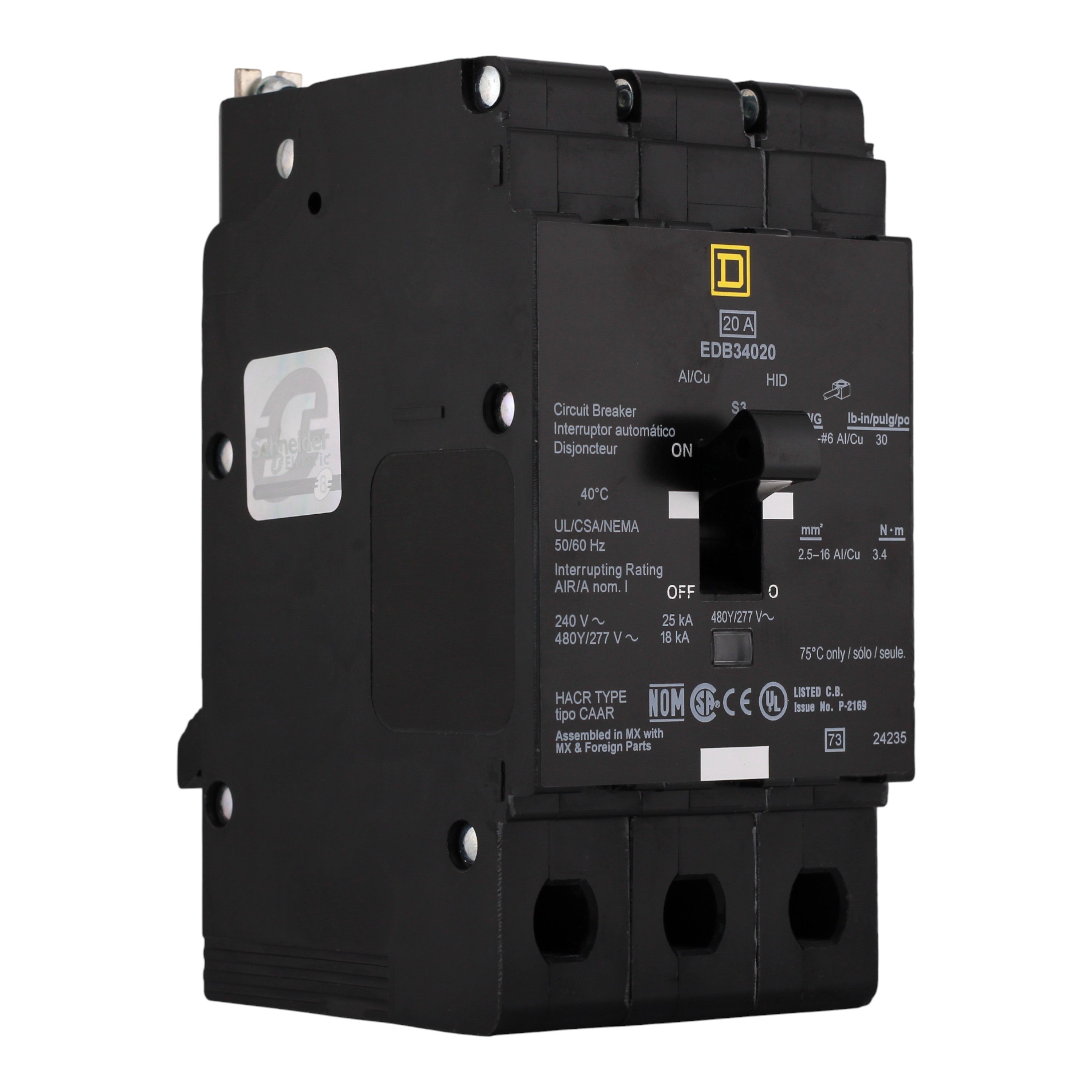

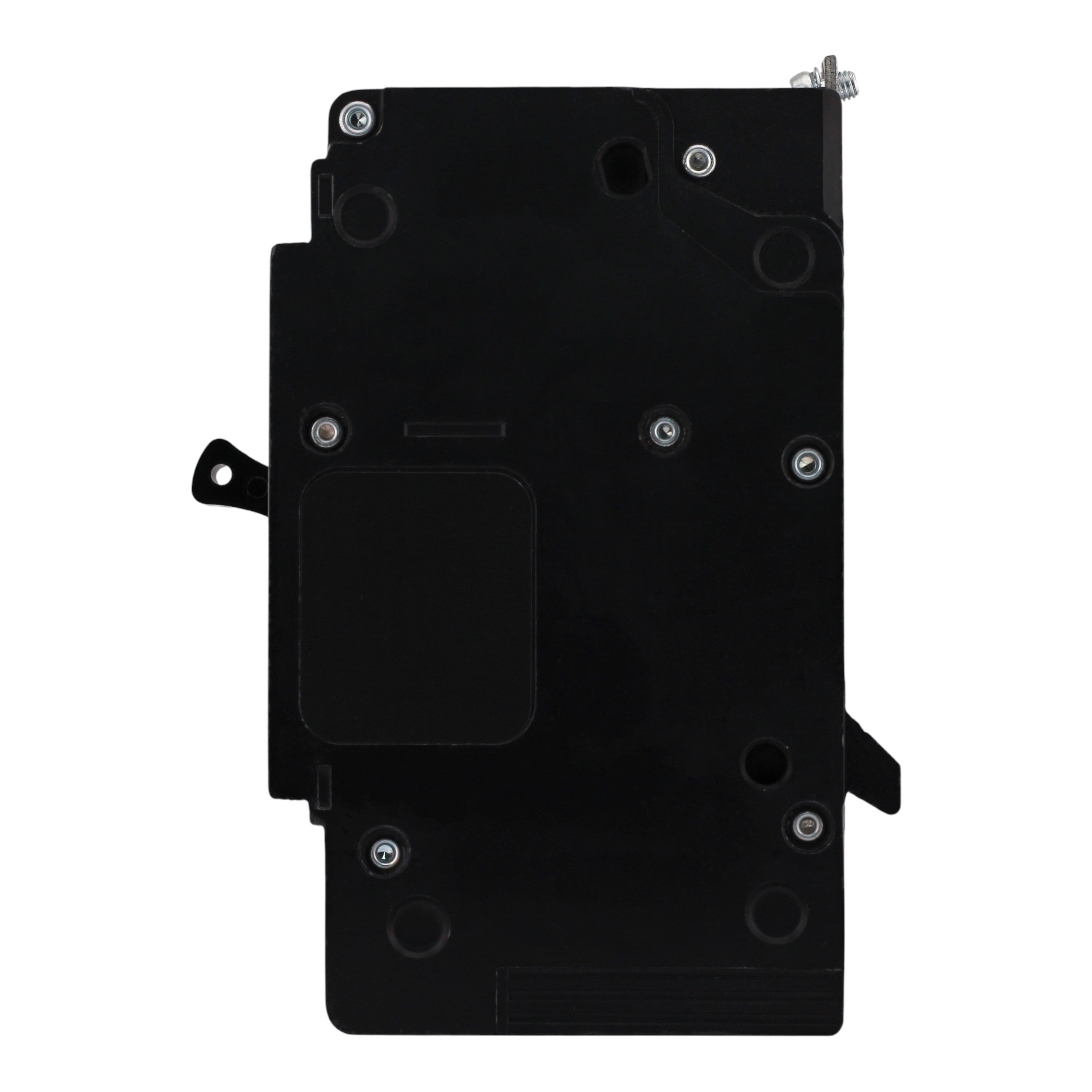

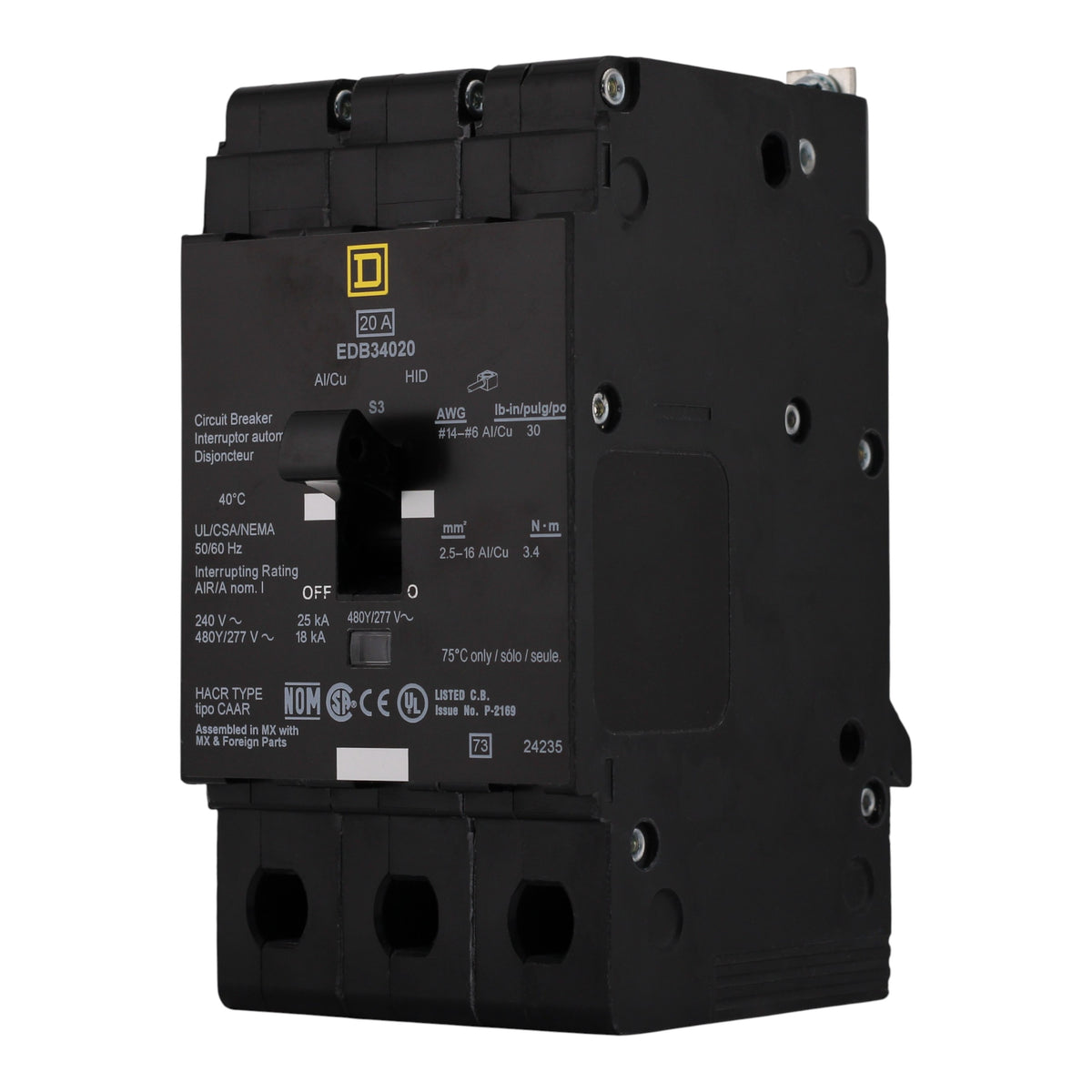

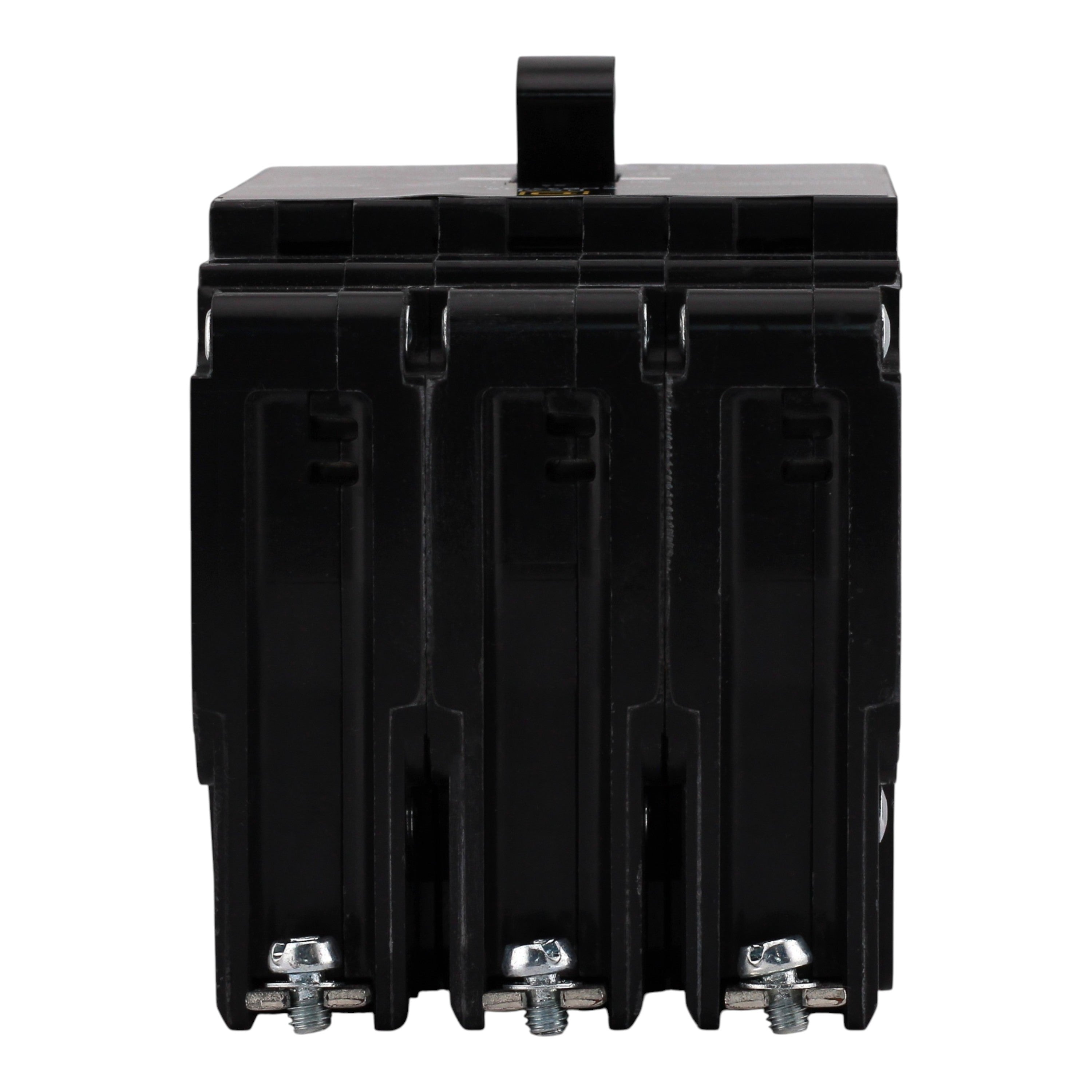

Square D E-Frame EDB34020 20A 3P 480Y/277V 25kA Bolt-On Circuit Breaker
Regular price
$168.00 USD
Square D EDB34020: 20 Amp 3-Pole thermal-magnetic circuit breaker, 480Y/277V, 25kA interrupt rating, bolt-on mounting, Visi-Trip indicator, UL listed.
- Manufacturer: Schneider Electric
- Brand: Square D
- Product Range: E-Frame (for Square D NF panelboards and lighting panels)
- UPC: 785901875246
- Model Number: EDB34020
- Breaker Type: Thermal-Magnetic
- Amperage: 20 Amps
- Poles: 3-Pole
- Voltage: 480Y/277 Volts AC
- Interrupt Rating: 25 kAIC at 480Y/277V AC (18 kAIC at 277V AC, 25 kAIC at 240V AC)
- Mounting Mode: Bolt-on

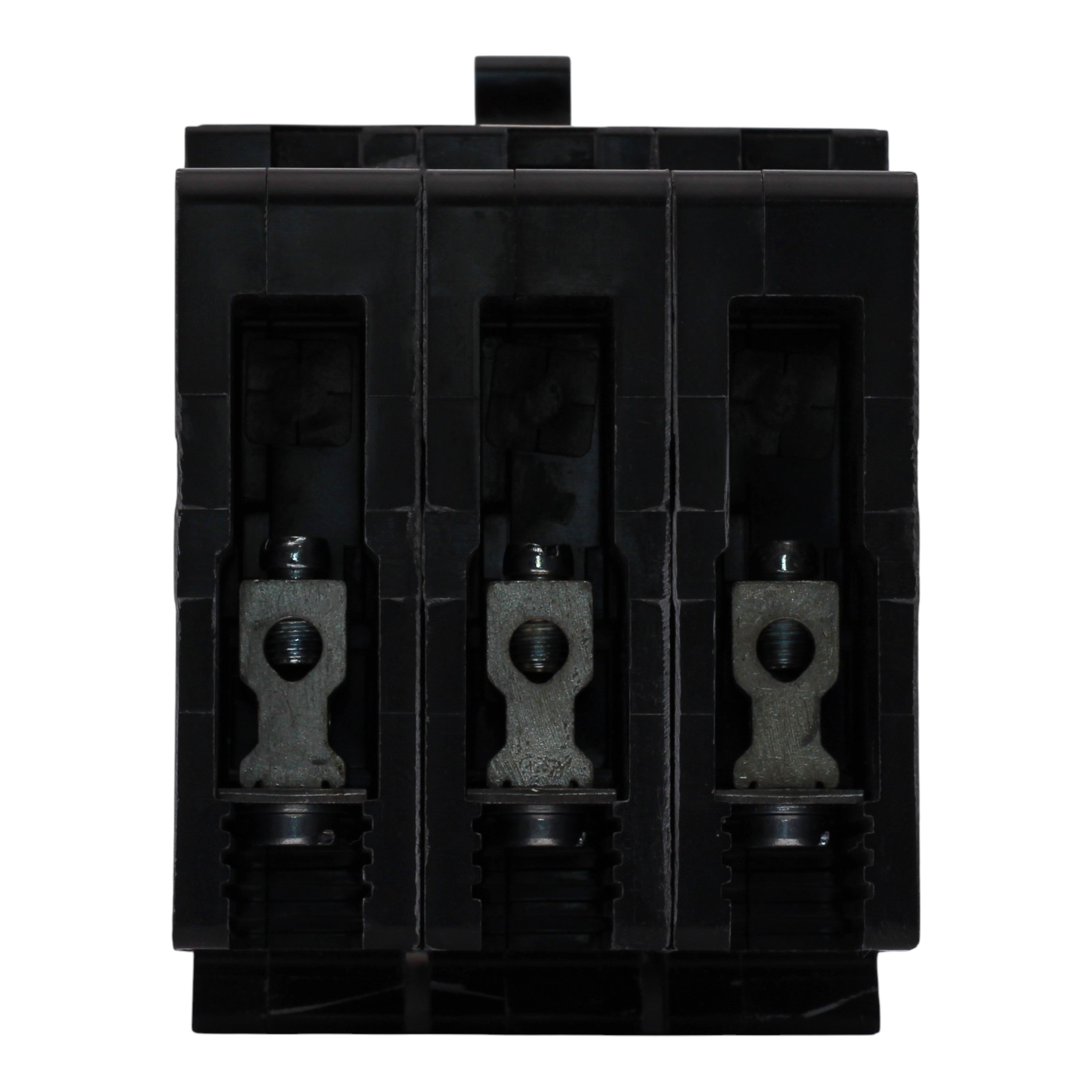

- Connections Terminals: Lugs (aluminum/copper)
- Wire Size: AWG 14-6 Cu / AWG 12-6 Al
- Tightening Torque: 30.09 lb-in
- Dimensions: Height: 5.66 in; Width: 2.94 in; Depth: 4.05 in
- Weight: 4 lbs
- Certifications: UL Listed, cULus, CSA Certified, HACR Rated, HID Rated
This Square D E-Frame EDB34020 bolt-on circuit breaker delivers reliable 20A, 3-pole thermal-magnetic protection for 480Y/277V circuits in NF panelboards and lighting applications. Featuring a 25kA interrupt rating, Visi-Trip indicator for quick troubleshooting, and robust overload/short circuit safeguards, it provides superior performance and safety for commercial and industrial installations.
New Condition
- Products in new condition are unused and in their original state.
- Backed by our 24-month warranty, ensuring reliability and peace of mind.
Reconditioned Condition
- Products in reconditioned condition are previously owned but have been professionally tested and inspected to ensure full functionality.
- May include minor repairs, such as replacing damaged screws, but are not fully refurbished.
- Covered by our 12-month warranty, guaranteeing performance.
