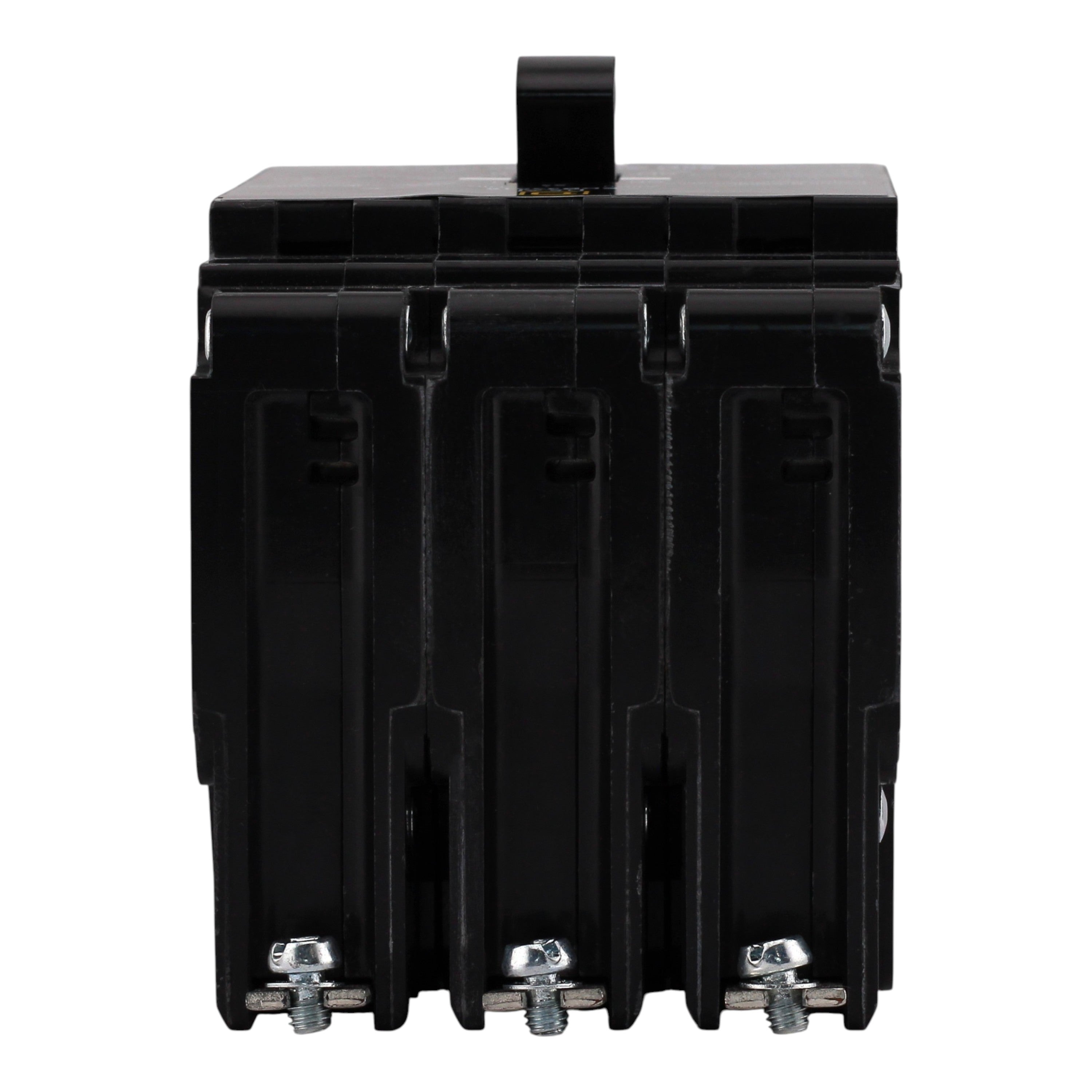

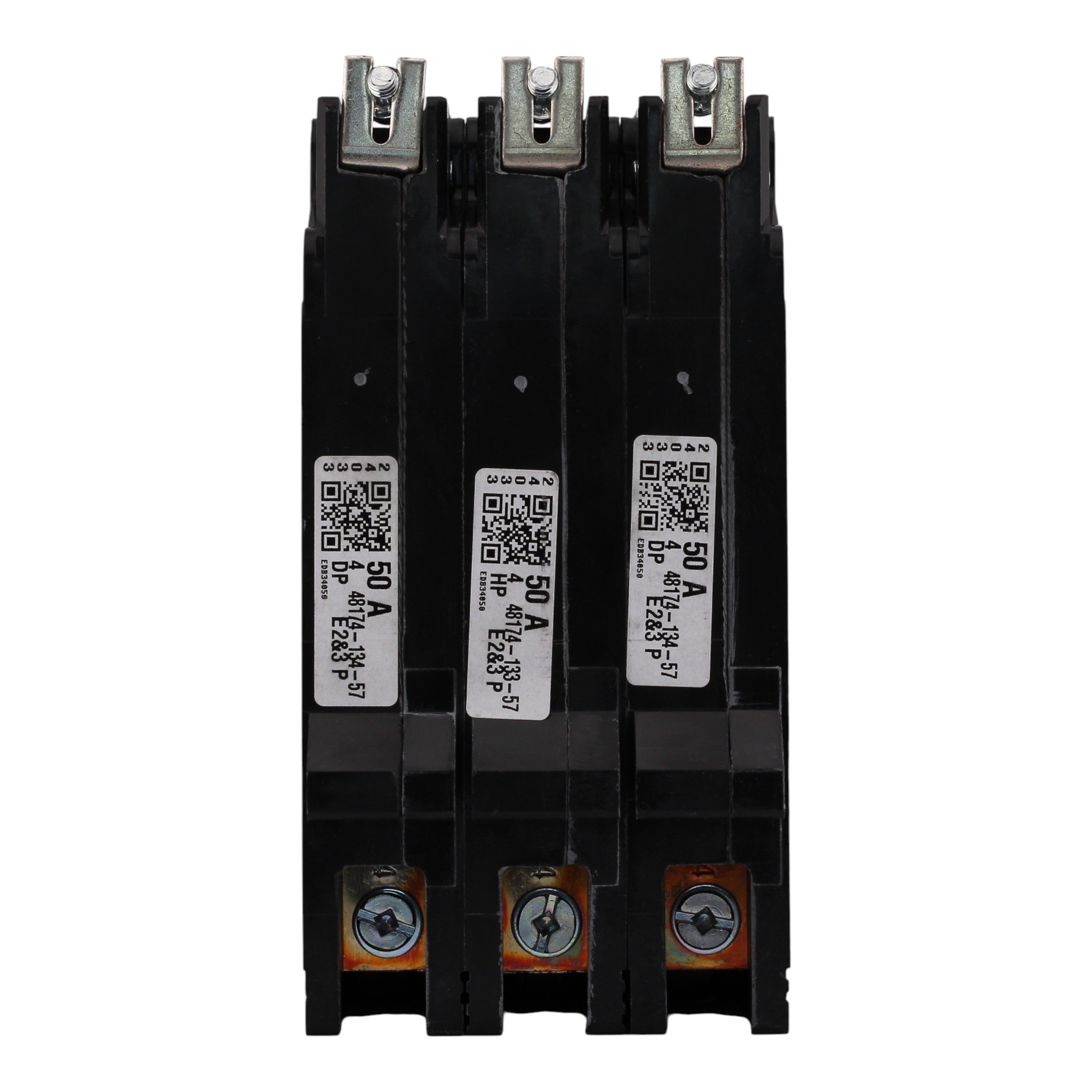

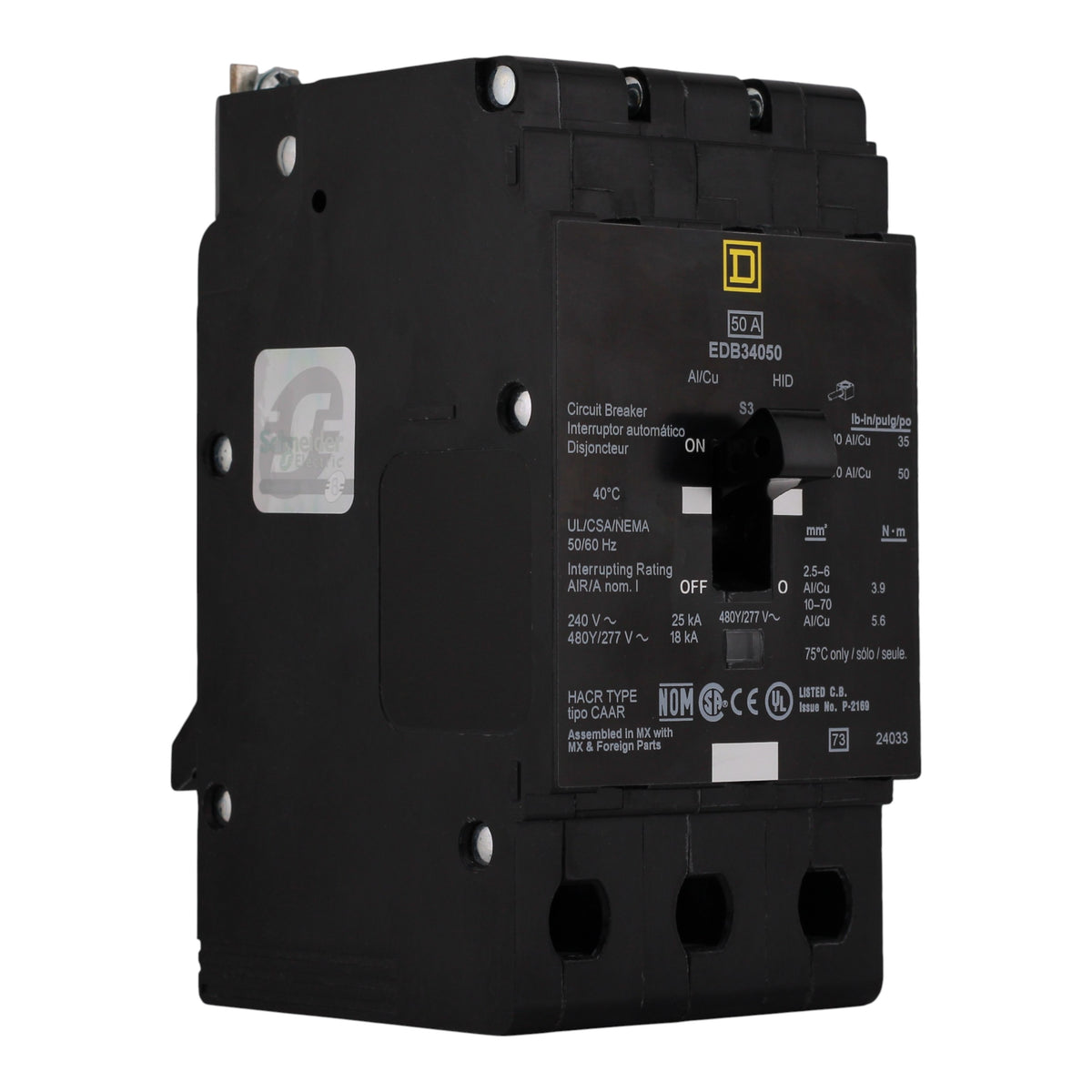

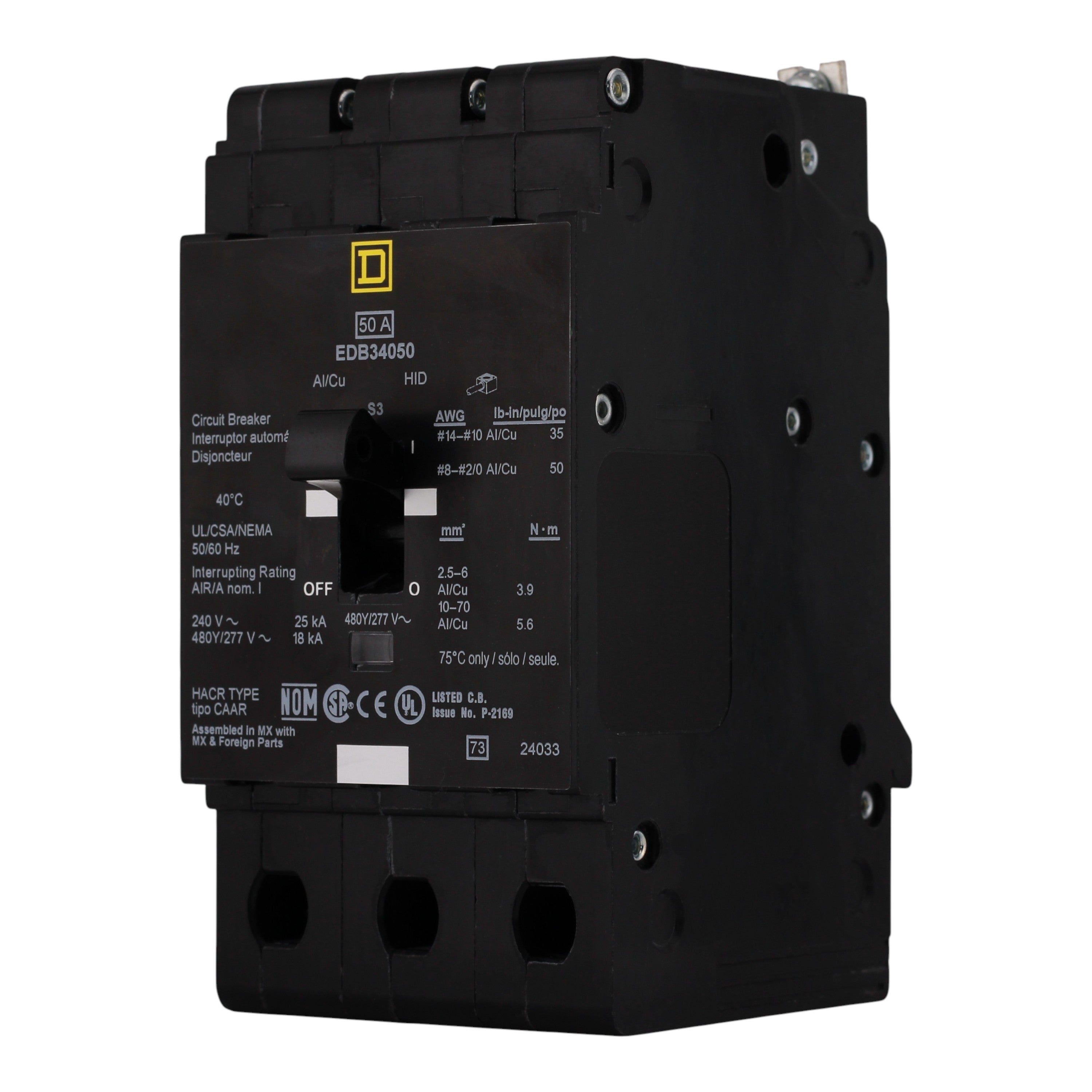

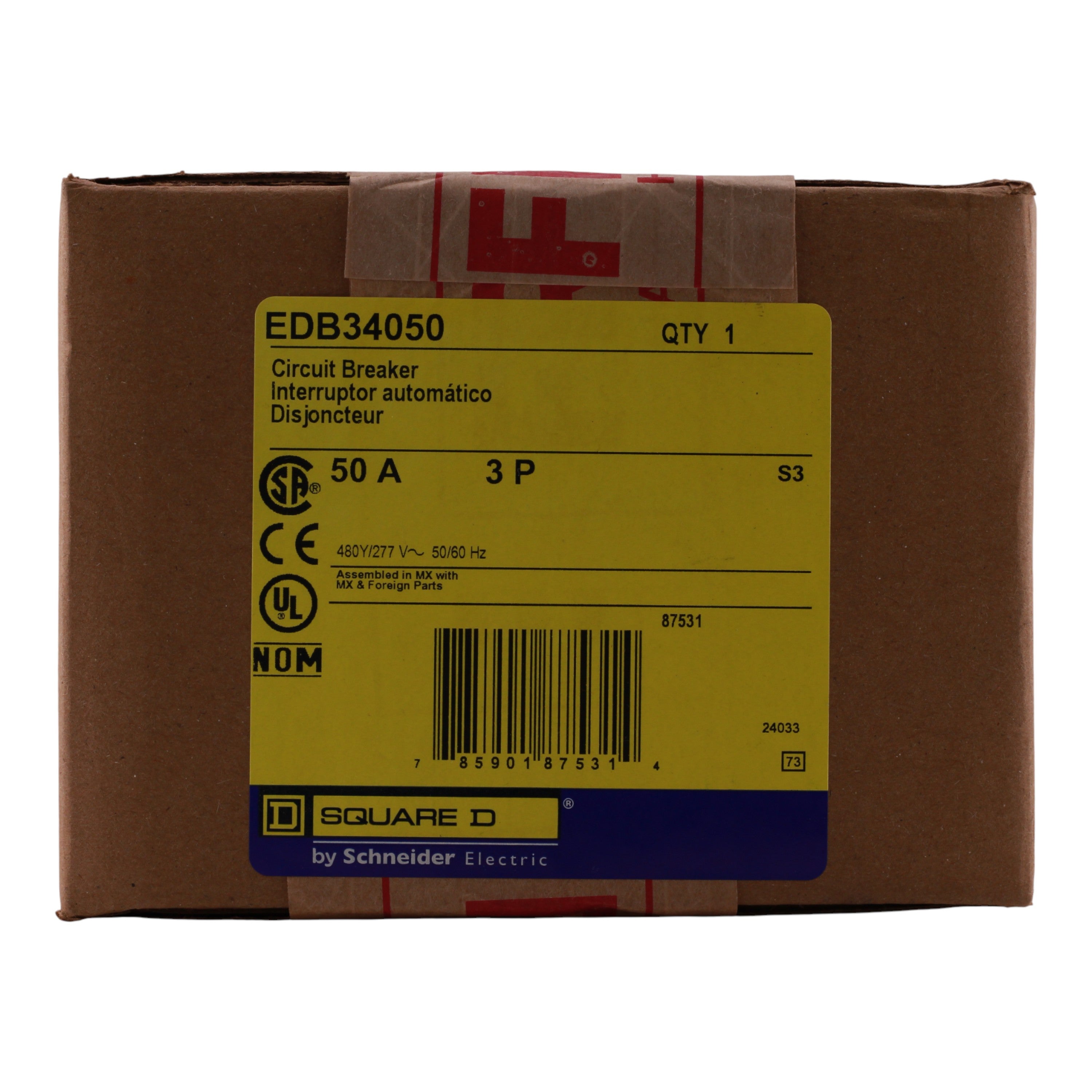

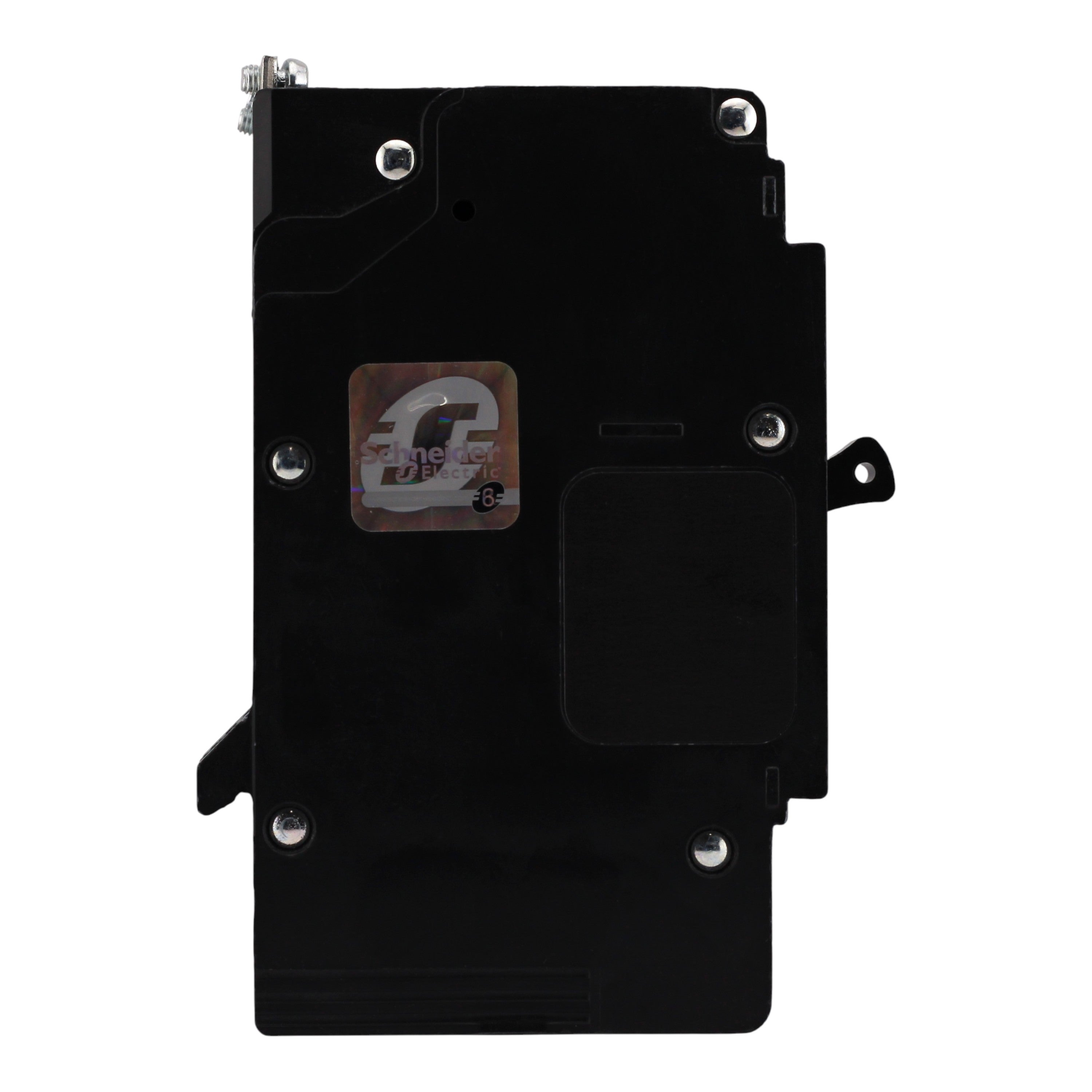

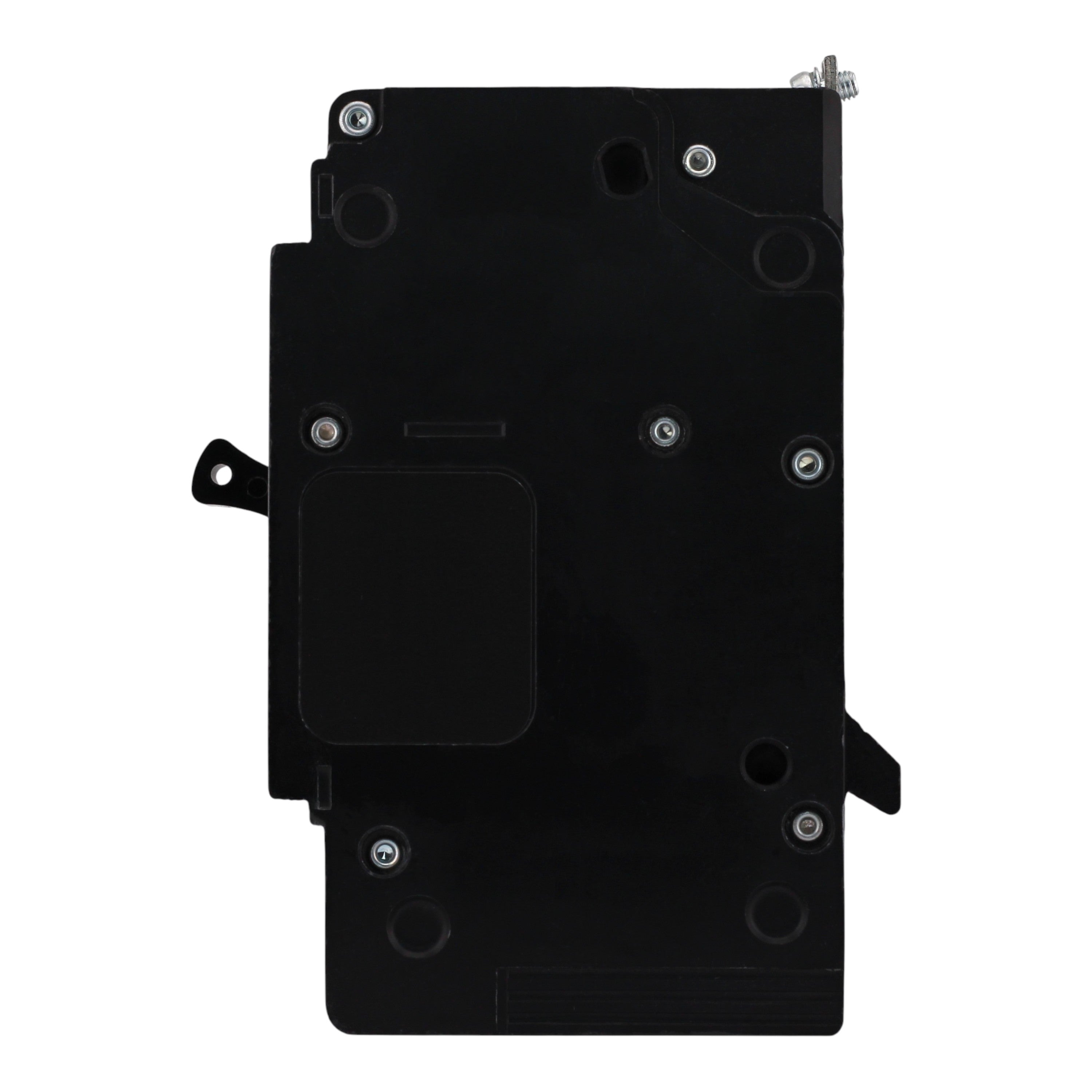

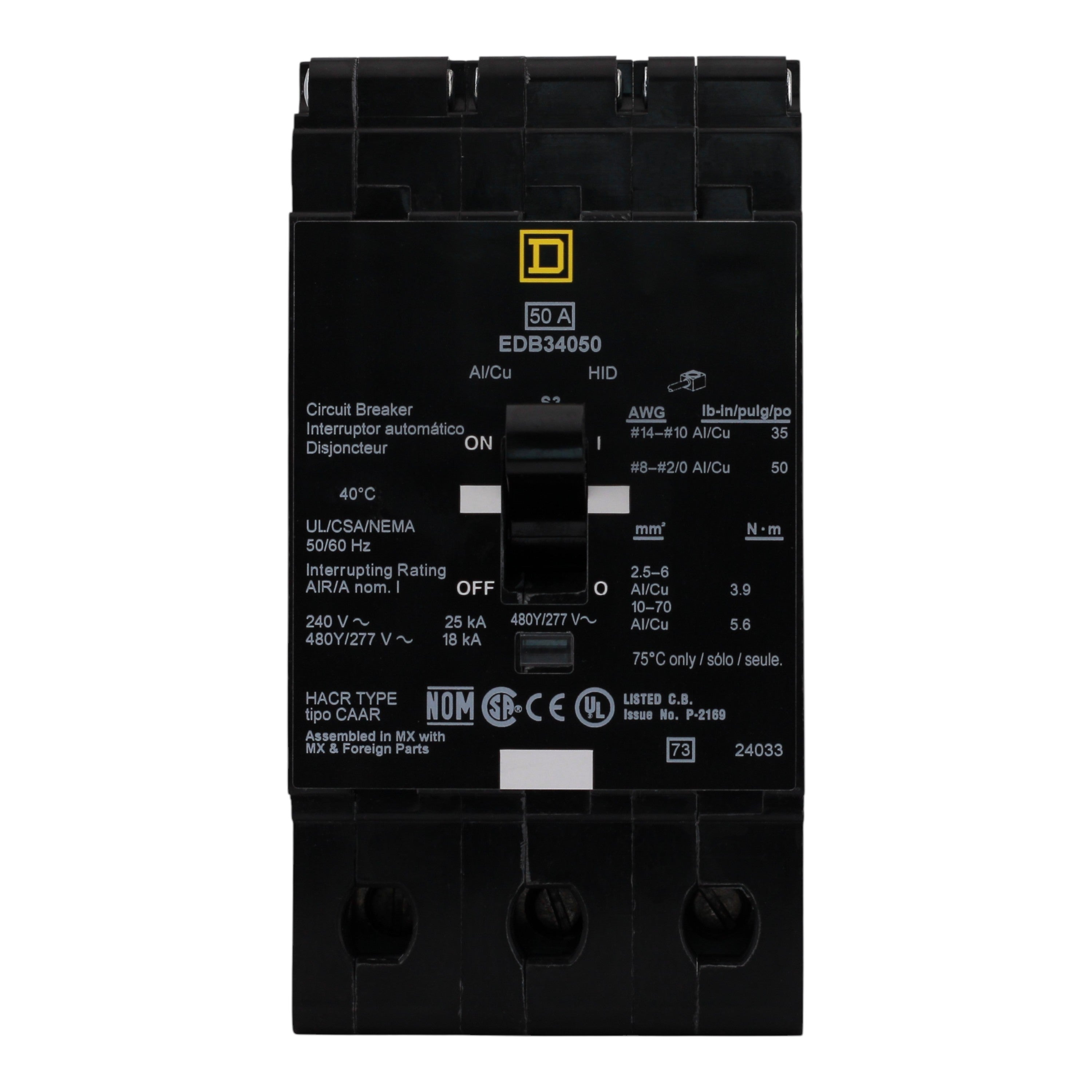

Square D E-Frame EDB34050 50A 3P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker
Regular price
$175.00 USD
Square D EDB34050: 50 Amp 3-Pole thermal-magnetic circuit breaker, 480Y/277V, 25kA interrupt rating at 240V (18kA at 480Y/277V), bolt-on mount, Visi-Trip indicator, UL/cULus listed.
- Manufacturer: Schneider Electric
- Brand: Square D
- Product Range: E-Frame (for Square D NF panelboards and lighting panels)
- UPC: 785901875314
- Model Number: EDB34050
- Breaker Type: Thermal-Magnetic
- Amperage: 50 Amps
- Poles: 3-Pole
- Voltage: 480Y/277 Volts AC
- Interrupt Rating: 25 kAIC at 240V AC (18 kAIC at 480Y/277V AC)
- Mounting Mode: Bolt-on

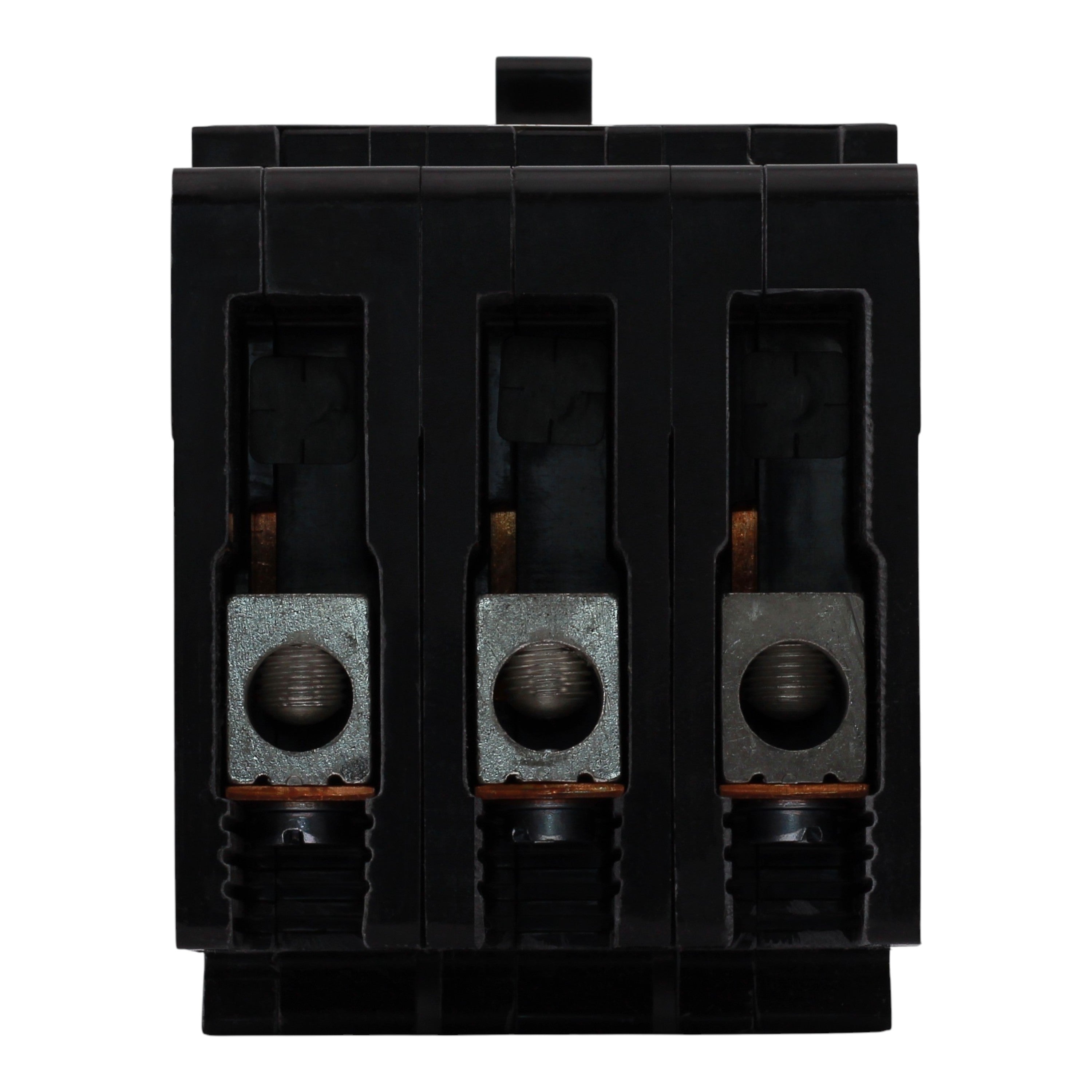

- Connections Terminals: Bolt-on lugs
- Wire Size: AWG 14...AWG 2/0 Cu / AWG 12...AWG 2/0 Al
- Tightening Torque: 34.5 lb-in (AWG 14-10); 49.6 lb-in (AWG 8-2/0)
- Dimensions: Height: 5.66 in; Width: 2.94 in; Depth: 4.05 in
- Weight: 4.0 lbs
- Certifications: UL Listed, cULus, CSA Certified, HACR Rated, HID Rated
This Square D E-Frame EDB34050 thermal-magnetic bolt-on circuit breaker delivers reliable 50A, 3-pole protection for 480Y/277V circuits in NF panelboards and lighting applications. Featuring Visi-Trip indication for faster troubleshooting, superior overload and short circuit protection, and robust bolt-on mounting, it provides enhanced safety and performance for commercial and industrial electrical systems.
