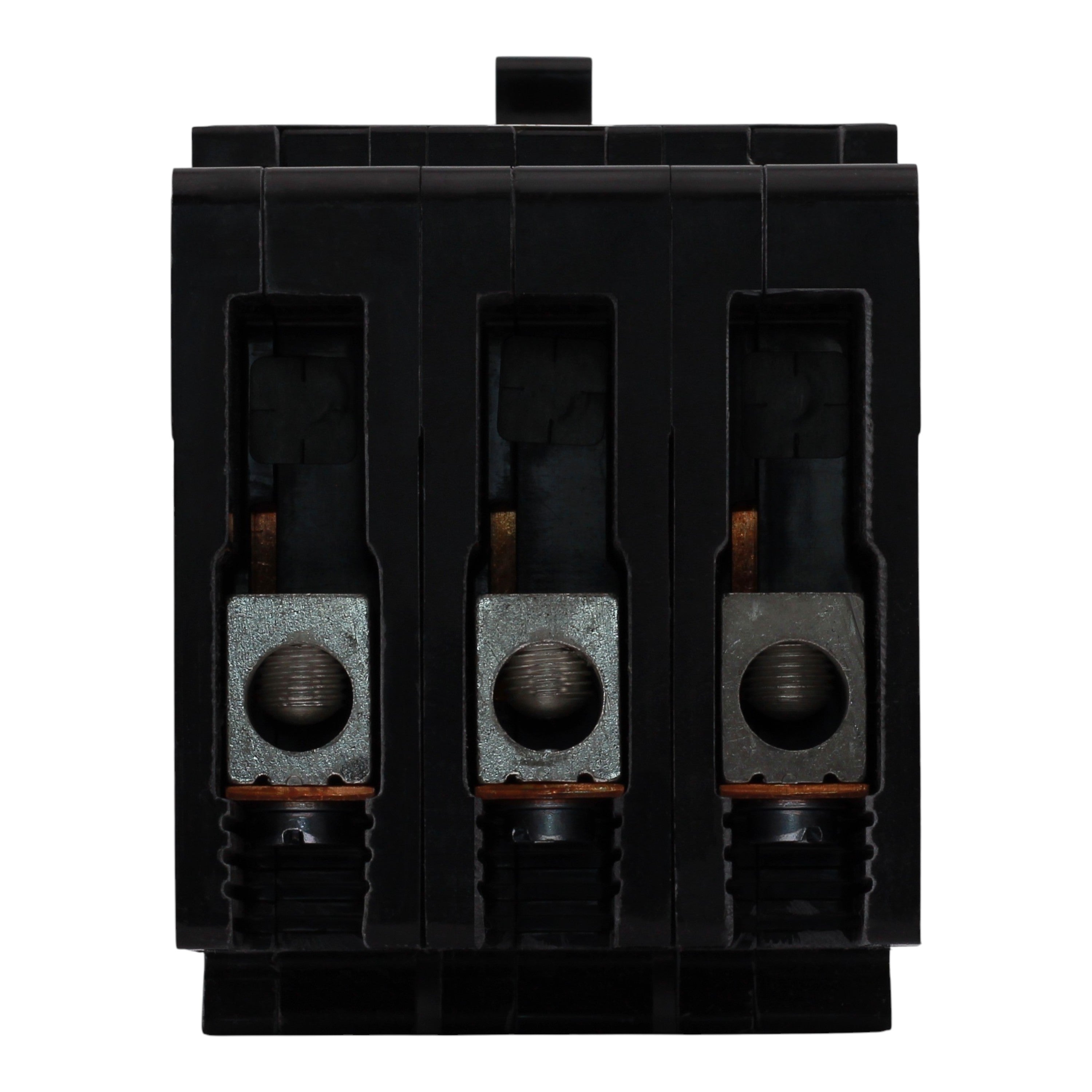

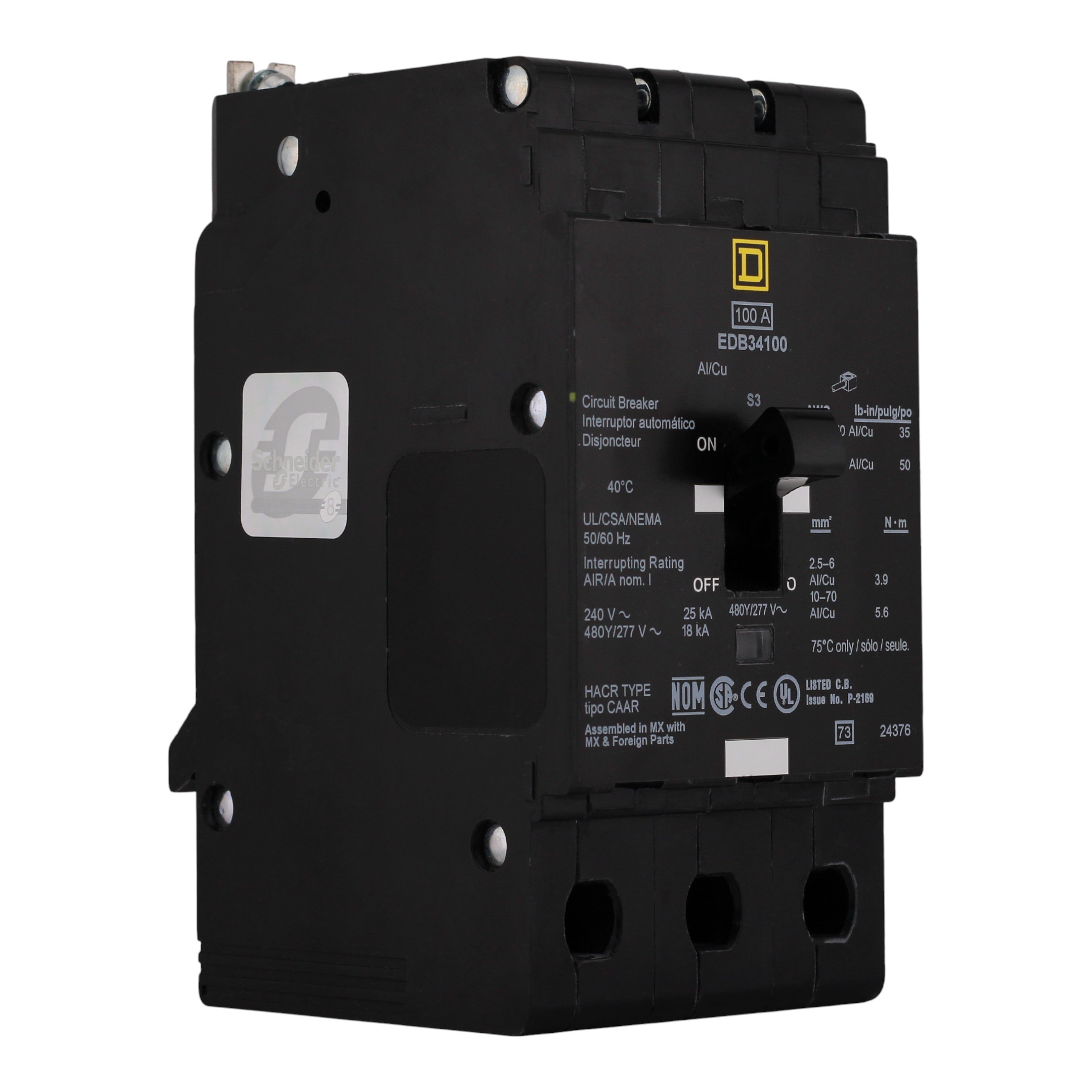

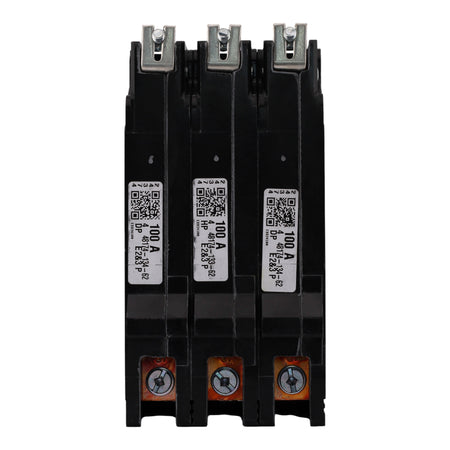

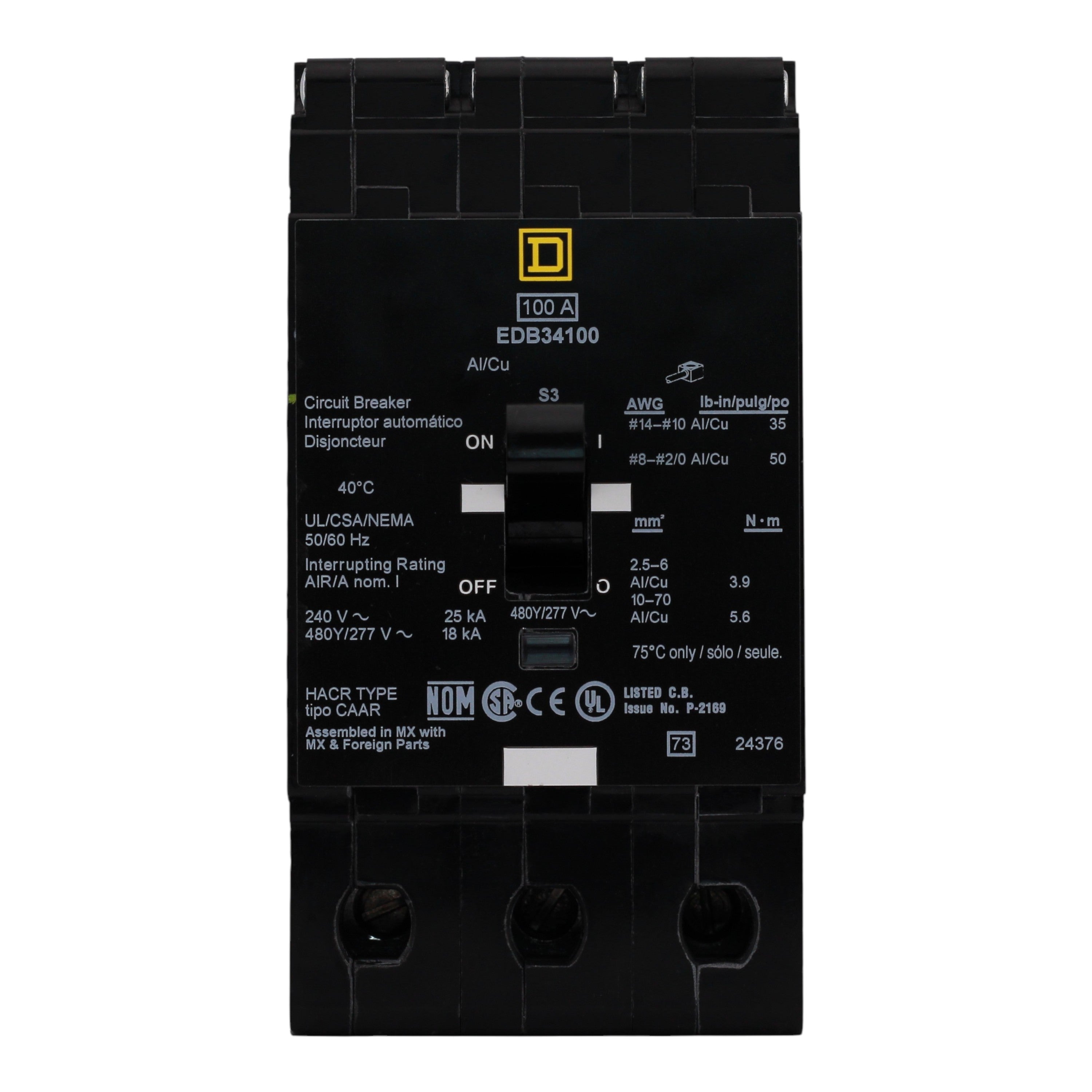

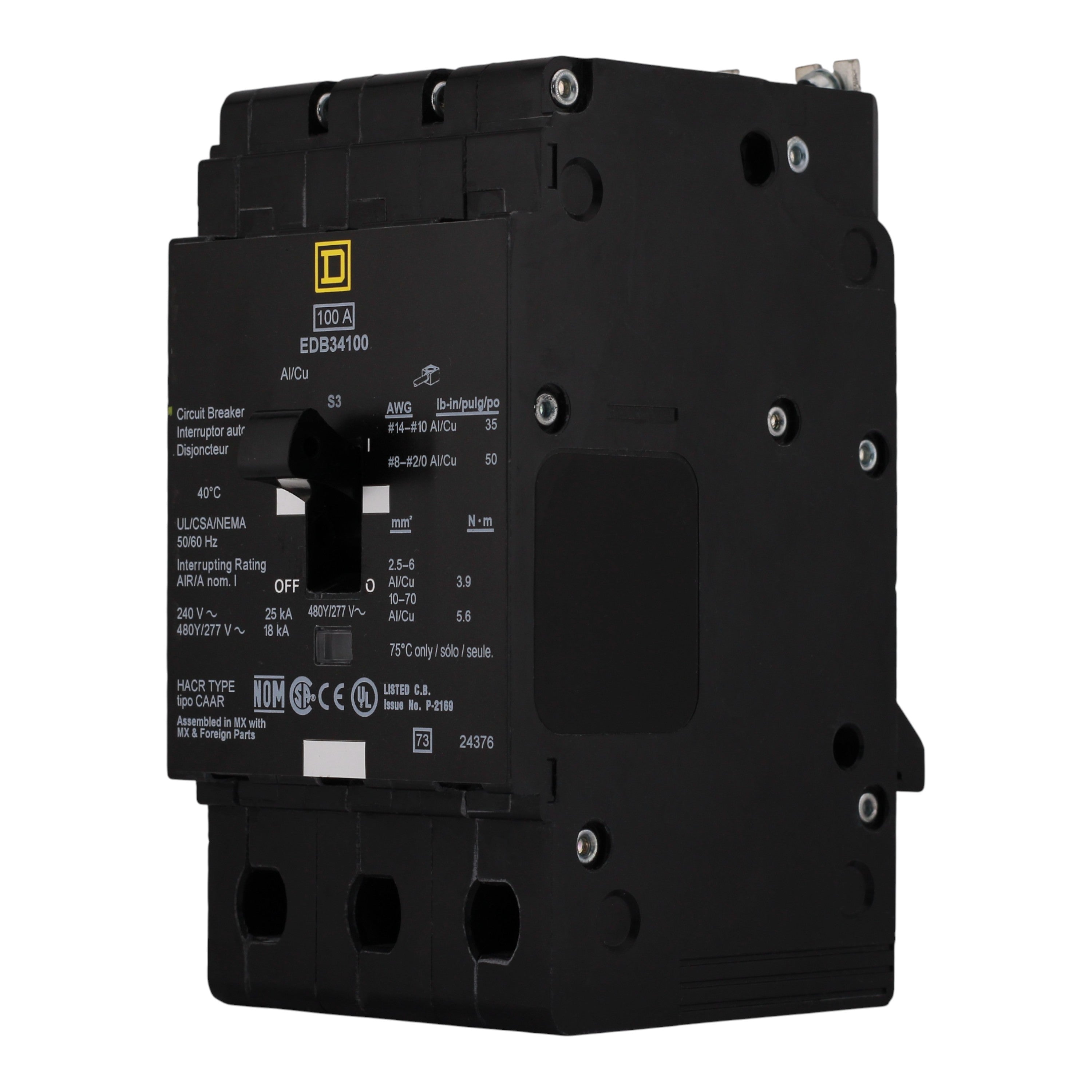

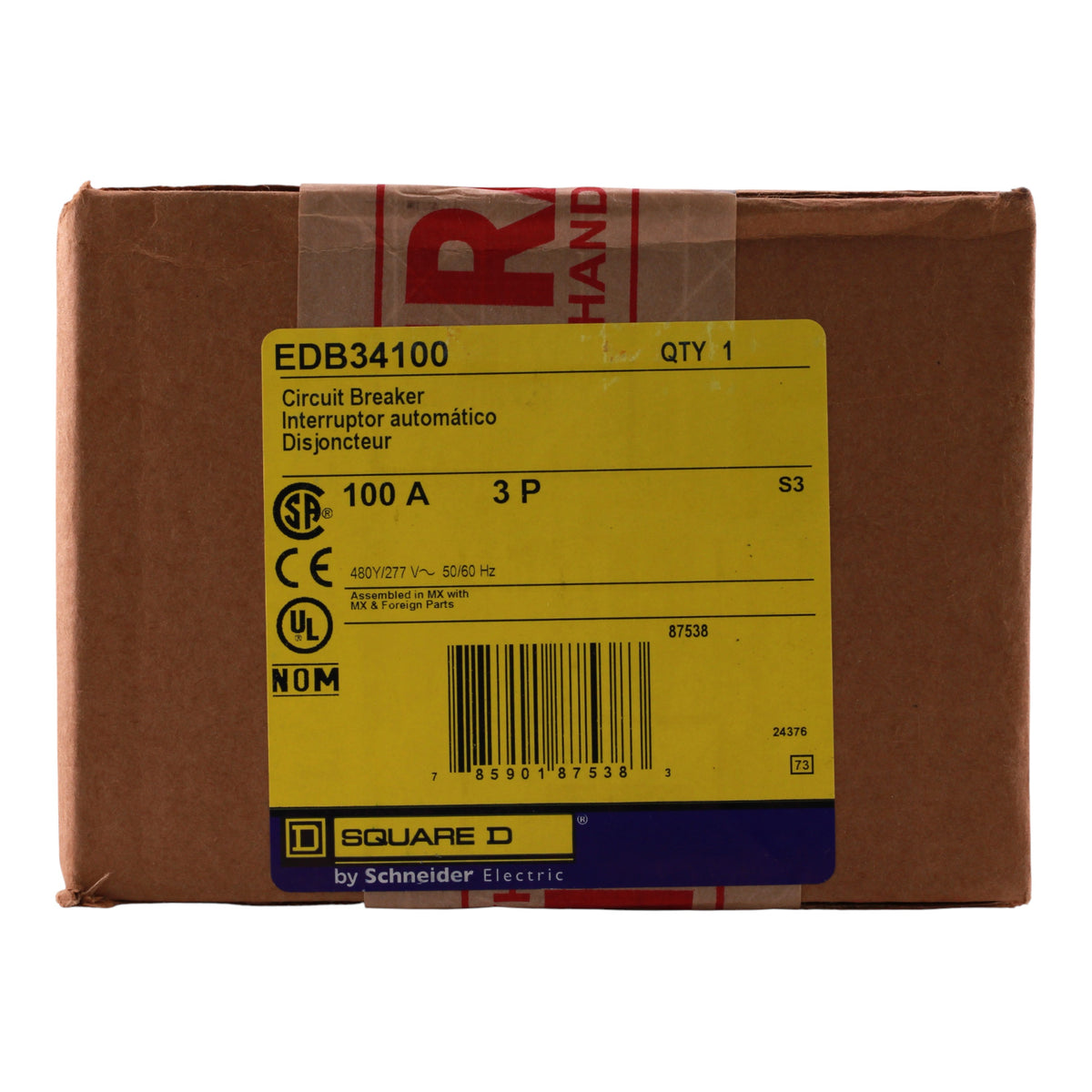

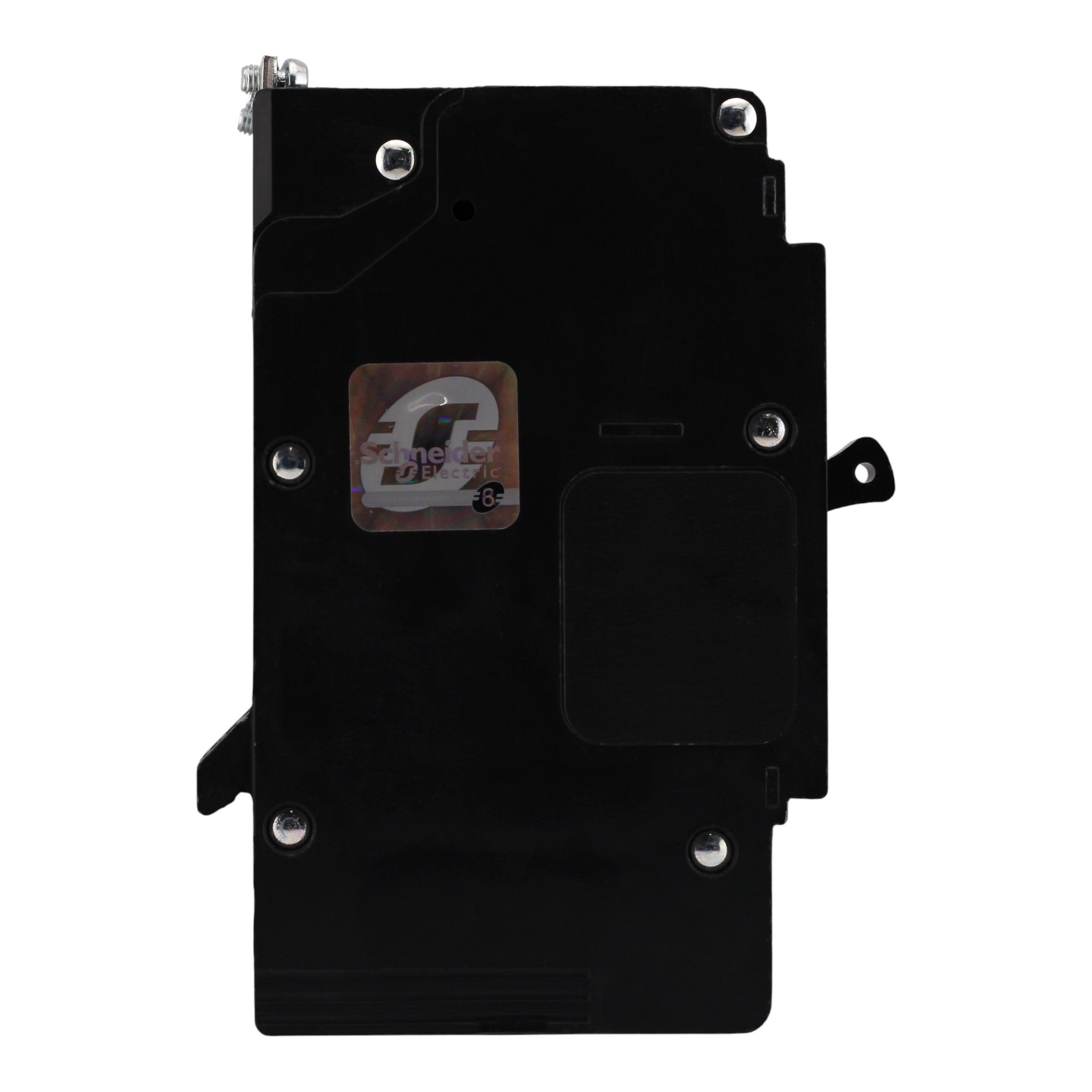

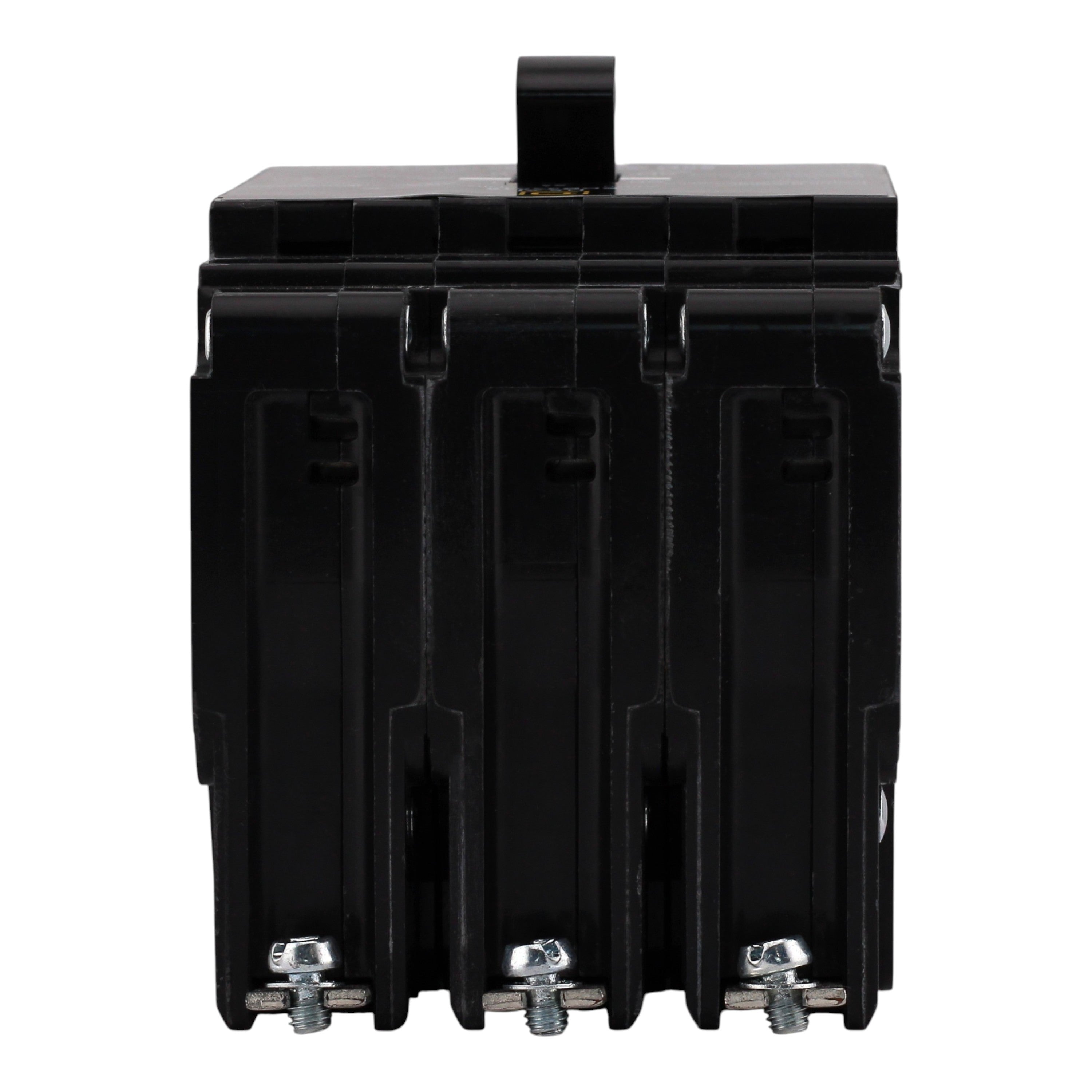

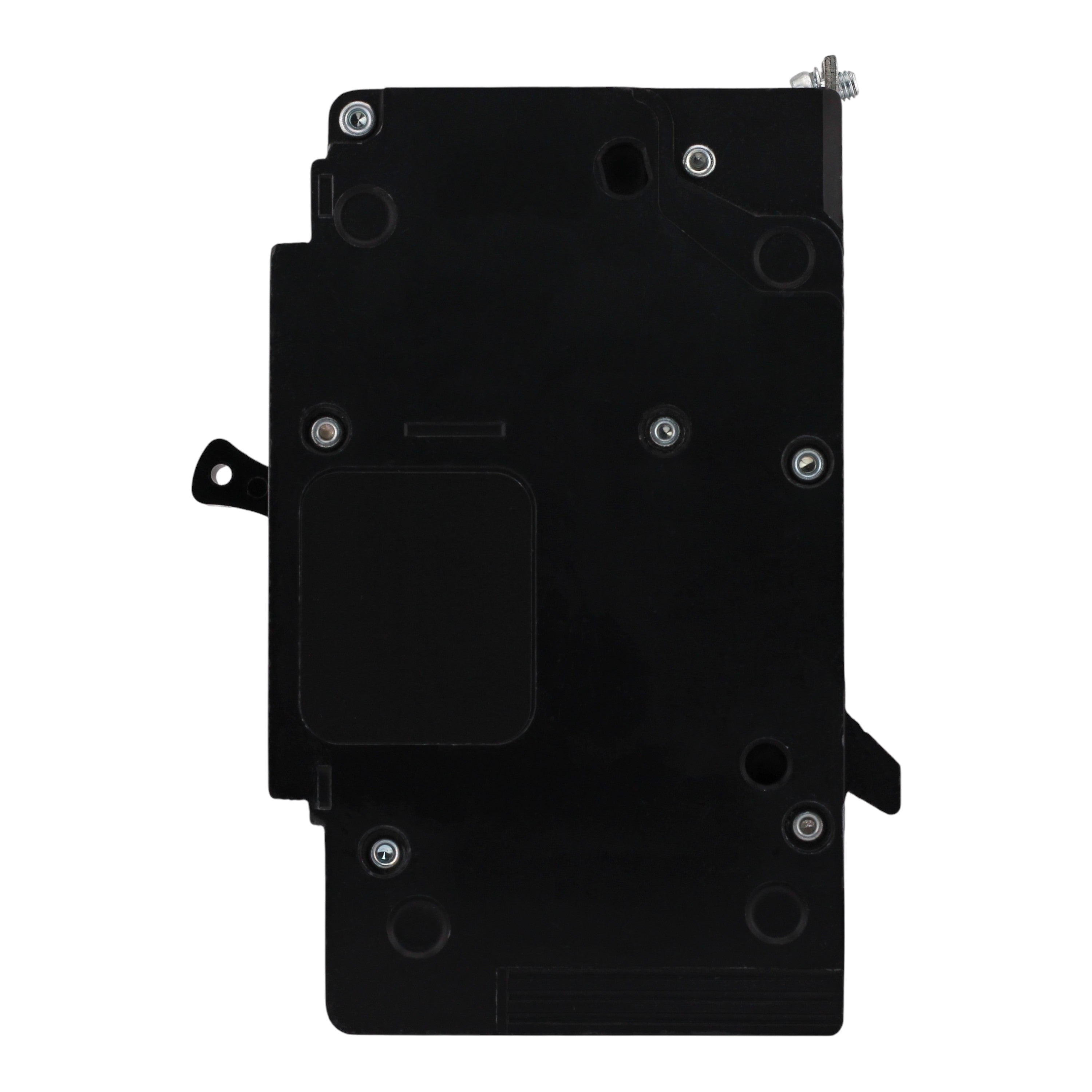

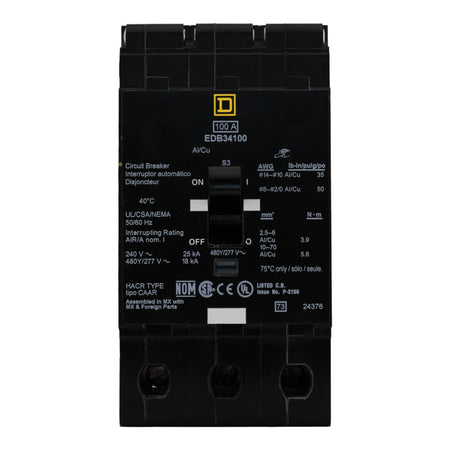

Square D E-Frame EDB34100 100A 3P 480Y/277V Thermal-Magnetic Bolt-On Circuit Breaker
Regular price
$245.00 USD
Square D EDB34100: 100 Amp 3-Pole Thermal-Magnetic circuit breaker, 480Y/277V AC, 25kA interrupt rating at 240V/277V, 18kA at 480Y/277V, bolt-on mounting, Visi-Trip indicator, UL listed.
- Manufacturer: Schneider Electric
- Brand: Square D
- Product Range: E-Frame (for Square D NF panelboards and equipment)
- UPC: 785901875383
- Model Number: EDB34100
- Breaker Type: Thermal-Magnetic
- Amperage: 100 Amps
- Poles: 3-Pole
- Voltage: 480Y/277 Volts AC
- Interrupt Rating: 18 kAIC at 480Y/277V AC (25 kAIC at 240V AC and below)
- Mounting Mode: Bolt-on
- Connections Terminals: Lug terminals
- Wire Size: AWG 14-2/0 Cu/Al
- Tightening Torque: 34.5 lb-in (AWG 14-10); 49.6 lb-in (AWG 8-2/0)
- Dimensions: Height: 5.66 in; Width: 2.94 in; Depth: 4.05 in
- Weight: 4.0 lbs
- Certifications: UL Listed, cULus, HACR Rated
This Square D E-Frame EDB34100 thermal-magnetic bolt-on circuit breaker delivers reliable 100A, 3-pole protection for 480Y/277V circuits in NF panelboards. Featuring Visi-Trip indication for faster troubleshooting, superior overload and short circuit protection, and robust construction, it provides enhanced safety and performance for commercial and lighting applications.
