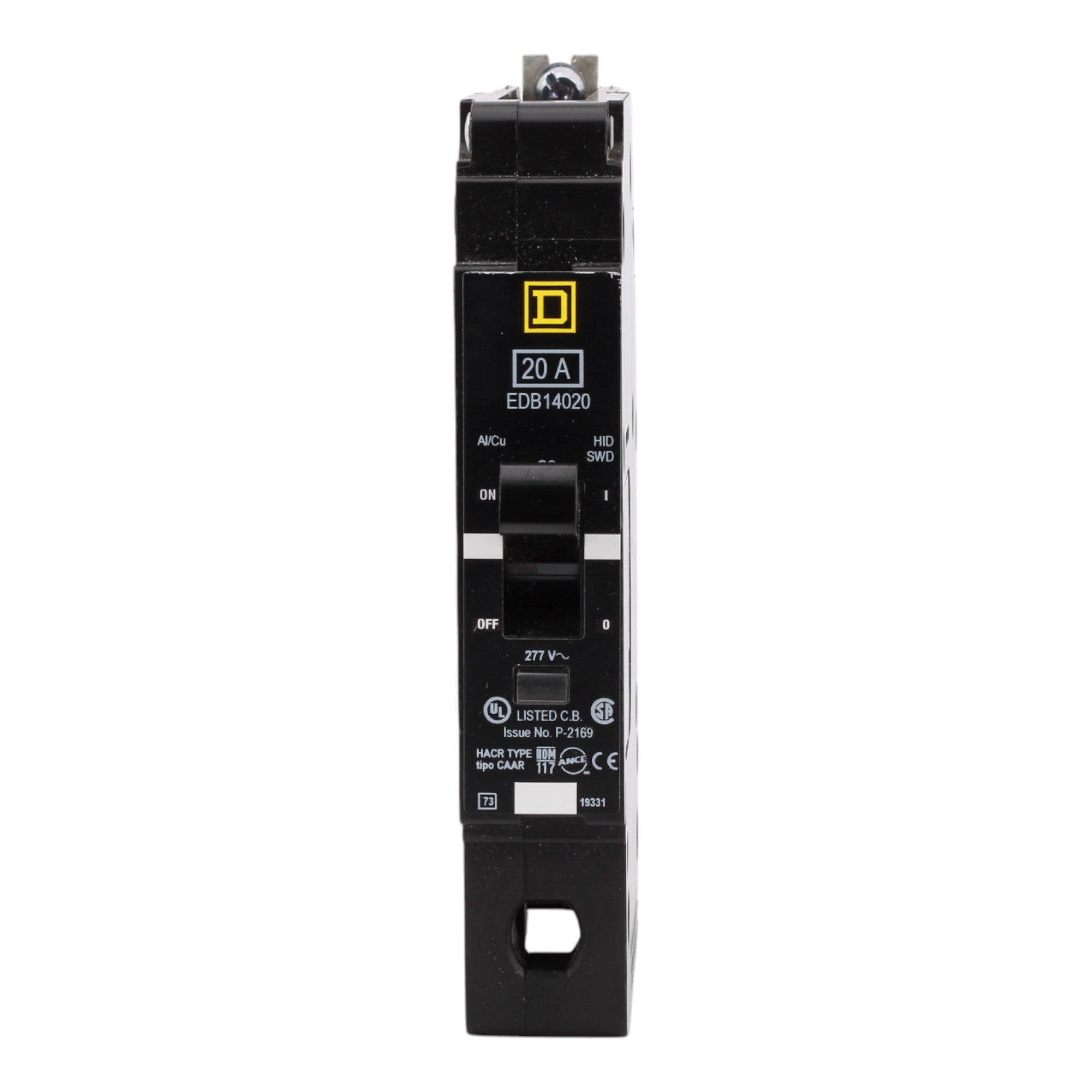

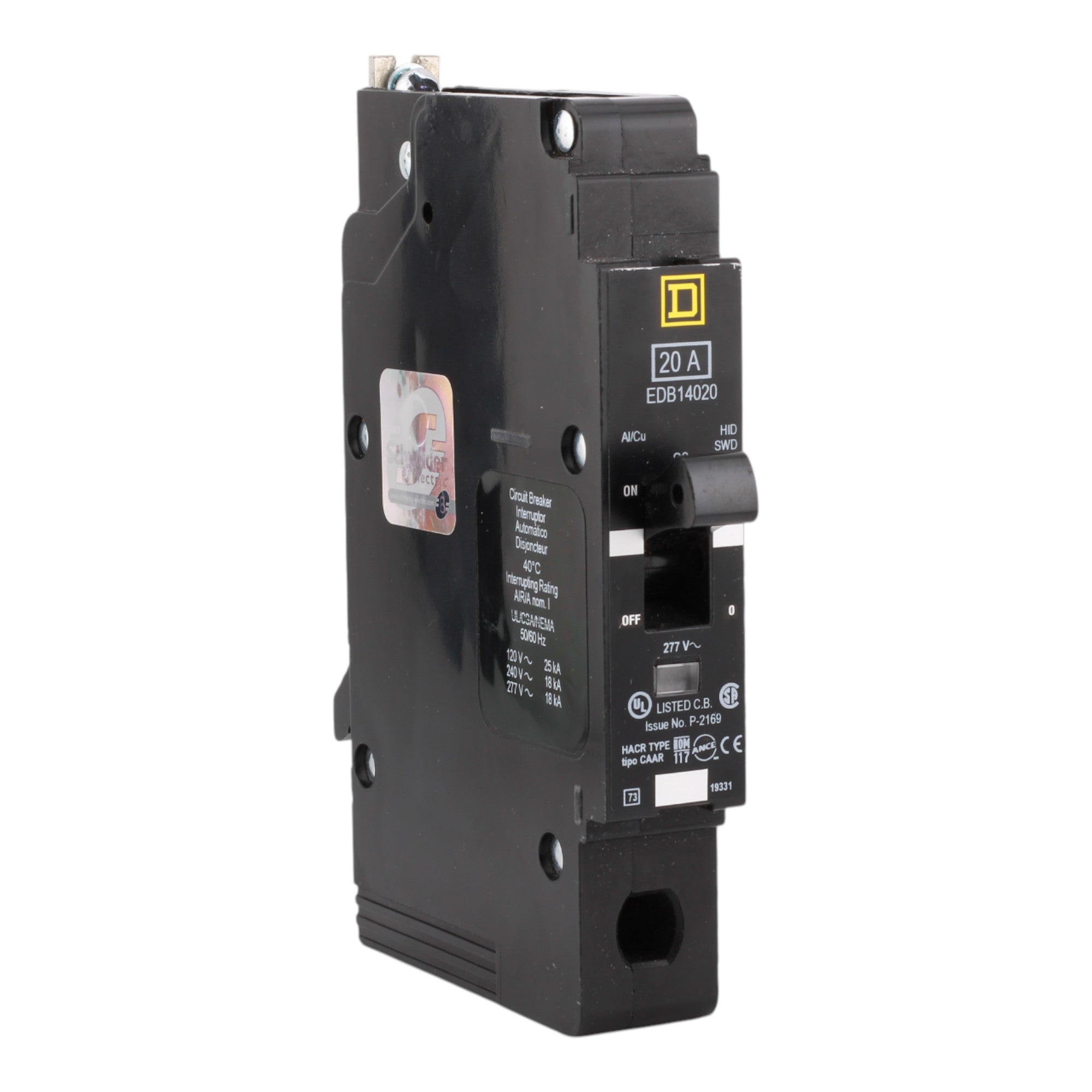

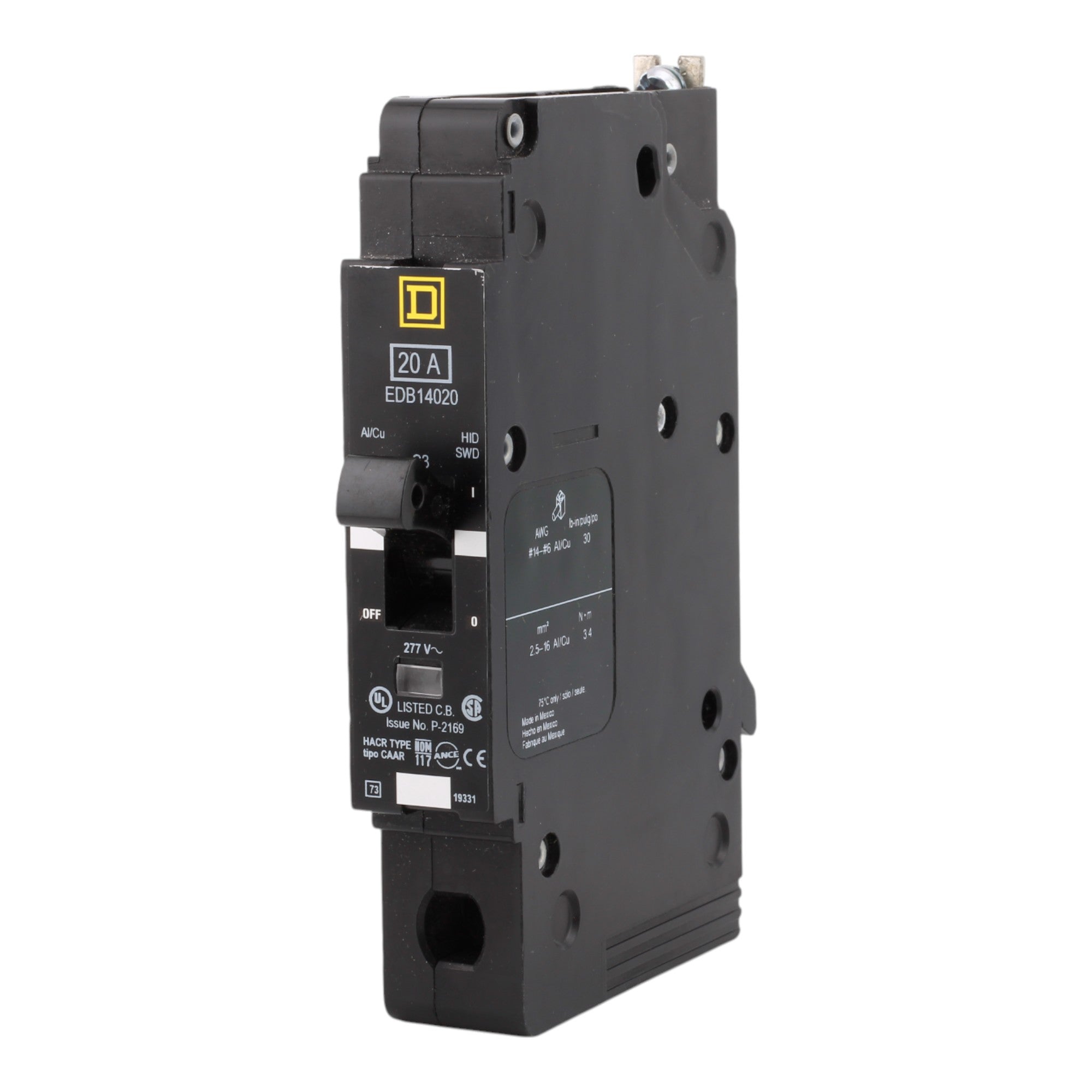

Square D EDB14020 20A 1P 277V Thermal-Magnetic Circuit Breaker

Square D EDB14020: 20A 1P thermal-magnetic breaker, 277V, 25kA interrupt rating, bolt-on mount for NF panelboards, HID/switching duty rated, HACR certified.

Product Specifications

Product Identification:

• Manufacturer: Schneider Electric
• Brand: EDB
• UPC: 785901878902
• Model Number: EDB14020

Technical Specifications:

• Circuit Breaker Type: E-Frame Thermal-Magnetic Circuit Breaker
• Number of Poles: 1-Pole
• Amperage Rating: 20A
• Voltage Rating: 277V AC

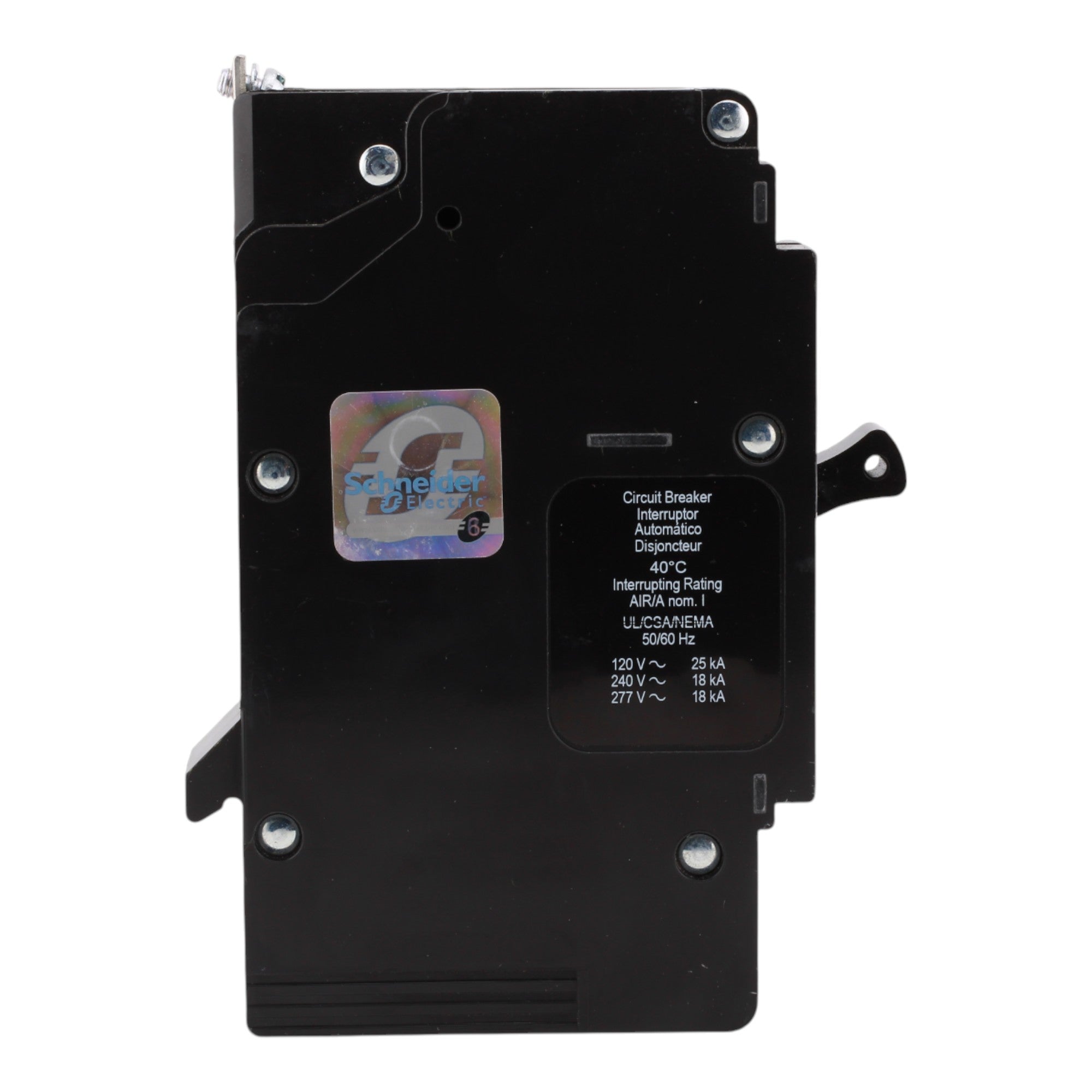

• Interrupt Rating: 25kA at 120V AC, 18kA at 240V AC, 18kA at 277V AC
• Trip Unit Technology: Thermal-magnetic
• Trip Unit Rating: 875A
• Holding Current: 270A
• Mounting Type: Bolt-on

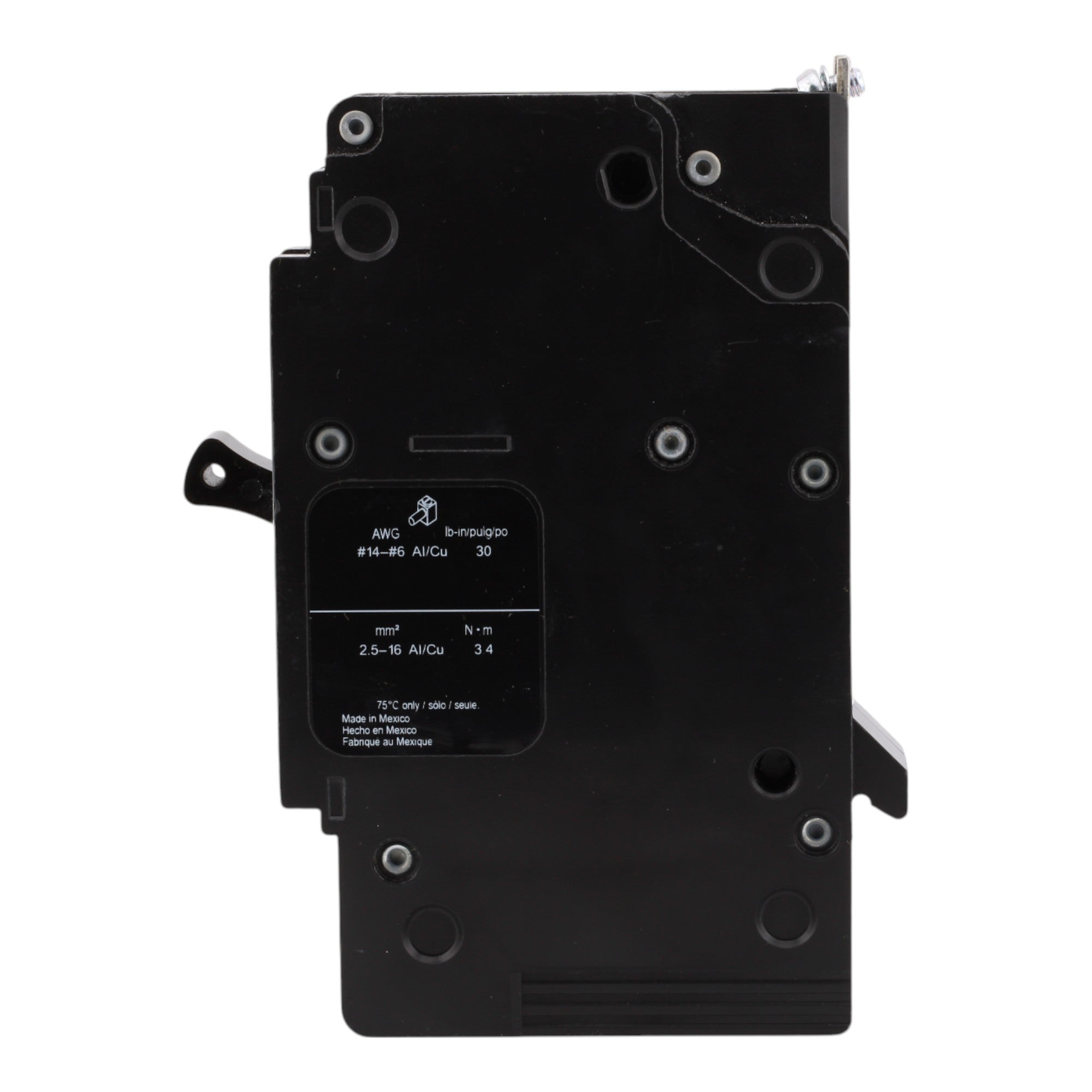

• Wire Compatibility: Copper 14-6 AWG, Aluminum 12-6 AWG
• Tightening Torque: 30.09 lbf.in (3.4 N.m)
• Application Rating: HID rated, Switching Duty rated, HACR rated
• Product Destination: NF panelboard
• Local Signaling: Trip indicator
• Protection Type: Short-circuit, Overload
• Certifications: cULus, IEC

Dimensions:

• Dimensions: Height: 5.66 in; Width: 0.98 in; Depth: 4.05 in
• Weight: 2 lb
