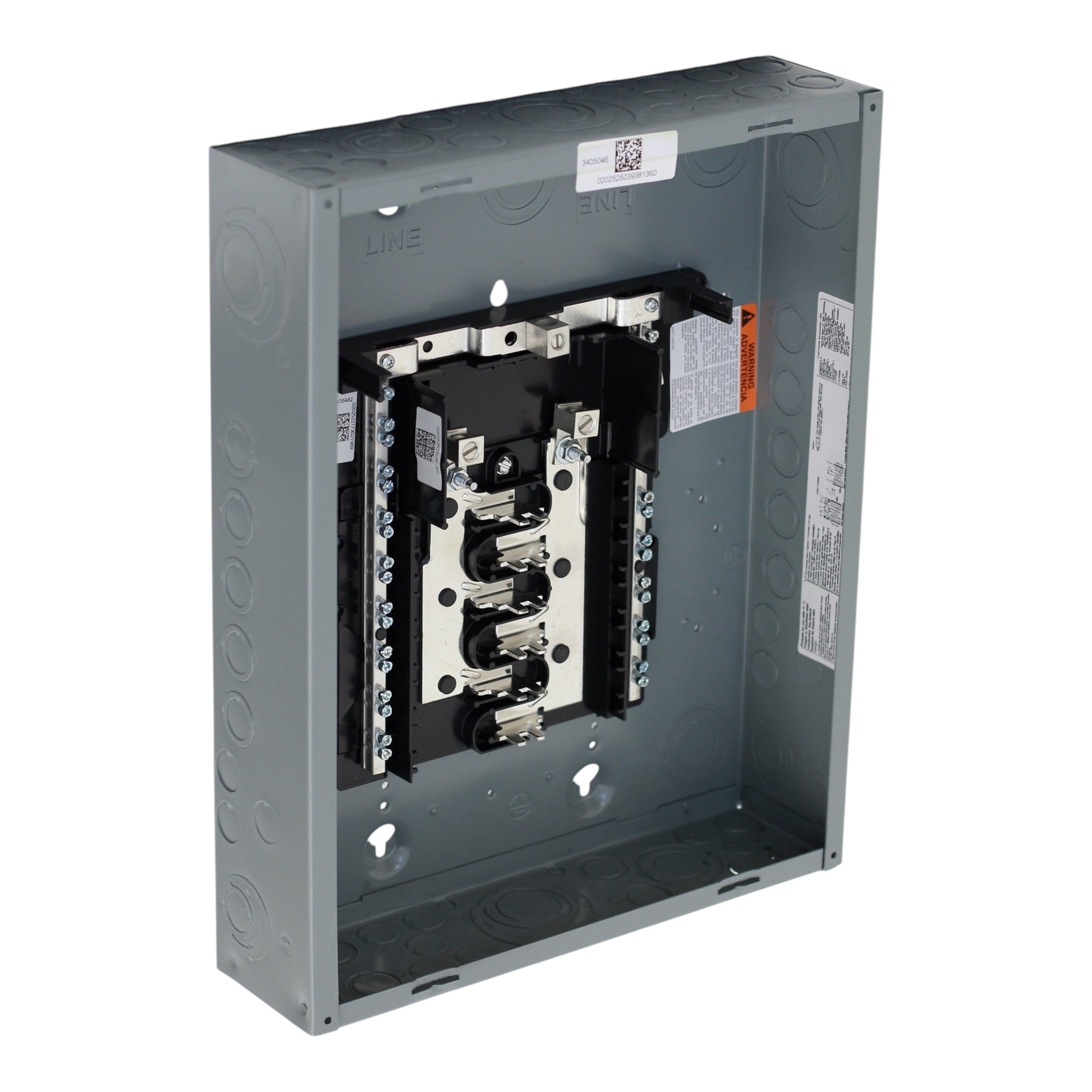

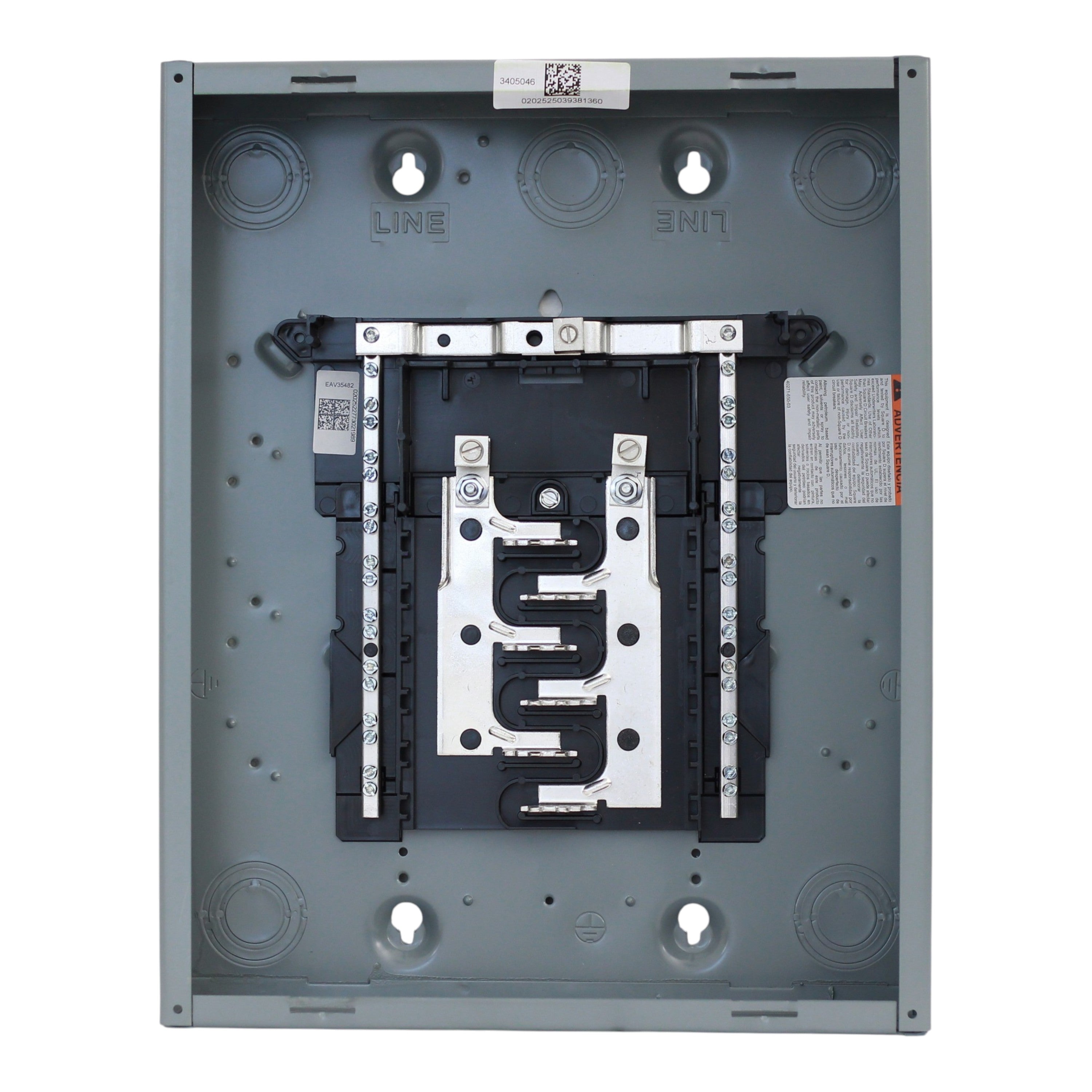

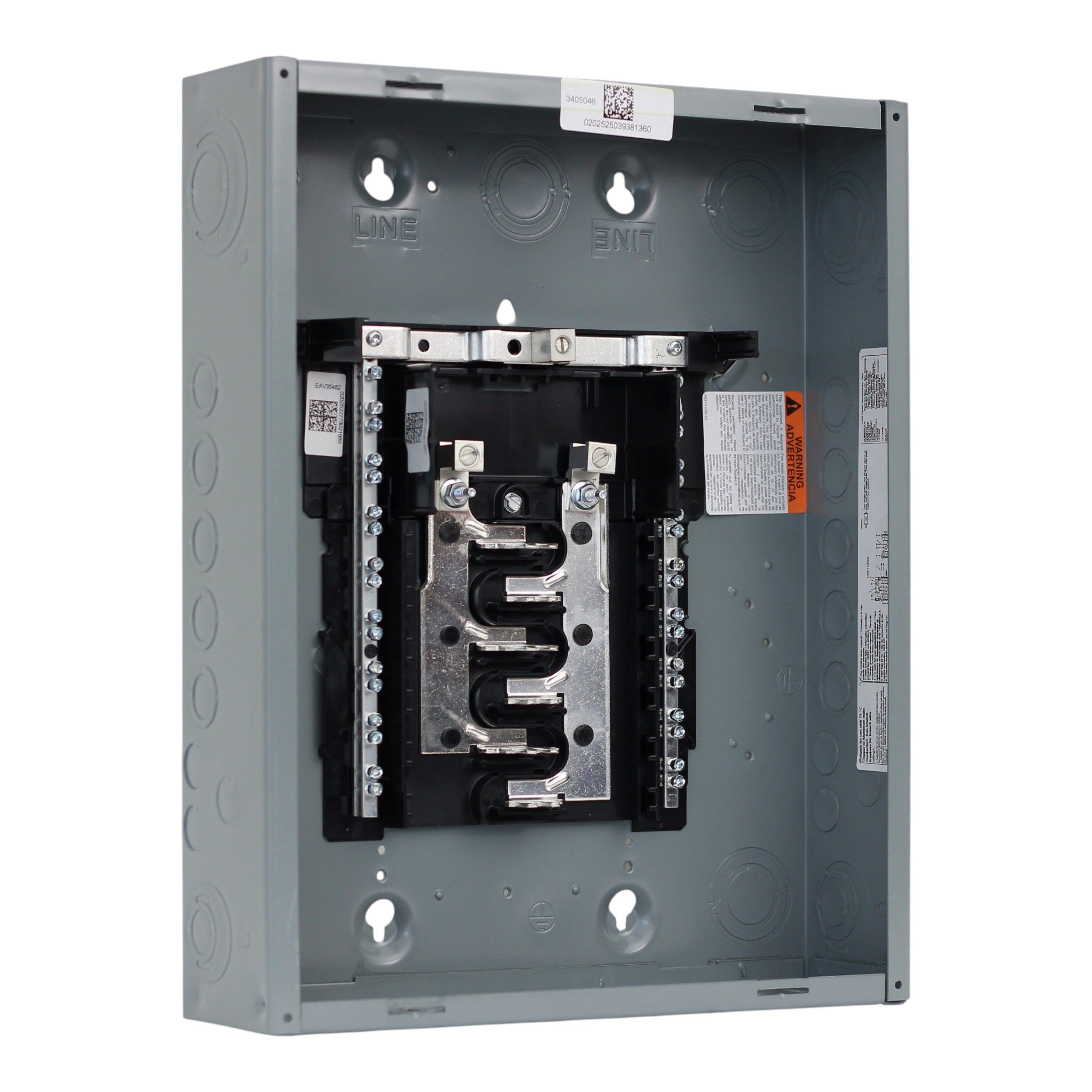

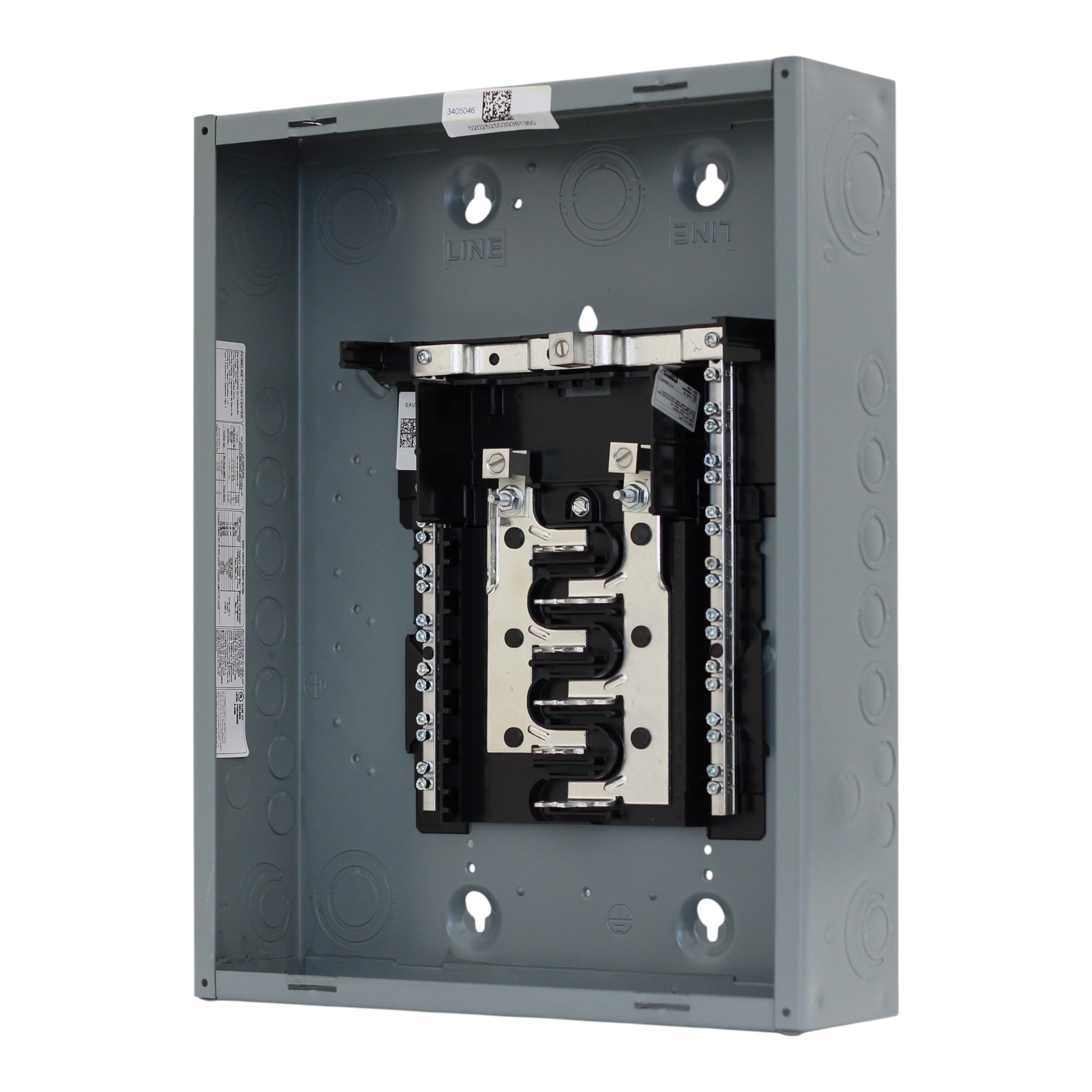

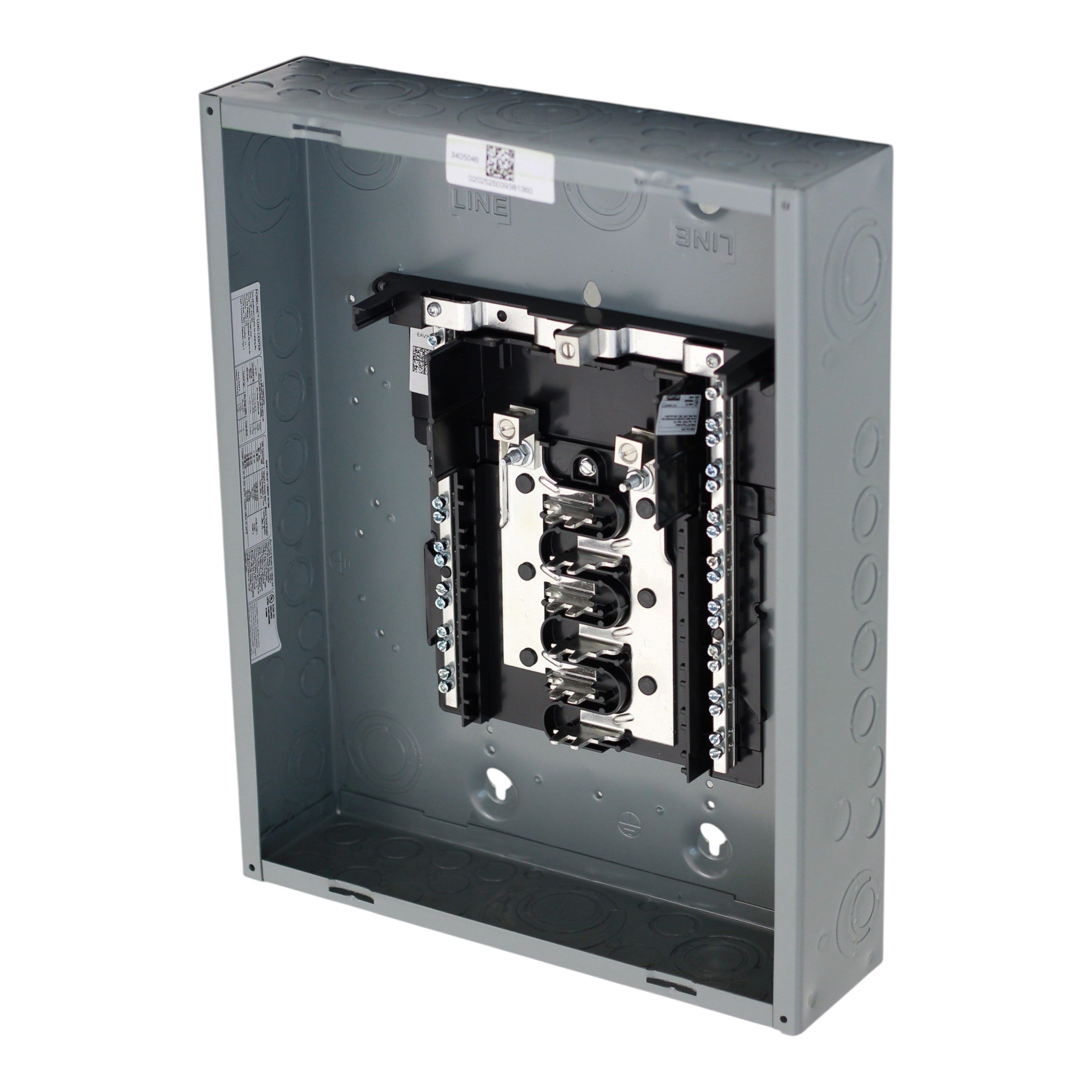

Square D HOM1224L125PC: 125 Amp, 12-Space, 24-Circuit, Homeline Convertible Main Lug Load Center, 120/240V, 10kA, 1-Phase, 3-Wire, PoN, NEMA 1, Combination Cover, UL Listed.
- Manufacturer: Schneider Electric
- Brand: Square D
- Product Range: Homeline (for Square D Homeline circuit breakers — plug-on neutral compatible)
- UPC: 785901876120
- Model Number: HOM1224L125PC
- Product Type: Convertible Main Lug Load Center — Plug-On Neutral (PoN)
- Load Center Type: PoN Convertible Mains (lugs)
- Amperage Rating: 125 Amps
- Bus Rated Current: 125 Amps
- Number of Spaces: 12
- Number of Circuits: 24 (maximum)
- Maximum Tandem Breakers: 12
- Phase: 1-Phase, 3-Wire
- Voltage: 120/240 Volts AC
- Interrupt Rating: 10 kA
- Bus Material: Tin plated aluminum
- Enclosure Material: Steel
- Enclosure Rating: NEMA 1 (Indoor)

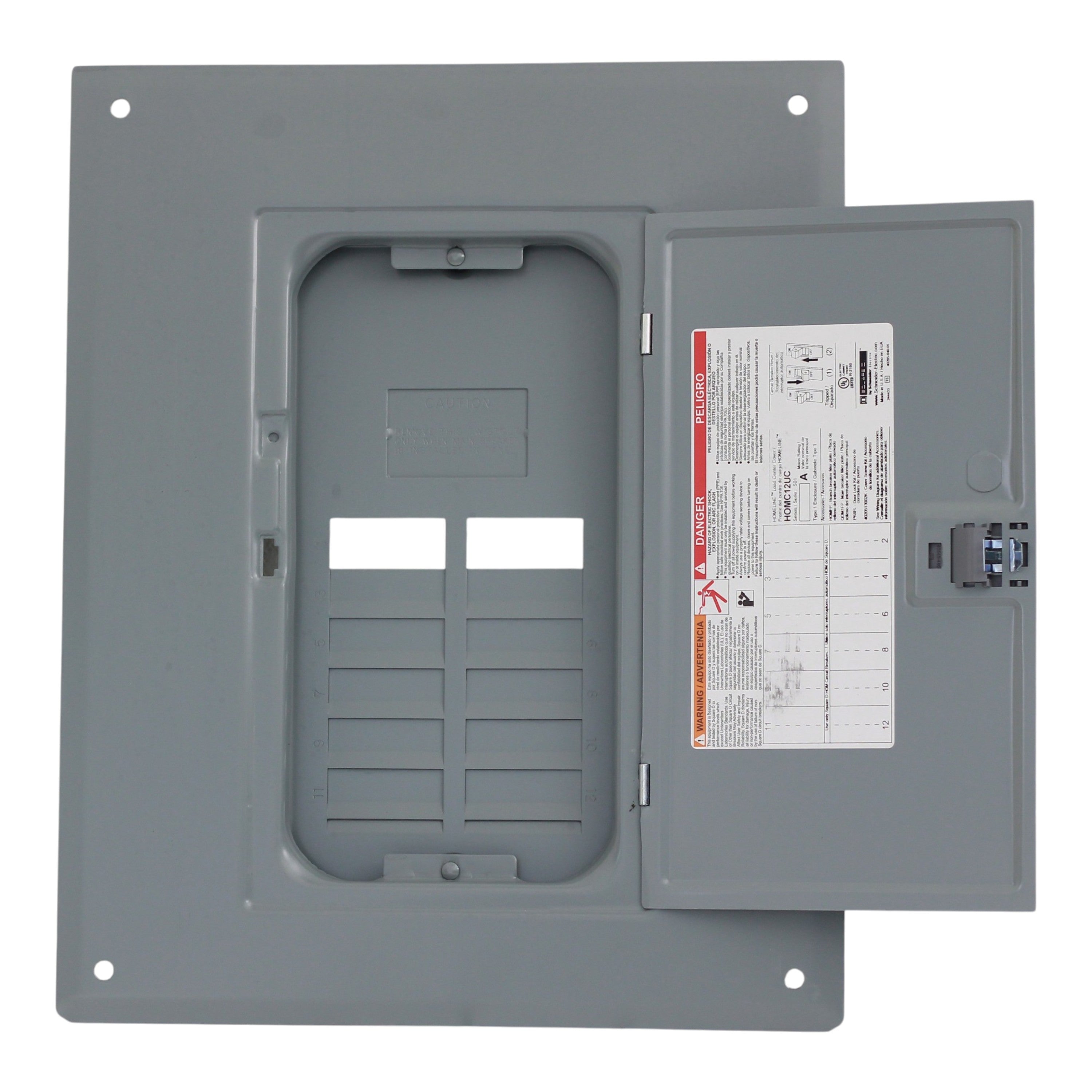

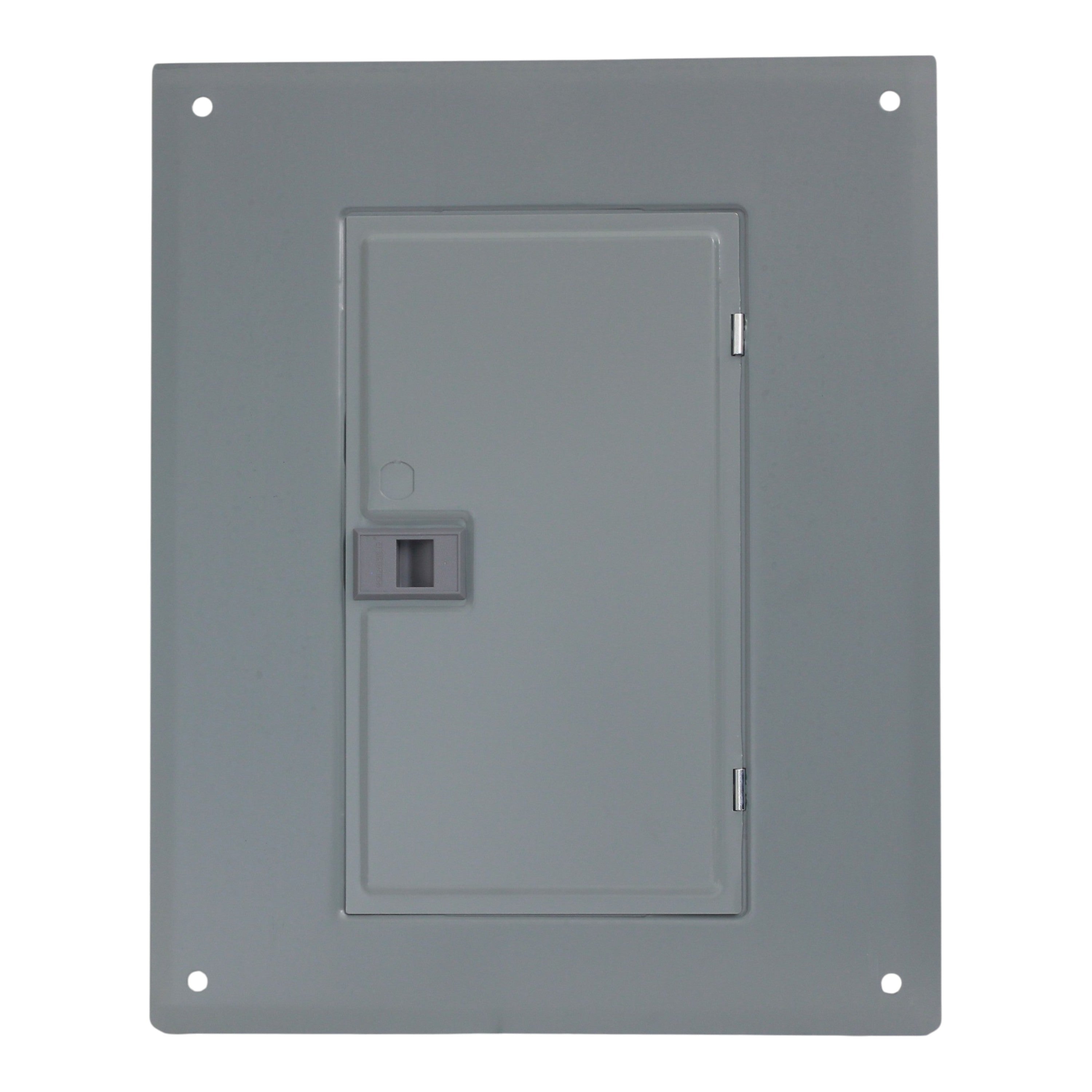

- Cover Type: Combination flush/surface cover
- Surface Finish: Baked enamel gray
- Wire Size (Main Lugs): #6–1 AWG Cu, #6–2/0 AWG Al
- Dimensions: Height: 17.9 in; Width: 14.3 in; Depth: 3.7 in
- Certifications: UL Listed (File E-6294)
This Square D HOM1224L125PC Homeline plug-on neutral convertible main lug load center delivers reliable 125 Amp, single-phase power distribution across 12 spaces and up to 24 circuits for 120/240V residential applications. With a tin plated aluminum bus, 10kA interrupt rating, combination flush/surface cover, distributed neutral bars for tidy wiring, and plug-on neutral compatibility for faster no-pigtail installation, it supports modern residential electrical installations in Homeline load centers.
