Square D Homeline RC816F200C 200A Ringless Meter Main CSED

Out of stock
SKU: RC816F200C UPC: 785901863922

BULK ORDER Quote.

How Bulk Order Discounts Work

We partner with Cart Whisper to make bulk ordering fast and simple. You can build your cart normally, then submit the entire cart to our team so we can apply bulk pricing and send you a custom quote.

1) Add everything you need to your cart

Shop the site and add all the products and quantities you want — just like a normal order.

2) Open your cart drawer and submit your cart

When you open the cart drawer, you’ll see a Cart Whisper section that looks like this:

Need Help? Cart ID: ####
Submit Cart to Support

Click “Submit Cart to Support” to send your cart to our team.

3) Fill out the quick form

After clicking the submit button, a form will pop up. Please enter:

  • Name

  • Email

  • Short message (what you want / any special notes)

Important: Include your shipping address in the message.
That helps us quote your order accurately, including shipping and taxes (if applicable).

4) We review and send your custom quote

Once we receive your cart submission, we’ll:

  • Review your cart items and quantities

  • Apply any eligible bulk discounts

  • Send you a custom quote with final pricing (and shipping/tax if applicable)


What to include in your message (recommended)

To speed things up, copy/paste this format into the message box:

  • Shipping Address:

  • Notes / Special requests:

SELECT ITEM CONDITION
Regular price $255.00 USD
Regular price Sale $365.00 USD Sale price $255.00 USD
Payment methods
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

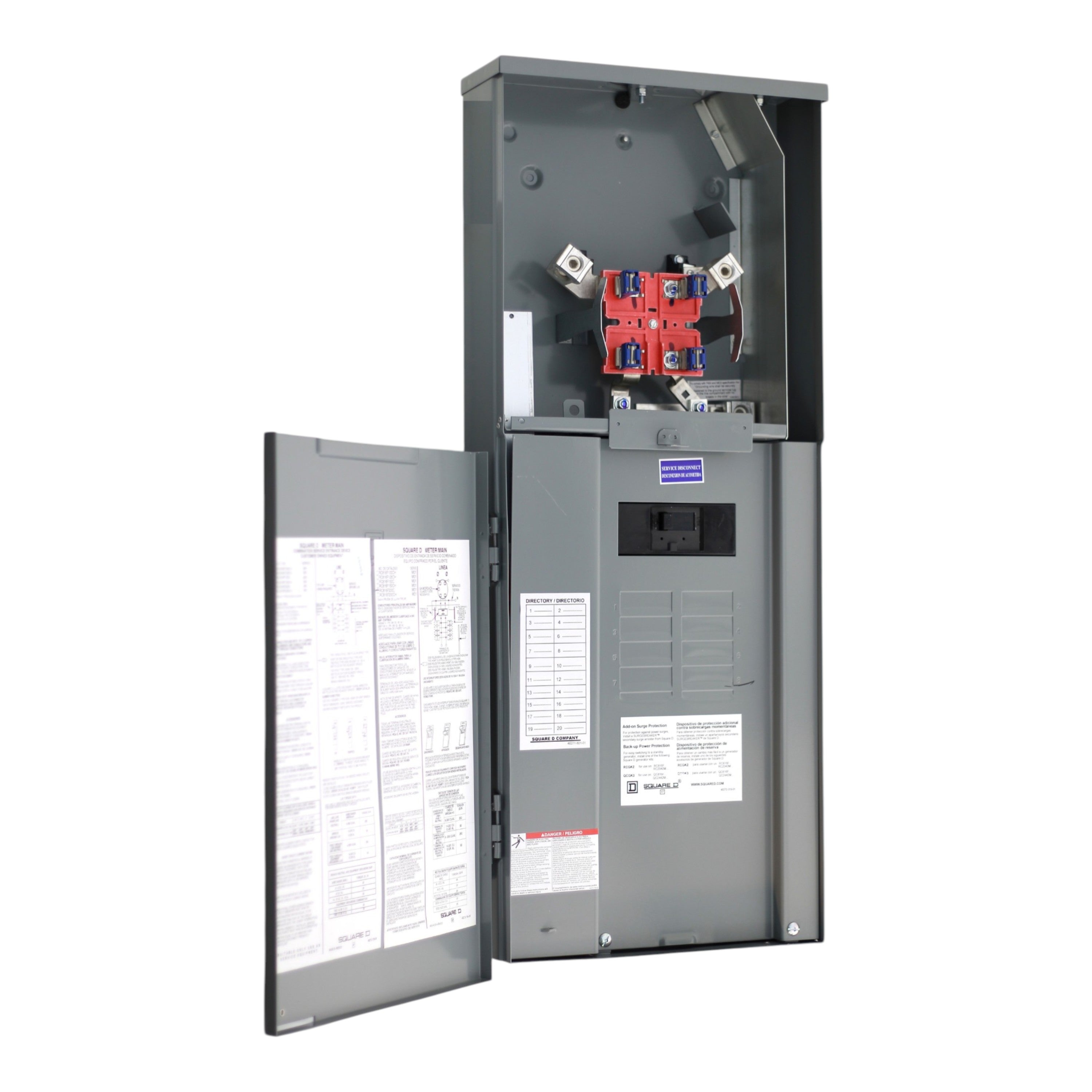

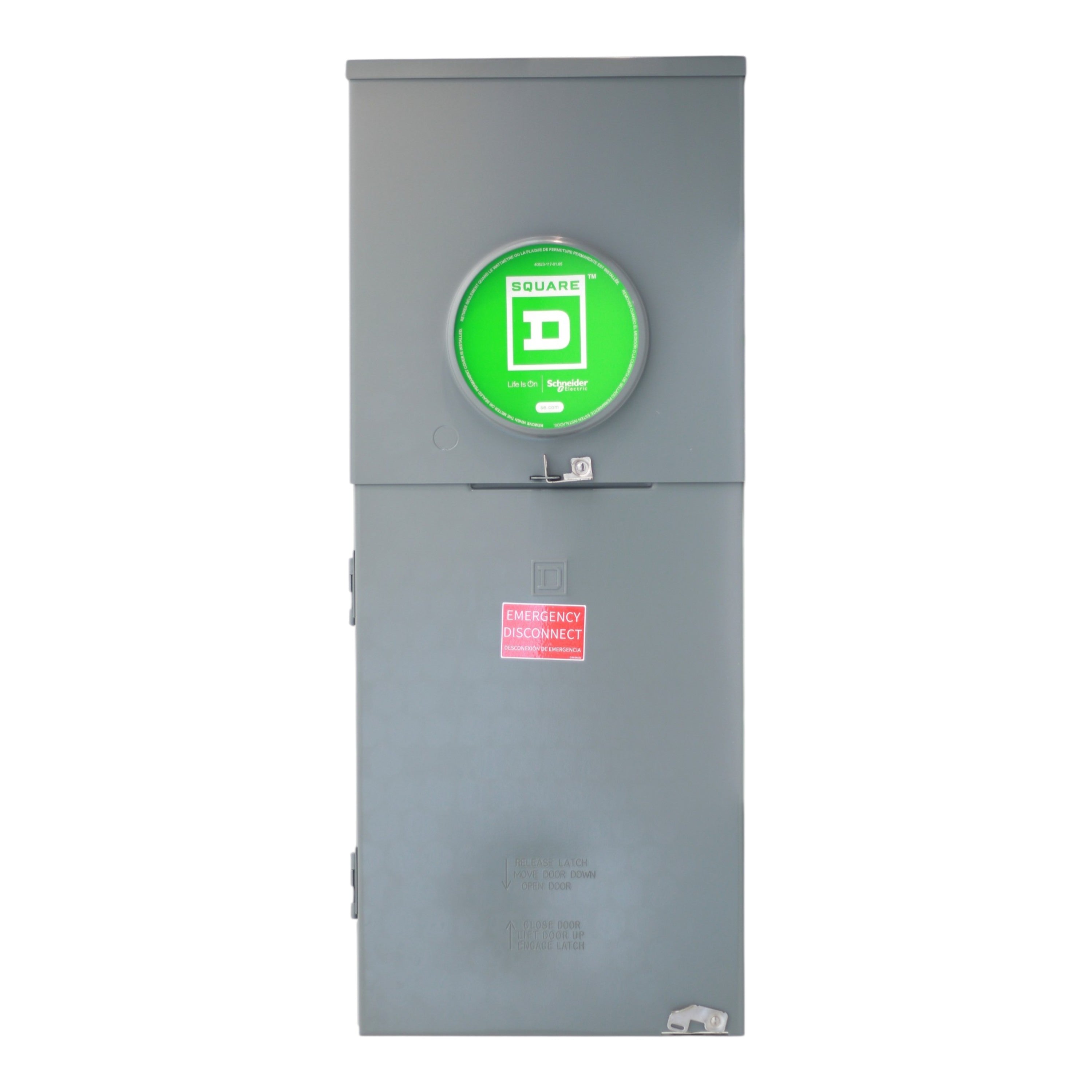

Square D RC816F200C: 200 Amp, 1-Phase, Homeline Ringless Meter Main, CSED, 120/240V, 22kA, 8-Space, 16-Circuit, Surface Mount, UL Listed.

  • Manufacturer: Schneider Electric
  • Brand: Square D
  • Product Range: Homeline (for Homeline CSED loadcenters and residential service entrance applications)
  • UPC: 785901863922
  • Model Number: RC816F200C
  • Product Type: Combination Service Entrance Device (CSED), Ringless Meter Main
  • Amperage: 200 Amps
  • Phases: 1-Phase, 3-Wire
  • Voltage: 120/240 Volts AC
  • Short-Circuit Rating: 22 kAIC
  • Meter Socket: Ringless, No Bypass
  • Mounting: Surface Mount (convertible to semi-flush with optional flange kit)
  • Service Feed: Overhead (OH) / Underground (UG)
  • Spaces: 8 Spaces
  • Circuits: 16 Circuits
  • Tandem Breakers: 8 Maximum
  • Main Breaker Rating: 200 Amps (factory installed)
  • Bus Rating: 200 Amps
  • Enclosure: NEMA 3R (Rainproof, Outdoor Rated)

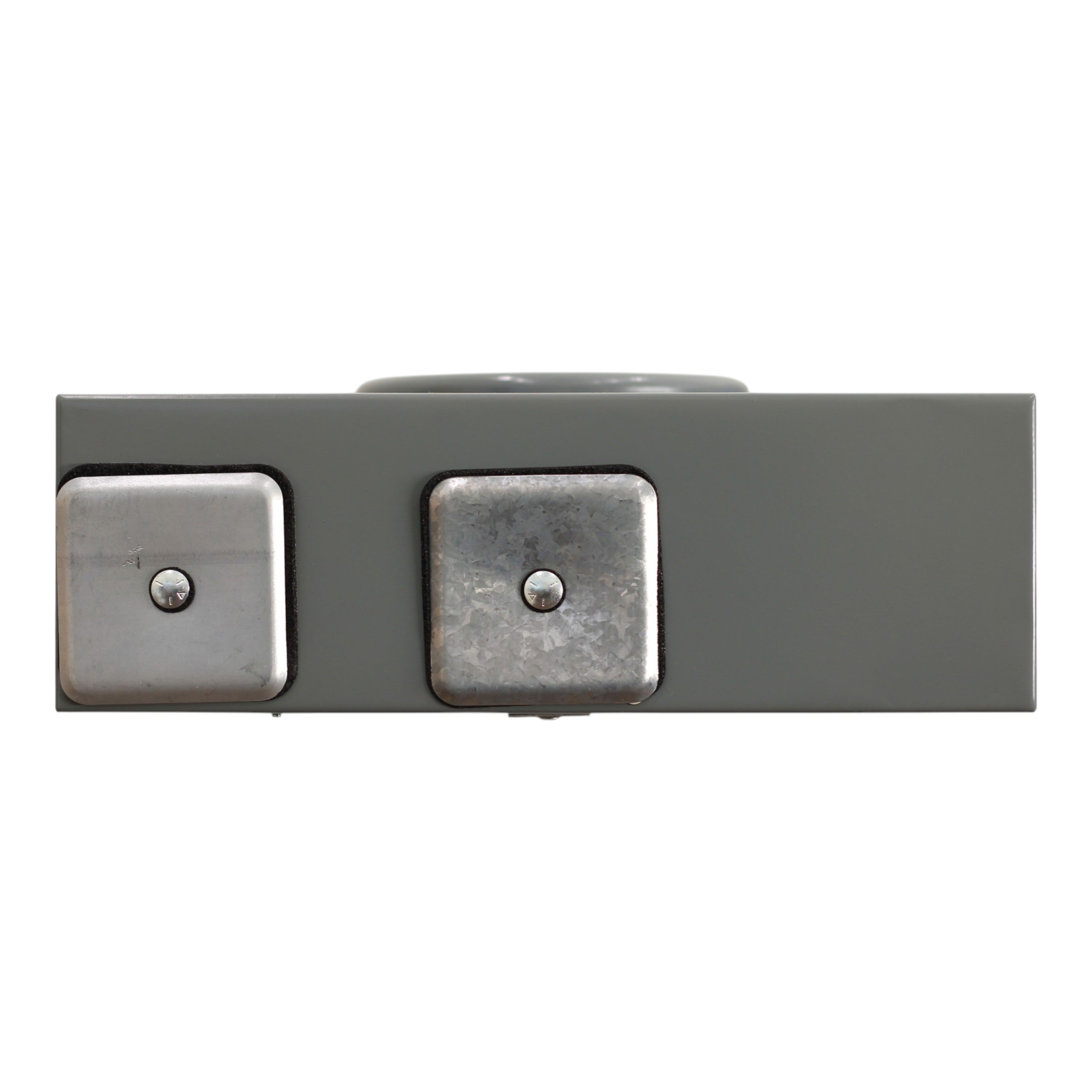

  • Hub Type: A
  • Wire Size (Line Side): AWG 6–350 kcmil Al/Cu
  • Wire Size (Service Ground): AWG 12–AWG 2/0 Al/Cu
  • Tightening Torque: Main lugs: 250 lb-in; Service ground: 50 lb-in; Branch lugs: 20–35 lb-in (varies by wire size)

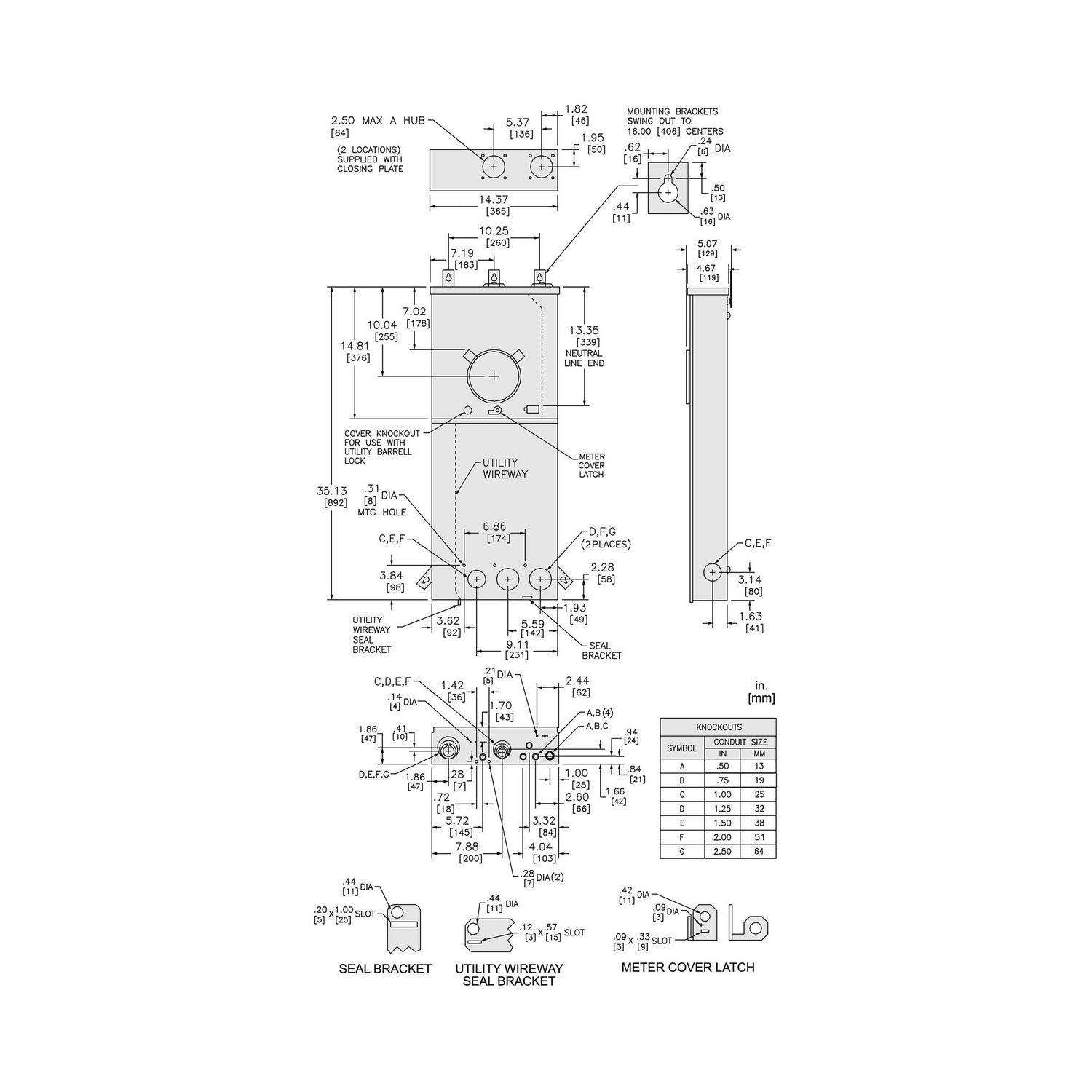

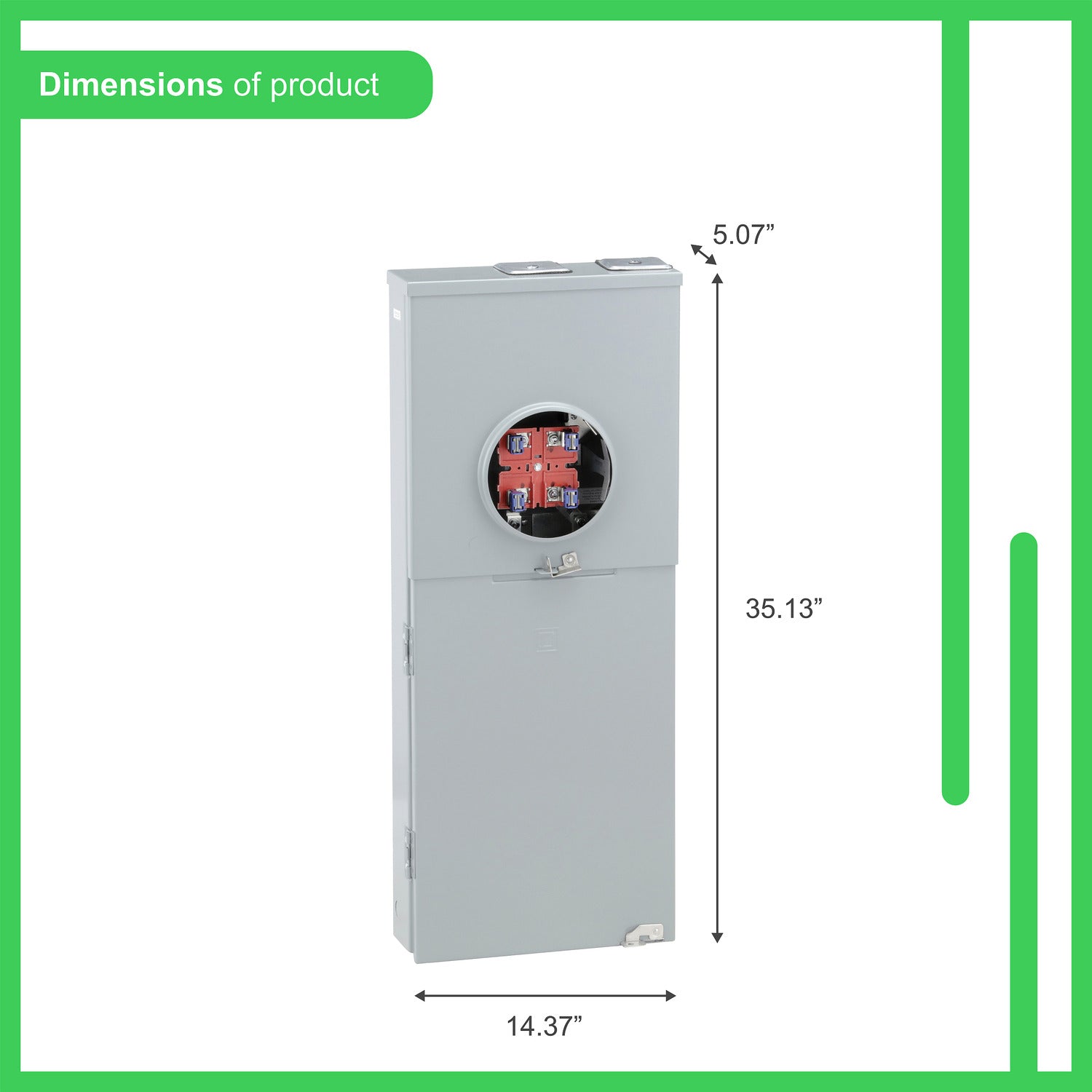

  • Dimensions: Height: 35.13 in; Width: 14.37 in; Depth: 5.07 in
  • Weight: 43.65 lbs
  • Certifications: UL Listed (File No. E6294), CSA Approved, ANSI C12.7, NEMA PB-1, EUSERC Approved, Federal Specification W-P-115C

This Square D RC816F200C is a 200 Amp Homeline ringless meter main CSED for surface mount residential service entrance applications. Supporting 120/240V, 1-phase, OH/UG feed, 8 spaces and 16 circuits with a 22kA short-circuit rating, it is UL Listed and EUSERC Approved.
