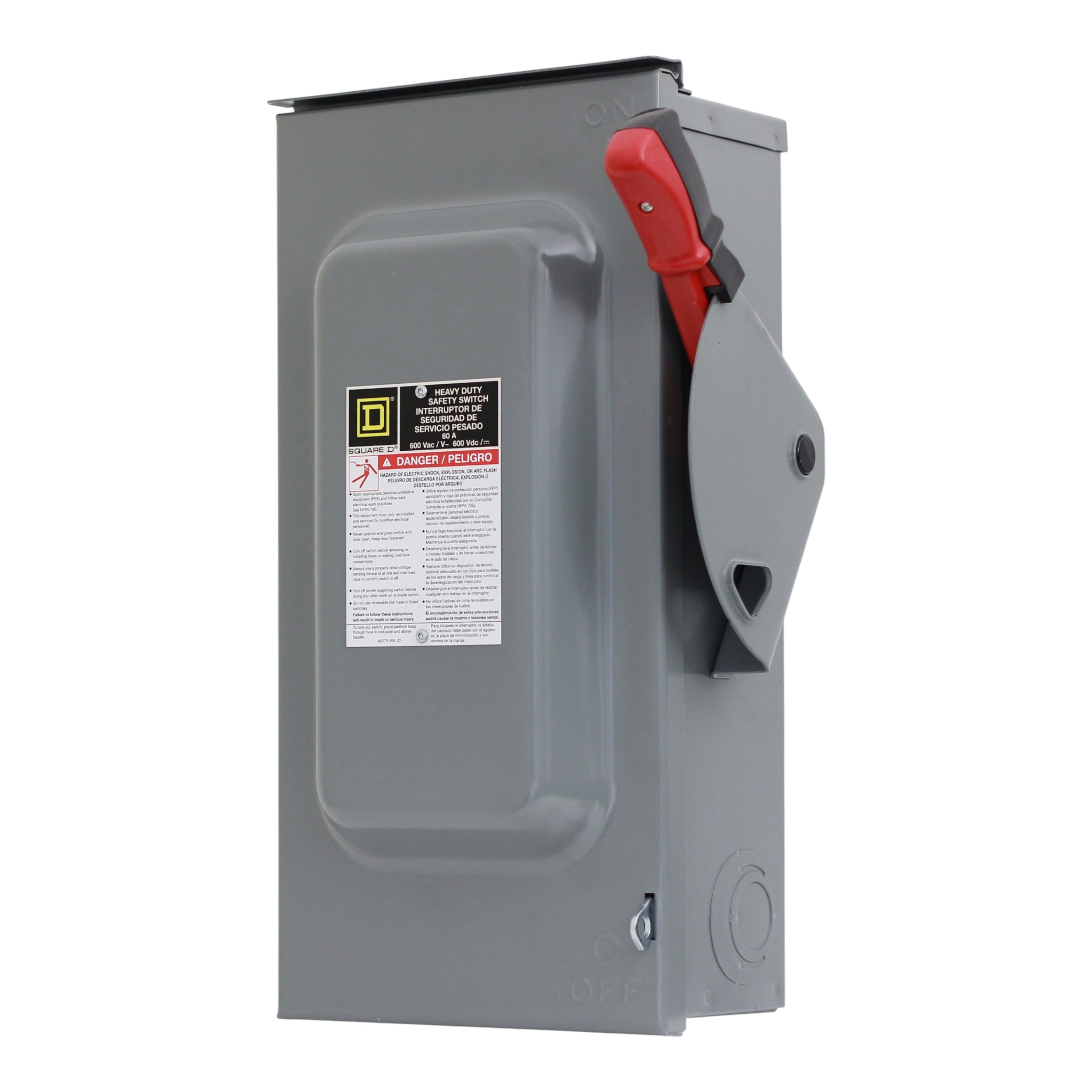

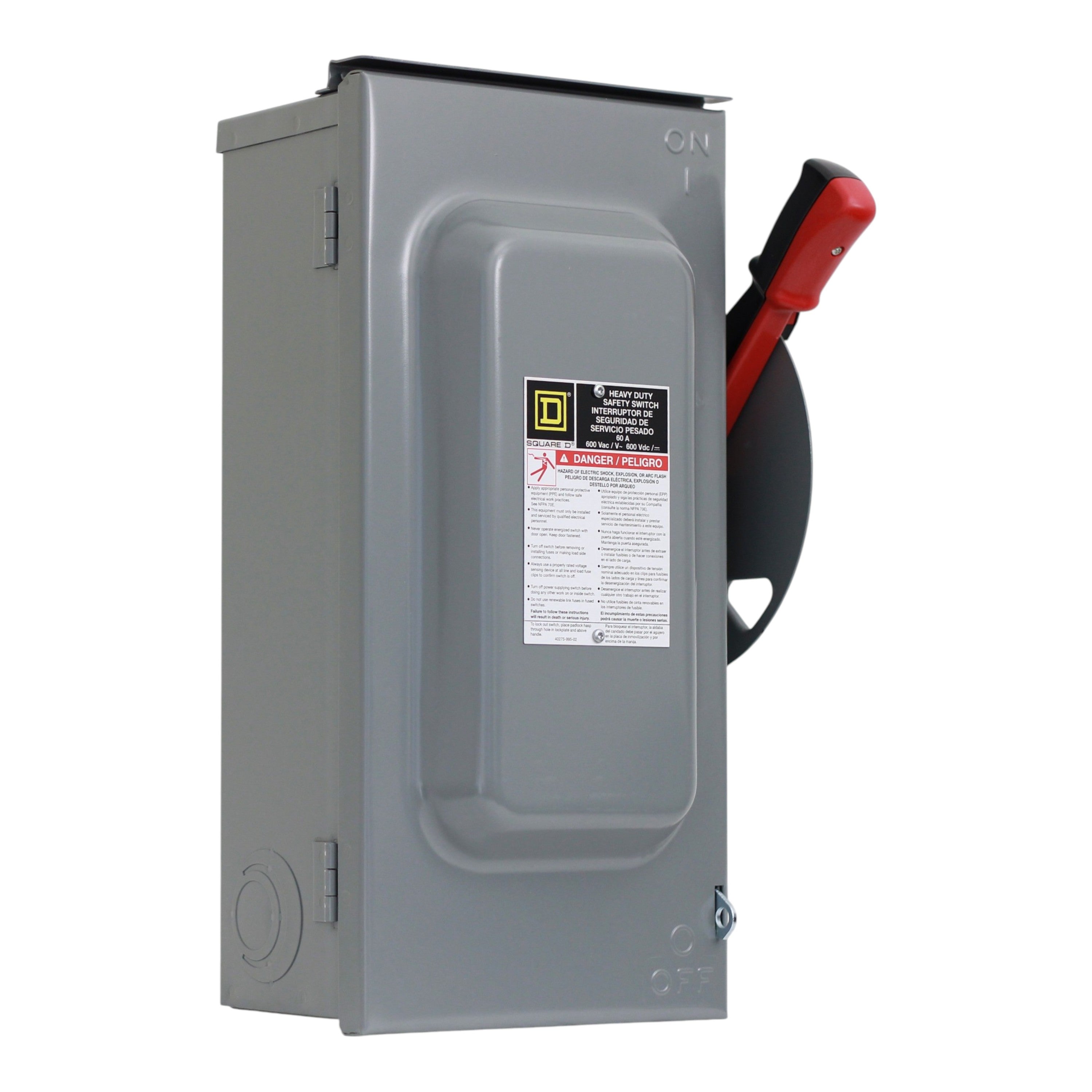

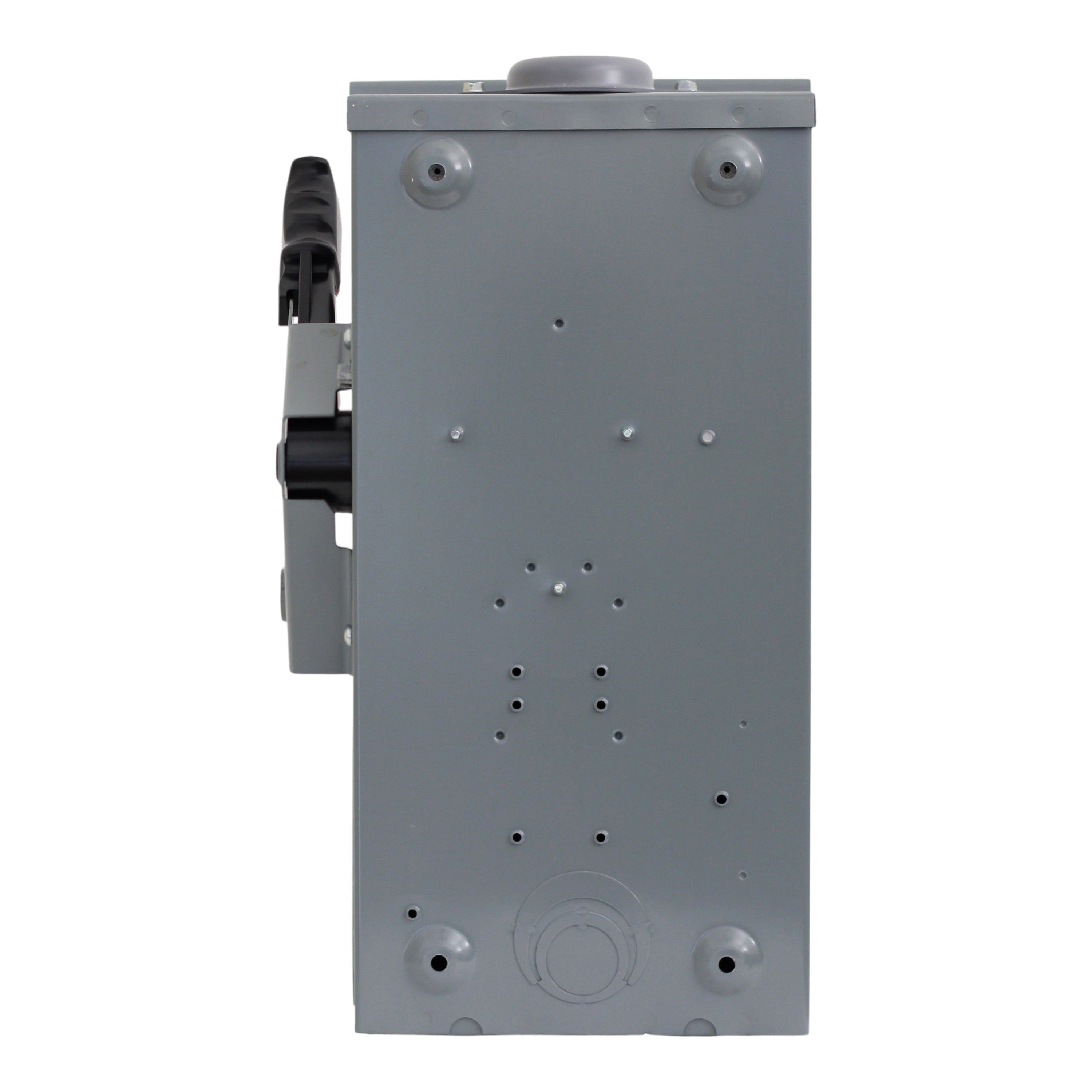

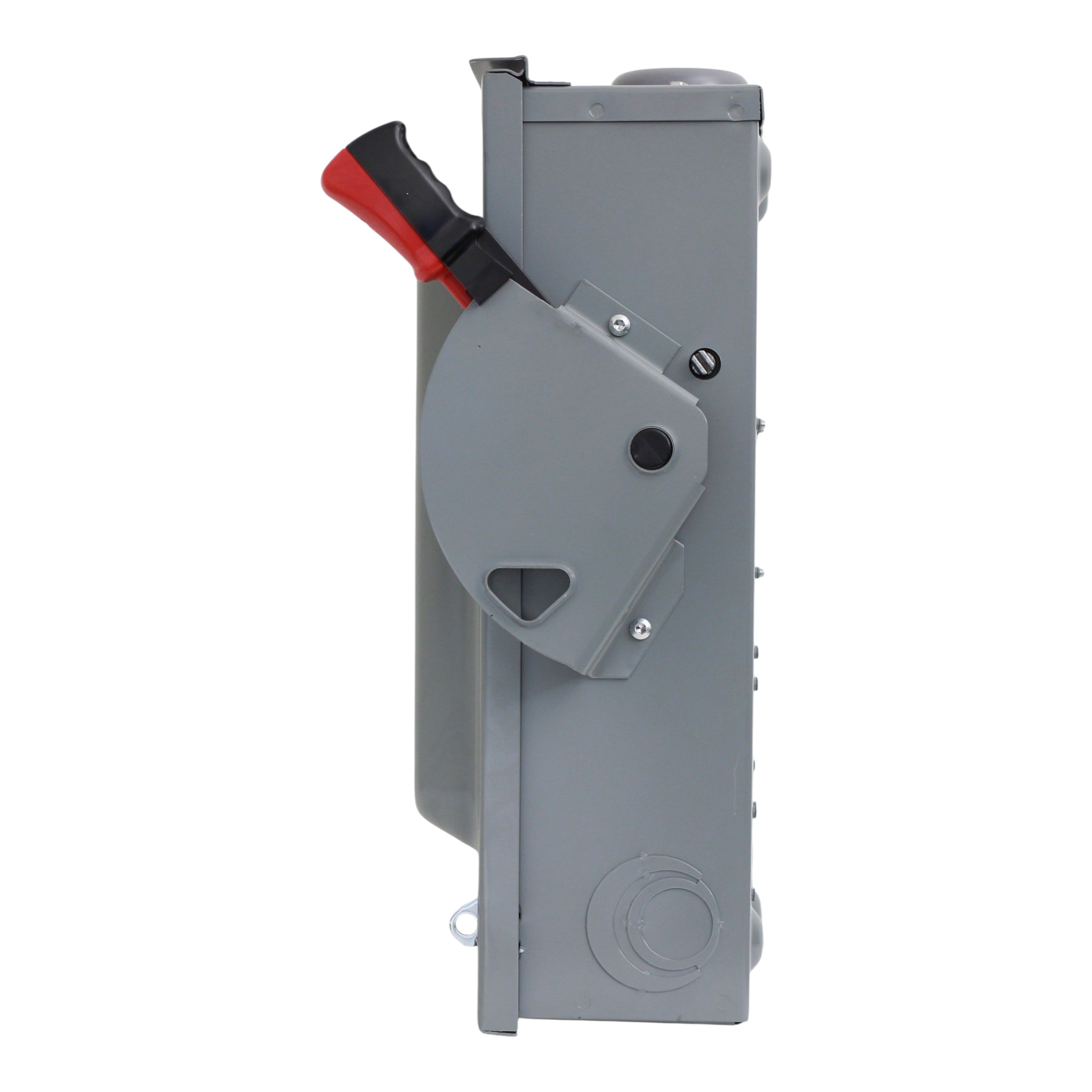

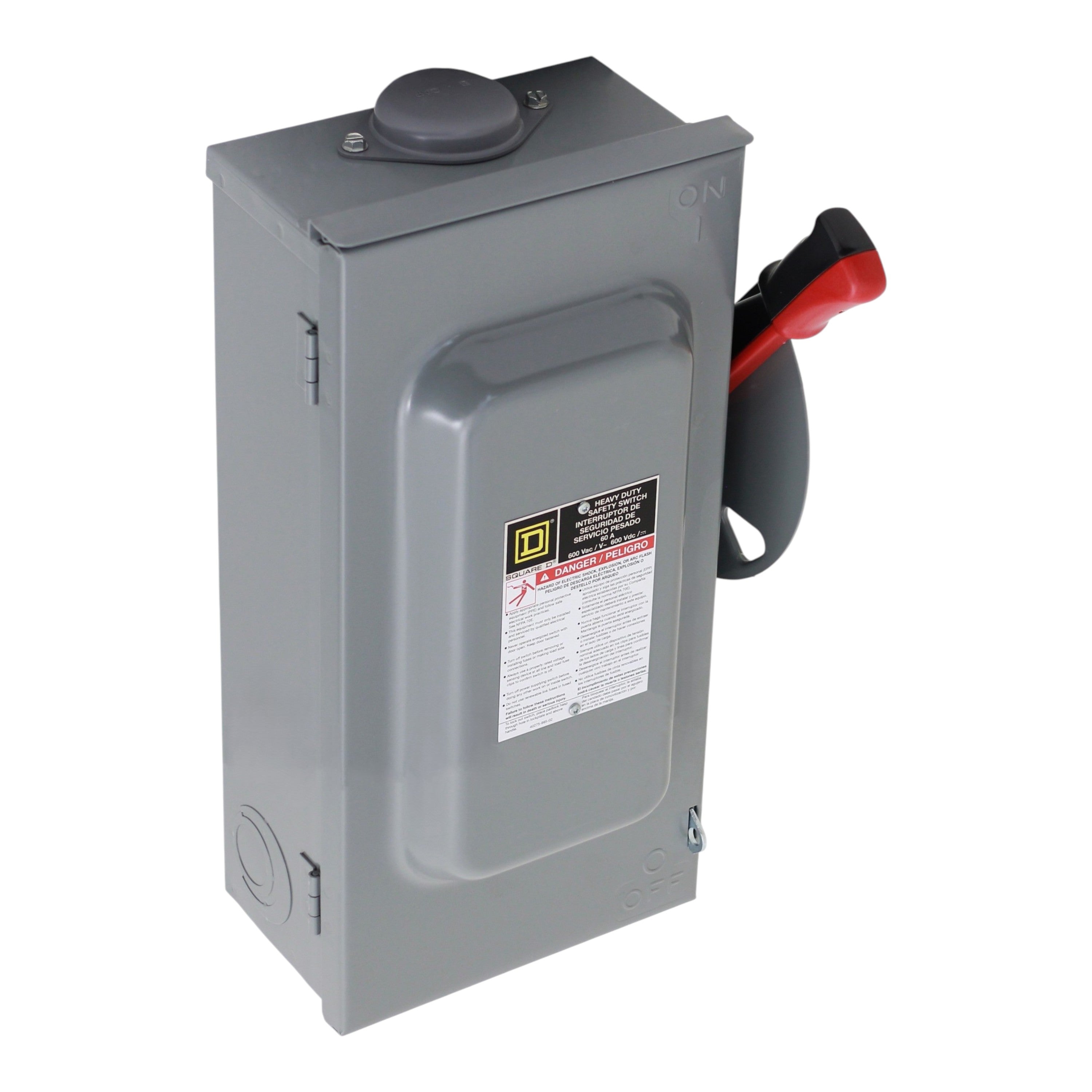

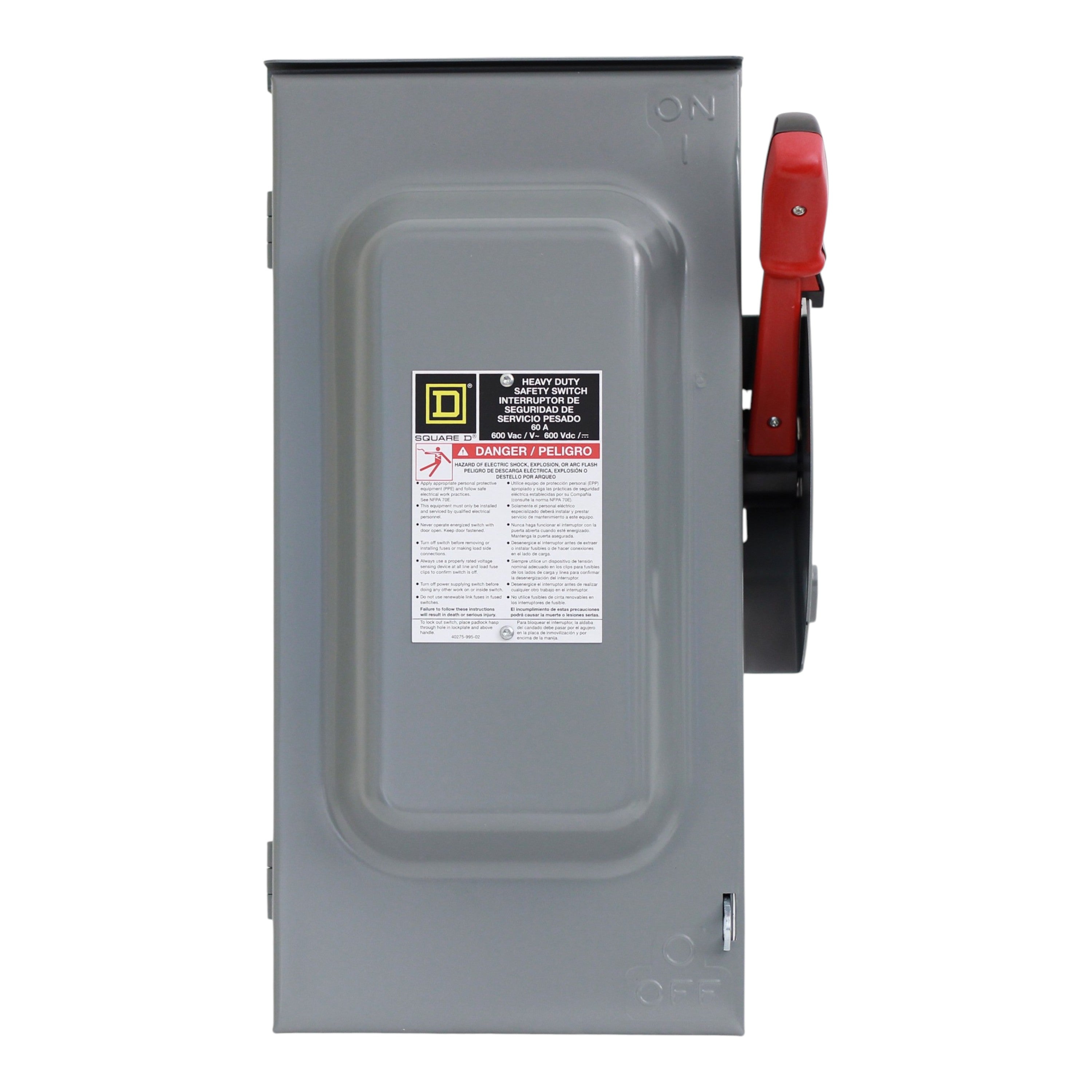

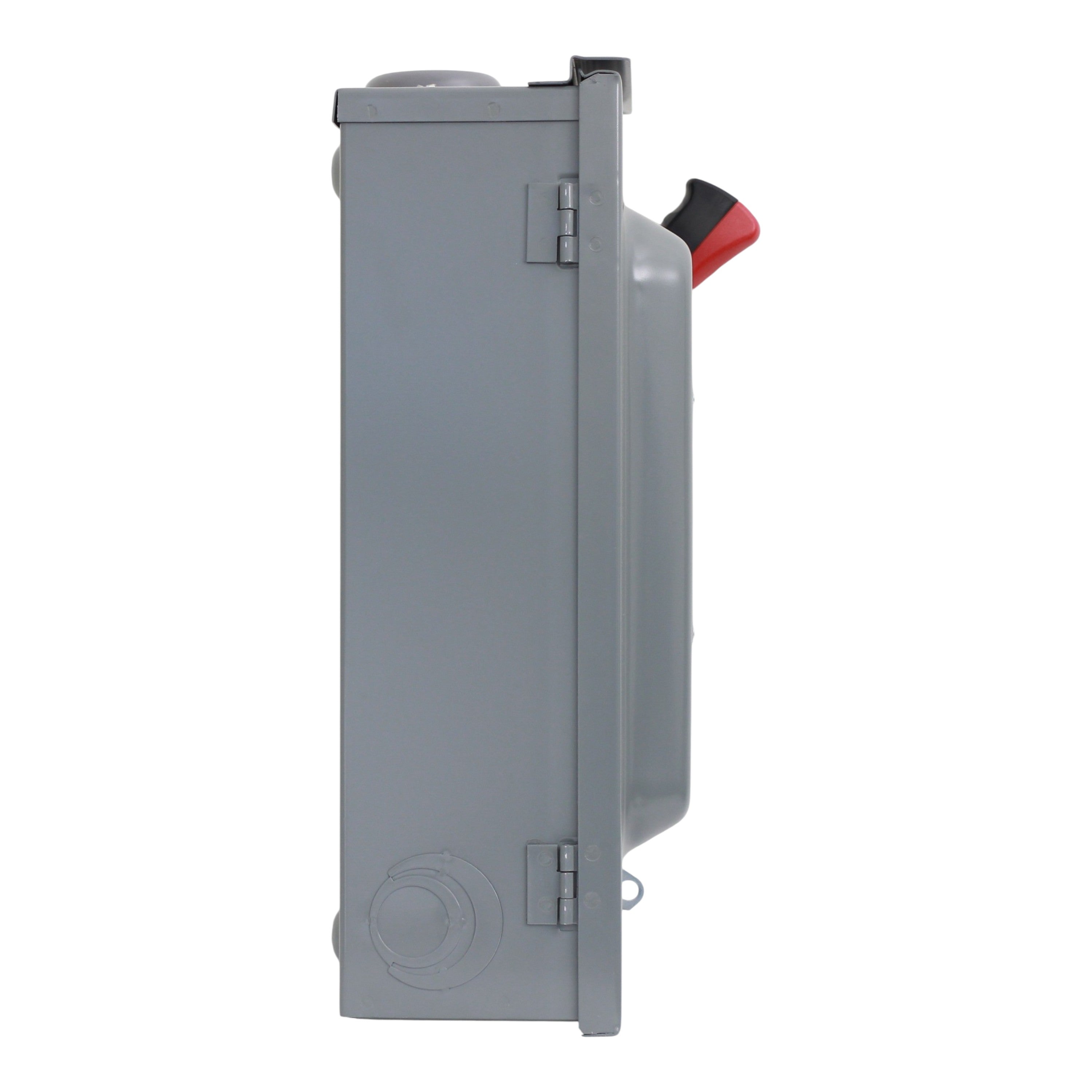

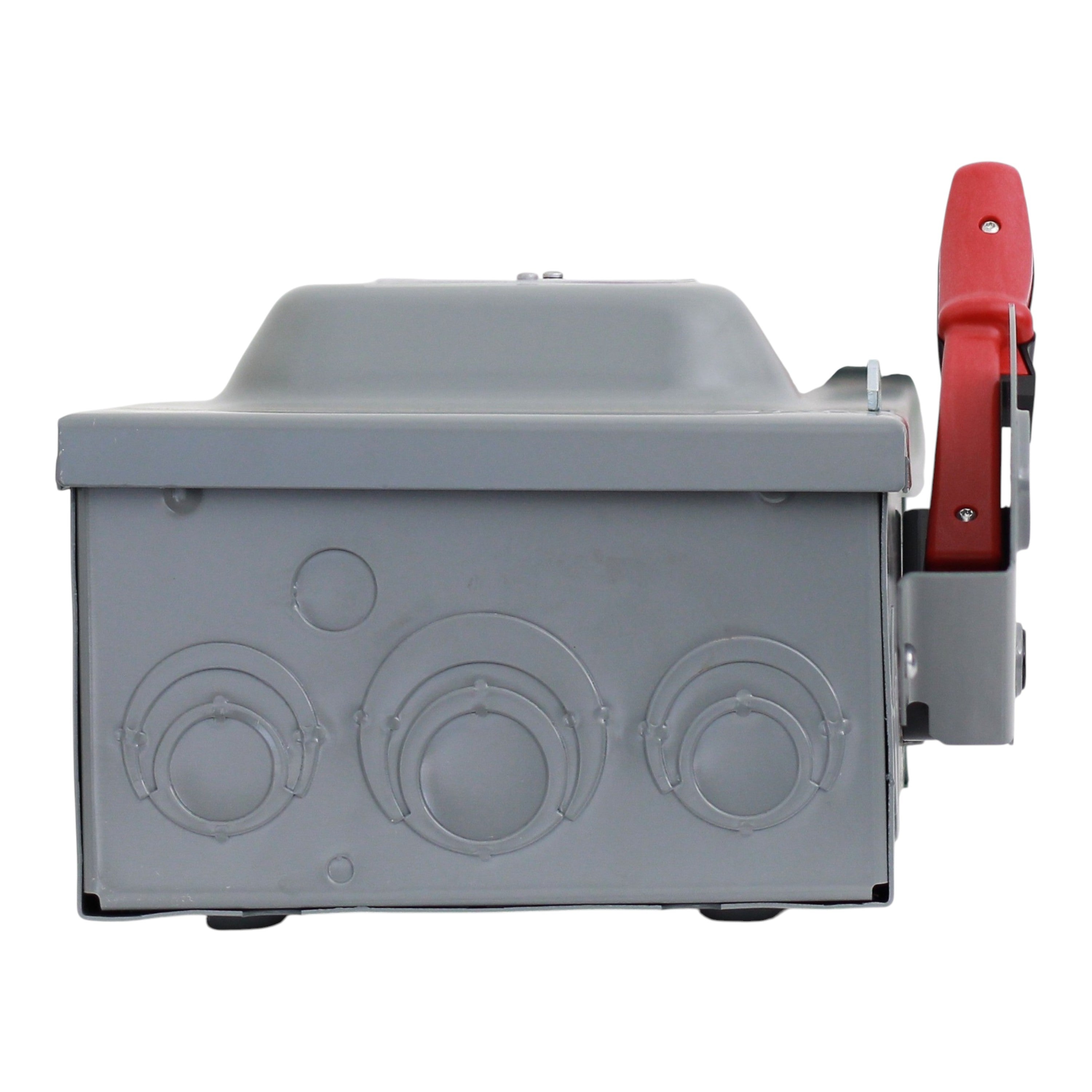

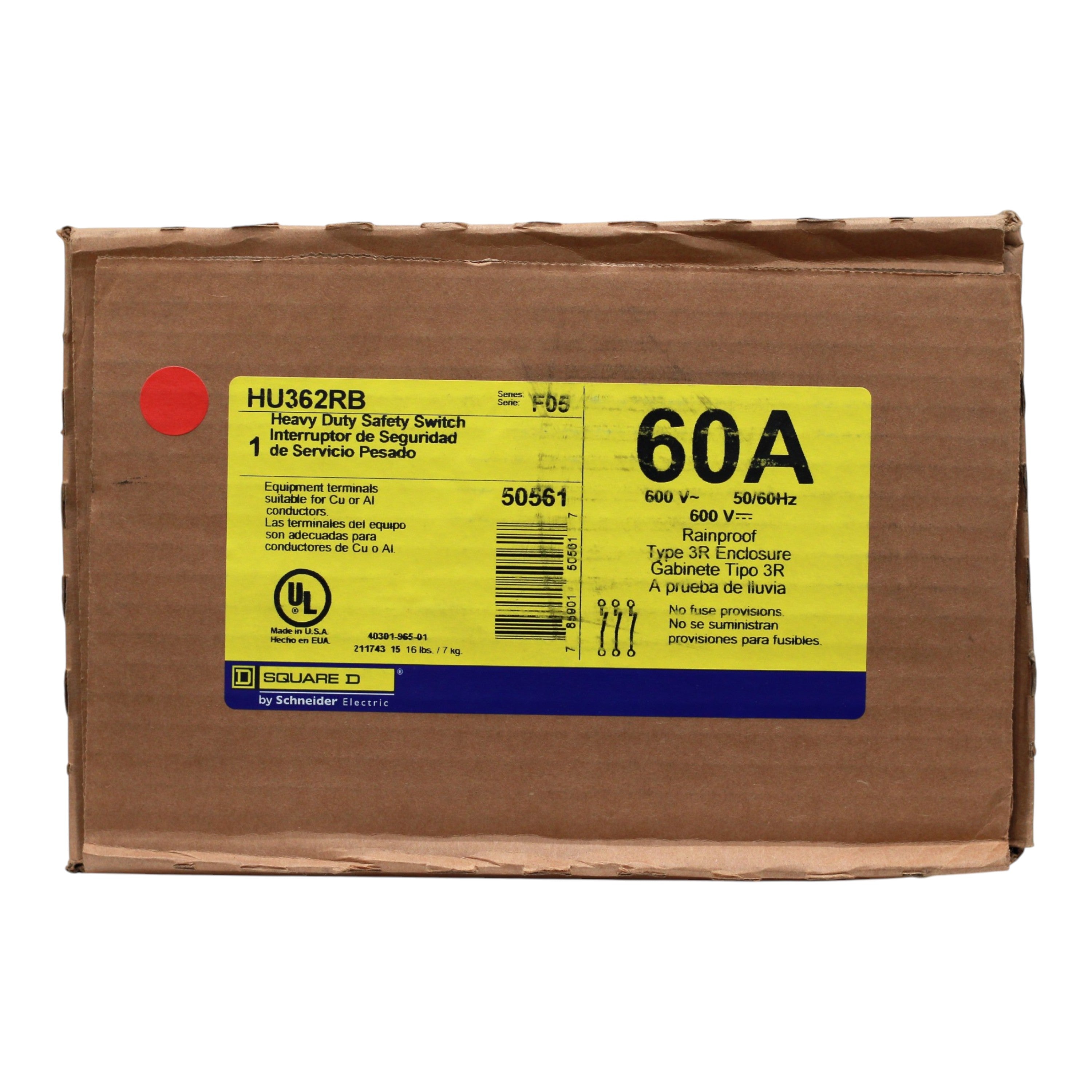

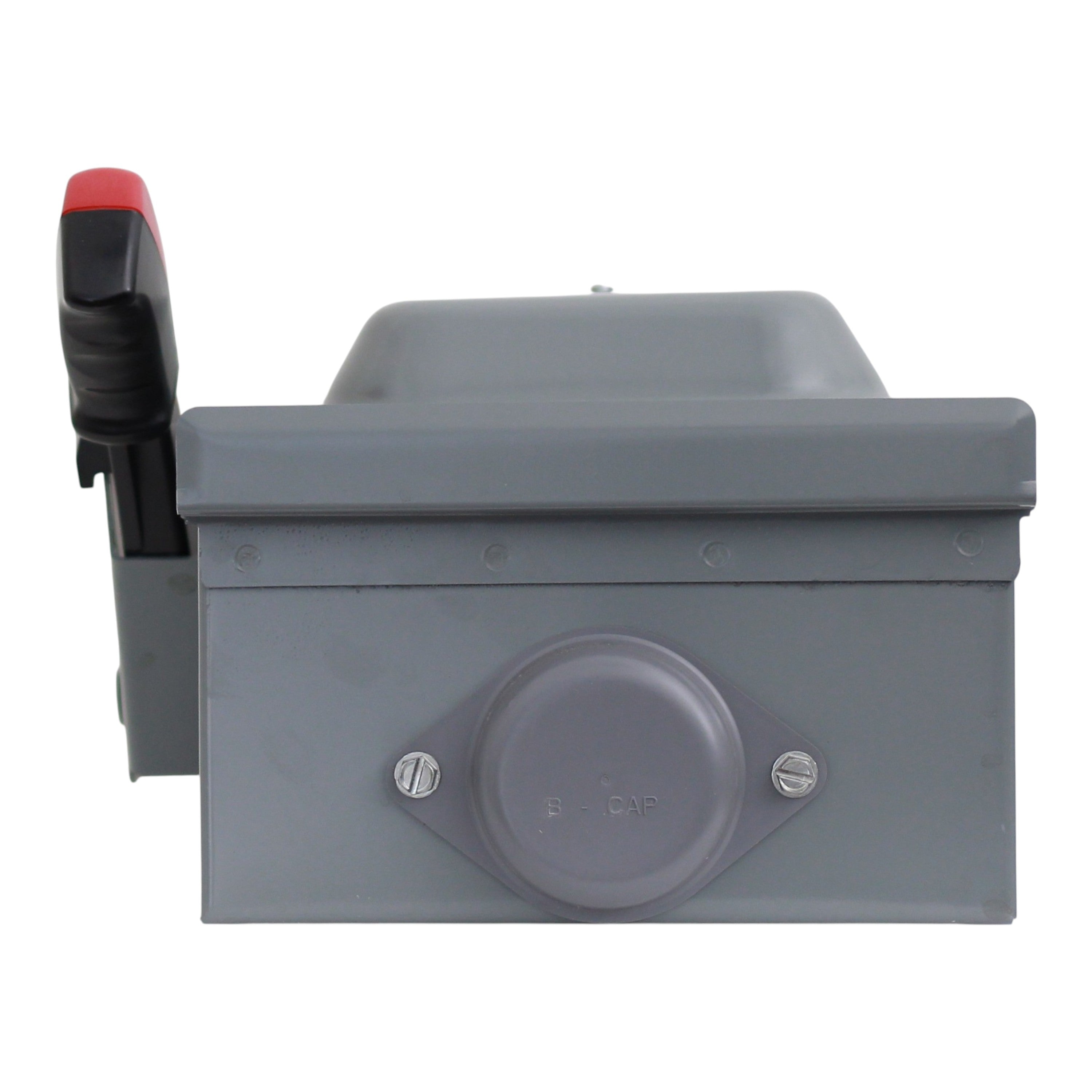

Square D HU, HU362RB, 60A, 3P, 600V, Non-Fusible Heavy Duty Safety Switch, NEMA 3R
Regular price
$265.00
Not sure it fits? Send us a photo of your panel label or the old breaker and we'll confirm the right part.
Email us a photoor text it to (346) 249-5974 · Breaker Finder
📦 Calculate shipping cost
BULK ORDER Quote.
How Bulk Order Discounts Work
We partner with Cart Whisper to make bulk ordering fast and simple. You can build your cart normally, then submit the entire cart to our team so we can apply bulk pricing and send you a custom quote.
1) Add everything you need to your cart
Shop the site and add all the products and quantities you want — just like a normal order.
2) Open your cart drawer and submit your cart
When you open the cart drawer, you’ll see a Cart Whisper section that looks like this:
Need Help? Cart ID: ####
Submit Cart to Support
Click “Submit Cart to Support” to send your cart to our team.
3) Fill out the quick form
After clicking the submit button, a form will pop up. Please enter:
-
Name
-
Email
-
Short message (what you want / any special notes)
✅ Important: Include your shipping address in the message.
That helps us quote your order accurately, including shipping and taxes (if applicable).
4) We review and send your custom quote
Once we receive your cart submission, we’ll:
-
Review your cart items and quantities
-
Apply any eligible bulk discounts
-
Send you a custom quote with final pricing (and shipping/tax if applicable)
What to include in your message (recommended)
To speed things up, copy/paste this format into the message box:
-
Shipping Address:
-
Notes / Special requests:
Square D HU362RB: 60 Amp, 3-Pole, Non-Fusible Heavy Duty Safety Switch, 600V AC/DC, 200kA, NEMA 3R, surface mount, UL Listed.
- Manufacturer: Schneider Electric
- Brand: Square D
- Product Range: HU Series (Heavy Duty Safety Switches — F Series)
- UPC: 785901505617
- Model Number: HU362RB
- Switch Type: Heavy Duty Non-Fusible Safety Switch (Single Throw)
- Amperage: 60 Amps
- Poles: 3-Pole
- Wires: 3-Wire
- Voltage: 600 Volts AC/DC
- Factory Installed Neutral: None
- Short Circuit Current Rating: 200 kAIC
- HP Rating: 10 HP (1PH, 240V AC); 20 HP (3PH, 240V AC); 25 HP (1PH, 480V AC); 50 HP (3PH, 480V AC); 30 HP (1PH, 600V AC); 60 HP (3PH, 600V AC); 10 HP (250V DC); 30 HP (600V DC)
- Enclosure: NEMA 3R
- Enclosure Material: Galvannealed Steel
- Mounting: Surface
- Wire Size: #14–3 AWG Cu; #12–3 AWG Al
- Tightening Torque: 50 lb-in (AWG 14–10); 40 lb-in (AWG 8); 45 lb-in (AWG 6–4); 50 lb-in (AWG 3)
- Dimensions: Height: 21.25 in; Width: 10.5 in; Depth: 6.38 in
- Weight: 15.4 lbs
- Certifications: UL Listed (File E2875)

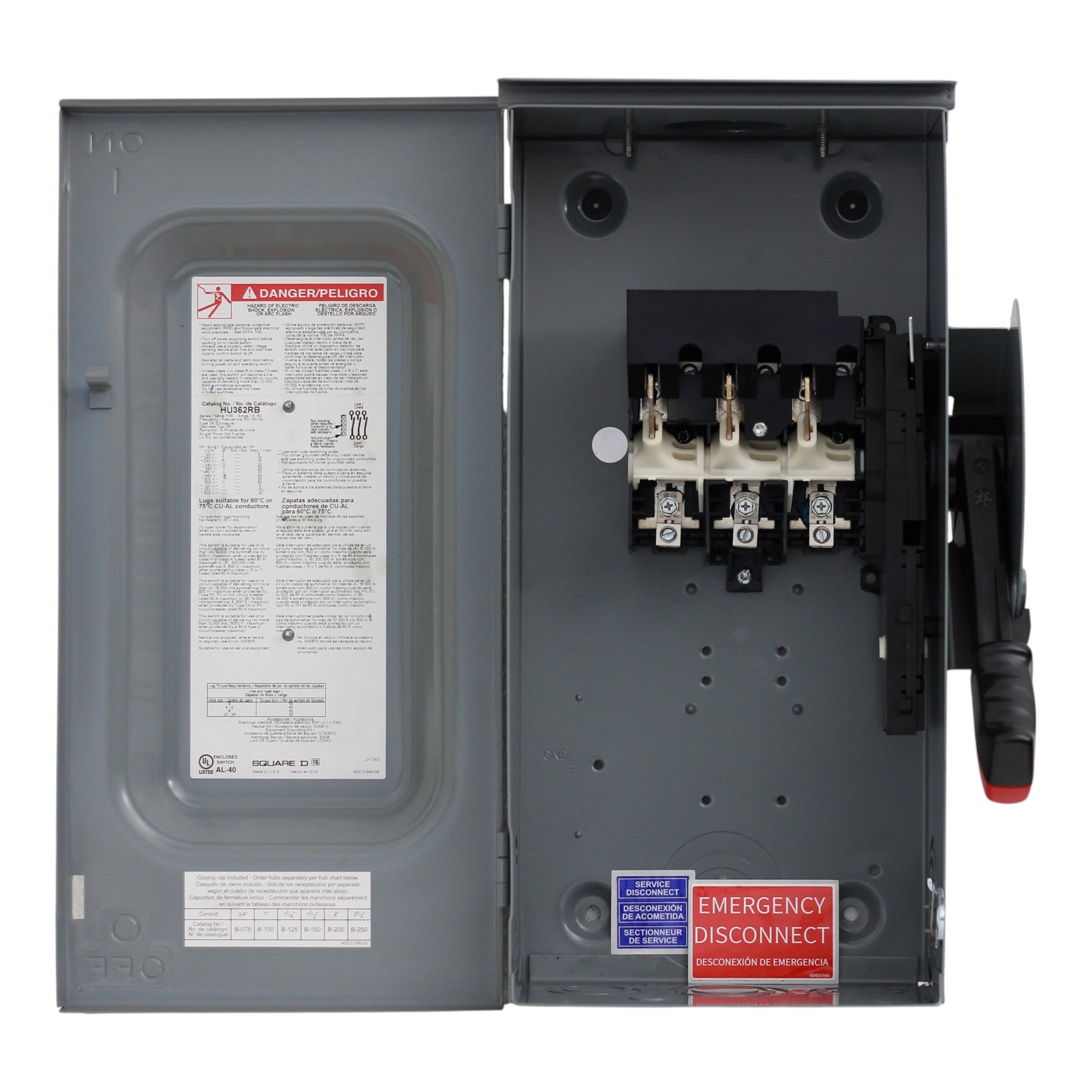

This Square D HU362RB non-fusible heavy duty safety switch delivers reliable 60 Amp, 3-Pole disconnect for 600V AC/DC circuits in NEMA 3R outdoor/rainproof applications. Features quick-make/quick-break mechanism and dual cover interlock for commercial and industrial service entrance use.
