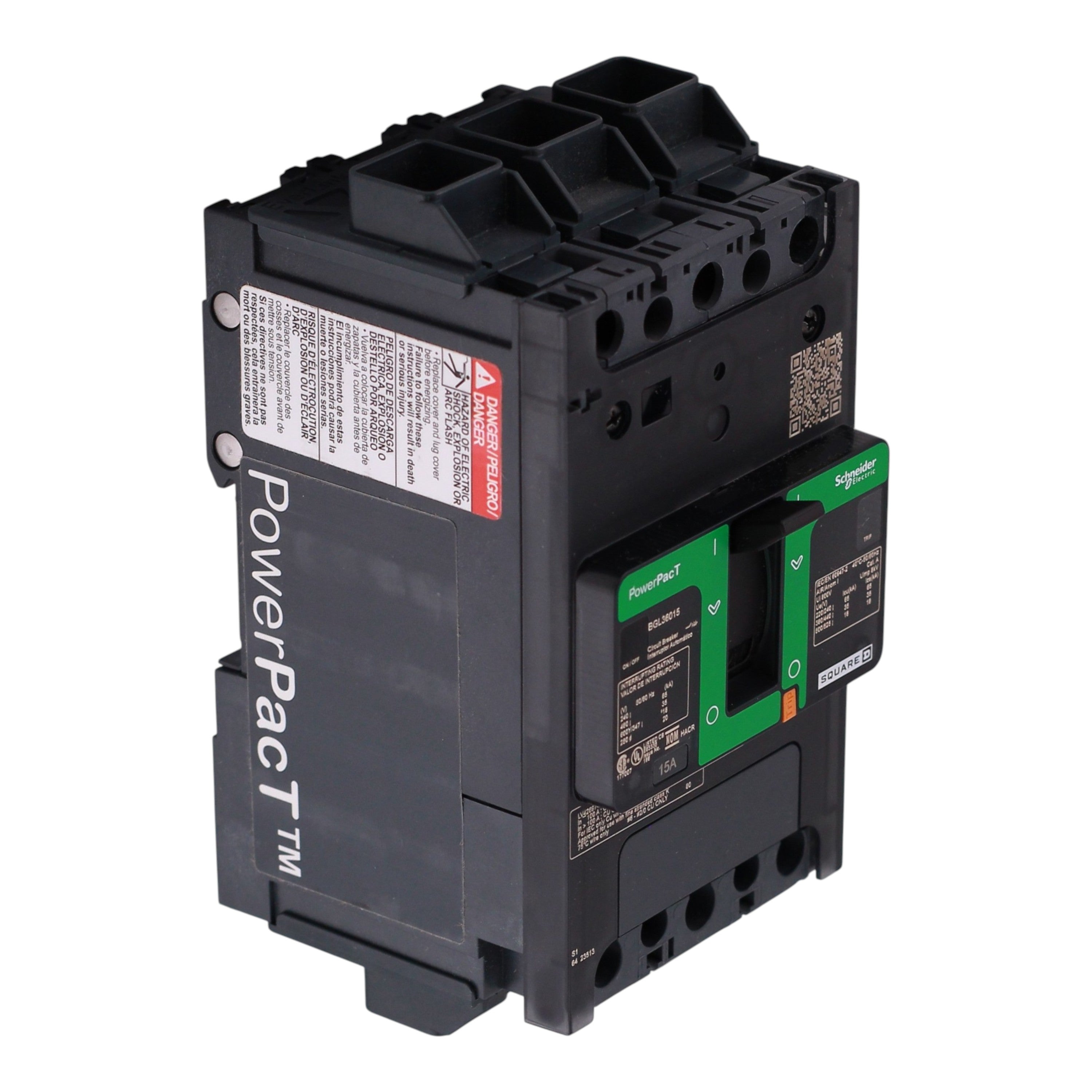

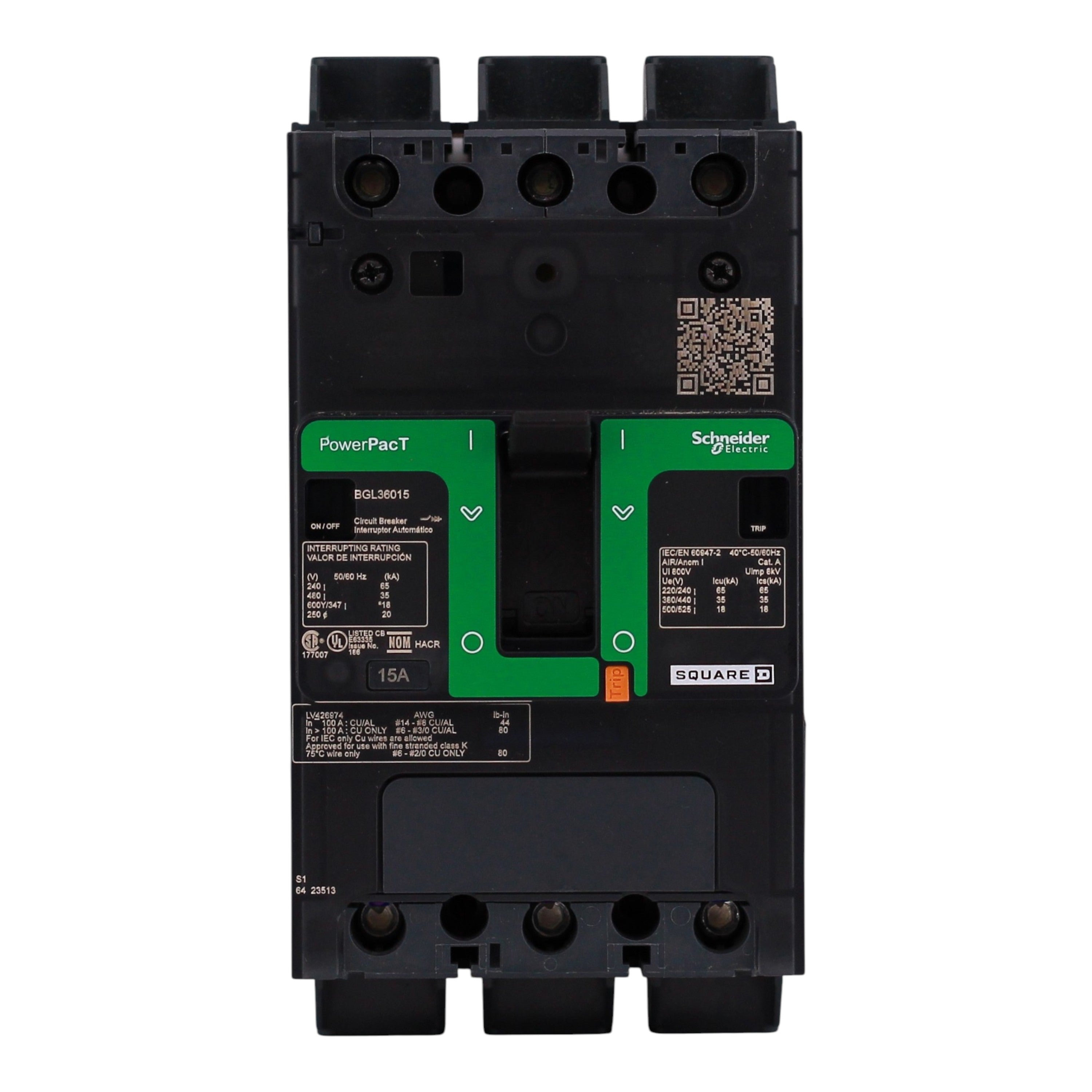

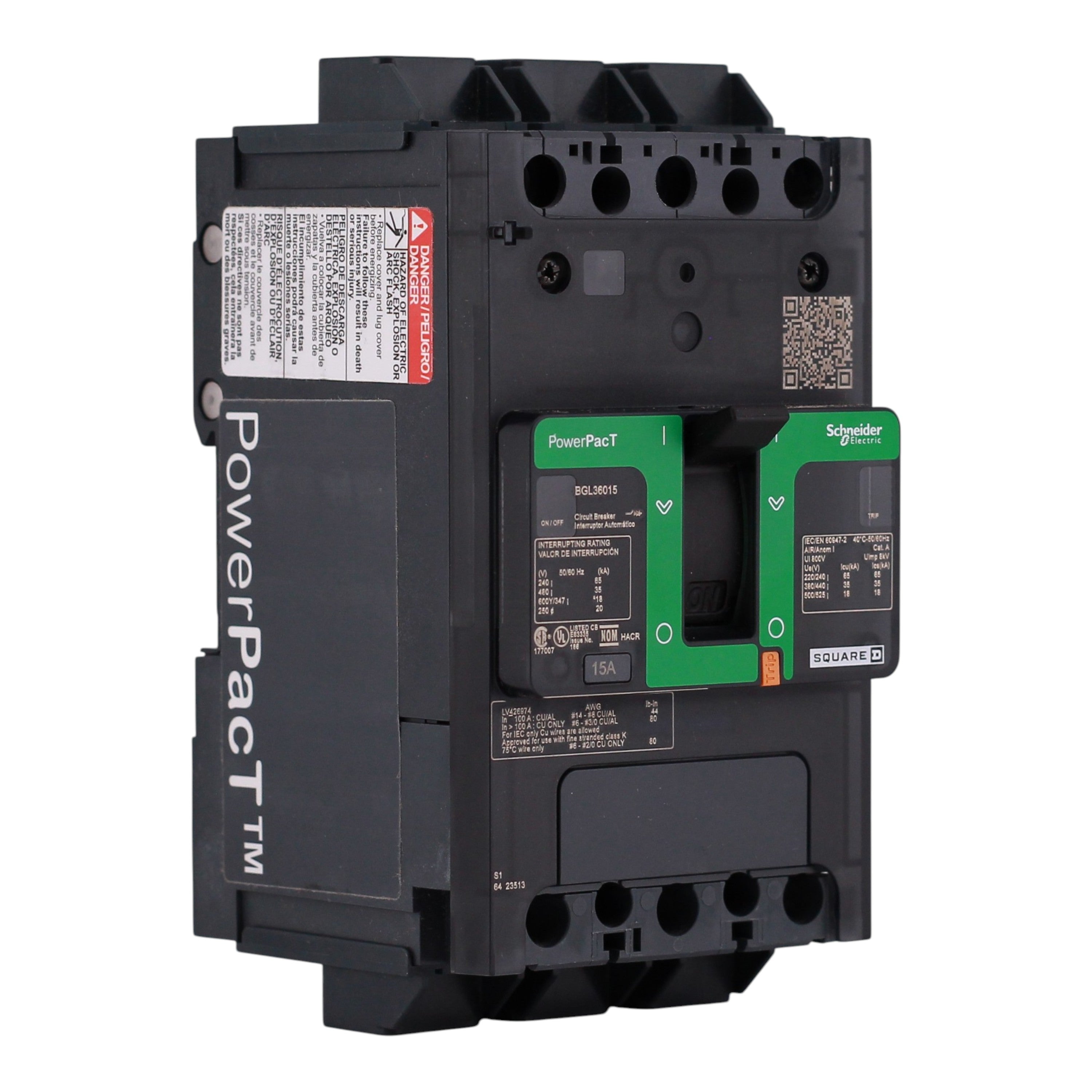

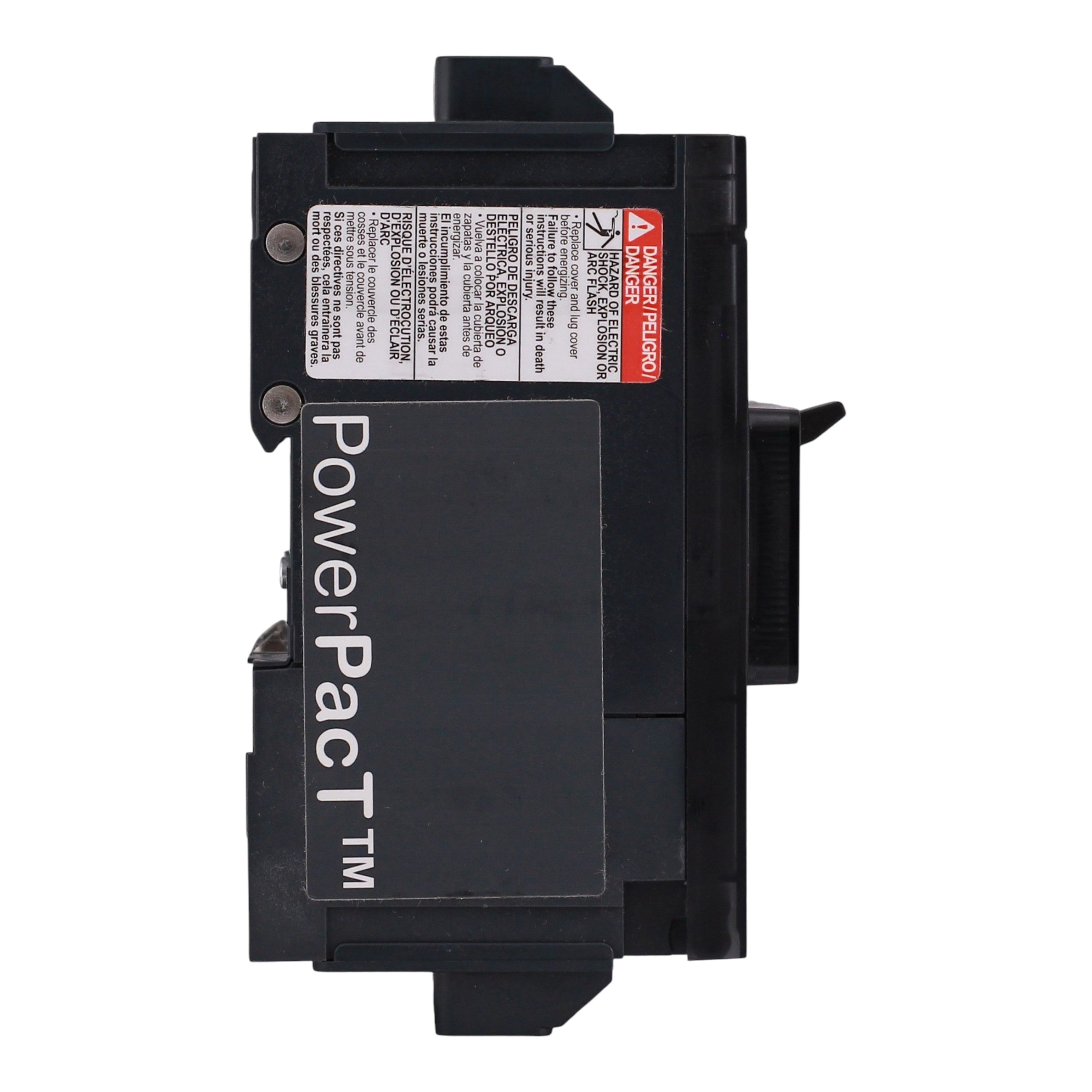

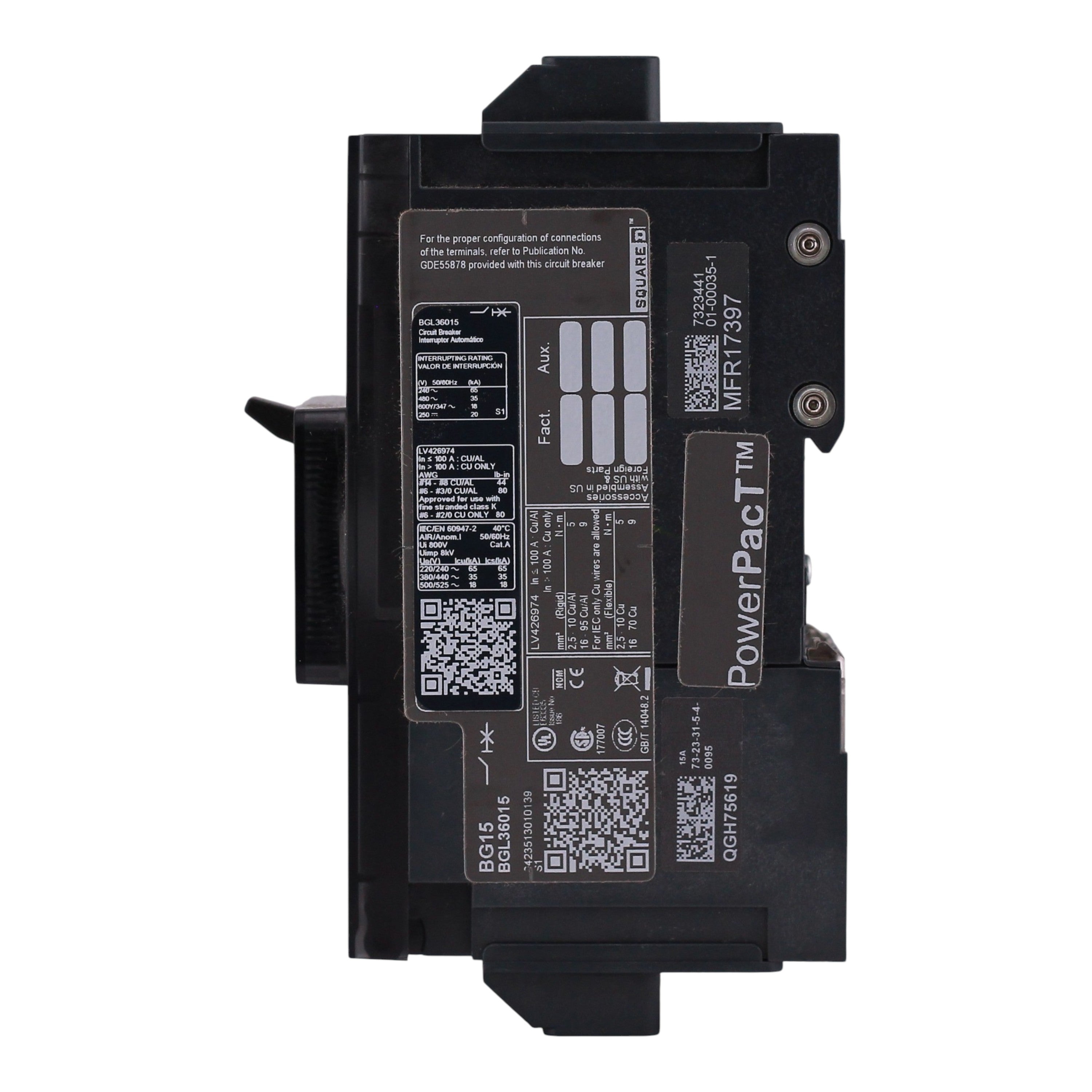

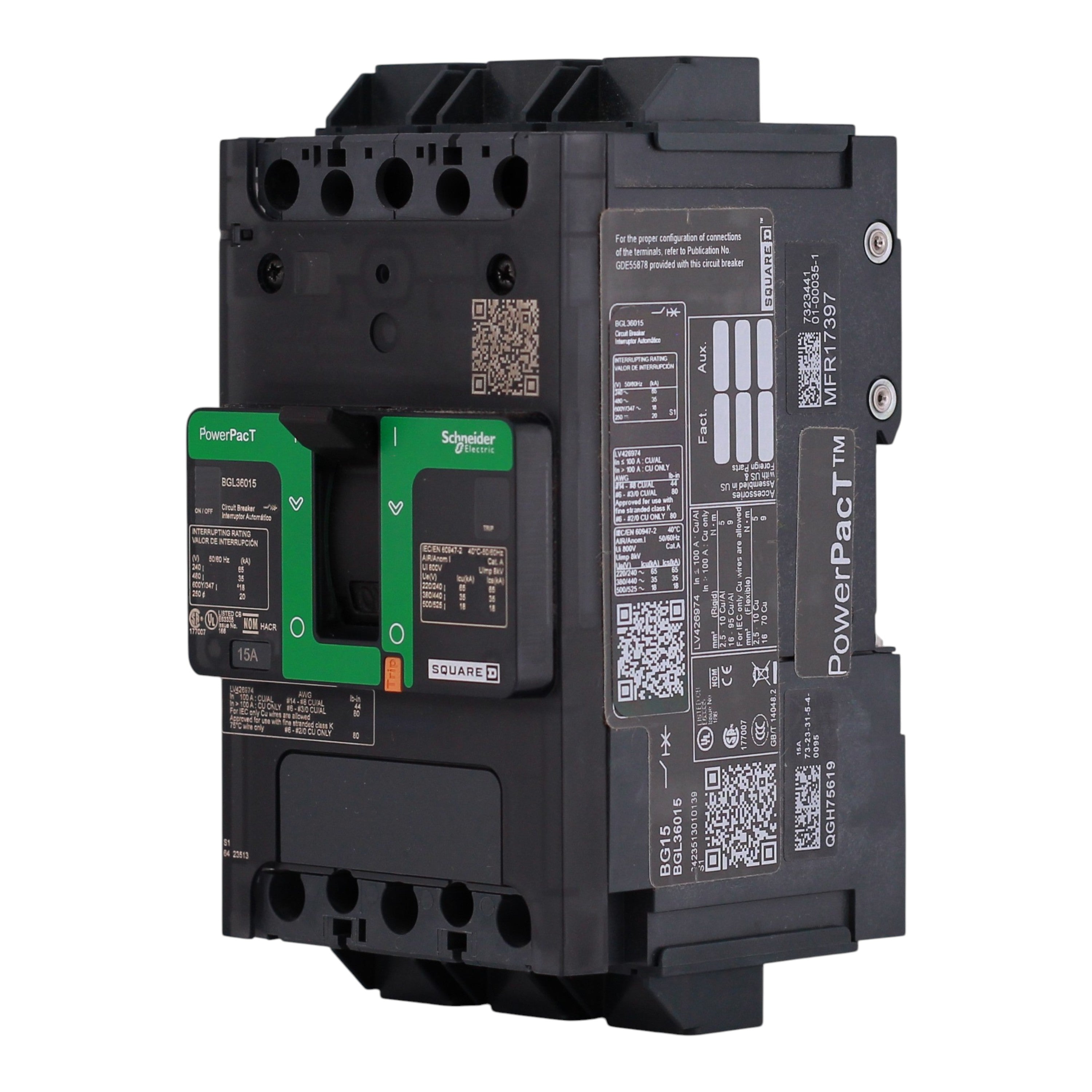

Square D PowerPacT B, BGL36015, 15A, 3P, 600Y/347V, 18kA, Thermal-Magnetic, EverLink Lug, MCCB

In stock - 3 items available
SKU: BGL36015 UPC: 3606481154071

BULK ORDER Quote.

How Bulk Order Discounts Work

We partner with Cart Whisper to make bulk ordering fast and simple. You can build your cart normally, then submit the entire cart to our team so we can apply bulk pricing and send you a custom quote.

1) Add everything you need to your cart

Shop the site and add all the products and quantities you want — just like a normal order.

2) Open your cart drawer and submit your cart

When you open the cart drawer, you’ll see a Cart Whisper section that looks like this:

Need Help? Cart ID: ####
Submit Cart to Support

Click “Submit Cart to Support” to send your cart to our team.

3) Fill out the quick form

After clicking the submit button, a form will pop up. Please enter:

  • Name

  • Email

  • Short message (what you want / any special notes)

Important: Include your shipping address in the message.
That helps us quote your order accurately, including shipping and taxes (if applicable).

4) We review and send your custom quote

Once we receive your cart submission, we’ll:

  • Review your cart items and quantities

  • Apply any eligible bulk discounts

  • Send you a custom quote with final pricing (and shipping/tax if applicable)


What to include in your message (recommended)

To speed things up, copy/paste this format into the message box:

  • Shipping Address:

  • Notes / Special requests:

SELECT ITEM CONDITION
Regular price $720.00 USD
Regular price Sale $1,344.00 USD Sale price $720.00 USD
Payment methods
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Square D BGL36015: 15 Amp, 3-Pole, PowerPacT B-Frame Thermal-Magnetic Molded Case Circuit Breaker, 600Y/347V, 18kA, EverLink Lugs, Unit Mount, 80%, UL 489.

  • Manufacturer: Schneider Electric (Square D)
  • Brand: Square D
  • Product Range: PowerPacT B-Frame (B-Frame, G Interrupt Rating)
  • GTIN: 3606481154071
  • Model Number: BGL36015
  • Breaker Type: Molded Case Circuit Breaker (MCCB), Thermal-Magnetic Trip
  • Amperage: 15 Amps (80% continuous current rating)
  • Poles: 3-Pole
  • Voltage: 600Y/347 Volts AC / 250 Volts DC
  • Interrupt Rating: 65 kAIC @ 240V; 35 kAIC @ 480/277V; 20 kAIC @ 600Y/347V; 20 kAIC @ 250V DC (UL 489)
  • Frame: B-Frame (100A Frame)
  • Trip Unit: Thermal-Magnetic (Non-Interchangeable), LI — Long-Time and Instantaneous Functions

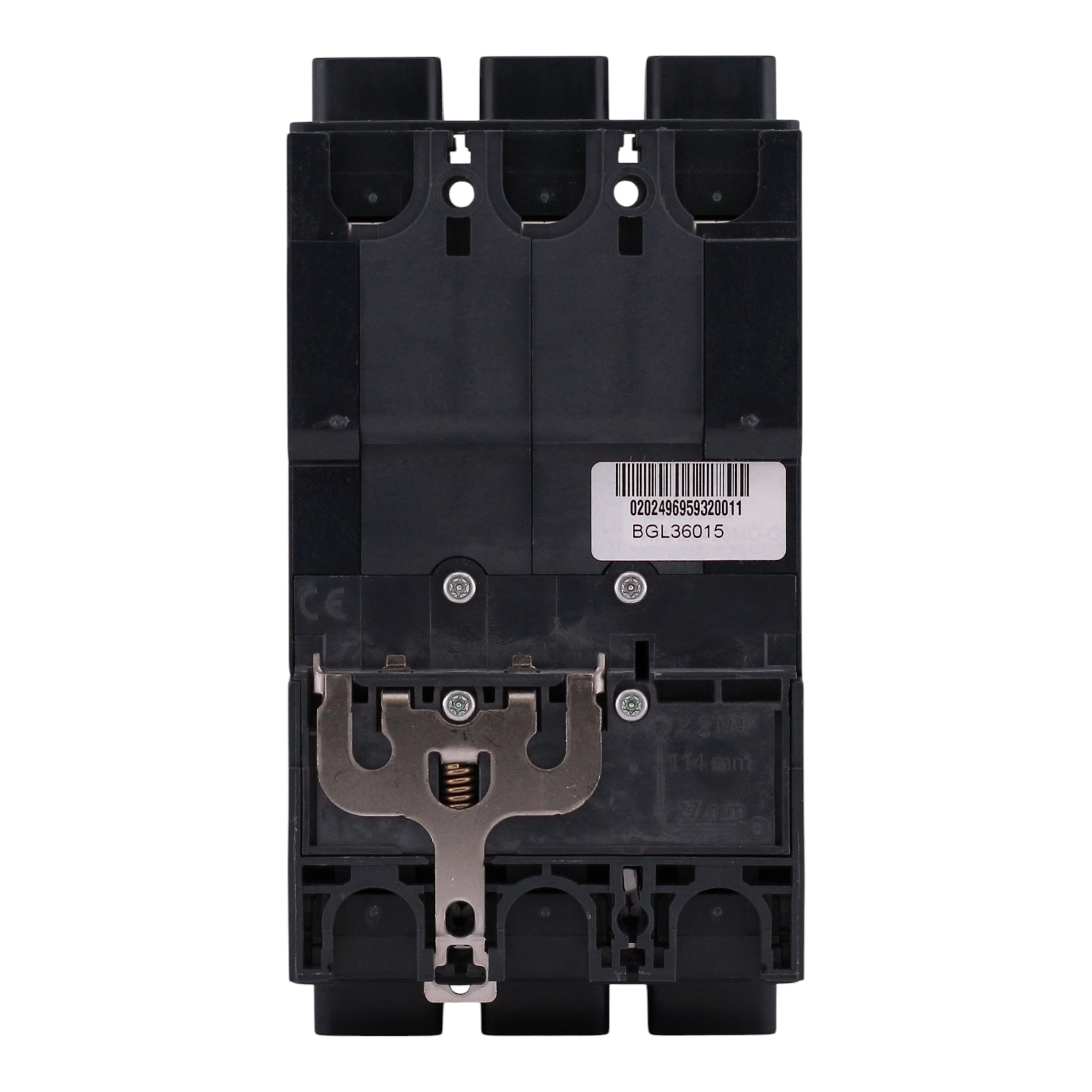

  • Mounting Mode: Unit Mount — Back-pan (screw) or Clip-on DIN Rail (35×15mm symmetrical)

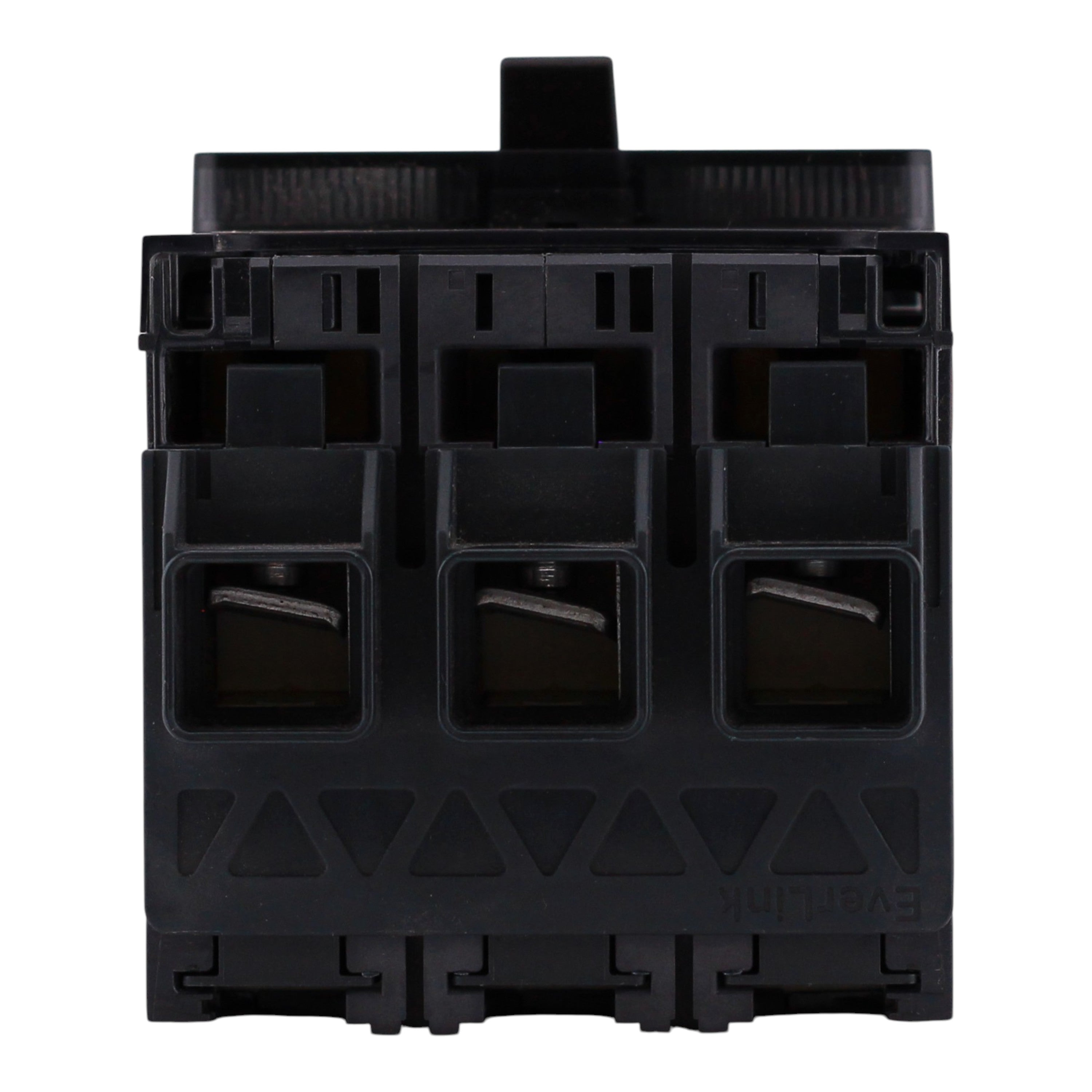

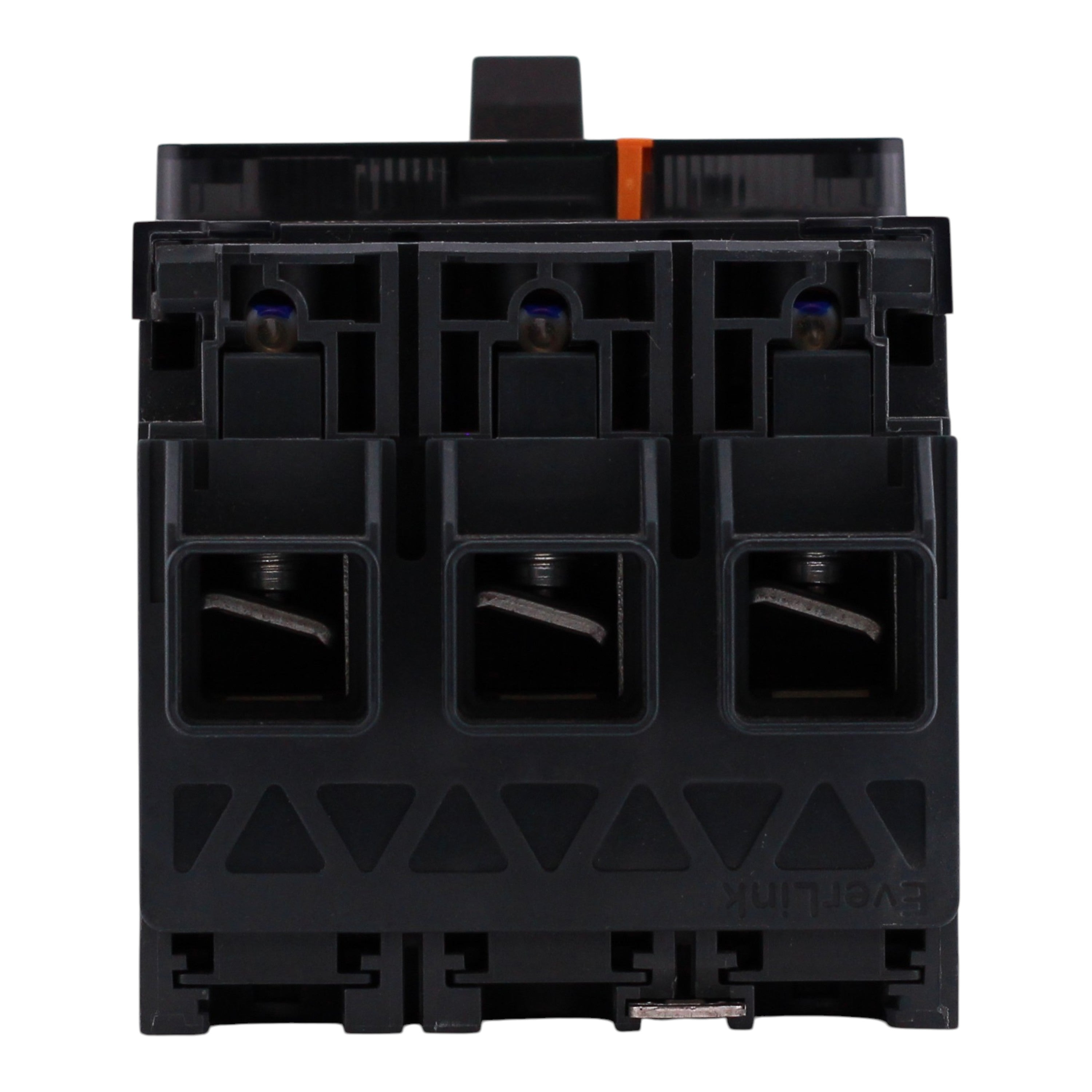

  • Terminals: EverLink Lugs, Line and Load (creep-compensating, patented)
  • Wire Size: #14–3/0 AWG rigid or stranded Al/Cu; #6–2/0 AWG fine stranded Al/Cu
  • Tightening Torque: 44.3 lb-in (#14–4 AWG); 79.7 lb-in (#3–3/0 AWG)
  • Dimensions: Height: 5.40 in; Width: 3.19 in; Depth: 3.15 in (body)
  • Weight: 2.368 lbs
  • IP Rating: IP40 (front cover)
  • Certifications: UL 489, CSA (C22.2 No. 5), NOM (NMX J-266), IEC/EN 60947-2, CCC, EAC, CE Marked, HACR Rated

This Square D BGL36015 PowerPacT B-Frame thermal-magnetic MCCB delivers 15 Amp, 3-Pole protection at 600Y/347V with 18kA interrupt capacity and dual-break rotating contacts for superior short-circuit performance. EverLink creep-compensating lugs on both ends, flexible unit-mount or DIN rail installation, and global multi-standard certification make it ideal for commercial and industrial distribution panels.
