Square D PowerPacT L, LJA36400U31X, 400A, 3P, 600V, 25kA, I-Line, MicroLogic 3.3, MCCB

In stock - 3 items available
SKU: LJA36400U31X UPC: 785901648550

BULK ORDER Quote.

How Bulk Order Discounts Work

We partner with Cart Whisper to make bulk ordering fast and simple. You can build your cart normally, then submit the entire cart to our team so we can apply bulk pricing and send you a custom quote.

1) Add everything you need to your cart

Shop the site and add all the products and quantities you want — just like a normal order.

2) Open your cart drawer and submit your cart

When you open the cart drawer, you’ll see a Cart Whisper section that looks like this:

Need Help? Cart ID: ####
Submit Cart to Support

Click “Submit Cart to Support” to send your cart to our team.

3) Fill out the quick form

After clicking the submit button, a form will pop up. Please enter:

  • Name

  • Email

  • Short message (what you want / any special notes)

Important: Include your shipping address in the message.
That helps us quote your order accurately, including shipping and taxes (if applicable).

4) We review and send your custom quote

Once we receive your cart submission, we’ll:

  • Review your cart items and quantities

  • Apply any eligible bulk discounts

  • Send you a custom quote with final pricing (and shipping/tax if applicable)


What to include in your message (recommended)

To speed things up, copy/paste this format into the message box:

  • Shipping Address:

  • Notes / Special requests:

SELECT ITEM CONDITION
Regular price $1,995.00 USD
Regular price Sale $3,499.99 USD Sale price $1,995.00 USD
Payment methods
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

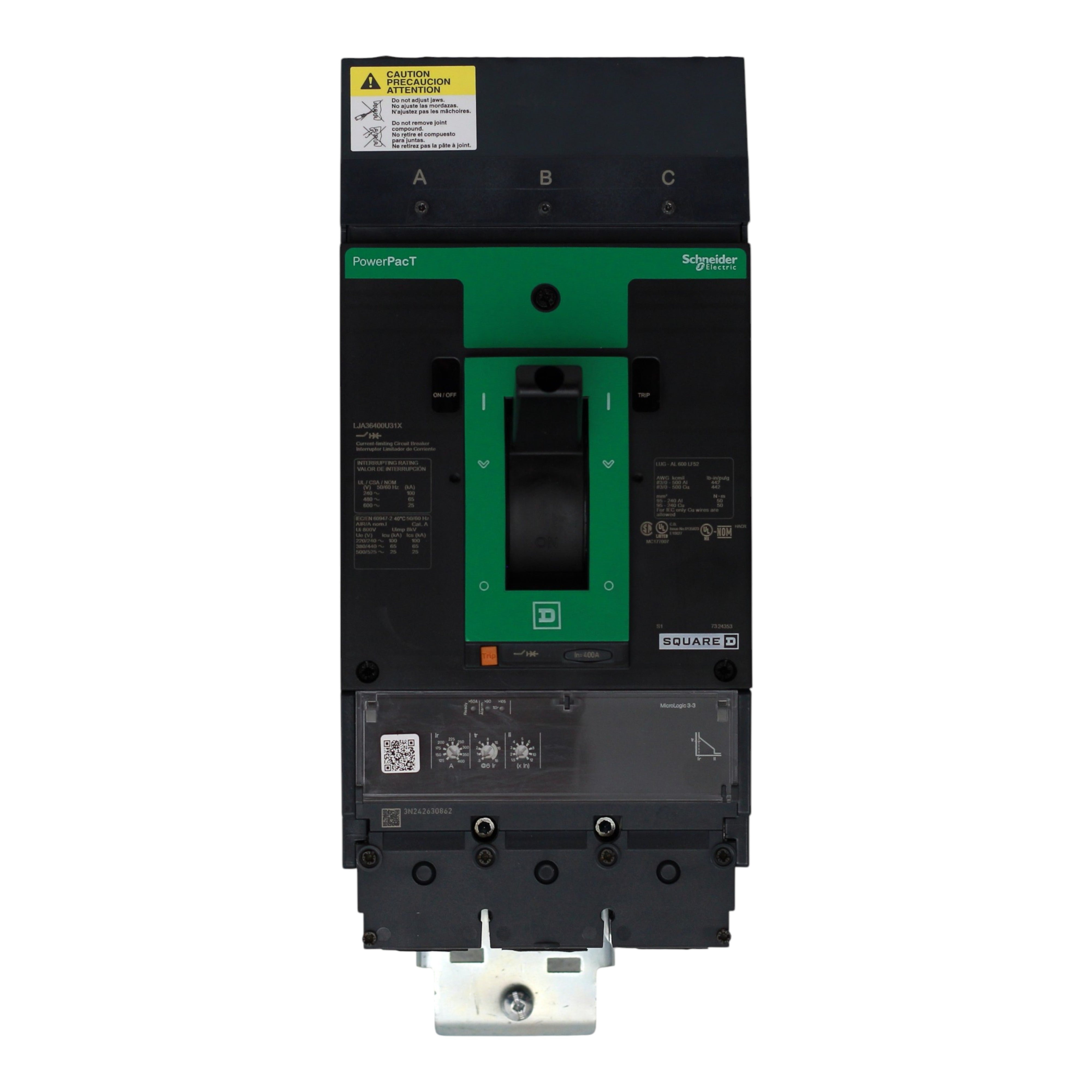

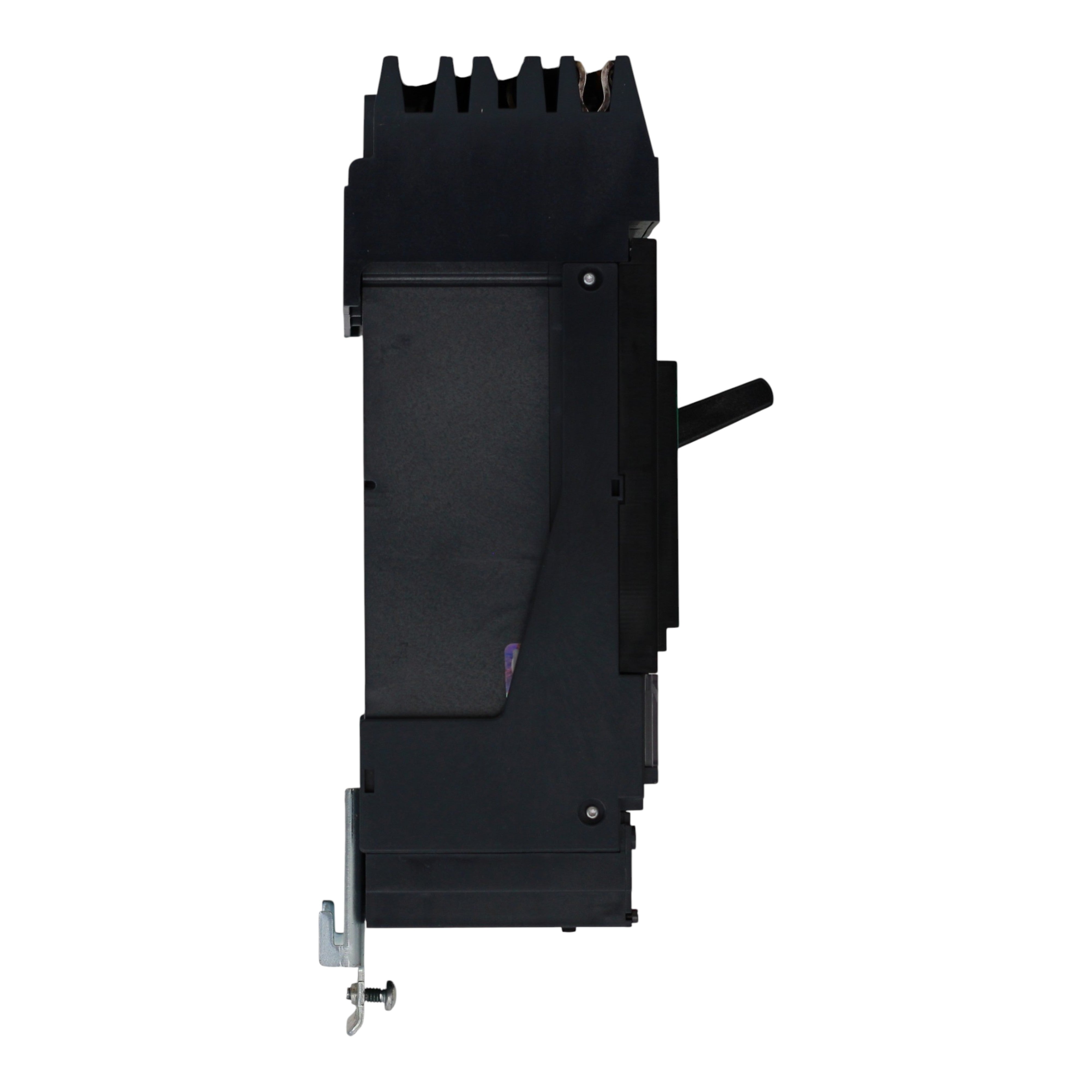

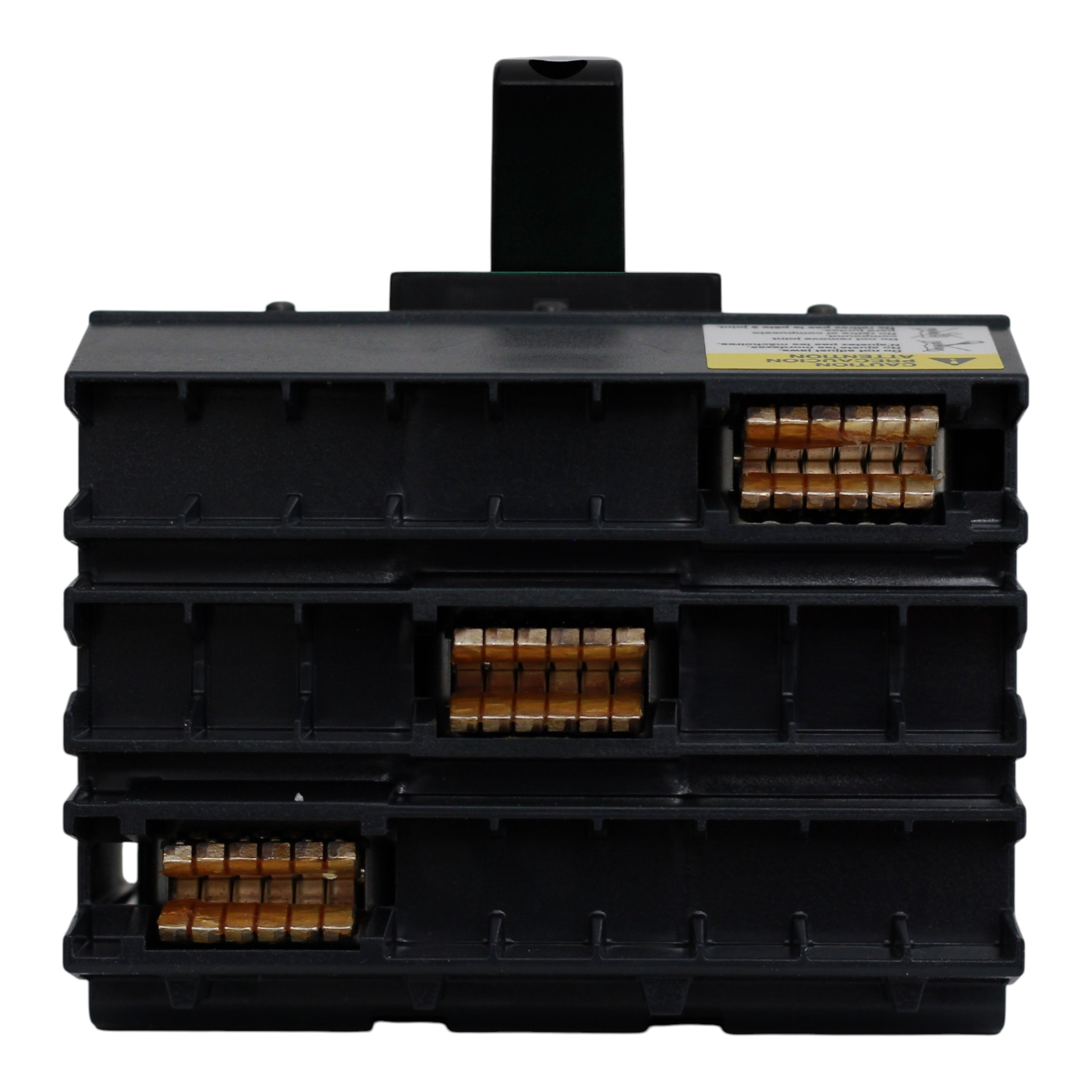

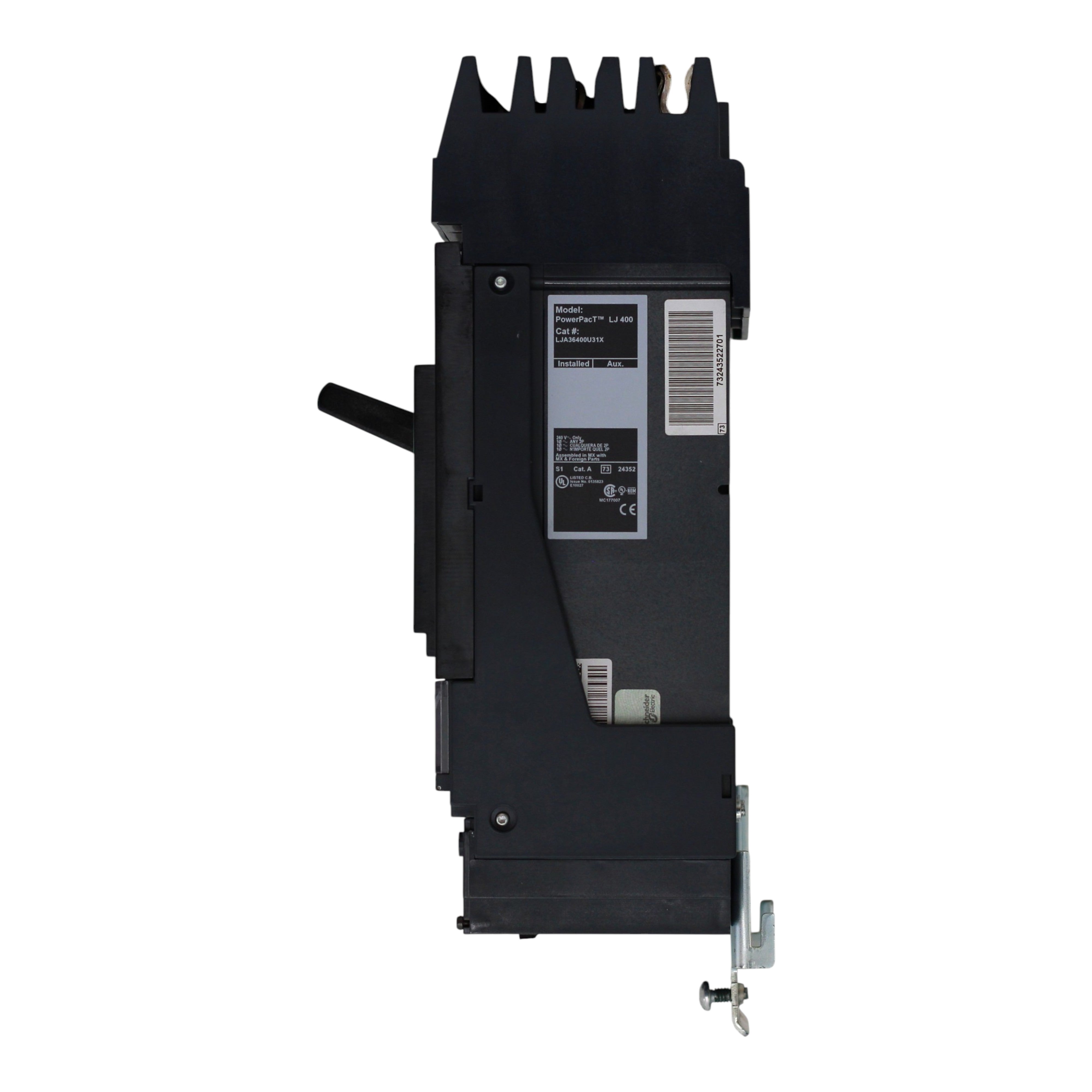

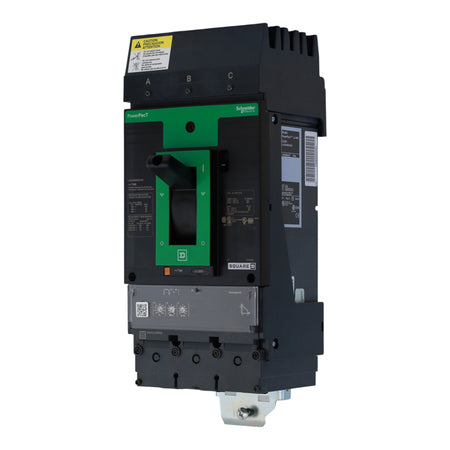

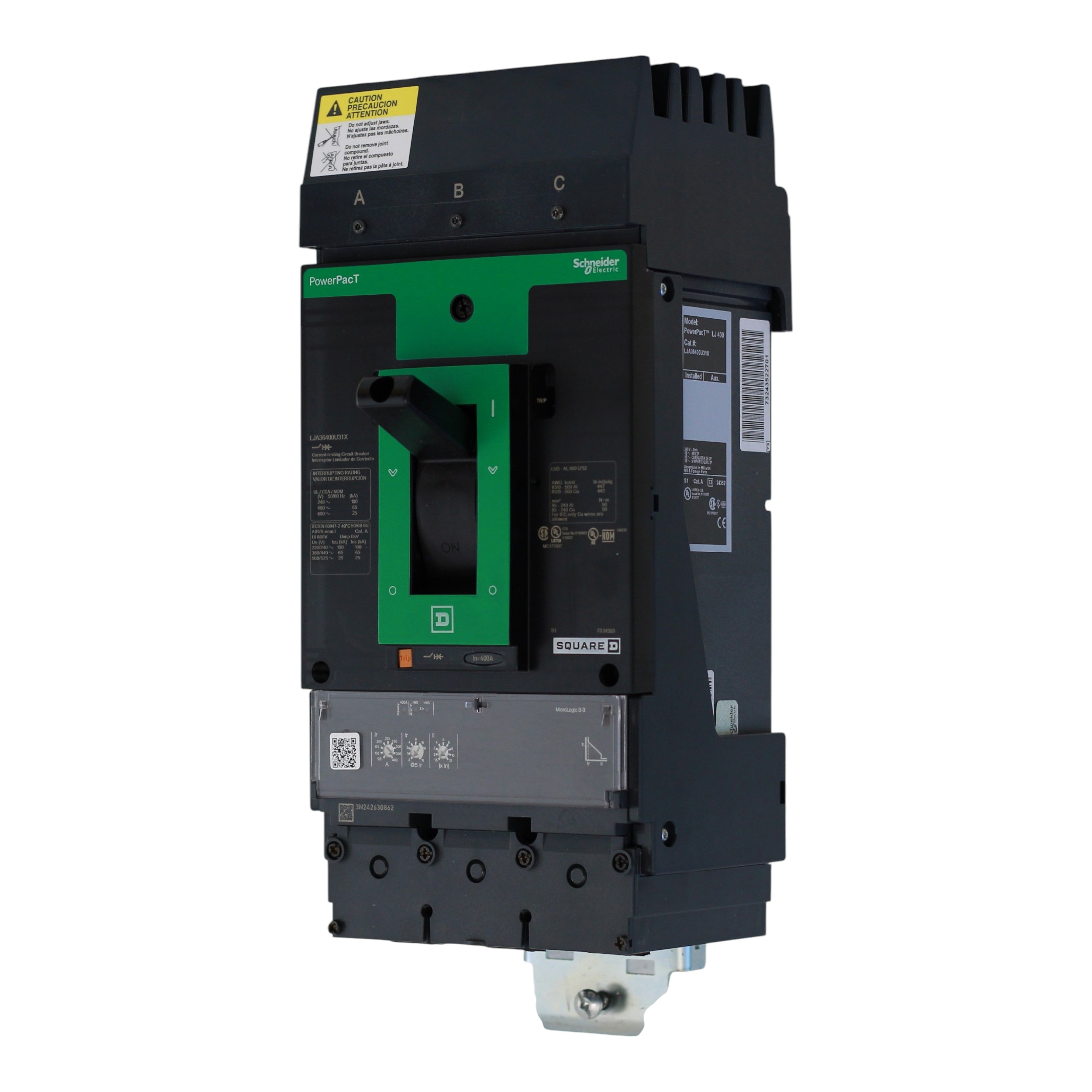

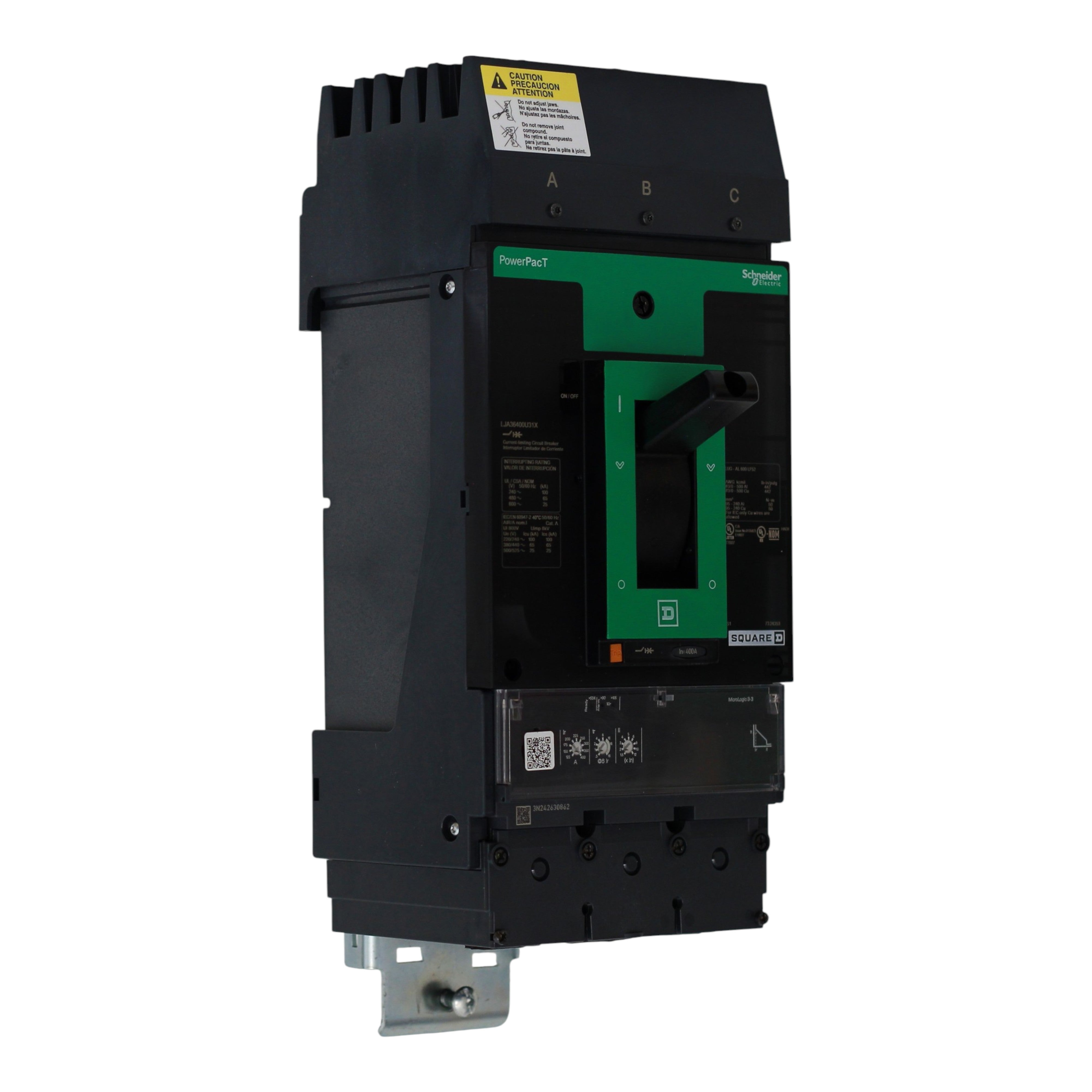

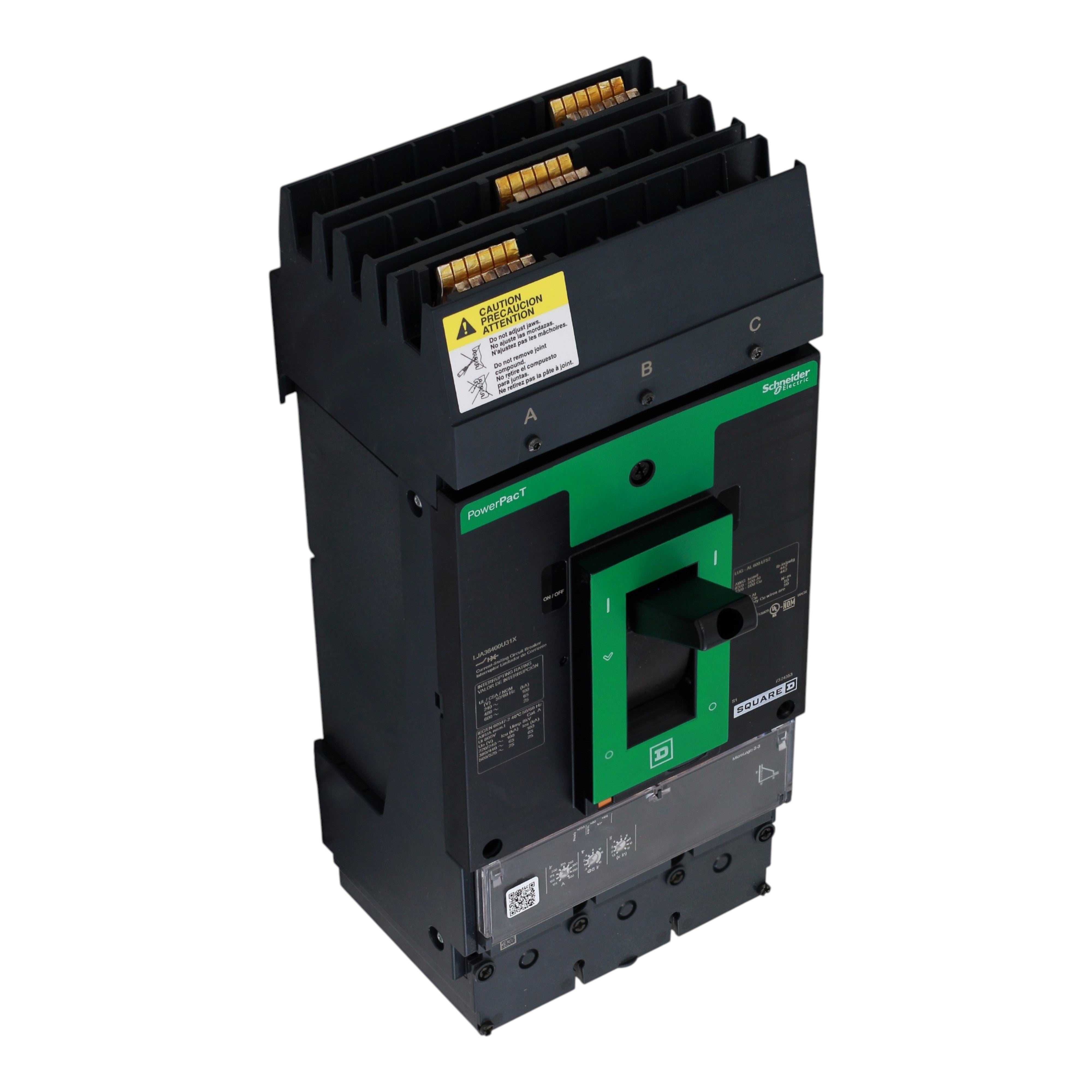

Square D LJA36400U31X: 400 Amp, 3-Pole, PowerPacT L-Frame Electronic Trip MCCB, 600V, 25kA, I-Line, MicroLogic 3.3 LI, Phase ABC, 80%, UL 489.

  • Manufacturer: Schneider Electric (Square D)
  • Brand: Square D
  • Product Range: PowerPacT L-Frame (L-Frame, J Interrupt Rating)
  • UPC: 785901648550
  • Model Number: LJA36400U31X
  • Breaker Type: Molded Case Circuit Breaker (MCCB), Electronic Trip — MicroLogic 3.3, LI (Long-Time + Instantaneous), Current Limiting
  • Amperage: 400 Amps (80% continuous current rating)
  • Poles: 3-Pole
  • Phase Connection: ABC
  • Voltage: 600 Volts AC / 250 Volts DC
  • Interrupt Rating: 100 kAIC @ 240V; 65 kAIC @ 480V; 25 kAIC @ 600V; 20 kAIC @ 250V DC (UL 489)
  • Frame: L-Frame
  • Trip Unit: MicroLogic 3.3 Electronic, LI Functions; Long-Time Pickup Adjustable 0.25–1 × In

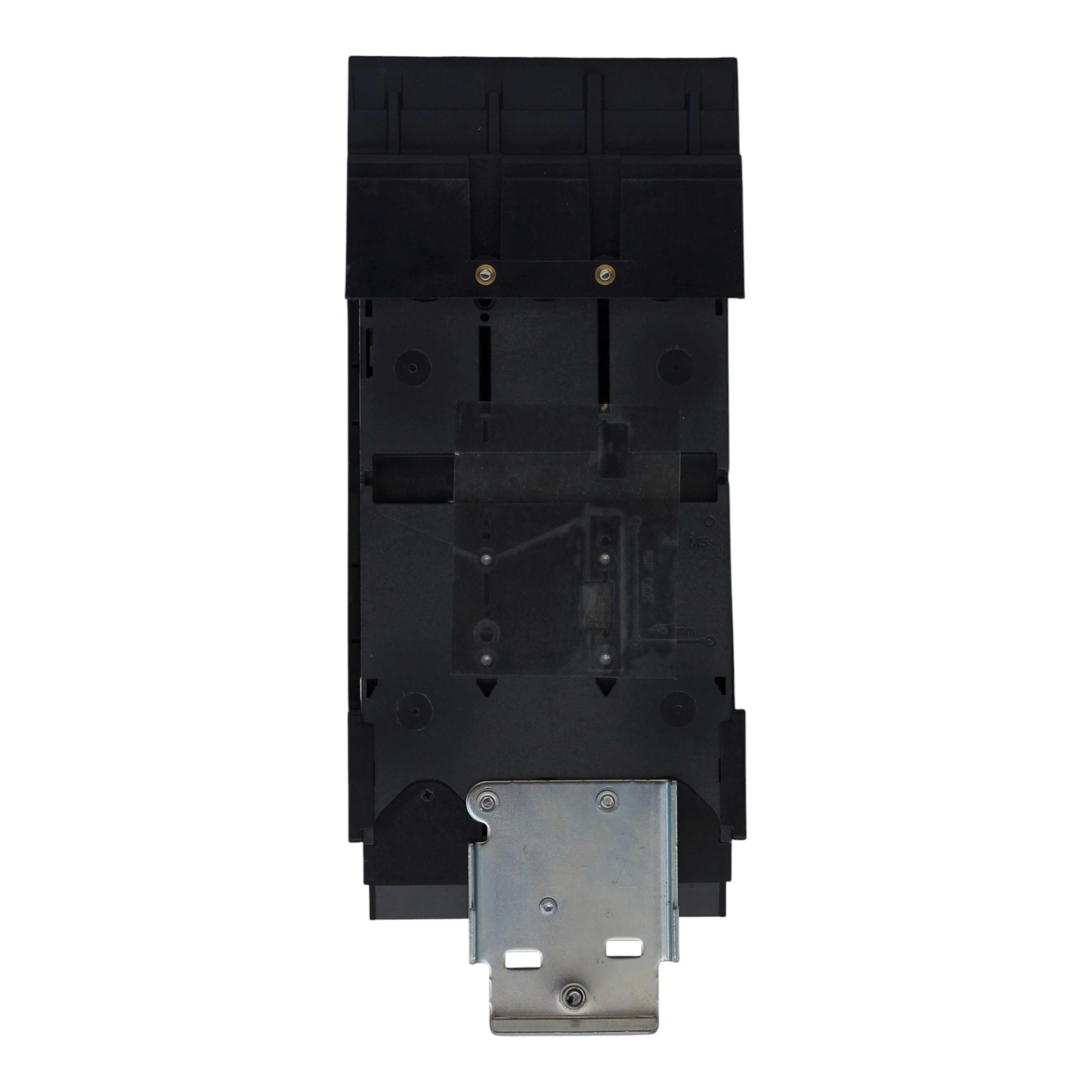

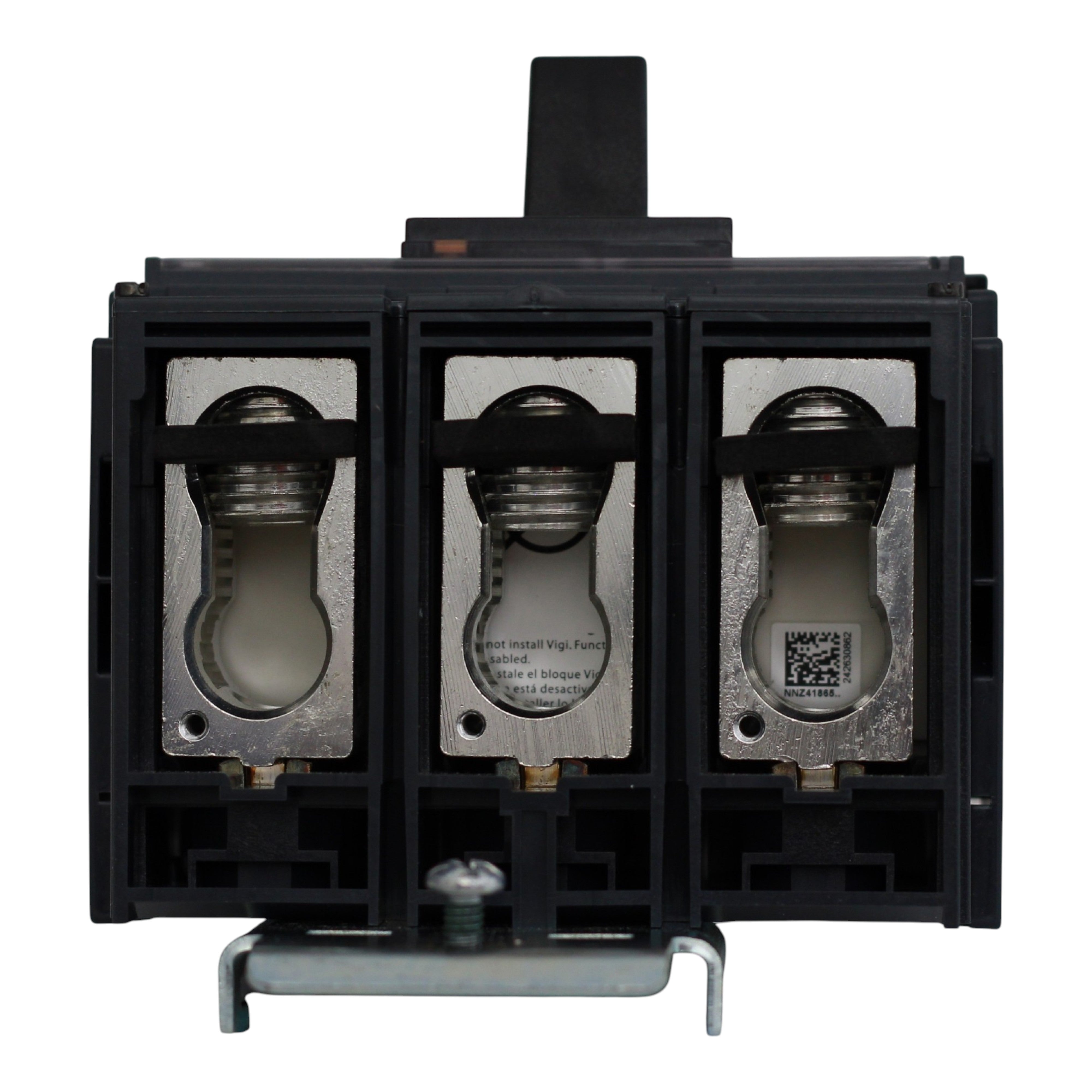

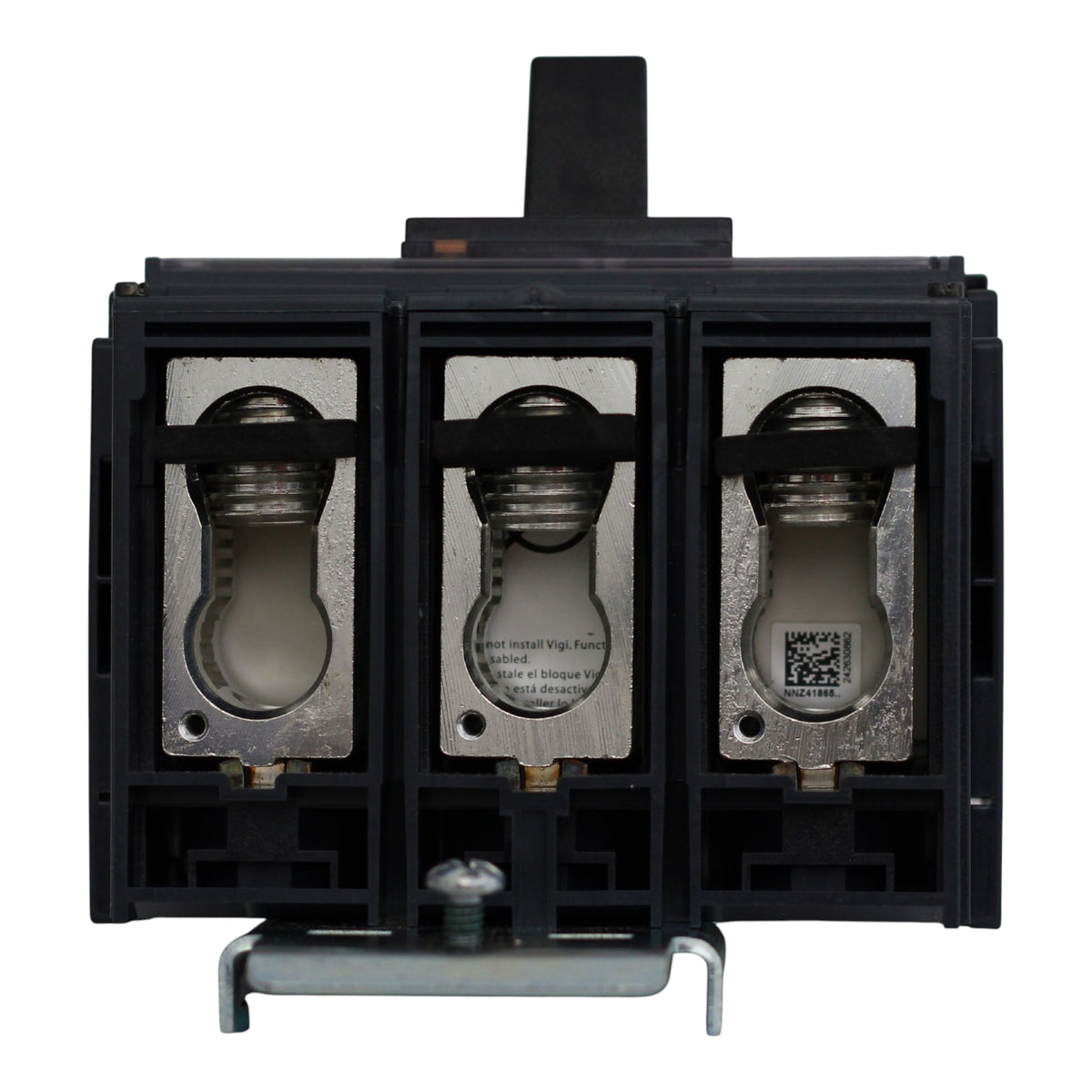

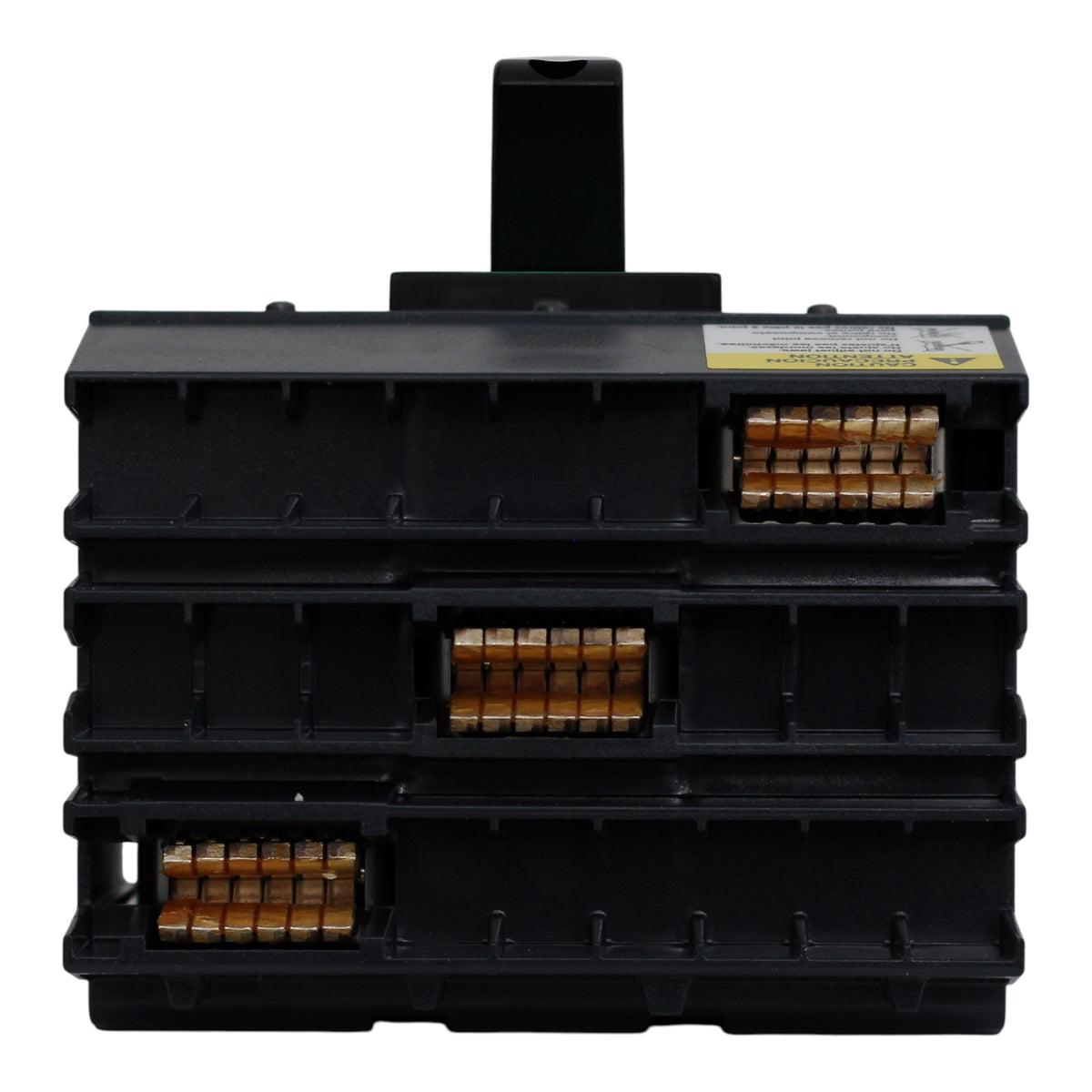

  • Mounting Mode: I-Line (plug-on bracket, line side); Mechanical Lugs (load side)
  • Terminals: AL600LF52K3 Lugs, Load Side (accepts (2) conductors per phase)
  • Wire Size: #3/0 AWG–500 kcmil Cu/Al
  • Tightening Torque: 442.5 lb-in (#3/0 AWG–500 kcmil)
  • Communication: Modbus, Ethernet
  • Dimensions: Height: 13.40 in; Width: 5.51 in; Depth: 4.33 in
  • Weight: 13.7 lbs
  • IP Rating: IP40 (front cover)
  • Certifications: UL 489, CSA (C22.2 No. 5), NOM (NMX J-266), IEC 60947-2, CCC, CE Marked, HACR Rated

This Square D LJA36400U31X PowerPacT L-Frame MCCB delivers 400 Amp, 3-Pole electronic trip protection at 600V with MicroLogic 3.3 LI functions, adjustable long-time pickup, current limiting, and Modbus/Ethernet communication for energy monitoring and management. I-Line plug-on mounting and load-side AL600LF52K3 lugs enable direct installation in Square D I-Line panelboards and switchboards for demanding commercial and industrial distribution.
