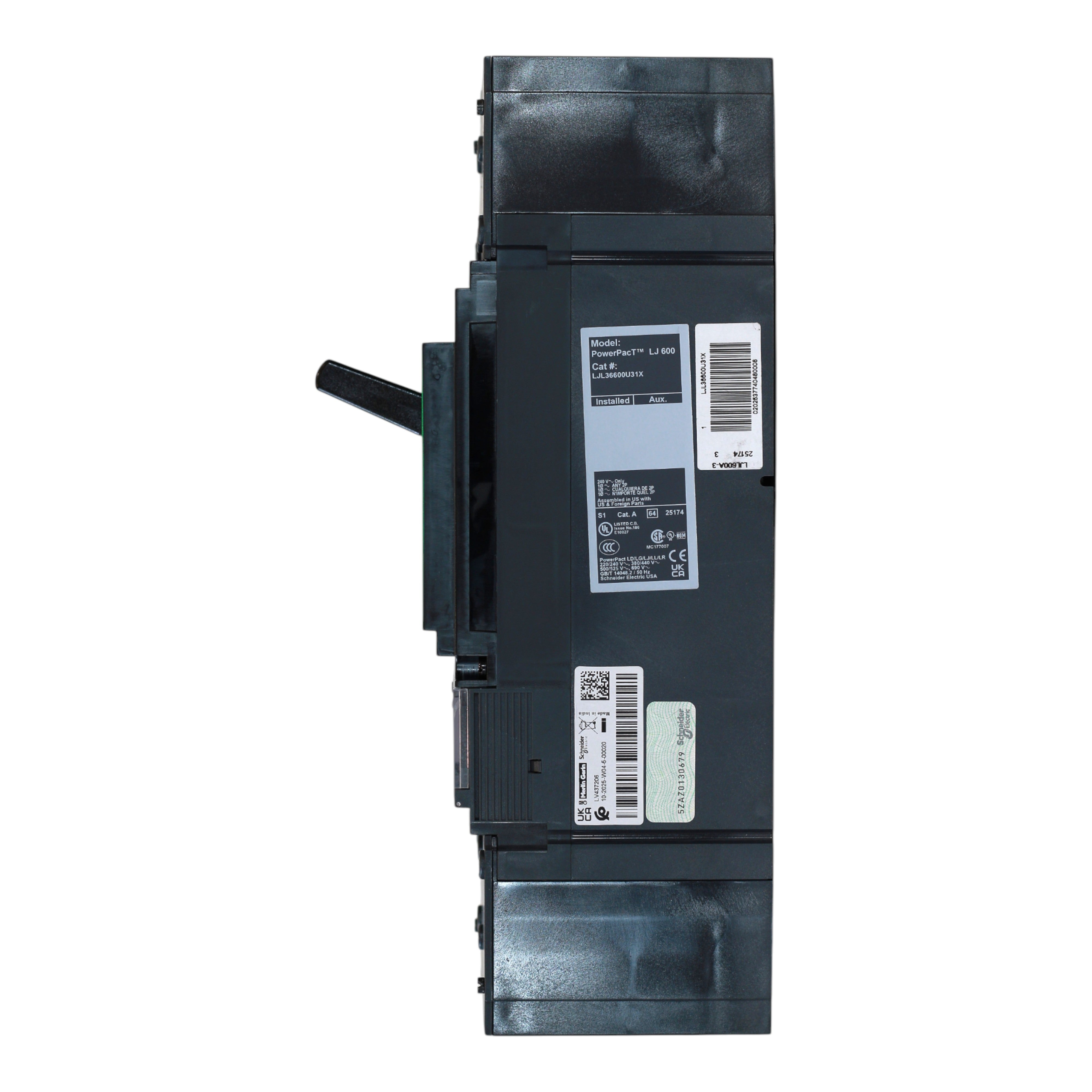

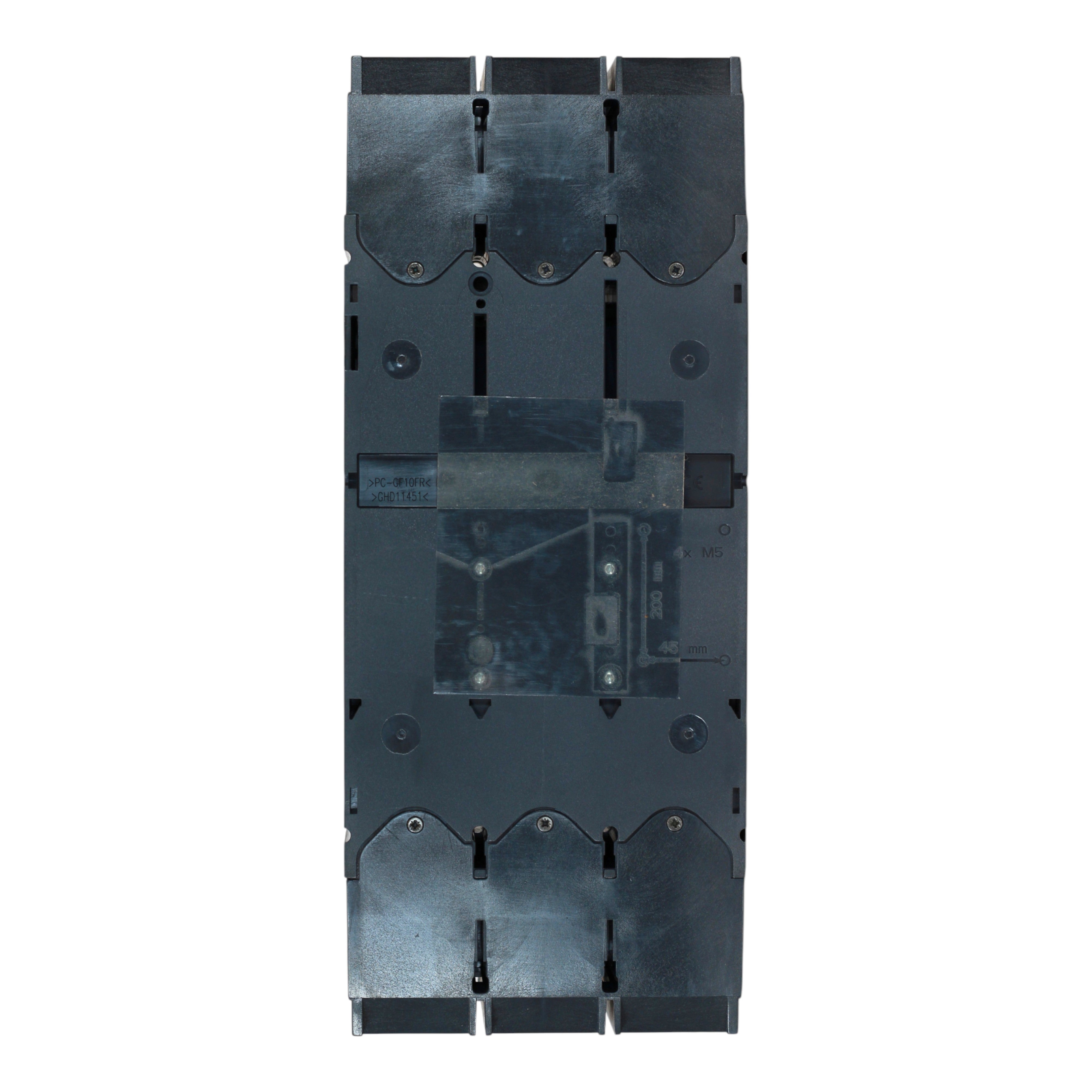

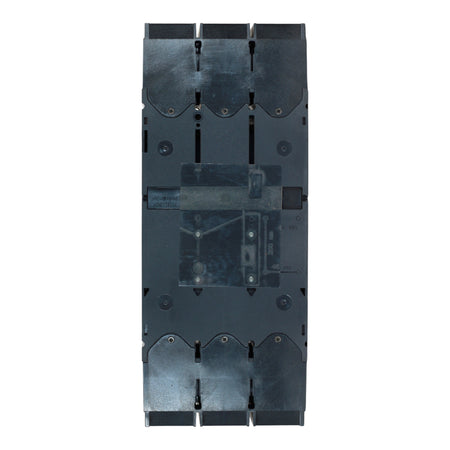

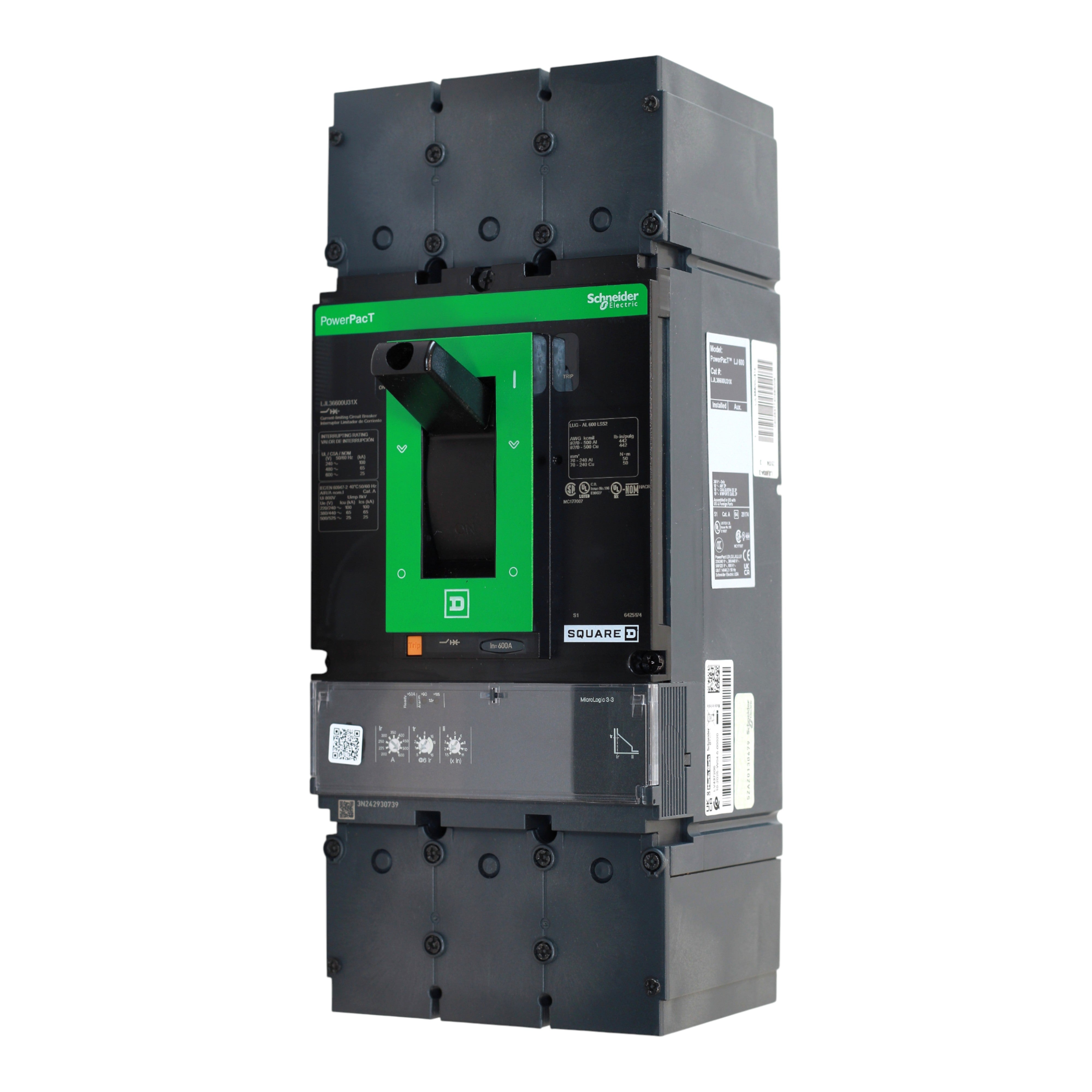

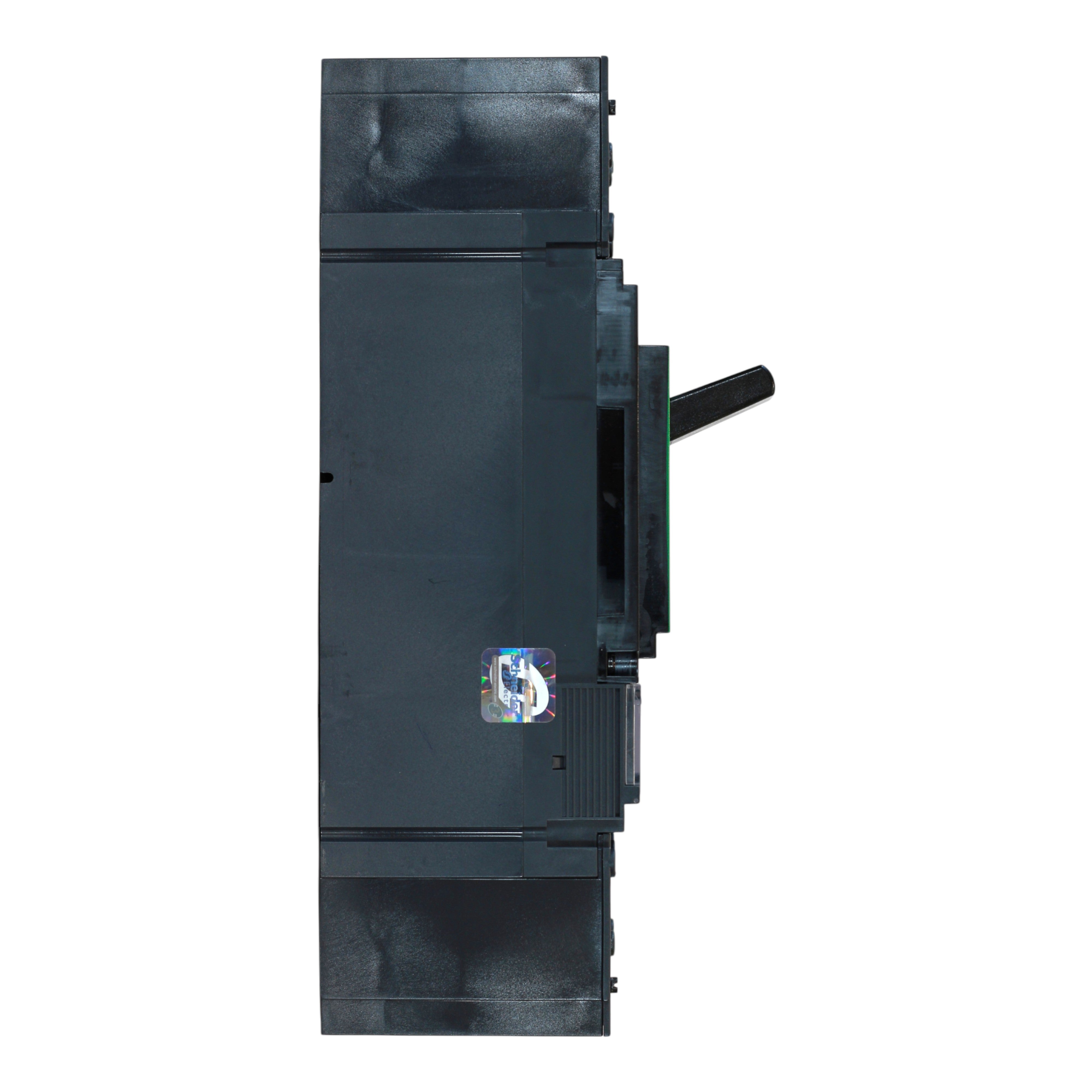

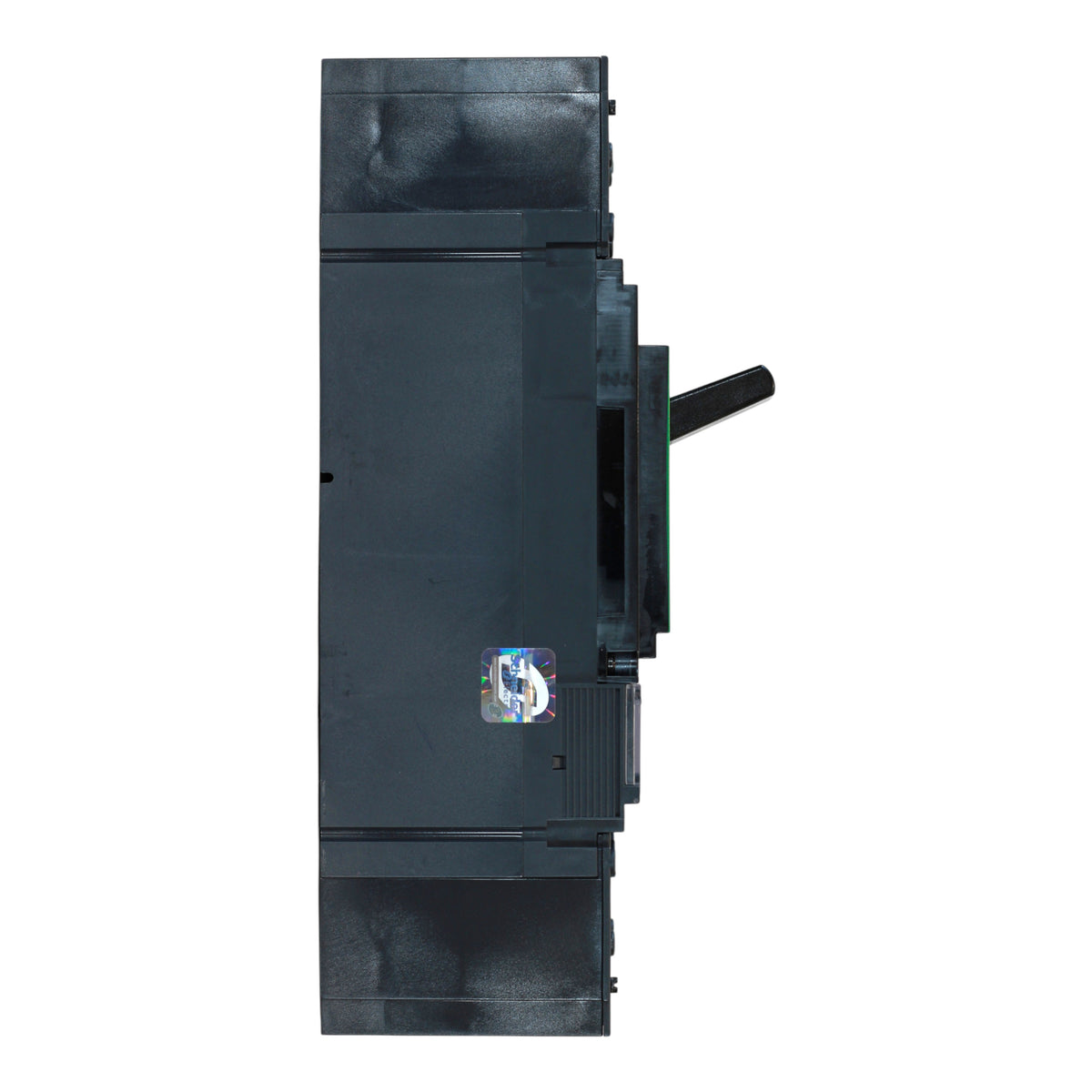

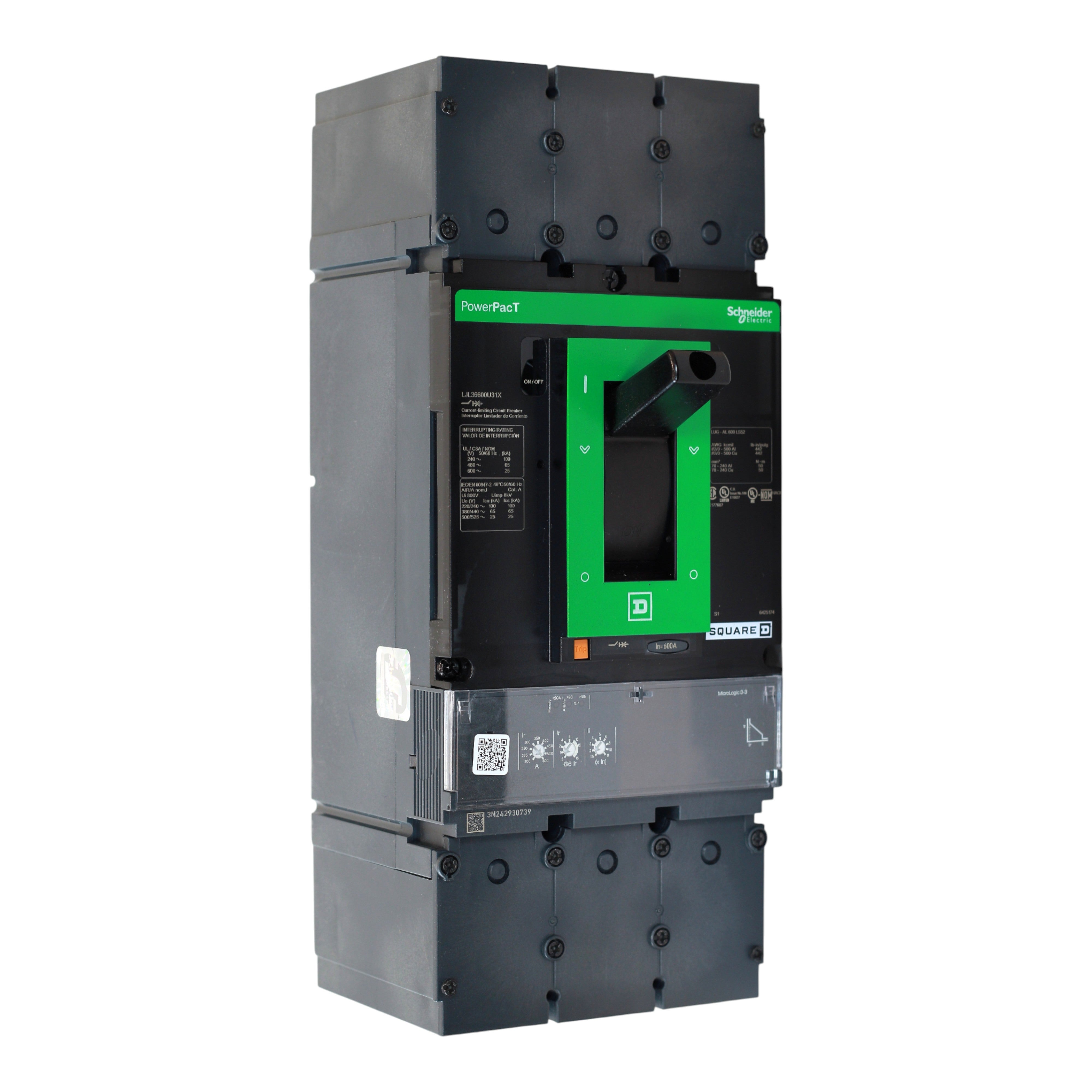

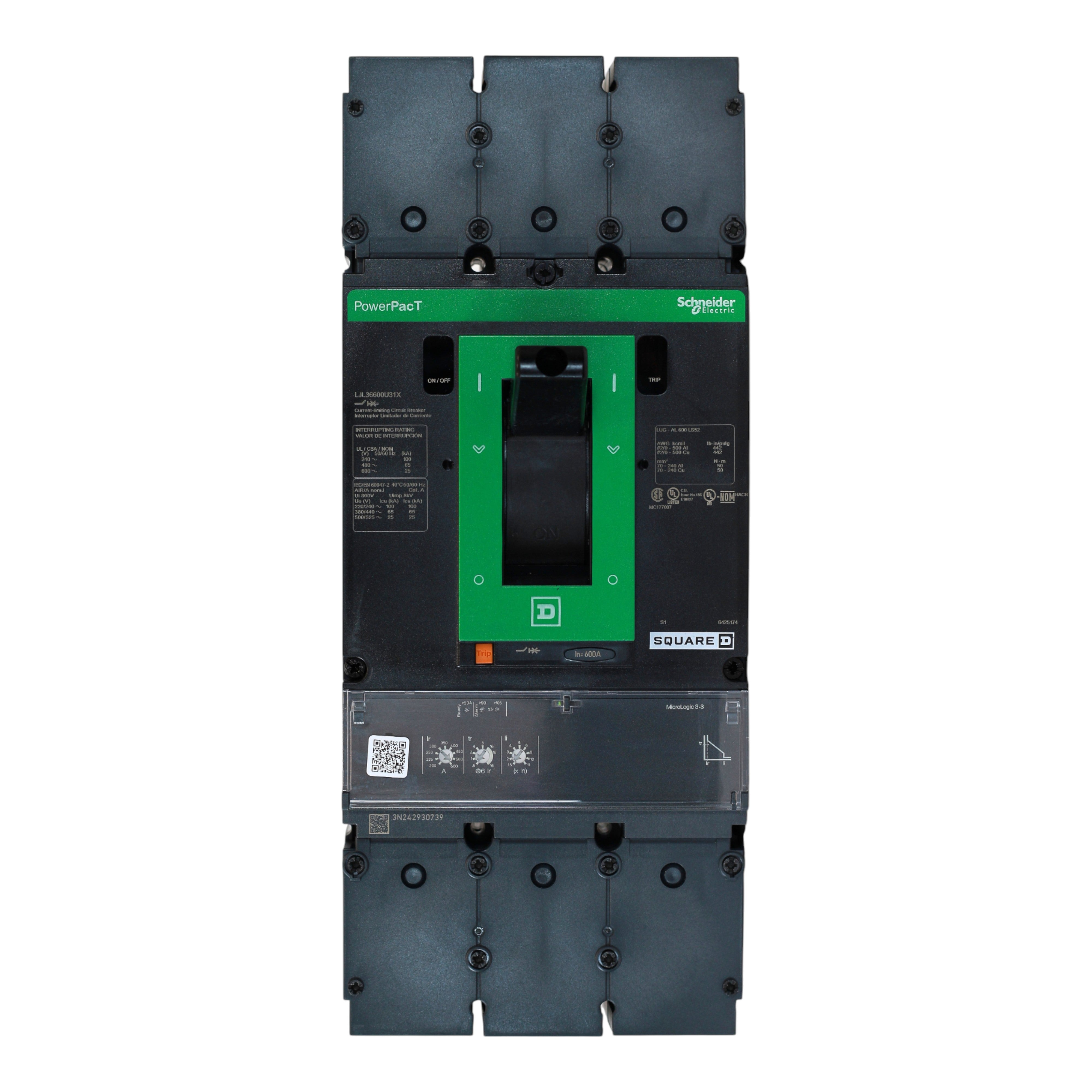

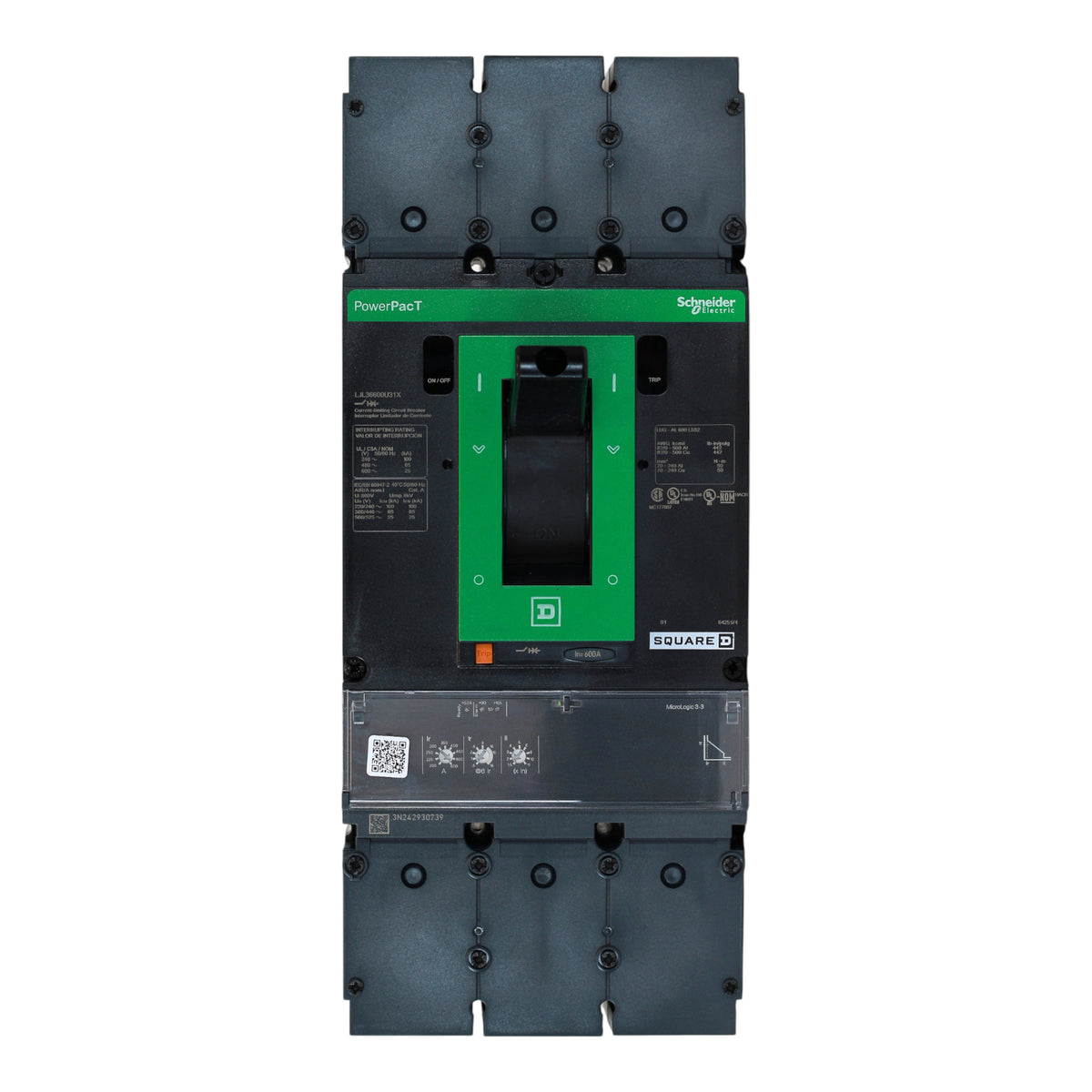

Square D PowerPacT LJL36600U31X 600A 3P 600V MicroLogic 3.3 L-Frame Circuit Breaker
Regular price
$1,750.00 USD
Have Questions?
Square D LJL36600U31X: 600 Amp 3-Pole MicroLogic 3.3 LI Electronic Trip Circuit Breaker, 600V, 25kA, lugs, 80% rated, UL, CSA, IEC certified.
- Manufacturer: Schneider Electric
- Brand: Square D
- Product Range: PowerPacT L-Frame (for PowerPacT L-Frame compatible systems)
- UPC: 785901891635
- Model Number: LJL36600U31X
- Breaker Type: MicroLogic 3.3 Electronic Trip (LI)
- Amperage: 600 Amps
- Poles: 3-Pole
- Voltage: 600 Volts AC
- Interrupt Rating: 25 kAIC
- Mounting Mode: Unit mount lug

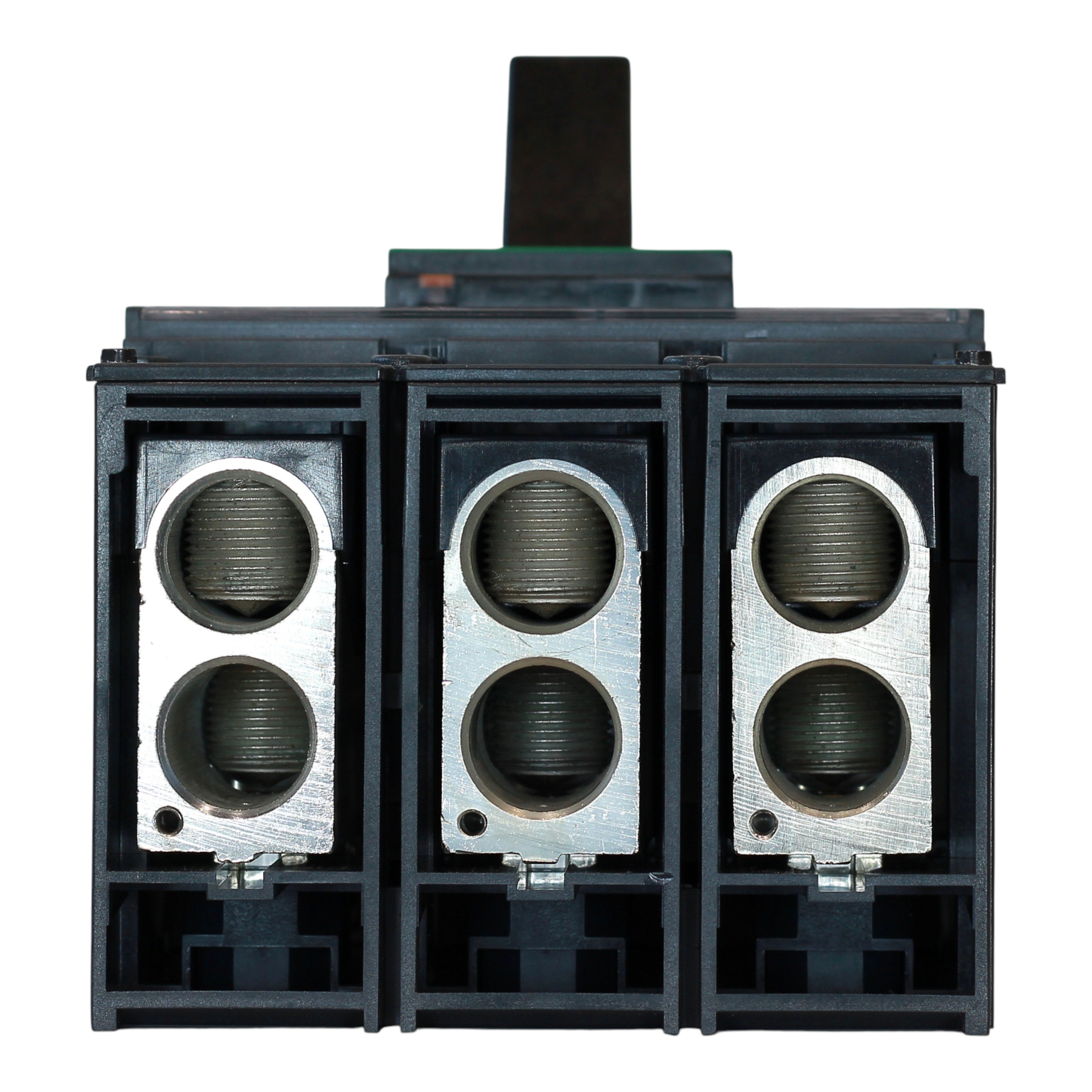

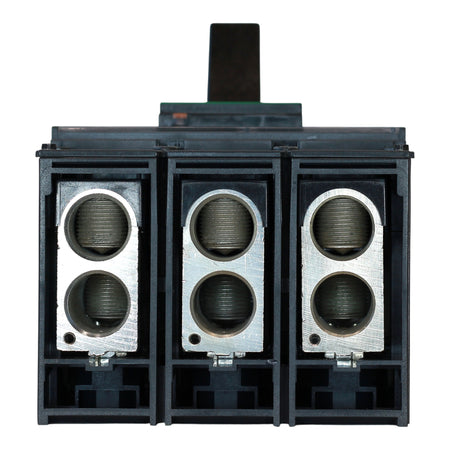

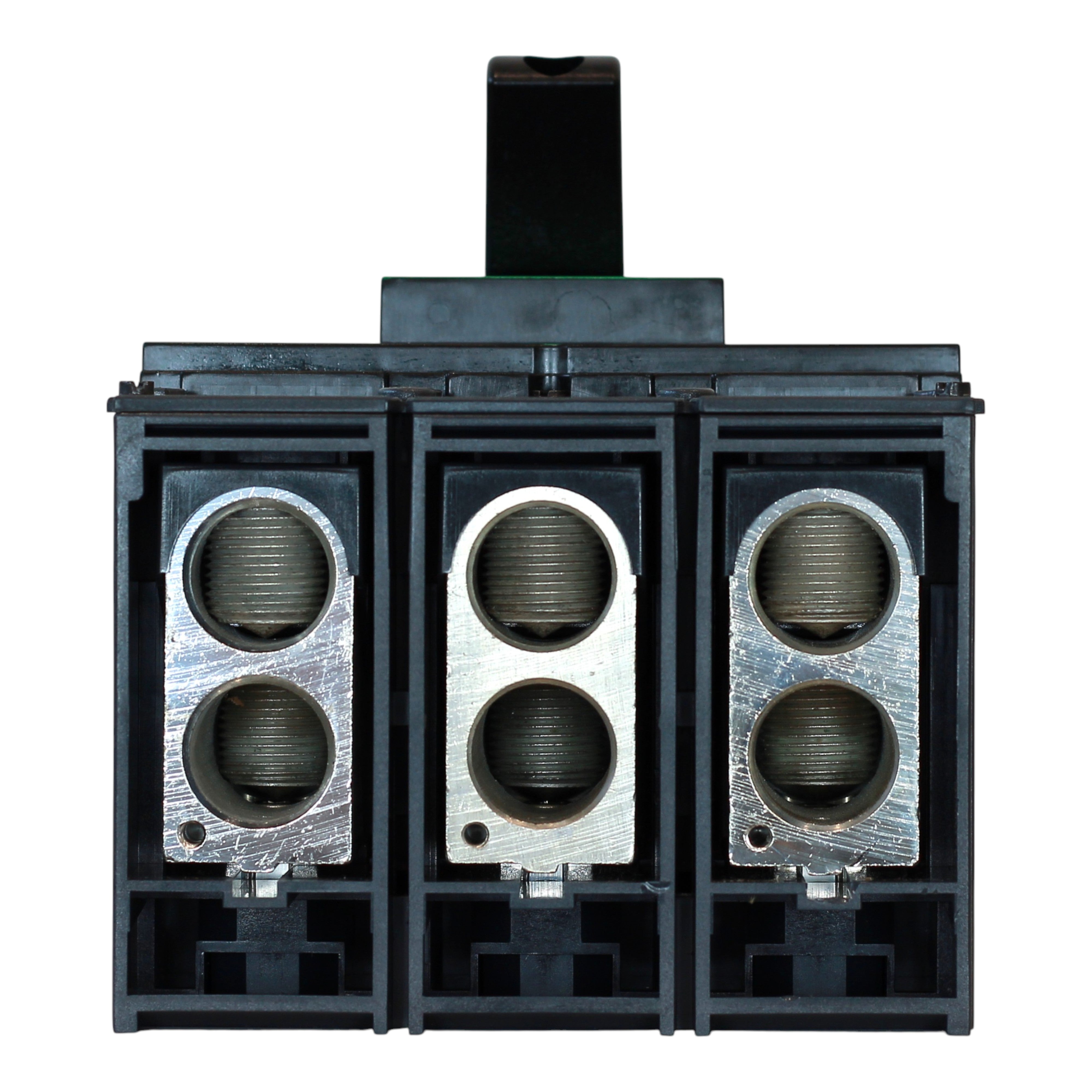

- Connections Terminals: Lugs (line and load)
- Wire Size: 2 x AWG 2/0-500 kcmil (Cu/Al)
- Tightening Torque: 442.5 lb-in
- Dimensions: Height: 13.4 in; Width: 5.5 in; Depth: 4.3 in
- Weight: 13.7 lbs
- Certifications: UL Listed, CSA, NOM, IEC 60947-2, HACR Rated
This Square D LJL36600U31X L-Frame circuit breaker delivers reliable 600A, 3-pole protection for 600V systems with a MicroLogic 3.3 LI electronic trip unit. Designed for PowerPacT L-Frame compatible systems, it offers overload and short-circuit protection with a 25kA interrupting rating, ensuring safety and reliability in commercial and industrial applications.
