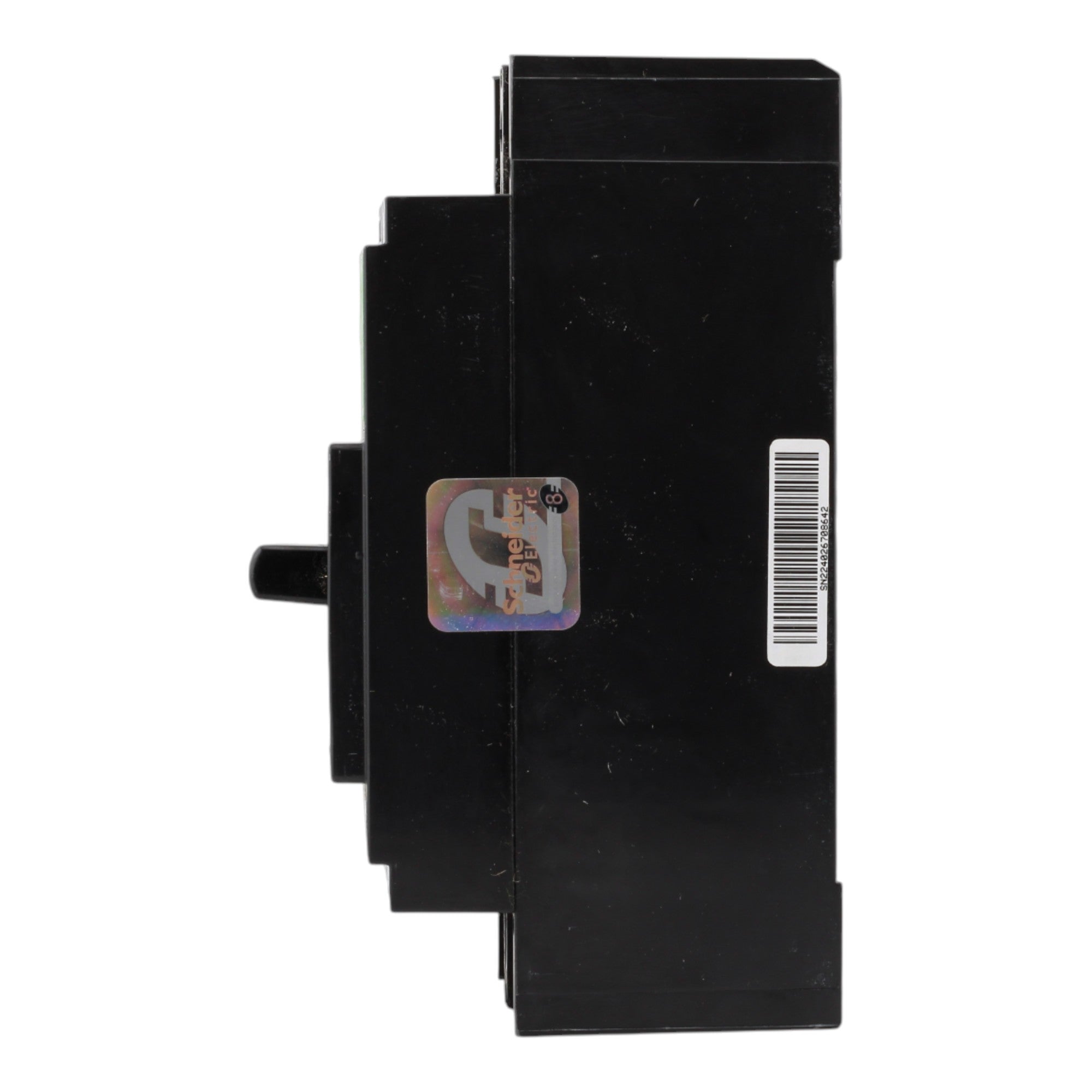

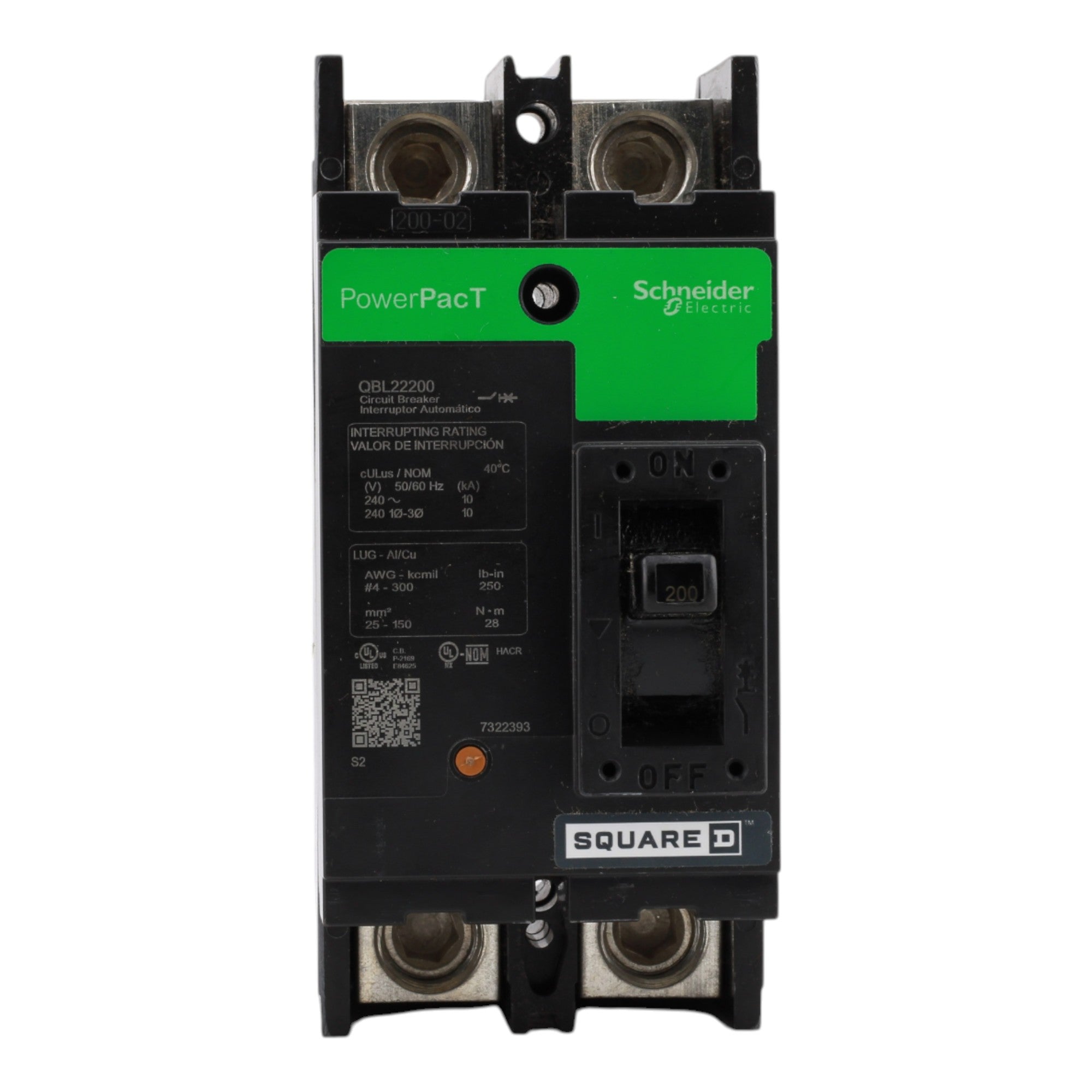

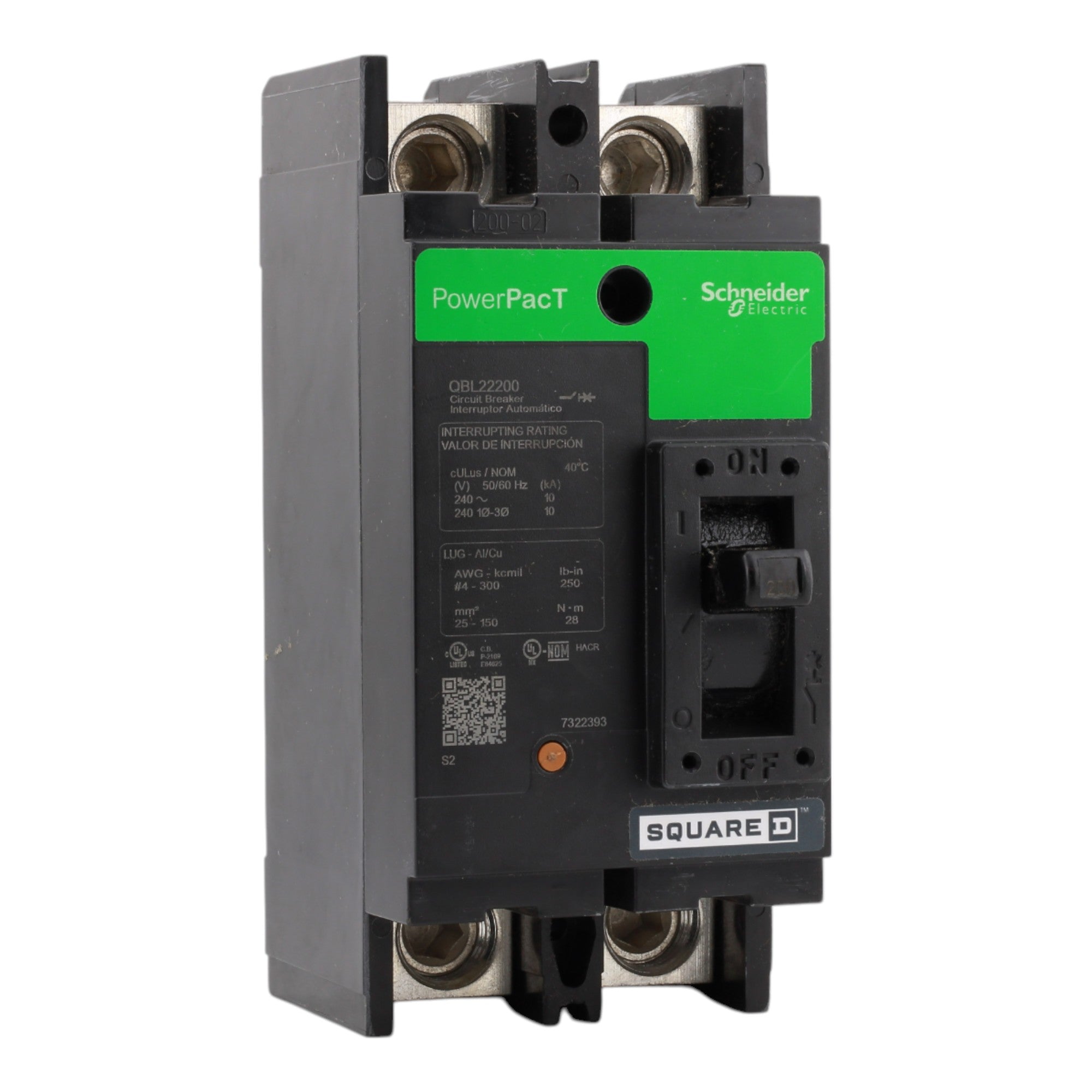

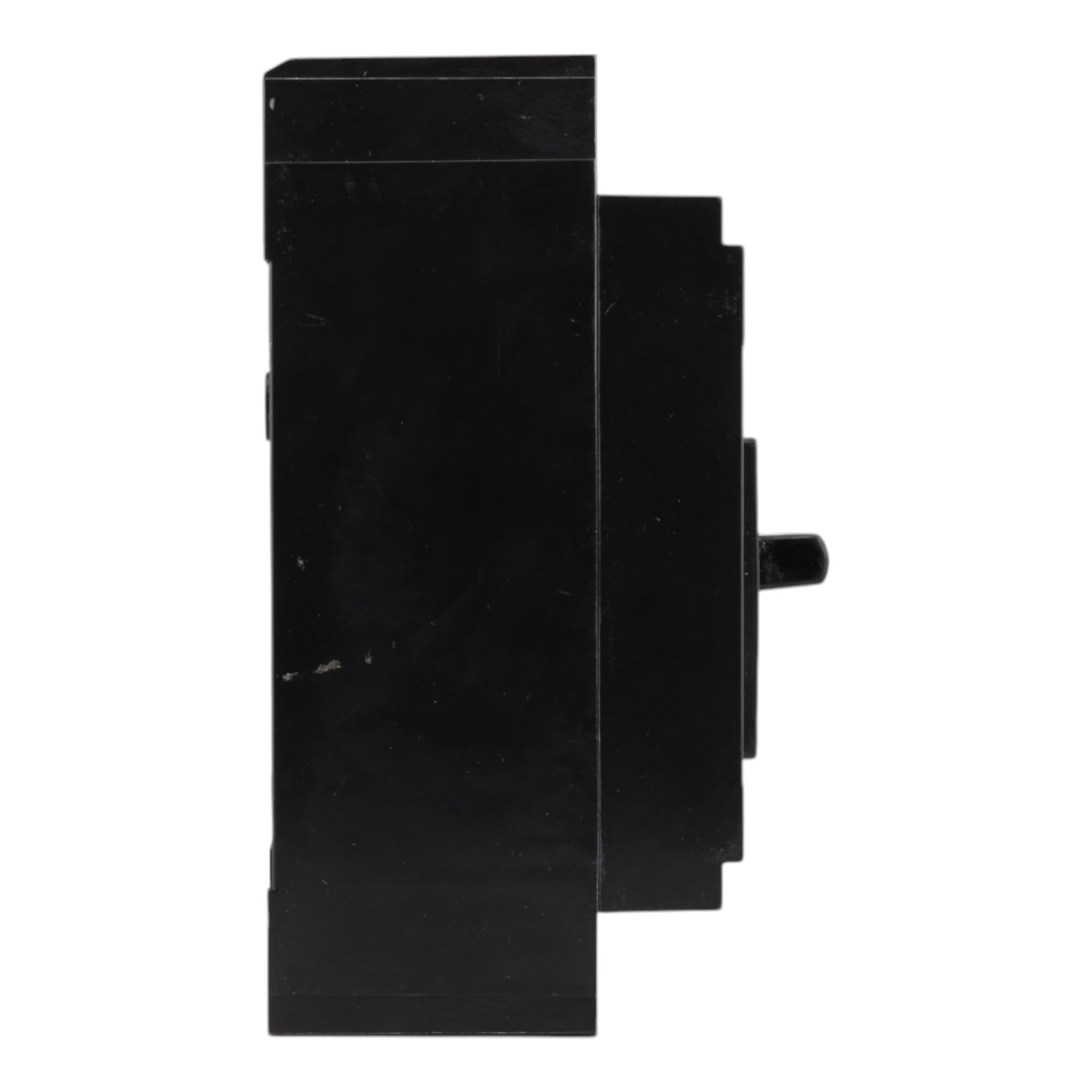

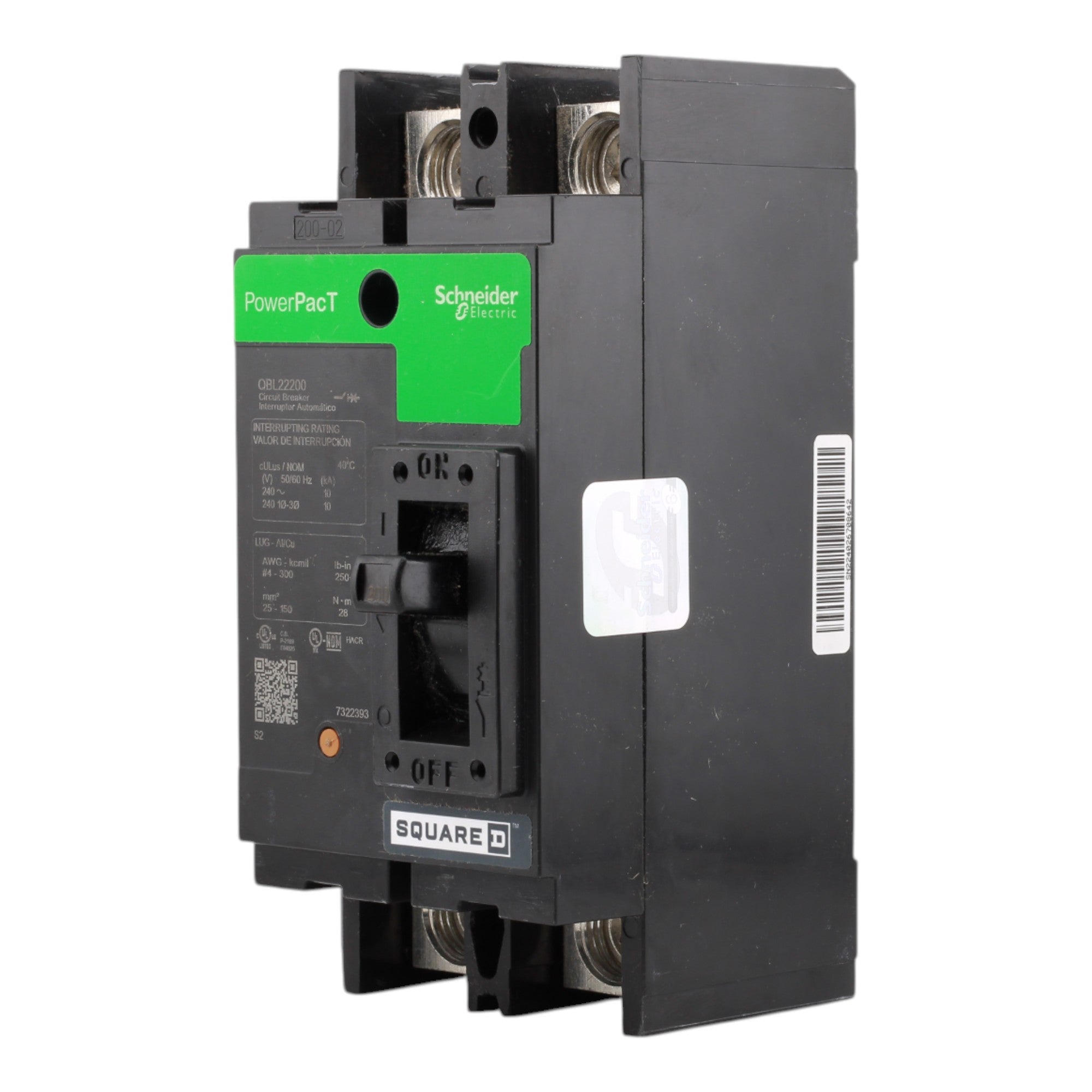

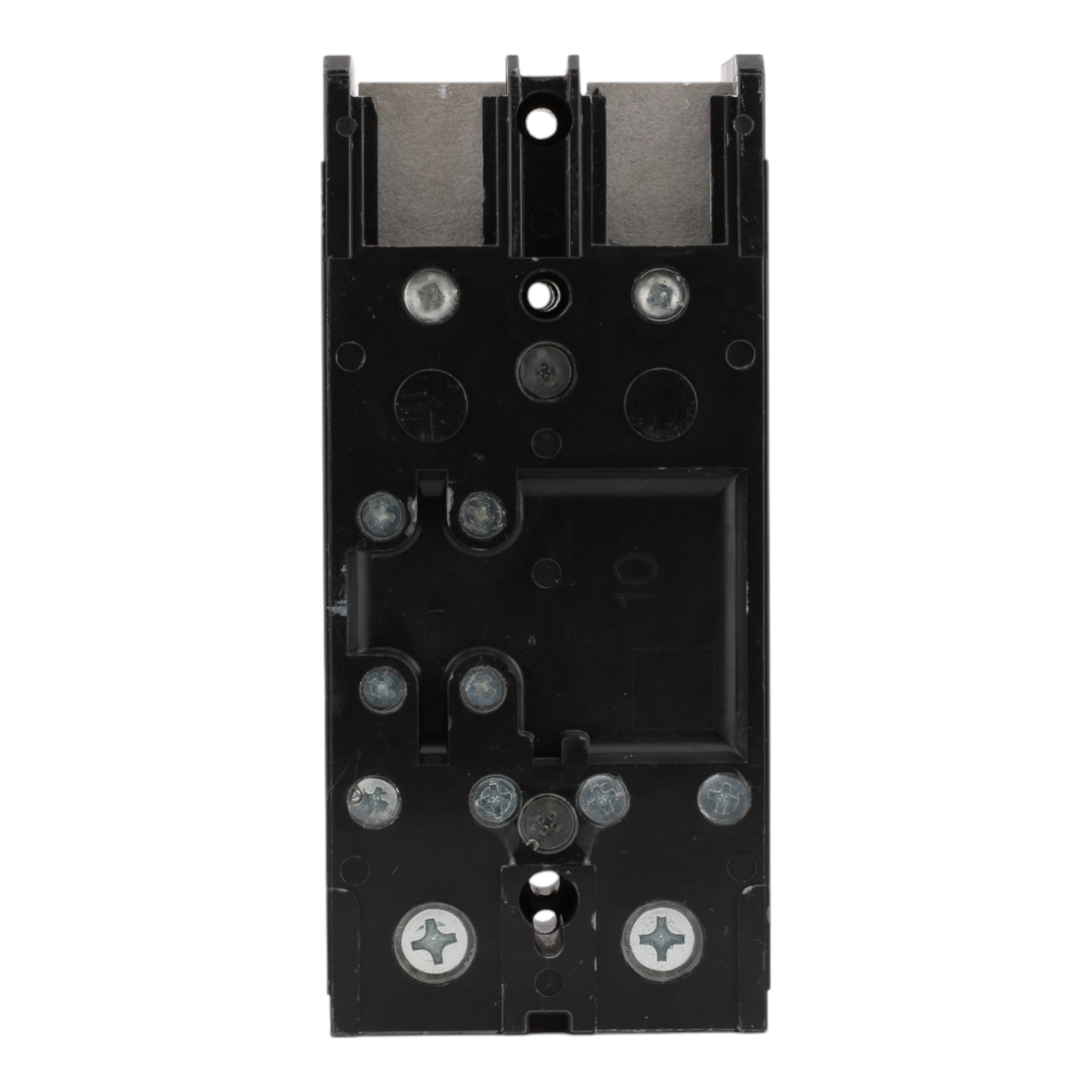

Square D QBL22200 200A 2P 240VAC Circuit Breaker

Square D QBL22200: 200A 2P thermal-magnetic circuit breaker, 240VAC, 10kA interrupt rating, 80% continuous current rating, lugs on line/load sides, HACR rated, UL listed."

Product Specifications

Product Identification:

• Manufacturer: Square D
• Brand: PowerPacT Q
• UPC: 785901412632
• Model Number: QBL22200

Technical Specifications:

• Circuit Breaker Type: PowerPacT Q-Frame Molded Case Circuit Breaker
• Number of Poles: 2-Pole
• Amperage Rating: 200A
• Voltage Rating: 240VAC, 50/60Hz
• Interrupt Rating: 10kA at 208Y/120VAC and 240VAC
• Trip Unit Technology: Thermal-magnetic
• Magnetic Tripping Current: 2400A
• Magnetic Hold Current: 1200A
• Continuous Current Rating: 80%
• Mounting Type: Unit mount lug

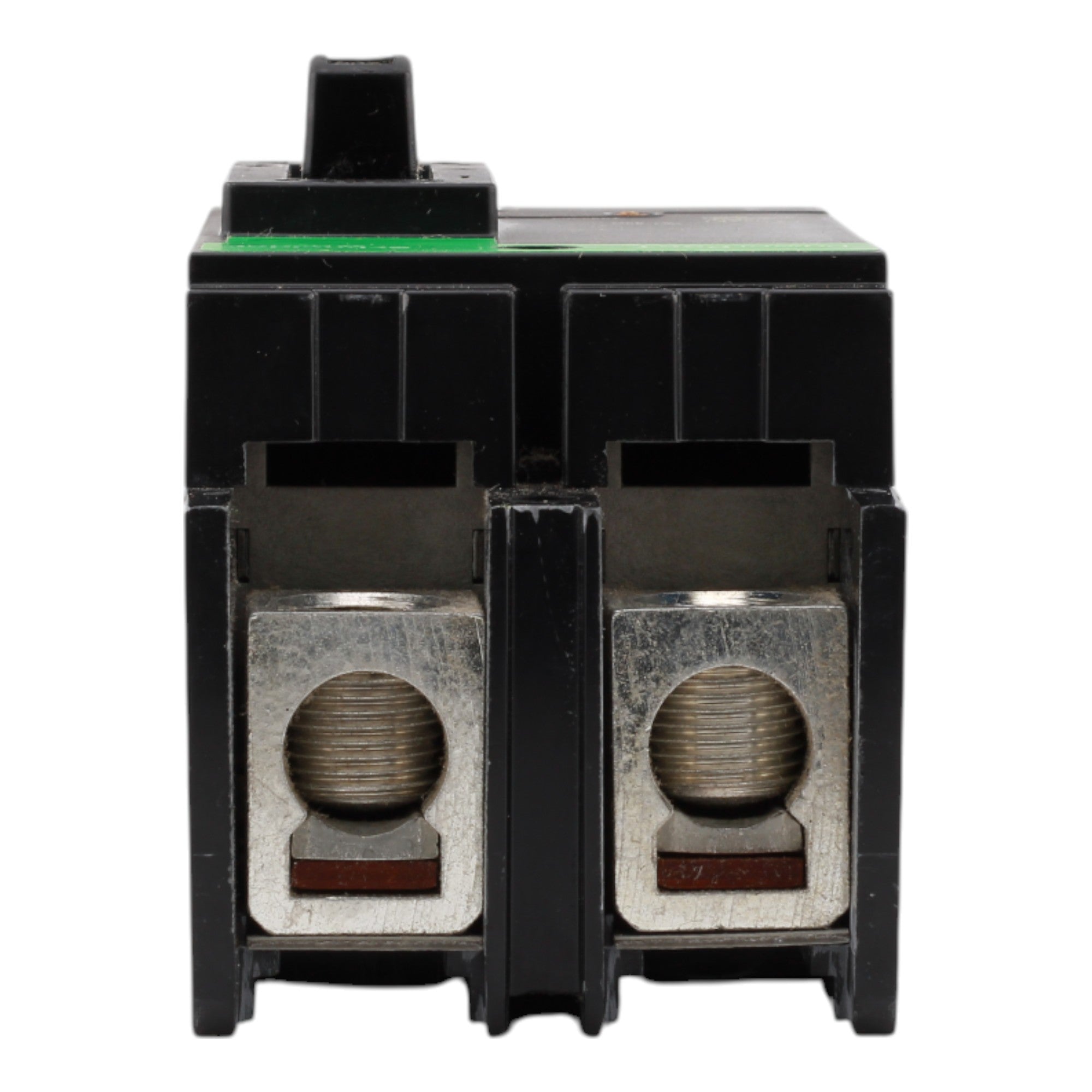

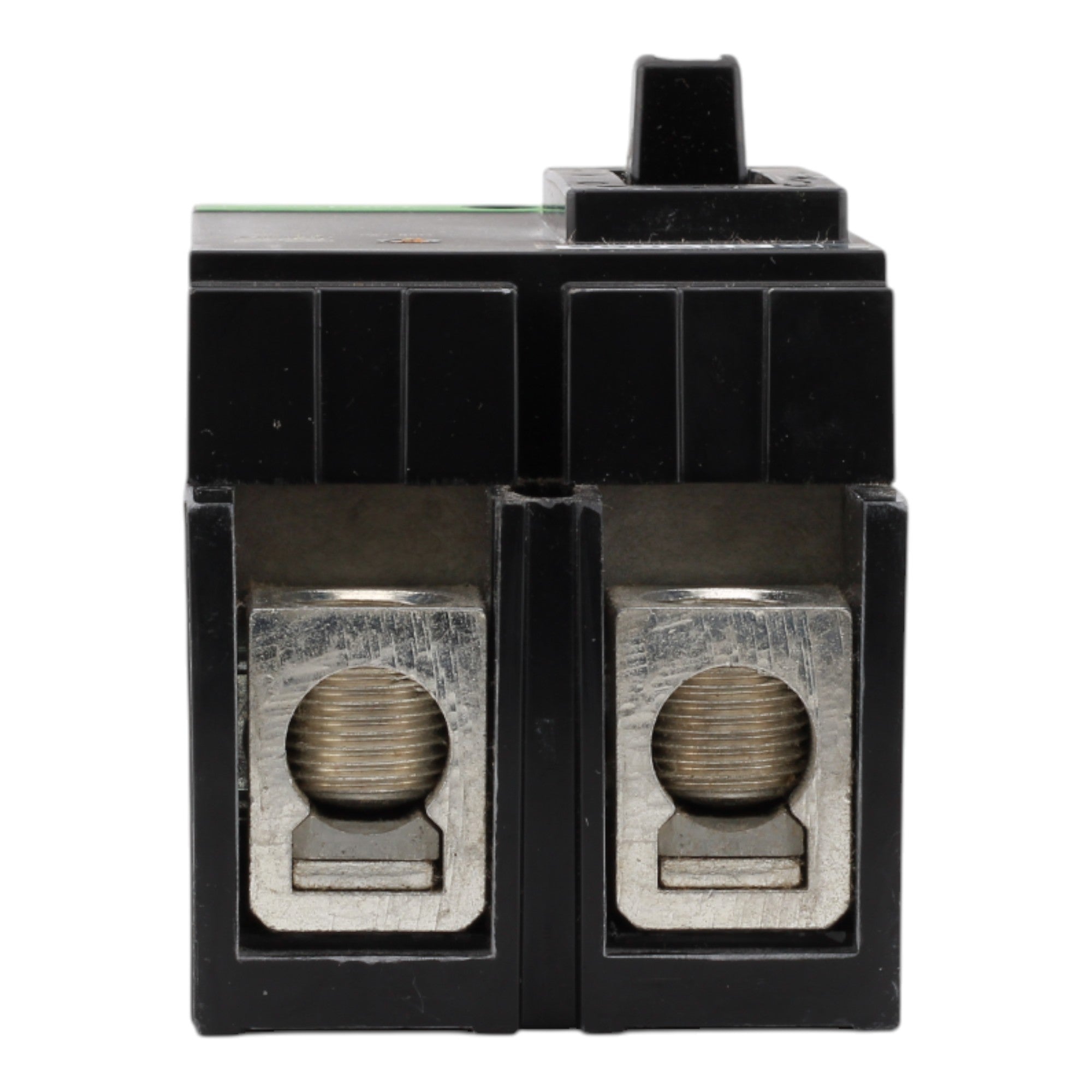

• Connection Type: Lugs on line and load sides
• Tightening Torque: 247.8 lbf.in (28 N.m)
• Wire Compatibility: 4 AWG-300 kcmil (0.04-0.2 in²)
• Wire Stripping Length: 0.9 in
• Local Signaling: Trip indicator (green)
• Special Features: Push-to-trip button
• Application Rating: HACR rated
• Mechanical Durability: 1000 cycles loaded, 5000 cycles no load
• Certifications: UL, CSA, NOM

Dimensions:

• Dimensions: Height: 6.47 in; Width: 3 in; Depth: 3.93 in
• Weight: 3.4 lb
