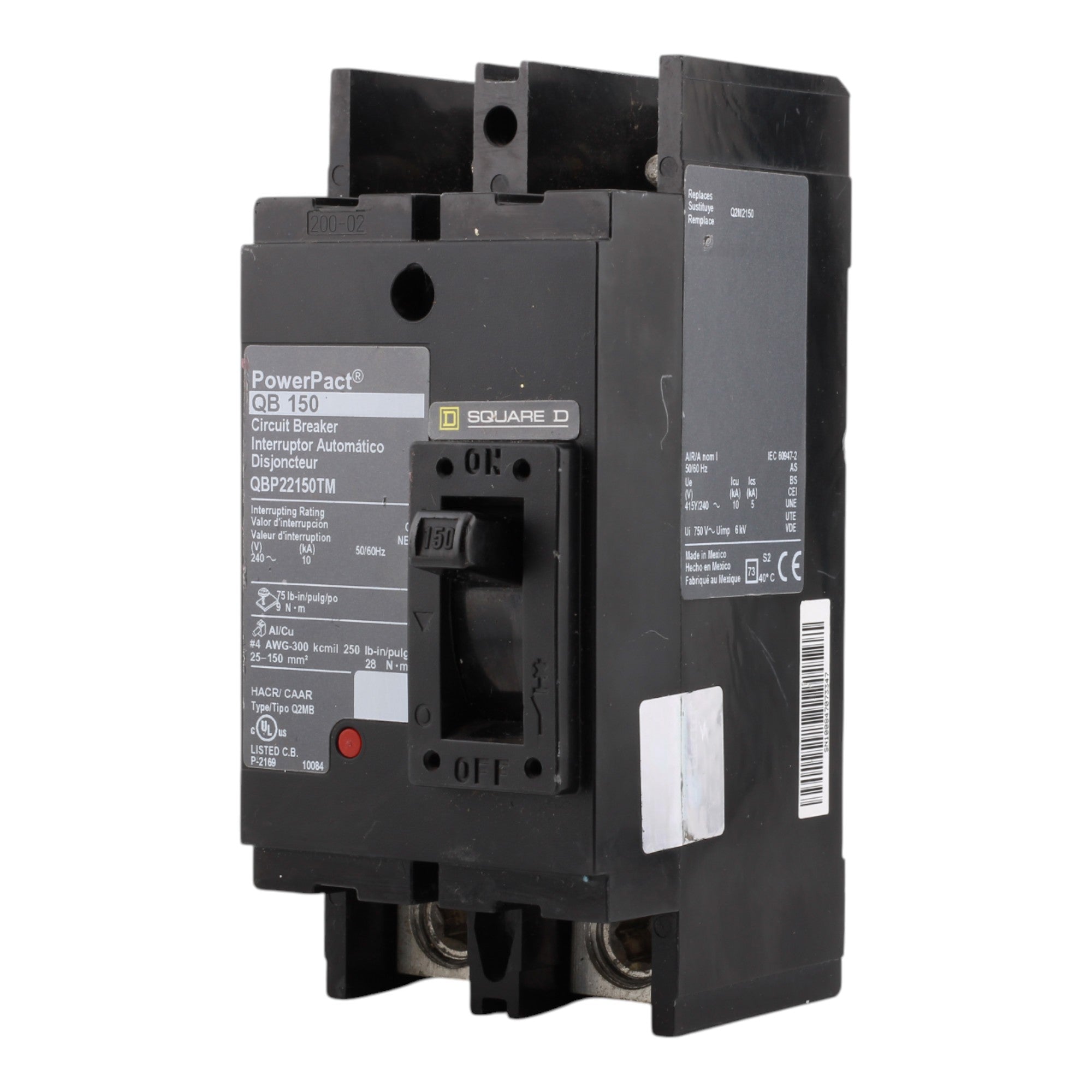

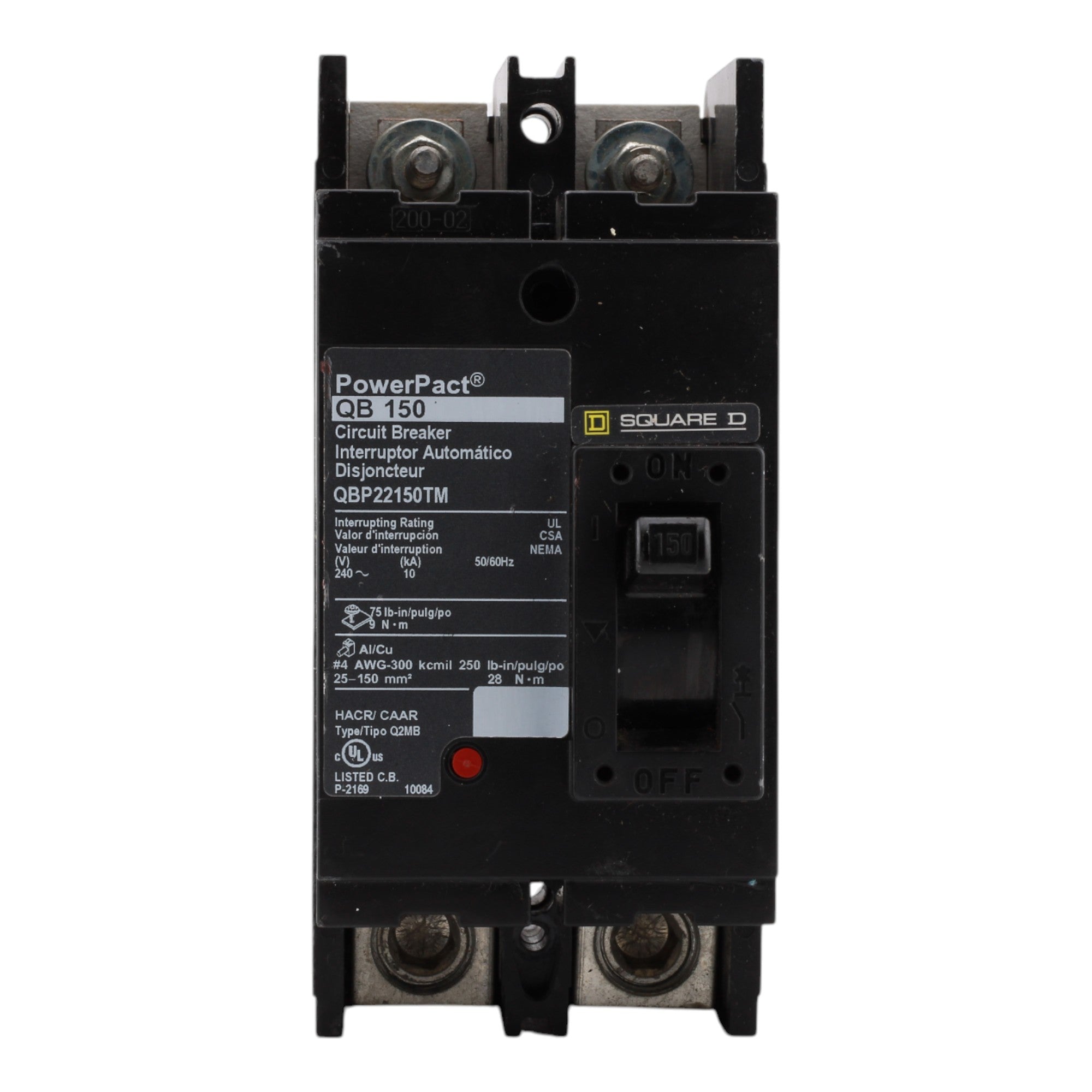

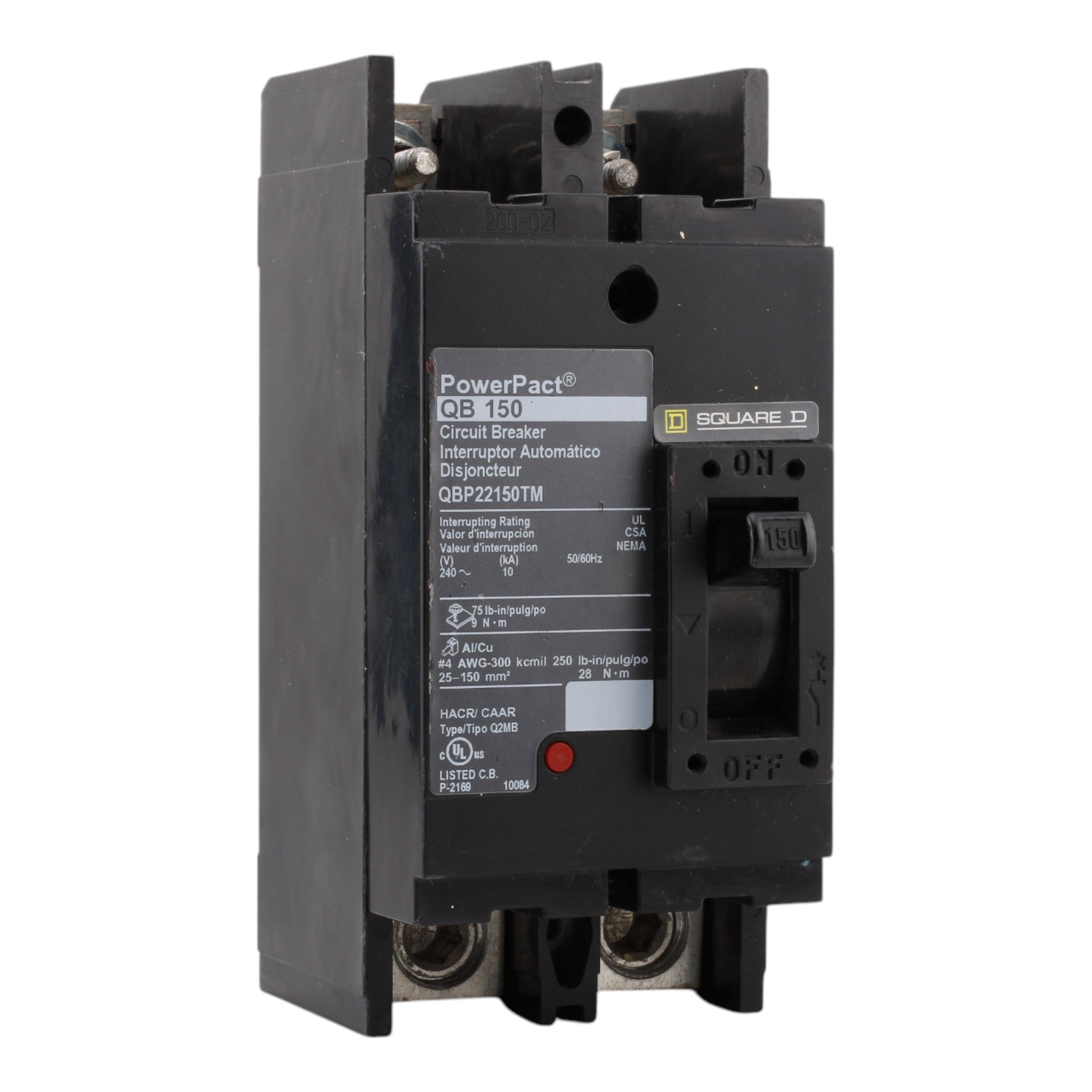

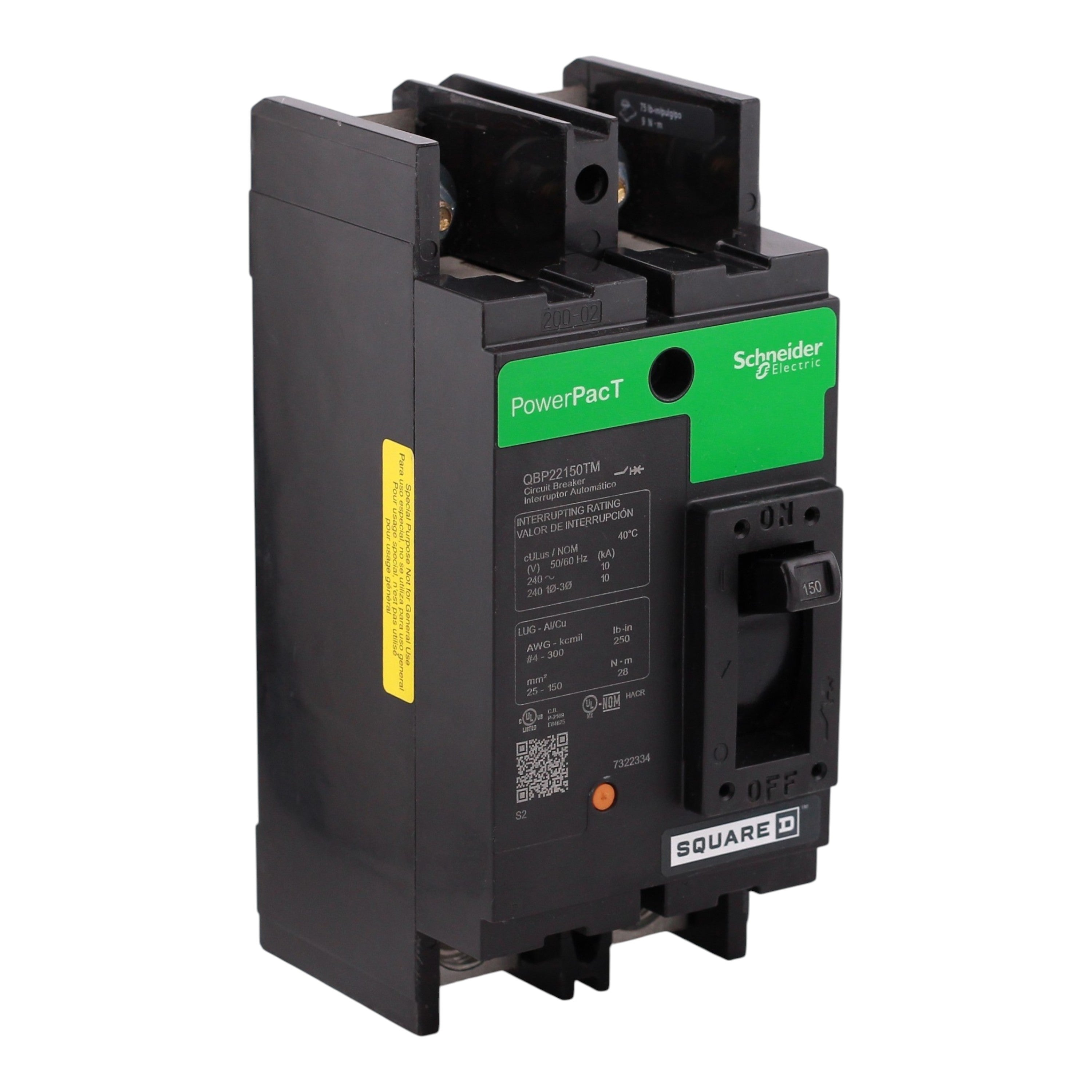

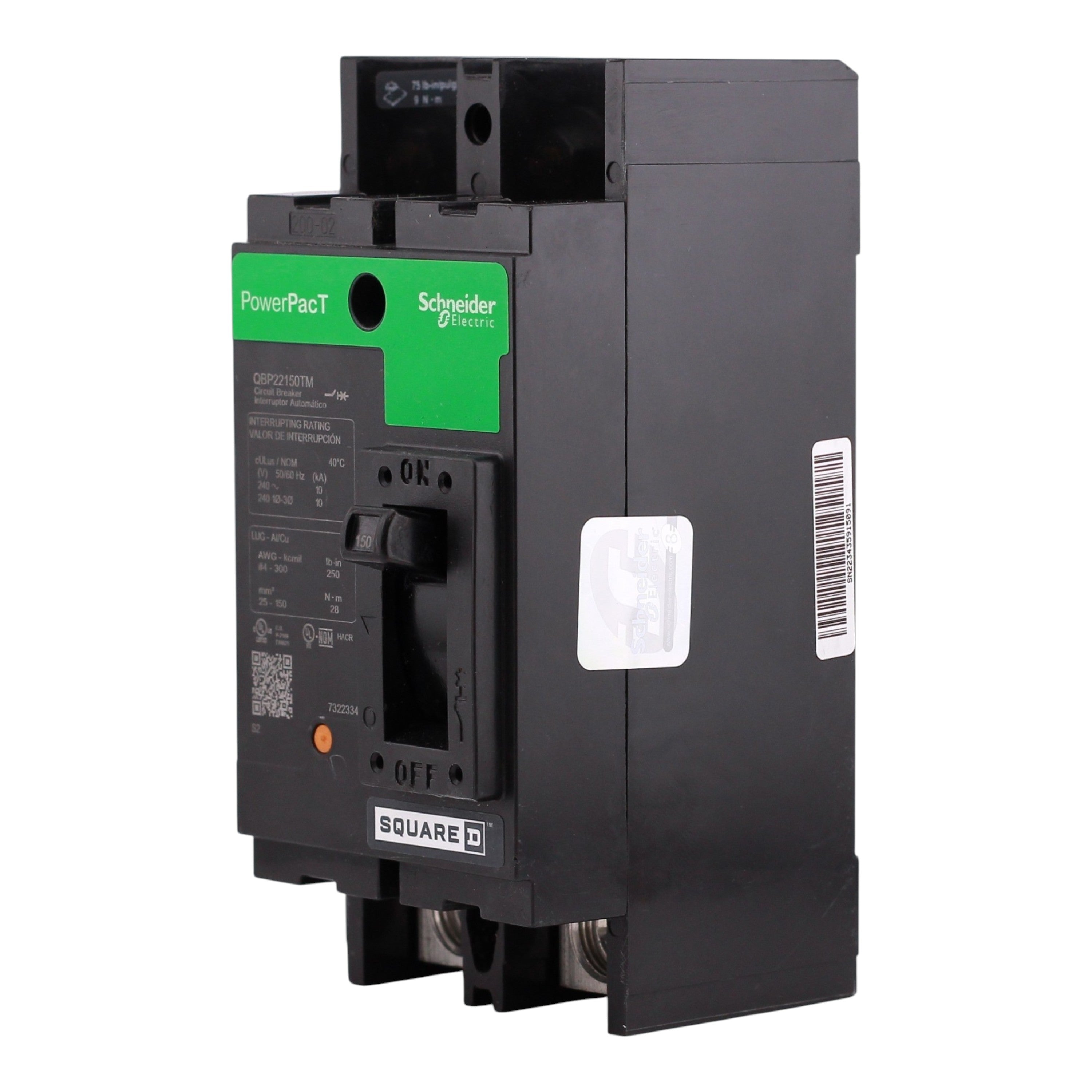

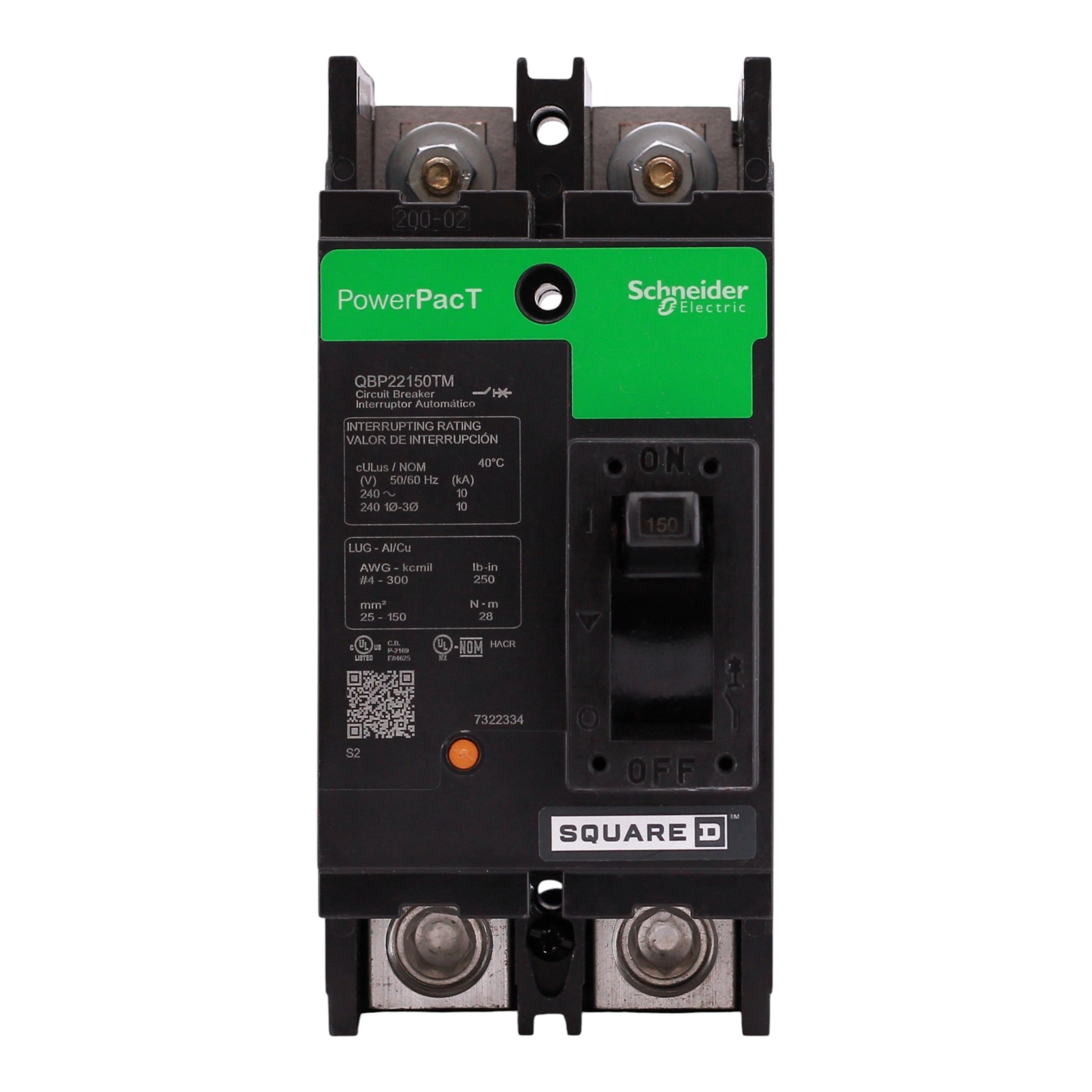

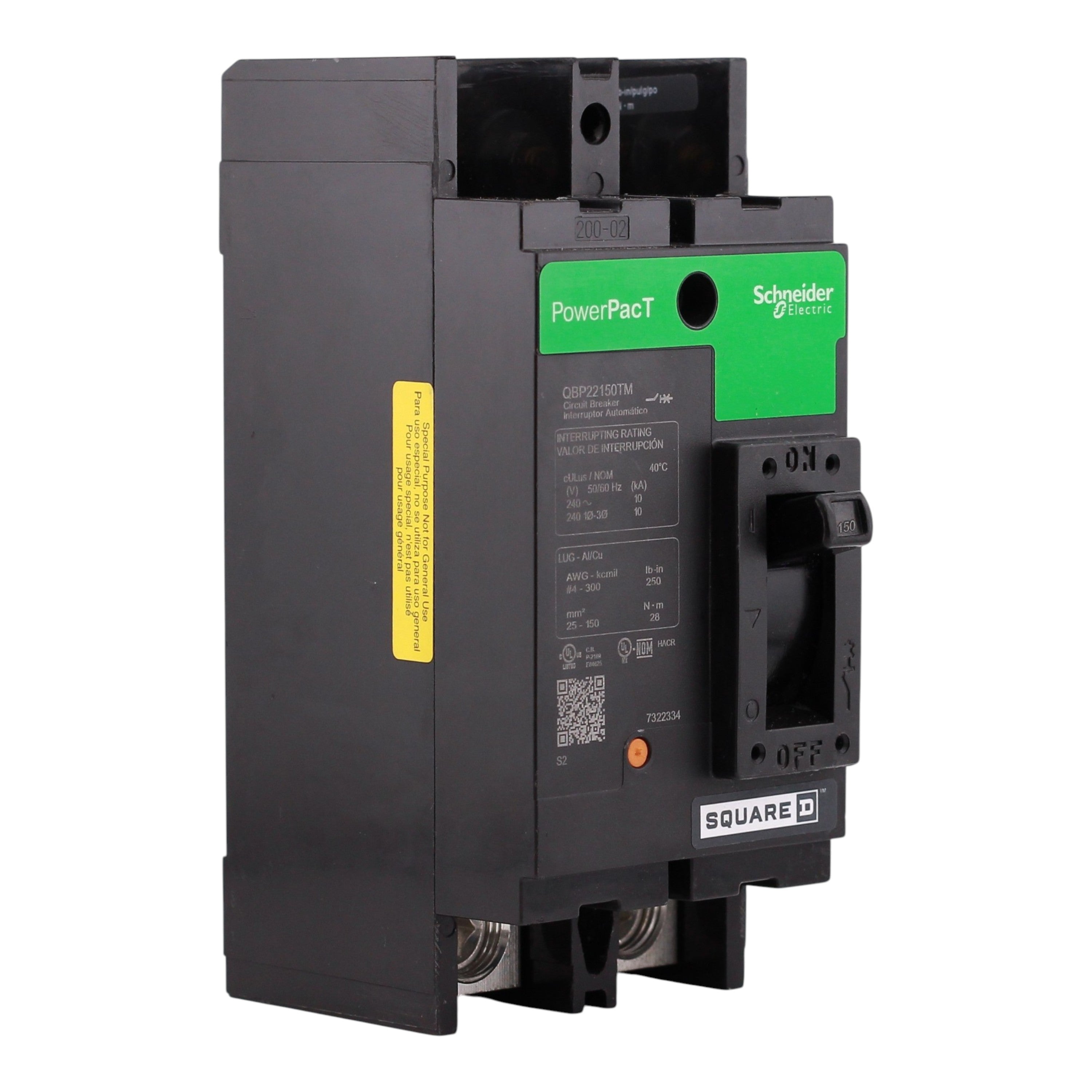

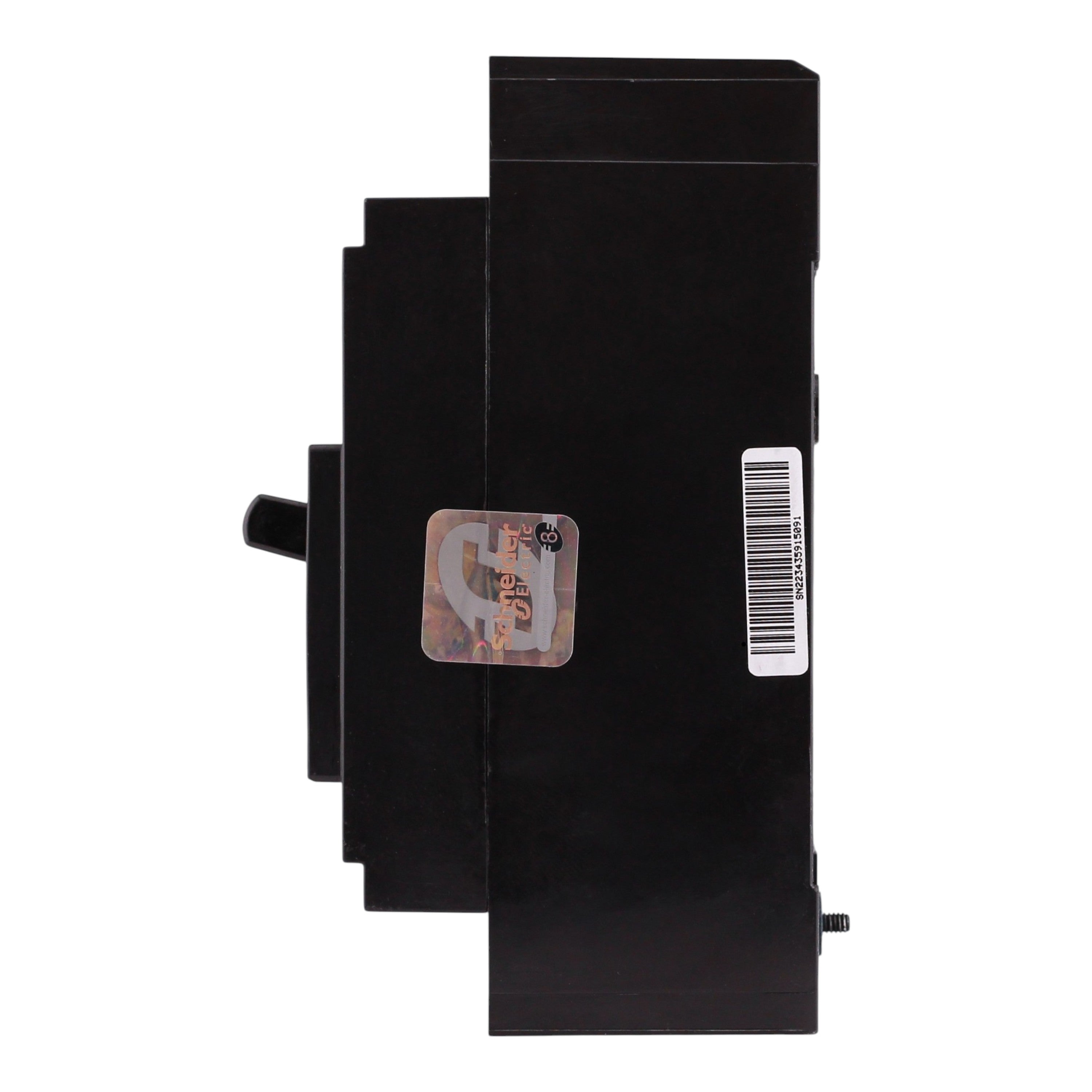

Square D QBP22150TM 150A 2P 240VAC Circuit Breaker

Square D QBP22150TM: 150A 2P thermal-magnetic circuit breaker, 240VAC, 10kA interrupt rating, 80% continuous current rating, terminal nuts/lugs connections, HACR rated, bottom panel mount."

Product Specifications

Product Identification:

• Manufacturer: Square D
• Brand: PowerPacT Q
• UPC: 785901672463
• Model Number: QBP22150TM

Technical Specifications:

• Circuit Breaker Type: PowerPacT Q-Frame Molded Case Circuit Breaker
• Number of Poles: 2-Pole
• Amperage Rating: 150A
• Voltage Rating: 240VAC, 50/60Hz
• Interrupt Rating: 10kA at 208Y/120VAC and 240VAC
• Trip Unit Technology: Thermal-magnetic
• Magnetic Tripping Current: 2400A
• Magnetic Hold Current: 1200A
• Continuous Current Rating: 80%

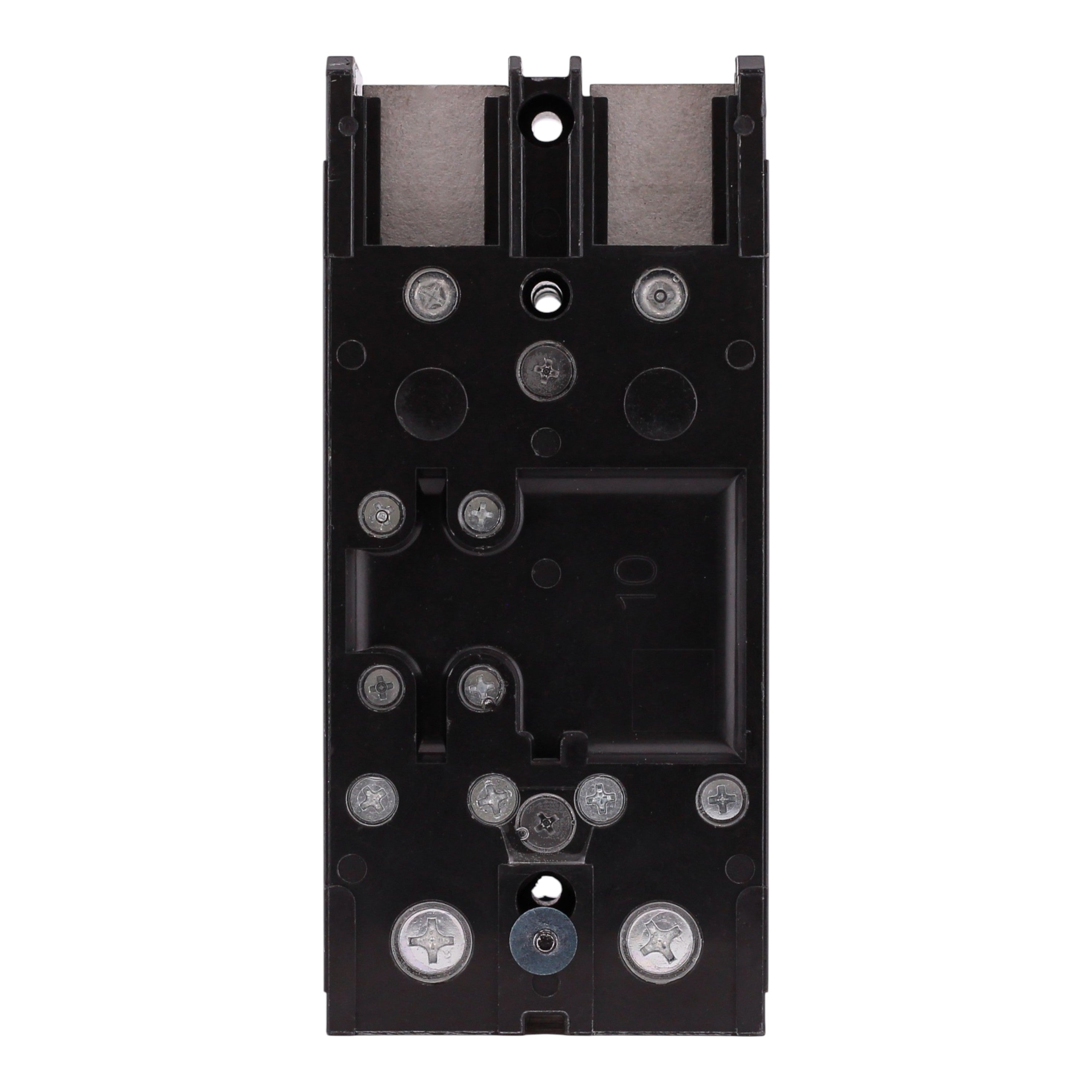

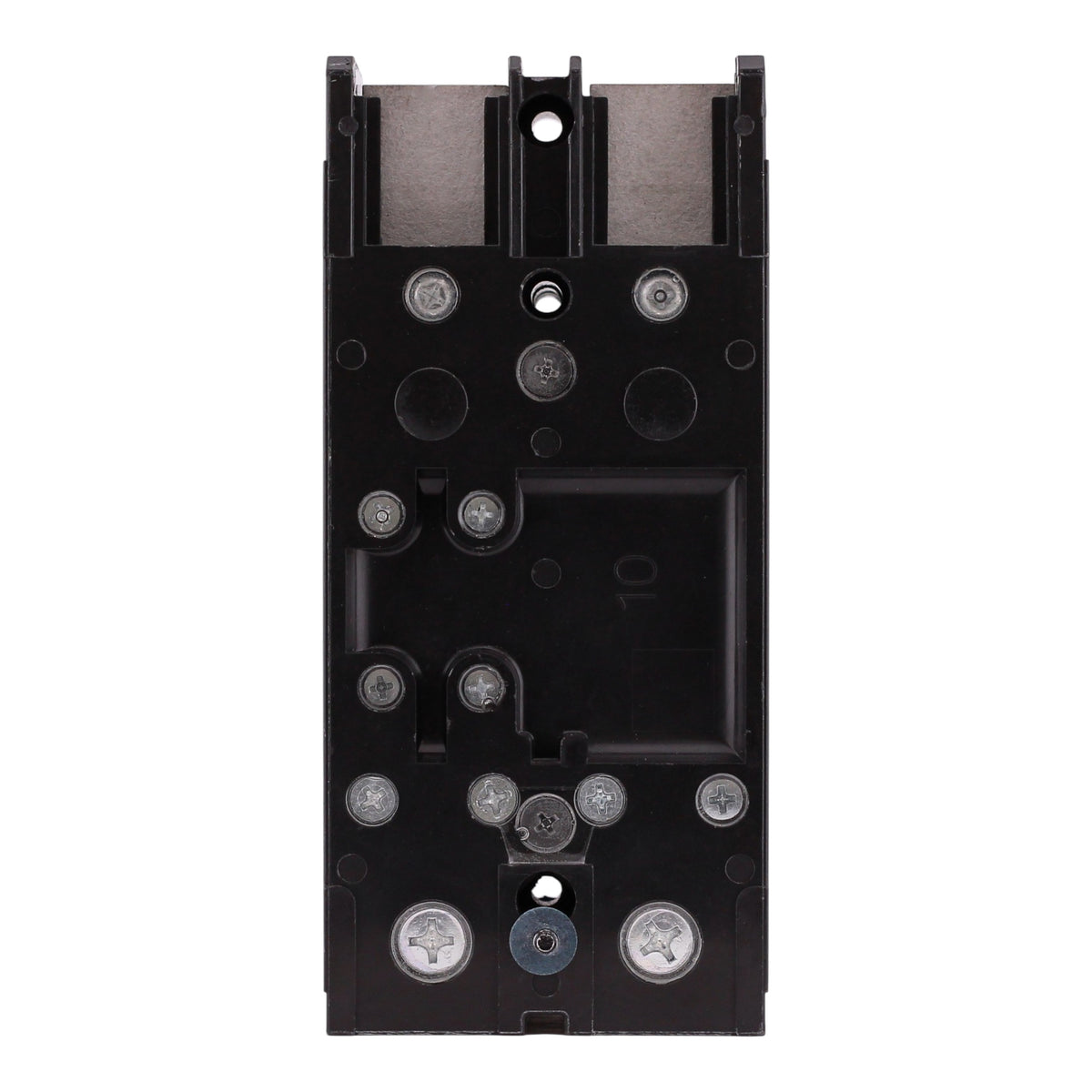

• Mounting Type: Unit mount lug, bottom of panel

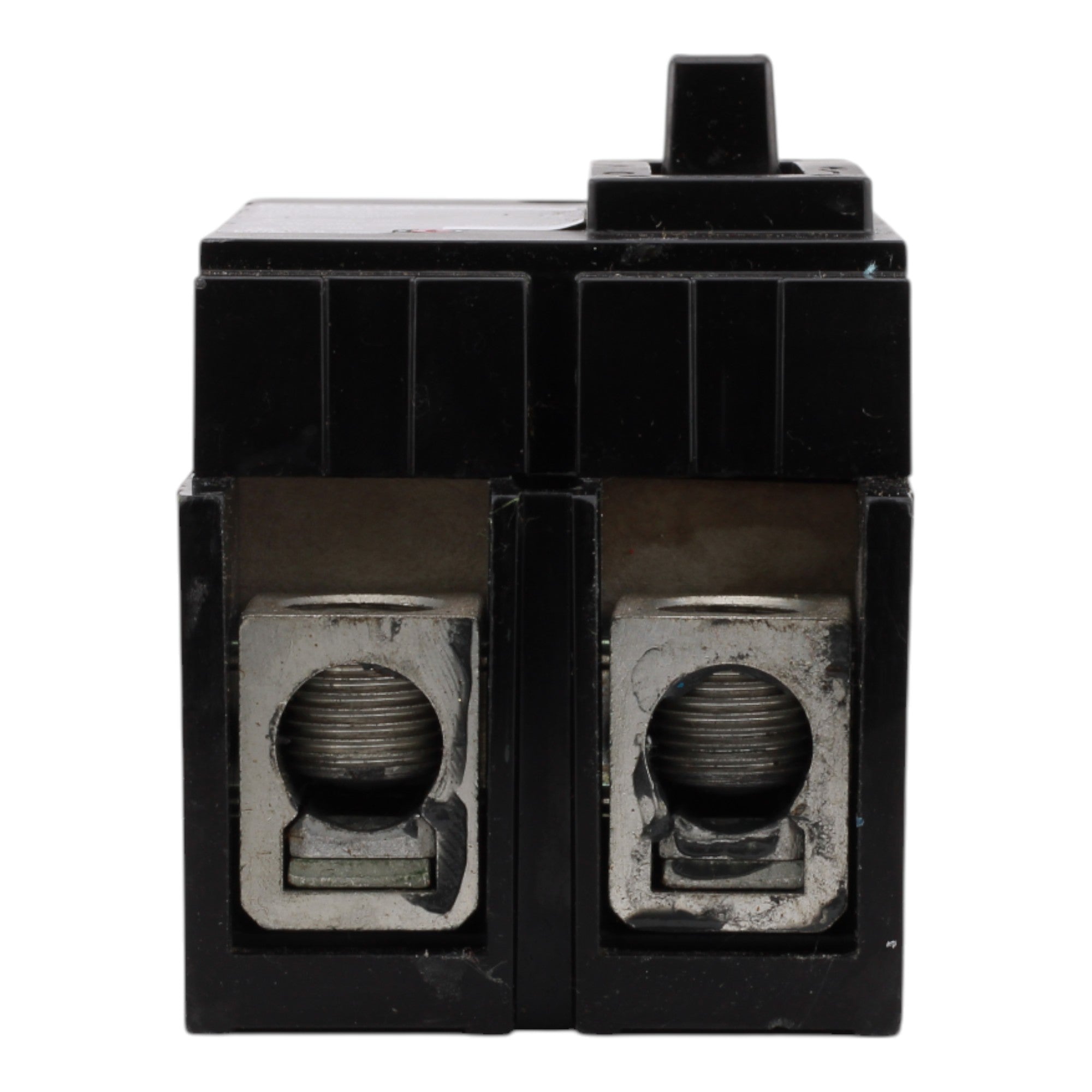

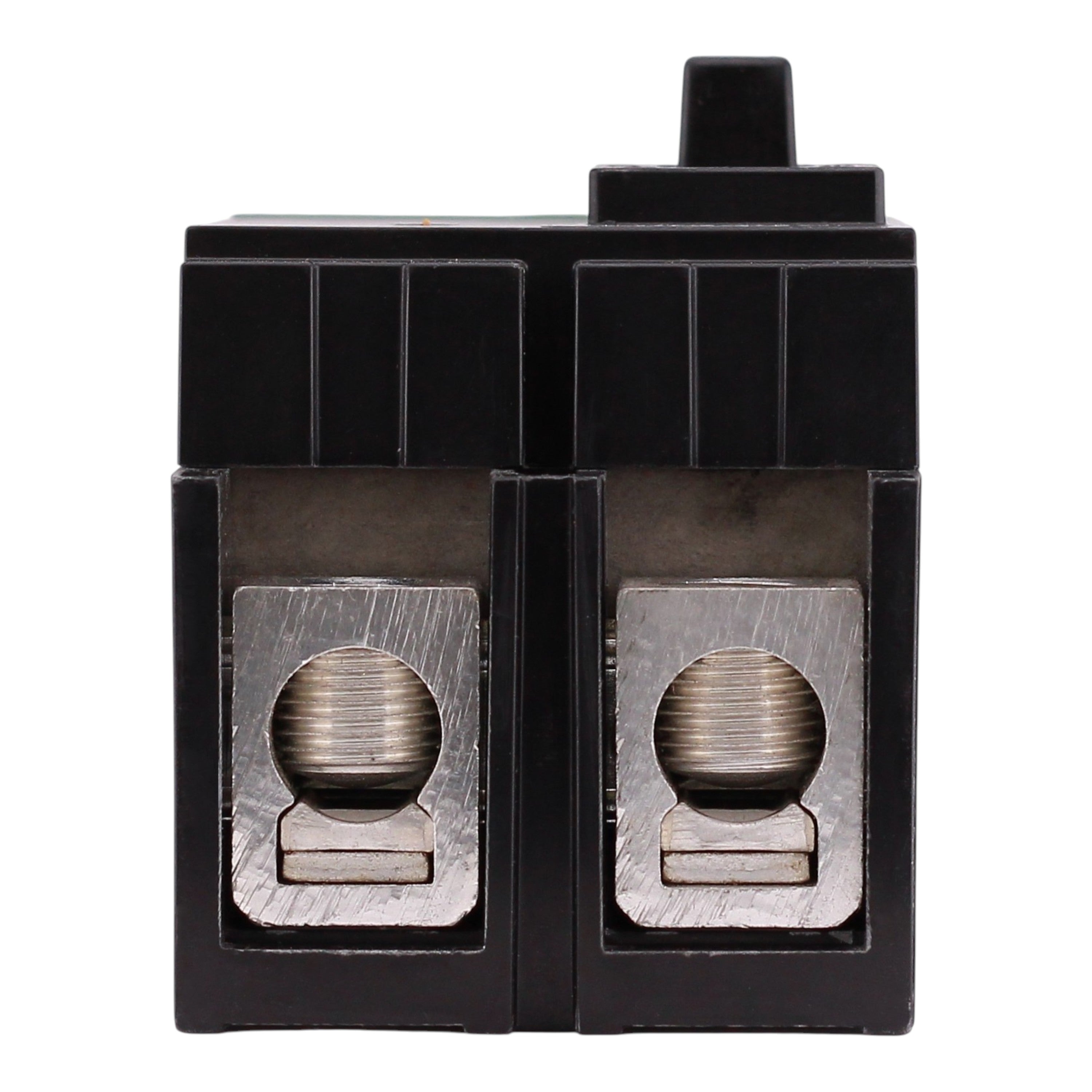

• Connection Type: Terminal nuts on line side, lugs on load side
• Tightening Torque: 247.8 lbf.in (28 N.m)
• Wire Compatibility: 4 AWG-300 kcmil (0.04-0.2 in²)
• Wire Stripping Length: 0.9 in
• Local Signaling: Trip indicator (green)

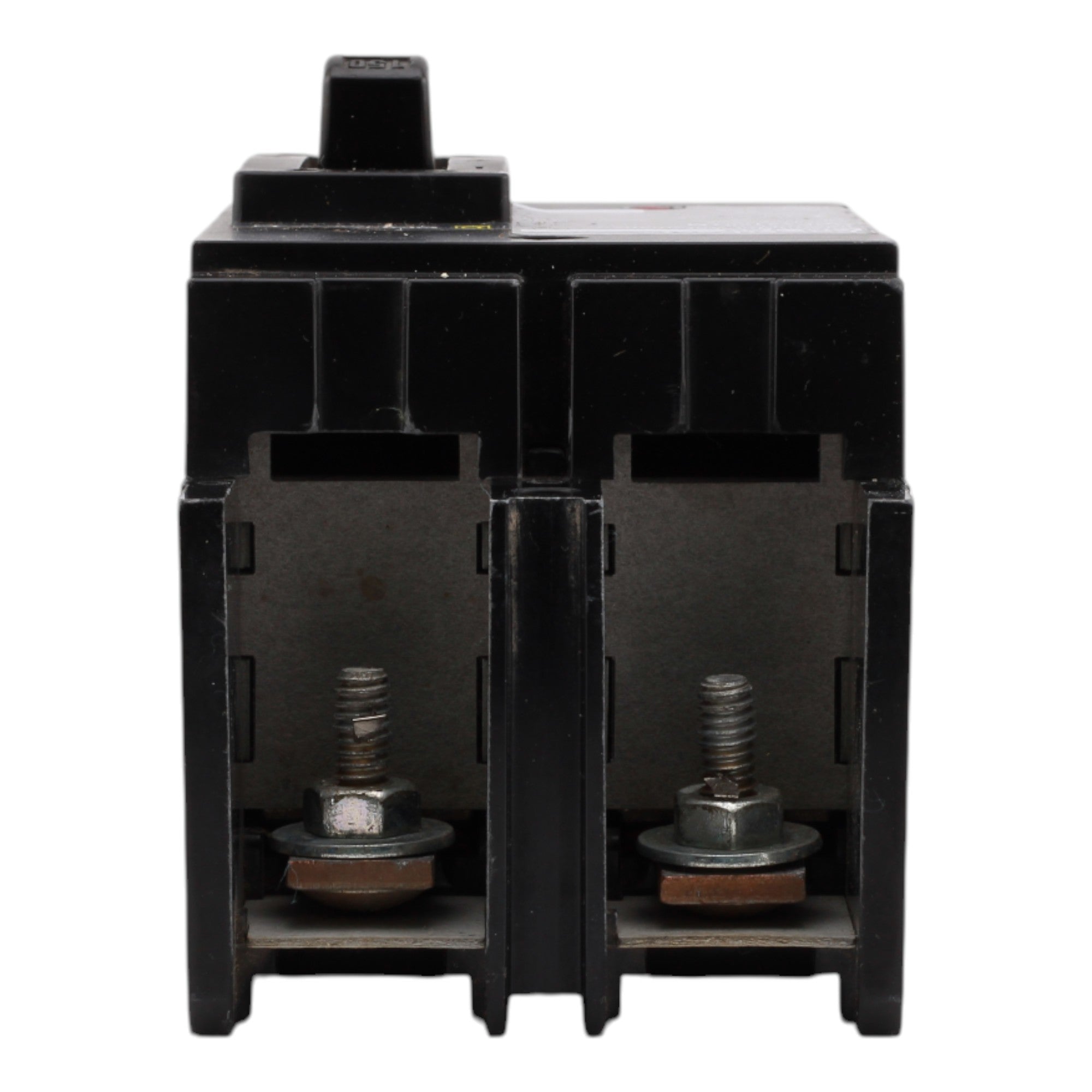

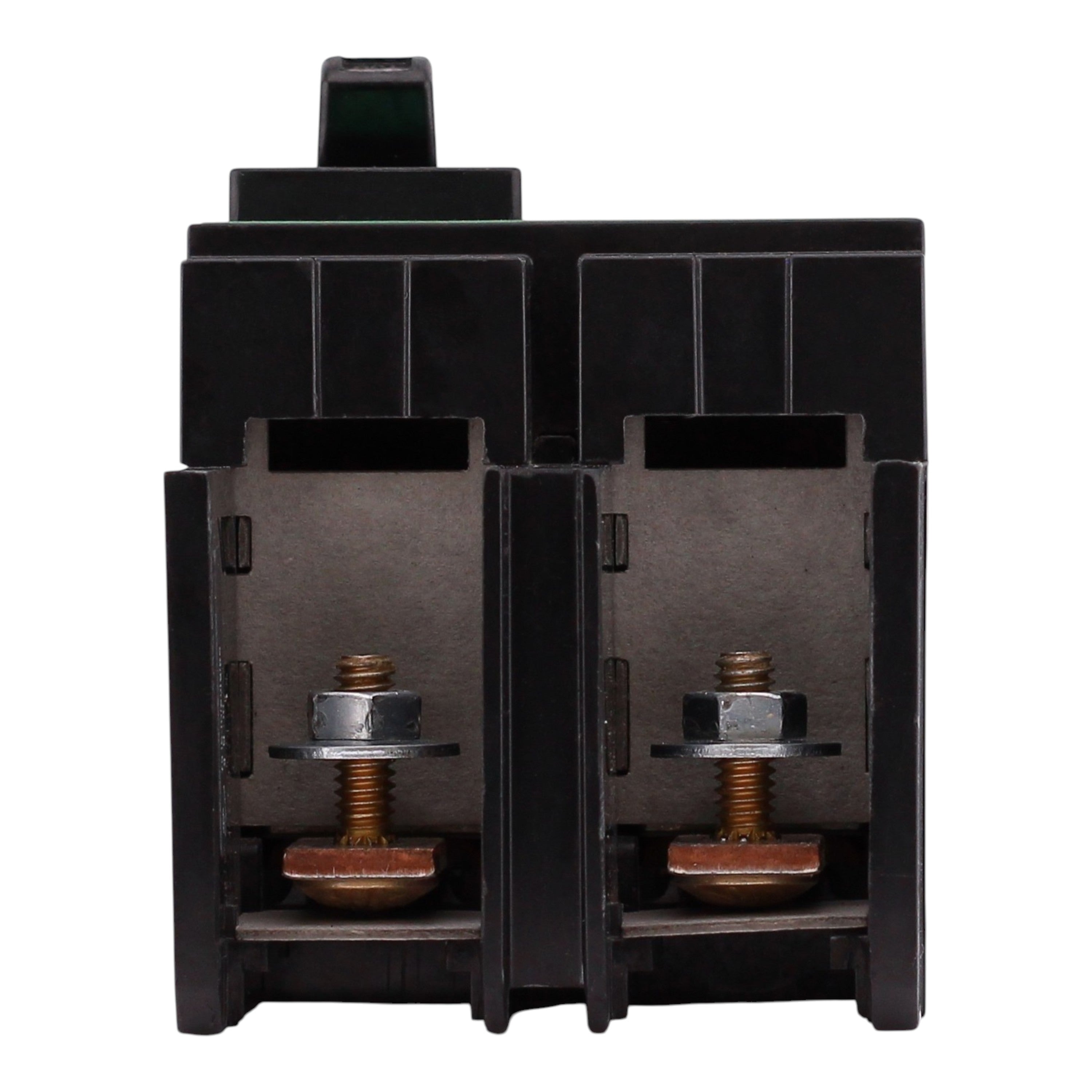

• Special Features: Push-to-trip button, studs on line end with nuts and washers
• Application Rating: HACR rated
• Mechanical Durability: 1000 cycles loaded, 5000 cycles no load
• Certifications: UL, CSA, NOM

Dimensions:

• Dimensions: Height: 6.47 in; Width: 3 in; Depth: 3.93 in
• Weight: 3.24 lb
