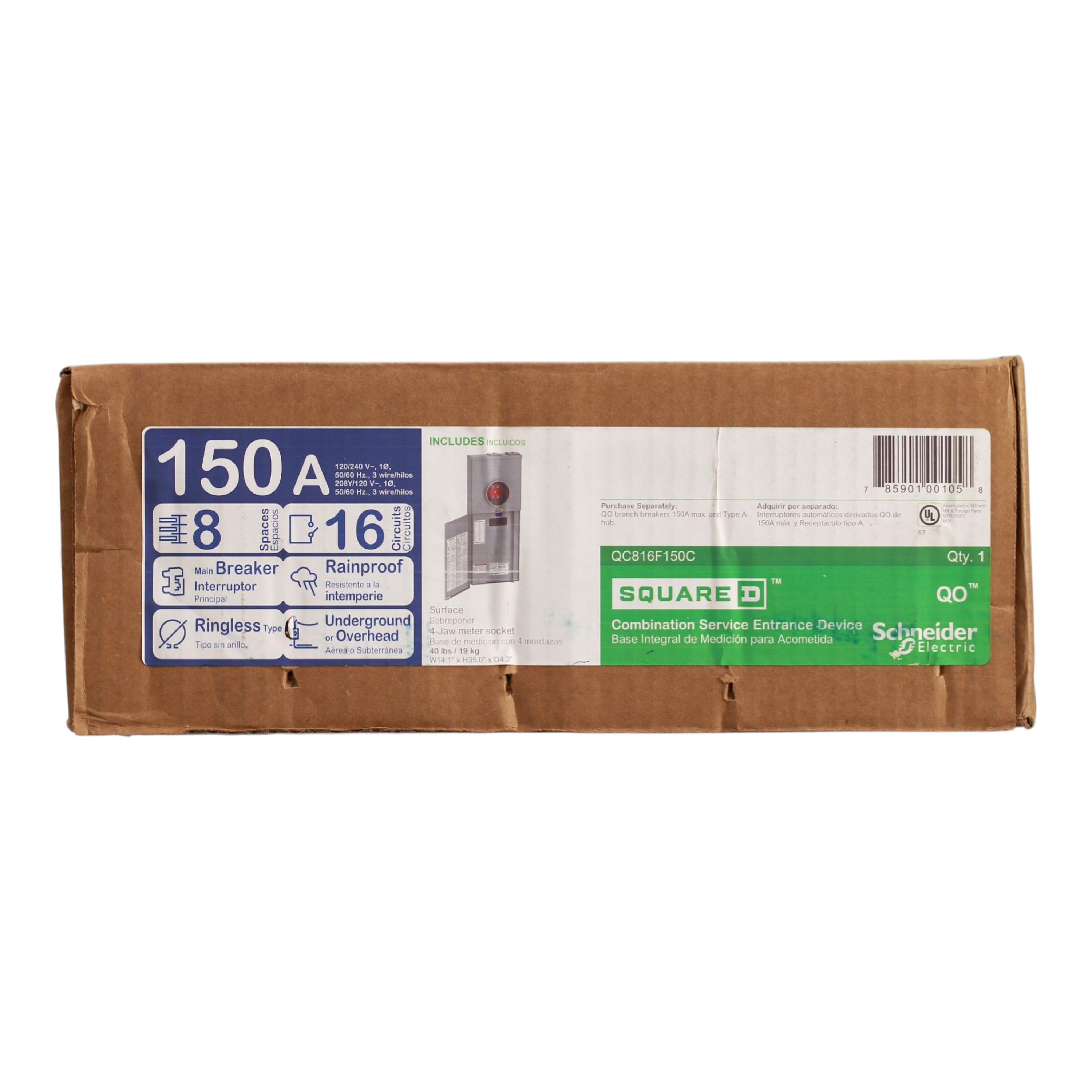

Square D QO, QC816F150C, 150A, 8-Space, Ringless Meter Main, CSED
BULK ORDER Quote.
How Bulk Order Discounts Work
We partner with Cart Whisper to make bulk ordering fast and simple. You can build your cart normally, then submit the entire cart to our team so we can apply bulk pricing and send you a custom quote.
1) Add everything you need to your cart
Shop the site and add all the products and quantities you want — just like a normal order.
2) Open your cart drawer and submit your cart
When you open the cart drawer, you’ll see a Cart Whisper section that looks like this:
Need Help? Cart ID: ####
Submit Cart to Support
Click “Submit Cart to Support” to send your cart to our team.
3) Fill out the quick form
After clicking the submit button, a form will pop up. Please enter:
-
Name
-
Email
-
Short message (what you want / any special notes)
✅ Important: Include your shipping address in the message.
That helps us quote your order accurately, including shipping and taxes (if applicable).
4) We review and send your custom quote
Once we receive your cart submission, we’ll:
-
Review your cart items and quantities
-
Apply any eligible bulk discounts
-
Send you a custom quote with final pricing (and shipping/tax if applicable)
What to include in your message (recommended)
To speed things up, copy/paste this format into the message box:
-
Shipping Address:
-
Notes / Special requests:

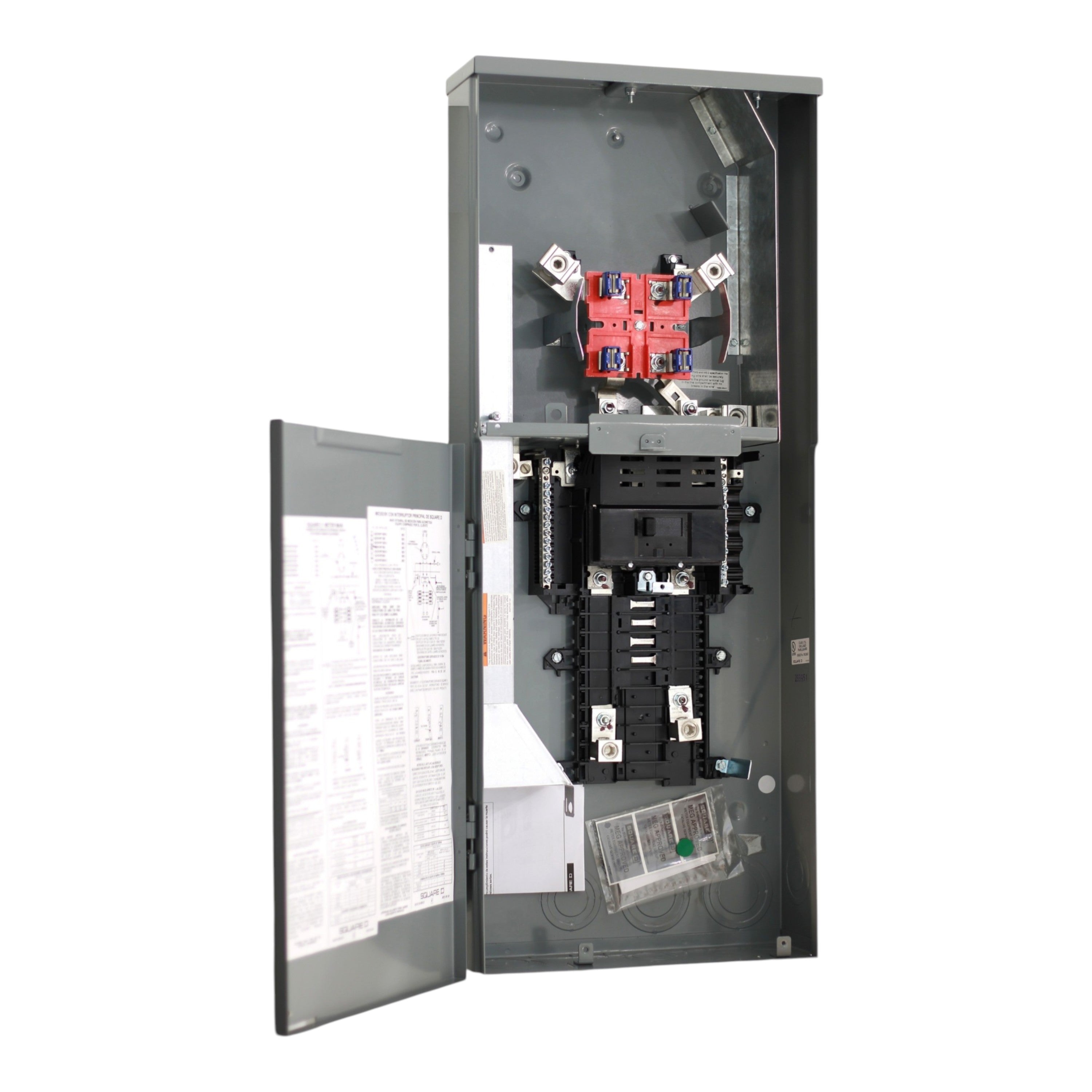

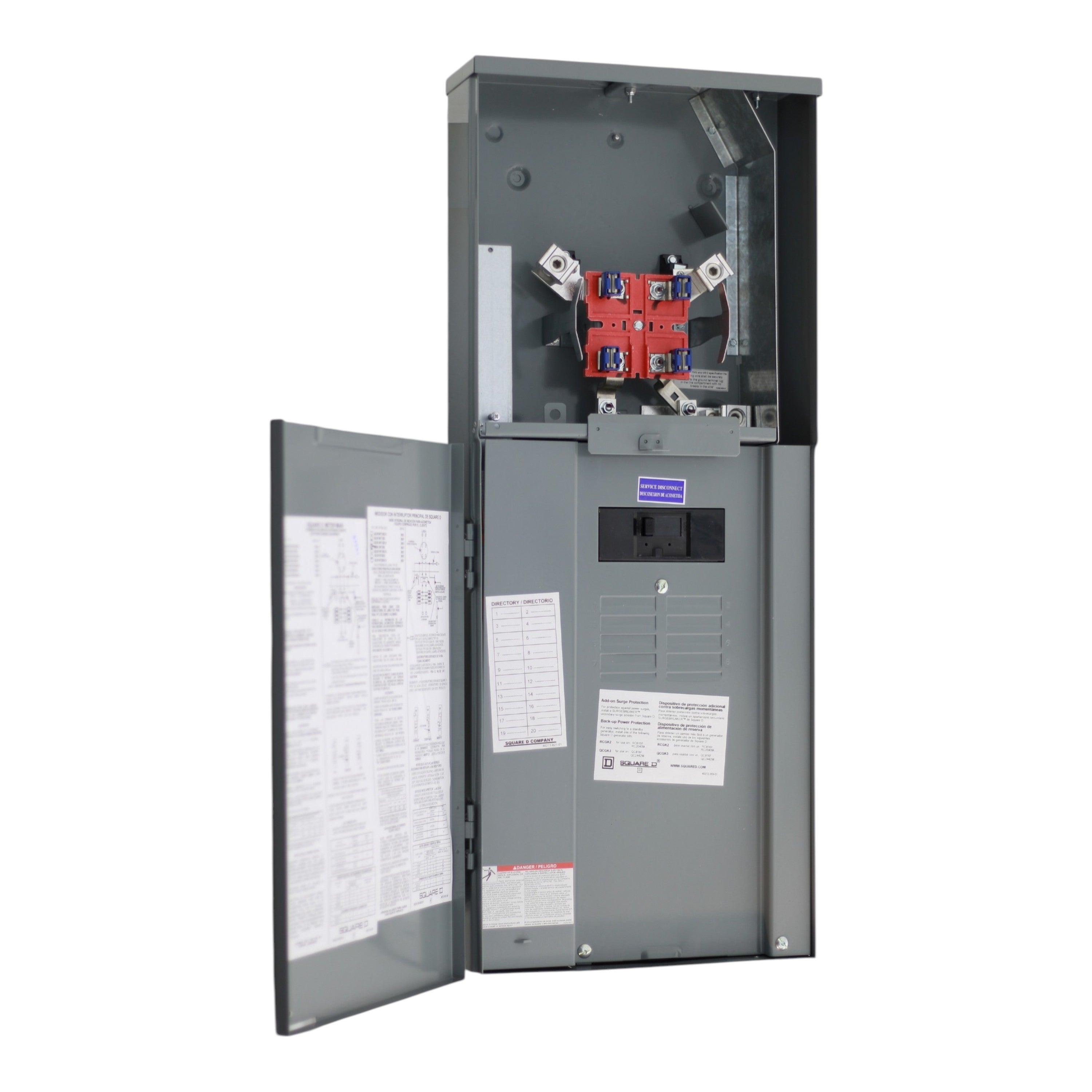

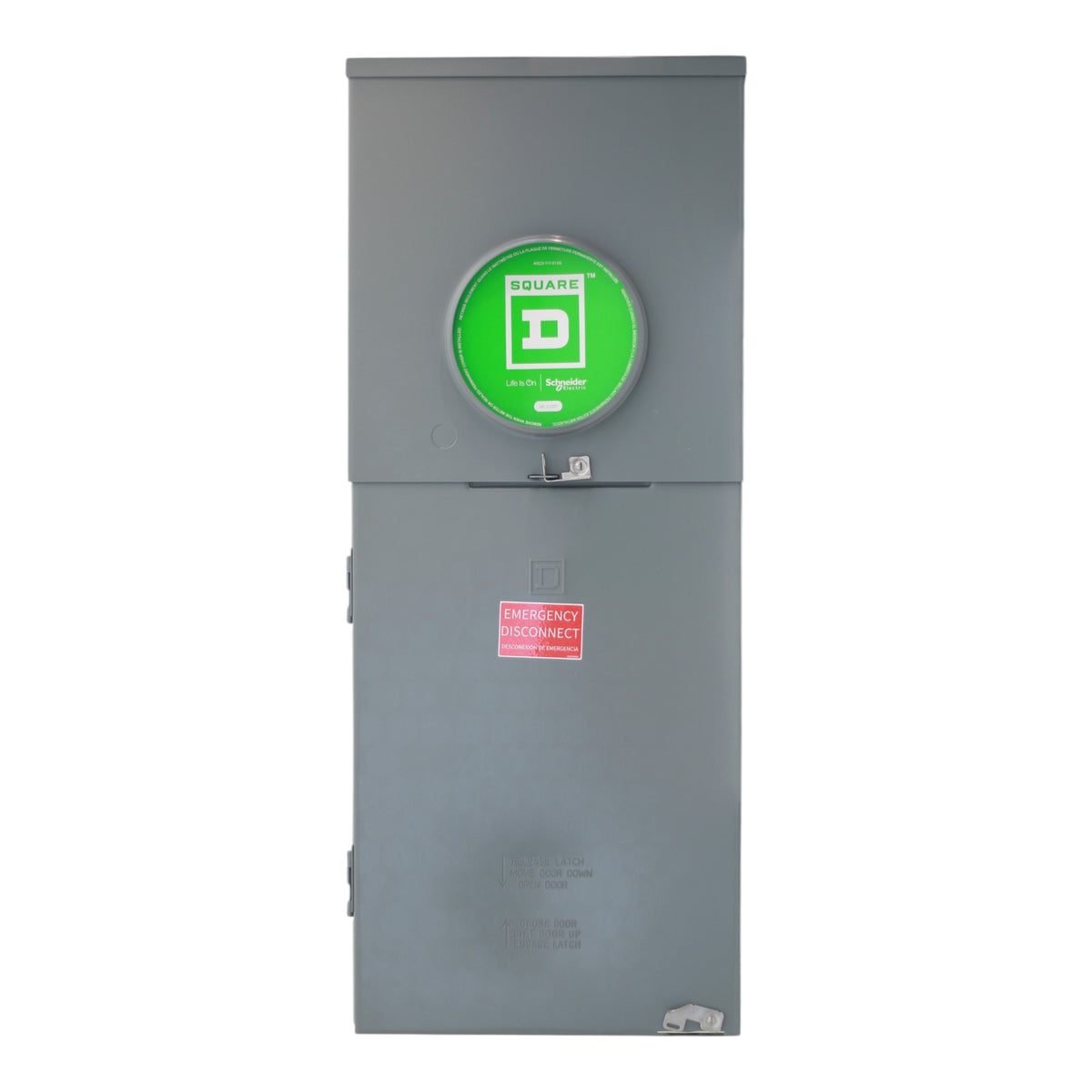

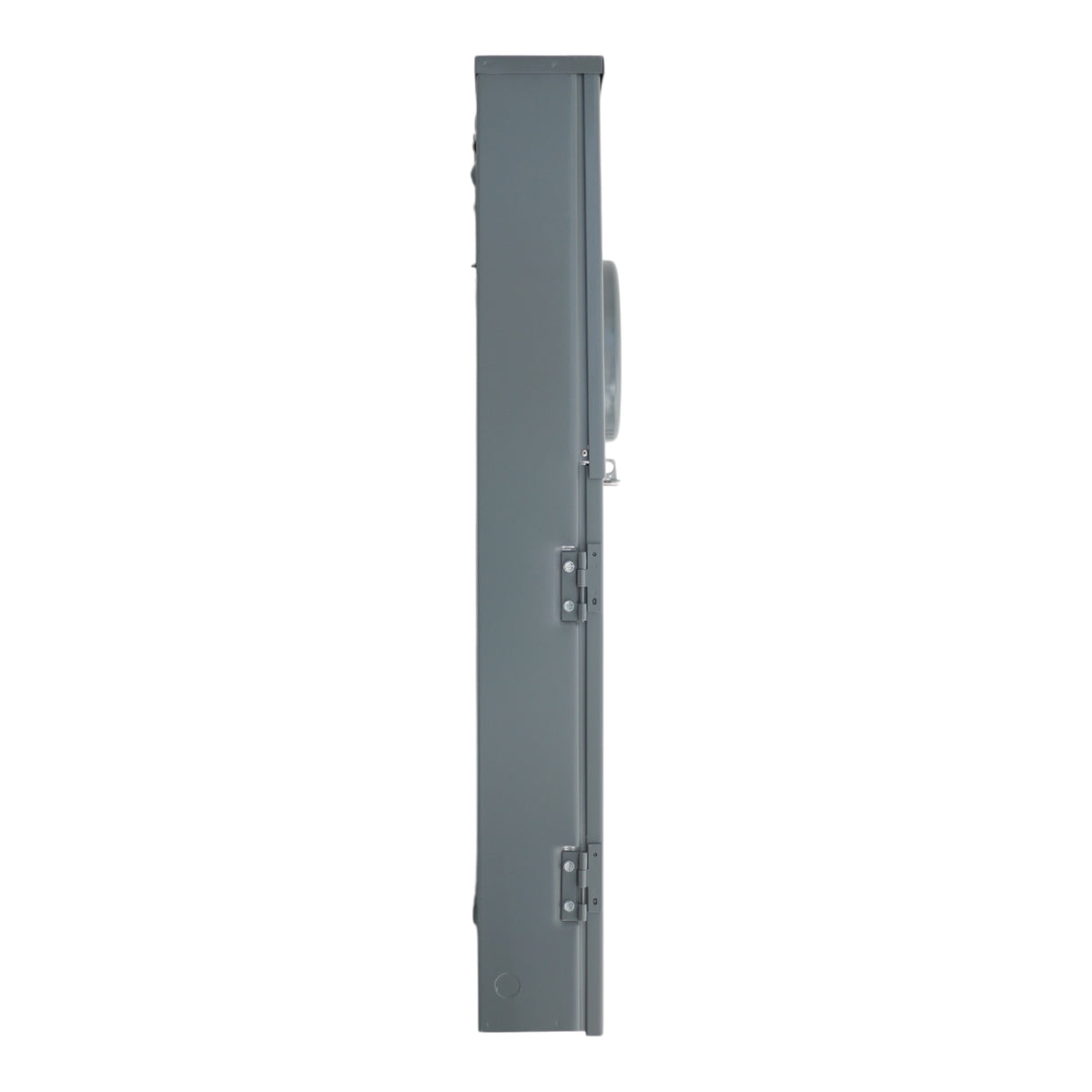

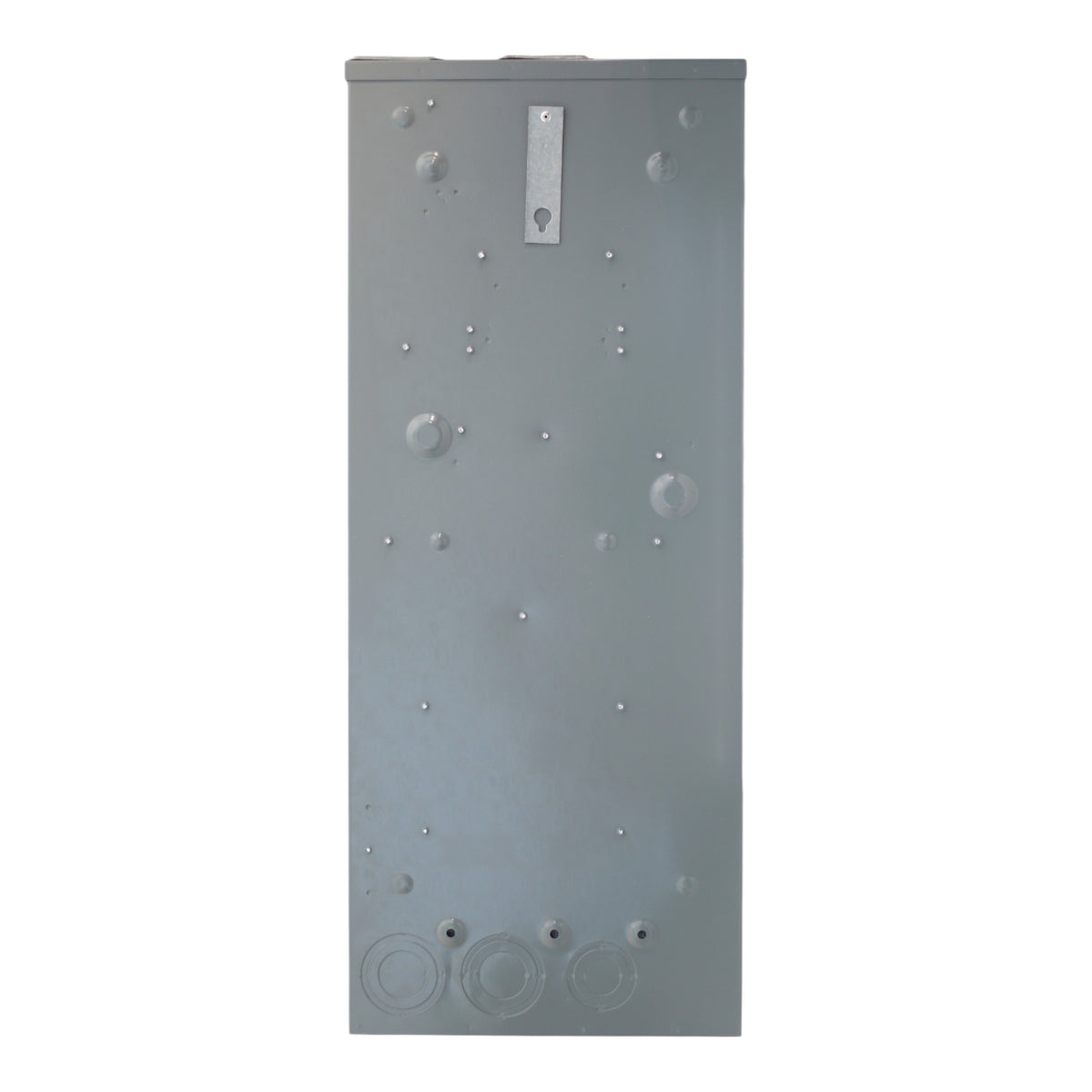

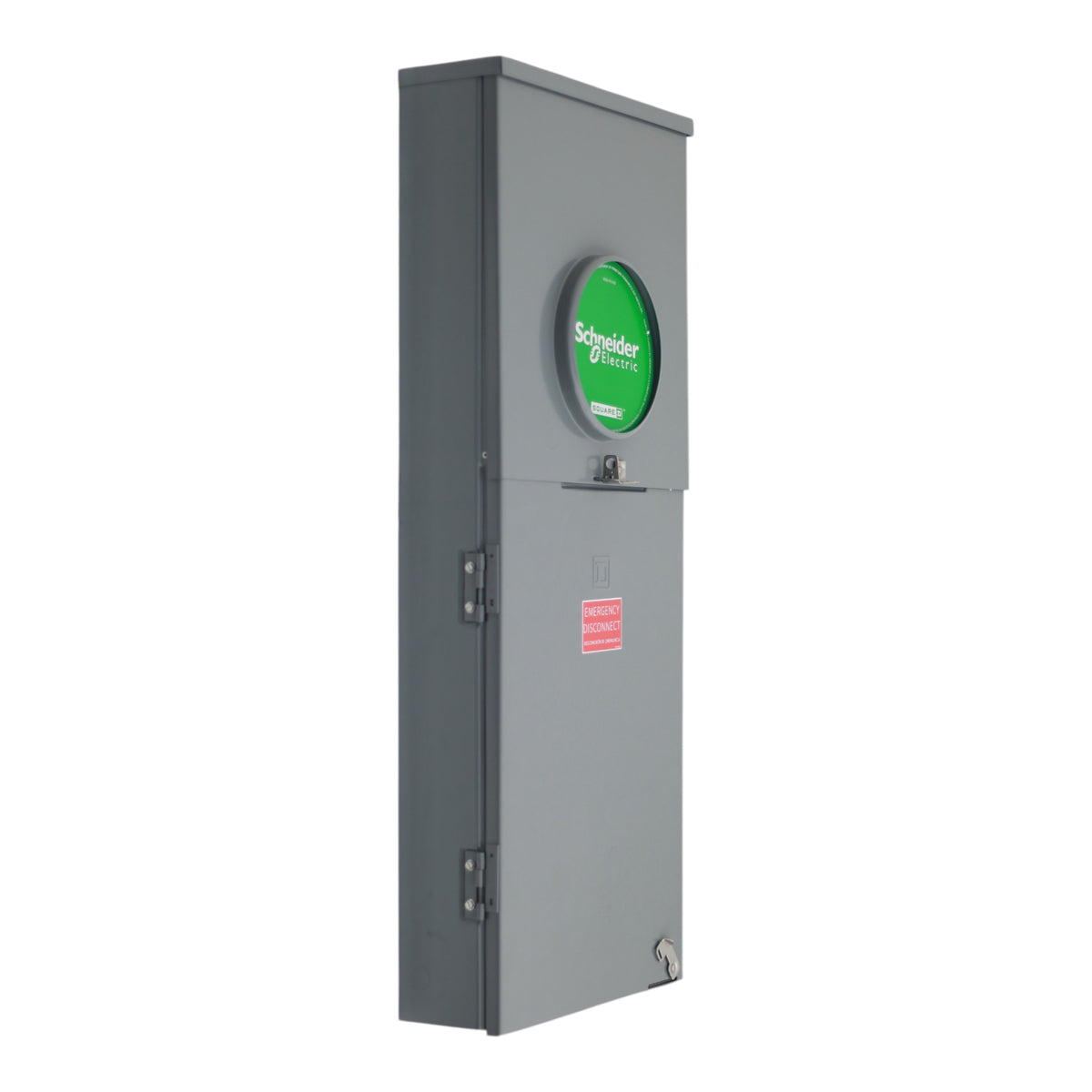

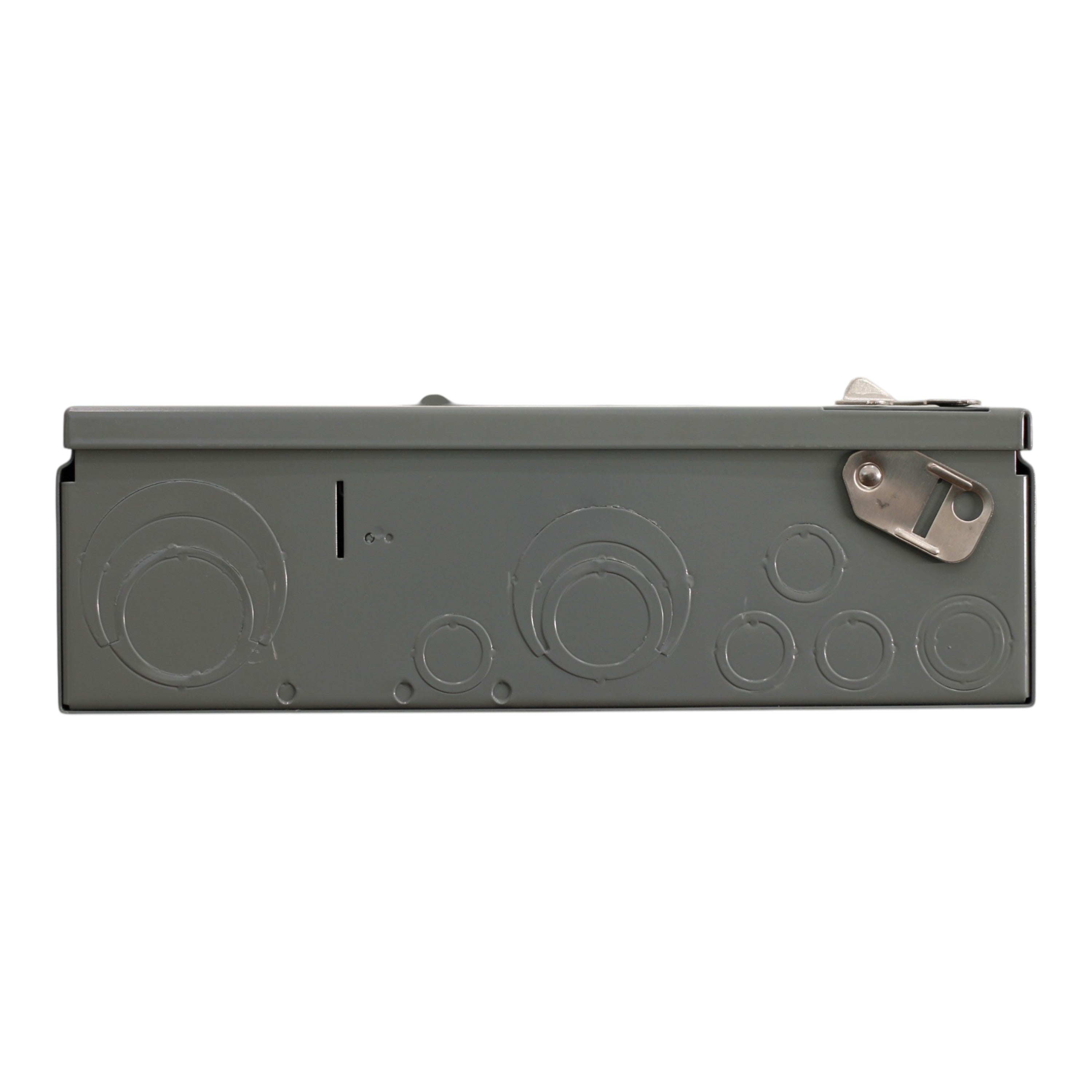

Square D QC816F150C: 150 Amp, 1-Phase, QO Ringless Meter Main, CSED, 8-Space, 16-Circuit, 120/240V, 22kA, surface mount, NEMA 3R, UL listed.
SPECIFICATIONS
- Manufacturer: Schneider Electric
- Brand: Square D
- Product Range: QO (for QO loadcenters and combination service entrance devices)
- UPC: 785901001058
- Model Number: QC816F150C
- Product Type: Combination Service Entrance Device (CSED), Ringless Meter Main
- Main Breaker Rating: 150 Amps
- Bus Rating: 200 Amps
- Phases: 1-Phase, 3-Wire
- Voltage: 120/240 Volts AC
- Short Circuit Current Rating (SCCR): 22 kAIC
- Number of Spaces: 8
- Number of Circuits: 16 (supports up to 8 tandem breakers)
- Meter Socket Type: Ringless
- Bypass: No bypass
- Mounting Mode: Surface mount (convertible to semi-flush with optional flange kit)
- Service Feed: Overhead (OH) or Underground (UG)
- Enclosure Rating: NEMA 3R (Rainproof)
- Wire Size (Line): #6 AWG – 350 kcmil Al/Cu
- Wire Size (Service Ground): #12 AWG – 2/0 AWG Al/Cu
- Tightening Torque: Main lugs 250 lb-in; Service ground 50 lb-in; Branch lugs 20–35 lb-in (varies by wire size)
- Dimensions: Height: 35.15 in; Width: 14.37 in; Depth: 5.07 in
- Weight: 43.041 lbs
- Certifications: UL Listed (UL E-6294)
This Square D QC816F150C QO ringless meter main CSED delivers 150 Amp, 1-phase service entrance in an 8-space, 16-circuit surface mount NEMA 3R enclosure. With 22kA SCCR and feed-thru lugs for OH/UG service, it is UL Listed for residential service entrance applications.
