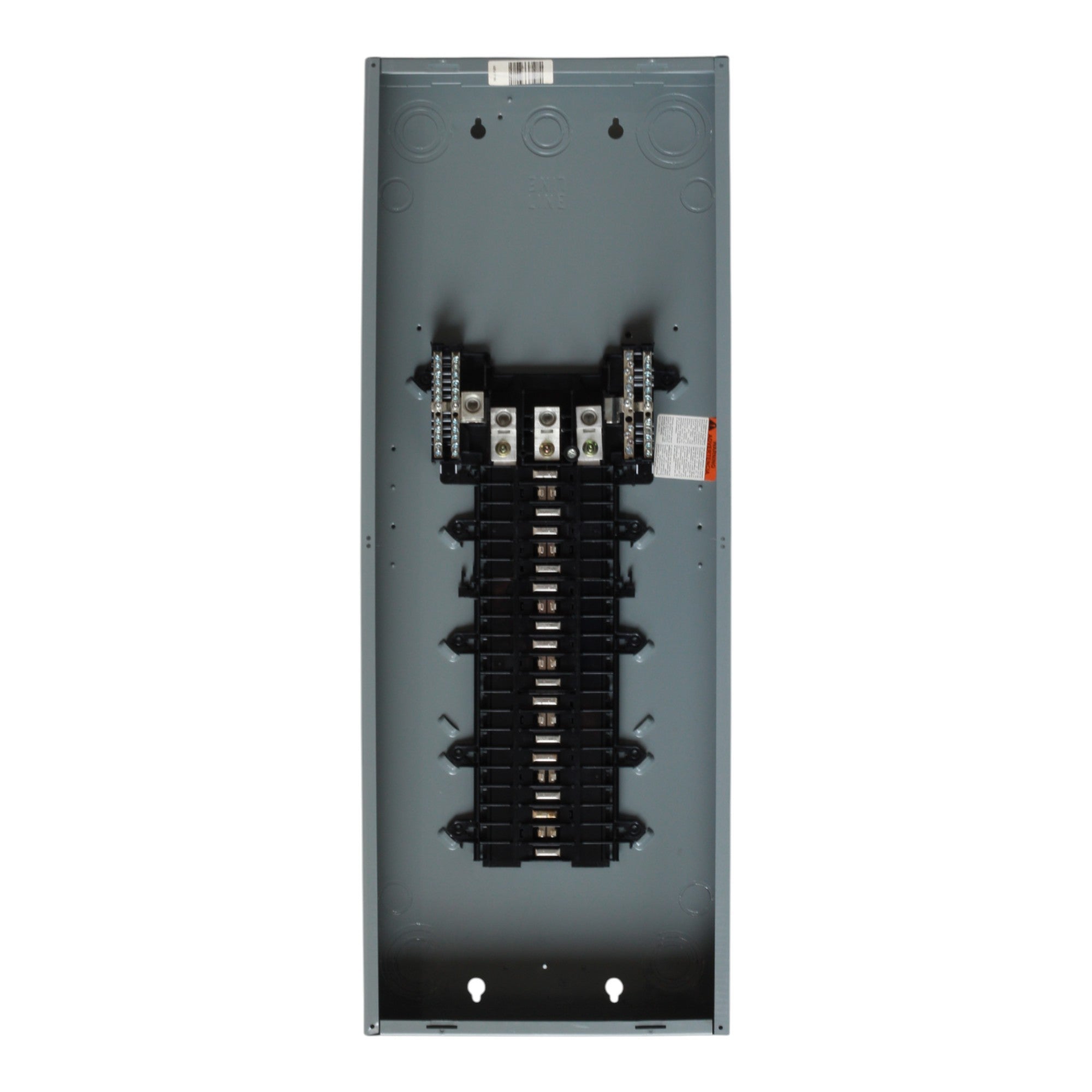

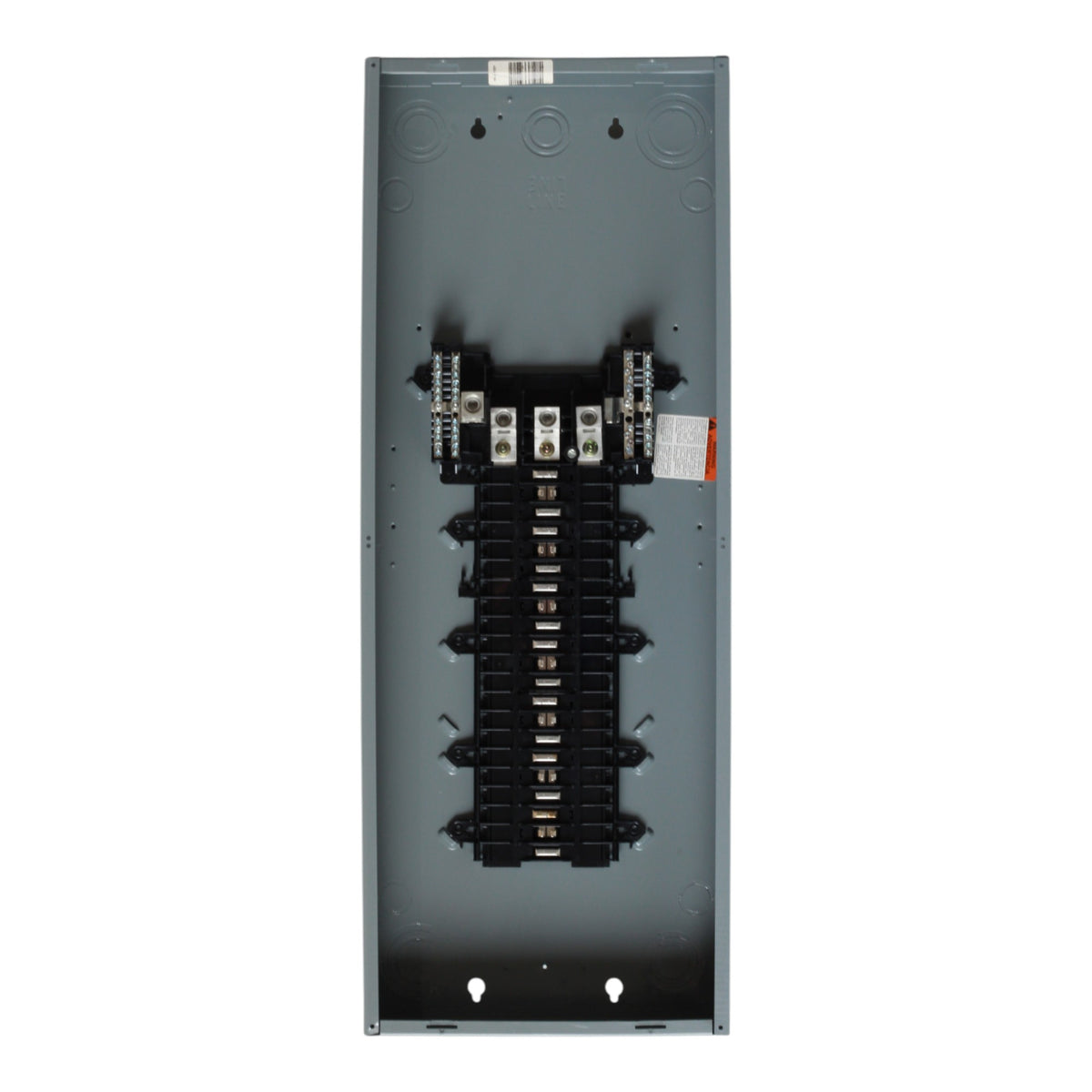

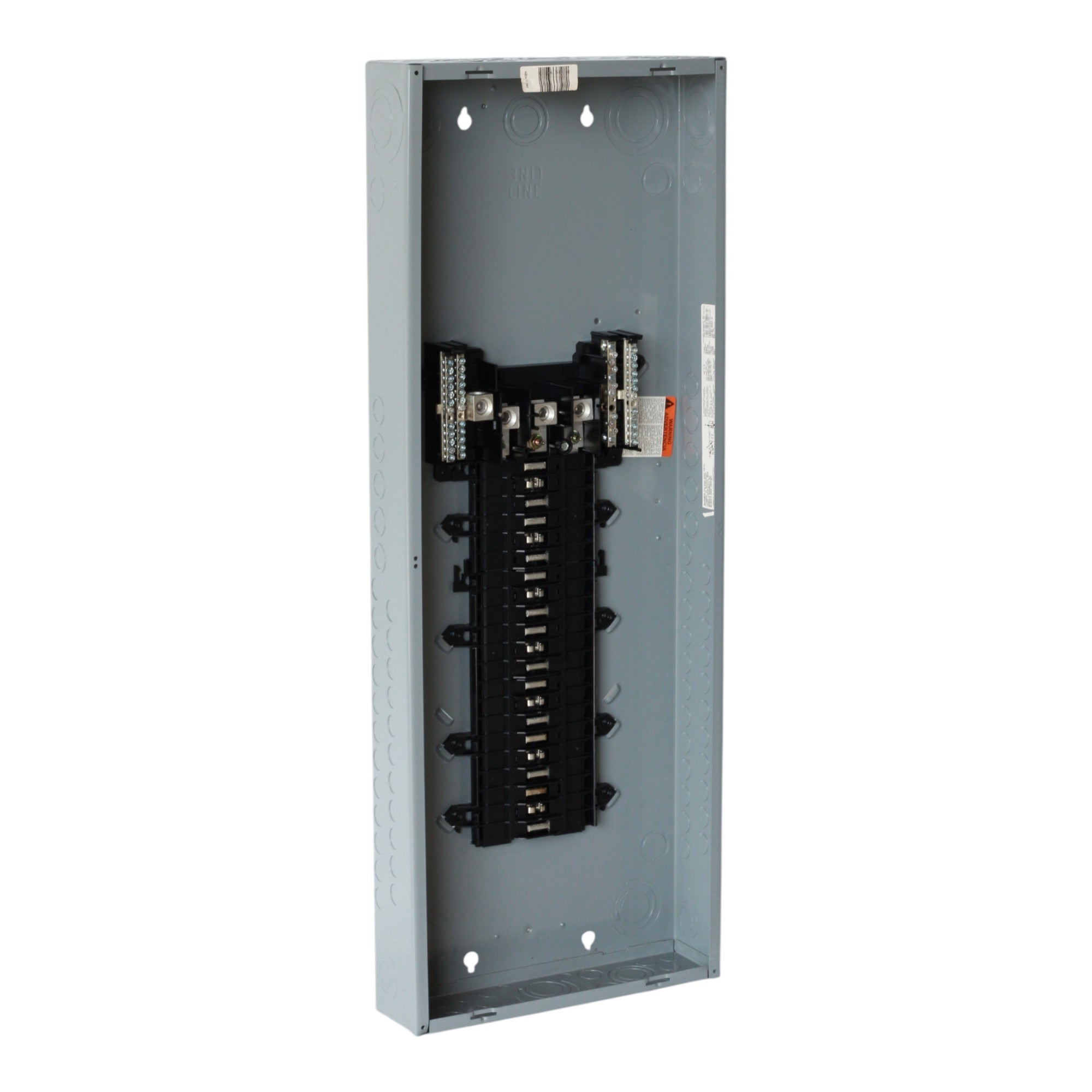

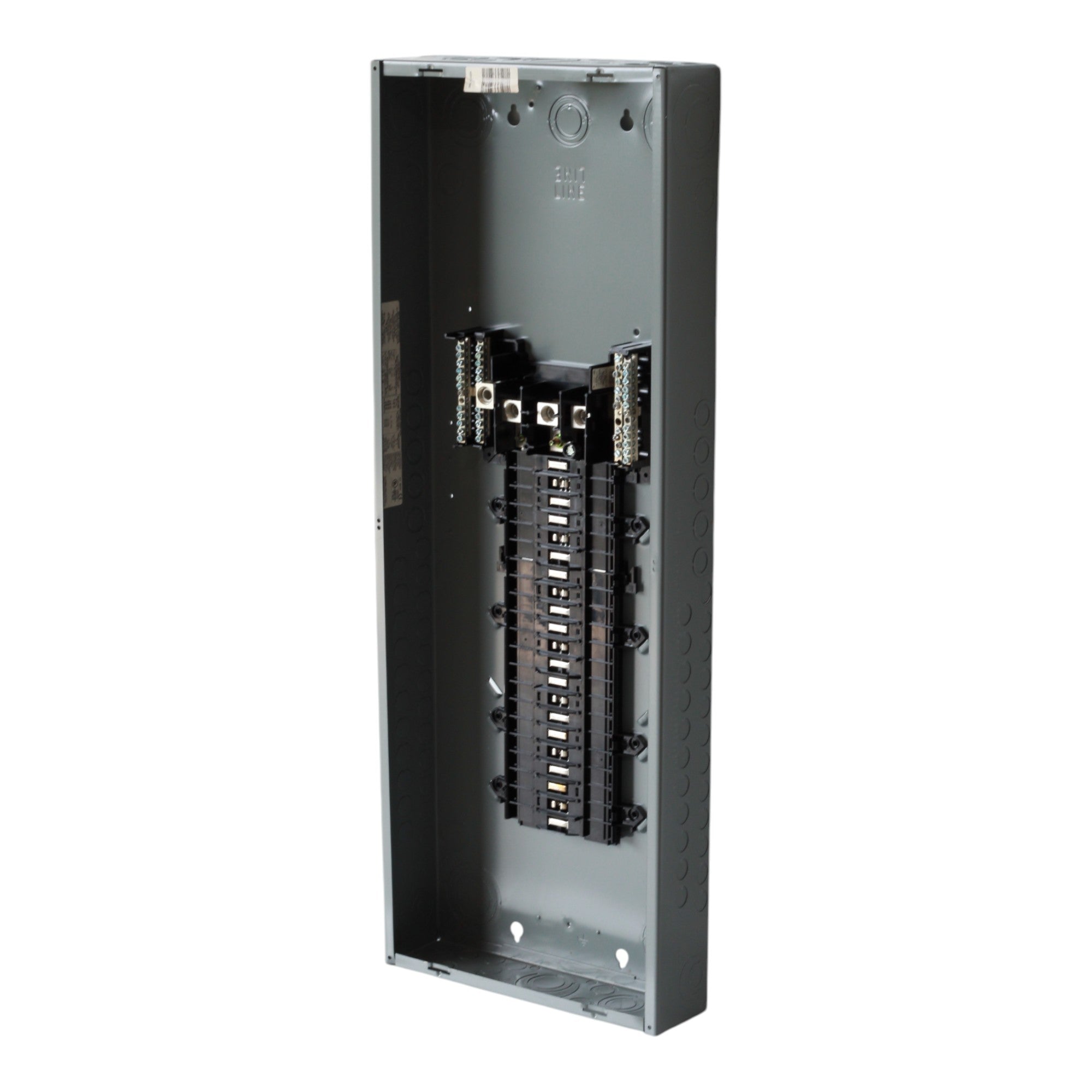

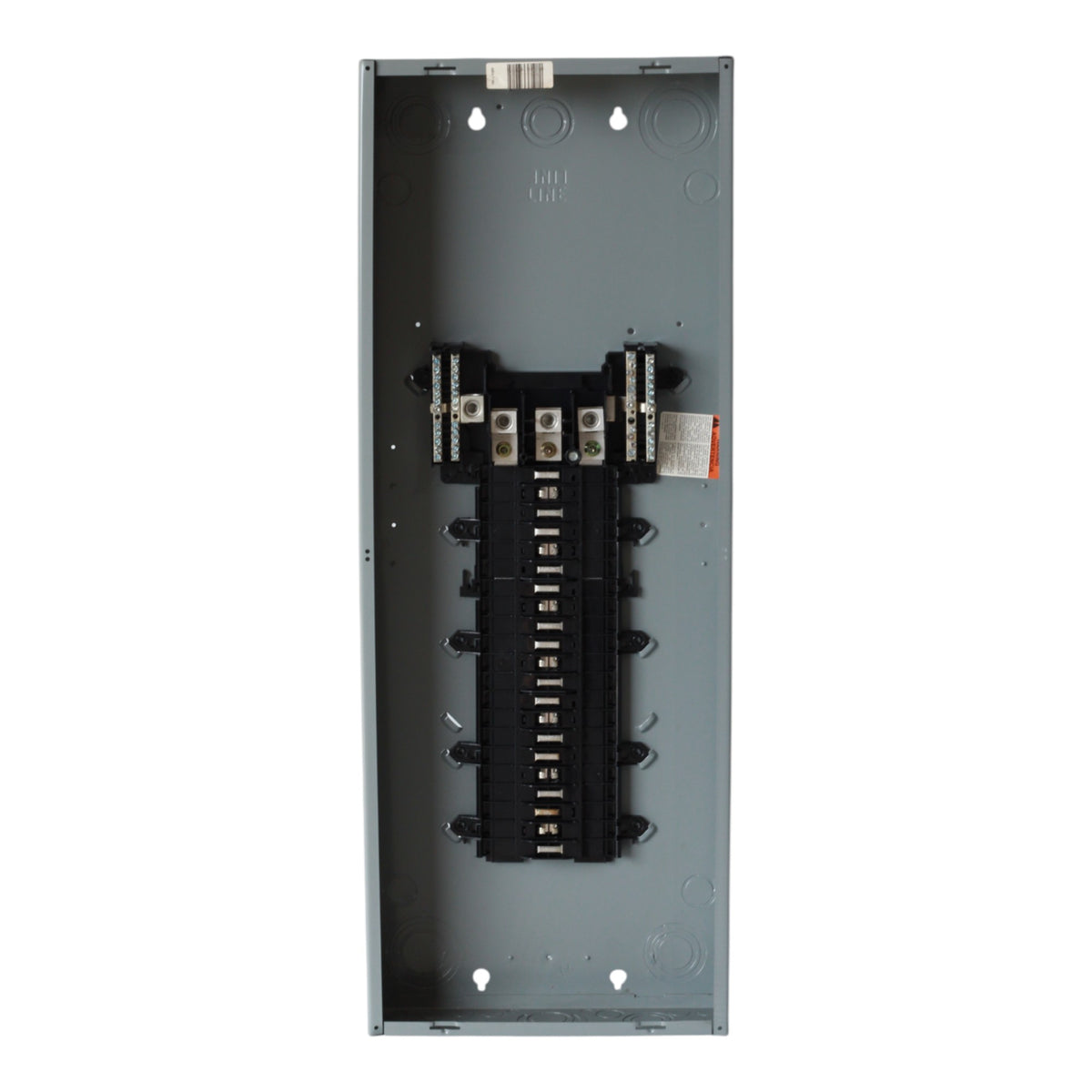

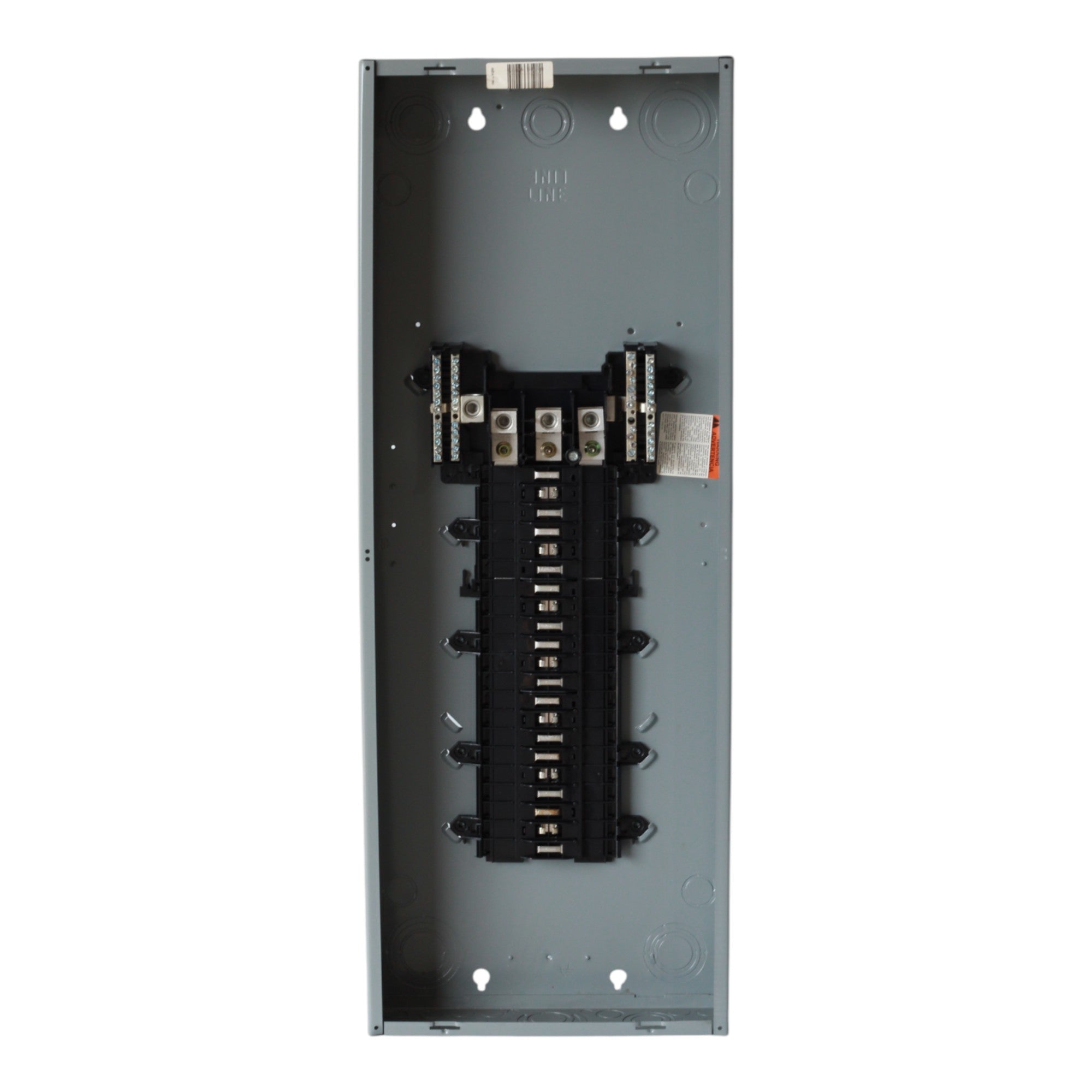

Square D QO QO342L225G 225A 3P 208Y/120V Load Center NEMA 1

Square D QO342L225G: 225 Amp 3-Phase Load Center, 208Y/120V, 42 spaces, 42 circuits, fixed main lugs, NEMA 1 indoor, tin-plated copper busbar, UL listed.

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Range: QO (for Square D QO loadcenters and equipment)
• UPC: 785901295532
• Model Number: QO342L225G
• Product Type: Load Center
• Rated Current: 225 Amps
• Number of Phases: 3-Phase (4 wires or 3 wires)
• Voltage Rating: 208Y/120V AC, 240/120V delta AC, 240V delta AC
• Number of Spaces: 42
• Maximum Number of Single Pole Circuits: 42
• Maximum Number of Tandem Breakers: 0
• Short Circuit Current Rating: 65 kAIC
• Busbar Material: Tin-plated copper
• Wire Size: AWG 6...300 kcmil (Al/Cu)
• Tightening Torque: Main lugs: 250 lb-in; Cover: 20 lb-in
• Mounting Mode: Surface mount

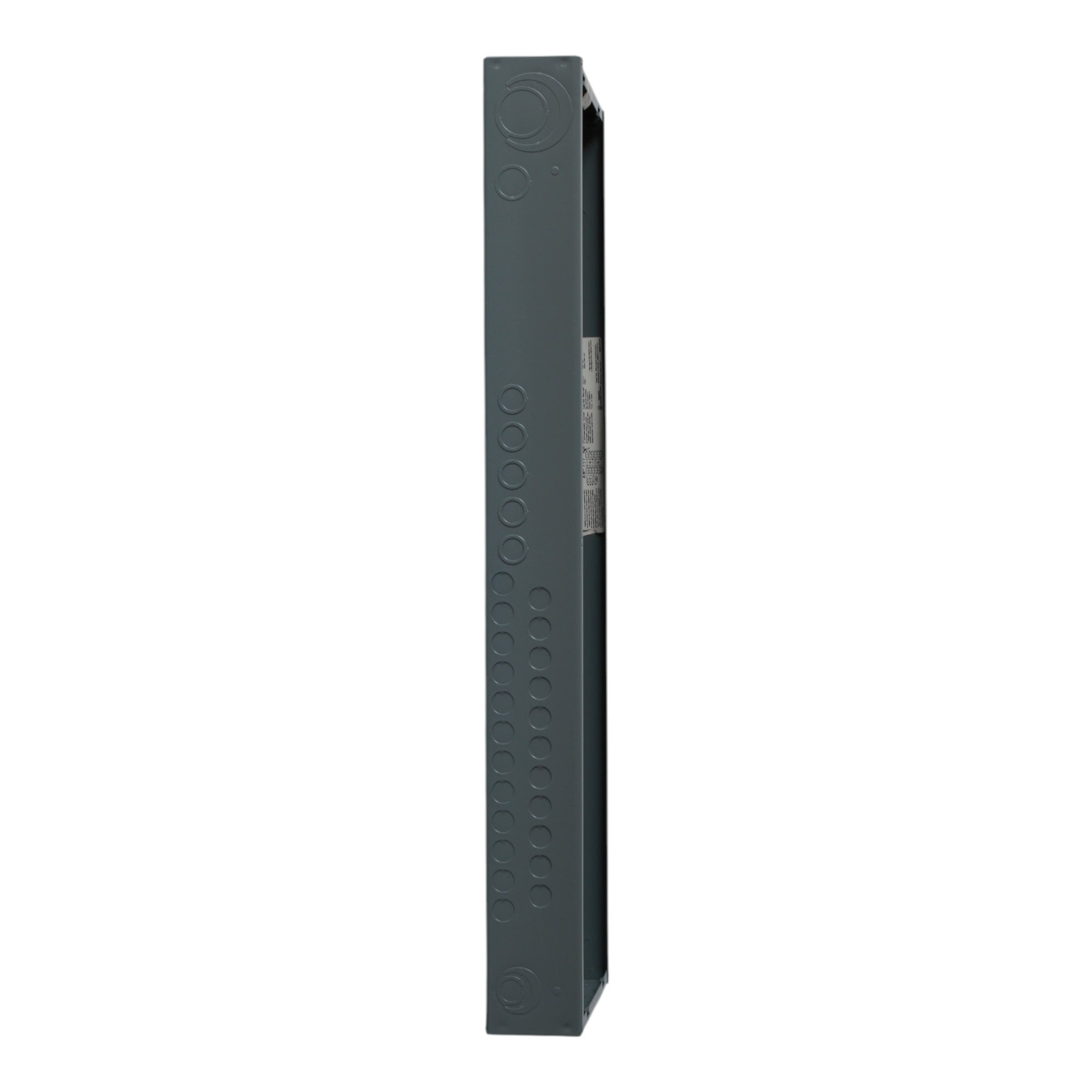

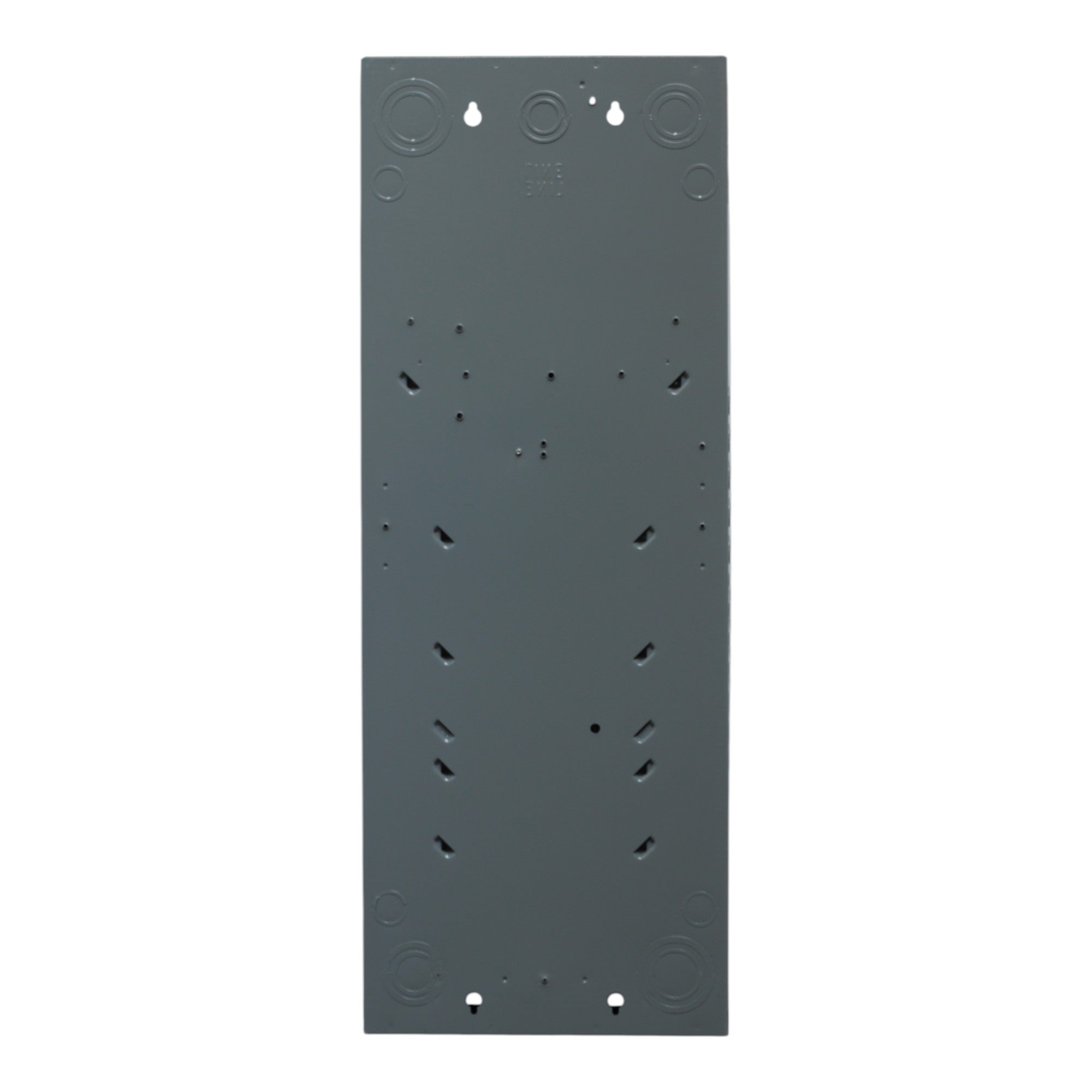

• Enclosure Material: Welded sheet steel
• Enclosure Rating: NEMA 1 indoor

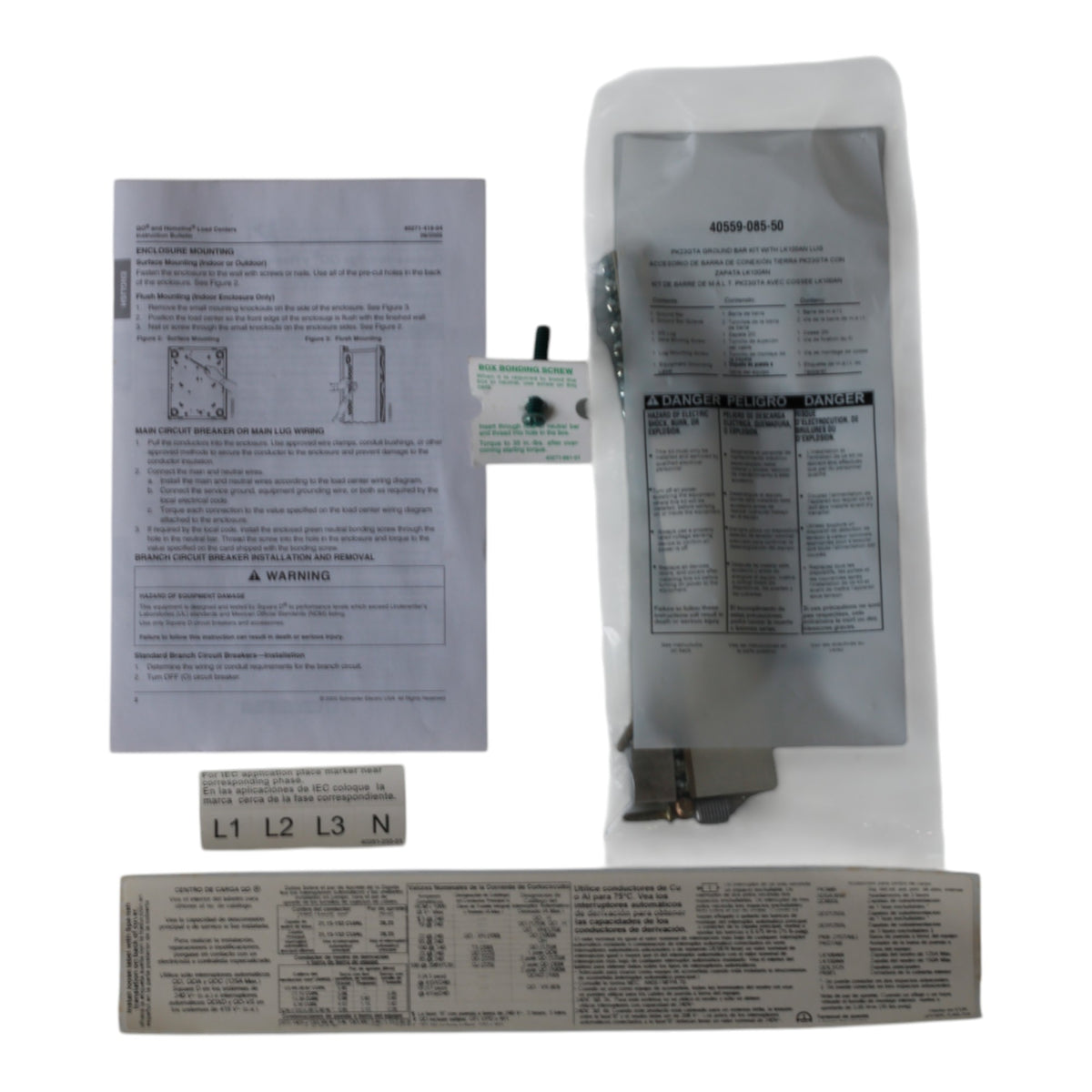

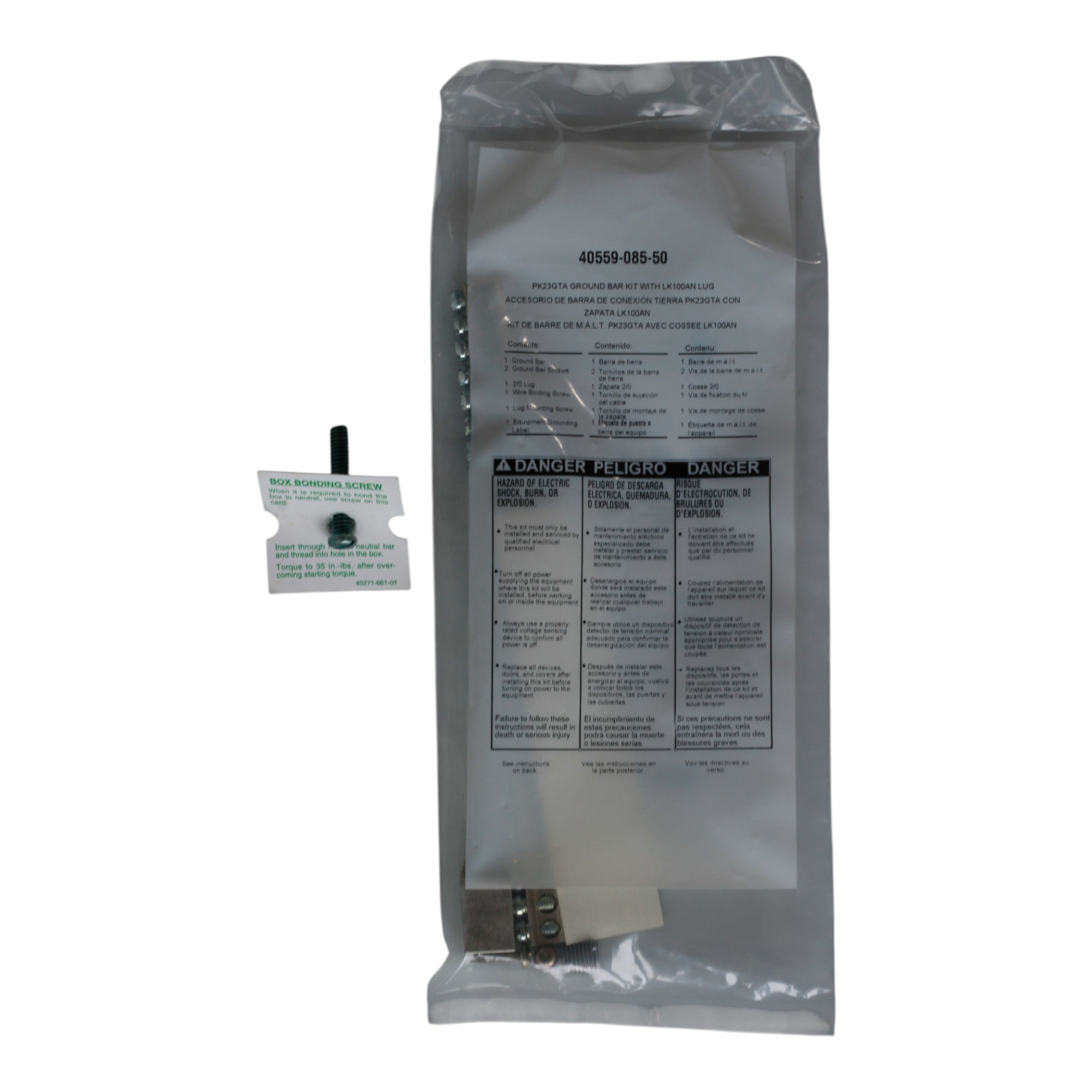

• Ground Bar: Grounding bar included (not installed)
• Dimensions: Height: 38.0 in; Width: 14.3 in; Depth: 3.8 in
• Weight: 21.45 lbs
• Certifications: UL Listed

This Square D QO342L225G load center provides reliable 225A, 3-phase power distribution for 208Y/120V or 240V delta circuits in QO loadcenters. With 42 spaces and a 65kA short circuit rating, it supports QO breakers, arc-fault, ground-fault, and surge protection devices, ensuring safety and compatibility for residential and industrial applications.
