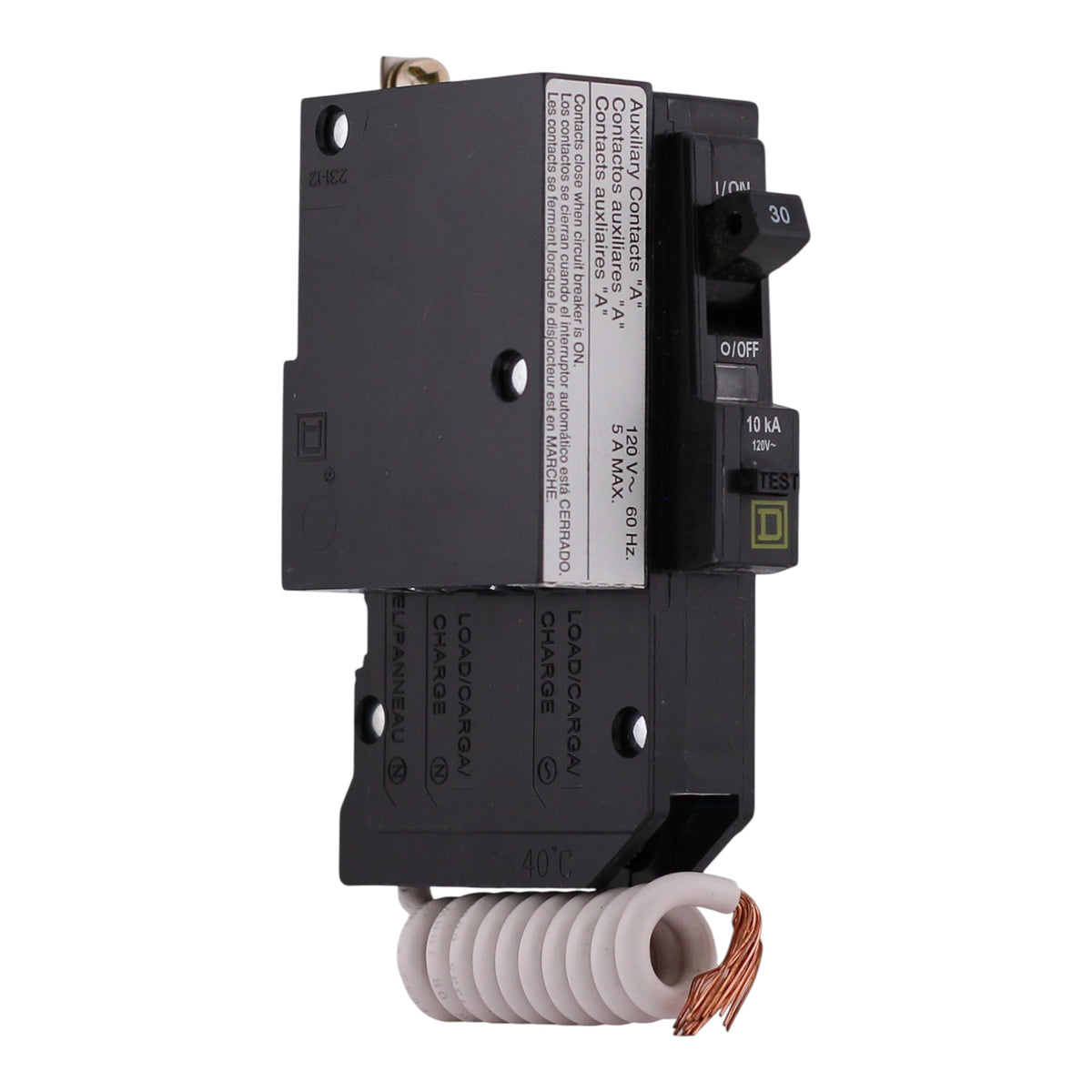

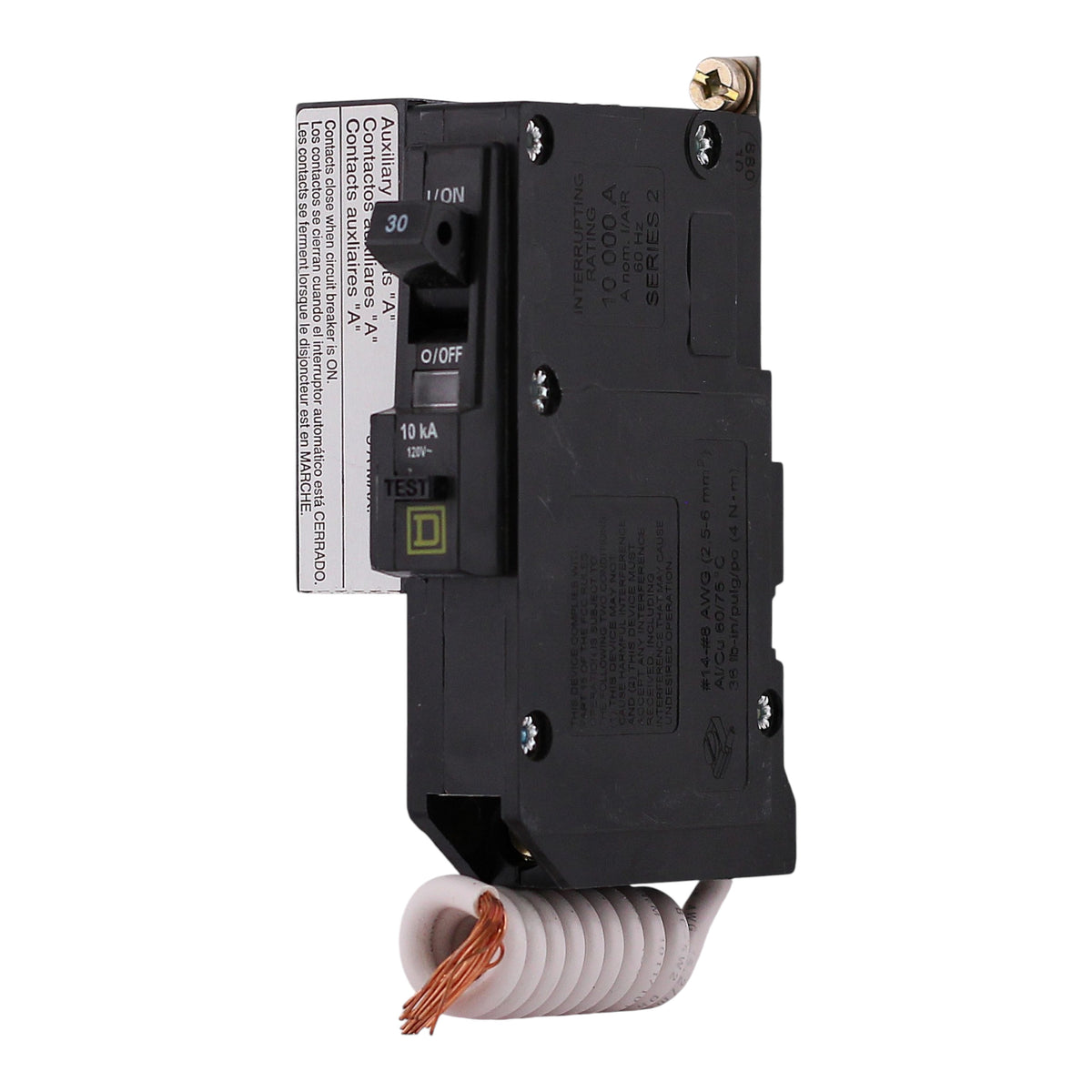

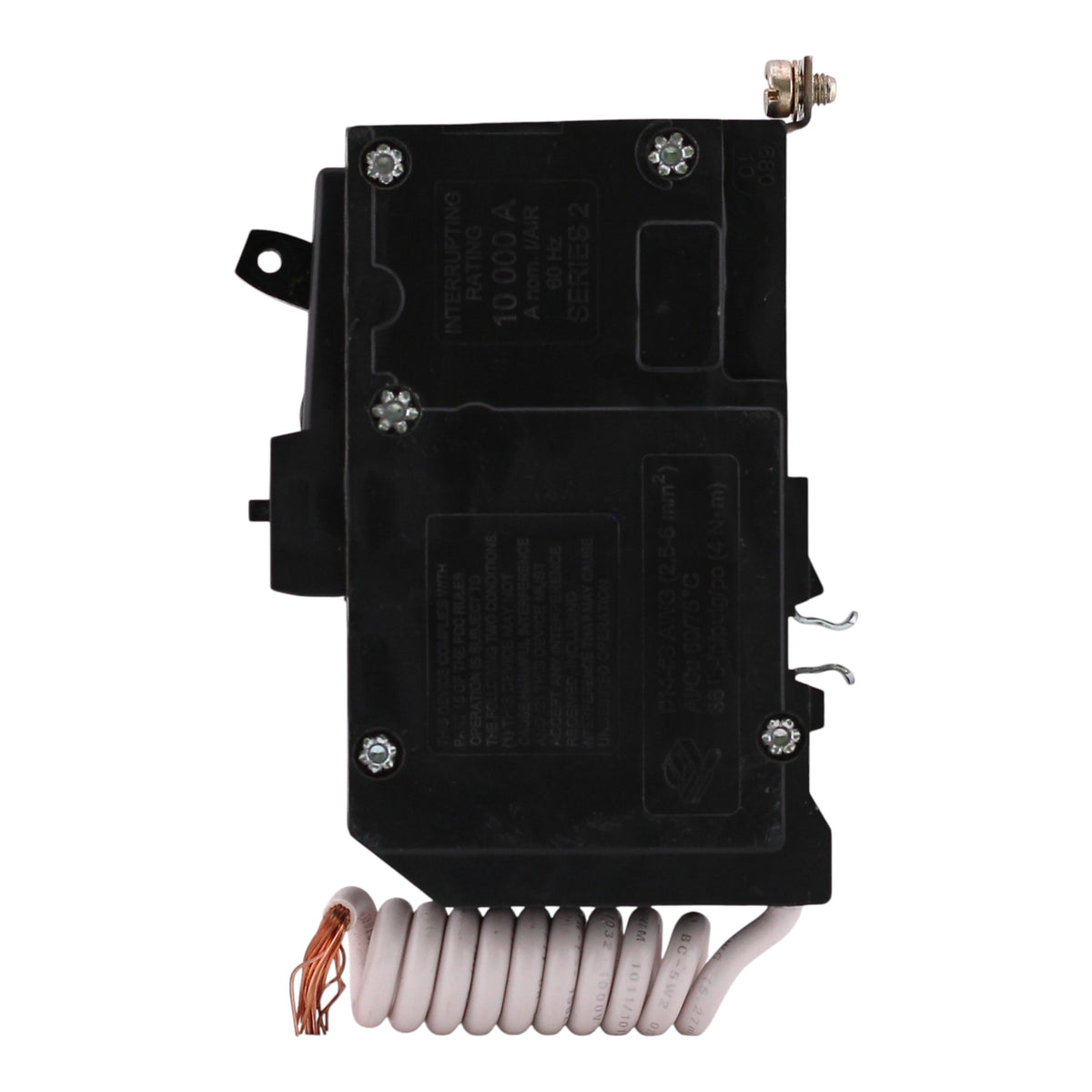

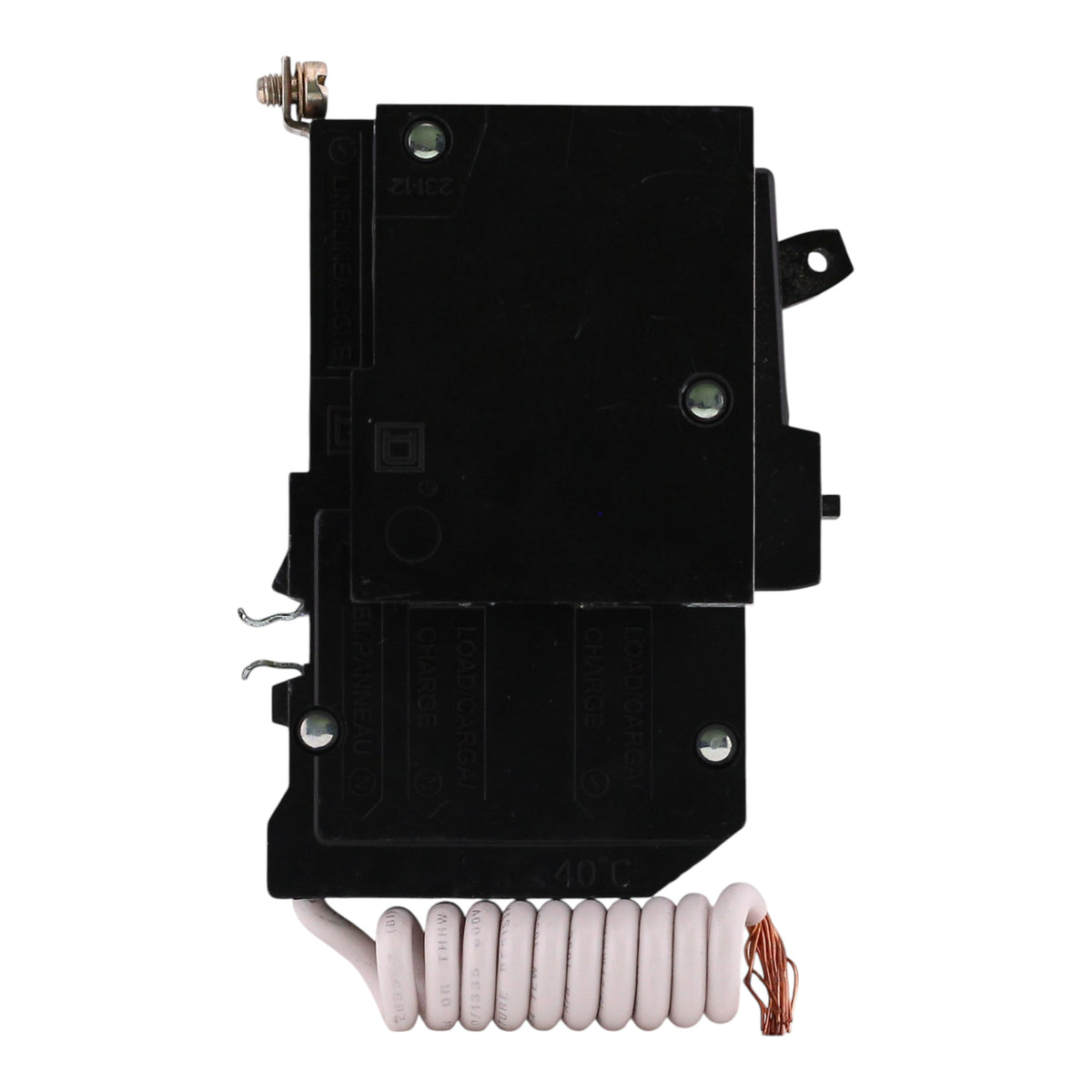

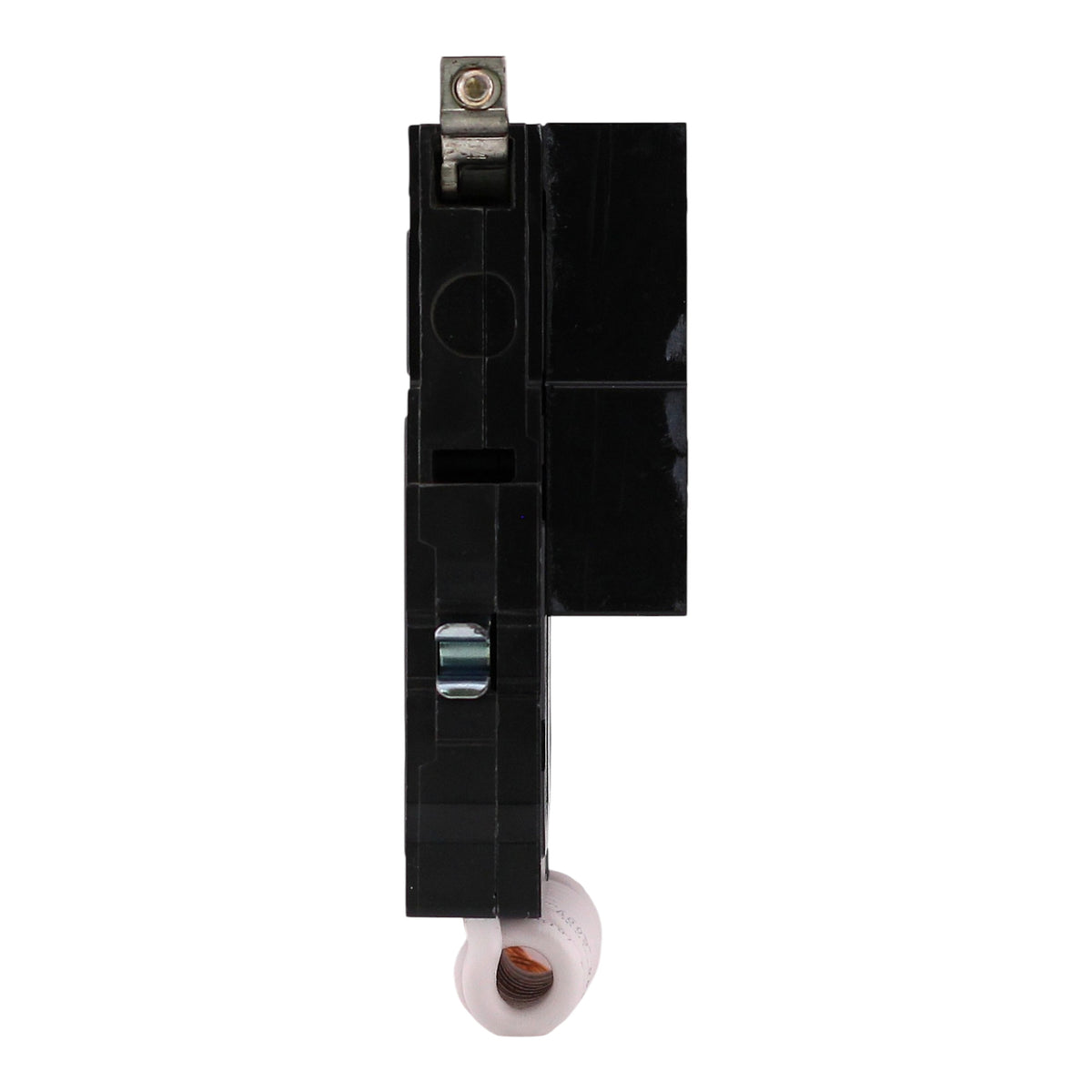

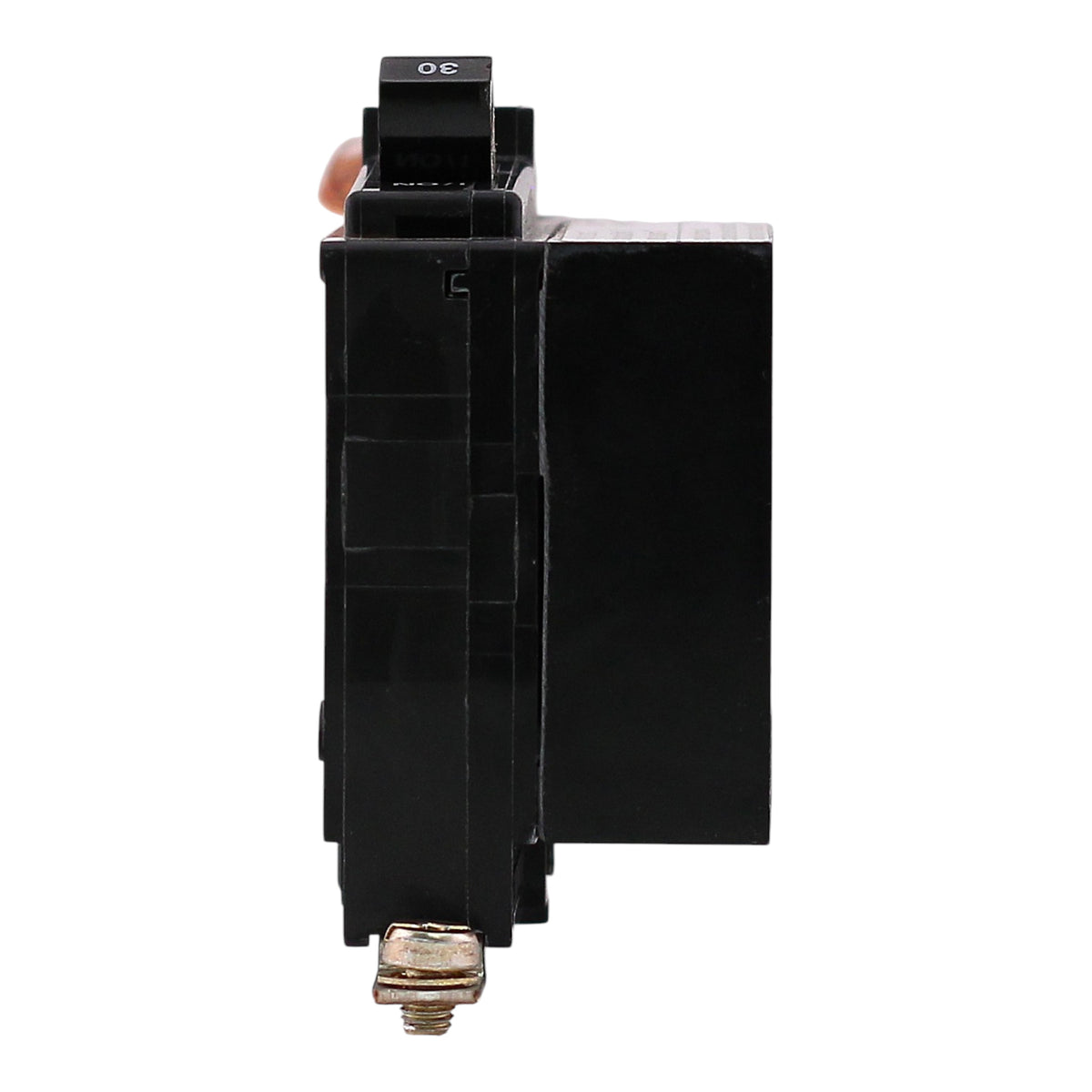

Square D QO, QOB130EPD1200, 30A, 1P, 120V, GFCI Class B, Aux Switch, Bolt-On
Regular price
$97.00
Not sure it fits? Send us a photo of your panel label or the old breaker and we'll confirm the right part.
Email us a photoor text it to (346) 249-5974 · Breaker Finder
📦 Calculate shipping cost
BULK ORDER Quote.
How Bulk Order Discounts Work
We partner with Cart Whisper to make bulk ordering fast and simple. You can build your cart normally, then submit the entire cart to our team so we can apply bulk pricing and send you a custom quote.
1) Add everything you need to your cart
Shop the site and add all the products and quantities you want — just like a normal order.
2) Open your cart drawer and submit your cart
When you open the cart drawer, you’ll see a Cart Whisper section that looks like this:
Need Help? Cart ID: ####
Submit Cart to Support
Click “Submit Cart to Support” to send your cart to our team.
3) Fill out the quick form
After clicking the submit button, a form will pop up. Please enter:
-
Name
-
Email
-
Short message (what you want / any special notes)
✅ Important: Include your shipping address in the message.
That helps us quote your order accurately, including shipping and taxes (if applicable).
4) We review and send your custom quote
Once we receive your cart submission, we’ll:
-
Review your cart items and quantities
-
Apply any eligible bulk discounts
-
Send you a custom quote with final pricing (and shipping/tax if applicable)
What to include in your message (recommended)
To speed things up, copy/paste this format into the message box:
-
Shipping Address:
-
Notes / Special requests:

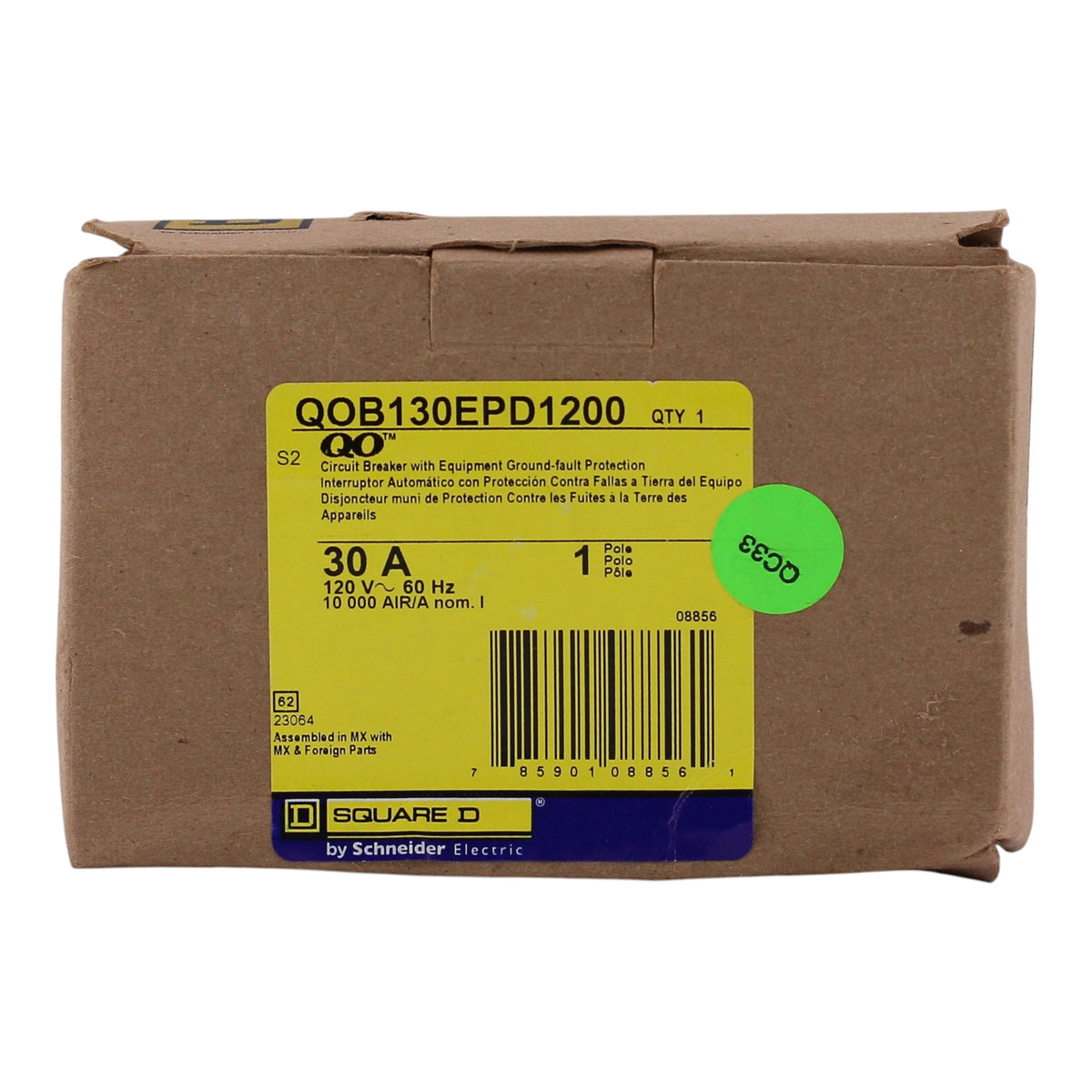

Square D QOB130EPD1200: 30 Amp, 1-Pole, QO bolt-on GFCI equipment protection device, 120V, 10kAIC, 30mA Class B, auxiliary switch 1A, 2-space, UL Listed, CSA.
- Manufacturer: Schneider Electric (Square D)
- Brand: Square D
- Product Range: QO (for NQ/NQOD panelboards and QO bolt-on applications)
- UPC: 785901088561
- Model Number: QOB130EPD1200
- Breaker Type: Ground-Fault Equipment Protection Device (EPD), Class B, 30 mA
- Amperage: 30 Amps
- Poles: 1-Pole
- Voltage: 120 Volts AC
- Interrupt Rating: 10 kAIC
- Mounting Mode: Bolt-on
- Number of Panel Spaces: 2

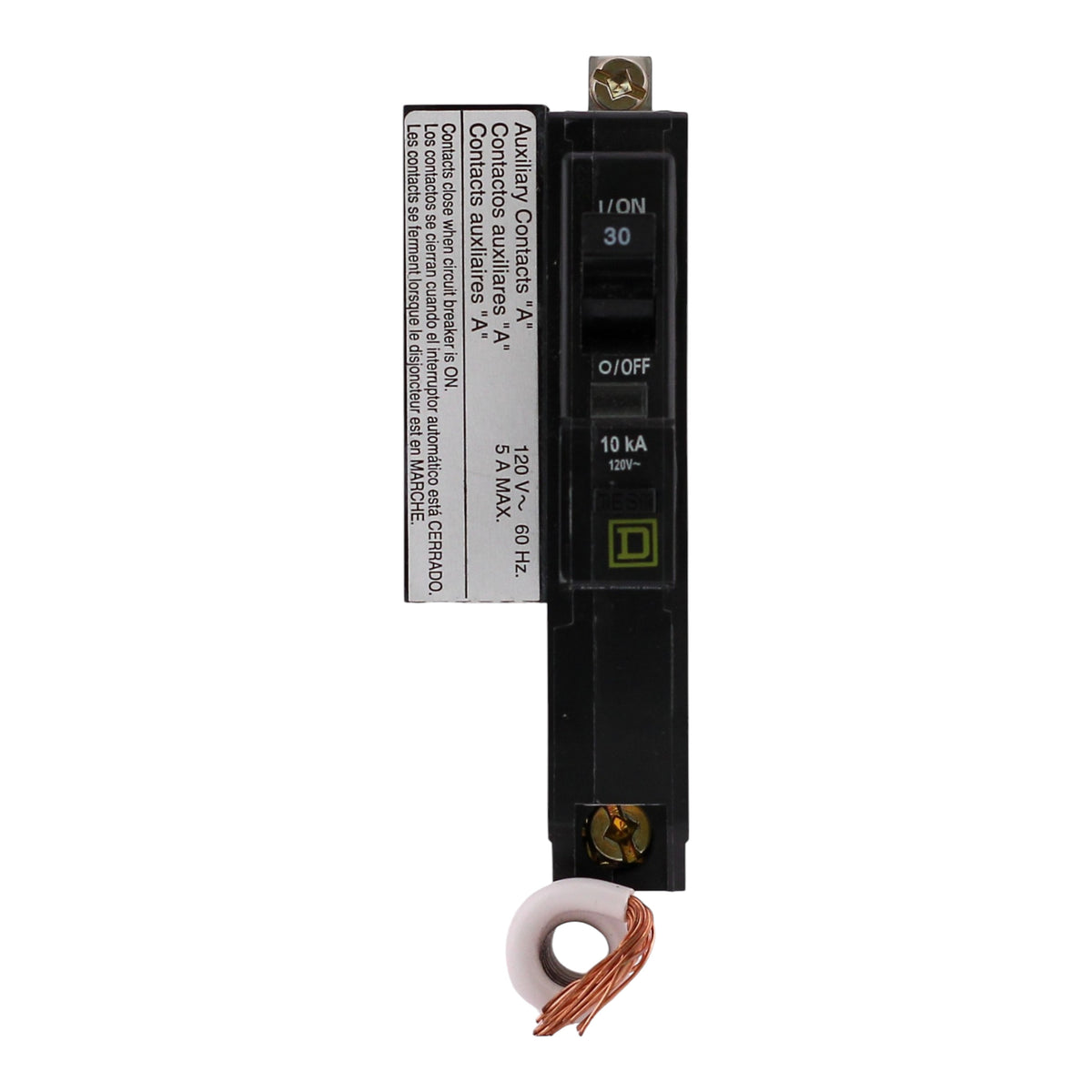

- Options: Auxiliary switch, 120V AC, 1A (factory installed)

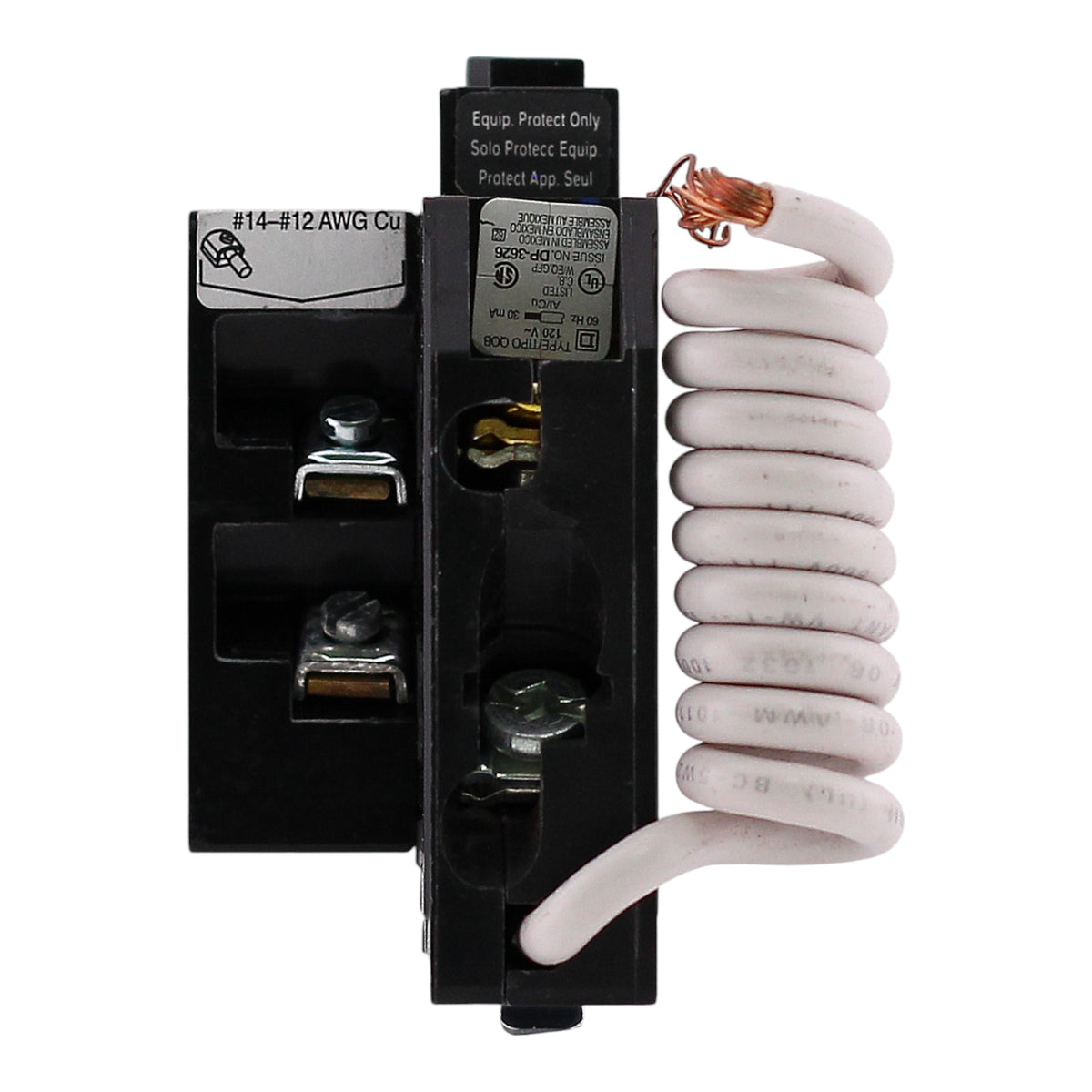

- Wire Size: #14–8 AWG Cu; #12–8 AWG Al
- Tightening Torque: 35.4 lb-in; 40.7 lb-in (#12–4 AWG)
- Dimensions: Height: 4.1 in; Width: 1.5 in; Depth: 2.9 in
- Weight: 0.750 lbs
- Trip Sensitivity: 30 mA ground fault protection (Class B — equipment protection)
- Certifications: UL Listed, CSA, TAA Compliant
This Square D QOB130EPD1200 bolt-on equipment protection device provides 30 Amp, 1-Pole GFCI protection at the 30mA Class B threshold for sensitive equipment circuits in NQ/NQOD panelboards. Includes a factory-installed 120V AC 1A auxiliary switch and requires 2 panel spaces. Note: Class B 30mA is for equipment protection — not a substitute for Class A 6mA personnel protection where required by NEC.
