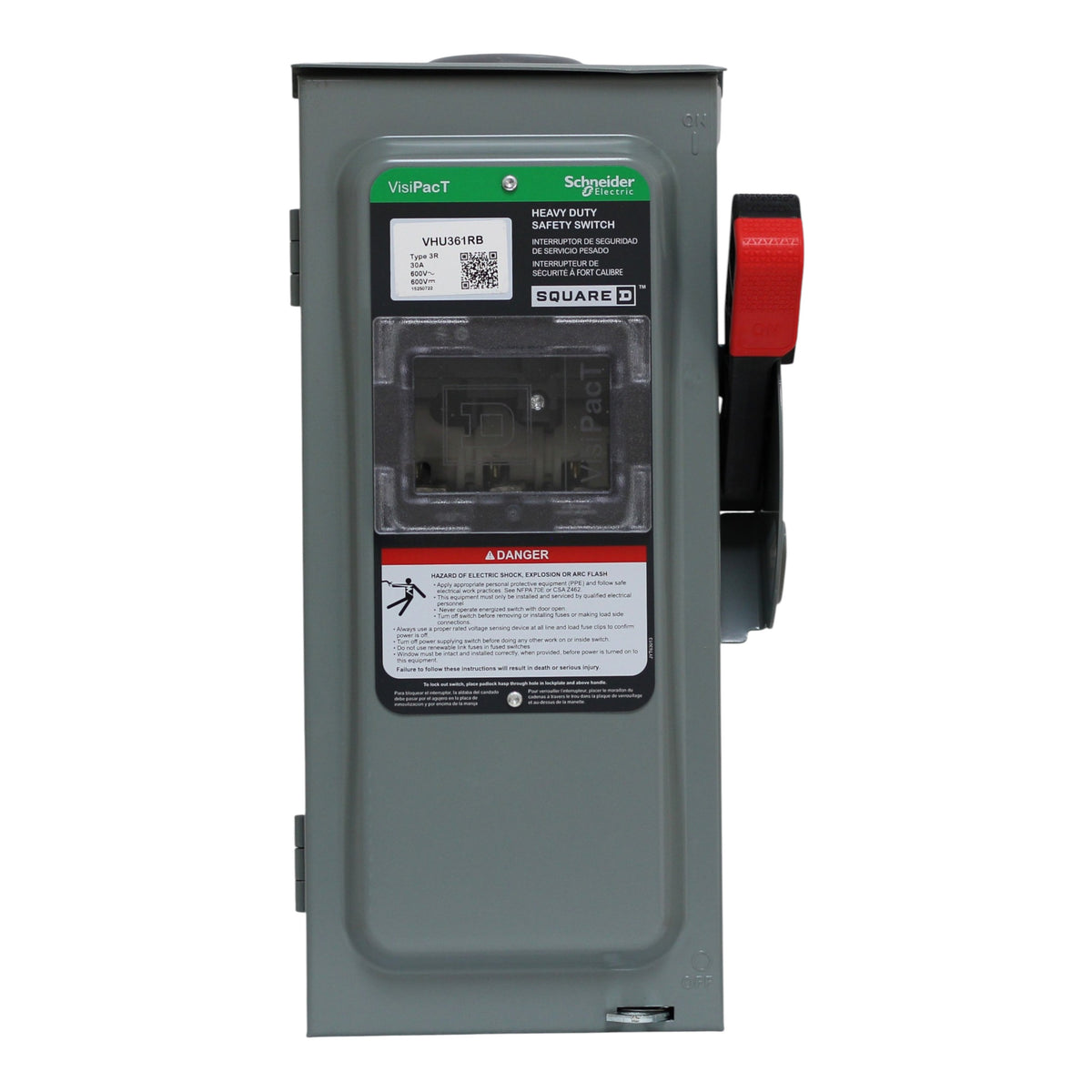

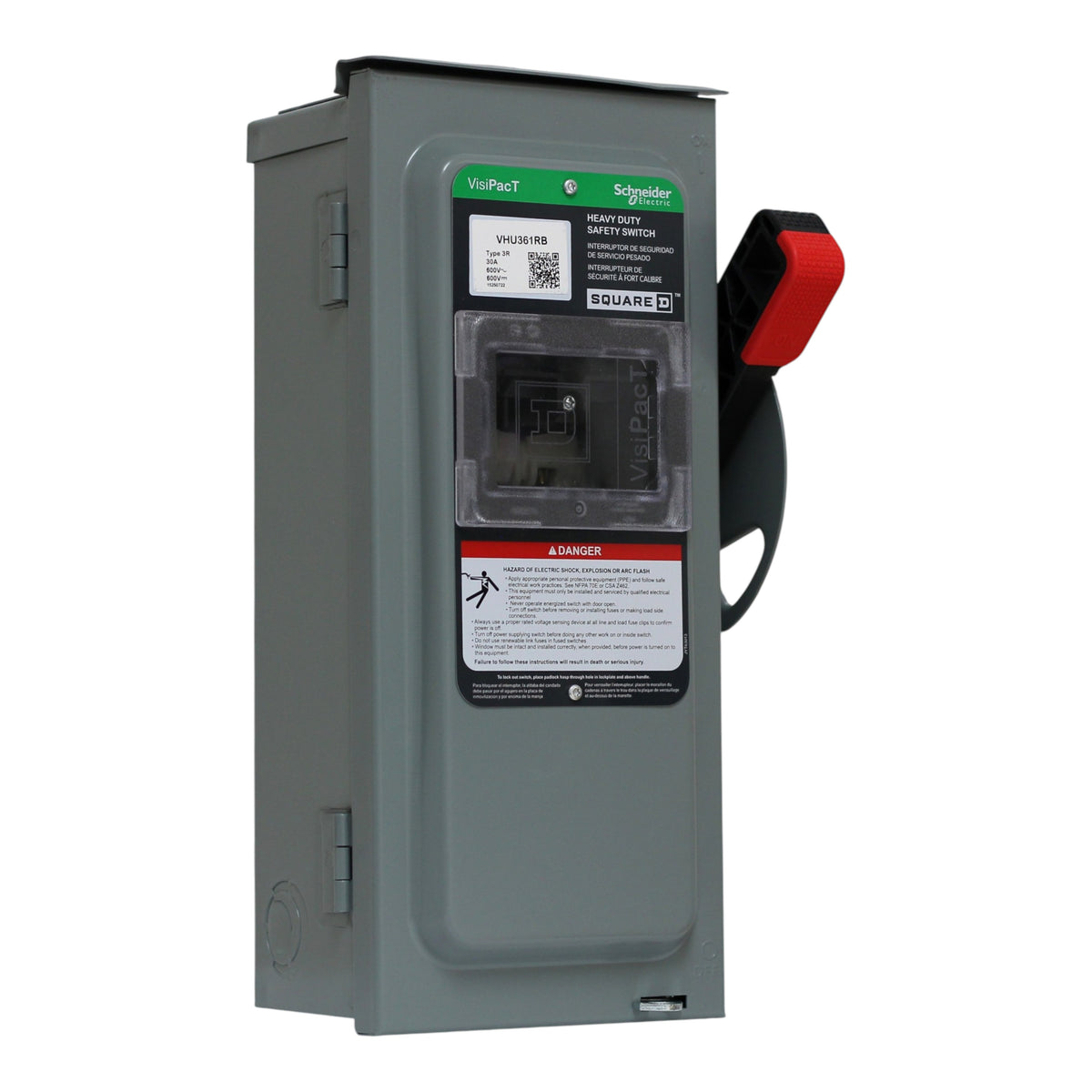

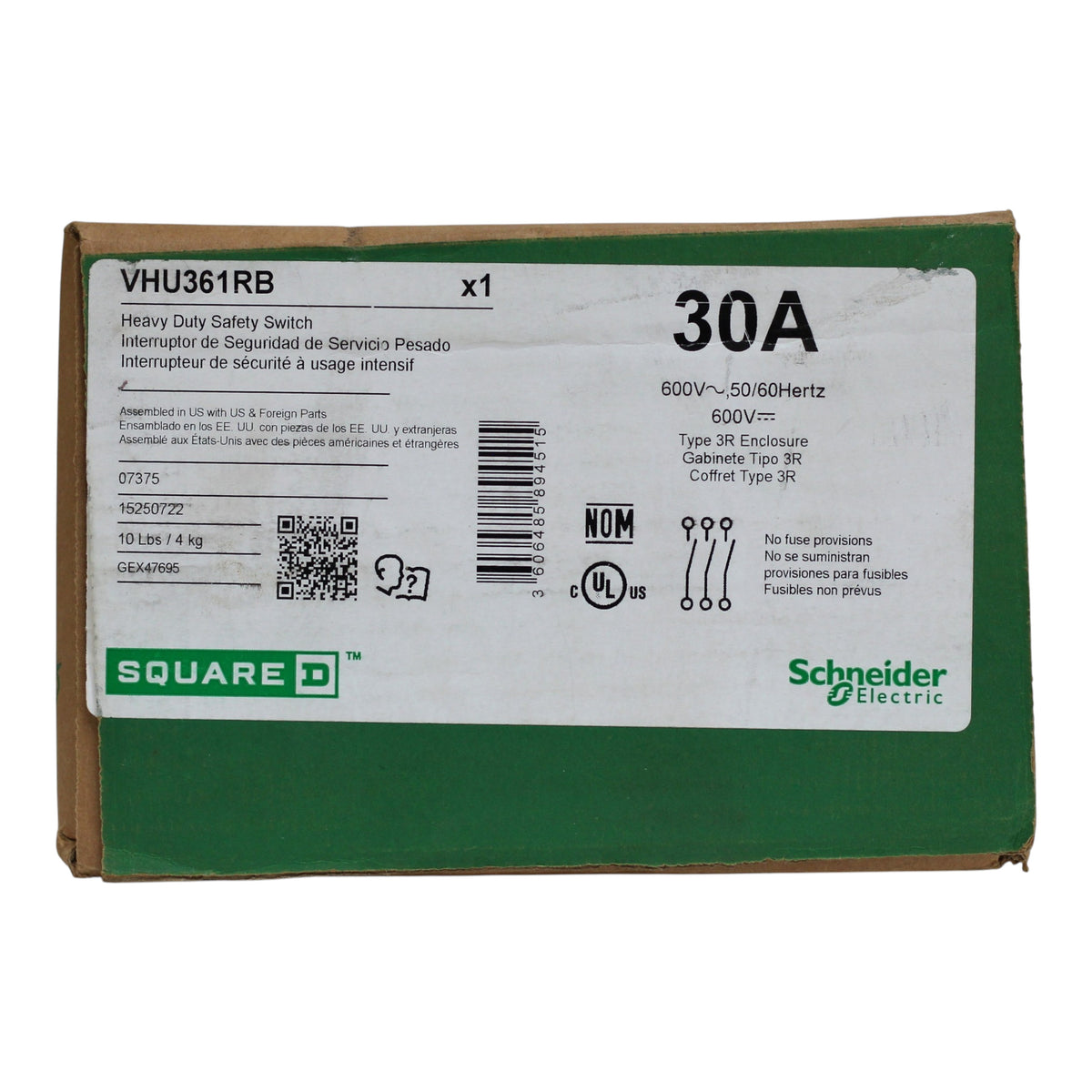

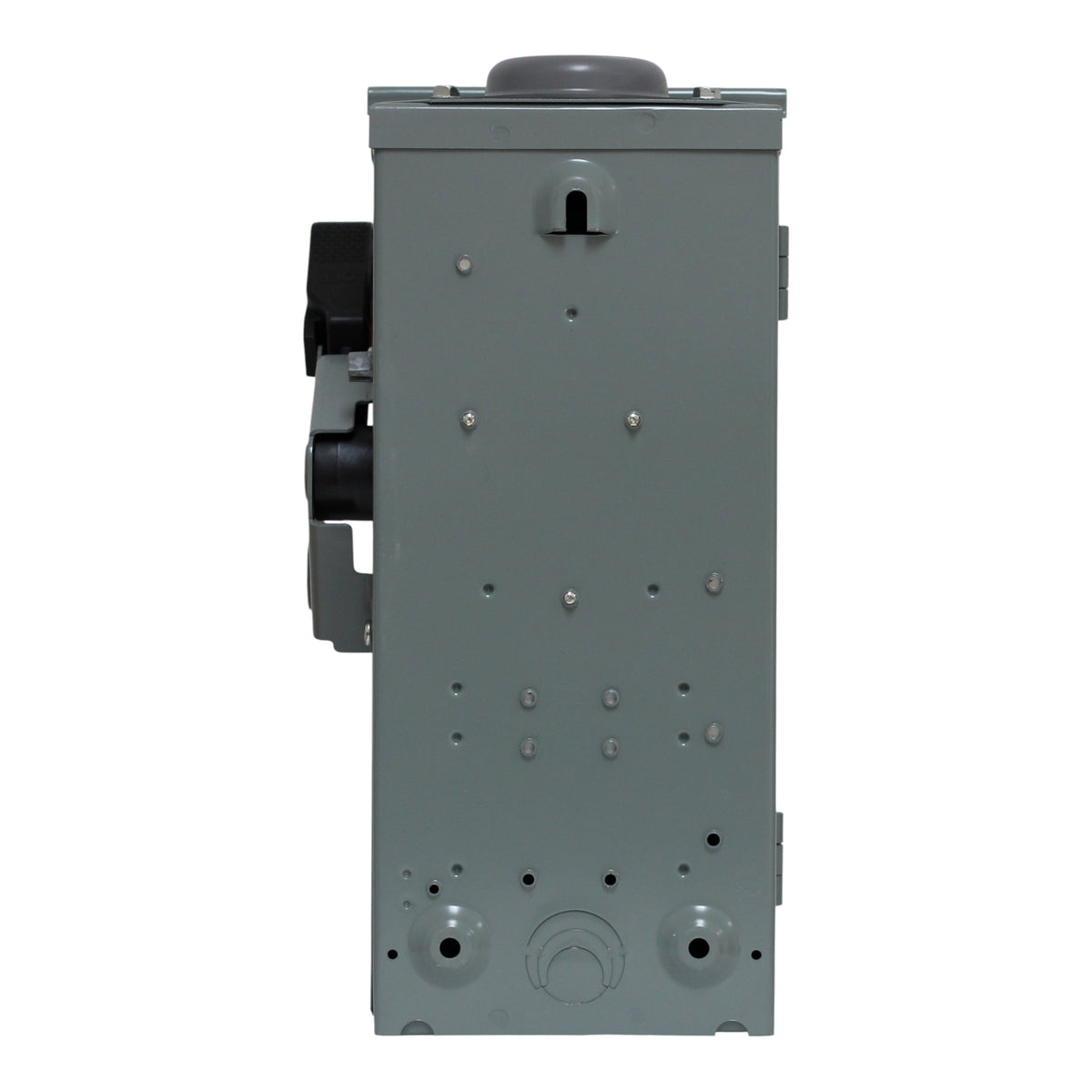

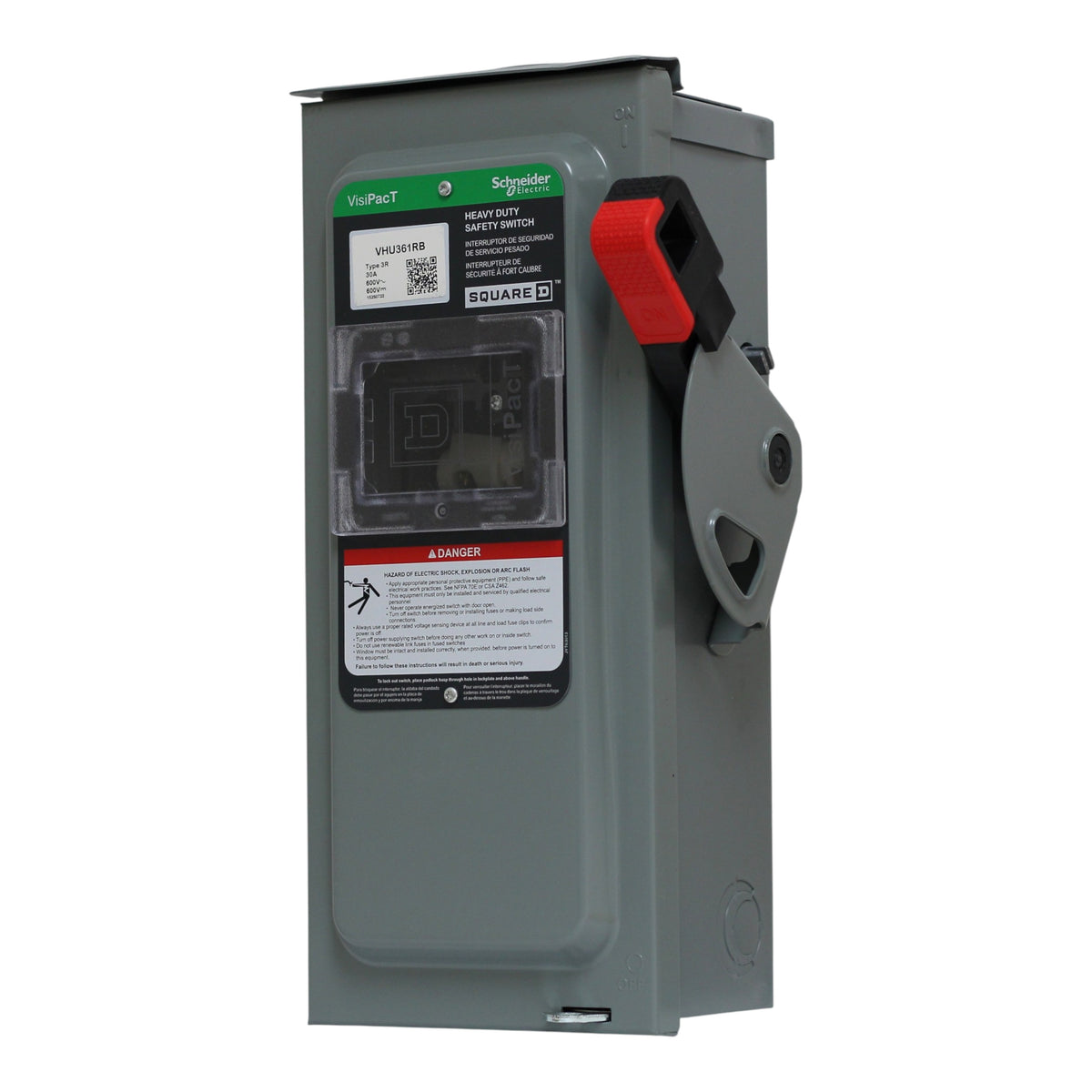

Square D VisiPacT, VHU361RB, 30A, 3P, 600V, Non-Fused Safety Switch, NEMA 3R
Regular price
$140.00 USD
Regular price
Sale
$289.99 USD
Sale price
$140.00 USD
Not sure it fits? Send us a photo of your panel label or the old breaker and we'll confirm the right part.
Email us a photoor text it to (346) 249-5974 · Breaker Finder
📦 Calculate shipping cost
BULK ORDER Quote.
How Bulk Order Discounts Work
We partner with Cart Whisper to make bulk ordering fast and simple. You can build your cart normally, then submit the entire cart to our team so we can apply bulk pricing and send you a custom quote.
1) Add everything you need to your cart
Shop the site and add all the products and quantities you want — just like a normal order.
2) Open your cart drawer and submit your cart
When you open the cart drawer, you’ll see a Cart Whisper section that looks like this:
Need Help? Cart ID: ####
Submit Cart to Support
Click “Submit Cart to Support” to send your cart to our team.
3) Fill out the quick form
After clicking the submit button, a form will pop up. Please enter:
-
Name
-
Email
-
Short message (what you want / any special notes)
✅ Important: Include your shipping address in the message.
That helps us quote your order accurately, including shipping and taxes (if applicable).
4) We review and send your custom quote
Once we receive your cart submission, we’ll:
-
Review your cart items and quantities
-
Apply any eligible bulk discounts
-
Send you a custom quote with final pricing (and shipping/tax if applicable)
What to include in your message (recommended)
To speed things up, copy/paste this format into the message box:
-
Shipping Address:
-
Notes / Special requests:
Square D VHU361RB: 30 Amp, 3-Pole, 600V non-fused VisiPacT heavy duty safety switch, NEMA 3R, surface mount, 30HP, viewing window, UL 98, CSA.
- Manufacturer: Schneider Electric (Square D)
- Brand: Square D
- Product Range: VisiPacT Heavy Duty Safety Switches
- UPC: 606485894515
- Model Number: VHU361RB
- Product Type: Non-Fusible Heavy Duty Safety Switch, Single Throw
- Amperage: 30 Amps
- Poles: 3-Pole
- Voltage: 600 Volts AC/DC
- Phase: 3-Phase
- Horsepower Rating: 30 HP @ 600V AC 3-phase; 10 HP @ 600V AC 1-phase; 20 HP @ 480V AC 3-phase; 7.5 HP @ 480V AC 1-phase; 10 HP @ 240V AC 3-phase; 5 HP @ 240V AC 1-phase; 15 HP @ 600V DC; 5 HP @ 250V DC
- Wiring Configuration: 3-wire
- Terminal Type: Lugs
- Wire Size: #14–6 AWG Cu; #12–6 AWG Al
- Tightening Torque: 45 lb-in (#6 AWG); 40 lb-in (#8 AWG); 35 lb-in (#14–10 AWG)
- Mounting: Surface mount
- Enclosure: NEMA 3R, galvannealed steel
- Viewing Window: Factory installed
- Neutral: Field-installable solid neutral kit available
- Grounding: Field-installable grounding kit required
- Service Entrance: Suitable for USA and Mexico
- Dimensions: Height: 14.843 in; Width: 6.62 in; Depth: 5.106 in
- Weight: 8.8 lbs
- Certifications: UL Listed (UL 98, File E2875), CSA C22.2 No. 4, NOM-003-SCFI-2000
This Square D VHU361RB VisiPacT non-fused heavy duty safety switch delivers 30 Amp, 3-Pole disconnecting protection for 600V AC/DC circuits in outdoor NEMA 3R applications. With factory-installed viewing window, quick-make/quick-break operation, 30HP rating at 600V 3-phase, and service entrance suitability for USA and Mexico, it meets UL 98 and CSA standards for commercial and industrial use.
