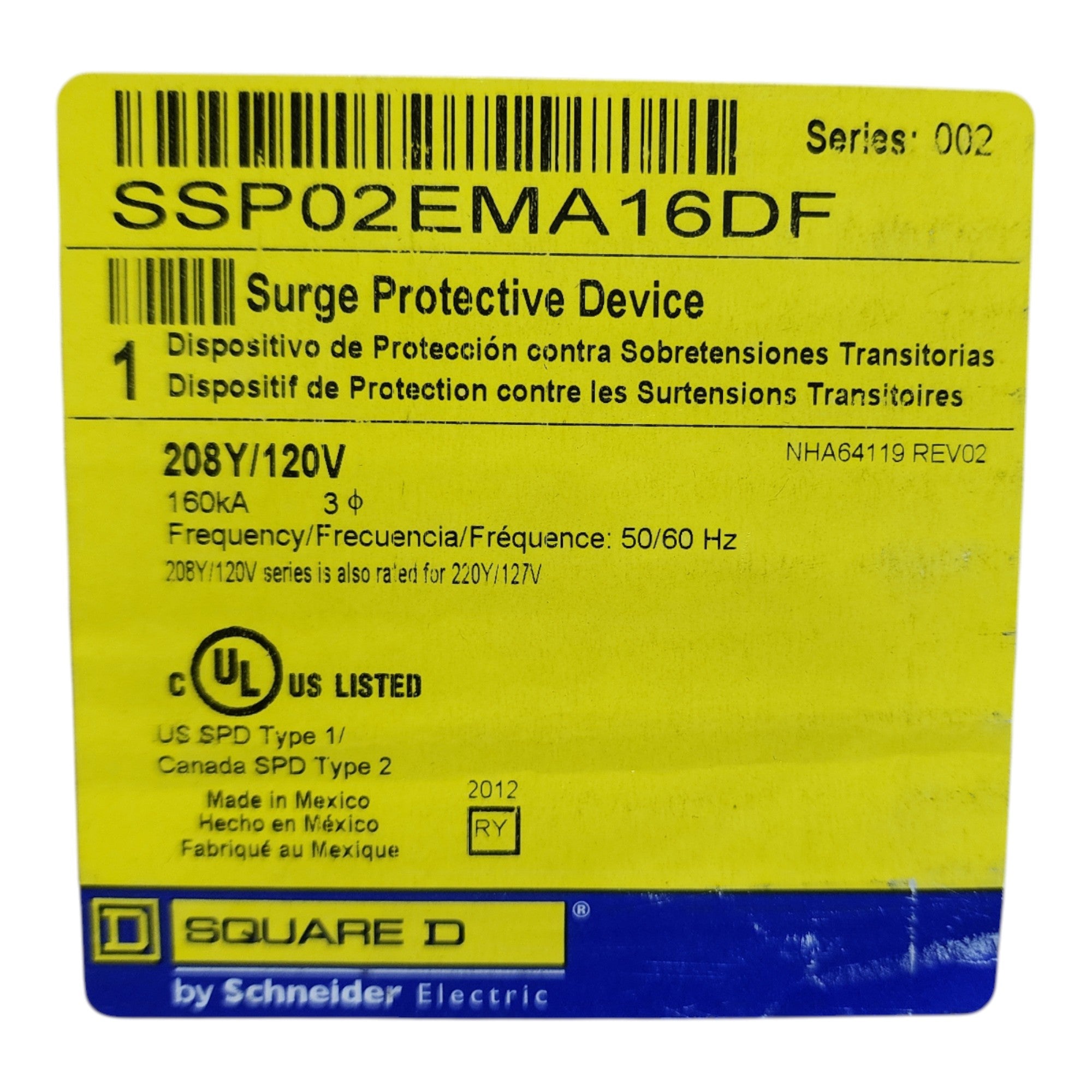

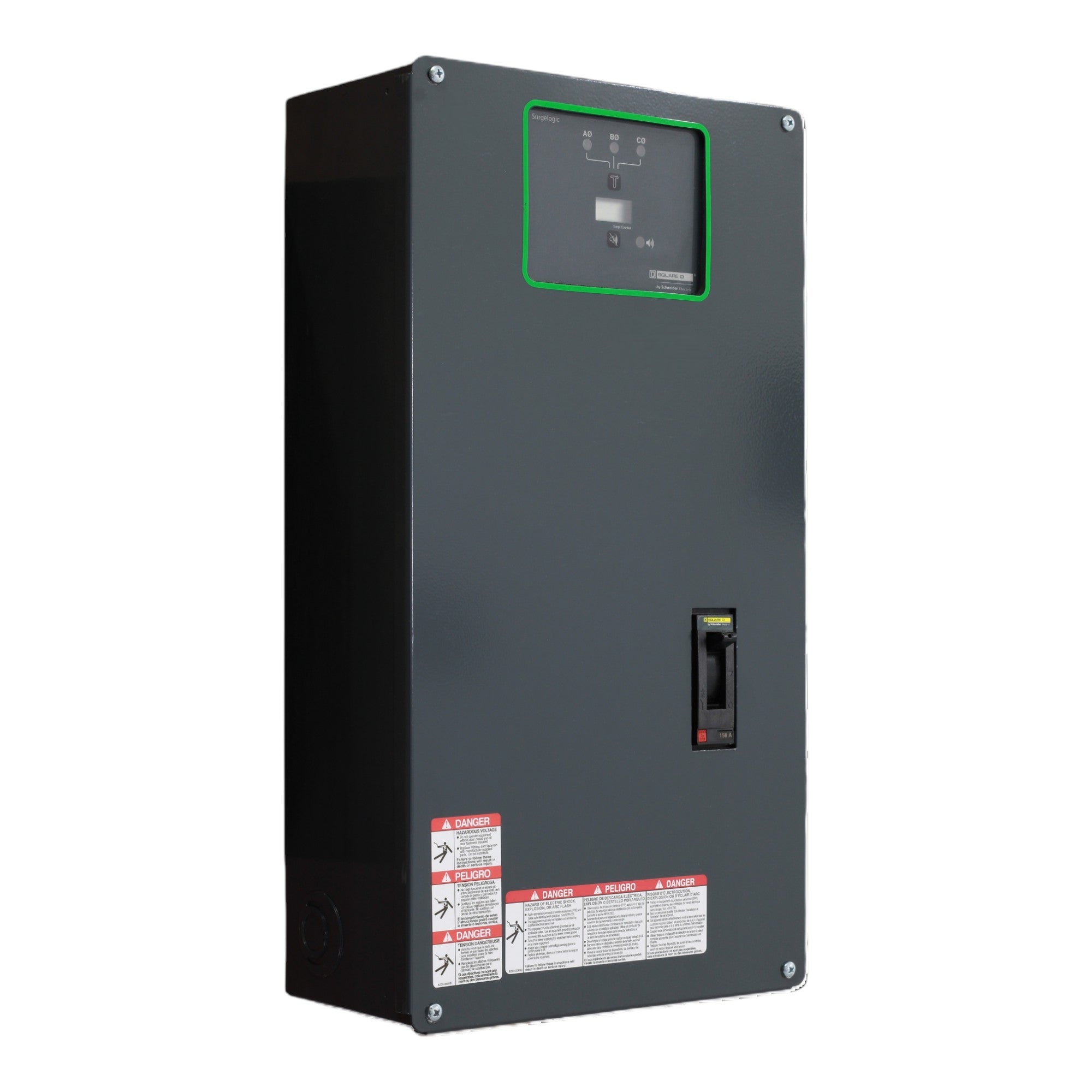

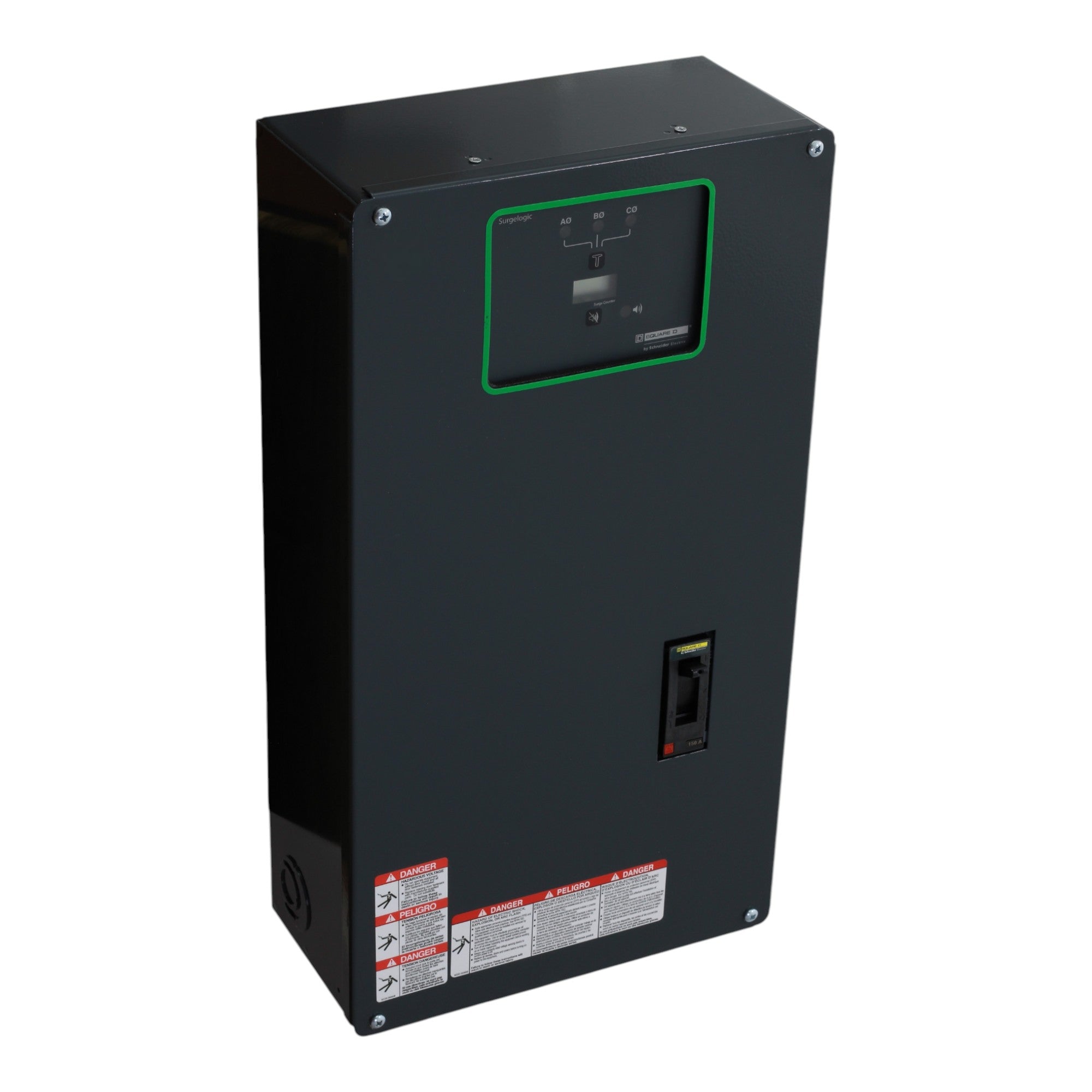

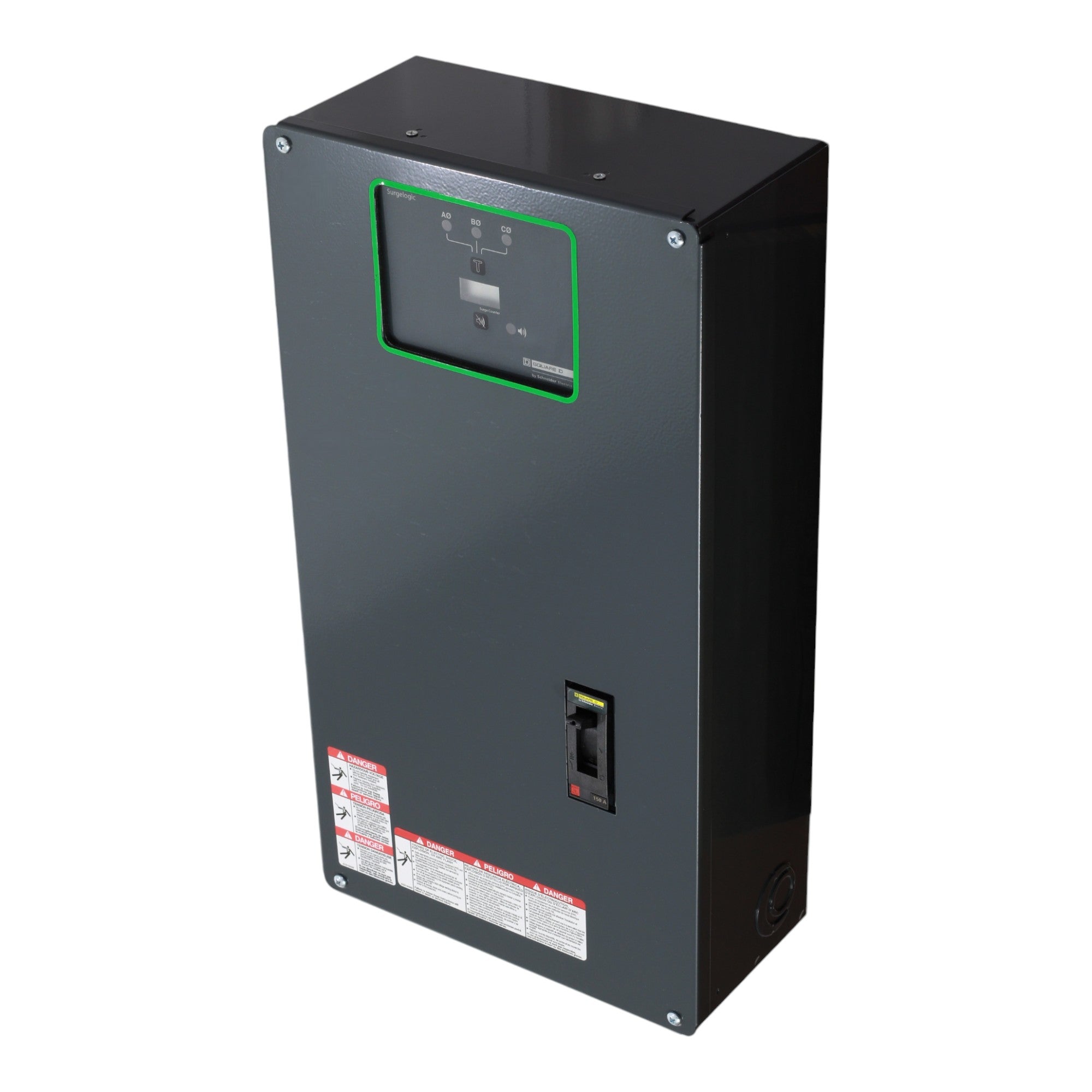

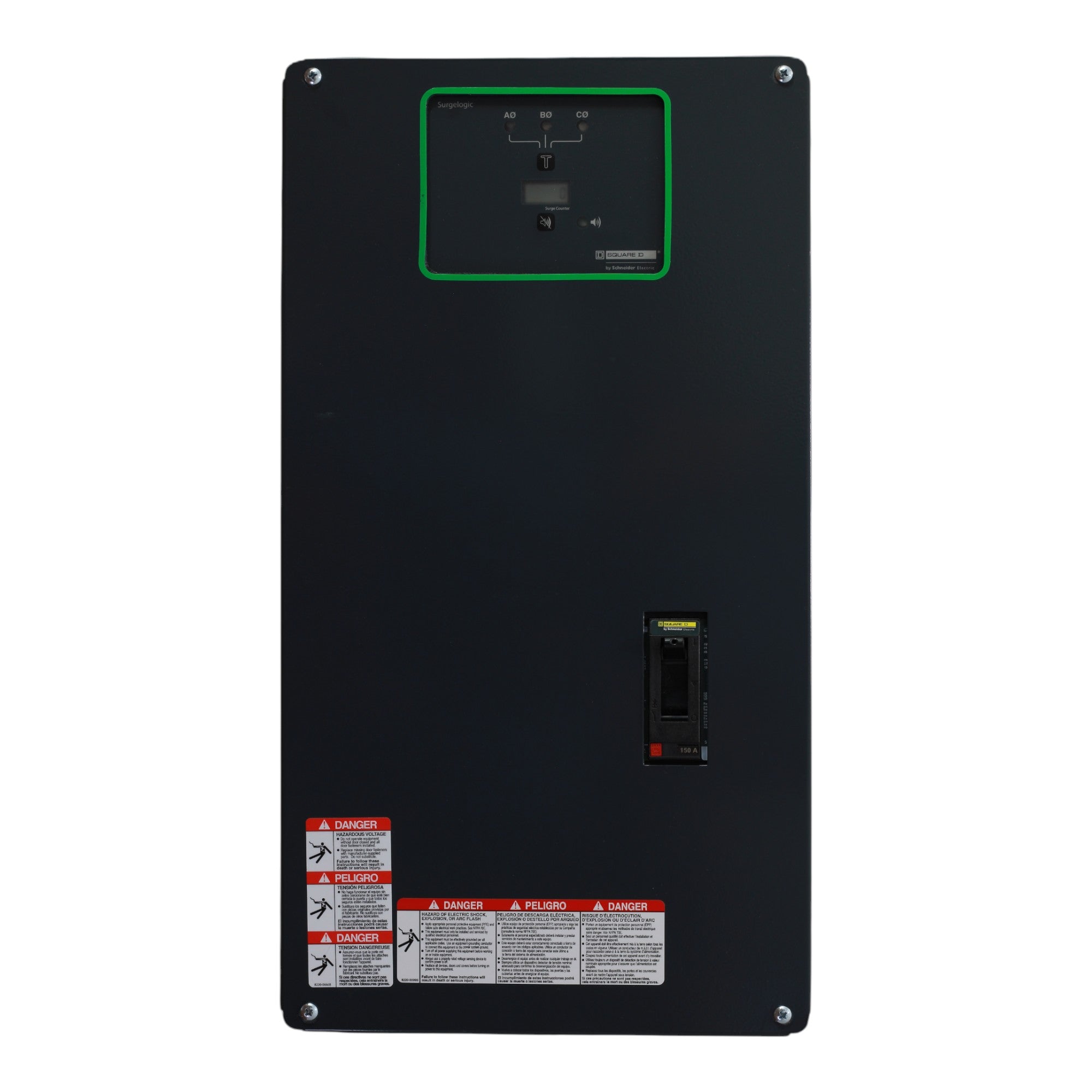

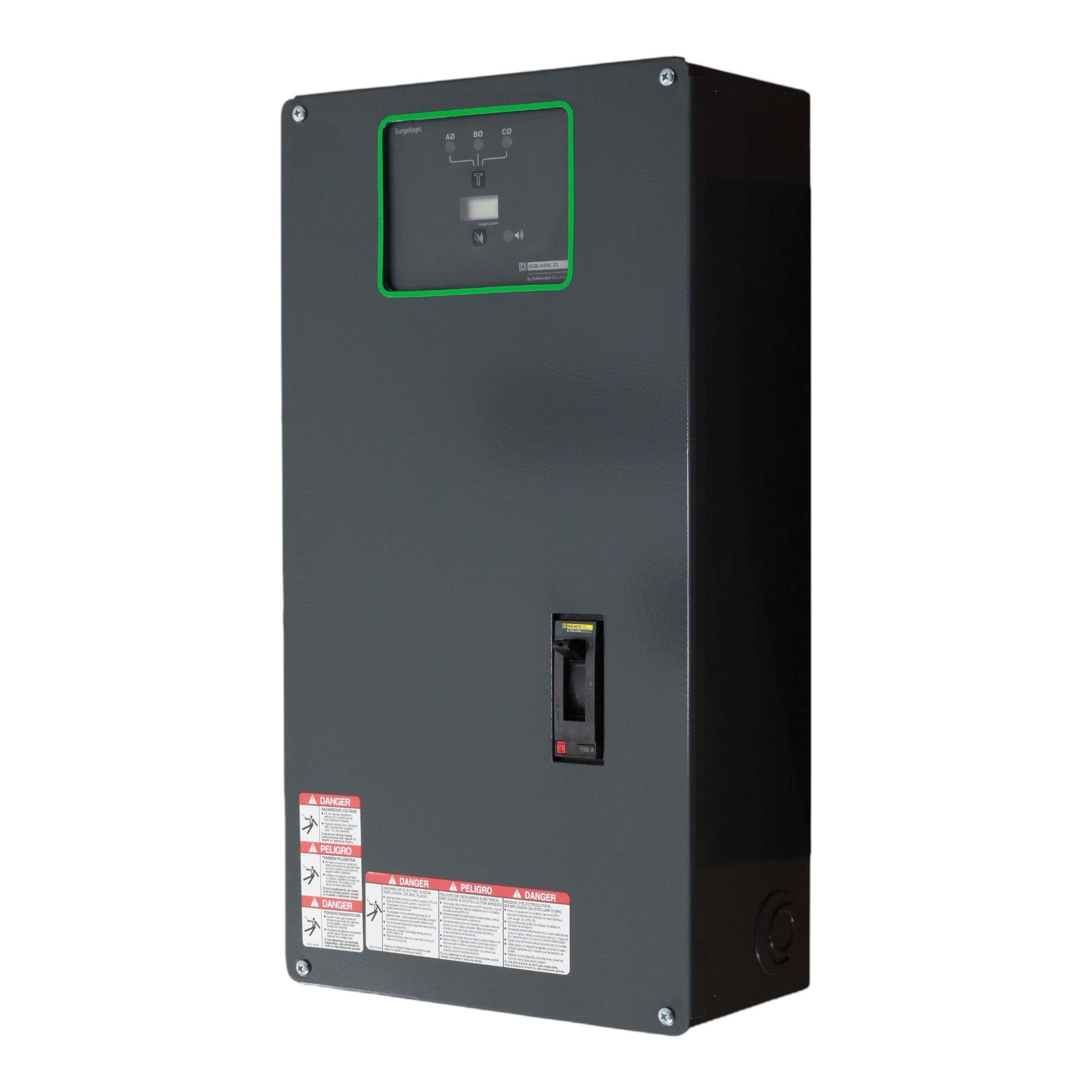

Surge protection device, Surgelogic, SSP02EMA16DF, 160kA, 208Y/120V, 3PH, 4W, NEMA 1, Disconnect, Filter
Regular price
$750.00
Not sure it fits? Send us a photo of your panel label or the old breaker and we'll confirm the right part.
Email us a photoor text it to (346) 249-5974 · Breaker Finder
📦 Calculate shipping cost
BULK ORDER Quote.
How Bulk Order Discounts Work
We partner with Cart Whisper to make bulk ordering fast and simple. You can build your cart normally, then submit the entire cart to our team so we can apply bulk pricing and send you a custom quote.
1) Add everything you need to your cart
Shop the site and add all the products and quantities you want — just like a normal order.
2) Open your cart drawer and submit your cart
When you open the cart drawer, you’ll see a Cart Whisper section that looks like this:
Need Help? Cart ID: ####
Submit Cart to Support
Click “Submit Cart to Support” to send your cart to our team.
3) Fill out the quick form
After clicking the submit button, a form will pop up. Please enter:
-
Name
-
Email
-
Short message (what you want / any special notes)
✅ Important: Include your shipping address in the message.
That helps us quote your order accurately, including shipping and taxes (if applicable).
4) We review and send your custom quote
Once we receive your cart submission, we’ll:
-
Review your cart items and quantities
-
Apply any eligible bulk discounts
-
Send you a custom quote with final pricing (and shipping/tax if applicable)
What to include in your message (recommended)
To speed things up, copy/paste this format into the message box:
-
Shipping Address:
-
Notes / Special requests:
Surgelogic SSP02EMA16DF: 160kA Surge Protective Device, 208Y/120V, 3-Phase, 4-Wire, NEMA 1, with Disconnect Switch and Enhanced EMI/RFI Filter, UL and CSA Certified
- Manufacturer: Schneider Electric
- Brand: Square D
- Product Range: Surgelogic (for distribution and branch panel applications)
- UPC: 3606486148525
- Model Number: SSP02EMA16DF
- Product Type: Surge Protective Device
- Surge Current: 160 kA
- Voltage Rating: 208Y/120 Volts AC
- Nominal Discharge Current: 20 kA
- Maximum Continuous Operating Voltage (MCOV): 150 Volts
- Short Circuit Current Rating (SCCR): 200 kA
- Number of Phases: 3-Phase
- Wiring Configuration: 4-Wire
- Poles: 3
- Connection: Lugs AWG 10...AWG 3/0 Copper
- Tightening Torque: 35.4 lb-in
- Mounting Mode: Surface

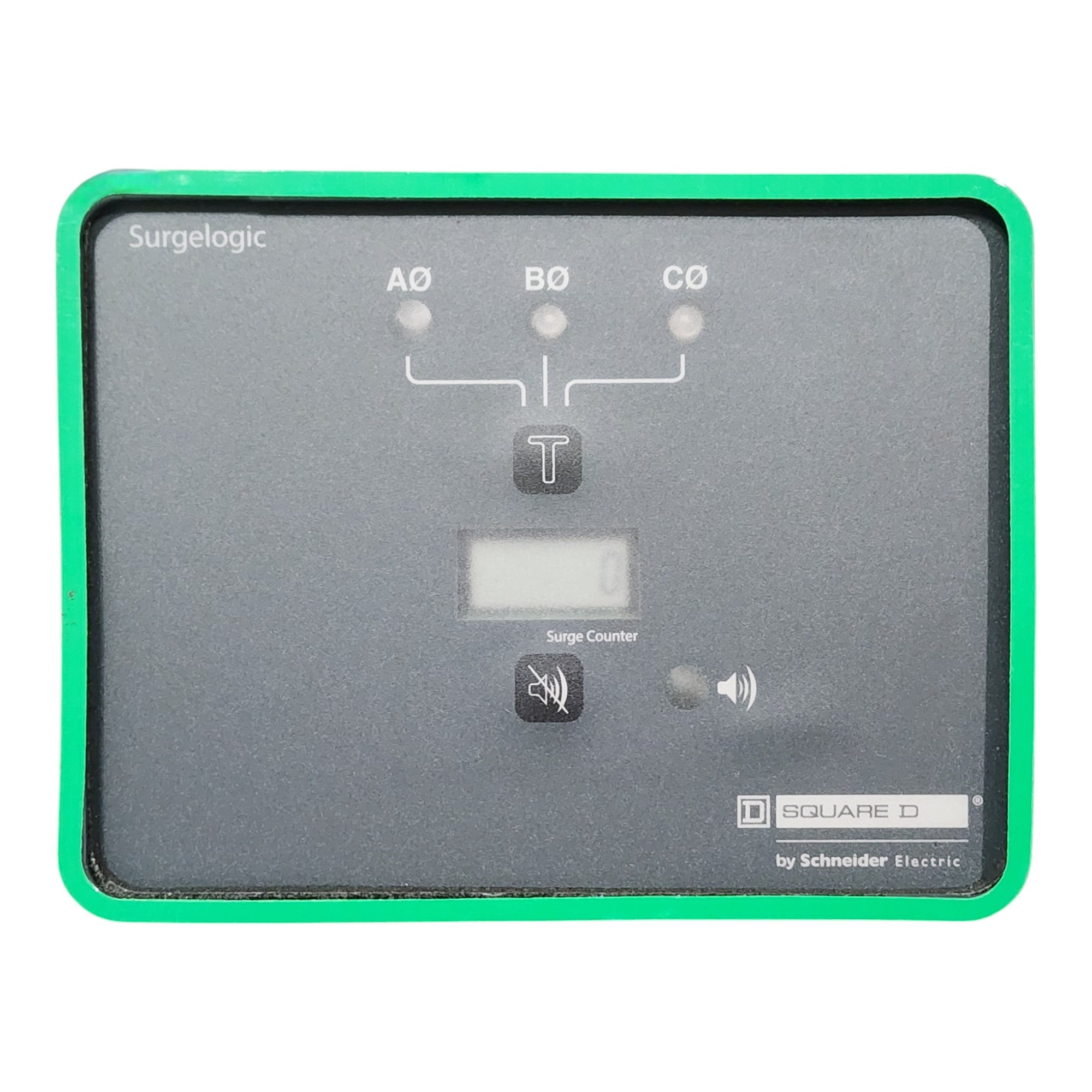

- Local Signaling: Status LED Green per Phase (Normal Operation), Status LED Red per Phase (Fault)
- Provided Equipment: Alarm Enable/Disable Switch, Disconnect Switch, Surge Counter, Sine Wave Tracking Module, Dry Contacts
- Cable Length: 19.02 in
- Dimensions: Height: 19.5 in; Width: 9.9 in; Depth: 5.3 in
- Weight: 20.501 lbs
- Enclosure Rating: NEMA 1
- Enclosure Material: Gray Painted Sheet Steel
- Certifications: UL Listed, CSA Certified
- EMI/RFI Filtering: -54 dB at 100 kHz
- Ambient Operating Temperature: 149 °F
This Square D Surgelogic SSP02EMA16DF surge protective device delivers robust 160kA surge protection for 208Y/120V, 3-phase, 4-wire systems in distribution and branch panel applications. Featuring a NEMA 1 enclosure, disconnect switch, and enhanced EMI/RFI filtering at -54 dB, it ensures reliable performance. UL and CSA certified, it includes status LEDs, surge counter, and dry contacts for advanced monitoring, ideal for protecting critical electrical equipment.
